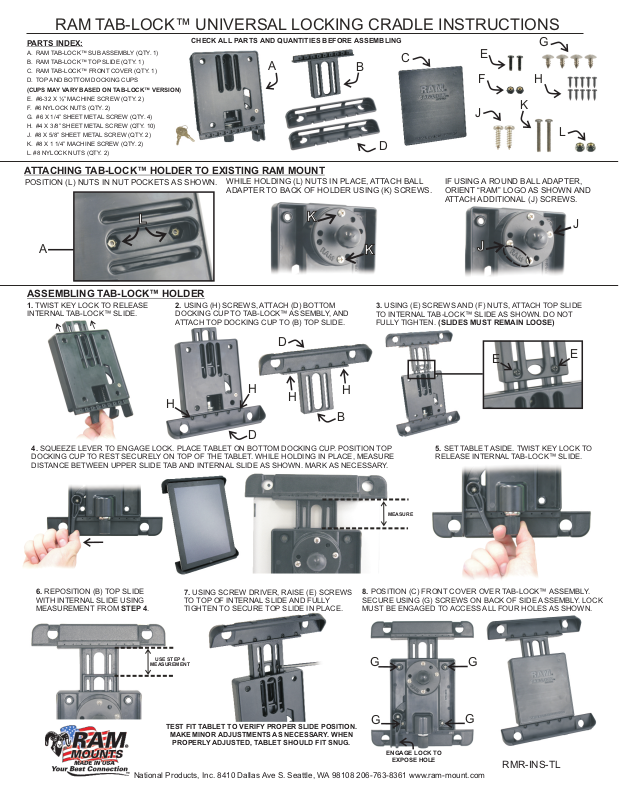

RAM TAB-LOCK™ UNIVERSAL LOCKING CRADLE INSTRUCTIONS
PARTS INDEX:
A. RAM TAB-LOCK™ SUB ASSEMBLY (QTY. 1)
B. RAM TAB-LOCK™ TOP SLIDE (QTY. 1)
C. RAM TAB-LOCK™ FRONT COVER (QTY. 1)
D. TOP AND BOTTOM DOCKING CUPS
(CUPS MAY VARY BASED ON TAB-LOCK™ VERSION)
E. #6-32 X ½” MACHINE SCREW (QTY. 2)
F. #6 NYLOCK NUTS (QTY. 2)
G. #6 X 1/4” SHEET METAL SCREW (QTY. 4)
H. #4 X 3/8” SHEET METAL SCREW (QTY. 10)
J. #8 X 5/8” SHEET METAL SCREW (QTY. 2)
K. #8 X 1 1/4” MACHINE SCREW (QTY. 2)
L. #8 NYLOCK NUTS (QTY. 2)
CHECK ALL PARTS AND QUANTITIES BEFORE ASSEMBLING
A
B
D
C
E
F
J
G
H
K
L
ATTACHING TAB-LOCK™ HOLDER TO EXISTING RAM MOUNT
POSITION (L) NUTS IN NUT POCKETS AS SHOWN.
L
A
WHILE HOLDING (L) NUTS IN PLACE, ATTACH BALL
ADAPTER TO BACK OF HOLDER USING (K) SCREWS.
K
K
ASSEMBLING TAB-LOCK™ HOLDER
1. TWIST KEY LOCK TO RELEASE
INTERNAL TAB-LOCK™ SLIDE.
2. USING (H) SCREWS, ATTACH (D) BOTTOM
DOCKING CUP TO TAB-LOCK™ ASSEMBLY, AND
ATTACH TOP DOCKING CUP TO (B) TOP SLIDE.
D
H
H
H
H
B
D
4. SQUEEZE LEVER TO ENGAGE LOCK. PLACE TABLET ON BOTTOM DOCKING CUP. POSITION TOP
DOCKING CUP TO REST SECURELY ON TOP OF THE TABLET. WHILE HOLDING IN PLACE, MEASURE
DISTANCE BETWEEN UPPER SLIDE TAB AND INTERNAL SLIDE AS SHOWN. MARK AS NECESSARY.
IF USING A ROUND BALL ADAPTER,
ORIENT “RAM” LOGO AS SHOWN AND
ATTACH ADDITIONAL (J) SCREWS.
J
J
3. USING (E) SCREWS AND (F) NUTS, ATTACH TOP SLIDE
TO INTERNAL TAB-LOCK™ SLIDE AS SHOWN. DO NOT
FULLY TIGHTEN. (SLIDES MUST REMAIN LOOSE)
E
5. SET TABLET ASIDE. TWIST KEY LOCK TO
RELEASE INTERNAL TAB-LOCK™ SLIDE.
E
6. REPOSITION (B) TOP SLIDE
WITH INTERNAL SLIDE USING
MEASUREMENT FROM STEP 4.
National Products, Inc. 8410 Dallas Ave S. Seattle, WA 98108 206-763-8361 www.ram-mount.com
7. USING SCREW DRIVER, RAISE (E) SCREWS
TO TOP OF INTERNAL SLIDE AND FULLY
TIGHTEN TO SECURE TOP SLIDE IN PLACE.
USE STEP 4
MEASUREMENT
TEST FIT TABLET TO VERIFY PROPER SLIDE POSITION.
MAKE MINOR ADJUSTMENTS AS NECESSARY. WHEN
PROPERLY ADJUSTED, TABLET SHOULD FIT SNUG.
MEASURE
8. POSITION (C) FRONT COVER OVER TAB-LOCK™ ASSEMBLY.
SECURE USING (G) SCREWS ON BACK OF SIDE ASSEMBLY. LOCK
MUST BE ENGAGED TO ACCESS ALL FOUR HOLES AS SHOWN.
G
G
ENGAGE LOCK TO
EXPOSE HOLE
G
G
RMR-INS-TL
