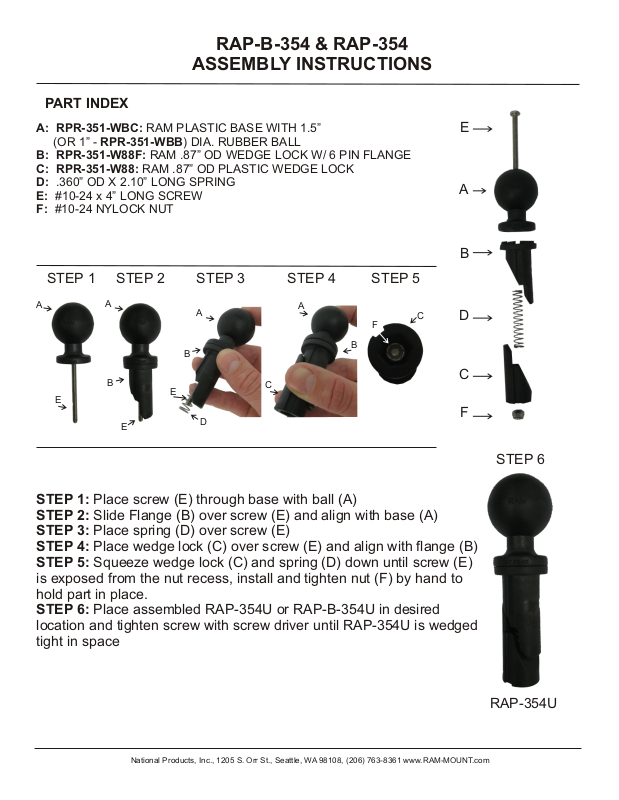

RAP-B-354 & RAP-354

ASSEMBLY INSTRUCTIONS

PART INDEX

RPR-351-WBC: RAM PLASTIC BASE WITH 1.5”

A:

(OR 1” - ) DIA. BALL

RPR-351-W88F: RAM .87” OD WEDGE LOCK W/ 6 PIN

B: FLANGE
C: RPR-351-W88: RAM .87” OD PLASTIC WEDGE LOCK

.360” OD X 2.10” LONG SPRING

D:

#10-24 x 4” L NG SCREW

E: O

#10-24 NYLOCK NUT

F:

RPR-351-WBB RUBBER

E

A

B

B

E

STEP 3

A

D

STEP 4 STEP 5

A

B

C

F

C

D

C

F

STEP 1 STEP 2

A

E

A

B

E

STEP 1: Place screw (E) through base with ball (A)
STEP 2: Slide Flange (B) over screw (E) and align with base (A)
STEP 3: Place spring (D) over screw (E)
STEP 4: Place wedge lock (C) over screw (E) and align with flange (B)
STEP 5: Squeeze wedge lock (C) and spring (D) down until screw (E)

is exposed from the nut recess, install and tighten nut (F) by hand to
hold part in place.
STEP 6: Place assembled RAP-354U or RAP-B-354U in desired
location and tighten screw with screw driver until RAP-354U is wedged
tight in space

STEP 6

National Products, Inc., 1205 S. Orr St., Seattle, WA 98108, [phone] www.RAM-MOUNT.com

RAP-354U
