RAM Mount RAP-350 User Manual

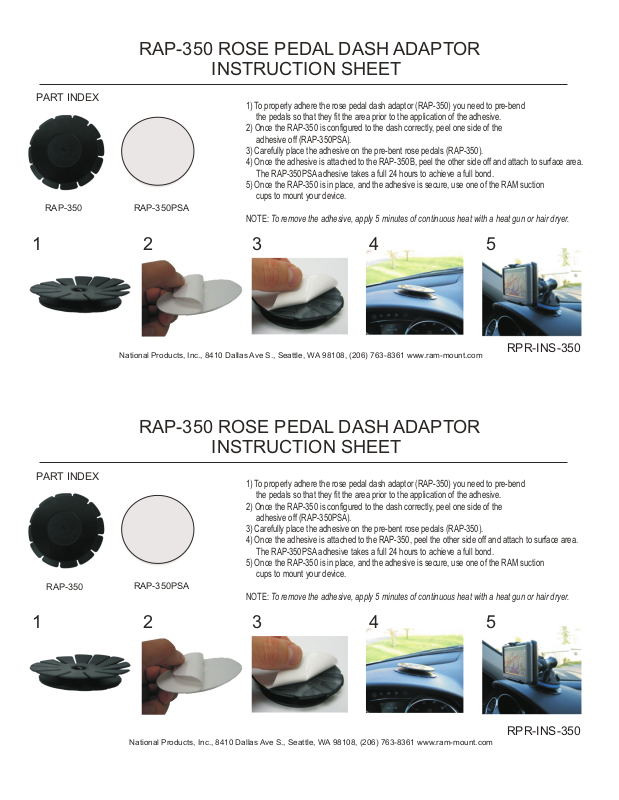

RAP-350 ROSE PEDAL DASH ADAPTOR
INSTRUCTION SHEET
PART INDEX
RAP-350
RAP-350PSA
1 2
National Products, Inc., 8410 Dallas Ave S., Seattle, WA 98108, (206) 763-8361 www.ram-mount.com
1) To properly adhere the rose pedal dash adaptor (RAP-350) you need to pre-bend
the pedals so that they fit the area prior to the application of the adhesive.
2) Once the RAP-350 is configured to the dash correctly, peel one side of the
adhesive off (RAP-350PSA).
3) Carefully place the adhesive on the pre-bent rose pedals (RAP-350).
4) Once the adhesive is attached to the RAP-350B, peel the other side off and attach to surface area.
The RAP-350PSA adhesive takes a full 24 hours to achieve a full bond.
5) Once the RAP-350 is in place, and the adhesive is secure, use one of the RAM suction
cups to mount your device.
NOTE: To remove the adhesive, apply 5 minutes of continuous heat with a heat gun or hair dryer.
3
4
5
RPR-INS-350
RAP-350 ROSE PEDAL DASH ADAPTOR
PART INDEX
RAP-350
1 2
RAP-350PSA
INSTRUCTION SHEET
1) To properly adhere the rose pedal dash adaptor (RAP-350) you need to pre-bend
the pedals so that they fit the area prior to the application of the adhesive.
2) Once the RAP-350 is configured to the dash correctly, peel one side of the
adhesive off (RAP-350PSA).
3) Carefully place the adhesive on the pre-bent rose pedals (RAP-350).
4) Once the adhesive is attached to the RAP-350, peel the other side off and attach to surface area.
The RAP-350PSA adhesive takes a full 24 hours to achieve a full bond.
5) Once the RAP-350 is in place, and the adhesive is secure, use one of the RAM suction
cups to mount your device.
NOTE: To remove the adhesive, apply 5 minutes of continuous heat with a heat gun or hair dryer.
3
4
5
National Products, Inc., 8410 Dallas Ave S., Seattle, WA 98108, (206) 763-8361 www.ram-mount.com
RPR-INS-350
