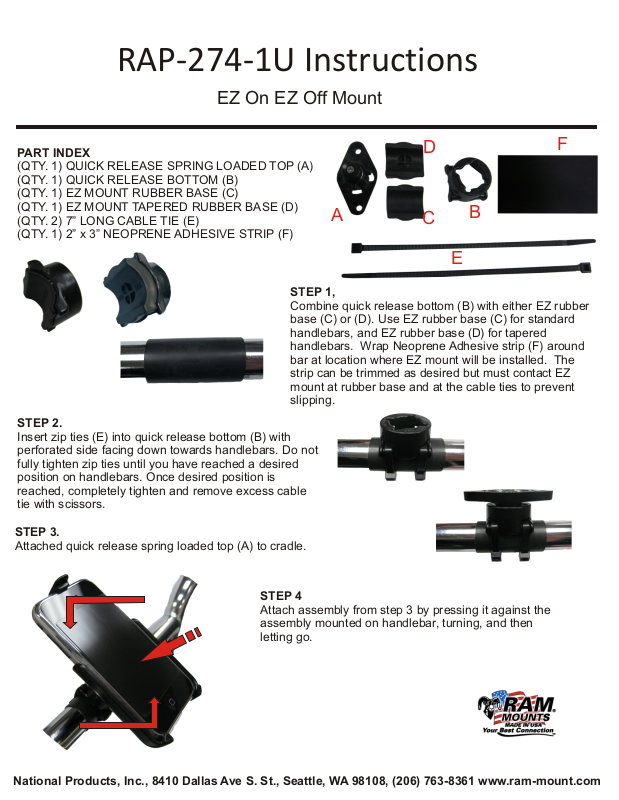

RAM Mount RAP-274-1U User Manual

RAP-274-1U Instructions

EZ On EZ Off Mount

PART INDEX

(QTY. 1) QUICK RELEASE SPRING LOADED TOP (A)
(QTY. 1) QUICK RELEASE BOTTOM (B)
(QTY. 1) EZ MOUNT RUBBER BASE (C)
(QTY. 1) EZ MOUNT TAPERED RUBBER BASE (D)
(QTY. 2) 7” LONG CABLE TIE (E)
(QTY. 1) 2” x 3” NEOPRENE ADHESIVE STRIP (F)

STEP 1,

Combine quick release bottom (B) with either EZ rubber
base (C) or (D). Use EZ rubber base (C) for standard
handlebars, and EZ rubber base (D) for tapered
handlebars. Wrap Neoprene Adhesive strip (F) around
bar at location where EZ mount will be installed. The
strip can be trimmed as desired but must contact EZ
mount at rubber base and at the cable ties to prevent
slipping.

STEP 2.

Insert zip ties (E) into quick release bottom (B) with
perforated side facing down towards handlebars. Do not
fully tighten zip ties until you have reached a desired
position on handlebars. Once desired position is
reached, completely tighten and remove excess cable
tie with scissors.

A

D

C

F

B

E

STEP 3.

Attached quick release spring loaded top (A) to cradle.

STEP 4

Attach assembly from step 3 by pressing it against the
assembly mounted on handlebar, turning, and then
letting go.
