RAM Mount RAP-274 User Manual

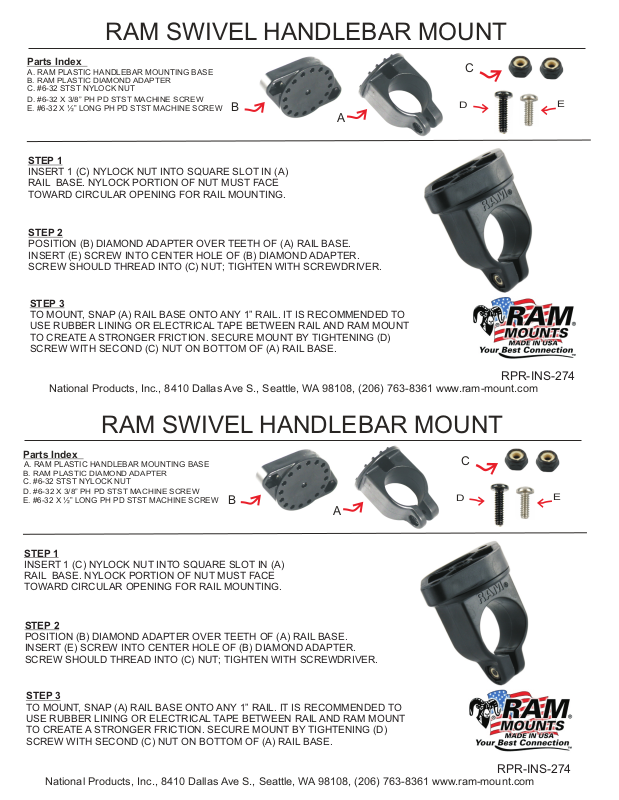

RAM SWIVEL HANDLEBAR MOUNT
Parts Index
A. RAM PLASTIC HANDLEBAR MOUNTING BASE
B. RAM PLASTIC DIAMOND ADAPTER
C. #6-32 STST NYLOCK NUT
D. #6-32 X 3/8” PH PD STST MACHINE SCREW
E. #6-32 X ½” LONG PH PD STST MACHINE SCREW
B
A
STEP 1
INSERT 1 (C) NYLOCK NUT INTO SQUARE SLOT IN (A)
RAIL BASE. NYLOCK PORTION OF NUT MUST FACE
TOWARD CIRCULAR OPENING FOR RAIL MOUNTING.
STEP 2
POSITION (B) DIAMOND ADAPTER OVER TEETH OF (A) RAIL BASE.
INSERT (E) SCREW INTO CENTER HOLE OF (B) DIAMOND ADAPTER.
SCREW SHOULD THREAD INTO (C) NUT; TIGHTEN WITH SCREWDRIVER.
STEP 3
TO MOUNT, SNAP (A) RAIL BASE ONTO ANY 1” RAIL. IT IS RECOMMENDED TO
USE RUBBER LINING OR ELECTRICAL TAPE BETWEEN RAIL AND RAM MOUNT
TO CREATE A STRONGER FRICTION. SECURE MOUNT BY TIGHTENING (D)
SCREW WITH SECOND (C) NUT ON BOTTOM OF (A) RAIL BASE.
C
D
E
National Products, Inc., 8410 Dallas Ave S., Seattle, WA 98108, (206) 763-8361 www.ram-mount.com
RAM SWIVEL HANDLEBAR MOUNT
Parts Index
A. RAM PLASTIC HANDLEBAR MOUNTING BASE
B. RAM PLASTIC DIAMOND ADAPTER
C. #6-32 STST NYLOCK NUT
D. #6-32 X 3/8” PH PD STST MACHINE SCREW
E. #6-32 X ½” LONG PH PD STST MACHINE SCREW
B
A
STEP 1
INSERT 1 (C) NYLOCK NUT INTO SQUARE SLOT IN (A)
RAIL BASE. NYLOCK PORTION OF NUT MUST FACE
TOWARD CIRCULAR OPENING FOR RAIL MOUNTING.
STEP 2
POSITION (B) DIAMOND ADAPTER OVER TEETH OF (A) RAIL BASE.
INSERT (E) SCREW INTO CENTER HOLE OF (B) DIAMOND ADAPTER.
SCREW SHOULD THREAD INTO (C) NUT; TIGHTEN WITH SCREWDRIVER.
C
D
RPR-INS-274
E
STEP 3
TO MOUNT, SNAP (A) RAIL BASE ONTO ANY 1” RAIL. IT IS RECOMMENDED TO
USE RUBBER LINING OR ELECTRICAL TAPE BETWEEN RAIL AND RAM MOUNT
TO CREATE A STRONGER FRICTION. SECURE MOUNT BY TIGHTENING (D)
SCREW WITH SECOND (C) NUT ON BOTTOM OF (A) RAIL BASE.
National Products, Inc., 8410 Dallas Ave S., Seattle, WA 98108, (206) 763-8361 www.ram-mount.com
RPR-INS-274
