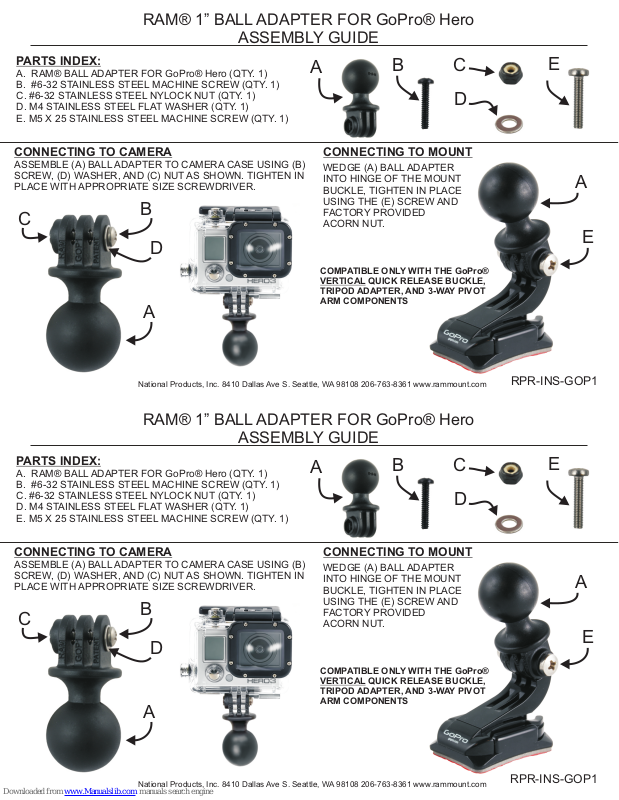

RAM® 1” BALL ADAPTER FOR GoPro® Hero
ASSEMBLY GUIDE
PARTS INDEX:
A. RAM® BALL ADAPTER FOR GoPro® Hero (QTY. 1)
B. #6-32 STAINLESS STEEL MACHINE SCREW (QTY. 1)
C. #6-32 STAINLESS STEEL NYLOCK NUT (QTY. 1)
D. M4 STAINLESS STEEL FLAT WASHER (QTY. 1)
E. M5 X 25 STAINLESS STEEL MACHINE SCREW (QTY. 1)
CONNECTING TO CAMERA
ASSEMBLE (A) BALL ADAPTER TO CAMERA CASE USING (B)
SCREW, (D) WASHER, AND (C) NUT AS SHOWN. TIGHTEN IN
PLACE WITH APPROPRIATE SIZE SCREWDRIVER.
B
C
D
A
A
B
C
D
CONNECTING TO MOUNT
WEDGE (A) BALL ADAPTER
INTO HINGE OF THE MOUNT
BUCKLE, TIGHTEN IN PLACE
USING THE (E) SCREW AND
FACTORY PROVIDED
ACORN NUT.
COMPATIBLE ONLY WITH THE GoPro®
VERTICAL QUICK RELEASE BUCKLE,
TRIPOD ADAPTER, AND 3-WAY PIVOT
ARM COMPONENTS
E
A
E
National Products, Inc. 8410 Dallas Ave S. Seattle, WA 98108 206-763-8361 www.rammount.com
RAM® 1” BALL ADAPTER FOR GoPro® Hero
ASSEMBLY GUIDE
PARTS INDEX:
A. RAM® BALL ADAPTER FOR GoPro® Hero (QTY. 1)
B. #6-32 STAINLESS STEEL MACHINE SCREW (QTY. 1)
C. #6-32 STAINLESS STEEL NYLOCK NUT (QTY. 1)
D. M4 STAINLESS STEEL FLAT WASHER (QTY. 1)
E. M5 X 25 STAINLESS STEEL MACHINE SCREW (QTY. 1)
CONNECTING TO CAMERA
ASSEMBLE (A) BALL ADAPTER TO CAMERA CASE USING (B)
SCREW, (D) WASHER, AND (C) NUT AS SHOWN. TIGHTEN IN
PLACE WITH APPROPRIATE SIZE SCREWDRIVER.
B
C
D
A
A
B
C
D
CONNECTING TO MOUNT
WEDGE (A) BALL ADAPTER
INTO HINGE OF THE MOUNT
BUCKLE, TIGHTEN IN PLACE
USING THE (E) SCREW AND
FACTORY PROVIDED
ACORN NUT.
COMPATIBLE ONLY WITH THE GoPro®
VERTICAL QUICK RELEASE BUCKLE,
TRIPOD ADAPTER, AND 3-WAY PIVOT
ARM COMPONENTS
RPR-INS-GOP1
E
A
E
National Products, Inc. 8410 Dallas Ave S. Seattle, WA 98108 206-763-8361 www.rammount.com
RPR-INS-GOP1
Page 2
RAM MOUNT ACCESSORIES FOR GoPro Hero™ ADAPTER
The RAM 1” Ball Adapter for the GoPro Hero™ can be configured
and customized with any other RAM Mount components. By
selecting any double socket arm and any 1” ball base, you can get
the best photo and video experience with the ability to mount your
GoPro Hero™ virtually anywhere! All RAM Mount components are
made in the USA and backed with a Lifetime Warranty.
P/N: RAM-B-201U
STANDARD DOUBLE SOCKET ARM
OVERALL LENGTH 3 11/16”
P/N: RAM-B-224-1U
TWIST-LOCK SUCTION CUP BASE
POWERFUL SUCTION FOR ANY
WINDOW OR WINDSHIELD
P/N: RAM-B-231ZU
RAIL BASE WITH ZINC U-BOLT
FITS ANY RAIL BETWEEN .75”
P/N: RAM-B-201U-A
SHORT DOUBLE SOCKET ARM
OVERALL LENGTH 2 7/16”
RAIL BASE WITH STRAP CLAMP
AND 1.25”
FITS ANY RAIL BETWEEN 1”
LONG DOUBLE SOCKET ARM
P/N: RAM-B-108BU
AND 2.1”
P/N: RAM-B-201U-C
OVERALL LENGTH 6”
P/N: RAM-B-259U
GLARE SHIELD CLAMP BASE
CLAMPS TO ANYTHING UP
TO .5” THICK
P/N: RAP-B-200-12U
DOUBLE SOCKET SWIVEL ARM
OVERALL LENGTH 4 1/4”
P/N: RAM-B-252U
BOLT HEAD ADAPTER BASE
WITH 11MM HOLE, ADAPTS TO
ANY MOTORCYCLE BOLT HEAD
HUNDREDS OF OTHER COMPONENTS FOR YOUR GoPro Hero™ ADAPTER CAN BE FOUND AT
SUGGESTED SEARCH TERMS: “GoPro” AND “B Components”
National Products, Inc. 8410 Dallas Ave S. Seattle, WA 98108 206-763-8361 www.rammount.com
RAM MOUNT ACCESSORIES FOR GoPro Hero™ ADAPTER
The RAM 1” Ball Adapter for the GoPro Hero™ can be configured
and customized with any other RAM Mount components. By
selecting any double socket arm and any 1” ball base, you can get
the best photo and video experience with the ability to mount your
GoPro Hero™ virtually anywhere! All RAM Mount components are
made in the USA and backed with a Lifetime Warranty.
P/N: RAM-B-230U
1” DOUBLE BALL ADAPTER
CONNECTS ANY TWO
DOUBLE SOCKET ARMS
P/N: RAP-B-121BU
TEMPORARY CLAMP BASE
CLAMPS TO ANY POST UP
TO 1.5”
WWW.RAMMOUNT.COM
P/N: RAM-B-201U
STANDARD DOUBLE SOCKET ARM
OVERALL LENGTH 3 11/16”
P/N: RAM-B-224-1U
TWIST-LOCK SUCTION CUP BASE
POWERFUL SUCTION FOR ANY
WINDOW OR WINDSHIELD
P/N: RAM-B-231ZU
RAIL BASE WITH ZINC U-BOLT
FITS ANY RAIL BETWEEN .75”
P/N: RAM-B-201U-A
SHORT DOUBLE SOCKET ARM
OVERALL LENGTH 2 7/16”
AND 1.25”
HUNDREDS OF OTHER COMPONENTS FOR YOUR GoPro Hero™ ADAPTER CAN BE FOUND AT
SUGGESTED SEARCH TERMS: “GoPro” AND “B Components”
National Products, Inc. 8410 Dallas Ave S. Seattle, WA 98108 206-763-8361 www.rammount.com
P/N: RAM-B-201U-C
LONG DOUBLE SOCKET ARM
OVERALL LENGTH 6”
P/N: RAM-B-108BU
RAIL BASE WITH STRAP CLAMP
FITS ANY RAIL BETWEEN 1”
AND 2.1”
DOUBLE SOCKET SWIVEL ARM
P/N: RAM-B-259U
GLARE SHIELD CLAMP BASE
CLAMPS TO ANYTHING UP
TO .5” THICK
P/N: RAP-B-200-12U
OVERALL LENGTH 4 1/4”
P/N: RAM-B-252U
BOLT HEAD ADAPTER BASE
WITH 11MM HOLE, ADAPTS TO
ANY MOTORCYCLE BOLT HEAD
P/N: RAM-B-230U
1” DOUBLE BALL ADAPTER
CONNECTS ANY TWO
DOUBLE SOCKET ARMS
P/N: RAP-B-121BU
TEMPORARY CLAMP BASE
CLAMPS TO ANY POST UP
TO 1.5”
WWW.RAMMOUNT.COM
