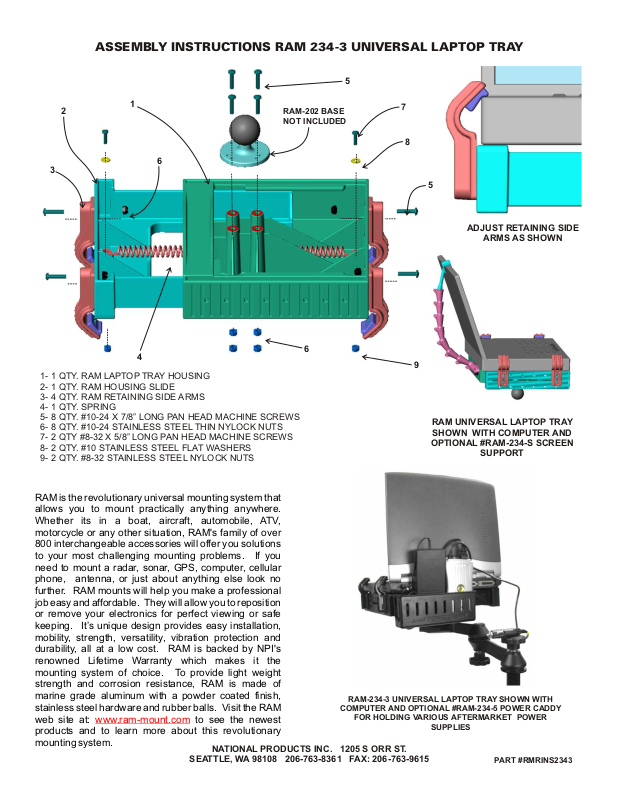

ASSEMBLY INSTRUCTIONS RAM 234-3 UNIVERSAL LAPTOP TRAY
5
2
3
1- 1 QTY. RAM LAPTOP TRAY HOUSING
2- 1 QTY. RAM HOUSING SLIDE
3- 4 QTY. RAM RETAINING SIDE ARMS
4- 1 QTY. SPRING
5- 8 QTY. #10-24 X 7/8” LONG PAN HEAD MACHINE SCREWS
6- 8 QTY. #10-24 STAINLESS STEEL THIN NYLOCK NUTS
7- 2 QTY #8-32 X 5/8” LONG PAN HEAD MACHINE SCREWS
8- 2 QTY. #10 STAINLESS STEEL FLAT WASHERS
9- 2 QTY. #8-32 STAINLESS STEEL NYLOCK NUTS
1
6
4
RAM-202 BASE
NOT INCLUDED
7
8
5
ADJUST RETAINING SIDE
ARMS AS SHOWN
6
9
RAM UNIVERSAL LAPTOP TRAY
SHOWN WITH COMPUTER AND
OPTIONAL #RAM-234-S SCREEN
SUPPORT
RAM is the revolutionary universal mounting system that
allows you to mount practically anything anywhere.
Whether its in a boat, aircraft, automobile, ATV,
motorcycle or any other situation, RAM's family of over
800 interchangeable accessories will offer you solutions
to your most challenging mounting problems. If you
need to mount a radar, sonar, GPS, computer, cellular
phone, antenna, or just about anything else look no
further. RAM mounts will help you make a professional
job easy and affordable. They will allow you to reposition
or remove your electronics for perfect viewing or safe
keeping. It’s unique design provides easy installation,
mobility, strength, versatility, vibration protection and
durability, all at a low cost. RAM is backed by NPI's
renowned Lifetime Warranty which makes it the
mounting system of choice. To provide light weight
strength and corrosion resistance, RAM is made of
marine grade aluminum with a powder coated finish,
stainless steel hardware and rubber balls. Visit the RAM
web site at: to see the newest
www.ram-mount.com
products and to learn more about this revolutionary
mounting system.
NATIONAL PRODUCTS INC. 1205 S ORR ST.
SEATTLE, WA 98108 206-763-8361 FAX: 206-763-9615
RAM-234-3 UNIVERSAL LAPTOP TRAY SHOWN WITH
COMPUTER AND OPTIONAL #RAM-234-5 POWER CADDY
FOR HOLDING VARIOUS AFTERMARKET POWER
SUPPLIES
PART #RMRINS2343
