RAM Mount 109V-1 User Manual
1
12
*17
9
2
11
13
5
8

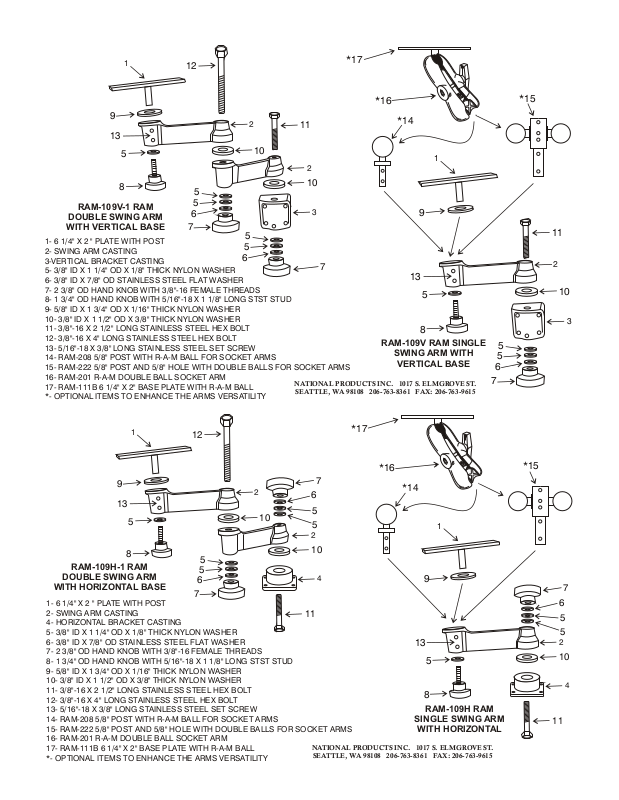

RAM-109V-1 RAM
DOUBLE SWING ARM
WITH VERTICAL BASE
1- 6 1/4" X 2 " PLATE WITH POST
2- SWING ARM CASTING
3-VERTICAL BRACKET CASTING
5- 3/8" ID X 1 1/4" OD X 1/8" THICK NYLON WASHER
6- 3/8" ID X 7/8" OD STAINLESS STEEL FLAT WASHER
7- 2 3/8" OD HAND KNOB WITH 3/8"-16 FEMALE THREADS
8- 1 3/4" OD HAND KNOB WITH 5/16"-18 X 1 1/8" LONG STST STUD
9- 5/8" ID X 1 3/4" OD X 1/16" THICK NYLON WASHER
10- 3/8" ID X 1 1/2" OD X 3/8" THICK NYLON WASHER
11- 3/8"-16 X 2 1/2" LONG STAINLESS STEEL HEX BOLT
12- 3/8"-16 X 4" LONG STAINLESS STEEL HEX BOLT
13- 5/16"-18 X 3/8" LONG STAINLESS STEEL SET SCREW
14- RAM-208 5/8" POST WITH R-A-M BALL FOR SOCKET ARMS
15- RAM-222 5/8" POST AND 5/8" HOLE WITH DOUBLE BALLS FOR SOCKET ARMS
16- RAM-201 R-A-M DOUBLE BALL SOCKET ARM
17- RAM-111B 6 1/4" X 2" BASE PLATE WITH R-A-M BALL
*- OPTIONAL ITEMS TO ENHANCE THE ARMS VERSATILITY
5
5
6
7
10
2
10
3
5
5
6
7
NATIONAL PRODUCTS INC. 1017 S. ELMGROVE ST.
SEATTLE, WA 98108 206-763-8361 FAX: 206-763-9615
*16
*14
1
9
13
5
8
RAM-109V RAM SINGLE
SWING ARM WITH
VERTICAL BASE
*15
11
2
10
3
5
5
6
7
1
9
13
5
8
RAM-109H-1 RAM
DOUBLE SWING ARM
WITH HORIZONTAL BASE
1- 6 1/4" X 2 " PLATE WITH POST
2- SWING ARM CASTING
4- HORIZONTAL BRACKET CASTING
5- 3/8" ID X 1 1/4" OD X 1/8" THICK NYLON WASHER
6- 3/8" ID X 7/8" OD STAINLESS STEEL FLAT WASHER
7- 2 3/8" OD HAND KNOB WITH 3/8"-16 FEMALE THREADS
8- 1 3/4" OD HAND KNOB WITH 5/16"-18 X 1 1/8" LONG STST STUD
9- 5/8" ID X 1 3/4" OD X 1/16" THICK NYLON WASHER
10- 3/8" ID X 1 1/2" OD X 3/8" THICK NYLON WASHER
11- 3/8"-16 X 2 1/2" LONG STAINLESS STEEL HEX BOLT
12- 3/8"-16 X 4" LONG STAINLESS STEEL HEX BOLT
13- 5/16"-18 X 3/8" LONG STAINLESS STEEL SET SCREW
14- RAM-208 5/8" POST WITH R-A-M BALL FOR SOCKET ARMS
15- RAM-222 5/8" POST AND 5/8" HOLE WITH DOUBLE BALLS FOR SOCKET ARMS
16- RAM-201 R-A-M DOUBLE BALL SOCKET ARM
17- RAM-111B 6 1/4" X 2" BASE PLATE WITH R-A-M BALL
*- OPTIONAL ITEMS TO ENHANCE THE ARMS VERSATILITY
12
7
7
2
10
6
5
5
2
10
5
5
6
4
11
NATIONAL PRODUCTS INC. 1017 S. ELMGROVE ST.
SEATTLE, WA 98108 206-763-8361 FAX: 206-763-9615
*17
*16
*14
1
9
13
5
8
RAM-109H RAM
SINGLE SWING ARM
WITH HORIZONTAL
*15
7
6
5
5
2
10
4
11
