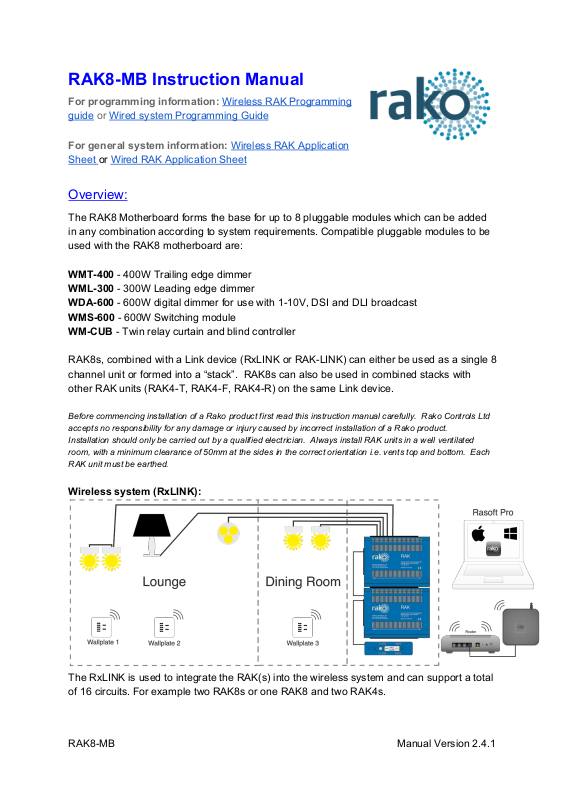

RAK8-MB Instruction Manual

For programming information: Wireless RAK Programming

guide or Wired system Programming Guide

For general system information: Wireless RAK Application

Sheet or Wired RAK Application Sheet

Overview:

The RAK8 Motherboard forms the base for up to 8 pluggable modules which can be added
in any combination according to system requirements. Compatible pluggable modules to be
used with the RAK8 motherboard are:

WMT-400 - 400W Trailing edge dimmer
WML-300 - 300W Leading edge dimmer
WDA-600 - 600W digital dimmer for use with 1-10V, DSI and DLI broadcast
WMS-600 - 600W Switching module
WM-CUB - Twin relay curtain and blind controller

RAK8s, combined with a Link device (RxLINK or RAK-LINK) can either be used as a single 8
channel unit or formed into a “stack”. RAK8s can also be used in combined stacks with
other RAK units (RAK4-T, RAK4-F, RAK4-R) on the same Link device.

Before commencing installation of a Rako product first read this instruction manual carefully. Rako Controls Ltd
accepts no responsibility for any damage or injury caused by incorrect installation of a Rako product.
Installation should only be carried out by a qualified electrician. Always install RAK units in a well ventilated
room, with a minimum clearance of 50mm at the sides in the correct orientation i.e. vents top and bottom. Each
RAK unit must be earthed.

Wireless system (RxLINK):

The RxLINK is used to integrate the RAK(s) into the wireless system and can support a total
of 16 circuits. For example two RAK8s or one RAK8 and two RAK4s.

RAK8-MB Manual Version 2.4.1

Wired system (RAK-LINK):

The RAK-LINK is used to integrate the RAK(s) into the Rako Wired Network and can support
a total of 32 circuits. For example 4 RAK8s or 3 RAK8s and 2 RAK4s.

The circuit board:
