RC953-GESTM1 Commands Notebook
www.raisecom.com
Legal Notices
Raisecom Technology Co., Ltd makes no warranty of any kind with regard to this manual,
including, but not limited to, the implied warranties of merchantability and fitness for a particular
purpose. Raisecom Technology Co., Ltd shall not be held liable for errors contained herein or direct,
indirect, special, incidental or consequential damages in connection with the furnishing, performance,
or use of this material.
Warranty.
A copy of the specific warranty terms applicable to your Raisecom product and replacement parts
can be obtained from Service Office.
Restricted Rights Legend.
All rights are reserved. No part of this document may be photocopied, reproduced, or translated to
another language without the prior written consent of Raisecom Technology Co., Ltd
information contained in this document is subject to change without notice.
Copyright Notices.
Copyright ©2007 Raisecom
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without permission in
Writing from Raisecom Technology Co., Ltd
Trademark Notices
. The
. All rights reserved.
.
is the trademark of Raisecom Technology Co., Ltd.
Java™ is a U.S. trademark of Sun Microsystems, Inc.
Microsoft® is a U.S. registered trademark of Microsoft Corporation.
Windows NT® is a U.S. registered trademark of Microsoft Corporation.
Windows® 2000 is a U.S. registered trademark of Microsoft Corporation.
Windows® XP is a U.S. registered trademark of Microsoft Corporation.
Windows® and MS Windows® are U.S. registered trademarks of
Microsoft Corporation.
Contact Information
T echnical Assistance Center
The Raisecom TAC is available to all customers who need technical assistance with a Raisecom
product, technology, or, solution. You can communicate with us through the following methods:
Address: 2
Tel: +86-10-82883305
Fax: +86-10-82883056
W orld W ide Web
You can access the most current Raisecom product information on the World Wide Web at the
following URL:
http://www.raisecom.com
nd
Floor, South Building of Rainbow Plaza, No.11 Shangdi Information Road,
Haidian District, Beijing 100085
Feedback
Comments and questions about how the RC953-GESTM1 device works are welcomed. Please
review the FAQ in the related manual, and if your question is not covered, send email by using the
following web page:
http://www.raisecom.com/en/xcontactus/contactus.htm
If you have comments on the RC953-GESTM1 specification, instead of the web page above, please
send comments to:
export@raisecom.com
We hope to hear from you!
.
CONTENTS
Chapter 1 How to Use the Command Line---------------------------------------------1
1.1 Environment --------------------------------------------------------------------------------------------------------------------1
1.2 Command line format explanation----------------------------------------------------------------------------------------1
1.3 Command mode---------------------------------------------------------------------------------------------------------------1

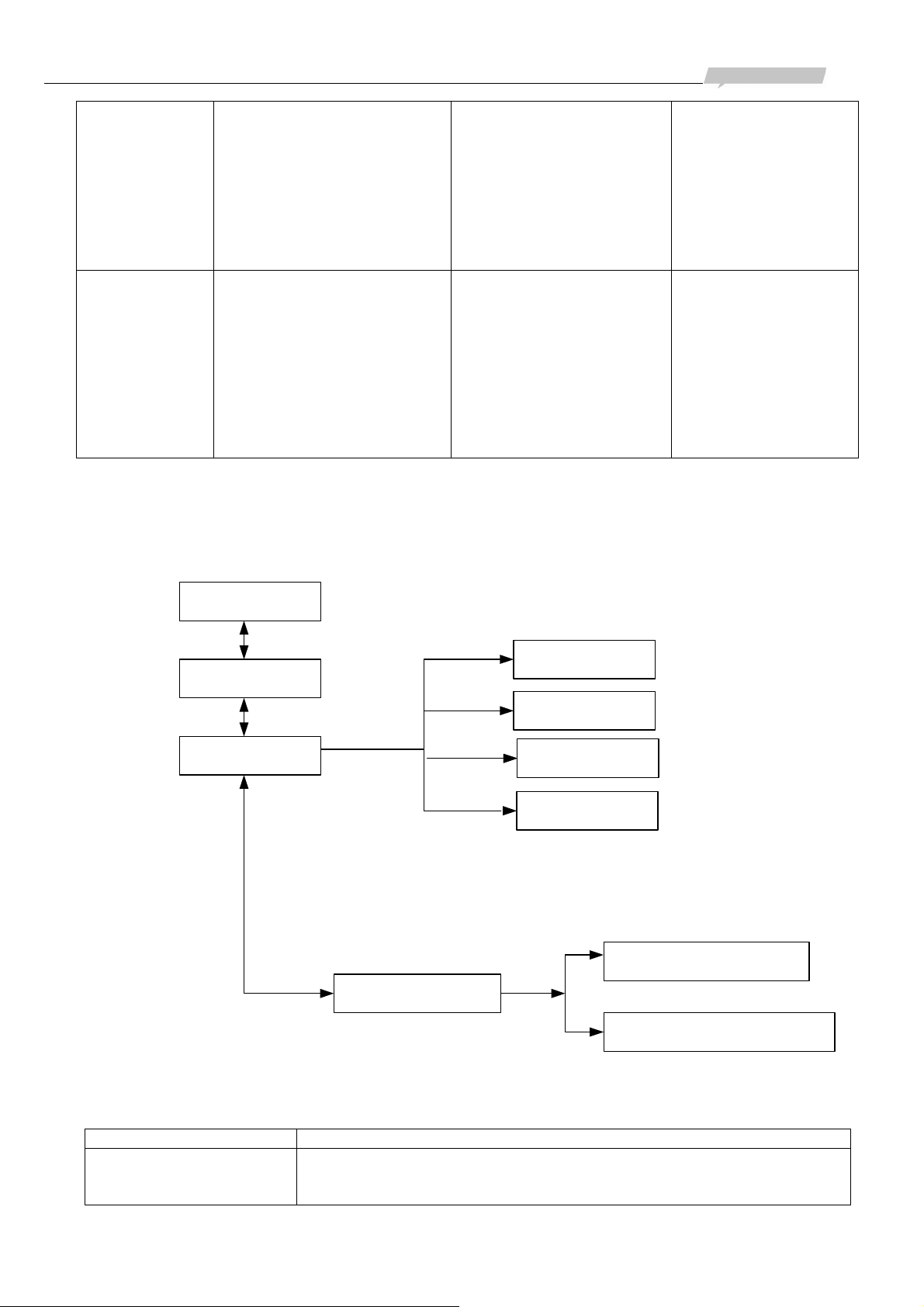

1.4 Relationship of command modes -----------------------------------------------------------------------------------------3
1.5 Commands in different command mode --------------------------------------------------------------------------------3
Chapter 2 System Management Commands----------------------------------------- 10
2.1 chinese-------------------------------------------------------------------------------------------------------------------------10
2.2 clear-----------------------------------------------------------------------------------------------------------------------------10
2.3 config --------------------------------------------------------------------------------------------------------------------------- 11
2.4 device unlock----------------------------------------------------------------------------------------------------------------- 11
2.5 device lock --------------------------------------------------------------------------------------------------------------------12
2.6 device clock-mode ----------------------------------------------------------------------------------------------------------12
2.7 disable--------------------------------------------------------------------------------------------------------------------------13
2.8 enable --------------------------------------------------------------------------------------------------------------------------14
2.9 english--------------------------------------------------------------------------------------------------------------------------15
2.10 end-----------------------------------------------------------------------------------------------------------------------------15
2.11 exit -----------------------------------------------------------------------------------------------------------------------------16
2.12 help----------------------------------------------------------------------------------------------------------------------------17
2.13 interface----------------------------------------------------------------------------------------------------------------------18
2.14 history-------------------------------------------------------------------------------------------------------------------------18
2.15 hostname --------------------------------------------------------------------------------------------------------------------19
2.16 list------------------------------------------------------------------------------------------------------------------------------20
2.17 logout -------------------------------------------------------------------------------------------------------------------------20
2.18 quit-----------------------------------------------------------------------------------------------------------------------------21
2.19 reboot-------------------------------------------------------------------------------------------------------------------------22
2.20 settime------------------------------------------------------------------------------------------------------------------------22
2.21 show clock-------------------------------------------------------------------------------------------------------------------23
2.22 show cpu-utilization-ratio ------------------------------------------------------------------------------------------------23
2.23 show device-----------------------------------------------------------------------------------------------------------------24
2.24 show device clock ---------------------------------------------------------------------------------------------------------25
2.25 show sntp--------------------------------------------------------------------------------------------------------------------25
2.26 show terminal---------------------------------------------------------------------------------------------------------------26
2.27 show version----------------------------------------------------------------------------------------------------------------27
2.28 sntp server-------------------------------------------------------------------------------------------------------------------27
2.29 terminal history-------------------------------------------------------------------------------------------------------------28
2.30 terminal line -----------------------------------------------------------------------------------------------------------------29
2.31 terminal time-out-----------------------------------------------------------------------------------------------------------30
2.32 who----------------------------------------------------------------------------------------------------------------------------30
Chapter 3 RC953-GESTM1 User Management Commands--------------------- 32
3.1 password ----------------------------------------------------------------------------------------------------------------------32
3.2 save user----------------------------------------------------------------------------------------------------------------------33
3.3 show user ---------------------------------------------------------------------------------------------------------------------33
3.4 user -----------------------------------------------------------------------------------------------------------------------------34
3.5 user privilege -----------------------------------------------------------------------------------------------------------------35
Chapter 4 Log management commands of RC953-GESTM1-------------------- 37
4.1 log -------------------------------------------------------------------------------------------------------------------------------37
4.2 log clear------------------------------------------------------------------------------------------------------------------------37
4.3 show log -----------------------------------------------------------------------------------------------------------------------38
Chapter 5 Network protocols configuration commands of RC953-GESTM140
5.1 arp add-------------------------------------------------------------------------------------------------------------------------40
5.2 arp delete----------------------------------------------------------------------------------------------------------------------40
5.3 ip address ---------------------------------------------------------------------------------------------------------------------41
5.4 ip route -------------------------------------------------------------------------------------------------------------------------42
5.5 no virtual-channel -----------------------------------------------------------------------------------------------------------43
5.6 ping------------------------------------------------------------------------------------------------------------------------------43
5.7 show arp-----------------------------------------------------------------------------------------------------------------------44
5.8 show ip route -----------------------------------------------------------------------------------------------------------------45
5.9 show snmp-server community -------------------------------------------------------------------------------------------46
5.10 show snmp trap-sever----------------------------------------------------------------------------------------------------46
5.11 snmp-server community--------------------------------------------------------------------------------------------------47
5.12 snmp-server contact SYSCONTACT ---------------------------------------------------------------------------------48
5.13 snmp-server location SYSLOCATION -------------------------------------------------------------------------------49
5.14 snmp-server name SYSNAME-----------------------------------------------------------------------------------------49
5.15 snmp trap-server-----------------------------------------------------------------------------------------------------------50
5.16 snmpd ------------------------------------------------------------------------------------------------------------------------50
5.17 show snmp-server statistics---------------------------------------------------------------------------------------------51
5.18 show interface snmp------------------------------------------------------------------------------------------------------52
5.19 show interface vcc---------------------------------------------------------------------------------------------------------53
5.20 virtual-channel--------------------------------------------------------------------------------------------------------------53
Chapter 6 Upgrade and configuration file management commands of
RC953-GESTM1 ---------------------------------------------------------------------------- 54
6.1 download --------------------------------------------------------------------------------------------------------------------54
6.2 erase startup-config ------------------------------------------------------------------------------------------------------55
6.3 show running-config------------------------------------------------------------------------------------------------------56
6.4 show startup-config device <0-127> ---------------------------------------------------------------------------------57
6.5 show startup-config-------------------------------------------------------------------------------------------------------58
6.6 upload------------------------------------------------------------------------------------------------------------------------59
6.7 write---------------------------------------------------------------------------------------------------------------------------60
Chapter 7 Alarming management command of RC953-GESTM1-------------- 62
7.1 alarm-trap-disable---------------------------------------------------------------------------------------------------------62
7.2 alarm-trap-disable index-------------------------------------------------------------------------------------------------62
7.3 alarm-trap-disable sdh ---------------------------------------------------------------------------------------------------63
7.4 show current-alarm -------------------------------------------------------------------------------------------------------64
7.5 show history-alarm--------------------------------------------------------------------------------------------------------64
7.6 show alarm-index ---------------------------------------------------------------------------------------------------------65
Chapter 8 Interface management command of RC953-GESTM1 SDH-------- 67
8.1 sdh description-------------------------------------------------------------------------------------------------------------67
8.2 loopback---------------------------------------------------------------------------------------------------------------------67
8.3 sdh aps-restore-time -----------------------------------------------------------------------------------------------------68
8.4 sdh aupje-threshold-------------------------------------------------------------------------------------------------------68
8.5 sdh force-switch -----------------------------------------------------------------------------------------------------------69
8.6 sdh exc-threshold ---------------------------------------------------------------------------------------------------------69
8.7 sdh es-threshold-----------------------------------------------------------------------------------------------------------70
8.8 sdh overhead c2-----------------------------------------------------------------------------------------------------------71
8.9 sdh overhead j0------------------------------------------------------------------------------------------------------------71
8.10 sdh overhead j1----------------------------------------------------------------------------------------------------------72
8.11 sdh overhead j2 ----------------------------------------------------------------------------------------------------------72
8.12 sdh overhead s1 ---------------------------------------------------------------------------------------------------------73
8.13 sdh sd-threshold ---------------------------------------------------------------------------------------------------------73
8.14 sdh ses-threshold--------------------------------------------------------------------------------------------------------74
8.15 show sdh aps-------------------------------------------------------------------------------------------------------------75
8.16 show sdh aps timeslot--------------------------------------------------------------------------------------------------75
8.17 sdh tuais-insert-----------------------------------------------------------------------------------------------------------76
8.18 show interface sdh ------------------------------------------------------------------------------------------------------77
8.19 show interface sdh <1-2> timeslot ----------------------------------------------------------------------------------77
Chapter 9 Management Command of RC953-GESTM1 E1 --------------------- 79
9.1 batch-e1 ---------------------------------------------------------------------------------------------------------------------79
9.2 batch loopback-detection -----------------------------------------------------------------------------------------------79
9.3 bert----------------------------------------------------------------------------------------------------------------------------80
9.4 clock-mode------------------------------------------------------------------------------------------------------------------80
9.5 crc-auto ----------------------------------------------------------------------------------------------------------------------81
9.6 frame -------------------------------------------------------------------------------------------------------------------------81
9.7 interface e1 -----------------------------------------------------------------------------------------------------------------82
9.8 loopback-detection--------------------------------------------------------------------------------------------------------82
9.9 inter-connection------------------------------------------------------------------------------------------------------------83
9.10 remote-e1-loopback-----------------------------------------------------------------------------------------------------83
9.11 reset-statistics ------------------------------------------------------------------------------------------------------------84
9.12 show interface e1 occupy status ------------------------------------------------------------------------------------84
9.13 show interface e1 --------------------------------------------------------------------------------------------------------87
9.14 timeslot---------------------------------------------------------------------------------------------------------------------87
9.15 unframe --------------------------------------------------------------------------------------------------------------------88
Chapter 10 Virtual-channel command of RC953-GESTM1 -------------------- 89
10.1 batch virtual-channel----------------------------------------------------------------------------------------------------89
10.2 err-auto-shutdown-------------------------------------------------------------------------------------------------------89
10.3 no virtual-channel index------------------------------------------------------------------------------------------------90
10.4 no virtual channel name -----------------------------------------------------------------------------------------------90
10.5 show virtual-channel---------------------------------------------------------------------------------------------------- 91
10.6 show virtual-channel name -------------------------------------------------------------------------------------------92
10.7 virtual-channel index----------------------------------------------------------------------------------------------------92
10.8 virtual-channel------------------------------------------------------------------------------------------------------------93
Chapter 11 Interface management command of RC953-GESTM1 -------------- 94
Description -------------------------------------------------------------------------------------------------------------------------94
flow-control-------------------------------------------------------------------------------------------------------------------------94
11.3 no rate-limit----------------------------------------------------------------------------------------------------------------95
11.4 rate-burst-------------------------------------------------------------------------------------------------------------------95
11.5 rate-limit --------------------------------------------------------------------------------------------------------------------96
11.6 re-autoneg -----------------------------------------------------------------------------------------------------------------97
11.7 reset-statistics ------------------------------------------------------------------------------------------------------------97
11.8 sfp-switch ------------------------------------------------------------------------------------------------------------------98
11.9 show interface ge--------------------------------------------------------------------------------------------------------98
11.10 shutdown -----------------------------------------------------------------------------------------------------------------99
11.11 storm-rate-limit-------------------------------------------------------------------------------------------------------- 100
11.12 storm-suppression --------------------------------------------------------------------------------------------------- 100
11.13 vc12 add---------------------------------------------------------------------------------------------------------------- 101
11.14 virtual-channel add -------------------------------------------------------------------------------------------------- 101
11.15 virtual-channel delete -----------------------------------------------------------------------------------------------102
11.16 trunk --------------------------------------------------------------------------------------------------------------------- 103
Chapter 12 Remote device management command of RC953-GESTM1-------104
12.1 remote ric---------------------------------------------------------------------------------------------------------------- 104
12.2 show remote ric-------------------------------------------------------------------------------------------------------- 104
12.3 show remote interface ric <1-63> e1 ----------------------------------------------------------------------------- 105
12.4 show remote interface ric <1-63> eth ----------------------------------------------------------------------------105
Chapter 13 Device management command of remote RC952-FEE1------------107
13.1 device-name ------------------------------------------------------------------------------------------------------------ 107
13.2 device-type-------------------------------------------------------------------------------------------------------------- 107
13.3 fault-pass ---------------------------------------------------------------------------------------------------------------- 108
13.4 interface------------------------------------------------------------------------------------------------------------------ 108
13.5 reset----------------------------------------------------------------------------------------------------------------------- 108
13.6 show device------------------------------------------------------------------------------------------------------------- 109
Chapter 14 The configuration command under the e1 interface configuration mode of
remote RC952-FEE1----------------------------------------------------------------------- 110
14.1 clock-mode-------------------------------------------------------------------------------------------------------------- 110
14.2 crc-auto ------------------------------------------------------------------------------------------------------------------110
14.3 interface -----------------------------------------------------------------------------------------------------------------111
14.4 show interface ---------------------------------------------------------------------------------------------------------111
Chapter 15 The configuration command under the e1 interface configuration mode of
remote RC952-FEE1.---------------------------------------------------------------------- 113
15.1 autonegotiate ----------------------------------------------------------------------------------------------------------- 113
15.2 flow-control--------------------------------------------------------------------------------------------------------------113
15.3 interface------------------------------------------------------------------------------------------------------------------ 114
15.4 show interface---------------------------------------------------------------------------------------------------------- 114
15.5 shutdown ---------------------------------------------------------------------------------------------------------------- 115
15.6 speed duplex ----------------------------------------------------------------------------------------------------------- 115
Chapter 16 Device management command of remote RC952-FXE1 ---------- 117
16.1 device-name ------------------------------------------------------------------------------------------------------------ 117
16.2 device-type-------------------------------------------------------------------------------------------------------------- 117
16.3 interface------------------------------------------------------------------------------------------------------------------ 118
16.4 reset----------------------------------------------------------------------------------------------------------------------- 118
16.5 show device------------------------------------------------------------------------------------------------------------- 119
Chapter 17 The configuraiton command under the e1Interface configuration mode
of remote RC952-FXE1. ------------------------------------------------------------------120
17.1 clock-mode-------------------------------------------------------------------------------------------------------------- 120
17.2 crc-auto ------------------------------------------------------------------------------------------------------------------ 120
17.3 interface------------------------------------------------------------------------------------------------------------------ 121
17.4 show interface---------------------------------------------------------------------------------------------------------- 121
Chapter 18 The configuration mode under the fxInterface configuration mode of
remote RC952-FXE1.----------------------------------------------------------------------123
18.1 flow-control-------------------------------------------------------------------------------------------------------------- 123
18.2 interface------------------------------------------------------------------------------------------------------------------ 123
18.3 show interface---------------------------------------------------------------------------------------------------------- 124
Chapter 19 Device management command of remote RC951-FEE1------------125
Chapter 20 Device management command of remote RC953-FE8E1 ----------126
20.1 device-name ------------------------------------------------------------------------------------------------------------ 126
20.2 device-type-------------------------------------------------------------------------------------------------------------- 126
20.3 err-auto-shutdown----------------------------------------------------------------------------------------------------- 127
20.4 fault-pass ---------------------------------------------------------------------------------------------------------------- 127
20.5 interface e1-------------------------------------------------------------------------------------------------------------- 127
20.6 interface eth------------------------------------------------------------------------------------------------------------- 128
20.7 reset----------------------------------------------------------------------------------------------------------------------- 128
20.8 show device------------------------------------------------------------------------------------------------------------- 129
Chapter 21 The configuration mode under the e1 Interface configuration mode of
remote RC953-FE8E1. --------------------------------------------------------------------130
21.1 clock-mode-------------------------------------------------------------------------------------------------------------- 130
21.2 crc-auto --------------------------------------------------------------------------------------------------------------- 130
21.3 interface e1-------------------------------------------------------------------------------------------------------------- 131
21.4 interface eth------------------------------------------------------------------------------------------------------------- 131
21.5 show interface---------------------------------------------------------------------------------------------------------- 131
Chapter 22 The configuration command under eth Interface configuration mode of
remote RC953-FE8E1. --------------------------------------------------------------------133
22.1 autonegotiate ----------------------------------------------------------------------------------------------------------- 133
22.2 flow-control-------------------------------------------------------------------------------------------------------------- 133
22.3 interface e1-------------------------------------------------------------------------------------------------------------- 134
22.4 show interface---------------------------------------------------------------------------------------------------------- 134
22.5 shutdown ---------------------------------------------------------------------------------------------------------------- 135
22.6 speed duplex ----------------------------------------------------------------------------------------------------------- 135
Chapter 23 The device management command of remote RC953-FX8E1. ----137
23.1 device-name ------------------------------------------------------------------------------------------------------------ 137
23.2 device-type-------------------------------------------------------------------------------------------------------------- 137
23.3 err-auto-shutdown----------------------------------------------------------------------------------------------------- 138
23.4 interface e1-------------------------------------------------------------------------------------------------------------- 138
23.5 interface fx-eth ---------------------------------------------------------------------------------------------------------138
23.6 reset----------------------------------------------------------------------------------------------------------------------- 139
23.7 show device------------------------------------------------------------------------------------------------------------- 139
Chapter 24 The configuration command under e1 Interface configuration mode of
remote RC953-FX8E1. --------------------------------------------------------------------141
24.1 clock-mode-------------------------------------------------------------------------------------------------------------- 141
24.2 crc-auto ------------------------------------------------------------------------------------------------------------------ 141
24.3 interface e1-------------------------------------------------------------------------------------------------------------- 142
24.4 interface fx-eth --------------------------------------------------------------------------------------------------------- 142
24.5 show interface---------------------------------------------------------------------------------------------------------- 142
Chapter 25 The configuration command under fxInterface configuration mode of
remote RC953-FX8E1--------------------------------------------------------------------- 144
25.1 flow-control-------------------------------------------------------------------------------------------------------------- 144
25.2 interface e1-------------------------------------------------------------------------------------------------------------- 144
25.3 show interface---------------------------------------------------------------------------------------------------------- 145
Chapter 26 The device management command of remote RC953-FE4E1.---146
26.1 device-name ------------------------------------------------------------------------------------------------------------ 146
26.2 device-type-------------------------------------------------------------------------------------------------------------- 146
26.3 err-auto-shutdown----------------------------------------------------------------------------------------------------- 147
26.4 fault-pass ---------------------------------------------------------------------------------------------------------------- 147
26.5 interface e1-------------------------------------------------------------------------------------------------------------- 147
26.6 interface eth------------------------------------------------------------------------------------------------------------- 148
26.7 reset----------------------------------------------------------------------------------------------------------------------- 148
26.8 show device------------------------------------------------------------------------------------------------------------- 149
Chapter 27 The configuration command under e1Interface configuration mode of
remote RC953-FE4E1. --------------------------------------------------------------------150
27.1 clock-mode-------------------------------------------------------------------------------------------------------------- 150
27.2 crc-auto ------------------------------------------------------------------------------------------------------------------ 150
27.3 interface e1-------------------------------------------------------------------------------------------------------------- 151
27.4 interface eth------------------------------------------------------------------------------------------------------------- 151
27.5 show interface---------------------------------------------------------------------------------------------------------- 151
Chapter 28 The configuration command under ethInterface configuration mode of
remote RC953-FE4E1. --------------------------------------------------------------------153
28.1 autonegotiate ----------------------------------------------------------------------------------------------------------- 153
28.2 flow-control-------------------------------------------------------------------------------------------------------------- 153
28.3 interface e1-------------------------------------------------------------------------------------------------------------- 154
28.4 show interface---------------------------------------------------------------------------------------------------------- 154
28.5 shutdown ---------------------------------------------------------------------------------------------------------------- 155
28.6 speed duplex ----------------------------------------------------------------------------------------------------------- 155
Chapter 29 The device management command of remote RC953-FX4E1.--- 157
29.1 device-name ------------------------------------------------------------------------------------------------------------ 157
29.2 device-type-------------------------------------------------------------------------------------------------------------- 157
29.3 err-auto-shutdown----------------------------------------------------------------------------------------------------- 158
29.4 interface e1-------------------------------------------------------------------------------------------------------------- 158
29.5 interface fx-eth --------------------------------------------------------------------------------------------------------- 158
29.6 reset----------------------------------------------------------------------------------------------------------------------- 159
29.7 show device------------------------------------------------------------------------------------------------------------- 159
Chapter 30 The comfiguration command under e1 Interface configuration mode of
remote RC953-FX4E1. --------------------------------------------------------------------161
30.1 clock-mode-------------------------------------------------------------------------------------------------------------- 161
30.2 crc-auto ------------------------------------------------------------------------------------------------------------------ 161
30.3 interface e1-------------------------------------------------------------------------------------------------------------- 162
30.4 interface fx-eth --------------------------------------------------------------------------------------------------------- 162
30.5 show interface---------------------------------------------------------------------------------------------------------- 162
Chapter 31 The configuration command under fxInterface configuration mode of
remote RC953-FX4E1. --------------------------------------------------------------------164
31.1 flow-control-------------------------------------------------------------------------------------------------------------- 164
31.2 interface e1-------------------------------------------------------------------------------------------------------------- 164
31.3 show interface---------------------------------------------------------------------------------------------------------- 165
Chapter 32 The device management command of remote RC954-FE4E1. ----166
32.1 device-name--------------------------------------------------------------------------------------------------------- 166
32.2 device-type-------------------------------------------------------------------------------------------------------------- 166
32.3 err-auto-shutdown----------------------------------------------------------------------------------------------------- 167
32.4 fault-pass ---------------------------------------------------------------------------------------------------------------- 167
32.5 interface e1-------------------------------------------------------------------------------------------------------------- 167
32.6 interface eth------------------------------------------------------------------------------------------------------------- 168
32.7 reset----------------------------------------------------------------------------------------------------------------------- 168
32.8 show device------------------------------------------------------------------------------------------------------------- 169
Chapter 33 The configuration command under e1Interface configuration mode of
remote RC954-FE4E1. --------------------------------------------------------------------170
33.1 clock-mode-------------------------------------------------------------------------------------------------------------- 170
33.2 crc-auto ------------------------------------------------------------------------------------------------------------------ 170
33.3 interface e1-------------------------------------------------------------------------------------------------------------- 171
33.4 interface eth------------------------------------------------------------------------------------------------------------- 171
33.5 show interface---------------------------------------------------------------------------------------------------------- 171
Chapter 34 The configuration command under ethInterface configuration mode of
remote RC954-FE4E1. --------------------------------------------------------------------173
34.1 autonegotiate ----------------------------------------------------------------------------------------------------------- 173
34.2 flow-control-------------------------------------------------------------------------------------------------------------- 173
34.3 interface e1-------------------------------------------------------------------------------------------------------------- 174
34.4 show interface---------------------------------------------------------------------------------------------------------- 174
34.5 shutdown ---------------------------------------------------------------------------------------------------------------- 175
34.6 speed duplex ----------------------------------------------------------------------------------------------------------- 175
Chapter 35 The device management command of remote RC954-FX4E1. ----177
35.1 device-name ------------------------------------------------------------------------------------------------------------ 177
35.2 device-type-------------------------------------------------------------------------------------------------------------- 177
35.3 err-auto-shutdown----------------------------------------------------------------------------------------------------- 178
35.4 interface e1-------------------------------------------------------------------------------------------------------------- 178
35.5 interface fx-eth --------------------------------------------------------------------------------------------------------- 178
35.6 reset----------------------------------------------------------------------------------------------------------------------- 179
35.7 show device------------------------------------------------------------------------------------------------------------- 179
Chapter 36 The configuration command under e1Interface configuration mode of
remote RC954-FX4E1. --------------------------------------------------------------------181
36.1 clock-mode-------------------------------------------------------------------------------------------------------------- 181
36.2 crc-auto ------------------------------------------------------------------------------------------------------------------ 181
36.3 interface e1-------------------------------------------------------------------------------------------------------------- 182
36.4 interface fx-eth --------------------------------------------------------------------------------------------------------- 182
36.5 show interface---------------------------------------------------------------------------------------------------------- 182
Chapter 37 The configuration command under fxInterface configuration mode of
remote RC954-FX4E1. --------------------------------------------------------------------184
37.1 flow-control-------------------------------------------------------------------------------------------------------------- 184
37.2 interface e1-------------------------------------------------------------------------------------------------------------- 184
37.3 show interface---------------------------------------------------------------------------------------------------------- 185
Release Notes
Date of Release Manual Version Software Version Revisions
20071210 20071109
Why we write this manual
The main aim of writing this user manual RC953-GESTM1 is to introduce the software Command
line interface of RC953-GESTM1, it wholly introduces the Command line human interface that is
setup by RC953-GESTM1, meanwhile it can finished the management according to the whole device
of RC953-GESTM1, including the management and configuration of different kinds of interface
and remote device, then it used for RC953-GESTM1 device and related RC953-GESTM1 software
edition customers.
Relevant manual
《RC953-GESTM1Configuration Guide Manual》
This manual is《RC953-GESTM1 Commands Notebook》
Preface
www.raisecom.com User Manual
Chapter 1 How to Use the Command Line
1.1 Environment
Hardware environment: RC953-GESTM1device platform
Computer serial ports;
Software environment: WIN98 / WIN2000 / WINDOWS XP
1.2 Command line format explanation
symbol Explanation
<> Indicate this part is a confirmed range of parameter
| Divide the several options of the parameter.
[ ] Indicate this part is optional choice and can not be
( ) Necessary impute parameter or Command key words.
1．Only write the Commands in front of the Command key words of the first parameter.
2．Use “[]” in the place of the optional choice for both the signal and multiple parameter, use “|” between
two multiple parameter.
3．If the necessary impute parameter or Command key words are optional, use the symbol “()”, use “|”
between two multiple parameter.
1.3 Command mode
Mode Description Access function Mode symbol
User EXEC Mode Under this mode, user can
impute.
Sign up the device, enter the
RC953-GESTM1>
configuration the terminal basic
information or indicate the
parameter.
ID No. and password.
1
www.raisecom.com User Manual
Privileged EXEC
mode
Global
configuration
mode
Local interface
configuration
mode.
Under this mode, customers can
configuration the basic
information of RC953-GESTM1
device, for instance the system
time, indicate the parameter
information. It can’t
configuration the working
information of the device.
Under this mode, costumers can
configuration all the device
working parameters of
RC953-GESTM1.
Under this mode, costumers can
configuration the parameters of
the SNMP interface, Eth
interface, SDH interface and
internal E1 interface.
Enter the enable and password
under the common customer’s
mode.
Enter config under the
Privileged EXEC mode.
Enter interface {ge/sdh/
e1/snmp/vcc} X under Global
configuration mode.
RC953-GESTM1#
RC953-GESTM1
(config)#
RC953-GESTM1
(config-xxx/X)#
X indicates the interface
No.
Remote interface
converter
configuration
mode
Remote
interface
converter
interface
configuration
mode.
Under this mode, costumers can
configuration the working
parameters of the remote
interface converter device.
Under this mode, customers
can configuration the remote
interface converter device
interface.
Enter remote ric X under the
Global configuration mode.
Enter interface{eth/e1}
under the remote
converter configuration
mode.
RC953-GESTM1
(config)#remote ric X
RC953-GESTM1
(config-RIC/X)#
RIC indicates the real
style of the remote
interface converter
products.
RC953-GESTM1(co
nfig-RC952FEE1/X)
#interface eth [Y]
RC953-GESTM1(co
nfig-RC952FEE1/Xeth/Y)#
2
www.raisecom.com User Manual
Remote
media
converter
configuration
mode.
Remote
media
converter
interface
configuration
mode.
Under this mode, costumers
can configuration the
working parameters of the
remote media converter.
Under this mode, costumers
can configuration the
interface of the remote
media converter device.
1.4 Relationship of command modes
Enter remote rmc under
the Global configuration
mode.
Enter interface
{eth/fx-eth} under the
remote media converter
configuration mode.
RC953-GESTM1(co
nfig)#remote rmc X
RC953-GESTM1
(config-RC501/X)#
RC953-GESTM1(co
nfig-RC501/X)#inte
rface eth Y
RC953-GESTM1
(config-RC501/X-et
h/Y)#
User EXEC
mode
Privileged
EXEC mode
Global
Configuration mode
Remote Interface
converter mode
Interface
SDH mode
Interface E1
mode
Interface SNMP
mode
Interface GE
mode
Interface E1 mode of
remote Interface Converter
Interface Eth mode of
remote Interface Converter
1.5 Commands in different command mode
Command mode Command list
User EXEC mode
Chinese
clear
enable
3
www.raisecom.com User Manual
English
exit
help
history
list
no terminal line
quit
terminal history <1-20>
terminal line <5-512>
terminal time-out <0-65535>
Privileged EXEC mode
chinese
clear
config terminal
config
debug
device unlock
disable
download (system-boot | startup-config) (tftp | ftp)
english
erase startup-config
exit
help
history
hostname HOSTNAME
list
logout
no hostname
no user USERNAME
password
ping A.B.C.D [count <1-65535>] [size <12-4076>] [timeout <1-255>]
quit
reboot
save user
set time DATE TIME
show alarm index [(sdh|innere1|system|rmc|ric|ge)]
show arp
show clock
show cpu-utilization-ratio
show current-alarm
show device
show device clock
show history-alarm
show interface e1 occupy status
show interface e1 [<1-63>]
show interface ge <1-2>
show interface sdh <1-2> timeslot [<1-63>]
show interface sdh [<1-2>]
show interface SNMP
show interface vcc
show ip route help
show ip route
show log [key1 STRING] [key2 STRING] [key3 STRING]
show remote interface ric <1-63> e1 [<1-8>]
show remote interface ric <1-63> (eth|fx-eth)
show remote interface rmc <1-63> (eth|fx-eth)
show remote ric
show remote ric <1-63>
show remote rmc
show remote rmc <1-63>
4
www.raisecom.com User Manual
show running-config
show sdh aps
show sdh aps timeslot [TSSTRING]
show SNMP-server community
show SNMP-server statistics
show SNMP trap-server
show sntp
show startup-config
show startup-config device <0-127>
show terminal
show user
show version
show virtual-channel [<1-63>]
upload (system-boot | startup-config) (tftp|ftp)
user USERNAME password (no-encryption|md5) PASSWORD
user USERNAME privilege (administrant|normal|limited)
who
write
Global configuration mode
alarm-trap-disable
alarm-trap-disable (ric|rmc|system|innere1|ge)
alarm-trap-disable index ALARMNO
alarm-trap-disable sdh [(section|line|path|tu|vc)]
arp add A.B.C.D MACADDR
arp delete A.B.C.D
batch-e1 [{1-63}] (frame|unframe)
batch virtual-channel vc12 TSSTRING e1 E1STRING [e1num<1-8>]
chinese
clear
device clock-mode (master|slave)
device lock
end
english
[no] err-auto-shutdown virtual-channel {1-63}
exit
help
history
interface e1 <1-63>
interface ge <1-2>
interface sdh <1-2>
interface SNMP
interface vcc
ip route A.B.C.D A.B.C.D A.B.C.D
list
log (enable|disable)
log clear
loopbackdetection (enable|disable) virtual-channel {1-63}
no alarm-trap-disable
no alarm-trap-disable (ric|rmc|system|innere1|ge)
no alarm-trap-disable index ALARMNO
no alarm-trap-disable sdh [(section|line|path|tu|vc)]
no ip route A.B.C.D A.B.C.D
no SNMP-server community COMMUNITYNAME
no snmpd
no SNMP trap-server A.B.C.D
no sntp server
no virtual-channel index {1-63}
no virtual-channel name STRING
quit
remote ric <1-63>
5
www.raisecom.com User Manual
remote rmc <1-63>
sdh aps-restore-time <1-12>
sdh force-switch (work-line|protection-line|clear) timeslot [TSSTRING]
show alarmindex [(sdh|innere1|system|rmc|ric|ge)]
show arp
show current-alarm
show device
show device clock
show ip route help
show ip route
show log [key1 STRING] [key2 STRING] [key3 STRING]
show loopbackdetection virtual-channel [{1-63}]
show remote interface ric <1-63> e1 [<1-8>]
show remote interface ric <1-63> (eth|fx-eth)
show remote interface rmc <1-63> (eth|fx-eth)
show remote ric
show remote ric <1-63>
show remote rmc
show remote rmc <1-63>
show sdh aps
show sdh aps timeslot [TSSTRING ]
show snmp-server community
show snmp-server statistics
show snmp trap-server
show sntp
show virtual-channel [<1-63>]
snmp-server community COMMUNITYNAME (ro|rw)
snmp-server contact SYSCONTACT
snmp-server location SYSLOCATION
snmp-server name SYSNAME
snmpd
snmp trap-server A.B.C.D [<1-65535>]
sntp server A.B.C.D
virtual-channel index <1-63> name STRING
virtual-channel vc12 TSSTRING e1 E1STRING [index <1-63>] [name STRING]
GE interface configuration
mode
chinese
clear
description STRING
end
english
exit
flow-control (on|off)
help
history
interface ge <1-2>
list
no rate-limit (ingress-rate|engress-rate)
no shutdown
no storm-suppression (broadcast|multicast|dlfstorm|all)
no trunk
quit
rate-burst (ingress-rate|engress-rate) (6kb|10kb|18kb|34kb|66kb|130kb)
rate-limit (ingress-rate|engress-rate) <1-1024000> [burst
(6kb|10kb|18kb|34kb|66kb|130kb)]
reset-statistics
sfp-switch (on|off)
show interface
show interface ge <1-2>
show trunk
6
www.raisecom.com User Manual
shutdown
storm-rate-limit <0-1024000>
storm-suppression (broadcast|multicast|dlfstorm|all)
trunk
vc12 add VC12STRING [vc12num <1-8>]
virtual-channel add VCSTRING
virtual-channel delete [VCSTRING]
E1 interface configuration
mode
bert (enable|disable)
chinese
clear
clock-mode (master|slave)
crc-auto (enable|disable)
end
english
exit
frame
help
history
interface e1 <1-63>
list
no remote-e1-loopback
quit
remote-e1-loopback
reset-statistics
show interface
show interface e1 occupystatus
show interface e1 <1-63>
show interface e1
timeslot TSSTRING
unframe
SDH interface configuration
mode
chinese
clear
end
english
exit
help
history
interface sdh <1-2>
list
loopback (local|remote)
no loopback
quit
sdh aupje-threshold (positive|negative) <1-65535>
sdh Description STRING
sdh es-threshold (section|line|higher-path|lower-path) <1-900>
sdh exc-threshold (section|line|higher-path|lower-path) <3-5>
sdh j0tim (enable|disable)
sdh overhead c2 [expected BYTE] [transmit BYTE]
sdh overhead j0 [expected EXPMSG] [transmit XMITMSG]
sdh overhead j1 [expected EXPMSG] [transmit XMITMSG]
sdh overhead j2 [vc12 <1-63>] [expected EXPMSG] [transmit XMITMSG]
sdh overhead s1 BYTE
sdh sd-threshold (section|line|higher-path|lower-path) <6-8>
sdh ses-threshold (section|line|higher-path|lower-path) <1-900>
sdh tuais-insert (sectiontim|linesd|pathsd|pathplm|pathtim) (enable|disable)
show interface
show interface sdh <1-2> timeslot [<1-63>]
show interface sdh [<1-2>]
Snmp interface mode
autonegotiate
7
www.raisecom.com User Manual
chinese
clear
description STRING
end
english
exit
help
history
ip address A.B.C.D A.B.C.D
ip address A.B.C.D
list
no autonegotiate
no shutdown
quit
show interface
show interface snmp
shutdown
speed (10|100) duplex (full-duplex|half-duplex)
Vcc interface mode
chinese
clear
end
english
exit
help
history
ip address A.B.C.D A.B.C.D
ip address A.B.C.D
no virtual-channel
quit
show interface
show interface vcc
virtual-channel <1-63>
Remote interface converter
configuration mode.
chinese
clear
device-name NAMESTRING
device-type (rc952fee1|rc952fxe1)
end
english
exit
help
history
interface e1
interface fx-eth
list
quit
reset
show device
show interface e1
show interface fx-eth
Remote interface converter
device mode.
chinese
clear
device-name NAMESTRING
device-type (rc952fee1|rc952fxe1|rc951fee1|rc953fe8e1|rc953fx8e1|rc953fe8e1bl
|rc953fx8e1bl|rc953fe4e1|rc953fx4e1|rc954fe4e1|rc954fx4e1)
end
english
exit
help
history
8
www.raisecom.com User Manual
interface e1
interface (eth|fx-eth)
list
[ no] err-auto-shutdown
quit
reset
show interface e1
show interface (eth|fx-eth)
Remote interface converter
E1 interface configuration
mode.
chinese
clear
clock-mode (master|slave)
crc-auto (enable|disable)
end
english
exit
help
history
interface e1
interface (eth|fx-eth)
list
quit
show interface [e1]
show interface (eth|fx-eth)
Remote interface converter
Eth interface configuration
mode.
autonegotiate
chinese
clear
end
english
exit
fault-pass (enable|disable)
flow-control (on|off)
help
history
list
no autonegotiate
no shutdown
quit
show interface [eth]
shutdown
speed {10|100} duplex {full-duplex|half-duplex}
9
www.raisecom.com User Manual
Chapter 2 System Management Commands
2.1 chinese
[Command Format]
chinese
[Parameter]
N/A
[Default]
N/A
[Command mode]
2.2 clear
User EXEC mode
[Instructions]
N/A
[Application Example]
RC953-GESTM1# chinese
Successfully setup
[Relevant Commands]
Command Description
english
[Command Format]
clear
Setup English assistance information
[Function]
Clear the primary screen information.
[Parameter]
N/A
[Default]
N/A
[Command mode]
10
www.raisecom.com User Manual
User EXEC mode
[Instructions]
N/A
[Command Execute Echo]
N/A
[Application Example]
clear the primary screen information
RC953-GESTM1# clear
[Relevant Commands]
N/A
2.3 config
[Command Format]
config
[Function]
Enter Global configuration mode
[Parameter]
terminal: optional parameters
[Default]
N/A
[Command mode]
Privileged EXEC mode
[Command Execute Echo]
Configuration mode, one command input per times. End with CTRL-Z.
Reminder information after entering the global configuration mode.
[Application Example]
Enter Global configuration mode.
RC953-GESTM1# config
RC953-GESTM1(config)#
2.4 device unlock
[Command Format]
device unlock
[Function]
11
www.raisecom.com User Manual
RC953-GESTM1device unlock
[Default]
N/A
[Command mode]
Privileged EXEC mode
[Command Execute Echo]
RC953-GESTM1# device unlock
Set successfully !
Information shown after device lock is setup successfully.
[Application Example]
RC953-GESTM1# device unlock
Set successfully
2.5 device lock
[Command Format]
device lock
[Function]
RC953-GESTM1 device lock, device can’t execute the other configuration besides the device unlock
after it is locked. That is can’t enter the Global configuration mode, but can look over the related
configuration.
[Default]
N/A
[Command mode]
Global configuration mode
[Command Execute Echo]
Set successfully !
Information shown after the device lock setup successfully.
[Application Example]
RC953-GESTM1(config)# device lock
Set successfully
2.6 device clock-mode
[Command Format]
device clock-mode (master|slave)
[Function]
12
www.raisecom.com User Manual
configurate RC953-GESTM1 device is master station or slave station.
[Parameter]
master: the configuration is master station.
slave: the configuration is slave station.
[Default]
N/A
[Command mode]
Global configuration mode
[Command Execute Echo]
Set successfully !
Information shown after the clock-mode setup successfully.
[Application Example]
RC953-GESTM1(config)# device clock-mode master
Set successfully
2.7 disable
[Command Format]
disable
[Function]
Logout Privileged EXEC mode and login user EXEC mode.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode
[Instructions]
N/A
[Command Execute Echo]
N/A
[Application Example]
Logout Privileged EXEC mode
RC953-GESTM1# disable
RC953-GESTM1>
13
www.raisecom.com User Manual
[Relevant Commands]
Command Description
2.8 enable
enable
[Command Format]
enable
[Function]
login privileged mode.
[Parameter]
N/A
[Default]
N/A
[Command mode]
User EXEC mode.
[Instructions]
Login Privileged EXEC mode
enable password is the same as the user password, the primary 3 users levels are administrant, limited,
normal, they are all authorized to use this command.
[Command Execute Echo]
password:
Indicate entering the password, this password is the same with the login password.
[Application Example]
Enter Privileged EXEC mode
RC953-GESTM1>
enable
Password: <password>
RC953-GESTM1#
[Relevant Commands]
Command Description
disable
logout
Logout Privileged EXEC mode
Logout the primary landing
exit
From the primary mode back to the previous mode
14
www.raisecom.com User Manual
2.9 english
quit
Logout from the primary mode
[Command Format]
english
[Function]
English indicates the assistance information.
[Parameter]
N/A
[Default]
N/A
[Command mode]
User EXEC mode
[Instructions]
2.10 end
N/A
[Command Execute Echo]
set successfully. !
[Application Example]
Setup English assistance information.
RC953-GESTM1# english
set successfully.
[Relevant Commands]
Command Description
chinese
Setup Chinese assistance information.
[Function]
Return to the Privileged EXEC mode.
[Parameter]
N/A
[Default]
N/A
15
www.raisecom.com User Manual
[Command mode]
All the modes except for the user EXEC mode and the Privileged EXEC mode.
[Instructions]
N/A
[Command Execute Echo]
N/A
[Application Example]
Back to the Privileged EXEC mode.
RC953-GESTM1(config)# end
[Relevant Commands]
Command Description
2.11 exit
Ctrl + Z
Return to the Privileged EXEC mode
[Command Format]
exit
[Function]
Back to the previous mode from the primary mode..
[Parameter]
N/A
[Default]
N/A
[Command mode]
User EXEC mode
[Instructions]
Logout from the Privileged EXEC mode and user EXEC mode, it is the same fuction of quit.
[Command Execute Echo]
N/A
[Application Example]
Back to the previous mode from the primary mode.
RC953-GESTM1(config)# exit
RC953-GESTM1#
[Relevant Commands]
16
www.raisecom.com User Manual
Command Description
2.12 help
quit
Logout
[Command Format]
help
[Function]
Indicate the assistance information.
[Parameter]
N/A
[Default]
N/A
[Command mode]
User EXEC mode
[Instructions]
N/A
[Command Execute Echo]
RC953-GESTM1 AGENT software provides advanced help feature. When you need help,
anytime at the Command line please press '?'.
If nothing matches, the help list will be empty and you must backup
until entering a '?' shows the available options.
Two styles of help are provided:
1. Full help is available when you are ready to enter a
Command argument (e.g. 'show ?') and describes each possible
argument.
2. Partial help is provided when an abbreviated argument is entered
and you want to know what arguments match the input
(e.g. 'show me?'.)
[Application Example]
Indicate the assistance information.
RC953-GESTM1# help
[Relevant Commands]
17
www.raisecom.com User Manual
N/A
2.13 interface
[Command Format]
interface TYPE X
[Function]
Enter the interface configuration mode.
[Parameter]
TYPE indicates the interface style. It supports 5 styles, e1/ge/sdh/snmp/vcc, X is port No.
[Default]
N/A
[Command mode]
Global configuration mode
2.14 history
[Application Example]
Enter the local interface configuration mode.
RC953-GESTM1(config)# interface sdh 1
RC953-GESTM1(config-sdh/1)#
[Command Format]
history
[Function]
Indicate the latest Command list after login this time.
[Parameter]
N/A
[Default]
N/A
[Command mode]
User EXEC mode
[Instructions]
N/A
[Command Execute Echo]
N/A
[Application Example]
18
www.raisecom.com User Manual
Indicate the latest Command list after login this time.
RC953-GESTM1#history
[Relevant Commands]
Command Description
terminal history
2.15 hostname
Setup history Command list.
[Command Format]
hostname HOSTNAME
[Function]
Revised the system name, use no command to revise the hostname.
[Parameter]
HOSTNAME: system name
[Default]
Hostname is RC953-GESTM1
[Command mode]
Privileged EXEC mode
[Instructions]
Keep the revised system name and execute the Command write.
[Command Execute Echo]
set successfully!
Please specify string starting with alphabet
System name is setup not starting with alphabet.
HostName length must less than 16 !
Indicate the information that the hostname length exceeds 16
[Application Example]
Revised the system name
RC953-GESTM1# hostname raisecom
set successfully!
raiseccom#
Renew the hostname
RC953-GESTM1#no hostname
[Relevant Commands]
N/A
.
19
www.raisecom.com User Manual
2.16 list
[Command Format]
list
[Function]
List the Command list under this mode.
[Parameter]
N/A
[Default]
N/A
[Command mode]
User EXEC mode
[Instructions]
N/A
2.17 logout
[Command Execute Echo]
N/A
[Application Example]
List the Command list under the Privileged EXEC mode.
RC953-GESTM1# list
[Relevant Commands]
N/A
[Command Format]
logout
[Function]
Logout the current landing.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode
[Application Example]
Logout the current landing.
20
www.raisecom.com User Manual
RC953-GESTM1# logout
Login:
[Relevant Commands]
Command Description
2.18 quit
exit
quit
Back to the previous mode from the current mode
Logout from the current landing.
[Command Format]
quit
[Function]
Logout from the current mode.
[Parameter]
N/A
[Default]
N/A
[Command mode]
User EXEC mode
[Instructions]
N/A
[Command Execute Echo]
N/A
[Application Example]
Logout the landing from the Privileged EXEC mode.
RC953-GESTM1#quit
[Relevant Commands]
Command Description
exit
logout
Back to the previous mode from the current mode.
Logout the landing
21
www.raisecom.com User Manual
2.19 reboot
[Command Format]
reboot
[Function]
Restart RC953-GESTM1
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode
[Instructions]
N/A
2.20 settime
[Command Execute Echo]
N/A
[Application Example]
RC953-GESTM1# reboot
[Relevant Commands]
N/A
[Command Format]
settime DATE TIME
[Function]
Setup the system time.
[Parameter]
DATE format: <month/day/year>
TIME format: <hour:minute:second> Application Example: 04/07/2003 15:14:51.
[Default]
N/A
[Command mode]
Privileged EXEC mode
[Application Example]
RC953-GESTM1(config)# settime 04/07/2005 15:14:13
22
www.raisecom.com User Manual
Set successfully
[Relevant Commands]
Command Description
show clock
2.21 show clock
[Command Format]
[Function]
[Parameter]
[Default]
[Command mode]
[Instructions]
Indicate the system date and time.
show clock
Indicate the system date and time.
N/A
N/A
Privileged EXEC mode
N/A
[Command Execute Echo]
Now the time is xx/xx/xxxx xx:xx:xx !
Indicate the information when the current time is correct.
[Application Example]
RC953-GESTM1# show clock
[Relevant Commands]
Command Description
settime
Indicate the system date and time.
2.22 show cpu-utilization-ratio
[Command Format]
show cpu utilization-ratio
[Function]
Show cpu-utilization-radio.
23
www.raisecom.com User Manual
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode
[Application Example]
RC953-GESTM1# show cpu utilization-ratio
cpu utilization-ratio is 50%
2.23 show device
[Command Format]
show device
[Function]
Show device and power information.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode, Global configuration mode
[Application Example]
RC953-GESTM1
system name :RaiseCom device
system contact :SystemAdministrator
system location :RaiseCom
device lock is :unlocked.
Converged GE Port is:GE-1
# show device
Power Type is :DC -48V
Power 1 Status is:NORMAL
Power 2 Status is:ABNORMAl
SubCard :31E1_SUBCARD
SubCard Version :A.2
SNMP by VC12 :ENABLE
24
www.raisecom.com User Manual
2.24 show device clock
[Command Format]
show device clock
[Function]
Show the current device clock configuration.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode, Global configuration mode
[Instructions]
N/A
[Command Execute Echo]
N/A
[Application Example]
RC953-GESTM1(config)# show device clock
Show the information below when the clock mode is slave mode:
clock mode: slave
clock status: normal
current clock-source: sdh1
priority clock-source
1 sdh1
sdh2
Show the information below when the clock mode is master mode:
clock mode: master
clock status: normal
2.25 show sntp
current clock-source: local
[Command Format]
show sntp
[Function]
Show sntp configuration.
25
www.raisecom.com User Manual
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode, Global configuration mode
[Instructions]
N/A
[Command Execute Echo]
N/A
[Application Example]
RC953-GESTM1# show sntp
SNTP configuration information
SNTP server address:1.1.1.2
SNTP server Stratum Version Last Receive
------------------------------------------------------------
2.26 show terminal
[Command Format]
show terminal
[Function]
Show terminal user information.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode
[Application Example]
Show the current system user information.
RC953-GESTM1> show terminal
Terminal Situation Exceed the time Users
----------------------------------------------------------console active 600sec raisecom
telnet-1 inactive - -
26
www.raisecom.com User Manual
telnet-2 inactive - telnet-3 inactive - telnet-4 inactive - telnet-5 inactive - -
[Relevant Commands]
Command Description
who
2.27 show version
[Command Format]
show version
[Function]
Show the device software and hardward version information.
[Default]
N/A
[Command mode]
Show the current system user.
[Application Example]
RC953-GESTM1#
4M bytes Flash Memory
2.28 sntp server
[Origianl mode]
Privileged EXEC mode
show version
RaiseCom Operating System Software
Copyright(c) 2001-2003 by Raisecom Science & Technology CO., LTD.
Product name: RC953-GESTM1
RaiseComOS Software Version 1.0(Compiled Nov 4 2005 14:42:14)
Hardwar e Version A.0
FPGA Version 0.0
RC953-GESTM1 with
16M bytes DRAM
sntp server A.B.C.D
no sntp server A.B.C.D
[Function]
27
www.raisecom.com User Manual
Configurate sntp server, show noCommand
[Parameter]
A.B.C.D: server ip address.
[Default]
N/A
[Command mode]
Global configuration mode
[Command Execute Echo]
Set successfully !
Show the information when sntp setup is successfully.
[Application Example]
RC953-GESTM1(config)# sntp server 192.168.4.250
Set successfully
[Relevant Commands]
show sntp
2.29 terminal history
[Command Format]
terminal history <1-20>
[Function]
Setup terminal history command list.
[Parameter]
<1-20>: Terminal history Command list.
[Default]
The number of this command terminal history Default is 20.
[Command mode]
User EXEC mode
[Command Execute Echo]
Set successfully
Show the information during setup the terminal history command is successfully.
[Application Example]
The No. of the terminal history is 4.
RC953-GESTM1>
Set successfully
terminal history 4
[Relevant Commands]
28
www.raisecom.com User Manual
Command Description
history
terminal time-out
terminal line
2.30 terminal line
[Command Format]
terminal line <5-512>
no terminal line
[Function]
Setup terminal lines, there is no Default.
[Parameter]
<5-512>: Indicate the range of the line.
[Default]
Show the latest command list after current login.
The maximum when the terminal has no time-out.
Setup terminal lines.
Default terminal line indicates line 24.
[Command mode]
User EXEC mode
[Instructions]
N/A
[Command Execute Echo]
N/A
[Application Example]
Terminal line 10.
RC953-GESTM1> terminal line 10
Set successfully
[Relevant Commands]
Command Description
history
Show the latest command list after currently logout.
terminal time-out
terminal line
The maximum when the terminal has no time-out.
Setup terminal lines.
29
www.raisecom.com User Manual
2.31 terminal time-out
[Command Format]
terminal time-out <0-65535>
[Function]
Setup the max imum of the te rminal time-out.
[Parameter]
<0-65535>: Second length of exceeding the time.
[Default]
The command Default seconds are 600.
[Command mode]
User EXEC mode.
[Command Execute Echo]
Set successfully !
2.32 who
[Application Example]
The time-out seconds are 100.
RC953-GESTM1> terminal time-out 100
Set successfully
[Relevant Commands]
Command Description
history
terminal time-out
terminal line
Show the latest command list after the current login.
The maximum when the terminal has no time-out.
Setup terminal lines.
[Command Format]
who
[Function]
Show who is the current connenting user, thoese users in front of themselves having * indiates they are
configurating the deivice right now.
[Parameter]
N/A
[Default]
30
www.raisecom.com User Manual
N/A
[Command mode]
Privileged EXEC mode
[Instructions]
N/A
[Command Execute Echo]
N/A
[Application Example]
Who is the current connecting users.
RC953-GESTM1# who
* vty[2] connected from 101.51.51.81.
vty[3] connected from 101.51.51.82.
[Relevant Commands]
Command Description
show terminal
Show the terminal users information.
31
www.raisecom.com User Manual
Chapter 3 RC953-GESTM1 User Management Commands
3.1 password
[Command Format]
password PASSWORD
[Function]
Revised the current login password.
[Parameter]
PASSWORD: Password.
[Default]
N/A
[Command mode]
Privileged EXEC mode
[Instructions]
N/A
[Command Execute Echo]
set successfully!
please execute "write" to save!
Show the information when the current user password is successfully.
password not same!
Show the information when the current user password is failed.
RC953-GESTM1# password
Please input password:admin
Please input again:admin
Set successfully
please execute "write" to save!
[Relevant Commands]
Command Description
user
Add the users and setup their passwords.
32
www.raisecom.com User Manual
3.2 save user
[Command Format]
save user
[Function]
Save user information.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode
[Application Example]
RC953-GESTM1# save user
3.3 show user
Save user information successfully!
[Command Format]
show user
[Function]
Show all the users ID NO.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode
[Instructions]
Using this co mmand can check how many users can login this system, users can use erase Comma nd t o
delete this system and then get back the system to the original situation.
[Command Execute Echo]
N/A
[Application Example]
RC953-GESTM1# show user
Username privileged level
33
www.raisecom.com User Manual
------------------------------RC953-GESTM1 admin
raisecom admin
[Relevant Commands]
Command Description
3.4 user
User
User privilege
Setup user information.
Setup the privilege of the specific user.
[Command Format]
user USERNAME password {no-encryption|m d5} PASSWORD
[Function]
Add the users and setup the passwords.
[Parameter]
USERNAME username
password passwords
no-encryption no-encryption proclaimed passwords
md5 MD5 encryption passwords.
PASSWORD password information
[Default]
The Default privilege of this command is ADMINISTRANT, after using user privilege Command to
make the revision.
[Command mode]
Privileged EXEC mode
[Instructions]
The usernames don’t have the capital or not, but the passwords have. The new adding users Default
level is 15, after using Command user USERNAME privilege (administrant|normal|limited) can make
the revision.
There is at least one user whose privilege is ADMINISTRANT in the system database. Only the user
whose privilege is ADMINISTRANT can use this command.
[Command Execute Echo]
Set successfully !
please execute "write" to save!!
Add the user and set the information when the password is correct.
[Application Example]
Add a user whose username is abc and password is 123.
34
www.raisecom.com User Manual
RC953-GESTM1# user abc password no-encrypt 123
Delete a user whose usename is abc.
RC953-GESTM1# no user abc.
[Relevant Commands]
Command Description
3.5 user privilege
[Command Format]
[Function]
[Parameter]
[Default]
hostname
user privilege
Password
Set the hostname name of the privileged user.
Revised the privileged level of the user.
Revise the current user password.
user USERNAME privilege (administrant|normal|limited)
Revise the user privilege level.
USERNAME: username
(administrant|normal|limited): user level
The Default privilege is ADMINISTRANT
[Command mode]
Privileged EXEC mode
[Instructions]
When hope to restrict one user privilege, don’t allow him to execute some command, we can use this
command to restrict the other users. This command only can be executed by the controller whose
privilege is ADMINISTRANT.
[Command Execute Echo]
Set successfully !
please execute "write" to save!
Show the information that the privilege of the specific user is correct.
You Need higher priority!
Indicate the current lading user level is not asministrant, it can’t revise the other users privileges.
[Application Example]
Set the privilege of the user abd as normal.
35
www.raisecom.com User Manual
RC953-GESTM1# user abc privilege normal
Set successfully !
please execute "write" to save!
[Relevant Commands]
Command Description
User
show user
Add a user and set the password.
Show the user information.
36
www.raisecom.com User Manual
Chapter 4 Log management commands of RC953-GESTM1
4.1 log
[Command Format]
log (enable|disable|clear)
[Function]
Enable or disable log
[Parameter]
enable: enable the log
disable: disable the log
clear: clear the log
[Default]
Enable the log
[Command mode]
Global configuration mode
[Instructions]
N/A
[Command Execute Echo]
N/A
[Application Example]
Enable the current log
RC953-GESTM1# log enable
Set successfully
[Relevant Commands]
Command Description
log clear
show log
4.2 log clear
Clear the log
Show the log information
[Command Format]
37
www.raisecom.com User Manual
log clear
[Function]
Clear the log information
[Parameter]
N/A
[Default]
N/A
[Command mode]
Global configuration mode
[Application Example]
Clear the current log information
RC953-GESTM1# log clear
[Relevant Commands]
Command Description
log
show log
4.3 show log
Enable or disable the log
Show the log information
[Command Format]
show log
[Function]
Show log
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode, Global configuration mode
[Application Example]
RC953-GESTM1# show log
Uer login informaiton:
01/01/1970 00:00:37 send trap rcRemoteRicExist index1 is 43
01/01/1970 00:00:37 send trap rcRemoteRicExist index1 is 41
38
www.raisecom.com User Manual
01/01/1970 00:00:37 send trap rcRemoteRicExist index1 is 38
01/01/1970 00:00:37 send trap rcRemoteRicExist index1 is 23
01/01/1970 00:00:37 send trap rcRemoteRicExist index1 is 19
01/01/1970 00:00:37 send trap rcRemoteRicExist index1 is 12
01/01/1970 00:00:37 send trap rcRemoteRicExist index1 is 10
[Relevant Commands]
Command Description
log
log clear
Enable or disable the log
Clear the current log information.
39
www.raisecom.com User Manual
Chapter 5 Network protocols configuration commands of RC953-GESTM1
5.1 arp add
[Command Format]
arp add A.B.C.D MACADDRESS
[Function]
Configure a mapping from an IP address to a physical MAC address
[Parameter]
A.B.C.D: IP address of the interface
MACADDRESS: <AA.BB.CC.DD.EE.FF>,physical MAC address that the interface has mapped.
Command Description
arp delete
show arp
5.2 arp delete
[Default]
The Default ARP table is empty of this command, the address mapping can be gotten through the
dynamic ARP protocol.
[Command mode]
Global configuration mode
[Application Example]
RC953-GESTM1(config)# arp add 192.168.4.250 00:50:58:45:14:03
Successfully add an entry to ARP table
[Relevant Commands]
Delete a mapping from an IP address to a physical MAC address
Show the current ARP list.
[Command Format]
arp delete A.B.C.D
[Function]
Delete a mapping from a IP address to a physical MAC address
[Parameter]
A.B.C.D: IP address of the interface
[Default]
40
www.raisecom.com User Manual
N/A
[Command mode]
Global configuration mode
[Application Example]
RC953-GESTM1(config)# arp delete 192.168.4.250
Successfully delete an entry from ARP table
[Relevant Commands]
Command Description
arp add
show arp
5.3 ip address
Configurate the mapping from a IP address to a physical MAC address.
Show the current ARP list.
[Command Format]
ip address A.B.C.D [A.B.C.D]
[Function]
Configure IP address of snmp port.
[Parameter]
A.B.C.D: IP address.
[A.B.C.D]: Configure the IP subnet mask, Default.
[Default]
N/A
[Command mode]
SNMP interface configuration mode, vcc interface configuration mode.
[Instructions]
ip address, this is mainly used to configure the IP address of the Ethernet port.
[Command Execute Echo]
Successfully set ip address
Information showed when revise IP address successfully.
set ip address failed!
Information showed when revise IP address failed.
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface snmp
RC953-GESTM1(config-snmp)# ip address 192.168.4.28
41
www.raisecom.com User Manual
Set successfully
5.4 ip route
[Command Format]
ip route A.B.C.D A.B.C.D A.B.C.D
[Function]
Add a route, use no command to delete one.
no ip route A.B.C.D
[Parameter]
A.B.C.D :the first parameter is the IP address of the destination subnet or host in decimal with
dot.
A.B.C.D :the second parameter is the IP address subnet mask of the destination subnet or host in
decimal with dot.
A.B.C.D :the third parameter is the IP address of the gateway.
[Default]
N/A
[Command mode]
Global configuration mode
[Instructions]
The static routing is suitable in the simple network environment where routing protocol is not essential
or the routing must be configured by hand. The subnet mask is required to be continuous 1s from the
most important bit when it is in dot format such as 255.255.0.0 or 255.255.128.0 but not 255.0.255.0 or
255.1.0.0. If the priority is already configured in the routing, then the static routing will be replaced by
the dynamic routing in the case that the routing priority is higher than the Default priority of the static
routing. The Default static routing priority is 1 and is higher than that of any other dynamic routing. The
first parameter should be 0.0.0.0 when configure the Default routing of the system.
[Command Execute Echo]
Successfully add a route!
Information showed when adding a route is successfully.
Unsuccessfully add a route!
Information showed when adding a route is unsuccessfully.
[Application Example]
Add a route.
RC953-GESTM1(config)# ip route 192.168.6.0 255.255.255.0 192.168.4.250
Successfully add a route
Delete a route.
RC953-GESTM1(config)# no ip route 192.168.6.0 255.255.255.0
42
www.raisecom.com User Manual
Successfully delete a route
[Relevant Commands]
Command Description
show ip route
5.5 no virtual-channel
[Command Format]
no virtual-channel
[Function]
Cancel the virtual-channel accordance with the vcc network channel.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Global configuration mode, vcc interface configuration mode.
[Application Example]
Show routing information.
5.6 ping
RC953-GESTM1(config-vcc)# no virtual-channel
clear vcc virtual channel success.
[Command Format]
ping A.B.C.D [count <1-65535>] [size <12-4076>] [timeout <1-255>]
[Function]
Test whether the network is connectable.
[Parameter]
A.B.C.D :The IP address of the destination host is in decimal with dot.
count :The ping program will exit automatically after having sent certain amount of ICMP echo
messages.
<1-65535> :Number of ICMP echo messages will be sent.
size :Length of additional content of the sending ICMP echo.
<8-4076> :Appointed length.
timeout :The time which the ping program has to wait to decide that the target is not connentable.
43
www.raisecom.com User Manual
<1-255> :The appointed time.
[Default]
The count is 4, size is 64 and timeout is 3
[Command mode]
Privileged EXEC mode
[Instructions]
N/A
[Command Execute Echo]
N/A
[Application Example]
Ping the destination host 192.168.1.119.
RC953-GESTM1> ping 192.168.1.119
(Type CTRL+C break)
5.7 show arp
PING 192.168.1.119: 56 data bytes
64 bytes from host (192.168.1.119): icmp_seq=0. time=0. ms
64 bytes from host (192.168.1.119): icmp_seq=1. time=0. ms
64 bytes from host (192.168.1.119): icmp_seq=2. time=0. ms
64 bytes from host (192.168.1.119): icmp_seq=3. time=0. ms
----192.168.1.119 PING Statistics---4 packets transmitted, 4 packets received, 0% packet loss
round-trip (ms) min/avg/max = 0/0/0
[Command Format]
show arp
[Function]
Show current ARP table.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode, Global configuration mode
[Application Example]
Show the current ARP aging time and table.
44
www.raisecom.com User Manual
RC953-GESTM1(config)# show arp
LINK LEVEL DYNAMIC ARP TABLE
ipAddress macAddr flags Refcnt Use Interface
--------------------------------------------------------------------------
192.168.4.251 00:50:8d:46:fb:03 0xffff8405 1 4 motfec0
--------------------------------------------------------------------------
LINK LEVEL STATIC ARP TABLE
ipAddress macAddr flags Refcnt Use Interface
--------------------------------------------------------------------------
-------------------------------------------------------------------------arp timeout is 1200(s)
----------------------------------------
[Relevant Commands]
Command Description
arp add
arp delete
5.8 show ip route
[Command Format]
[Function]
[Parameter]
[Default]
Add a mapping.
Delete a mapping.
show ip route
Show the route information.
N/A
N/A
[Command mode]
Privileged EXEC mode, Global configuration mode
[Application Example]
ROUTE NET TABLE
destination gateway flags(0x)Rfc Use pro Interface
----------------------------------------------------------------------------
45
www.raisecom.com User Manual
192.168.1.0/24 192.168.2.1 2010003 2 253 1 motfec0
192.168.2.0/24 192.168.2.99 2000101 3 0 2 motfec0
----------------------------------------------------------------------------
ROUTE HOST TABLE
destination gateway flags(0x)Rfc Use pro Interface
----------------------------------------------------------------------------
127.0.0.1 127.0.0.1 2200005 0 0 2 lo0
192.168.1.181 192.168.2.1 2060007 0 14 2 motfec0
5.9 show snmp-server community
[Command Format]
show snmp-server community
[Function]
Show SNMP community name list.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode, Global configuration mode
[Application Example]
Show SNMP community name list.
RC953-GESTM1(config)# show snmp-server community
ID COMMUNITYNAME RIGHT
--------------------------------1 public ro
2 private rw
[Relevant Commands]
Command Description
snmp-server community
5.10 show snmp trap-sever
[Command Format]
Setup SNMP table and the privilege.
46
www.raisecom.com User Manual
show snmp trap-server
[Function]
Show information of SNMP trap server.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode, Global configuration mode
[Instructions]
N/A
[Command Execute Echo]
N/A
[Application Example]
Show information of SNMP trap-server.
RC953-GESTM1# show snmp trap-server
Trap server:
ADDRESS PORT
---------------------
192.168.2.5 162
[Relevant Commands]
Command Description
snmp trap-server
5.11 snmp-server community
[Command Format]
snmp-server community COMMUNITYNAME <ro|rw>
Setup the host of the SNMP trap server.
no snmp-server community COMMUNITYNAME
[Function]
Setup the community of SNMP and the privilege of write and read, user no community to deletea
community name.
[Parameter]
COMMUNITYNAME: name of the community
<ro|rw>: Privilege RO only can read, RW both can read and write.
47
www.raisecom.com User Manual
[Default]
N/A
[Command mode]
Global configuration mode
[Instructions]
It can setup at most 10 community name.
[Command Execute Echo]
Community name length must less than 25 !
Show the information that the length of the community name exceeding 25.
Set snmp community name successfully!
Show the information after adding the community name successfully.
Set snmp community name failure!
Show the information after adding the community name failed.
[Application Example]
RC953-GESTM1(config)
Set successfully
# snmp-server community raisecom rw
[Relevant Commands]
Command Description
show Snmp-server community
5.12 snmp-server contact SYSCONTACT
[Command Format]
snmp-server contact SYSCONTACT
[Function]
Setup the address of the system contact SYSCONTACT, it can’t exceed 256 alphabet. It is usually the
address of the contact SYSCONTACT E-mail, these parameters used as the standard configuration in
the SMNP MIB.
Show SNMP community name list information.
[Parameter]
SYSCONTACT: show the contact SYSCONTACT.
[Default]
N/A
[Command mode]
Global configuration mode
48
www.raisecom.com User Manual
[Application Example]
RC953-GESTM1(config)# snmp-server contact 123@raisecom.com
Set Successfully.
5.13 snmp-server location SYSLOCATION
[Origianl mode]
snmp-server location SYSLOCATION
[Function]
Set the location of the host computer, it can’t exceed 256 alphabet. These parameters setup as the
standard configuration in SNMP MIB.
[Parameter]
SYSLOCATION: Show the SYSLOCATION.
[Default]
N/A
[Command mode]
Global configuration mode
[Application Example]
RC953-GESTM1(config)# snmp-server location 123
Set Successfully.
5.14 snmp-server name SYSNAME
[Command Format]
snmp-server name SYSNAME
[Function]
Set the system name, it can’t exceed 256 alphabets, these parameters setup as the standard configuration
in SNMP MIB.
[Parameter]
SYSNAME: Show the system name.
[Default]
N/A
[Command mode]
Global configuration mode
[Application Example]
RC953-GESTM1(config)# snmp-server name RAISECOM
Set Successfully.
49
www.raisecom.com User Manual
5.15 snmp trap-server
[Command Format]
snmp trap-server A.B.C.D [<1-65535>]
no snmp trap-server A.B.C.D
[Function]
Setup the host computer of snmp trap-server, user no command to delete a trap server host computer.
[Parameter]
A.B.C.D: Host computer Ip address of trap information.
[<1-65535>]: the trap receiving interface of the host.
[Default]
Default interface is 162.
[Command mode]
Global configuration mode
[Command Execute Echo]
The trap-server address pool is full !
Set trap server successfully!
Show the information when adding a new host successfully.
trap server failed!
Show the information when adding a new host failed.
[Application Example]
RC953-GESTM1(config)# snmp trap-server 192.168.4.250
Set successfully.
[Relevant Commands]
Command Description
show snmp trap-server
Show trap-server information.
5.16 snmpd
[Command Format]
snmpd
no snmpd
[Function]
Start SNMP task, use no command to turn of SNMP.
50
www.raisecom.com User Manual
[Parameter]
N/A
[Default]
N/A
[Command mode]
Global configuration mode
[Command Execute Echo]
Set successfully !
Show the information when setup SNMP successfully.
[Application Example]
RC953-GESTM1(config)# snmpd
Set successfully
5.17 show snmp-server statistics
[Command Format]
show snmp-server statistics
[Function]
show snmp server statistics.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode
[Application Example]
Show SNMP server statistics.
RC953-GESTM1(config)# show snmp-server statistics
SNMP Statistics:
snmpInPkts: 0
snmpInBadVersions: 0
snmpInBadCommunityNames: 0
snmpInBadCommunityUses: 0
snmpInASNParseErrs: 0
snmpEnableAuthTraps: 0
snmpOutPkts: 0
51
www.raisecom.com User Manual
snmpInBadTypes: 0
snmpInTooBigs: 0
snmpInNoSuchNames: 0
snmpInBadValues: 0
snmpInReadOnlys: 0
snmpInGenErrs: 0
snmpInTotalReqVars: 0
snmpInTotalSetVars: 0
snmpInGetRequests: 0
snmpInGetNexts: 0
snmpInSetRequests: 0
snmpInGetResponses: 0
snmpInTraps: 0
snmpOutTooBigs: 0
5.18 show interface snmp
[Command Format]
show interface snmp
[Function]
Show interface situation and detailed statistics.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged mode, snmp interface configuration mode.
[Application Example]
RC953-GESTM1# show interface snmp
Interface : snmp
Administration Status: up
Operation Status : up
Description : snmp
Internet address : 192.168.2.99 Netmask : 255.255.255.0
Ethernet address : 00:03:02:12:16:04
Duplex status : full-duplex
Speed status : 100baseT
52
www.raisecom.com User Manual
Autonegotiation : enable
5.19 show interface vcc
[Command Format]
show interface vcc
[Function]
Show vcc network interface.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged mode, vcc interface configuration mode.
[Application Example]
RC953-GESTM1(config-vcc)# show interface vcc
VccIndex IPAddress Netmask VirtualChannel
1 192.168.5.28 255.255.0.0 6 RC953-GESTM1(config-vcc)#
5.20 virtual-channel
[Command Format]
virtual-channel <1-63>
[Function]
Appointed vitual-channel accordance with the vcc network, the appointed virtual channel should be the
setup virtual-channel, and not the community of any GE port, the inner virtual-channel port No. should
from 17 to 32.
[Default]
N/A
[Command mode]
vcc interface configuration mode.
[Application Example]
RC953-GESTM1(config-vcc)# virtual-channel 6
set vcc virtual channel success.
53
www.raisecom.com User Manual
Chapter 6 Upgrade and configuration file management commands of
RC953-GESTM1
6.1 download
[Command Format]
download (system-boot | startup-config) (tftp | ftp)
[Function]
Download system-boot file or startup-config file from management server
[Parameter]
(system-boot|startup-config): choose the file needed to be downloaded..
system-boot: program file.
startup-config: configuration file.
(tftp|ftp): protocal
tftp: Download protocol is tftp.
ftp: Download protocol is ftp.
[Default]
N/A
[Command mode]
Privileged mode.
[Instructions]
The characters of ftp user name and password are no more than 16 while the file name is no more than
80.
[Command Execute Echo]
Execute command failed!
the management port isn't exist!
Execute Command fail !
Information showed when user name is empty.
Read error!
Information showed when user name is wrong.
User name is empty!
54
www.raisecom.com User Manual
Information showed when reading user name is wrong.
User password is empty!
Information showed when reading password is wrong.
Invalid input file name !
Information showed when entering the download user name is wrong.
Copy file success !
Information showed when download the file successfully.
Copy file fail !
Information showed when download file failed.
[Application Example]
Download RC953-GESTM1 image program from host server.
RC953-GESTM1# download system-boot ftp
Please input server IP Address : 1.0.0.1
Please input FTP User name : test
Please input FTP Password : test
Please input FTP Server File Name:RC953-GESTM1.Z
Loading, please wait...file length = 721337
Please select the disk for saving image
1. core:
2. exit
Please input the number:1
Writing to flash, please wait....................
Copy file successfully !
6.2 erase startup-config
[Command Format]
erase startup-config
[Function]
erase srartup configuration.
[Parameter]
N/A
[Default]
55
www.raisecom.com User Manual
N/A
[Command mode]
Privileged EXEC mode
[Instructions]
Indicate if it erases successfully after erasion.
[Command Execute Echo]
Finished erasing!
Information showed when finished erasing the start configuration.
[Application Example]
Erase the device configuration file startup-config.
RC953-GESTM1# erase startup-config
Are you sure[Y/N]:y
Erase successfully
[Relevant Commands]
Command Description
show running-config
6.3 show running-config
[Origianl mode]
show running-config
[Function]
Show running-config
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode
Show the current working configuration.
[Application Example]
RC953-GESTM1(config)# show running-config
current running configuration :
snmp-server community private rw
device clock-mode slave
converged-port eth
snmp trap-server 192.168.4.111 162
56
www.raisecom.com User Manual
alarm-trap-disable index 201
alarm-trap-disable index 205
alarm-trap-disable index 231
alarm-trap-disable index 233
sdh aps-restore-time 1
virtual-channel vc12 1 e1 1 name virtualchannel-1
virtual-channel vc12 2 e1 2 name virtualchannel-2
virtual-channel vc12 3 e1 3 name virtualchannel-3
[Relevant Commands]
Command Description
erase startup-config
Show startup-config
Write
Erase configuration: startup-config
Show system initial configuration file.
Save present configuration initial file.
6.4 show startup-config device <0-127>
[Command Format]
show startup-config device <0-127>
[Function]
Show the device startup-config device.
[Parameter]
<0-127> :O indicates global configuration, 64 indicates post global configuration, 1-63 indicates
interface converter No., 65-127 indicates media converter device No.
[Default]
N/A
[Command mode]
Privileged EXEC mode
[Application Example]
RC953-GESTM1# show starup-config device 0
current start up configuration :
snmp-server community private rw
device clock-mode slave
converged-port eth
snmp trap-server 192.168.4.111 162
alarm-trap-disable index 201
alarm-trap-disable index 205
57
www.raisecom.com User Manual
alarm-trap-disable index 231
alarm-trap-disable index 233
sdh aps-restore-time 1
virtual-channel vc12 1 e1 1 name virtualchannel-1
virtual-channel vc12 2 e1 2 name virtualchannel-2
virtual-channel vc12 3 e1 3 name virtualchannel-3
virtual-channel vc12 4 e1 4 name virtualchannel-4
virtual-channel vc12 5 e1 5 name virtualchannel-5
virtual-channel vc12 6 e1 6 name virtualchannel-6
virtual-channel vc12 7 e1 7 name virtualchannel-7
virtual-channel vc12 8 e1 8 name virtualchannel-8
virtual-channel vc12 9 e1 9 name virtualchannel-9
virtual-channel vc12 10 e1 10 name virtualchannel-10
virtual-channel vc12 11 e1 11 name virtualchannel-11
virtual-channel vc12 12 e1 12 name virtualchannel-12
[Relevant Commands]
Command Description
erase startup-config
Show running-config
write
6.5 show startup-config
[Command Format]
show startup-config
[Function]
Show startup-config
[Parameter]
N/A
Erase configuration: startup-config
Show present running configuration.
Save present configuration to initial file.
[Default]
N/A
[Command mode]
Privileged EXEC mode
[Application Example]
RC953-GESTM1# show starup-config
current start up configuration :
58
www.raisecom.com User Manual
snmp-server community private rw
device clock-mode slave
converged-port eth
snmp trap-server 192.168.4.111 162
alarm-trap-disable index 201
alarm-trap-disable index 205
alarm-trap-disable index 231
alarm-trap-disable index 233
sdh aps-restore-time 1
virtual-channel vc12 1 e1 1 name virtualchannel-1
virtual-channel vc12 2 e1 2 name virtualchannel-2
virtual-channel vc12 3 e1 3 name virtualchannel-3
virtual-channel vc12 4 e1 4 name virtualchannel-4
virtual-channel vc12 5 e1 5 name virtualchannel-5
virtual-channel vc12 6 e1 6 name virtualchannel-6
Command Description
erase startup-config
Show running-config
write
6.6 upload
virtual-channel vc12 7 e1 7 name virtualchannel-7
virtual-channel vc12 8 e1 8 name virtualchannel-8
virtual-channel vc12 9 e1 9 name virtualchannel-9
virtual-channel vc12 10 e1 10 name virtualchannel-10
virtual-channel vc12 11 e1 11 name virtualchannel-11
virtual-channel vc12 12 e1 12 name virtualchannel-12
[Relevant Commands]
Erase configuration file: startup-config
Show present running configuration.
Save present configuration to intial file.
[Command Format]
upload （system-boot|startup-config）（ftp|tftp）
[Function]
Upload file to server. upload {SYSTEM-BOOT | STARTUP-CONFIG} {TFTP | FTP}
[Parameter]
（
system-boot|startup-config）: choose the upload file.
system-boot: program file to upgrade present system program
59
www.raisecom.com User Manual
startup-config: configuration file to cover startup-config file
（
ftp|tftp）: upload protocol is TFTP;
ftp: upload protocol is FTP.
tftp: upload protocol is TFTP.
[Default]
N/A
[Command mode]
Global configuration mode
[Instructions]
The length of the username and password of FTP can’t exceed 16 characters, the length of the file name
can’t exceed 80 characters.
[Application Example]
RC953-GESTM1# upload system-boot ftp
6.7 write
Please input server IP Address:192.168.4.250
Please input FTP User name:wrs
Please input FTP Password:wrs
Please input FTP Server File Name:aa.z
Please select the file for uploading image
1. core:RC953-GESTM1.z
2. exit
Please input the number:1
uploading, please wait... finish
Copy file successfully !
[Command Format]
write
[Function]
Save present configuration to initial file.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode
[Application Example]
60
www.raisecom.com User Manual
RC953-GESTM1# write
Please wait..Copy OK: 16887 bytes copied
Save current configuration successfully!
[Relevant Commands]
Command Description
erase startup-config
Show running-config
write
Erase device configuration startup-config
Show the present running-config
Save present configuration to initial configuration.
61
www.raisecom.com User Manual
Chapter 7 Alarming management command of RC953-GESTM1
7.1 alarm-trap-disable
[Command Format]
alarm-trap-disable (ric|rmc|system|innere1|ge)
no alarm-trap-disable (ric|rmc|system|innere1|ge)
[Function]
Config alarm-trap-disable, use no command to delete alarm-trap-disable.
[Parameter]
(ric|rmc|system|innere1|ge): Choose alarm-trap-disable mode.
[Default]
N/A
[Command mode]
Global configuration mode
[Command Execute Echo]
Set successfully !
Information showed when alarm-trap-disable is set successfully.
[Application Example]
RC953-GESTM1(config)# alarm-trap-disable ge
Set successfully!
[Relevant Commands]
Command Description
alarm-trap-disable index ALA RM NO
alarm-trap-disable sdh (section|line|path|tu|vc)
Shielding alarm-trap-disable.
Shielding alarm-trap-disable of SDH.
7.2 alarm-trap-disable index
[Command Format]
alarm-trap-disable index ALARMNO
no alarm-trap-disable index ALARMNO
[Function]
Shielding the alarm information, use no command to cancel alarm- trap-disable.
62
www.raisecom.com User Manual
[Parameter]
ALARMNO:
[Default]
N/A
[Command mode]
Global configuration mode
[Command Execute Echo]
Set successfully !
Information showed when set the alarm-trap-disable successfully!
[Application Example]
RC953-GESTM1# alarm-trap-disable index 203
Set successfully
[Relevant Commands]
Command Description
show alarmindex
7.3 alarm-trap-disable sdh
[Command Format]
alarm-trap-disable sdh (section|line|path|tu|vc)
no alarm-trap-disable sdh (section|line|path|tu|vc)
[Function]
Configure the alarming information of SDH, use no command to cancel the alarm-trap-disable.
[Parameter]
(section|line|path|tu|vc):
[Default]
N/A
[Command mode]
Show alarming index.
Global configuration mode
[Command Execute Echo]
Set successfully !
Information showed when set the alarm-trap-disable is successfully.
[Application Example]
RC953-GESTM1# alarm-trap-disable sdh section
Set successfully
63
www.raisecom.com User Manual
7.4 show current-alarm
[Command Format]
show current-alarm
[Function]
Show the current alarm.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode, Global configuration mode
[Application Example]
RC953-GESTM1#
Name var1 var2 var3 var4
---------------------------------------------------------------snmp_trap_coldStart 0 0 0 0
snmp_trap_linkDown 2 1 2 0
rcLocalInnerE1Ais 1 0 0 0
rcLocalInnerE1Ais 2 0 0 0
rcLocalInnerE1Ais 3 0 0 0
rcLocalInnerE1Ais 4 0 0 0
rcLocalInnerE1Ais 5 0 0 0
rcLocalInnerE1Ais 6 0 0 0
rcLocalInnerE1Ais 7 0 0 0
rcLocalInnerE1Ais 8 0 0 0
rcLocalInnerE1Ais 9 0 0 0
rcLocalInnerE1Ais 10 0 0 0
show current-alarm
[Relevant Commands]
Command Description
show history-alarm
7.5 show history-alarm
[Command Format]
show history-alarm
[Function]
Show the history-alarm.
64
www.raisecom.com User Manual
Show the history-alarm.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode
[Application Example]
RC953-GESTM1#
Name var1 var2 var3 var4 var5
---------------------------------------------------------------snmp_trap_coldStart 0 0 0 0 0
snmp_trap_linkDown 2 1 2 0 0
rcLocalInnerE1Ais 1 0 0 0 0
rcLocalInnerE1Ais 2 0 0 0 0
rcLocalInnerE1Ais 3 0 0 0 0
rcLocalInnerE1Ais 4 0 0 0 0
rcLocalInnerE1Ais 5 0 0 0 0
rcLocalInnerE1Ais 6 0 0 0 0
rcLocalInnerE1Ais 7 0 0 0 0
rcLocalInnerE1Ais 8 0 0 0 0
rcLocalInnerE1Ais 9 0 0 0 0
rcLocalInnerE1Ais 10 0 0 0 0
rcLocalInnerE1Ais 11 0 0 0 0
show history-alarm
7.6 show alarm-index
[Command Format]
Show alarm index (sdh|innere1|system|rmc|ric|ge)
[Function]
Show alarm-index.
[Default]
N/A
[Command mode]
Global configuration mode, Privileged EXEC mode
[Application Example]
RC953-GESTM1(config)# show alarm index
65
www.raisecom.com User Manual
RC953-GESTM1 Device Alarm-Enable is:enable
index alarmName TrapEnable
----------------------------------------------------------- 1 rcPowerNoExist enable
3 rcPower5vAbnormal enable
7 rcPower3vAbnormal enable
11 rcCardError enable
13 rcClockSrcSwitch enable
15 rcClockSrcLost enable
17 rcSdhLpPse enable
49 rcLocalInnerE1Los enable
51 rcLocalInnerE1Ais enable
53 rcLocalInnerE1Lof enable
55 rcLocalInnerE1Crc enable
57 rcLocalInnerE1E3 enable
59 rcLocalInnerE1E6 enable
101 rcLocalFxGeSfpNoExist enable
103 rcLocalFxGeSfpTxFailure enable
66
www.raisecom.com User Manual
Chapter 8 Interface management command of RC953-GESTM1 SDH
8.1 sdh description
[Command Format]
sdh Description STRING
[Function]
Interface description
[Parameter]
STRING: Interface description
[Default]
N/A
[Command mode]
[Application Example]
8.2 loopback
[Command Format]
[Function]
[Parameter]
Interface configuration mode.
RC953-GESTM1# config
RC953-GESTM1(config)# interface sdh 1
RC953-GESTM1(config-sdh/1)# sdh Description RC953-GESTM1-SDH
Set successfully
loopback {local|remote}
no loopback
Configure sdh loopback, use noCommand to cancel the loopback.
{local|remote}: Types of loopback.
local: Local loop is called inner loop also, its reference point is the interface of the configuration loop.
remote: Remote loop is called outer loop, its reference point is the interface of the configuration loop.
[Default]
no loopback.
[Command mode]
Interface configuration mode.
67
www.raisecom.com User Manual
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface sdh 1
RC953-GESTM1(config-sdh/1)# loopback remote
Set successfully
8.3 sdh aps-restore-time
[Command Format]
sdh aps-restore-time <1-12>
[Function]
Configure aps-restore-time.
[Parameter]
<1-12>: Time, unite is minute.
[Default]
N/A
[Command mode]
Global configuration mode
[Application Example]
RC953-GESTM1(config)# sdh aps-restore-time 1
Set successfully
8.4 sdh aupje-threshold
[Command Format]
sdh aupje -threshold {positive|negative} <1-65535>
[Function]
Configure the shdh aupje-threshold of adjust pointer.
[Parameter]
{positive|negative}: sdh aupje-threshold .
<1-65535>:
[Default]
65535
[Command mode]
Interface configure mode.
[Application Example]
RC953-GESTM1# config
68
www.raisecom.com User Manual
RC953-GESTM1(config)# interface sdh 1
RC953-GESTM1(config-sdh/1)# sdh aupje -threshold positive 10000
Set successfully
8.5 sdh force-switch
[Command Format]
sdh force-switch (work-line|protection-line|clear) timeslot [TSSTRING]
[Function]
Configure force-switch.
[Parameter]
(work-line|protection-line|clear): {work-line|protection-line|clear} {timeslot TSSTRING|}
TSSTRING: Switch to caracter line.
[Default]
N/A
[Command mode]
Global configuration mode
[Instructions]
If there is no TSSTRING.
[Command Execute Echo]
N/A
[Application Example]
RC953-GESTM1(config)# sdh force-switch work-line timeslot
Set successfully
8.6 sdh exc-threshold
[Command Format]
sdh exc-threshold {section|line|higher-path|lower-path} <3-5>
[Function]
Set SDH excessive threshold
[Parameter]
{section|line|higher-path|lower-path}: Set excessive threshold line.
section: regeneration segment
line: multiplex segment5
high-path: higher order path
low-path: lower order path
69
www.raisecom.com User Manual
<3-5>: value of bit error second
[Default]
3
[Command mode]
Interface configuration mode.
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface sdh 1
RC953-GESTM1(config-sdh/1)# # sdh exc-threshold line 4
Set successfully
8.7 sdh es-threshold
[Command Format]
sdh es-threshold {section|line|higher-path|lower-path} <1-900>
[Function]
Set threshold value of SDH bit error second
[Parameter]
{section|line|higher-path|lower-path}: {section|line|high-path|low-path}: select the segment
section: regeneration segment
line: multiplex segment
high-path: high order path
low-path: low order path
<1-900>: threshold value of bit error second
[Default]
900
[Command mode]
Interface configuration mode.
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface sdh 1
RC953-GESTM1(config-sdh/1)# sdh es-threshold line 100
Set successfully
70
www.raisecom.com User Manual
8.8 sdh overhead c2
[Command Format]
sdh overhead c2 expected BYTE transmit BYTE
[Function]
Set the C2 byte content.
[Parameter]
BYTE: The first parameter express the C2 content that expect to receive, it is hexadecimal.
BYTE: The second parameter express the C2 content that expect to receive, it is hexadecimal.
[Default]
Default is 0x02.
[Command mode]
Interface configuration mode.
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface sdh 1
RC953-GESTM1(config-sdh/1)# sdh overhead c2 expected 0x13 transmit 0x13
Set sdh C2 expect byte successfully!
Set sdh C2 transmit byte successfully!
8.9 sdh overhead j0
[Command Format]
sdh overhead j0 expected MSG transmit MSG
[Function]
Set regenerator section trace J0, use no command to disable J0.
[Parameter]
MSG: msg required message
MSG: msg transmitting message
[Default]
Raisecom-Opcom
[Command mode]
Interface configuration mode.
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface sdh 1
71
www.raisecom.com User Manual
RC953-GESTM1(config-sdh/1)#sdh overhead j0 expected RC953-GESTM1 transmit
RC953-GESTM1
sdh overhead expect j0 set successfully
sdh overhead transmit j0 set successfully
8.10 sdh overhead j1
[Command Format]
sdh overhead j1 expected MSG transmit MSG
[Function]
Set the expected received j1 character, transmit j1 character.
[Parameter]
MSG: exp-msg required message
MSG: msg transmitting message
[Default]
Raisecom-Opcom
[Command mode]
Interface configuration mode.
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface sdh 1
RC953-GESTM1(config-sdh/1)# sdh overhead j1 expected RC953-GESTM1 transmit
RC953-GESTM1
sdh overhead expect j1 set successfully
sdh overhead transmit j1 set successfully
8.11 sdh overhead j2
[Command Format]
sdh overhead j2 [vc12 <1-63>] expected MSG transmit MSG
[Function]
Set the expected received j2 character, transmit j2 character.
[Parameter]
[vc12 <1-63>]: Choose the switch No. that need to be set.
MSG: exp-msg required j2 message.
MSG: msg transmitting j2 message.
[Default]
Raisecom-Opcom
72
www.raisecom.com User Manual
[Command mode]
Interface configuration mode.
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface sdh 1
RC953-GESTM1(config-sdh/1)# sdh overhead j2 expected RC953-GESTM1 transmit
RC953-GESTM1
sdh overhead expect j2 set success
sdh overhead transmit j2 set success
8.12 sdh overhead s1
[Command Format]
sdh overhead s1 BYTE
[Function]
Set the content of s1 character.
[Parameter]
BYTE: Show the content of this character is hexadecimal.
[Default]
Default is 0x0, quality unclear.
[Command mode]
Interface configuration mode.
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface sdh 1
RC953-GESTM1(config-sdh/1)# sdh overhead s1 0xf
Set successfully
8.13 sdh sd-threshold
[Command Format]
sdh sd-threshold {section|line|high-path} <6-8>
[Function]
Set sdh sd-threshold.
[Parameter]
{line|high-path}: set the segment of threshold.
section: regeneration segment.
73
www.raisecom.com User Manual
line: multiplex segment.
high-path: higher order path.
<6-8>: value of bit error second.
[Default]
8
[Command mode]
Interface configuration mode.
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface sdh 1
RC953-GESTM1(config-sdh/1)# sdh sd-threshold line 6
Set successfully
8.14 sdh ses-threshold
[Command Format]
sdh ses-threshold {section|line|high-path|lower-path} <1-900>
[Function]
Set the SDH threshold value of serious bit error second
[Parameter]
{section|line|high-path|lower-path}: Choose the serious bit error second segment.
section: regeneration segment.
line: multiplex segment.
high-path: higher order path.
lower-path: lower order path
<1-900>: value of serious bit error senond.
[Default]
900
[Command mode]
Interface configuration mode.
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface sdh 1
RC953-GESTM1(config-sdh/1)# sdh ses-threshold line 100
Set successfully
74
www.raisecom.com User Manual
8.15 show sdh aps
[Command Format]
show sdh aps
[Function]
show sdh aps.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged EXEC mode, Global configuration mode
[Application Example]
RC953-GESTM1# show sdh aps
sdh protect switch is :enable.
sdh protect switch type is :path.
sdh protect switch mode is :1+1.
sdh aps restore waittime is:10 minutes
[Relevant Commands]
Command Description
show sdh aps timeslot TSSTRING Show the protection hyper information of
sdh aps-restore-time <1-12> Set the time of protection hyper.
sdh force-switch (work-line|protection-line|clear)
timeslot TSSTRING
8.16 show sdh aps timeslot
[Command Format]
timeslot.
Set the force switch.
show sdh aps timeslot TSSTRING
[Function]
Show sdh aps timeslot TSSTRING.
[Parameter]
N/A
[Default]
N/A
75
www.raisecom.com User Manual
[Command mode]
Privileged EXEC mode, Global configuration mode
[Application Example]
RC953-GESTM1
timeslot switch-status activeline switch-counter restore-left
1 auto working 0 60
2 auto working 0 60
3 auto working 0 60
4 auto working 0 60
5 auto working 0 60
6 auto working 0 60
7 auto working 0 60
# show sdh aps timeslot
[Relevant Commands]
Command Description
show sdh aps
Show the protection
sdh aps-restore-time <1-12> Set sdh aps-restore-time.
sdh force-switch (work-line|protection-line|clear) timeslot TSSTRING Set force-switch.
8.17 sdh tuais-insert
[Command Format]
sdh tuais-insert (sectiontim|linesd|pathsd|pathplm|pathtim) (enable|disable)
[Function]
Configure if inset the AIS alarming when there is the alarm.
[Parameter]
(sectiontim|linesd|pathsd|pathplm|pathtim): alarming style.
(enable|disable): enable or disable.
[Default]
disable.
[Command mode]
Interface configuration mode.
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface sdh 1
RC953-GESTM1(config-sdh/1)# sdh tuais-insert sectiontim enable
76
www.raisecom.com User Manual
Set successfully
8.18 show interface sdh
[Command Format]
show interface sdh [<1-2>]
[Function]
Show SDH interface situation and configuration information.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged mode, interface configuration mode.
[Application Example]
RC953-GESTM1# show interface sdh 1
interface:sdh1 status :down Description: sdh-1
line code is: NRZ
line type is: SDH LongSingeMode
Optical Module type is: S1-TYPE
loopback: none
sdh: stm-1 c2 transmit:0x2
sdh: stm-1 c2 expected:0x2
sdh: stm-1 c2 received:0xff
section exc-threshold: 5 section sd-threshold: 6
line exc-threshold: 3 line sd-threshold: 6
higher-path exc-threshold: 4 higher-path sd-threshold: 6
lower-path exc-threshold: 5 lower-path sd-threshold: 6
section es-threshold: 900 section ses-threshold: 900
line es-threshold: 900 line ses-threshold: 900
higher-path es-threshold: 900 higher-path ses-threshold: 900
lower-path es-threshold: 900 lower-path ses-threshold: 900
path AU-PJEPs-threshold: 45 path AU-PJENs-threshold: 65535
j0 transmit: Raisecom-Opcom
j0 expected: Raisecom-Opcom
8.19 show interface sdh <1-2> timeslot
[Command Format]
77
www.raisecom.com User Manual
show interface sdh <1-2> timeslot [<1-63>]
[Function]
Show SDH interface timeslot information.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Privileged mode, interface configuration mode.
[Application Example]
RC953-GESTM1
sdh-port timeslot state
----------------------------------------1 1 Occupied
1 2 Occupied
1 3 Occupied
1 4 Occupied
1 5 Occupied
1 6 Occupied
1 7 Occupied
1 8 Occupied
1 9 Occupied
1 10 Occupied
1 11 Occupied
1 12 Occupied
1 13 Occupied
# show interface sdh 1 timeslot
78
www.raisecom.com User Manual
Chapter 9 Management Command of RC953-GESTM1 E1
9.1 batch-e1
[Command Format]
batch-e1 [{1-63}] (frame|unframe)
[Function]
E1 framed mode set the batch.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Global configuration mode
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)
9.2 batch loopback-detection
[Command Format]
batch loopback-detection E1STRING (enable|disable)
[Function]
E1 loopback set the batch.
[Parameter]
N/A
[Default]
# batch-e1 1-63 frame
N/A
[Command mode]
Global configuration mode
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# batch loopback-detection 1-63 enable
79
www.raisecom.com User Manual
9.3 bert
[Command Format]
bert {enable|disable}
[Function]
Bert is enable or disable.
[Parameter]
N/A
[Default]
disable
[Command mode]
Interface configuration mode.
[Instructions]
Need to set the remote E1 loopback firstly.
[Command Execute Echo]
N/A
[Application Example]
9.4 clock-mode
[Command Format]
[Function]
[Parameter]
RC953-GESTM1# config
RC953-GESTM1(config)# interface e1 1
RC953-GESTM1(config-e1/1)# bert enable
Set successfully
clock-mode {master|slave}
Set the E1 clock mode.
master: master clock mode.
slave: Slave clock mode.
[Default]
master
[Command mode]
Interface configuration mode.
[Application Example]
80
www.raisecom.com User Manual
RC953-GESTM1# config
RC953-GESTM1(config)# interface e1 1
RC953-GESTM1(config-e1/1)# clock-mode slave
Set successfully
9.5 crc-auto
[Command Format]
crc-auto {enable|disable}
[Function]
CRC is enable or disable of the framed E1.
[Default]
disable
[Command mode]
Interface configuration mode.
9.6 frame
[Instructions]
Useless under clarity mode.
[Command Execute Echo]
N/A
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface e1 1
RC953-GESTM1(config-e1/1)# crc-auto enable
Set successfully
[Command Format]
frame
[Function]
Set the E1 framed mode.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Interface configuration mode.
81
www.raisecom.com User Manual
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface e1 1
RC953-GESTM1(config-e1/1)# frame
Set successfully
9.7 interface e1
[Command Format]
interface e1 <1-32>
[Function]
Enter a E1 interface.
[Parameter]
<1-32>: E1 index.
[Default]
N/A
[Command mode]
Interface configuration mode., Global configuration mode
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface e1 1
RC953-GESTM1(config-e1/1)# interface e1 2
RC953-GESTM1(config-e1/2)#
9.8 loopback-detection
[Command Format]
loopback-detection (enable|disable)
[Function]
Set the E1 loopback is enable or disable.
[Parameter]
{enable|disable}:
Enable e1 loopback is enable.
Disable e1 loopback is disable.
[Default]
E1 loopback is diable.
[Command mode]
82
www.raisecom.com User Manual
E1Interface configuration mode.
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface e1 1
RC953-GESTM1(config-e1/1)# loopback-detection enable
RC953-GESTM1(config-e1/2)#
Set successfully
9.9 inter-connection
[Command Format]
inter-connection (enable|disable)
[Function]
Set the E1 interface interconnection mode.
[Parameter]
N/A
[Default]
Inter connection mode is enable or disable.
[Command mode]
Interface configuration mode., Global configuration mode
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface e1 1
RC953-GESTM1(config-e1/1)# inter-connection enable
RC953-GESTM1(config-e1/2)#
Set successfully
9.10 remote-e1-loopback
[Command Format]
remote-e1-loopback
no remote-e1-loopback
[Function]
Configure the remode e1 loopback mode.
[Parameter]
N/A
[Default]
83
www.raisecom.com User Manual
N/A
[Command mode]
Interface configuration mode.
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface e1 1
RC953-GESTM1(config-e1/1)# remote-e1-loopback
Set successfully
9.11 reset-statistics
[Command Format]
reset-statistics
[Function]
Clear the e1 interface statistics.
[Parameter]
N/A
[Default]
N/A
[Command mode]
Interface configuration mode.
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface e1 1
RC953-GESTM1(config-eth/1)# reset-statistics
Set successfully
9.12 show interface e1 occupy status
[Command Format]
show interface e1 occupy status
[Function]
Show the e1 interface occupy status information.
[Parameter]
N/A
[Default]
N/A
84
www.raisecom.com User Manual
[Command mode]
Privileged mode,Interface configuration mode.
[Application Example]
RC953-GESTM1(config-e1/1)
e1Index occupy-status corresponding-vc12
1 occupied 1
2 occupied 2
3 occupied 3
4 occupied 4
5 occupied 5
6 occupied 6
7 occupied 7
8 occupied 8
9 occupied 9
10 occupied 10
11 occupied 11
12 occupied 12
13 occupied 13
14 occupied 14
# show interface e1 occupy status
15 occupied 15
16 occupied 16
17 notoccupied 0
18 notoccupied 0
19 notoccupied 0
20 notoccupied 0
21 notoccupied 0
22 notoccupied 0
23 notoccupied 0
24 notoccupied 0
25 notoccupied 0
26 notoccupied 0
27 notoccupied 0
28 notoccupied 0
29 notoccupied 0
30 notoccupied 0
31 notoccupied 0
32 notoccupied 0
33 occupied 17
85
www.raisecom.com User Manual
34 occupied 18
35 occupied 19
36 occupied 20
37 occupied 21
38 occupied 22
39 occupied 23
40 occupied 24
41 occupied 25
42 occupied 26
43 occupied 27
44 occupied 28
45 occupied 29
46 occupied 30
47 occupied 31
48 occupied 32
49 occupied 33
50 occupied 34
51 occupied 35
52 occupied 36
53 occupied 37
54 occupied 38
55 occupied 39
56 occupied 40
57 occupied 41
58 occupied 42
59 occupied 43
60 occupied 44
61 occupied 45
62 occupied 46
63 occupied 47
[Relevant Commands]
Command Description
show interface e1
Show the e1 interface information.
86
www.raisecom.com User Manual
9.13 show interface e1
[Command Format]
show interface e1 [<1-32>]
[Function]
Show the interface condition and detailed statistics information.
[Parameter]
E1 interface number: it will indicate all the condition and information of e1 interface.
[Default]
N/A
[Command mode]
Privileged mode, Interface configuration mode.
[Application Example]
remote deviceID:1 remote E1ID:1
e1 Loopback: none
corresponding timeslot: 1-1
E1 interconnection mode: disable
E1 frame mode: framed
E1 bert Enable: disabled
E1 crc Enable: disabled
E1 clock mode: master
corresponding ts:1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31
rx packets: 0
tx packets: 0
rx error packets: 0
9.14 timeslot
RC953-GESTM1
Description:e1port-1 send code:NRZ
# show interface e1 1
[Command Format]
timeslot TSSTRING
no timeslot TSSTRING
[Function]
Set the framed e1 slave speed, no timeslot delete the timeslot of the salve speed.
[Parameter]
TSSTRING: timeslot tsstring needed to be operated, “,” devide the single timelot, “-” period.
Eg 1,3-5 means timelots 1,3,4,5.
87
www.raisecom.com User Manual
[Default]
N/A
[Command mode]
Interface configuration mode.
[Application Example]
9.15 unframe
[Command Format]
[Function]
[Parameter]
N/A
[Default]
N/A
[Command mode]
RC953-GESTM1#
config
RC953-GESTM1(config)# interface e1 1
RC953-GESTM1(config-e1/1)# timeslot 1-30
Set successfully
unframe
Set the E1 unframed mode.
Interface configuration mode.
[Application Example]
RC953-GESTM1# config
RC953-GESTM1(config)# interface e1 1
RC953-GESTM1(config-e1/1)# unframe
Set successfully
88
www.raisecom.com User Manual
Chapter 10 Virtual-channel command of RC953-GESTM1
10.1 batch virtual-channel
[Command Format]
batch virtual-channel vc12 TSSTRING e1 E1STRING [e1num <1-8>]
[Function]
Batch virtual-channel.
[Parameter]
TSSTRING: Timelot string.
E1STRING: E1 string.
e1num :indicating each virtual channel includes vc 12, the Default is 1
[Default]
N/A
[Command mode]
Global configuration mode
[Application Example]
RC953-GESTM1(config)#batch virtual-channel vc12 1-8 e1 1-8 e1num 4
Configure the virtual channel successfully.
10.2 err-auto-shutdown
[Command Format]
no err-auto-shutdown virtual-channel {1-63}
[Function]
virtual channel err-auto-shutdown.
[Parameter]
virtual channel number.
[Default]
N/A
[Command mode]
Global configuration mode
[Application Example]
89
