RAISE3D Pro2, Pro2 Plus Quick Start Guide
Pro2-Series 3D Printer
Quick Start Guide
* Please review this entire guide before operating the printer.
Pro2 Pro2 Plus
The contents of this Quick Start Guide may be updated over time. For the latest
version, scan the QR code or visit the link below.
www.raise3d.com/pages/download#down-quickguide
A. List of Parts
Pro2
Filament
Run-out Sensor
Filament Feeder
Fans
Hot Ends
Touch Screen
Pro2-Series 3D Printer
/ Quick Start Guide
Camera
Filament
Guide Tube
HEPA Filter
Z Ball Screws
Pro2 Plus
Print Bed
Z-Stage
Filament
Run-out Sensor
Filament Feeder
Fans
Hot Ends
Touch Screen
Print Bed
Z-Stage
Wheels
USB Storage Slots
Power Inlet
Ethernet Interface
Power Switch
Camera
Filament
Guide Tube
HEPA Filter
Z Ball Screws
USB Storage Slots
Power Inlet
Ethernet Interface
Power Switch
01 02
Pro2-Series 3D Printer
/ Quick Start Guide
B. Hardware Installation
1
Remove!

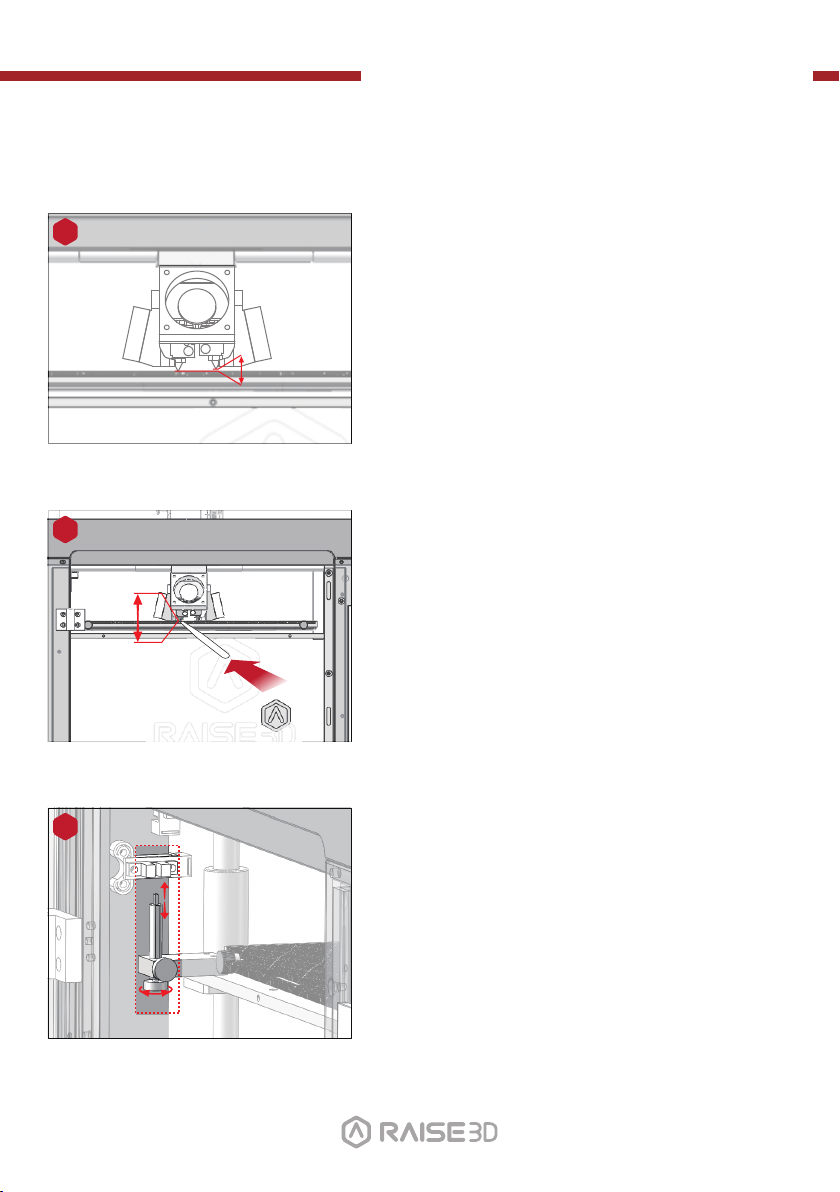

Locate the four shipping zip ties, and
remove them.
It's recommend to unclip these as opposed
to cutting. They can be reused if you need
to transport your machine in the future.
3
2
Remove!
(×24)
Peel the yellow sticker and remove the 24
security spacers.
These clips are designed to hold the
extruder assembly in place during shipping
and should be saved for future transport.
Do not operate printer with clips installed.
4
Remove!
(×2) Hex Wrench
Select the largest of the included hex head
wrench (3mm), and remove all four hex
head security bolts from Z-axis clamps (2
bolts each).
These are located on the left and right
sides on the printer on the ball screw
thread.
(3 mm)
Plug the machine into a wall outlet using
the power adapter for your designated
country. (5 included)
Flip the switch to power the unit on.
Pro2-Series 3D Printer
B. Hardware Installation (continued)
/ Quick Start Guide
5
6
Once the unit has been powered, the
printer will go through a start-up sequence.
Your Raise3D printer will take approximately 60 seconds to boot up. When the touch
screen displays the "Home" screen, the
printer is ready.
Open the "Utilities" tab, and press the Z
Homing button.
OK the request, and the print bed will
begin to “home” or move to the origin
position.
This will also allow you to access your
accessory packages.
7
Open the front door, and remove the
starter box and filament box from the base
of the printer.
Open these packages, and compare with
the following contents list.
03 04 05 06
Pro2-Series 3D Printer
/ Quick Start Guide
B. Hardware Installation (continued)
List of Contents
3mm
2.5mm
2mm
1.5mm
Power Cable
(×5)
USB Storage
Nozzle
Cleaning Kit
Hex Wrenches
Heat Resistant Gloves
15A
10A
Tweezers
Fuse
Filament
(×2)
Filament Holder
(×2)
Thumb Screws
(Spare)
Build Plate
(with Build Surface
inside Protective Cover)
Spatula
Other Accessories
(Spare)
04 05 06
Pro2-Series 3D Printer
B. Hardware Installation (continued)
/ Quick Start Guide

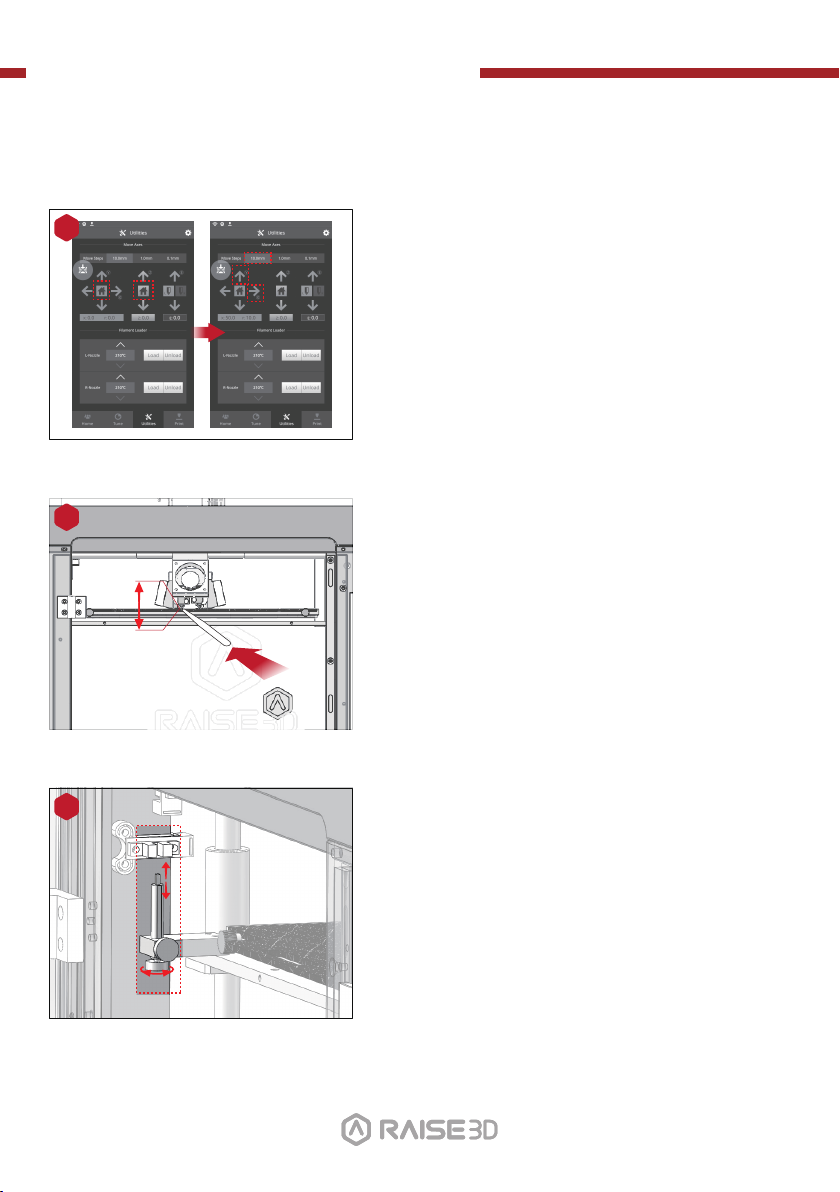

8
Lower the Z platform by 50mm.
To do this, set the interval at "10mm" by
selecting it in the "Move Steps" bar. This
will move the bed 10mm per arrow click.
Click this downward arrow 5 times to move
Z platform downward to 50mm.
10
Protective Foam
Cover
Build Plate
Remove!
9
Loose the two thumb screws on the Z
platform by rotating the two thumbscrews
counter-clockwise.
11
Remove the aluminum build plate from the
foam packaging.
Using the included spatula, remove the
leveling calibration model from your build
plate.
05 06
Pro2-Series 3D Printer
/ Quick Start Guide
B. Hardware Installation (continued)
12
13
Slide the build plate onto the Z platform
with the logos facing upwards, and the
handle edge facing the front of the
machine.
Re-install the thumb screws, rotating
clockwise, to lock the build plate into
position.
06
14
A B
Mount Points
C D

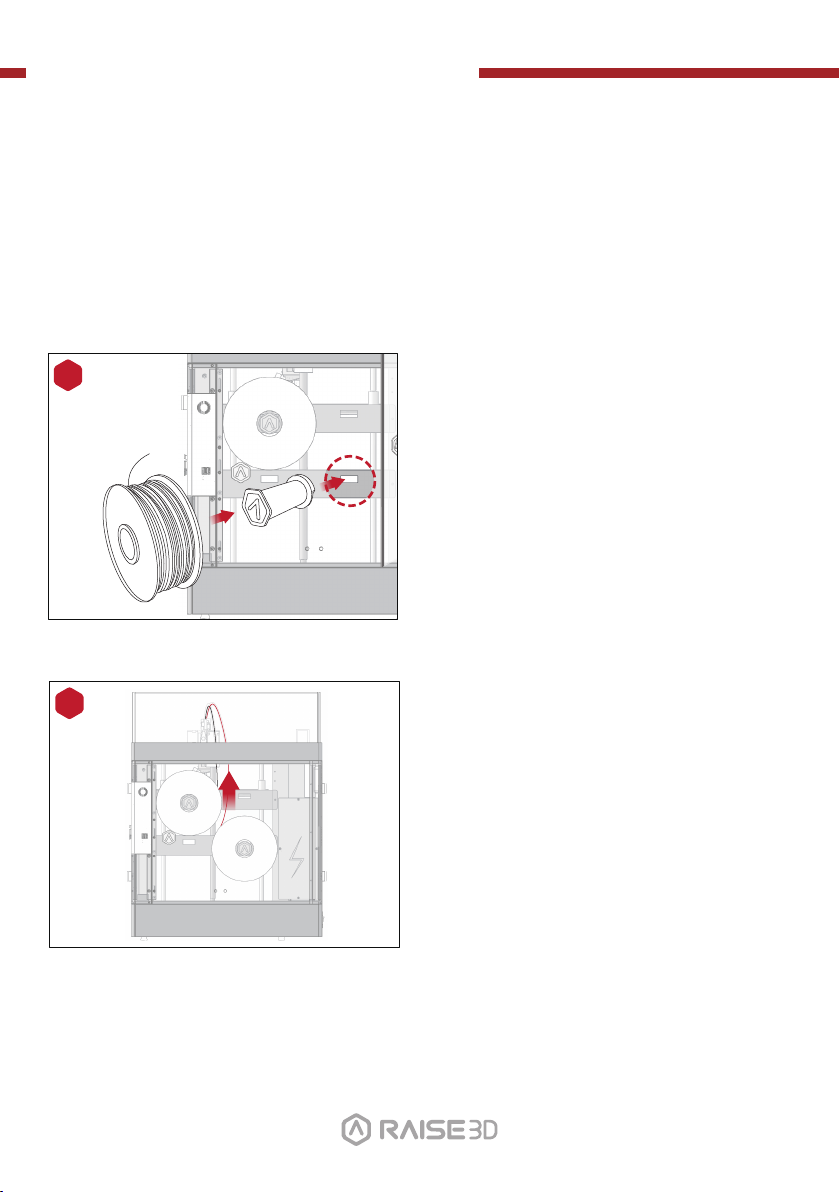

Open the side door of the printer, and
install the filament holders into the
mounting points. Open one of the included
spools of filament, and place it on the
holder.
NOTE: The direction of filament spool should be
placed to rotate in clockwise if at points B and D,
and should be oriented to rotate counterclockwise at mount points A and C.
Pro2-Series 3D Printer
B. Hardware Installation (continued)
/ Quick Start Guide

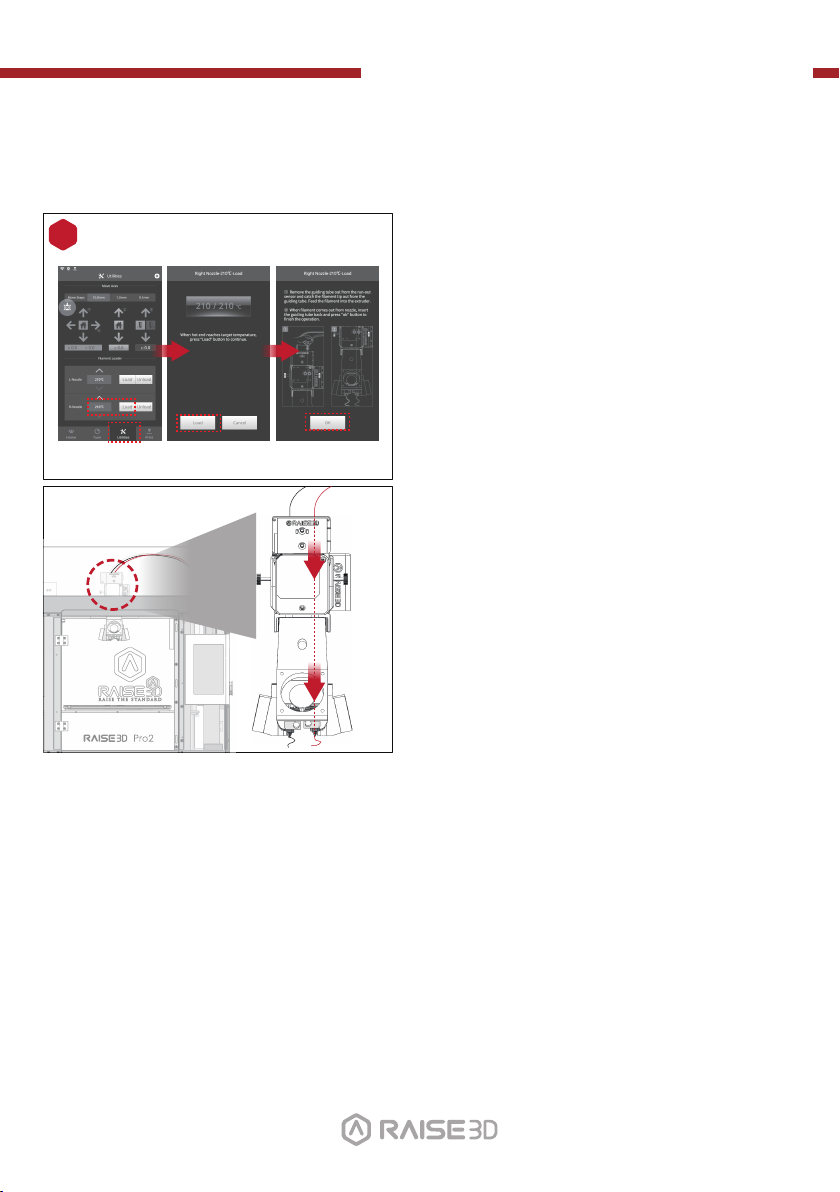

15
16
Locate the open end of the filament, and
feed it through the guide tube.
Press the “Utilities” tab on the screen and
set the temperature of the left nozzle for
the filament that you're using.
Press the “Load” button and the printer will
begin to heat. When the target temperature is reached, press "Load". Complete
the feeding operation according to the
instructions on the screen.
NOTE: This document's instructions are based on
the properties of Raise3D PLA filament. This is
the standard filament included with your product
and it is advised to use the Raise3D PLA for
testing and initial setup.
07 08 09 10
Pro2-Series 3D Printer
/ Quick Start Guide
C. ideaMaker Installation
The ideaMaker slicing software is
available on the USB storage drive
included with your printer.
Additional downloads and versions
are available online at:
www.raise3d.com/
pages/download

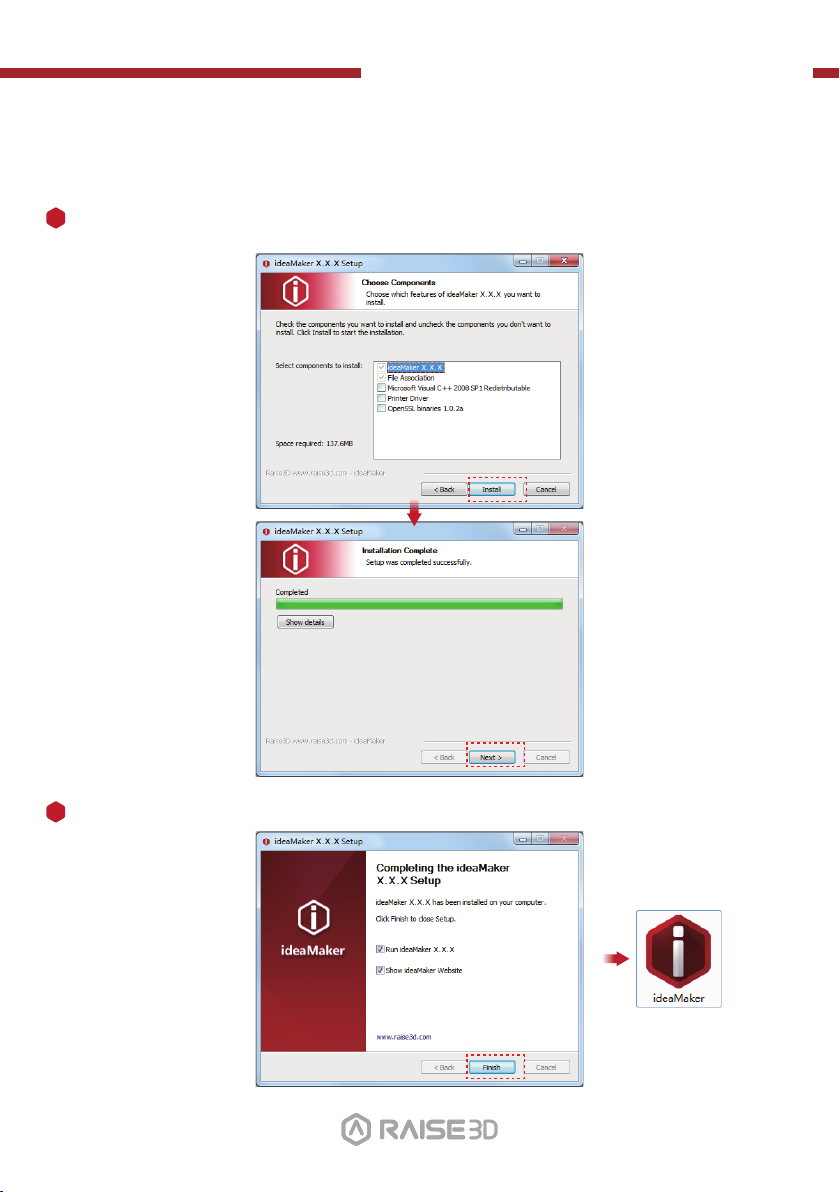

WINDOWS
1
Open the installer and choose your preferred language. Select the installation location
for ideaMaker, and click "Next".
www.raise3d.com
Download ideaMaker
08 09 10
