General Description
The MAX6605 precision, low-power, analog output tem­perature sensor is available in a 5-pin SC70 package. The device has a +2.7V to +5.5V supply voltage range and 10µA supply current over the -55°C to +125°C tem­perature range. For the -40°C to +105°C temperature range, the supply voltage can go as low as +2.4V. Accuracy is ±1°C at TA= +25°C and ±3°C from 0°C to +70°C.
The MAX6605 output voltage is dependent on its die temperature and has a slope of 11.9mV/°C and an off­set of 744mV at 0°C. The output typically shows only +0.4°C of nonlinearity over the -20°C to +85°C temper­ature range.
________________________Applications
Cellular Phones
Battery Packs
GPS Equipment
Digital Cameras
Features
Low Current Consumption (10µA max)
Small SC70 Package
Accurate (±1°C max at T
A
= +25°C)
Optimized to Drive Large Capacitive Loads
MAX6605
Low-Power Analog Temperature Sensor
in SC70 Package
________________________________________________________________ Maxim Integrated Products 1
Typical Application Circuit
19-1840; Rev 0; 10/00
Ordering Information
Pin Configuration
PART TEMP. RANGE PIN-PACKAGE
MAX6605MXK-T -55°C to +125°C 5 SC70-5
TOP VIEW
15GNDV
CC
MAX6605
2
A
V
CC
CS = 0.1µF
GND
V
CC
MAX6605
A
GND
34
SC70
BOUT
SHDN
B
1nF
V
DD
IN+
REFOUT
REFIN
IN–
MAX1106
CONVSTOUT
SCLK
GND
V
CC
CPU
I/O
I/O
I/ODOUT
GND
MAX6605
Low-Power Analog Temperature Sensor in SC70 Package
2 _______________________________________________________________________________________
ABSOLUTE MAXIMUM RATINGS
ELECTRICAL CHARACTERISTICS
(V
CC
= +2.7V to +5.5V, CL= 1nF, TA= -55°C to +125°C, unless otherwise noted.) (Note 1)
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Note 1: All parameters are measured at TA= +25°C. Specifications over temperature range are guaranteed by design. Note 2: Error (expressed in °C) is defined as the difference between the calculated and measured values of output voltage.
Guaranteed by design to 5 sigma.
V
CC
to GND..............................................................-0.3V to +6V
OUT, A, B to GND ......................................-0.3V to (V
CC
+ 0.3V)
ESD Protection (Human Body Model) .............................>2000V
Current into Any Pin ............................................................10mA
Output Short-Circuit Duration.....................................Continuous
Continuous Power Dissipation (T
A
= +70°C)
5-Pin SC70 (derate 3.1mW/°C above +70°C)..............245mW
Operating Temperature Range .........................-55°C to +125°C
Junction Temperature......................................................+150°C
Storage Temperature Range .............................-65°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C
PARAMETER
CONDITIONS
UNITS
TA = +25°C
TA = -0°C to +70°C
Temperature Error
V
OUT
= 0.744 + (0.0119 × T°C) +
(1.604 × 10
-6
× T2)V (Note 2)
V
CC
= +3.3V
°C
TA = -55°C to +125°C
Supply Voltage V
CC
TA = -40°C to +105°C
V
Supply Current I
Q
No load
10 µA
Output Voltage V
OUT
TA = 0°C
mV
Nonlinearity TA = -20°C to +85°C
°C
Sensor Gain (Average Slope) TA = -40°C to +100°C
mV/°C
Capacitive Load Required for stability 1 nF
20
Load Regulation
T
A
= -55°C, I
OUT
= -10µA to +10µA 20
m°C/µA
SYMBOL
TA = -20°C to +85°C -3.8 +3.8
TA = -40°C to +100°C -5.0 +5.0
TA = -55°C to +125°C -5.8 +5.8
MIN TYP MAX
-1.0 +1.0
-3.0 +3.0
2.7 5.5
2.4 5.5
4.5
744
0.4
11.1 11.9 12.7
TA = -20°C to +125°C, I
= -20µA to +20µA
OUT
MAX6605
Low-Power Analog Temperature Sensor
in SC70 Package
_______________________________________________________________________________________ 3

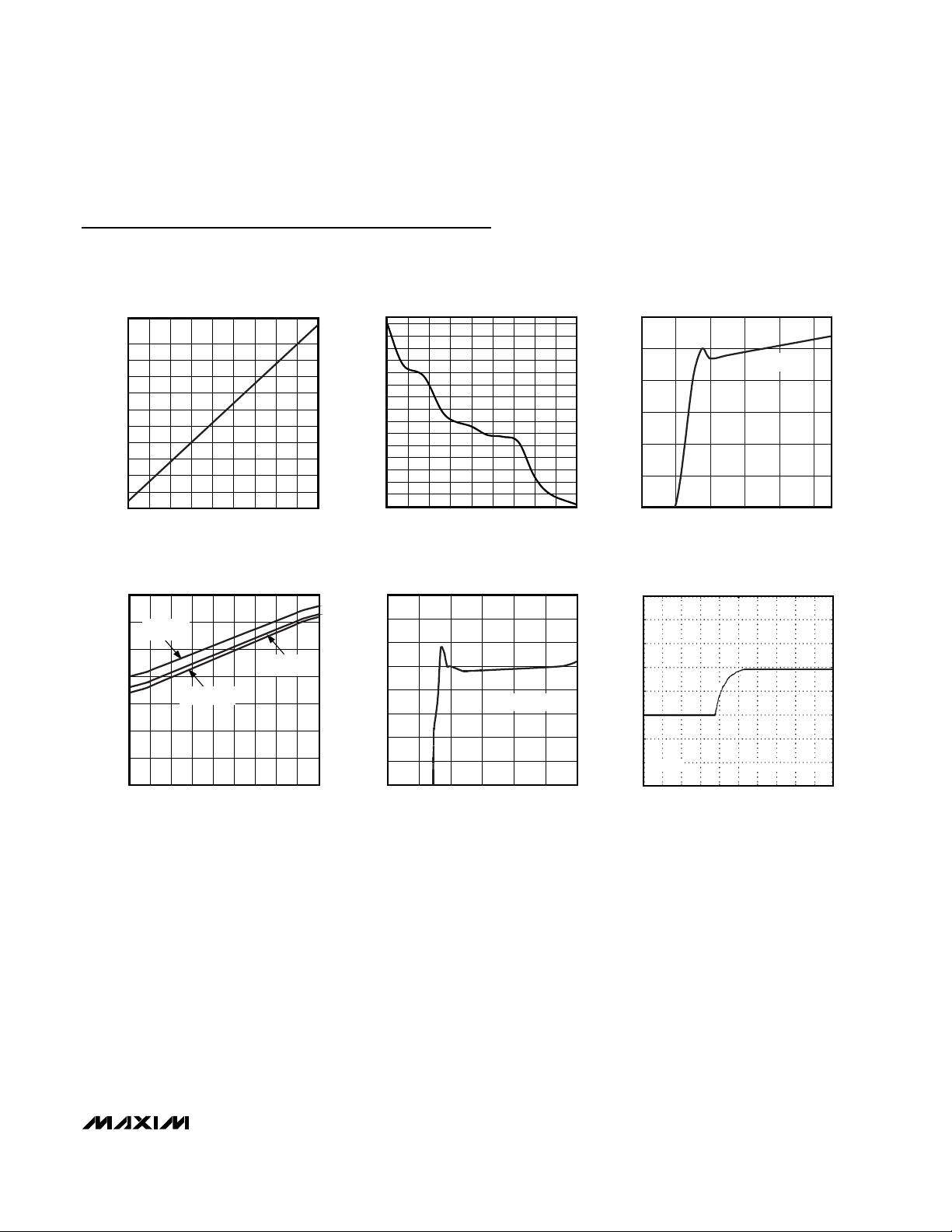

Typical Operating Characteristics
(VCC= +3.3V, CS= 0.1µF, CL= 1nF, unless otherwise noted.)
TEMPERATURE ERROR
OUTPUT VOLTAGE vs. TEMPERATURE
MAX6605 toc01
1.7
1.5
1.3
1.1
0.9
0.7
0.5
0.3
0.1
-0.1
-0.3
-0.5
TEMPERATURE ERROR (°C)
-0.7
-0.9
-1.1
-1.3
-55 -15-35 2556545 85 105 125
2.2
2.0
1.8
1.6
1.4
1.2
1.0
0.8
OUTPUT VOLTAGE (V)
0.6
0.4
0.2
0
-55 -15-35 2556545 10585 125 TEMPERATURE (°C)
SUPPLY CURRENT
vs. TEMPERATURE
7
6
VCC = +5V
5
4
3
SUPPLY CURRENT (µA)
2
1
0
-55 -15 5-35 25456585105125
VCC = +2.4V
TEMPERATURE (°C)
VCC = +3.3V
1.060
1.055
MAX6605 toc04
1.050
1.045
1.040
1.035
OUTPUT VOLTAGE (V)
1.030
1.025
1.020 021 3456
vs. TEMPERATURE
TEMPERATURE (°C)
OUTPUT VOLTAGE
vs. SUPPLY VOLTAGE
TA = +25°C
SUPPLY VOLTAGE (V)
MAX6605 toc02
MAX6605 toc05
500mV/div
SUPPLY CURRENT
vs. SUPPLY VOLTAGE
6
5
4
3
2
SUPPLY CURRENT (µA)
1
0
023145
SUPPLY VOLTAGE (V)
TA = +25°C
MAX6605 toc03
STEP-RESPONSE FROM +25°C TO +100°C
(FLUORINERT BATH)
MAX6605 toc06
OUT
0
1s/div
Detailed Description
The MAX6605 analog output temperature sensors out­put voltage is a linear function of its die temperature. The slope of the output voltage is 11.9mV/°C, and there is a 744mV offset at 0°C to allow measurement of nega­tive temperatures. The MAX6605 has three terminals: VCC, GND, and OUT. The maximum supply current is 10µA, and the supply voltage range is from +2.4V to +5.5V for the -40°C to +105°C temperature range and +2.7V to +5.5V for the -55°C to +125°C temperature range. The temperature error is <1°C at TA= +25°C, <3.8°C from TA= -20°C to +85°C, and <5.8°C from T
A
= -55°C to +125°C.
Nonlinearity
The benefit of silicon analog temperature sensors over thermistors is linearity over extended temperatures. The nonlinearity of the MAX6605 is typically 0.4°C over the
-20°C to +85°C temperature range.
Transfer Function
The temperature-to-voltage transfer function has an approximately linear positive slope and can be described by the equation:
V
OUT
= 744mV + (T ✕11.9mV/°C)
where T is the MAX6605s die temperature in °C.
Therefore:
T (°C) = (V
OUT
- 744mV) / 11.9mV/°C
To account for the small amount of curvature in the transfer function, use the equation below to obtain a more accurate temperature reading:
V
OUT
= 0.744V + 0.0119V/°C ✕T(°C) +
1.604
10-6mV/°C
2
(T(°C))
2
Applications Information
Sensing Circuit Board and
Ambient Temperatures
Temperature sensor ICs like the MAX6605 that sense their own die temperatures must be mounted on, or close to, the object whose temperature they are intend­ed to measure. Because there is a good thermal path between the SC70 packages metal leads and the IC die, the MAX6605 can accurately measure the temper­ature of the circuit board to which it is soldered. If the sensor is intended to measure the temperature of a heat­generating component on the circuit board, it should be mounted as close as possible to that component and should share supply and ground traces (if they are not noisy) with that component where possible. This will maxi­mize the heat transfer from the component to the sensor.
The thermal path between the plastic package and the die is not as good as the path through the leads, so the MAX6605, like all temperature sensors in plastic pack­ages, is less sensitive to the temperature of the surround­ing air than it is to the temperature of its leads. It can be successfully used to sense ambient temperature if the cir­cuit board is designed to track the ambient temperature.
As with any IC, the wiring and circuits must be kept insu­lated and dry to avoid leakage and corrosion, especially if the part will be operated at cold temperatures where con­densation can occur.
The thermal resistance junction to ambient (θJA) is the parameter used to calculate the rise of a device junction temperature (TJ) due to its power dissipation. For the MAX6605, use the following equation to calculate the rise in die temperature:
T
J
= TA+ θJA((VCC× IQ) + (VCC- V
OUT
) I
OUT
)
The MAX6605 is a very-low-power temperature sensor and is intended to drive very light loads. As a result, the temperature rise due to power dissipation on the die is insignificant under normal conditions. For example, assume that the MAX6605 is operating from a +3V sup­ply at +21.6°C (V
OUT
= 1V) and is driving a 100kload
(I
OUT
= 10µA). In the 5-pin SC70 package, the die tem-
perature will increase above the ambient by:
TJ- TA= θJA((VCC× IQ) + (VCC- V
OUT
) I
OUT
) =
324°C/W × ((3V × 10µA) + (3V - 1V) × 10µA) = 0.0162°C
Therefore, the error caused by power dissipation will be negligible.
MAX6605
Low-Power Analog Temperature Sensor in SC70 Package
4 _______________________________________________________________________________________
Pin Description
PIN NAME FUNCTION
1V
2 A Must be connected to GND.
3 OUT
4 B Must be connected to VCC.
5 GND Ground
CC
Supply Input. Decouple with a 0.1µF capacitor to GND.
Temperature Sensor Output, C
1nF
L
Capacitive Loads
The MAX6605 can drive unlimited load capacitance. For stable operation load capacitance should be >1nF.
Low-Power Analog Temperature Sensor
in SC70 Package
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600_____________________ 5
© 2000 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.
MAX6605

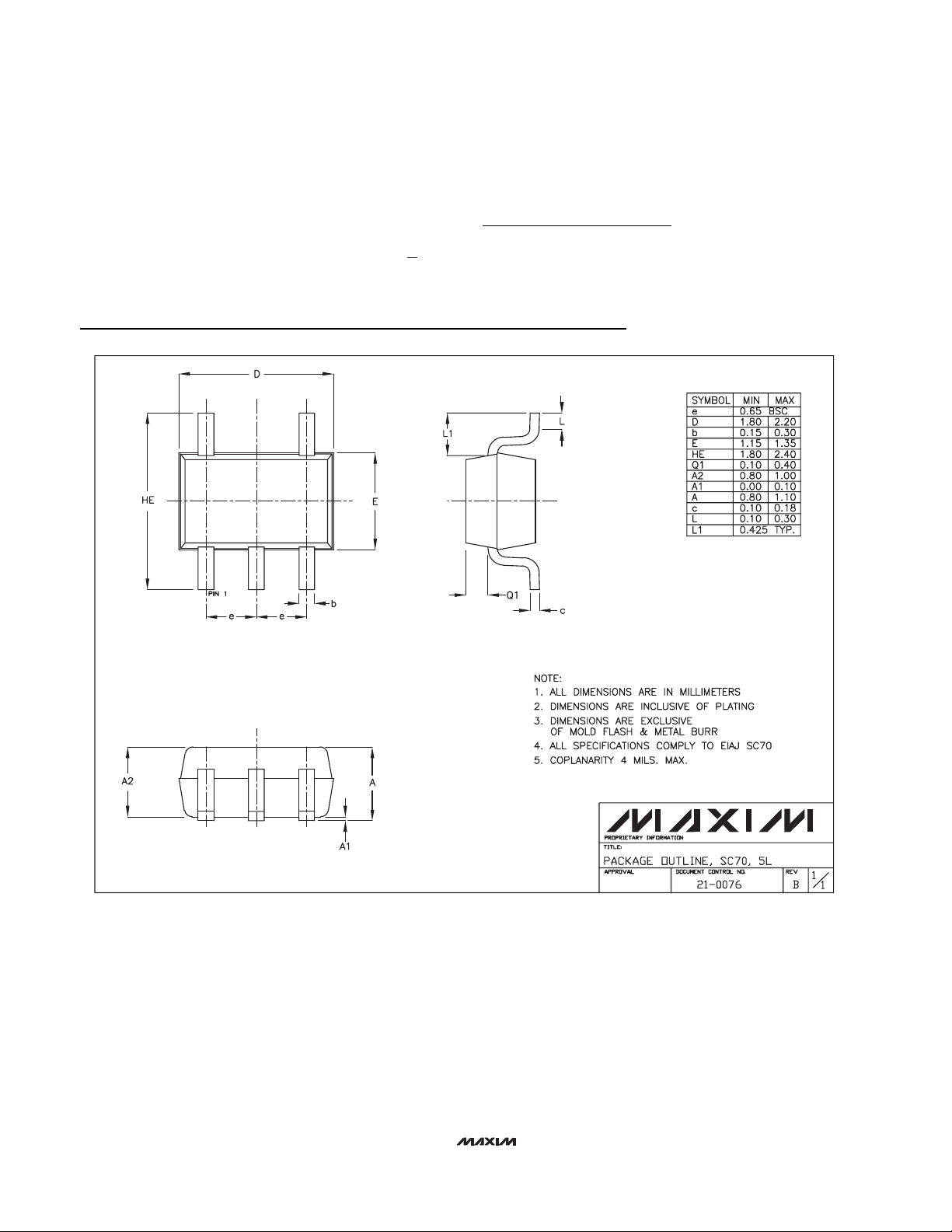

Package Information
Chip Information
TRANSISTOR COUNT: 573
