General Description

The MAX5232/MAX5233 low-power, dual 10-bit voltage­output digital-to-analog converters (DACs) feature an
internal 10ppm/°C precision bandgap voltage reference
and precision output amplifiers. The MAX5233 operates
on a single 5V supply with an internal 2.465V reference
and features a 4.092V full-scale output range. The
MAX5232 operates on a single 3V supply with an internal

1.234V reference and features a 2.046V full-scale output
range. The MAX5233 consumes only 470µA while the
MAX5232 consumes only 420µA of supply current. Both
devices feature low-power (2µA) software- and hard­ware-enabled shutdown modes.

The MAX5232/MAX5233 feature a 13.5MHz SPI™-,
QSPI™-, and MICROWIRE™-compatible 3-wire serial
interface. An additional data output (DOUT) allows for
daisy-chaining and read back. Each DAC has a double­buffered digital input. The MAX5232/MAX5233 feature
two software-selectable shutdown output impedances:
1kΩ or 200kΩ. A power-up reset feature sets DAC out­puts at ground or at the midscale DAC code.

The MAX5232/MAX5233 are specified over the extended
temperature range (-40°C to +85°C) and are available in
16-pin QSOP packages.

Applications

Industrial Process Controls

Automatic Test Equipment

Digital Offset and Gain Adjustment

Motion Control

µP-Controlled Systems

Features

♦ Internal 10ppm/°C Precision Bandgap Reference

2.465V (MAX5233)

1.234V (MAX5232)

♦ 30ppm/°C (max) Full-Scale Output Range

4.092V (MAX5233)

2.046V (MAX5232)

♦ Single-Supply Operation

5V (MAX5233)
3V (MAX5232)

♦ Low Supply Current

470µA (MAX5233)
420µA (MAX5232)

♦ 13.5MHz SPI/QSPI/MICROWIRE-Compatible,

3-Wire Serial Interface

♦ Pin-Programmable Power-Up Reset State to Zero

or Midscale Output Voltage

♦ Programmable Shutdown Modes with 1kΩ or

200kΩ Internal Output Loads

♦ Recalls Output State Prior to Shutdown or Reset

♦ Buffered Output Drives 5kΩ || 100pF Loads

♦ Space-Saving 16-Pin QSOP Package

MAX5232/MAX5233

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs

with Internal Reference

________________________________________________________________ Maxim Integrated Products 1

Ordering Information

19-2331; Rev 0; 1/02

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

Functional Diagram appears at end of data sheet.

SPI and QSPI are trademarks of Motorola, Inc.

MICROWIRE is a trademark of National Semiconductor, Corp.

Pin Configuration

PART TEMP RANGE

MAX5232EEE -40°C to +85°C 16 QSOP ±0.5
MAX5233EEE -40°C to +85°C 16 QSOP ±0.5

PIN-

PACKAGE

INL

(LSB)

TOP VIEW

1

OSA OSB

OUTA

2

RSTV

3

MAX5232

4

LDAC

CLR

CS

DIN

SCLK

MAX5233

5

6

7

8

QSOP

16

15

OUTB

14

V

DD

AGND

13

REF

12

PDL

11

DOUT

10

DGND

9

MAX5232/MAX5233

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs
with Internal Reference

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL CHARACTERISTICS—MAX5233

(VDD= +4.5V to +5.5V, OS_ = AGND = DGND = 0, RL = 5kΩ, CL = 100pF, TA= T

MIN

to T

MAX

, unless otherwise noted. Typical values

are at TA= +25°C.)

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

VDDto AGND, DGND...............................................-0.3V to +6V

AGND to DGND.....................................................-0.3V to +0.3V

Digital Inputs to DGND.............................................-0.3V to +6V

Digital Output (DOUT) to DGND...................-0.3V to V

DD

+ 0.3V

OUT_ to AGND .............................................-0.3V to V

DD

+ 0.3V

OS_ to AGND...................................................-4V to V

DD

+ 0.3V

Maximum Current into Any Pin............................................50mA

Continuous Power Dissipation (T

A

= +70°C)

16-Pin QSOP (derate 8.3mW/°C above +70°C)...........667mW

Operating Temperature Range ...........................-40°C to +85°C

Storage Temperature Range .............................-65°C to +150°C

Lead Temperature (soldering, 10s) .................................+300°C

STATIC PERFORMANCE

Resolution N 10 Bits

Integral Nonlinearity (Note 1) INL ±0.5 LSB

Differential Nonlinearity DNL ±1 LSB

Offset Error (Note 2) V

Offset-Temperature Coefficient (Note 3) TCV

Full-Scale Voltage V

Full-Scale Temperature Coefficient
(Notes 3 and 6)

Power-Supply Rejection PSR 4.5V ≤ V

DC Crosstalk (Note 4) 100 µV

REFERENCE

Output-Voltage V

Output Voltage Temperature Coefficient
(Note 3)

Reference External Load Regulation V

Reference Short-Circuit Current 4mA

DIGITAL INPUTS

Input High Voltage V

Input Low Voltage V

Input Hysteresis V

Input Leakage Current I

Input Capacitance C

DIGITAL OUTPUTS

Output High Voltage V

Output Low Voltage V

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

OS

OS

Code = 3FF hex, T

FS

TCV

FS

REF

TCV

REF

OUT/IOUT

HYS

IN

OH

OL

0 ≤ I

IH

IL

Digital inputs = 0 or V

IN

I

SOURCE

I

SINK

OUT

= 2mA 0.2 V

±3mV

8 µV/°C

= +25°C 4.067 4.092 4.117 V

A

10 30 ppm/°C

≤ 5.5V 30 200 µV

DD

2.465 V

10 ppm/°C

≤ 100µA (sourcing) 0.1 2 µV/µA

0.7 x V

DD

0.3 x V

DD

V

V

200 mV

DD

±1µA

8pF

= 2mA 4.25 V

MAX5232/MAX5233

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs

with Internal Reference

_______________________________________________________________________________________ 3

ELECTRICAL CHARACTERISTICS—MAX5233 (continued)

(VDD= +4.5V to +5.5V, OS_ = AGND = DGND = 0, RL = 5kΩ, CL = 100pF, TA= T

MIN

to T

MAX

, unless otherwise noted. Typical values

are at T

A

= +25°C.)

ELECTRICAL CHARACTERISTICS—MAX5232

(VDD= +2.7V to +3.6V, OS_ = AGND = DGND = 0, RL = 5kΩ, CL = 100pF, TA= T

MIN

to T

MAX

, unless otherwise noted. Typical values

are at T

A

= +25°C.)

DYNAMIC PERFORMANCE

Voltage-Output Slew Rate SR 0.6 V/µs

Voltage-Output Settling Time

Output-Voltage Swing (Note 5) 0 to V

OS_ Input Resistance R

Time Required for Output to Settle After
Turning on V

Time Required for Output to Settle After
Exiting Full Power-Down (Note 6)

Time Required for Output to Settle After
Exiting DAC Power-Down (Note 6)

Digital Feedthrough

Major-Carry Glitch Energy 90 nV-s

POWER SUPPLIES

Power-Supply Voltage V

Power-Supply Current (Note 7) I

Power-Supply Current in Power-Down
and Shutdown Modes (Note 7)

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

STEP

SCLK

P-P

= ±4V

≥ 0.25V

OUT

= 100kHz,

(Note 6)

DD

OS

DD

DD

To ±0.5LSB, V

(V

- 0.25V) ≥ V

DD

CS = V
V

SCLK

Full power-down mode 1.4 5

One DAC shutdown mode 350 390

Both DACs shutdown mode 235 260

DD

= 5V

, f

10 µs

DD

83 121 kΩ

95 400 µs

95 400 µs

12 160 µs

5 nV-s

4.5 5.5 V

470 525 µA

µA

V

Resolution N 10 Bits

Integral Nonlinearity (Note 1) INL ±0.5 LSB

Differential Nonlinearity DNL ±1 LSB

Offset Error (Note 2) V

Offset-Temperature Coefficient (Note 3) TCV

Full-Scale Voltage V

Full-Scale Temperature Coefficient
(Notes 3 and 6)

Power-Supply Rejection PSR 2.7V ≤ V

DC Crosstalk (Note 4) 100 µV

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

OS

OS

Code = 3FF hex, TA = +25°C 2.0335 2.0460 2.0585 V

FS

TCV

FS

≤ 3.6V 40 280 µV

DD

±3mV

8 µV/°C

10 30 ppm/°C

MAX5232/MAX5233

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs
with Internal Reference

4 _______________________________________________________________________________________

ELECTRICAL CHARACTERISTICS—MAX5232 (continued)

(VDD= +2.7V to +3.6V, OS_ = AGND = DGND = 0, RL = 5kΩ, CL = 100pF, TA= T

MIN

to T

MAX

, unless otherwise noted. Typical values

are at T

A

= +25°C.)

REFERENCE

Output Voltage V

Output-Voltage Temperature
Coefficient (Note 3)

Reference External Load Regulation V

Reference Short-Circuit Current 4 mA

DIGITAL INPUTS

Input High Voltage V

Input Low Voltage V

Input Hysteresis V

Input Leakage Current I

Input Capacitance C

DIGITAL OUTPUTS

Output High Voltage V

Output Low Voltage V

DYNAMIC PERFORMANCE

Voltage-Output Slew Rate SR 0.6 V/µs

Voltage-Output Settling Time

Output-Voltage Swing (Note 5) 0 to V

OS_ Input Resistance R

Time Required for Output to Settle After
Turning on V

Time Required for Output to Settle After
Exiting Full Power-Down (Note 6)

Time Required for Output to Settle After
Exiting DAC Power-Down (Note 6)

Digital Feedthrough

Major-Carry Glitch Energy 90 nV-s

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

REF

TCV

REF

DD

(Note 6)

OUT/IOUT

IH

IL

HYS

IN

IN

OH

OL

OS

0 ≤ I

Digital inputs = 0 or V

I

I

To ±0.5 LSB, V
(V

CS =V
V

≤ 100µA (sourcing) 0.1 2 µV/µA

OUT

DD

= 2mA 2.3 V

SOURCE

= 2mA 0.25 V

SINK

= ±2V

, f

SCLK

STEP

P-P

≥ 0.25V

OUT

= 100kHz,

- 0.25V) ≥ V

DD

DD

= 3V

SCLK

1.234 V

10 ppm/°C

0.7 x V

DD

0.3 x V

200 mV

±1µA

8pF

10 µs

DD

83 121 kΩ

95 400 µs

95 400 µs

12 160 µs

5 nV-s

DD

V

V

V

MAX5232/MAX5233

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs

with Internal Reference

_______________________________________________________________________________________ 5

Note 1: Accuracy is guaranteed as shown in the following table:

Note 2: Offset is measured at the code closest to 12mV.
Note 3: Temperature coefficient is determined by the box method in which the maximum ∆V

OUT

over the temperature range is

divided by ∆T.

Note 4: DC crosstalk is measured as follows: set DAC A to midscale, and DAC B to zero, and measure DAC A output; then change

DAC B to full scale, and measure ∆V

OUT

for DAC A. Repeat the same measurement with DAC A and DAC B interchanged.

DC crosstalk is the maximum ∆V

OUT

measured.

Note 5: Accuracy is better than 1LSB for V

OUT_

= 12mV to VDD- 180mV.

Note 6: Guaranteed by design, not production tested.
Note 7: R

LOAD

= ∞ and digital inputs are at either VDDor DGND.

TIMING CHARACTERISTICS—MAX5233

(VDD= +4.5V to +5.5V, AGND = DGND = 0, TA= T

MIN

to T

MAX

, unless otherwise noted. Typical values are at TA= +25°C.)

(Figures 1 and 2)

ELECTRICAL CHARACTERISTICS—MAX5232 (continued)

(VDD= +2.7V to +3.6V, OS_ = AGND = DGND = 0, RL = 5kΩ, CL = 100pF, TA= T

MIN

to T

MAX

, unless otherwise noted. Typical val-

ues are at T

A

= +25°C.)

POWER SUPPLIES

Power-Supply Voltage V

Power-Supply Current (Note 7) I

Power-Supply Current in Power-Down
and Shutdown Modes (Note 7)

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

DD

DD

Full power-down mode 0.9 5

One DAC shutdown mode 320 360

Both DACs shutdown mode 220 245

V

DD

(V)

3 6 1023

5 3 1023

ACCURACY GUARANTEED

FROM CODE TO CODE

2.7 3.6 V

420 475 µA

µA

SCLK Clock Period t

SCLK Pulse Width High t

SCLK Pulse Width Low t
CS Fall to SCLK Rise Setup Time t
SCLK Rise to CS Rise Hold Time t

DIN Setup Time t

DIN Hold Time t

SCLK Rise to DOUT Valid
Propagation Delay Time

SCLK Fall to DOUT Valid
Propagation Delay Time

SCLK Rise to CS Fall Delay t

CS Rise to SCLK Rise Hold Time t
CS Pulse Width High t
LDAC Pulse Width Low t
CS Rise to LDAC Rise Hold Time t

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

CP

CH

CL

CSS

CSH

DS

DH

t

DO1

t

DO2

CS0

CS1

CSW

LDL

CSLD

C

LOAD

C

LOAD

(Note 8) 40 ns

= 200pF 80 ns

= 200pF 80 ns

74 ns

30 ns

30 ns

30 ns

0ns

30 ns

0ns

10 ns

30 ns

75 ns

30 ns

MAX5232/MAX5233

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs
with Internal Reference

6 _______________________________________________________________________________________

TIMING CHARACTERISTICS—MAX5232

(VDD= +2.7V to +3.6V, AGND = DGND = 0, TA= T

MIN

to T

MAX

, unless otherwise noted. Typical values are at TA= +25°C.)

(Figures 1 and 2)

Note 8: This timing requirement applies only to CS rising edges, which execute commands modifying the DAC input register

contents.

INTEGRAL NONLINEARITY

vs. DIGITAL INPUT CODE (MAX5232)

MAX5232/MAX5233 toc01

DIGITAL INPUT CODE

INL (LSB)

10008757506255003752501250

-0.050

-0.025

0

0.025

0.050

0.075

-0.075

INTEGRAL NONLINEARITY

vs. DIGITAL INPUT CODE (MAX5233)

MAX5232/MAX5233 toc02

DIGITAL INPUT CODE

INL (LSB)

10008757506255003752501250

-0.050

-0.025

0

0.025

0.050

0.075

-0.075

DIFFERENTIAL NONLINEARITY

vs. DIGITAL INPUT CODE (MAX5232)

MAX5232/MAX5233 toc03

DIGITAL INPUT CODE

DNL (LSB)

10008757506255003752501250

-0.050

0

0.025

0.050

-0.025

Typical Operating Characteristics

(VDD= +3V (MAX5230), VDD= +5V (MAX5231), RL= 5kΩ, CL= 100pF, OS_ = AGND, both DACs enabled with full-scale output code,
T

A

= +25°C, unless otherwise noted.)

SCLK Clock Period t

SCLK Pulse Width High t

SCLK Pulse Width Low t
CS Fall to SCLK Rise Setup Time t
SCLK Rise to CS Rise Hold Time t

DIN Setup Time t

DIN Hold Time t

SCLK Rise to DOUT Valid
Propagation Delay Time

SCLK Fall to DOUT Valid
Propagation Delay Time

SCLK Rise to CS Fall Delay t

CS Rise to SCLK Rise Hold Time t
CS Pulse Width High t
LDAC Pulse Width Low t
CS Rise to LDAC Rise Hold Time t

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

CP

CH

CL

CSS

CSH

DS

DH

t

DO1

t

DO2

CS0

CS1

CSW

LDL

CSLD

C

C

(Note 8) 75 ns

74 ns

30 ns

30 ns

30 ns

0ns

30 ns

0ns

= 200pF 200 ns

LOAD

= 200pF 200 ns

LOAD

10 ns

30 ns

75 ns

30 ns

MAX5232/MAX5233

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs

with Internal Reference

_______________________________________________________________________________________ 7

Typical Operating Characteristics (continued)

(VDD= +3V (MAX5232), VDD= +5V (MAX5233), RL= 5kΩ, CL= 100pF, OS_ = AGND, both DACs enabled with full-scale output code,
T

A

= +25°C, unless otherwise noted.)

0.075

0.050

0.025

DNL (LSB)

-0.025

-0.050

-0.075

430

425

420

415

410

SUPPLY CURRENT (µA)

405

400

DIFFERENTIAL NONLINEARITY

vs. DIGITAL INPUT CODE (MAX5233)

0

DIGITAL INPUT CODE

SUPPLY CURRENT vs. SUPPLY VOLTAGE

(MAX5232)

2.7 3.6
SUPPLY VOLTAGE (V)

3.33.0

MAX5232/MAX5233 toc04

10008757506255003752501250

MAX5232/MAX5233 toc07

SUPPLY CURRENT vs. TEMPERATURE

(MAX5232)

450

440

430

420

SUPPLY CURRENT (µA)

410

400

-40 85
TEMPERATURE (°C)

SUPPLY CURRENT vs. SUPPLY VOLTAGE

(MAX5233)

490

485

480

475

470

SUPPLY CURRENT (µA)

465

460

4.50 5.50
SUPPLY VOLTAGE (V)

5.255.004.75

SUPPLY CURRENT vs. TEMPERATURE

(MAX5233)

450

440

MAX5232/MAX5233 toc05

430

420

SUPPLY CURRENT (µA)

410

603510-15

400

-40 85
TEMPERATURE (°C)

603510-15

FULL POWER-DOWN SUPPLY CURRENT

vs. TEMPERATURE (MAX5232)

0.80

0.75

0.70

MAX5232/MAX5233 toc08

0.65

0.60

0.55

SUPPLY CURRENT (µA)

0.50

0.45
NO LOAD

0.40

-40 85
TEMPERATURE (°C)

6035-15 10

MAX5232/MAX5233 toc06

MAX5232/MAX5233 toc09

TWO-DACs SHUTDOWN SUPPLY CURRENT

vs. TEMPERATURE (MAX5232)

230

225

220

215

210

SUPPLY CURRENT (µA)

205

NO LOAD

200

-40 85
TEMPERATURE (°C)

ONE-DAC SHUTDOWN SUPPLY CURRENT

vs. TEMPERATURE (MAX5232)

330

325

MAX5232/MAX5233 toc10

320

315

310

SUPPLY CURRENT (µA)

305

NO LOAD

603510-15

300

-40 85
TEMPERATURE (°C)

603510-15

MAX5232/MAX5233 toc11

FULL POWER-DOWN SUPPLY CURRENT

vs. TEMPERATURE (MAX5233)

1.2

1.1

1.0

0.9

0.8

0.7

SUPPLY CURRENT (µA)

0.6

0.5
NO LOAD

0.4

-40 85
TEMPERATURE (°C)

MAX5232/MAX5233 toc12

6035-15 10

MAX5232/MAX5233

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs
with Internal Reference

8 _______________________________________________________________________________________

Typical Operating Characteristics (continued)

(VDD= +3V (MAX5232), VDD= +5V (MAX5233), RL= 5kΩ, CL= 100pF, OS_ = AGND, both DACs enabled with full-scale output code,
T

A

= +25°C, unless otherwise noted.)

TWO-DACs SHUTDOWN SUPPLY CURRENT

vs. TEMPERATURE (MAX5233)

MAX5232/MAX5233 toc13

TEMPERATURE (°C)

SUPPLY CURRENT (µA)

603510-15

230

235

240

245

250

255

225

-40 85

NO LOAD

ONE-DAC SHUTDOWN SUPPLY CURRENT

vs. TEMPERATURE (MAX5233)

MAX5232/MAX5233 toc14

TEMPERATURE (°C)

SUPPLY CURRENT (µA)

603510-15

355

360

365

370

375

380

350

-40 85

NO LOAD

FULL-SCALE OUTPUT VOLTAGE
vs. TEMPERATURE (MAX5232)

MAX5232/MAX5233 toc15

TEMPERATURE (°C)

FULL-SCALE OUTPUT VOLTAGE (V)

603510-15

2.0465

2.0470

2.0475

2.0480

2.0460

-40 85

NO LOAD

FULL-SCALE OUTPUT VOLTAGE
vs. TEMPERATURE (MAX5233)

MAX5232/MAX5233 toc16

TEMPERATURE (°C)

FULL-SCALE OUTPUT VOLTAGE (V)

603510-15

4.0915

4.0920

4.0925

4.0930

4.0935

4.0940

4.0910

-40 85

NO LOAD

FULL-SCALE ERROR vs. RESISTIVE LOAD

(MAX5232)

MAX5232/MAX5233 toc17

RESISTIVE LOAD (kΩ)

FULL-SCALE ERROR (LSB)

6.55.54.53.52.5 7.5

0.01

0.02

0.03

0.04

0.05

0.06

0.07

0.08

0.09

0

CHANGE FROM
NO LOAD

0.01

0.02

0.03

0.04

0.05

0.06

0

FULL-SCALE ERROR vs. RESISTIVE LOAD

(MAX5233)

MAX5232/MAX5233 toc18

RESISTIVE LOAD (kΩ)

FULL-SCALE ERROR (LSB)

6.55.54.53.52.5 7.5

CHANGE FROM
NO LOAD

DYNAMIC RESPONSE RISE TIME

(MAX5232)

MAX5232/MAX5233 toc19

2µs/div

V

OUT

500mV/div

V

CS

2V/div

2.048V

3V

0

10mV

DYNAMIC RESPONSE RISE TIME

(MAX5233)

MAX5232/MAX5233 toc20

2µs/div

V

OUT

1V/div

V

CS

5V/div

4.096V

5V

0

10mV

DYNAMIC RESPONSE FALL TIME

(MAX5232)

MAX5232/MAX5233 toc21

2µs/div

V

OUT

500mV/div

V

CS

2V/div

2.048V

3V

0

10mV

MAX5232/MAX5233

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs

with Internal Reference

_______________________________________________________________________________________ 9

Typical Operating Characteristics (continued)

(VDD= +3V (MAX5232), VDD= +5V (MAX5233), RL= 5kΩ, CL= 100pF, OS_ = AGND, both DACs enabled with full-scale output code,
T

A

= +25°C, unless otherwise noted.)

DYNAMIC RESPONSE FALL TIME

(MAX5233)

V

CS

5V/div

V

OUT

1V/div

DIGITAL FEEDTHROUGH

(MAX5232)

SCLK

2V/div

2µs/div

MAX5232/MAX5233 toc22

MAX5232/MAX5233 toc25

5V

0

4.096V

10mV

OUTA

2V/div

OUTB

5mV/div

AC-COUPLED

SCLK

5V/div

ANALOG CROSSTALK

(MAX5232)

400µs/div

MAX5232/MAX5233 toc23

DIGITAL FEEDTHROUGH

(MAX5233)

MAX5232/MAX5233 toc26

OUTA

5V/div

OUTB

5mV/div

AC-COUPLED

CS

5V/div

ANALOG CROSSTALK

(MAX5233)

400µs/div

MAX5232/MAX5233 toc24

MAJOR-CARRY TRANSITION

(MAX5232)

MAX5232/MAX5233 toc27

OUTA

1mV/div

AC-COUPLED

5V/div

OUTA

100mV/div

AC-COUPLED

MAJOR-CARRY TRANSITION

(MAX5233)

CS

OUTA

100mV/div

AC-COUPLED

2.4630

2.4625

MAX5232/MAX5233 toc29

2.4620

REFERENCE VOLTAGE (V)

2.4615

2.4610

-40 85

2µs/div

REFERENCE VOLTAGE

vs. TEMPERATURE (MAX5233)

NO LOAD

603510-15

TEMPERATURE (°C)

10µs/div

2µs/div

MAX5232/MAX5233 toc28

OUTA

1mV/div

AC-COUPLED

1.2350

1.2345

1.2340

REFERENCE VOLTAGE (V)

1.2335

1.2330

-40 85

10µs/div

REFERENCE VOLTAGE

vs. TEMPERATURE (MAX5232)

NO LOAD

603510-15

TEMPERATURE (°C)

MAX5232/MAX5233 toc30

MAX5232/MAX5233

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs
with Internal Reference

10 ______________________________________________________________________________________

Pin Description

Figure 1. Serial Interface Timing

PIN NAME FUNCTION

1 OSA DAC A Offset Adjust

2 OUTA DAC A Output

Reset Value Input

3 RSTV

4 LDAC Load DACs A and B

5 CLR

6 CS Chip-Select Input

7 DIN Serial Data Input. Data is clocked in on the rising edge of SCLK.

8 SCLK Serial Clock Input

9 DGND Digital Ground

10 DOUT Serial Data Output
11 PDL Power-Down Lockout. Disables shutdown of both DACs when low.

12 REF Reference Output. Reference provides a 2.465V (MAX5233) or 1.234V (MAX5232) nominal output.

13 AGND Analog Ground

14 V

15 OUTB DAC B Output

16 OSB DAC B Offset Adjust

DD

1: Connect to VDD to select midscale as the reset value.
0: Connect to DGND to select zero as the reset value.

Clear Input. Both DAC outputs go to zero or midscale. Clears both DAC internal registers (input
register and DAC register) to its predetermined (RSTV) state.

Positive Power Supply. Bypass VDD with a 0.1µF capacitor in parallel with a 4.7µF capacitor to
AGND, and bypass V

with a 0.1µF capacitor to DGND.

DD

CS

SCLK

DIN

DOUT

(MODE 0)

DOUT

(MODE 1)

1

C1

C2 S0

C0

D8

D9

D7

8

D6 D3 D2 D1 D0 S2

9

COMMAND EXECUTED

16 (1)

S1D5 D4

C2 C1

C2 C1

Detailed Description

The MAX5232/MAX5233 10-bit, voltage-output DACs
are easily configured with a 3-wire SPI-, QSPI-,
MICROWIRE-compatible serial interface. The devices
include a 16-bit data-in/data-out shift register and have
an input consisting of an input register and a DAC reg­ister. In addition, these devices employ precision
trimmed internal resistors to produce a gain of

1.6384V/V, maximizing the output voltage swing, and a
programmable-shutdown output impedance of 1kΩ or
200kΩ The full-scale output voltage is 4.092V for the
MAX5233 and 2.046V for the MAX5232. These devices
produce a weighted output voltage proportional to the
digital input code with an inverted Rail-to-Rail®ladder
network (Figure 3).

Internal Reference

The MAX5230/MAX5231 use an on-board precision
bandgap reference to generate an output voltage of

1.234V (MAX5232) or 2.465V (MAX5233). With a low
temperature coefficient of only 10ppm/°C, REF can
source up to 100µA and is stable for capacitive loads
less than 200pF.

Output Amplifiers

The output amplifiers have internal resistors that pro­vide for a gain of 1.6384V/V when OS_ is connected to
AGND. The output amplifiers have a typical slew rate of

0.6V/µs and settle to 1/2LSB within 10µs with a load of
5kΩ in parallel with 100pF. Use the serial interface to
set the shutdown output impedance of the amplifiers to
1kΩ or 200kΩ.
OS_ can be used to produce an offset voltage at the
output. For instance, to achieve a 1V offset, apply -1V
to OS_ to produce an output range from 1V to (1V +
V

FS/VREF

). Note that the DAC’s output range is still lim-

ited by the maximum output voltage specification.

MAX5232/MAX5233

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs

with Internal Reference

______________________________________________________________________________________ 11

Figure 2. Detailed Serial Interface Timing

Figure 3. Simplified DAC Circuit Diagram

Rail-to-Rail is a registered trademark of Nippon Motorola, Ltd.

t

LDL

t

CSLD

LDAC

t

CSW

CS

t

CSO

SCLK

DIN

DOUT

t

CSS

t

DS

t

CSH

t

CH

t

D01

t

CL

t

CP

t

D02

t

CS1

t

DH

OS_

121kΩ

77.25kΩ

RRR

2R 2R 2R 2R

2R

REF

AGND

SHOWN FOR ALL ONES ON DAC

D9D8D7D0

OUT_

1kΩ

MAX5232/MAX5233

Serial Interface

The 3-wire serial interface (SPI, QSPI, MICROWIRE
compatible) used in the MAX5232/MAX5233 allows for
complete control of DAC operations (Figures 4 and 5).
Figures 1 and 2 show the timing for the serial interface.
The serial word consists of 3 control bits followed by 10
data bits (MSB first) and 1 sub-bit as described in
Tables 1, 2, and 3. When the three control bits are all
zeros or all 1, D9–D6 are used as additional control
bits, allowing for greater DAC functionality.

The digital inputs allow any of the following: loading the
input register(s) without updating the DAC register(s),
updating the DAC register(s) from the input register(s),
or updating the input and DAC register(s) simultane-

ously. The control bits and D9–D6 allow the DACs to
operate independently.

Send the 16-bit data as one 16-bit word (QSPI) or two
8-bit packets (SPI, MICROWIRE), with CS low during
this period. The control bits and D9–D6 determine
which registers update and the state of the registers
when exiting shutdown. The 3-bit control and D9–D6
determine the following:

• Registers to be updated

• Selection of the power-down and shutdown modes

The general timing diagram of Figure 1 illustrates data
acquisition. Driving CS low enables the device to
receive data. Otherwise the interface control circuitry is
disabled. With CS low, data at DIN is clocked into the
register on the rising edge of SCLK. As CS goes high,
data is latched into the input and/or DAC registers,
depending on the control bits and D9–D6. The maxi­mum clock frequency guaranteed for proper operation
is 13.5MHz. Figure 2 depicts a more detailed timing
diagram of the serial interface.

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs
with Internal Reference

12 ______________________________________________________________________________________

Table 1. Serial Data Format

Table 2. Serial-Interface Programming Commands

X = Don’t care.
* S0 must be zero for proper operation.

MSB <------------16-bits of serial data ------------> LSB

3 Control Bits MSB .. 10 Data Bits... LSB Sub-Bit

C2…C0 D9 ................................D0 S2, S1, S0

C2 C1 C0 D9..............D0

0 0 1 10-bit DAC data 000 Load input register A; DAC registers are unchanged.

0 1 0 10-bit DAC data 000 Load input register A; all DAC registers are updated.

0 1 1 10-bit DAC data 000

1 0 0 X X X X X X X X X X 000

1 0 1 10-bit DAC data 000 Load input register B; DAC registers are unchanged.

1 1 0 10-bit DAC data 000 Load input register B; all DAC registers are updated.

1 1 1 P1A P1B X X X X X X X X 000

0 0 0 0 0 1 X X X X X X X 000

0 0 0 0 1 1 P1A P1B X X X X X 000

0 0 0 1 0 1 X X X X X X X 000

0 0 0 1 1 0 P1A X X X X X X 000 Shut down DAC A according to bit P1A (see Table 3).

0 0 0 1 1 1 P1B X X X X X X 000 Shut down DAC B according to bit P1B (see Table 3).

0 0 0 1 0 0 0 X X X X X X 000 Mode 0. DOUT clocked out on SCLK falling edge (default).

0 0 0 1 0 0 1 X X X X X X 000 Mode 1. DOUT clocked out on SCLK rising edge.

16-BIT SERIAL WORD

S2–S0

FUNCTION

Load all DAC registers from the shift register (start up both DACs with
new data, and load the input registers).

Update both DAC registers from their respective input registers (start
up both DACs with data previously stored in the input registers).

Shut down both DACs, respectively, according to bits P1A and P1B
(see Table 3). Internal bias and reference remain active.

Update DAC register A from input register A (start up DAC A with
data previously stored in input register A).

Full Power-Down. Power down the main bias generator and shut
down both DACs, respectively, according to bits P1A and P1B (see
Table 3).

Update DAC register B from input register B (start up DAC B with
data previously stored in input register B).

Power-Down and Shutdown Modes

As described in Tables 2 and 3, several serial interface
commands put one or both of the DACs into shutdown
mode. Shutdown modes are completely independent
for each DAC. In shutdown, the amplifier output be­comes high impedance, and OUT_ terminates to OS_
through the 200kΩ (typ) gain resistors. Optionally (see
Tables 2 and 3), OUT_ can have an additional termina­tion of 1kΩ to AGND.

Full power-down mode shuts down the main bias gene­rator, reference, and both DACs. The shutdown impe­dance of the DAC outputs can still be controlled
independently, as described in Tables 2 and 3.

A serial interface command exits shutdown mode and
updates a DAC register. Each DAC can exit shutdown
at the same time or independently (see Tables 2 and

3). For example, if both DACs are shut down, updating
the DAC A register causes DAC A to power up, while
DAC B remains shutdown. In full power-down mode,
powering up either DAC also powers up the main bias
generator and reference. To change from full power­down to both DACs shutdown requires the waking of at
least one DAC between states.

When powering up the MAX5232/MAX5233 (powering
V

DD

), allow 400µs (max) for the output to stabilize. When
exiting full power-down mode, also allow 400µs (max) for
the output to stabilize. When exiting DAC shutdown
mode, allow 160µs (max) for the output to stabilize.

Reset Value (RSTV) and

Clear (

CLR

) Inputs

Driving CLR low asynchronously forces both DAC out-
puts and all the internal registers (input registers and
DAC registers) for both DACs to either zero or midscale,
depending on the level at RSTV. RSTV = DGND sets the
zero value, and RSTV = VDDsets the midscale value.

The internal power-on reset circuit sets the DAC out­puts and internal registers to either zero or midscale
when power is first applied to the device, depending on
the level at RSTV as described in the preceding para­graph. The DAC outputs are enabled after power is first
applied. In order to obtain the midscale value on
power-up (RSTV = V

DD

), the voltage on RSTV must rise

simultaneously with the VDDsupply.

Load DAC Input (

LDAC

)

Asserting LDAC asynchronously loads the DAC registers
from their corresponding input registers (DACs that are
shut down remain shut down). The LDAC input is totally
asynchronous and does not require any activity on CS,
SCLK, or DIN in order to take effect. If LDAC is asserted
coincident with a rising edge of CS, which executes a
serial command modifying the value of either DAC input
register, then LDAC must remain asserted for at least
30ns following the CS rising edge. This requirement
applies only for serial commands that modify the value of
the DAC input registers.

Power-Down Lockout Input (

PDL

)

Driving PDL low disables shutdown of either DAC. When
PDL is low, serial commands to shut down either DAC are

ignored. When either DAC is in shutdown mode, a high­to-low transition on PDL brings the DACs and the refer­ence out of shutdown with DAC outputs set to the state
prior to shutdown.

MAX5232/MAX5233

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs

with Internal Reference

______________________________________________________________________________________ 13

Table 3. P1 Shutdown Modes

Figure 4. SPI/QSPI Interface Connections

Figure 5. Connections for MICROWIRE

DIN

MAX5232
MAX5233

MAX5232
MAX5233

SCLK

CS

SCLK

DIN

CS

MOSI

SCK

I/O

5V

SS

SPI/QSPI

PORT

SK

MICROWIRE

SO

I/O

PORT

P1 (A/B) SHUTDOWN MODE

0 Shut down with internal 1kΩ load to GND

1 Shut down with internal 200kΩ load to GND

MAX5232/MAX5233

Applications Information

Definitions

Integral Nonlinearity (INL)

Integral nonlinearity (Figure 6a) is the deviation of the val­ues on an actual transfer function from a straight line.
This straight line can be either a best-straight-line fit
(closest approximation to the actual transfer curve) or a
line drawn between the endpoints of the transfer func­tion, once offset and gain errors have been nullified. For
a DAC, the deviations are measured at every single step.

Differential Nonlinearity (DNL)

Differential nonlinearity (Figure 6b) is the difference
between an actual step height and the ideal value of
1LSB. If the magnitude of the DNL is less than 1LSB, the
DAC guarantees no missing codes and is monotonic.

Offset Error

The offset error (Figure 6c) is the difference between
the ideal and the actual offset point. For a DAC, the off­set point is the step value when the digital input is zero.
This error affects all codes by the same amount and
can usually be compensated for by trimming.

Gain Error

Gain error (Figure 6d) is the difference between the
ideal and the actual full-scale output voltage on the
transfer curve, after nullifying the offset error. This error
alters the slope of the transfer function and corre­sponds to the same percentage error in each step.

Settling Time

The settling time is the amount of time required from the
start of a transition, until the DAC output settles to its new
output value within the converter’s specified accuracy.

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs
with Internal Reference

14 ______________________________________________________________________________________

Figure 6a. Integral Nonlinearity

Figure 6b. Differential Nonlinearity

Figure 6c. Offset Error

Figure 6d. Gain Error

7

6

5

4

3

2

ANALOG OUTPUT VALUE (LSB)

1

0

000 010001 011 100 101 110

AT STEP
001 (1/4LSB )

DIGITAL INPUT CODE

AT STEP
011 (1/2LSB )

111

6

5

4

3

2

ANALOG OUTPUT VALUE (LSB)

1

0

000 010001 011 100 101

1LSB

DIFFERENTIAL
LINEARITY ERROR (+1/4LSB)

DIGITAL INPUT CODE

DIFFERENTIAL LINEARITY
ERROR (-1/4LSB)

1LSB

3

2

1

ANALOG OUTPUT VALUE (LSB)

0

000 010001 011

ACTUAL

DIAGRAM

ACTUAL
OFFSET
POINT

IDEAL OFFSET
POINT

DIGITAL INPUT CODE

IDEAL DIAGRAM

OFFSET ERROR
(+1 1/4LSB)

7

6

5

ANALOG OUTPUT VALUE (LSB)

4

0

000 101100 110 111

IDEAL FULL-SCALE OUTPUT

GAIN ERROR

(-1 1/4LSB)

IDEAL DIAGRAM

DIGITAL INPUT CODE

ACTUAL

FULL-SCALE

OUTPUT

Digital Feedthrough

Digital feedthrough is noise generated on the DAC’s
output when any digital input transitions. Proper board
layout and grounding significantly reduce this noise,
but there is always some feedthrough caused by the
DAC itself.

Unipolar Output

Figure 7 shows the MAX5232/MAX5233 configured for
unipolar, rail-to-rail operation. The MAX5233 produces
a 0 to 4.092V output, while the MAX5232 produces 0 to

2.046V output. Table 4 lists the unipolar output codes.

Digital Calibration and

Threshold Selection

Figure 8 shows the MAX5232/MAX5233 in a digital cali­bration application. With a bright light value applied to
the photodiode (on), the DAC is digitally ramped until it
trips the comparator. The microprocessor (µP) stores
this high calibration value. Repeat the process with a
dim light (off) to obtain the dark current calibration. The
µP then programs the DAC to set an output voltage at
the midpoint of the two calibrated values. Applications
include tachometers, motion sensing, automatic read­ers, and liquid clarity analysis.

Sharing a Common DIN Line

Several MAX5232/MAX5233s may share one common
DIN signal line (Figure 9). In this configuration, the data
bus is common to all devices; data is not shifted through
a daisy-chain. The SCLK and DIN lines are shared by all
devices, but each IC needs its own dedicated CS line.

Daisy-Chaining Devices

Any number of MAX5232/MAX5233s can be daisy­chained by connecting the serial data output (DOUT) of
one device to the digital input (DIN) of the following
device in the chain (Figure 10).

MAX5232/MAX5233

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs

with Internal Reference

______________________________________________________________________________________ 15

Table 4. Unipolar Code Table

Figure 7. Unipolar Output Circuit (Rail-to-Rail)

Figure 8. Digital Calibration

DAC CONTENTS ANALOG OUTPUT (V)

MSB LSB MAX5232 MAX5233

1111 1111 11 (000)

1000 0000 01 (000) 1.025 2.050

1000 0000 00 (000)

0111 1111 11 (000) 1.021 2.042

0000 0000 01 (000)

0000 0000 00 (000) 0 0

2.046 4.092

1.023 2.046

0.002 0.004

REF

DAC_

MAX5232
MAX5233

5V/3V

V

DD

REF

AGND DGND

OS_

121kΩ

77.25kΩ

OUT_

1kΩ

V+

REF

5V/3V

V

DD

REF

DAC_

MAX5232
MAX5233

AGND DGND

121kΩ

77.25kΩ

OUT_

1kΩ

OS_

PHOTODIODE

V+

V-

R

PULLDOWN

V

OUT

MAX5232/MAX5233

Power-Supply and Bypassing

Considerations

On power-up, the input and DAC registers are cleared
to either zero (RSTV = DGND) or midscale (RSTV =
VDD). Bypass VDDwith a 4.7µF capacitor in parallel
with a 0.1µF capacitor to AGND, and bypass VDDwith
a 0.1µF capacitor to DGND. Minimize lead lengths to
reduce lead inductance.

Grounding and Layout Considerations

Digital and AC transient signals on AGND or DGND can
create noise at the output. Connect AGND and DGND
to the highest quality ground available. Use proper

grounding techniques, such as a multilayer board with a
low-inductance ground plane or star connect all ground
return paths back to the MAX5232/MAX5233 AGND.
Carefully lay out the traces between channels to reduce
AC cross-coupling and crosstalk. Wire-wrapped boards
and sockets are not recommended. If noise becomes
an issue, shielding may be required.

Chip Information

TRANSISTOR COUNT: 4745

PROCESS: BiCMOS

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs
with Internal Reference

16 ______________________________________________________________________________________

Figure 9. Multiple MAX5230/MAX5231s Sharing a Common DIN Line

Figure 10. Daisy-Chaining MAX5230/MAX5231 Devices

DIN

SCLK

CS1

CS2

CS3

TO OTHER
SERIAL DEVICES

CS

MAX5232
MAX5233

SCLK

DIN

SCLK

CS

CS

MAX5232
MAX5233

SCLK

DIN

DIN

DOUT DOUT DOUT

CS

SCLK

DIN

CS

MAX5232
MAX5233

SCLK

DIN

MAX5232
MAX5233

CS

SCLK

DIN

CS

SCLK

DIN

MAX5232
MAX5233

MAX5232
MAX5233

TO OTHER
SERIAL DEVICES

MAX5232/MAX5233

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs

with Internal Reference

______________________________________________________________________________________ 17

Functional Diagram

PDL

LDAC

RSTV

CLR

SR

CONTROL

12

BANDGAP

REFERENCE

INPUT

REGISTERS

1.25V

16-BIT

SHIFT REGISTER

DECODE

CONTROL

REGISTER

2X

(1X)

REFERENCE

BUFFER

DAC

2.5V (1.25V)

DOUT

( ) FOR MAX5232 ONLY

REF

V

DD

DAC A

DAC B

AGNDSCLKDINCS DGND

AMP A

1kΩ SHUTDOWN

AMP B

1kΩ SHUTDOWN

MAX5232
MAX5233

121kΩ

OSA

77.25kΩ

OUTA

1kΩ

121kΩ

OSB

77.25kΩ

OUTB

MAX5232/MAX5233

3V/5V, 10-Bit, Serial Voltage-Output Dual DACs
with Internal Reference

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

18 ____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600

© 2002 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.

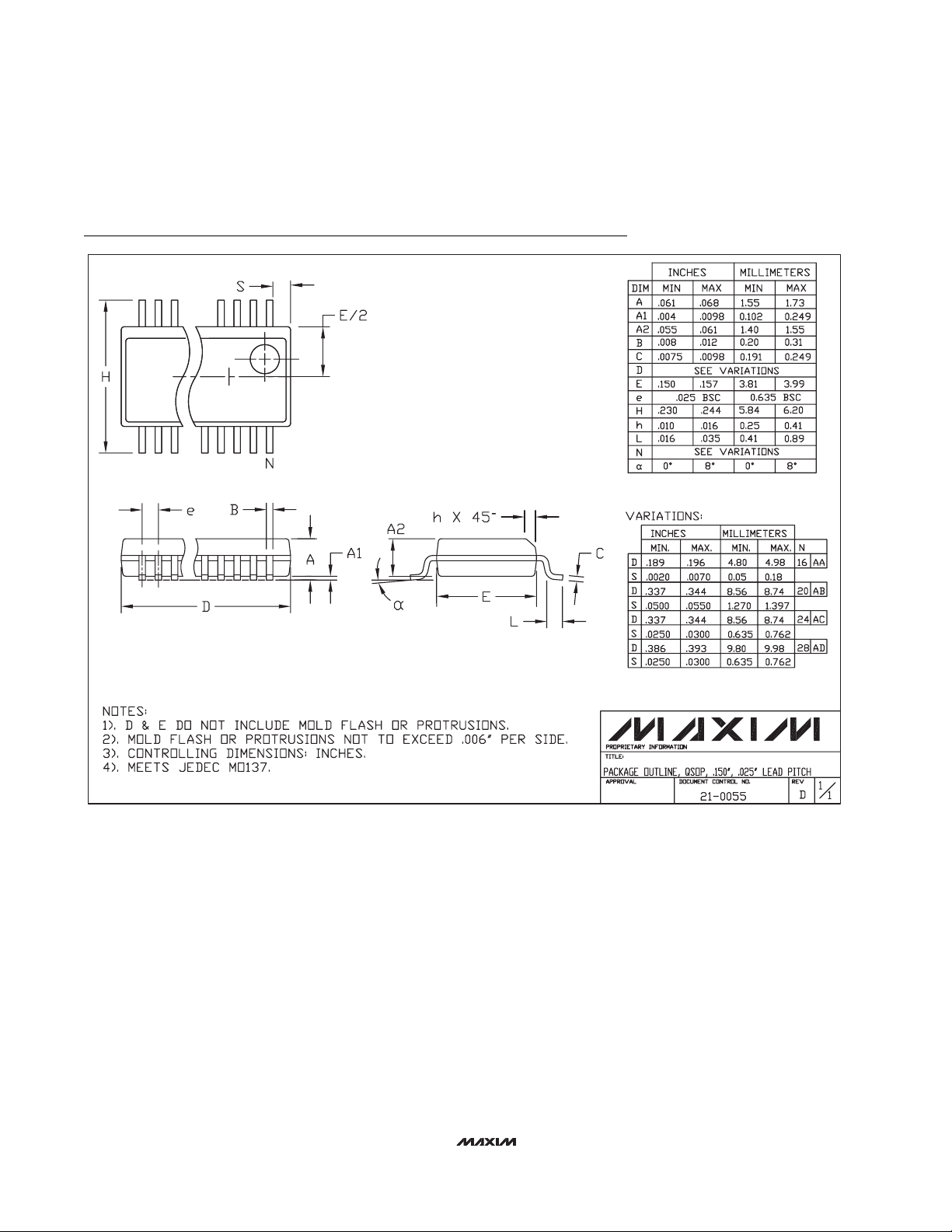

Package Information

QSOP.EPS
