MAX5152/MAX5153
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
________________________________________________________________
Maxim Integrated Products
1
19-1304; Rev 0; 10/97
_______________General Description
The MAX5152/MAX5153 low-power, serial, voltage-output, dual 13-bit digital-to-analog converters (DACs)
consume only 500µA from a single +5V (MAX5152) or
+3V (MAX5153) supply. These devices feature Rail-toRail®output swing and are available in space-saving
16-pin QSOP and DIP packages. Access to the inverting input allows for specific gain configurations, remote
sensing, and high output current capability, making
these devices ideally suited for industrial process controls. These devices are also well suited for digitally
programmable (4–20mA) current loops.
The 3-wire serial interface is SPI™/QSPI™ and
Microwire™ compatible. Each DAC has a doublebuffered input organized as an input register followed
by a DAC register, which allows the input and DAC registers to be updated independently or simultaneously.
Additional features include a programmable shutdown
(2µA), hardware-shutdown lockout, a separate voltage
reference for each DAC, power-on reset, and an activelow clear input (CL) that resets all registers and DACs
to zero. The MAX5152/MAX5153 provide a programmable logic output pin for added functionality, and a serial-data output pin for daisy chaining.
________________________Applications
Industrial Process Control Motion Control
Digital Offset and Gain Digitally Programmable
Adjustment 4–20mA Current Loops
Remote Industrial Controls Automatic Test Equipment
____________________________Features
♦ 13-Bit Dual DAC with Configurable Output
Amplifier
♦ Single-Supply Operation: +5V (MAX5152)
+3V (MAX5153)
♦ Rail-to-Rail Output Swing
♦ Low Quiescent Current:
500µA (normal operation)
2µA (shutdown mode)
♦ Power-On Reset Clears DAC Outputs to Zero
♦ SPI/QSPI and Microwire Compatible
♦ Space-Saving 16-Pin QSOP Package
♦ Pin-Compatible 12-Bit Versions:
MAX5156/MAX5157
______________Ordering Information
Rail-to-Rail is a registered trademark of Nippon Motorola Ltd. SPI and QSPI are trademarks of Motorola, Inc.
Microwire is a trademark of National Semiconductor Corp.
Ordering Information continued at end of data sheet.
*
Dice are tested at TA= +25°C, DC parameters only.
Dice*0°C to +70°C ±1MAX5152BC/D
16 QSOP0°C to +70°C ±1MAX5152BCEE
16 QSOP0°C to +70°C ±1/2MAX5152ACEE
16 Plastic DIP0°C to +70°C ±1MAX5152BCPE
16 Plastic DIP0°C to +70°C ±1/2
MAX5152ACPE
PIN-PACKAGETEMP. RANGE
INL
(LSB)
PART
REFACLDOUT
16-BIT
SHIFT
REGISTER
SR
CONTROL
INPUT
REG A
SCLK
UPO
REFB
DINCS
DAC A
DAC B
FBA
FBB
OUTA
OUTB
DAC
REG A
INPUT
REG B
LOGIC
OUTPUT
DECODE
CONTROL
DAC
REG B
MAX5152
MAX5153
V
DD
AGND
DGNDPDL
_________________________________________________________Functional Diagram
Pin Configuration appears at end of data sheet.
MAX5152/MAX5153
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
2 _______________________________________________________________________________________
ABSOLUTE MAXIMUM RATINGS
ELECTRICAL CHARACTERISTICS—MAX5152
(VDD= +5V ±10%, V
REFA
= V
REFB
= 2.5V, RL= 10kΩ, CL= 100pF, TA= T
MIN
to T
MAX
, unless otherwise noted. Typical values are at
T
A
= +25°C, output buffer connected in unity-gain configuration (Figure 9).)
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
VDDto AGND............................................................-0.3V to +6V
V
DD
to DGND ...........................................................-0.3V to +6V
AGND to DGND..................................................................±0.3V
FBA, FBB to AGND.....................................-0.3V to (V
DD
+ 0.3V)
REF_, OUT_ to AGND.................................-0.3V to (V
DD
+ 0.3V)
Digital Inputs (SCLK, DIN, CS, CL, PDL)
to DGND................................................................-0.3V to +6V
Digital Outputs (DOUT, UPO) to DGND.....-0.3V to (V
DD
+ 0.3V)
Maximum Current into Any Pin.........................................±20mA
Continuous Power Dissipation (TA= +70°C)
Plastic DIP (derate 10.5mW/°C above +70°C) .............593mW
QSOP (derate 8.30mW/°C above +70°C).....................667mW
CERDIP (derate 10.00mW/°C above +70°C)................800mW
Operating Temperature Ranges
MAX5152_C_E/MAX5153_C_E ...........................0°C to +70°C
MAX5152_E_E/MAX5153_E_E..........................-40°C to +85°C
MAX5152_MJE/MAX5153_MJE......................-55°C to +125°C
Storage Temperature Range.............................-65°C to +150°C
Lead Temperature (soldering, 10sec).............................+300°C
VIN= 0V to V
DD
CL, PDL, CS, DIN, SCLK
CL, PDL, CS, DIN, SCLK
Input code = 1FFF hex,
V
REF
= 1Vp-p at 2.5VDC, f = 25kHz
Input code = 0000 hex,
V
REF
= (VDD- 1.4Vp-p) at 1kHz
4.5V ≤ VDD≤ 5.5V
Input code = 1FFF hex,
V
REF
= 0.67Vp-p at 2.5V
DC
Normalized to 2.5V
(Note 1)
Guaranteed monotonic
Code = 20
Minimum with code 1555 hex
Normalized to 2.5V
CONDITIONS
pF8C
IN
Input Capacitance
µA0.001 ±1I
IN
Input Leakage Current
mV200V
HYS
Input Hysteresis
V0.8V
IL
Input Low Voltage
V3.0V
IH
Input High Voltage
dB82SINAD
Signal-to-Noise plus
Distortion Ratio
dB-85Reference Feedthrough
kHz600Reference 3dB Bandwidth
kΩ14 20R
REF
Reference Input Resistance
V
0
V
DD
-
1.4
REFReference Input Range
±1/2
Bits13NResolution
µV/V20 200PSRR
VDDPower-Supply
Rejection Ratio
ppm/°C3Gain-Error Tempco
LSB-0.5 ±6Gain Error
LSB
±1
INLIntegral Nonlinearity
LSB±1DNLDifferential Nonlinearity
mV±6V
OS
Offset Error
ppm/°C3TCV
OS
Offset Tempco
UNITSMIN TYP MAXSYMBOLPARAMETER
MAX5152A
MAX5152B
STATIC PERFORMANCE
REFERENCE INPUT
MULTIPLYING-MODE PERFORMANCE
DIGITAL INPUTS
MAX5152/MAX5153
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
_______________________________________________________________________________________ 3
ELECTRICAL CHARACTERISTICS—MAX5152 (continued)
(VDD= +5V ±10%, V
REFA
= V
REFB
= 2.5V, RL= 10kΩ, CL= 100pF, TA= T
MIN
to T
MAX
, unless otherwise noted. Typical values are at
T
A
= +25°C, output buffer connected in unity-gain configuration (Figure 9).)
Note 1: Accuracy is specified from code 20 to code 8191.
Note 2: Accuracy is better than 1LSB for V
OUT
greater than 6mV and less than VDD- 50mV. Guaranteed by PSRR test at the end
points.
Note 3: Digital inputs are set to either V
DD
or DGND, code = 0000 hex, RL= ∞.
Note 4: SCLK minimum clock period includes rise and fall times.
CS = VDD, f
DIN
= 100kHz, V
SCLK
= 5Vp-p
I
SOURCE
= 2mA
Rail-to-rail (Note 2)
To 1/2LSB of full-scale, V
STEP
= 2.5V
I
SINK
= 2mA
CONDITIONS
nV-s5Digital Crosstalk
nV-s5Digital Feedthrough
µs25
Time Required to Exit
Shutdown
µA0 ±0.1IFB_Current into FBA or FBB
V
VDD-
0.5
V
OH
Output High Voltage
V0 to V
DD
Output Voltage Swing
µs20Output Settling Time
V0.13 0.40V
OL
Output Low Voltage
V/µs0.75SRVoltage Output Slew Rate
UNITSMIN TYP MAXSYMBOLPARAMETER
(Note 4)
(Note 3)
(Note 3)
ns40t
CL
SCLK Pulse Width Low
ns40t
CH
SCLK Pulse Width High
ns100t
CP
SCLK Clock Period
µA±1
Reference Current in
Shutdown
µA2 10I
DD(SHDN)
Power-Supply Current in
Shutdown
mA0.5 0.65I
DD
Power-Supply Current
V4.5 5.5V
DD
Positive Supply Voltage
ns40t
DS
DIN Setup Time
ns0t
CHS
SCLK Rise to CS Rise Hold
Time
ns40t
CSS
CS Fall to SCLK Rise Setup
Time
C
LOAD
= 200pF
C
LOAD
= 200pF
ns80t
DO2
SCLK Fall to DOUT Valid
Propagation Delay
ns80t
DO1
SCLK Rise to DOUT Valid
Propagation Delay
ns0t
DH
DIN Hold Time
ns100t
CSW
CS Pulse Width High
ns40t
CS1
CS Rise to SCLK Rise Hold
ns10t
CS0
SCLK Rise to CS Fall Delay
DIGITAL OUTPUTS (DOUT, UPO)
DYNAMIC PERFORMANCE
POWER SUPPLIES
TIMING CHARACTERISTICS
MAX5152/MAX5153
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
4 _______________________________________________________________________________________
ELECTRICAL CHARACTERISTICS—MAX5153
(VDD= +2.7V to +3.6V, V
REFA
= V
REFB
= 1.25V, RL= 10kΩ, CL= 100pF, TA= T
MIN
to T
MAX
, unless otherwise noted. Typical values
are at T
A
= +25°C, output buffer connected in unity-gain configuration (Figure 9).)
VIN= 0V to V
DD
CL, PDL, CS, DIN, SCLK
CL, PDL, CS, DIN, SCLK
Input code = 1FFF hex,
V
REF
= 1Vp-p at 1.25VDC, f = 15kHz
Input code = 0000 hex,
V
REF
= (VDD- 1.4V) at 1kHz
2.7V ≤ VDD≤ 3.6V
Input code = 1FFF hex,
V
REF(AC)
= 0.67Vp-p at 1.25V
DC
Normalized to 1.25V
(Note 5)
Guaranteed monotonic
Code = 40
Minimum with code 1555 hex
Normalized to 1.25V
CONDITIONS
pF8C
IN
Input Capacitance
µA0 ±0.1I
IN
Input Leakage Current
mV200V
HYS
Input Hysteresis
V0.8V
IL
Input Low Voltage
V2.2V
IH
Input High Voltage
dB73SINAD
Signal-to-Noise plus
Distortion Ratio
dB-92Reference Feedthrough
kHz600Reference 3dB Bandwidth
kΩ14R
REF
Reference Input Resistance
V
0
V
DD
-
1.4
REFReference Input Range
±1
Bits13NResolution
µV/V20 320PSRR
VDDPower-Supply
Rejection Ratio
ppm/°C6Gain-Error Tempco
LSB-0.5 ±8Gain Error
LSB
±2
INLIntegral Nonlinearity
LSB±1DNLDifferential Nonlinearity
mV±6V
OS
Offset Error
ppm/°C6TCV
OS
Offset Tempco
UNITSMIN TYP MAXSYMBOLPARAMETER
MAX5153A
MAX5153B
I
SINK
= 2mA
I
SOURCE
= 2mA
V0.13 0.4V
OL
Output Low Voltage
VVDD- 0.5V
OH
Output High Voltage
STATIC PERFORMANCE
REFERENCE INPUT (V
REF
)
MULTIPLYING-MODE PERFORMANCE
DIGITAL INPUTS
DIGITAL OUTPUTS (DOUT, UPO)
MAX5152/MAX5153
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
_______________________________________________________________________________________ 5
ELECTRICAL CHARACTERISTICS—MAX5153 (continued)
(VDD= +2.7V to +3.6V, V
REFA
= V
REFB
= 1.25V, RL= 10kΩ, CL= 100pF, TA= T
MIN
to T
MAX
, unless otherwise noted. Typical values
are at T
A
= +25°C, output buffer connected in unity-gain configuration (Figure 9).)
CS = VDD, f
DIN
= 100kHz, V
SCLK
= 3Vp-p
(Note 4)
(Note 7)
(Note 7)
ns
Rail-to-rail (Note 6)
To 1/2LSB of full-scale, V
STEP
= 1.25V
40t
CL
SCLK Pulse Width Low
CONDITIONS
ns40t
CH
SCLK Pulse Width High
nV-s5Digital Crosstalk
nV-s5Digital Feedthrough
µs25
Time Required to Exit
Shutdown
µA0 ±0.1I
FB_
Current into FBA or FBB
ns100t
CP
SCLK Clock Period
µA±1
Reference Current in
Shutdown
µA1 8I
DD(SHDN)
Power-Supply Current in
Shutdown
mA0.5 0.6I
DD
Power-Supply Current
V2.7 3.6V
DD
Positive Supply Voltage
ns50t
DS
DIN Setup Time
ns0t
CHS
SCLK Rise to CS Rise Hold
Time
ns40t
CSS
CS Fall to SCLK Rise Setup
Time
C
LOAD
= 200pF
V0 to V
DD
Output Voltage Swing
µs25Output Settling Time
C
LOAD
= 200pF
ns120
V/µs0.75SRVoltage Output Slew Rate
UNITSMIN TYP MAXSYMBOLPARAMETER
t
DO2
SCLK Fall to DOUT Valid
Propagation Delay
ns120t
DO1
SCLK Rise to DOUT Valid
Propagation Delay
ns0t
DH
DIN Hold Time
ns100t
CSW
CS Pulse Width High
ns40t
CS1
CS Rise to SCLK Rise Hold
ns10t
CS0
SCLK Rise to CS Fall Delay
Note 4: SCLK minimum clock period includes rise and fall times.
Note 5: Accuracy is specified from code 40 to code 8191.
Note 6: Accuracy is better than 1LSB for V
OUT
greater than 6mV and less than VDD- 100mV. Guaranteed by PSRR test at the end
points.
Note 7: Digital inputs are set to either V
DD
or DGND, code = 0000 hex, RL= ∞.
DYNAMIC PERFORMANCE
POWER SUPPLIES
TIMING CHARACTERISTICS
MAX5152/MAX5153
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
6 _______________________________________________________________________________________

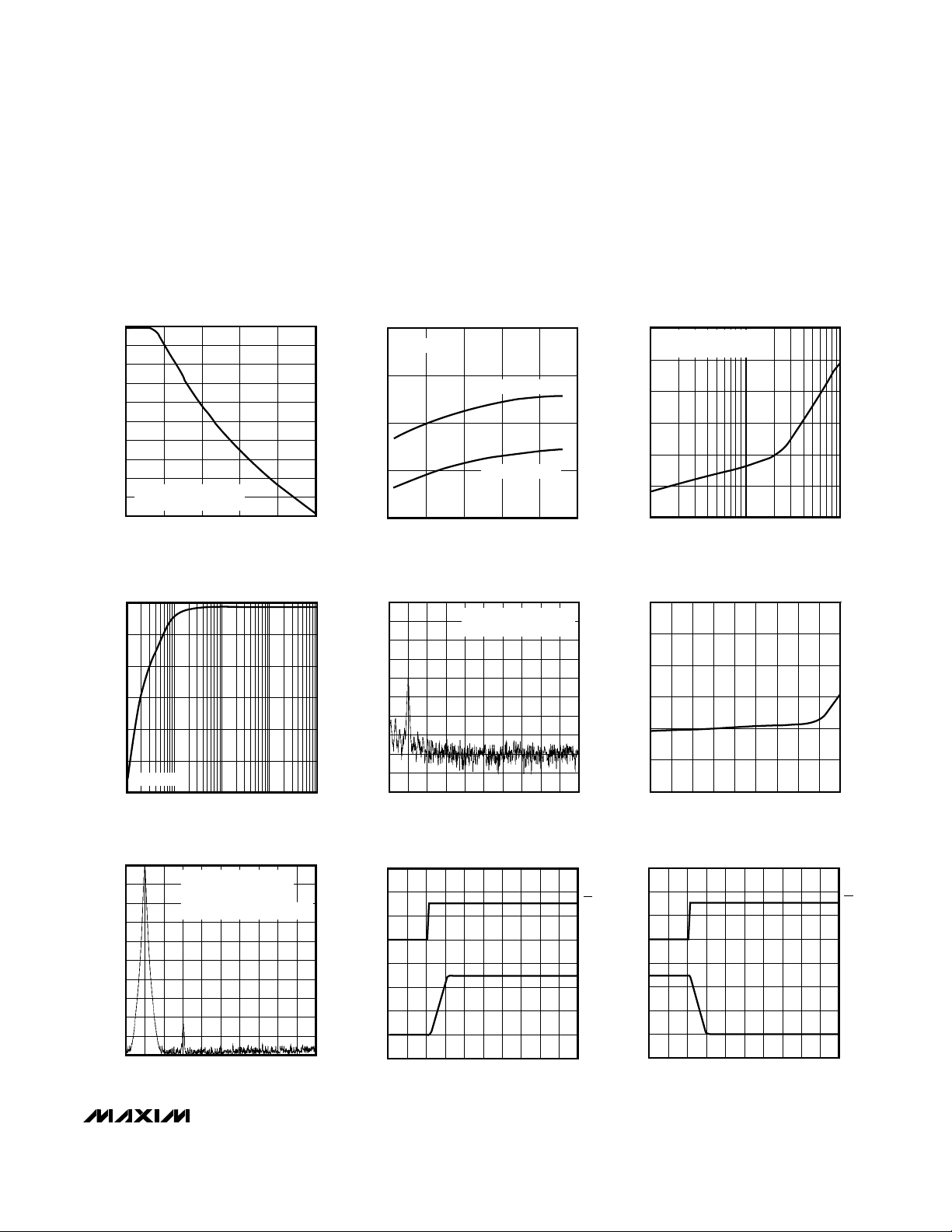

__________________________________________Typical Operating Characteristics
(VDD= +5V, RL= 10kΩ, CL= 100pF, FB_ tied to OUT_, TA= +25°C, unless otherwise noted.)
-20
-16
-18
-12
-14
-8
-10
-6
-2
-4
0
0 600 1200 1800 2400 3000
REFERENCE VOLTAGE INPUT
FREQUENCY RESPONSE
MAX5152 TOC01
FREQUENCY (kHz)
RELATIVE OUTPUT (dB)
V
REF
= 0.67Vp-p AT 2.5V
DC
CODE = 1FFF (HEX)
0.40
0.50
0.45
0.55
0.60
-60 20 60-20 100 140
SUPPLY CURRENT
vs. TEMPERATURE
MAX5152 TOC02
TEMPERATURE (°C)
SUPPLY CURRENT (mA)
CODE = 1FFF (HEX)
CODE = 0000 (HEX)
RL =
∞
-30
-90
0 10 100
TOTAL HARMONIC DISTORTION
PLUS NOISE vs. FREQUENCY
-70
-50
-60
-80
-40
MAX5152 TOC03
FREQUENCY (kHz)
THD + NOISE (dB)
V
REF
= 1Vp-p AT 2.5V
DC
CODE = 1FFF (HEX)
0
-1.0
0.1 1 10 100 1000
FULL-SCALE ERROR vs. LOAD
-0.8
MAX5152 TOC04
LOAD (kΩ)
FULL-SCALE ERROR (LSB)
-0.6
-0.4
-0.2
V
REF
= 2.5V
-100
-80
-90
-60
-70
-40
-50
-30
-10
-20
0
0.5 1.5 2.0 2.51.0 3.0 3.5 4.0 5.04.5 5.5
OUTPUT FFT PLOT
MAX5152-TOC07
FREQUENCY (kHz)
RELATIVE OUTPUT (dB)
V
REF
= 3.6Vp-p AT 1.8V
DC
f = 1kHz
CODE = 1FFF (HEX)
NOTE: RELATIVE TO FULL SCALE
-150
-130
-140
-110
-120
-90
-100
-80
-60
-70
-50
0.5 1.5 2.0 2.51.0 3.0 3.5 4.0 5.04.5 5.5
REFERENCE FEEDTHROUGH AT 1kHz
MAX5152-TOC05
FREQUENCY (kHz)
RELATIVE OUTPUT (dB)
V
REF
= 3.6Vp-p AT 1.88V
DC
CODE = 0000 (HEX)
0
1.5
1.0
0.5
2.0
2.5
3.0
-55 255-35 -15 45 65 85 105 125
POWER-DOWN CURRENT
vs. TEMPERATURE
MAX5152 TOC06
TEMPERATURE (°C)
POWER-DOWN CURRENT (µA)
CS
5V/div
AC COUPLED
OUT_
500mV/div
DYNAMIC-RESPONSE RISE TIME
MAX5152 TOC08
2µs/div
CS
5V/div
AC COUPLED
OUT_
500mV/div
DYNAMIC-RESPONSE FALL TIME
MAX5152 TOC09
2µs/div
MAX5152
MAX5152/MAX5153
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
_______________________________________________________________________________________
7
-20
-16
-18
-12
-14
-8
-10
-6
-2
-4
0
0 500 1000 1500 2000 2500
REFERENCE VOLTAGE INPUT
FREQUENCY RESPONSE
MAX5152 TOC10
FREQUENCY (kHz)
RELATIVE OUTPUT (dB)
V
REF
= 0.67Vp-p AT 1.25V
DC
CODE = 1FFF (HEX)
0.40
0.50
0.45
0.55
0.60
-60 20 60-20 100 140
SUPPLY CURRENT
vs. TEMPERATURE
MAX5152 TOC11
TEMPERATURE (°C)
SUPPLY CURRENT (mA)
CODE = 1FFF (HEX)
CODE = 0000 (HEX)
RL = ∞
-30
-90
0 10 100
TOTAL HARMONIC DISTORTION
PLUS NOISE vs. FREQUENCY
-70
-50
-60
-80
-40
MAX5152 TOC12
FREQUENCY (kHz)
THD + NOISE (dB)
V
REF
= 1Vp-p AT 1V
DC
CODE = 1FFF (HEX)
0
-1.2
0.1 1 10 100 1000
FULL-SCALE ERROR vs. LOAD
-0.8
MAX5152 TOC13
LOAD (kΩ)
FULL-SCALE ERROR (LSB)
-1.0
-0.6
-0.4
-0.2
V
REF
= 1.25V
-100
-80
-90
-60
-70
-40
-50
-30
-10
-20
0
0.5 1.5 2.0 2.51.0 3.0 3.5 4.0 5.04.5 5.5
OUTPUT FFT PLOT
MAX5152-TOC16
FREQUENCY (kHz)
RELATIVE OUTPUT (dB)
V
REF
= 1.6Vp-p AT 0.88V
DC
f = 1kHz
CODE = 1FFF (HEX)
NOTE: RELATIVE TO FULL SCALE
-150
-130
-140
-110
-120
-90
-100
-80
-60
-70
-50
0.5 1.5 2.0 2.51.0 3.0 3.5 4.0 5.04.5 5.5
REFERENCE FEEDTHROUGH AT 1kHz
MAX5152-TOC14
FREQUENCY (kHz)
RELATIVE OUTPUT (dB)
V
REF
= 1.6Vp-p AT 0.88V
DC
CODE = 0000 (HEX)
0
1.5
1.0
0.5
2.0
2.5
3.0
-55 255-35 -15 45 65 85 105 125
POWER-DOWN CURRENT
vs. TEMPERATURE
MAX5251 TOC15
TEMPERATURE (°C)
POWER-DOWN CURRENT (µA)
OUT_
500mV/div
DYNAMIC-RESPONSE RISE TIME
MAX5152 TOC17
2µs/div
CS
2V/div
OUT_
500mV/div
DYNAMIC-RESPONSE FALL TIME
MAX5152 TOC18
2µs/div
CS
2V/div
____________________________Typical Operating Characteristics (continued)
(VDD= +3V, RL= 10kΩ, CL= 100pF, FB_ tied to OUT_, TA= +25°C, unless otherwise noted.)
MAX5153
MAX5152/MAX5153
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
8 _______________________________________________________________________________________
____________________________Typical Operating Characteristics (continued)
(VDD= +5V (MAX5152), VDD= +3V (MAX5153), RL= 10kΩ, CL= 100pF, FB_ tied to OUT_, TA= T
MIN
to T
MAX
, unless otherwise
noted.)
OUTA
1V/div
OUTB
200µV/div
AC COUPLED
MAX5152
ANALOG CROSSTALK
MAX5152 TOC21
200µs/div
SCLK
5V/div
OUTA
500µV/div
AC COUPLED
MAX5152
DIGITAL FEEDTHROUGH
MAX5152 TOC22
1µs/div
MAX5152/MAX5153
0.30
0.40
0.35
0.50
0.55
0.45
0.60
4.50 4.75 5.00 5.25 5.50
MAX5152
SUPPLY CURRENT
vs. SUPPLY VOLTAGE
MAX5152 TOC19
SUPPLY VOLTAGE (V)
SUPPLY CURRENT (mA)
CODE = 1FFF (HEX)
CODE = 0000 (HEX)
RL = ∞
0.30
0.40
0.35
0.50
0.45
0.55
2.7 3.0 3.3 3.6
MAX5153
SUPPLY CURRENT
vs. SUPPLY VOLTAGE
MAX5152 TOC19a
SUPPLY VOLTAGE (V)
SUPPLY CURRENT (mA)
CODE = 1FFF (HEX)
CODE = 0000 (HEX)
RL = ∞
CS
2V/div
OUT_
10mV/div
AC COUPLED
MAX5152
MAJOR-CARRY TRANSITION
MAX5152 TOC20
2µs/div
_______________Detailed Description
The MAX5152/MAX5153 dual, 13-bit, voltage-output
DACs are easily configured with a 3-wire serial interface. These devices include a 16-bit data-in/data-out
shift register, and each DAC has a double-buffered
input comprised of an input register and a DAC register
(see
Functional Diagram
). Both DACs use an inverted
R-2R ladder network that produces a weighted voltage
proportional to the input voltage value. Each DAC has
its own reference input to facilitate independent fullscale values. Figure 1 depicts a simplified circuit diagram of one of the two DACs.
Reference Inputs
The reference inputs accept both AC and DC values
with a voltage range extending from 0V to (VDD- 1.4V).
Determine the output voltage using the following equation:
V
OUT
= V
REF
x NB / 8192
where NB is the numeric value of the DAC’s binary input
code (0 to 8191) and V
REF
is the reference voltage.
The reference input impedance ranges from 14kΩ (1555
hex) to several giga ohms (with an input code of 0000
hex). This reference input capacitance is code dependent and typically ranges from 15pF with an input code
of all zeros to 50pF with an input code of all ones.
Output Amplifier
The output amplifier’s inverting input is available to the
user, allowing force and sense capability for remote
sensing and specific gain configurations. The inverting
input can be connected to the output to provide a unitygain buffered output. The output amplifiers have a typical slew rate of 0.75V/µs and settle to 1/2LSB within
25µs, with a load of 10kΩ in parallel to 100pF. Loads
less than 2kΩ degrade performance.
MAX5152/MAX5153
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
_______________________________________________________________________________________ 9
______________________________________________________________Pin Description
PIN
Analog GroundAGND1
FUNCTIONNAME
DAC A Output VoltageOUTA2
Reference for DAC AREFA4
DAC A Output Amplifier Feedback Input. Inverting input of the output amplifier.FBA3
Chip-Select Input
CS
6
Serial Clock Input SCLK8
Serial Data InputDIN7
Active-Low Clear Input. Resets all registers to zero. DAC outputs go to 0V.
CL
5
Serial Data OutputDOUT10
Power-Down Lockout. The device cannot be powered down when PDL is low.PDL
12
User-Programmable OutputUPO11
DAC B Output Amplifier Feedback Input. Inverting input of the output amplifier.FBB14
Positive Power SupplyV
DD
16
DAC B Output VoltageOUTB15
Reference Input for DAC BREFB13
Digital GroundDGND9
Figure 1. Simplified DAC Circuit Diagram
2R
REF_
AGND
SHOWN FOR ALL 1s ON DAC
R R R
2R 2R 2R 2R
D0 D10 D11
D12
FB_
OUT_
MAX5152/MAX5153
Power-Down Mode
The MAX5152/MAX5153 feature a software-programmable shutdown mode that reduces the typical supply
current to 2µA. The two DACs can be shut down independently or simultaneously by using the appropriate
programming word. For instance, enter shutdown mode
(for both DACs) by writing an input control word of
111XXXXXXXXXXXXX (Table 1). In shutdown mode, the
reference inputs and amplifier outputs become high
impedance, and the serial interface remains active.
Data in the input registers is saved, allowing the
MAX5152/MAX5153 to recall the output state prior to
entering shutdown when returning to normal mode. Exit
shutdown by recalling the previous condition or by
updating the DAC with new information. When returning
to normal operation (exiting shutdown), wait 20µs for
output stabilization.
Serial Interface
The MAX5152/MAX5153 3-wire serial interface is compatible with both Microwire (Figure 2) and SPI/QSPI
(Figure 3) serial-interface standards. The 16-bit serial
input word consists of an address bit, two control bits,
and 13 bits of data (MSB to LSB) as shown in Figure 4.
The address and control bits determines the response
of the MAX5152/MAX5153, as outlined in Table 1.
The MAX5152/MAX5153’s digital inputs are double
buffered, which allows any of the following: loading the
input register(s) without updating the DAC register(s),
updating the DAC register(s) from the input register(s),
or updating the input and DAC registers concurrently.
The address and control bits allow for the DACs to act
independently.
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
10 ______________________________________________________________________________________
D12................D0
MSB LSB
16-BIT SERIAL WORD
FUNCTION
A0 C1 C0
0 0 1 13 bits of DAC data Load input register A; DAC register is unchanged.
0 1 1 13 bits of DAC data
Load all DAC registers from the shift register (start up both DACs with new
data).
1 1 0 13 bits of DAC data Load input register B; all DAC registers are updated.
0 1 0 13 bits of DAC data Load input register A; all DAC registers are updated.
1 0 1 13 bits of DAC data Load input register B; DAC register is unchanged.
0 0 0 1 1 0 x xxxxxxxxx
Shut down DAC A when PDL = 1.
0 0 0 1 0 1 x xxxxxxxxx
Update DAC register B from input register B (start up DAC B with data previously stored in input register B).
0 0 0 0 0 1 x xxxxxxxxx
Update DAC register A from input register A (start up DAC A with data previously stored in input register A).
1 1 1 xxxxxxxxxxxxx
Shut down both DACs if PDL = 1.
1 0 0 xxxxxxxxxxxxx
Update both DAC registers from their respective input registers
(start up both DACs with data previously stored in the input registers).
0 0 0 1 1 1 x xxxxxxxxx
Shut down DAC B when PDL = 1.
0 0 0 0 1 0 x xxxxxxxxx UPO goes low (default).
0 0 0 0 1 1 x xxxxxxxxx UPO goes high.
0 0 0 1 0 0 1 xxxxxxxxx Mode 1, DOUT clocked out on SCLK’s rising edge.
0 0 0 1 0 0 0 xxxxxxxxx Mode 0, DOUT clocked out on SCLK’s falling edge (default).
0 0 0 0 0 0 x xxxxxxxxx No operation (NOP).
Table 1. Serial-Interface Programming Commands
“x” = don’t care
Note: When A0, C1, and C0 = “0”, D12, D11, D10, and D9 become control bits.
Send the 16-bit data as two 8-bit packets (SPI,
Microwire) or one 16-bit word (QSPI), with CS low during this period. The address and control bits determine
which register will be updated, as well as the state of
the registers when exiting shutdown. The 3-bit
address/control determines:
• registers to be updated
• clock edge on which data is clocked out via the seri-
al data output (DOUT)
• state of the user-programmable logic output
• configuration of the device after shutdown
The general timing diagram in Figure 5 illustrates how
data is acquired. Driving CS low enables the device to
receive data. Otherwise, the interface control circuitry is
disabled. With CS low, data at DIN is clocked into the
register on the rising edge of SCLK. As CS goes high,
data is latched into the input and/or DAC registers
depending on the address and control bits. The maximum clock frequency guaranteed for proper operation
is 10MHz. Figure 6 depicts a more detailed timing diagram of the serial interface.
Serial Data Output (DOUT)
DOUT is the internal shift register’s output. It allows for
daisy-chaining and data readback. The MAX5152/
MAX5153 can be programmed to shift data out of
DOUT on SCLK’s falling edge (Mode 0) or rising edge
(Mode 1). Mode 0 provides a lag of 16 clock cycles,
which maintains compatibility with SPI/QSPI and
Microwire interfaces. In Mode 1, the output data lags
15.5 clock cycles. On power-up, the device defaults to
Mode 0.
User-Programmable Logic Output (UPO)
UPO allows an external device to be controlled through
the MAX5152/MAX5153 serial interface (Table 1), thereby reducing the number of microcontroller I/O pins
required. On power-up, UPO is low.
Power-Down Lockout Input (PDL)
PDL disables software shutdown when low. When in
shutdown, transitioning PDL from high to low wakes up
the part with the output set to the state prior to shutdown. PDL can also be used to asynchronously wake
up the device.
Daisy Chaining Devices
Any number of MAX5152/MAX5153s can be daisy
chained by connecting the DOUT pin of one device to
the DIN pin of the following device in the chain (Figure
7).
MAX5152/MAX5153
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
______________________________________________________________________________________ 11
SCLK
DIN
CS
SK
SO
I/O
MAX5152
MAX5153
MICROWIRE
PORT
Figure 2. Connections for Microwire
DIN
SCLK
CS
MOSI
SCK
I/O
SPI/QSPI
PORT
SS
V
CC
CPOL = 0, CPHA = 0
MAX5152
MAX5153
Figure 3. Connections for SPI/QSPI
Figure 4. Serial-Data Format
1 Address/2 Control Bits
A0
MSB..................................................................................LSB
Address Bits
C1, C0
Control Bits
16 Bits of Serial Data
13 Data Bits
D12.................................D0
MSB.......Data Bits.........LSB
MAX5152/MAX5153
Since the MAX5152/MAX5153’s DOUT has an internal
active pull-up, the DOUT sink/source capability determines the time required to discharge/charge a capacitive load. Refer to the digital output VOHand V
OL
specifications in the
Electrical Characteristics
.
Figure 8 shows an alternative method of connecting
several MAX5152/MAX5153s. In this configuration, the
data bus is common to all devices; data is not shifted
through a daisy-chain. More I/O lines are required in
this configuration because a dedicated chip-select
input (CS) is required for each IC.
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
12 ______________________________________________________________________________________
CS
SCLK
DIN
COMMAND
EXECUTED
9
8
16
1
C1
A0 D0
C0
D12
D11
D10
D9 D6 D5 D4 D3 D2 D1D8 D7
Figure 5. Serial-Interface Timing Diagram
SCLK
DIN
t
CSO
t
CSS
t
CL
t
CH
t
CP
t
CSW
t
CS1
t
CSH
t
DS
t
DH
CS
Figure 6. Detailed Serial-Interface Timing Diagram
TO OTHER
SERIAL DEVICES
MAX5152
MAX5153
DIN
SCLK
CS
MAX5152
MAX5153
MAX5152
MAX5153
DINDOUT DOUT DOUT
SCLK
CS
DIN
SCLK
CS
Figure 7. Daisy Chaining MAX5152/MAX5153s
__________Applications Information
Unipolar Output
Figure 9 depicts the MAX5152/MAX5153 configured for
unity-gain, unipolar operation. Table 2 lists the unipolar
output codes. To increase dynamic range, specific
gain configurations can be used as shown in Figure 10.
Bipolar Output
The MAX5152/MAX5153 can be configured for a bipolar output, as shown in Figure 11. The output voltage is
given by the equation:
V
OUT
= V
REF
[((2 x NB) / 8192) - 1]
where NB represents the numeric value of the DAC’s
binary input code. Table 3 shows digital codes and the
corresponding output voltage for Figure 11’s circuit.
MAX5152/MAX5153
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
______________________________________________________________________________________ 13
TO OTHER
SERIAL DEVICES
MAX5152
MAX5153
DIN
SCLK
CS
MAX5152
MAX5153
DIN
SCLK
CS
MAX5152
MAX5153
DIN
SCLK
CS
DIN
SCLK
CS1
CS2
CS3
Figure 8. Multiple MAX5152/MAX5153s Sharing a Common DIN Line
MAX5152
MAX5153
DAC
REF_
OUT_
FB_
DGND
AGND
+5V/+3V
V
DD
Figure 9. Unipolar Output Circuit
Table 2. Unipolar Code Table (Gain = +1)
00000 0000 0001
0V00000 0000 0000
01111 1111 1111
10000 0000 0000
DAC CONTENTS
MSB LSB
10000 0000 0001
11111 1111 1111
ANALOG OUTPUT
+V
+V
+V
REF
+V
+V
REF
REF
REF
REF
4096
8192
8191
8192
4097
8192
4095
8192
1
8192
=
V
REF
2
MAX5152/MAX5153
Using an AC Reference
In applications where the reference has an AC signal
component, the MAX5152/MAX5153 have multiplying
capabilities within the reference input voltage range
specifications. Figure 12 shows a technique for applying a sinusoidal input to the reference input to REF_,
where the AC signal is offset before being applied to
the reference input.
Harmonic Distortion and Noise
The total harmonic distortion plus noise (THD+N) is typically less than -80dB at full scale with a 1Vp-p input
swing at 5kHz. The typical -3dB frequency is 600kHz
for both devices, as shown in the
Typical Operating
Characteristics
.
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
14 ______________________________________________________________________________________
MAX5152
MAX5153
DAC
V
OUT
=
(
1
+ R1
) (
N
)(
V
REF_
)
R2 8192
REF_
V
OUT
FB_
OUT_
AGNDDGND
+5V/+3V
V
DD
R2
R1
Figure 10. Configurable Output Gain
AGNDDGND
MAX5152
MAX5153
DAC _
REF_
OUT_
FB_
10k 10k
V-
V+
VDD
V
OUT
+5V/+3V
Figure 11. Bipolar Output Circuit
DAC_
OUT_
FB_
MAX5152
MAX5153
10k
26k
REF_
V
DD
DGND AGND
+5V/
+3V
AC
REFERENCE
INPUT
500mVp-p
MAX495
+5V/+3V
Figure 12. AC Reference Input Circuit
Table 3. Bipolar Code Table
00000 0000 0001
00000 0000 0000
01111 1111 1111
0V10000 0000 0000
DAC CONTENTS
MSB LSB
10000 0000 0001
11111 1111 1111
ANALOG OUTPUT
REF
+V
REF
-V
REF
-V
REF
4095
4096
4096
4096
4095
4096
4096
4096
1
1
+V
-V
REF REF
=
- V
Digital Calibration and
Threshold Selection
Figure 13 shows the MAX5152/MAX5153 in a digital
calibration application. With a bright value applied to
the photodiode (on), the DAC is digitally ramped up
until it trips the comparator. The microprocessor stores
this high calibration value. Repeat the process with a
dim light (off) to obtain the dark current calibration. The
microprocessor then programs the DAC to set an output voltage that is the midpoint of the two calibration
values. Applications include tachometers, motion sensing, automatic readers, and liquid clarity analysis.
Digital Control of Gain and Offset
The two DACs can be used to control the offset and
gain for curve-fitting nonlinear functions, such as transducer linearization or analog compression/expansion
applications. The input signal is used as the reference
for the gain-adjust DAC, whose output is summed with
the output from the offset-adjust DAC. The relative
weight of each DAC output is adjusted by R1, R2, R3,
and R4 (Figure 14).
MAX5152/MAX5153
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
______________________________________________________________________________________ 15
AGND
DIN
µP
DGND
MAX5152
MAX5153
DAC _
REF_
OUT_
R
FB_
V+
V-
PHOTODIODE
V+
VDD
V
OUT
+5V/+3V
Figure 13. Digital Calibration
AGNDDGND
REFA
CONTROL/
SHIFT REGISTER
REFB
MAX5152
MAX5153
DACA
+5V/+3V
V
DD
V
IN
CS
DIN
SCLK
CL
V
REF
R1
R3
R4
R2
OUT_B
FBB
FBA
OUT_A
V
OUT
DACB
– OFFSET
[ ]
V
OUT
=
=
GAIN
[ ]
NA
8192
NA IS THE NUMERIC VALUE OF THE INPUT CODE FOR DACA.
NB IS THE NUMERIC VALUE OF THE INPUT CODE FOR DACB.
R2
R1+R2R4R3
NB
8192R4R3
(
V
IN
)(
)(
1+
)
(
V
REF
)(
)
[ ] [ ]
Figure 14. Digital Control of Gain and Offset
MAX5152/MAX5153
Digital Programmable Current Source
Figure 15 depicts a digitally programmable, unidirectional current source that can be used in industrial control applications. The output current is:
I
OUT
= (V
REF
/ R) (NB / 8192)
where NB is the DAC code and R is the sense resistor.
Power-Supply Considerations
On power-up, the input and DAC registers clear (reset
to zero code). For rated performance, V
REF_
should be
at least 1.4V below VDD. Bypass the power supply with
a 4.7µF capacitor in parallel with a 0.1µF capacitor to
GND. Minimize lead lengths to reduce lead inductance.
Grounding and Layout Considerations
Digital and AC transient signals on AGND can create
noise at the output. Connect AGND to the highest quality ground available. Use proper grounding techniques,
such as a multilayer board with an unbroken, lowinductance ground plane. Carefully lay out the traces
between channels to reduce AC cross-coupling and
crosstalk. Wire-wrapped boards and sockets are not
recommended. If noise becomes an issue, shielding
may be required.
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
16 ______________________________________________________________________________________
MAX5152
MAX5153
DAC_
REF_
2N3904
R
V
L
I
OUT
AGND
FB_
OUT_
+5V/+3V
V
DD
DGND
Figure 15. Digitally Programmable Current Source
MAX5152/MAX5153
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
______________________________________________________________________________________ 17
___________________Chip Information
TRANSISTOR COUNT: 3053
SUBSTRATE CONNECTED TO AGND
__________________Pin Configuration_Ordering Information (continued)
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
AGND V
DD
OUTB
FBB
REFB
PDL
UPO
DOUT
DGND
TOP VIEW
MAX5152
MAX5153
DIP/QSOP
OUTA
FBA
CS
REFA
CL
DIN
SCLK
±216 CERDIP**-55°C to +125°CMAX5153BMJE
±216 QSOP-40°C to +85°CMAX5153BEEE
±116 QSOP-40°C to +85°CMAX5153AEEE
±216 Plastic DIP-40°C to +85°CMAX5153BEPE
16 Plastic DIP-40°C to +85°C ±1MAX5153AEPE
16 CERDIP**-55°C to +125°C ±1MAX5152BMJE
16 QSOP-40°C to +85°C ±1MAX5152BEEE
16 QSOP-40°C to +85°C ±1/2MAX5152AEEE
PIN-PACKAGETEMP. RANGE
INL
(LSB)
PART
16 Plastic DIP-40°C to +85°C ±1MAX5152BEPE
16 Plastic DIP-40°C to +85°C ±1/2MAX5152AEPE
*
Dice are tested at TA= +25°C, DC parameters only.
**
Contact factory for availability.
Dice*0°C to +70°C ±2MAX5153BC/D
16 QSOP0°C to +70°C ±2MAX5153BCEE
16 QSOP0°C to +70°C ±1MAX5153ACEE
16 Plastic DIP0°C to +70°C ±2MAX5153BCPE
16 Plastic DIP0°C to +70°C ±1
MAX5153ACPE
MAX5152/MAX5153
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
18 ______________________________________________________________________________________
________________________________________________________Package Information
PDIPN.EPS
MAX5152/MAX5153
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
______________________________________________________________________________________ 19
___________________________________________Package Information (continued)
QSOP.EPS
MAX5152/MAX5153
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
20
____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600
© 1997 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
20
____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600
© 1997 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.
___________________________________________Package Information (continued)
CDIPS.EPS
Loading...
