General Description
The MAX5068 is a high-frequency, current-mode, pulse-width modulation (PWM) controller that integrates all the building blocks necessary for implementing AC­DC or DC-DC fixed-frequency power supplies. Isolated or nonisolated power supplies are easily constructed using either primary- or secondary-side regulation. Current-mode control with leading-edge blanking sim­plifies control-loop design, and a programmable inter­nal slope-compensation circuit stabilizes the current loop when operating at duty cycles above 50%. The MAX5068A/B limit the maximum duty cycle to 50% for use in single-ended forward converters. The MAX5068C/D/E/F allow duty cycles up to 75%. The MAX5068 features an accurate externally programma­ble oscillator that simplifies system design.
An input undervoltage lockout (UVLO) programs the input-supply startup voltage and ensures proper opera­tion during brownout conditions.
A single external resistor programs the output switching frequency from 12.5kHz to 1.25MHz. The MAX5068A/ B/C/E provide a SYNC input for synchronization to an external clock. The maximum FET-driver duty cycle is 50% for the MAX5068A/B and 75% for the MAX5068C/ D/E/F. Programmable hiccup current limit provides additional protection under severe faults.
The MAX5068 is specified over the -40°C to +125°C automotive temperature range and is available in a 16-pin thermally enhanced TSSOP-EP package. Refer to the MAX5069 data sheet for dual FET-driver applications.
Warning: The MAX5068 is designed to work with high voltages. Exercise caution.
Applications
Universal-Input AC Power Supplies Isolated Telecom Power Supplies Networking System Power Supplies Server Power Supplies Industrial Power Conversion
Features
Current-Mode Control with 47µA (typ) Startup
Current
Resistor-Programmable ±4.5% Accurate
Switching Frequency:
25kHz to 1.25MHz (MAX5068A/B)
12.5kHz to 625kHz (MAX5068C/D/E/F)
Rectified 85VACto 265VACor 36VDCto 72V
DC
Input (MAX5068A/C/D)
Input Directly Driven from 10.8V to 24V
(MAX5068B/E/F)
Frequency Synchronization Input
(MAX5068A/B/C/E)
Programmable Dead Time and Slope
Compensation
Programmable Startup Voltage (UVLO)Programmable UVLO Hysteresis
(MAX5068A/B/D/F)
Integrating Fault Protection (Hiccup)-40°C to +125°C Automotive Temperature Range16-Pin Thermally Enhanced TSSOP-EP Package
MAX5068
High-Frequency, Current-Mode PWM Controller
with Accurate Programmable Oscillator
________________________________________________________________ Maxim Integrated Products 1
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
RT
REG5
IN
V
CC
NDRV
AGND
PGND
AGND
CS
TOP VIEW
MAX5068A/B
TSSOP-EP
SYNC
HYST
FB
DT
UVLO/EN
COMP
FLTINT
Pin Configurations
Ordering Information
19-3176; Rev 0; 2/04
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
*Future product—contact factory for availability. **EP = Exposed pad.
PART TEMP RANGE PIN-PACKAGE
MAX5068AAUE*
16 TSSOP-EP**
MAX5068BAUE
16 TSSOP-EP**
MAX5068CAUE
16 TSSOP-EP**
MAX5068DAUE*
16 TSSOP-EP**
MAX5068EAUE*
16 TSSOP-EP**
MAX5068FAUE*
16 TSSOP-EP**
Pin Configurations continued at end of data sheet.
Selector Guide appears at end of data sheet.
-40°C to +125°C
-40°C to +125°C
-40°C to +125°C
-40°C to +125°C
-40°C to +125°C
-40°C to +125°C
MAX5068
High-Frequency, Current-Mode PWM Controller with Accurate Programmable Oscillator
2 _______________________________________________________________________________________
ABSOLUTE MAXIMUM RATINGS
ELECTRICAL CHARACTERISTICS
(V
IN
= +12V for the MAX5068B/E/F; VIN= +23.6V for the MAX5068A/C/D at startup, then reduces to +12V; CIN= C
REG5
= 0.1µF;
C
VCC
= 1µF; RRT= 100k; NDRV = floating; TA= T
MIN
to T
MAX
, unless otherwise noted. Typical values are at TA= +25°C.) (Note 1)
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
IN to PGND ............................................................-0.3V to +30V
IN to AGND.............................................................-0.3V to +30V
V
CC
to PGND..........................................................-0.3V to +13V
V
CC
to AGND..........................................................-0.3V to +13V
FB, COMP, CS, HYST, SYNC, REG5 to AGND ........-0.3V to +6V
UVLO/EN, RT, DT, SCOMP, FLTINT to AGND .........-0.3V to +6V
NDRV to PGND...........................................-0.3V to (V
CC
+ 0.3V)
AGND to PGND.....................................................-0.3V to +0.3V
Continuous Power Dissipation
16-Pin TSSOP-EP (derate 21.3mW/°C above +70°C)...1702mW
Operating Temperature Range..........................-40°C to +125°C
Maximum Junction Temperature .....................................+150°C
Storage Temperature Range .............................-60°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C
PARAMETER
CONDITIONS
UNITS
UNDERVOLTAGE LOCKOUT/STARTUP
Bootstrap UVLO Wake-Up Level
V
SUVR
VIN rising, MAX5068A/C/D only
V
Bootstrap UVLO Shutdown Level
V
SUVF
VIN falling, MAX5068A/C/D only
V
UVLO/EN Wake-Up Threshold V
ULR2
V
UVLO/EN
rising
V
UVLO/EN Shutdown Threshold V
ULF2
V
UVLO/EN
falling
V
HYST FET On-Resistance
MAX5068A/B/D/F only, sinking 50mA, V
UVLO/EN
= 0V
HYST FET Leakage Current I
LEAK_HVUVLO/EN
= 2V, V
HYST
= 5V 3 nA
IN Supply Current In Undervoltage Lockout
I
START
VIN = +19V, V
UVLO/EN
< V
ULF2
90 µA
IN Range V
IN
V
INTERNAL SUPPLIES (VCC and REG5)
VCC Regulator Set Point V
CCSP
V
REG5 Output Voltage V
REG5IREG5
= 0 to 1mA
V
REG5 Short-Circuit Current Limit
mA
f
SW
= 1.25MHz 5
IN Supply Current After Startup I
IN
VIN = +24V
f
SW
= 100kHz
mA
Shutdown Supply Current I
IN_SD
90 µA
GATE DRIVER (NDRV)
)
NDRV sinking 100mA 2 4
Driver Output Impedance
)
NDRV sourcing 25mA 3 6
Sinking
Driver Peak Output Current I
NDRV
Sourcing
mA
PWM COMPARATOR
Comparator Offset Voltage
V
COMP
- V
CS
V
Comparator Propagation Delay
VCS = 0.1V
ns
Minimum On-Time
)
Includes t
CS_BLANK
ns
CURRENT-LIMIT COMPARATOR
Current-Limit Trip Threshold V
CS
mV
SYMBOL
MIN TYP MAX
19.68 21.6 23.60
9.05 9.74 10.43
1.205 1.230 1.255
1.18
R
D S ( ON ) _H
Z
Z
V
I
REG5_SC
OUT(LOW
OUT(HIGH
OS_PWM
t
PD_PWM
t
ON(MIN
V
= + 10.8V to + 24V , V
IN
10.8 24.0
sour ci ng 1µA to 25m A 7.0 10.5
C C
4.85 5.00 5.15
1.30 1.60 2.00
298 314 330
10
47
18
2.5
1000
650
40
110
MAX5068
High-Frequency, Current-Mode PWM Controller
with Accurate Programmable Oscillator
_______________________________________________________________________________________ 3
PARAMETER
CONDITIONS
UNITS
CS Input Bias Current I
B_CS
VCS = 0V 0
µA
CS Blanking Time
ns
Propagation Delay from Comparator Input to NDRV
50mV overdrive
ns
IN CLAMP VOLTAGE
IN Clamp Voltage
VIN sinking 2mA (Note 2)
V
ERROR AMPLIFIER (FB, COMP)
Voltage Gain A
V
R
COMP
= 100k to AGND
dB
Unity-Gain Bandwidth BW
R
COMP
= 100k to AGND,
C
LOAD
= 100pF to AGND
5
MHz
Phase Margin PM
R
COMP
= 100k to AGND,
C
LOAD
= 100pF to AGND
degrees
FB Input Offset Voltage V
OS_FB
3mV
High
COMP Clamp Voltage V
COMP
Low
V
Error-Amplifier Output Current I
COMP
Sinking or sourcing
mA
+25°C † TA +125°C (Note 3)
Reference Voltage V
REF
-40°C † TA +125°C
V
Input Bias Current I
B_EA
nA
COMP Short-Circuit Current
mA
THERMAL SHUTDOWN
Thermal-Shutdown Temperature
T
SD
°C
Thermal Hysteresis T
HYST
°C
OSCILLATOR SYNC INPUT (MAX5068A/B/C/E Only)
SYNC High-Level Voltage
V
SYNC Low-Level Voltage
V
SYNC Input Bias Current
nA
Maximum SYNC Frequency f
SYNC
f
OSC
= 2.5MHz (Note 4)
MHz
SYNC High-Level Pulse Width
ns
SYNC Low-Level Pulse Width
ns
DIGITAL SOFT-START
Soft-Start Duration t
SS
(Note 5)
cycles
Reference-Voltage Step V
STEP
mV
Reference-Voltage Steps During Soft-Start
steps
OSCILLATOR
Internal Oscillator Frequency Range
f
OSC
f
OSC
= (10
11
/ R
RT
)
kHz
ELECTRICAL CHARACTERISTICS (continued)
(V
IN
= +12V for the MAX5068B/E/F; VIN= +23.6V for the MAX5068A/C/D at startup, then reduces to +12V; CIN= C
REG5
= 0.1µF;
C
VCC
= 1µF; RRT= 100k; NDRV = floating; TA= T
MIN
to T
MAX
, unless otherwise noted. Typical values are at TA= +25°C.) (Note 1)
SYMBOL
t
CS_BLANK
V
I
V
t
IN_CLAMP
COMP_SC
IH_SYNC
V
IL_SYNC
I
B_SYNC
t
SYNC_HI
SYNC_LO
MIN TYP MAX
+2
70
40
24.0 26.0 29.0
80
65
2.6 3.8
0.4 1.1
0.5
1.215 1.230 1.245
1.205 1.230 1.242 100 300
12
+170
+25
10
0.4
2.4
3.125
30 30
2047
9.7
127
50 2500
MAX5068
High-Frequency, Current-Mode PWM Controller with Accurate Programmable Oscillator
4 _______________________________________________________________________________________
Note 1: The MAX5068 is 100% tested at TA= +25°C. All limits over temperature are guaranteed by design. Note 2: The MAX5068A/B are intended for use in universal-input power supplies. The internal clamp circuit is used to prevent the
bootstrap capacitor (C1 in Figure 1) from charging to a voltage beyond the absolute maximum rating of the device when UVLO/EN is low. The maximum current to V
IN
(hence to clamp) when UVLO is low (device is in shutdown) must be external­ly limited to 2mA. Clamp currents higher than 2mA may result in clamp voltages higher than 30V, thus exceeding the absolute maximum rating for V
IN
. For the MAX5068C/D, do not exceed the 24V maximum operating voltage of the device.
Note 3: Reference voltage (V
REF
) is measured with FB connected to COMP (see the Functional Diagram).
Note 4: The SYNC frequency must be at least 25% higher than the programmed oscillator frequency. Note 5: The internal oscillator clock cycle. Note 6: The MAX5068A/B driver switching frequency is one-half of the oscillator frequency. The MAX5068C/D/E/F driver switching
frequency is one-quarter of the oscillator frequency.
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
fSW = 1011/(2 x RRT), MAX5068A/B
kHz
NDRV Switching Frequency f
SW
(Note 6)
f
SW
= 1011/(4 x RRT),
MAX5068C/D/E/F
kHz
RT Voltage V
RT
40kΩ < R
RT
< 500k
V
f
OSC
500kHz
TA = +25°C
f
OSC
> 500kHz -4
f
OSC
500kHz
Oscillator Accuracy
f
OSC
> 500kHz -6
%
MAX5068A/B
Maximum Duty Cycle D
MAX
DT connected to REG5
MAX5068C/D/E/F
%
DEAD-TIME CONTROL (DT)
Dead Time t
DT
RDT = 24.9k
ns
Dead-Time Disable Voltage
V
REG5
V
Dead-Time Regulation Voltage V
DT
V
INTEGRATING FAULT PROTECTION (FLTINT)
FLTINT Source Current I
FLTINT
V
FLTINT
= 0
µA
FLTINT Shutdown Threshold
V
FLTINT
rising
V
FLTINT Restart Threshold
V
FLTINT
falling
V
SLOPE COMPENSATION (SCOMP) MAX5068C/D/E/F Only
Slope Compensation V
SLOPE
C
SLOPE
= 100pF, RRT = 110k
mV/µs
Slope-Compensation Range
090
mV/µs
Slope-Compensation Voltage Range
0
V
ELECTRICAL CHARACTERISTICS (continued)
(V
IN
= +12V for the MAX5068B/E/F; VIN= +23.6V for the MAX5068A/C/D at startup, then reduces to +12V; CIN= C
REG5
= 0.1µF;
C
VCC
= 1µF; RRT= 100k; NDRV = floating; TA= T
MIN
to T
MAX
, unless otherwise noted. Typical values are at TA= +25°C.) (Note 1)
V
D T_D IS ABLE
TA = - 40° C to + 125° C
25 1250
12.5 625
2.0
-2.5 +2.5
-4.5 +4.5
50 75
60
- 0.5V
1.23
+4
+6
V
FLTINT_SD
V
FLTINT_RS
V
SLOPER
V
SCOMP
60
2.8
1.6
15
2.7
MAX5068
High-Frequency, Current-Mode PWM Controller
with Accurate Programmable Oscillator
_______________________________________________________________________________________ 5
BOOTSTRAP UVLO WAKE-UP LEVEL
vs. TEMPERATURE
MAX5068 toc01
TEMPERATURE (°C)
V
IN
(V)
85603510-15
21.1
21.2
21.3
21.4
21.5
21.6
21.0
-40 110
MAX5068A/C/D
BOOTSTRAP UVLO SHUTDOWN LEVEL
vs. TEMPERATURE
MAX5068 toc02
TEMPERATURE (°C)
V
IN
(V)
85603510-15
9.6
9.7
9.8
9.9
10.0
9.5
-40 110
VIN FALLING MAX5068A/C/D
UVLO/EN WAKE-UP THRESHOLD
vs. TEMPERATURE
MAX5068 toc03
TEMPERATURE (°C)
UVLO/EN (V)
85603510-15
1.225
1.230
1.235
1.240
1.245
1.220
-40 110
UVLO/EN RISING
UVLO/EN SHUTDOWN THRESHOLD
vs. TEMPERATURE
MAX5068 toc04
TEMPERATURE (°C)
UVLO/EN (V)
85603510-15
1.12
1.11
1.14
1.13
1.16
1.15
1.18
1.17
1.19
1.20
1.10
-40 110
UVLO/EN FALLING
VIN SUPPLY CURRENT IN
UNDERVOLTAGE LOCKOUT vs. TEMPERATURE
MAX5068 toc05
TEMPERATURE (°C)
I
START
(µA)
85603510-15
44
48
52
56
60
40
-40 110
VIN = 19V WHEN IN BOOTSTRAP UVLO (MAX5068A/C/D) UVLO/EN (MAX5068B/E/F) IS LOW
VIN SUPPLY CURRENT AFTER STARTUP
vs. TEMPERATURE
MAX5068 toc06
TEMPERATURE (°C)
I
IN
(mA)
85603510-15
2
3
4
5
6
1
-40 110
VIN = 24V
fSW = 1.25MHz
fSW = 500kHz
fSW = 250kHz
fSW = 100kHz
fSW = 50kHz
VCC vs. TEMPERATURE
MAX5068 toc07
TEMPERATURE (°C)
V
CC
(V)
85603510-15
7.6
7.3
8.2
7.9
8.8
8.5
9.4
9.1
9.7
10.0
7.0
-40 110
VIN = 19V, IIN = 25mA
VIN = 19V, IIN = 10mA
VIN = 10.8V, IIN = 10mA
VIN = 10.8V, IIN = 25mA
REG5 OUTPUT VOLTAGE
vs. OUTPUT CURRENT
MAX5068 toc08
OUTPUT CURRENT (mA)
REG5 (V)
1.81.61.41.21.00.80.60.40.2
4.955
4.960
4.965
4.970
4.975
4.980
4.950 0 2.0
RRT = 100k
REG5 vs. TEMPERATURE
MAX5068 toc09
TEMPERATURE (°C)
REG5 (V)
85603510-15
4.92
4.91
4.94
4.93
4.96
4.95
4.98
4.97
4.99
5.00
4.90
-40 110
VIN = 10.8V
100µA LOAD
1mA LOAD
Typical Operating Characteristics
(V
IN
= +12V for the MAX5068B/E/F; VIN= +23.6V for MAX5068A/C/D at startup, then reduces to +12V; CIN= C
REG5
= 0.1µF;
C
VCC
= 1µF; RRT= 100k; NDRV = floating; VFB= 0; V
COMP
= floating; VCS= 0; TA= +25°C, unless otherwise noted.)
MAX5068
High-Frequency, Current-Mode PWM Controller with Accurate Programmable Oscillator
6 _______________________________________________________________________________________
Typical Operating Characteristics (continued)
(V
IN
= +12V for the MAX5068B/E/F; VIN= +23.6V for MAX5068A/C/D at startup, then reduces to +12V; CIN= C
REG5
= 0.1µF;
C
VCC
= 1µF; RRT= 100k; NDRV = floating; VFB= 0; V
COMP
= floating; VCS= 0; TA= +25°C, unless otherwise noted.)
REG5 OUTPUT VOLTAGE vs. V
IN
MAX5068 toc10
VIN (V)
REG5 (V)
222016 18141210 24
4.976
4.977
4.978
4.979
4.980
4.981
4.982
4.983
4.984
4.985
4.975
I
REG5
= 100µA
CS TRIP THRESHOLD
vs. TEMPERATURE
MAX5068 toc11
TEMPERATURE (°C)
CS TRIP THRESHOLD (mV)
110
85603510-15
306
303
309
315
312
321
318
327 324
330
300
-40
SWITCHING FREQUENCY
vs. TEMPERATURE
MAX5068 toc12
TEMPERATURE (°C)
SWITCHING FREQUENCY (kHz)
110
856035-15
10
480
475
485
495
490
505
500
515 510
520
470
-40
fSW = 500kHz
TOTAL NUMBER OF DEVICES = 200
MEAN
-3σ
+3σ
PROPAGATION DELAY FROM CS COMPARATOR
INPUT TO NDRV vs. TEMPERATURE
MAX5068 toc13
TEMPERATURE (°C)
PROPAGATION DELAY (ns)
1108535 6010-15
32
34
36
38
40
42
44
46
48
50
30
-40
INPUT CURRENT
vs. INPUT CLAMP VOLTAGE
MAX5068 toc14
INPUT CLAMP VOLTAGE (V)
INPUT CURRENT (mA)
27.525.022.520.017.515.012.5
2
4
6
8
10
12
14
0
10.0 30.0
INPUT CLAMP VOLTAGE
vs. TEMPERATURE
MAX5068 toc15
TEMPERATURE (°C)
INPUT CLAMP VOLTAGE (V)
1108535 6010-15
25.2
25.4
25.6
25.8
26.0
26.2
26.4
26.6
26.8
27.0
25.0
-40
I
SINK
= 2mA
NDRV OUTPUT IMPEDANCE
vs. TEMPERATURE
MAX5068 toc16
TEMPERATURE (°C)
R
ON
()
85603510-15
1.4
1.2
1.8
1.6
2.2
2.0
2.6
2.4
2.8
3.0
1.0
-40 110
VIN = 24V SINKING 100mA
NDRV OUTPUT IMPEDANCE
vs. TEMPERATURE
MAX5068 toc17
TEMPERATURE (°C)
R
ON
()
85603510-15
2.4
2.2
2.8
2.6
3.2
3.0
3.6
3.4
3.8
4.0
2.0
-40 110
VIN = 24V SOURCING 25mA
ERROR AMPLIFIER OPEN-LOOP GAIN
AND PHASE vs. FREQUENCY
MAX5068 toc18
FREQUENCY (Hz)
GAIN (dB)
PHASE (DEGREES)
10M10 100k1k
-20
0
20
40
60
80
100
120
-40
-180
-150
-120
-90
-60
-30
0
30
-210
0.1
GAIN
PHASE
MAX5068
High-Frequency, Current-Mode PWM Controller
with Accurate Programmable Oscillator
_______________________________________________________________________________________ 7
FLTINT CURRENT vs. TEMPERATURE
MAX5068 toc19
TEMPERATURE (°C)
FLTINT CURRENT (µA)
85603510-15
62.2
62.1
62.4
62.3
62.6
62.5
62.8
62.7
62.9
63.0
62.0
-40 110
HYST RON vs. TEMPERATURE
MAX5068 toc20
TEMPERATURE (°C)
R
ON
()
85603510-15
9.0
8.5
10.0
9.5
11.0
10.5
12.0
11.5
12.5
13.0
8.0
-40 110
VIN = 24V SINKING 50mA
NDRV SWITCHING FREQUENCY (fSW)
vs. R
RT
MAX5068 toc21
RRT (M)
f
SW
(MHz)
0.1 1
0.1
1
2
0.01
0.03 2
MAX5068A/B
MAX5068C/D/E/F
NDRV SWITCHING FREQUENCY
vs. TEMPERATURE
MAX5068 toc22
TEMPERATURE (°C)
NDRV SWITCHING FREQUENCY (kHz)
1108535 6010-15
48.4
48.8
49.2
49.6
50.0
50.4
50.8
51.2
51.6
52.0
48.0
-40
fSW = 50kHz
NDRV SWITCHING FREQUENCY
vs. TEMPERATURE
MAX5068 toc23
TEMPERATURE (°C)
NDRV SWITCHING FREQUENCY (kHz)
100
125
75
50
250-25
497 496
498
500 499
502 501
504
503
505
495
-50
fSW = 500kHz
NDRV SWITCHING FREQUENCY
vs. TEMPERATURE
MAX5068 toc24
TEMPERATURE (°C)
NDRV SWITCHING FREQUENCY (kHz)
110
85
60
3510-15
1.15
1.20
1.25
1.30
1.35
1.40
1.10
-40
MAX5068A/B f
SW
= 1.25MHz
DEAD TIME vs. TEMPERATURE
MAX5068 toc25
TEMPERATURE (°C)
TIME (ns)
11085603510-15
45
50
55
60
65
70
40
-40
VIN = 24V R
DT
= 24.9k
R
RT
= 100k
DEAD TIME vs. R
DT
MAX5068 toc26
RDT (k)
TIME (ns)
10
20
40
60
80
100
120
140
160
180
200
0
1 100
Typical Operating Characteristics (continued)
(V
IN
= +12V for the MAX5068B/E/F; VIN= +23.6V for MAX5068A/C/D at startup, then reduces to +12V; CIN= C
REG5
= 0.1µF;
C
VCC
= 1µF; RRT= 100k; NDRV = floating; VFB= 0; V
COMP
= floating; VCS= 0; TA= +25°C, unless otherwise noted.)
MAX5068
High-Frequency, Current-Mode PWM Controller with Accurate Programmable Oscillator
8 _______________________________________________________________________________________
Pin Description
PIN
MAX5068A
MAX5068B
NAME FUNCTION
111RT
Oscillator-Timing Resistor Connection. Connect a resistor from RT to AGND to set the internal oscillator frequency.
22 SYNC
External-Clock Sync Input. Connect SYNC to AGND when not using an external clock.
3 2 HYST Programmable Hysteresis Input
33
Slope-Compensation Capacitor Input. Connect a capacitor to AGND to set the slope compensation.
444DT
Dead-Time Adjustment. Connect a resistor from DT to AGND to adjust NDRV dead time. Connect to REG5 for maximum duty cycle.
555
Externally Programmable Undervoltage Lockout. UVLO/EN programs the
input start voltage. Drive UVLO/EN to AGND to disable the output. 6 6 6 FB Error-Amplifier Inverting Input 7 7 7 COMP Error-Amplifier Compensation Output
888
Fault-Integration Input. A capacitor connected to FLTINT charges with an
internal 60µA current source during repeated current-limit events. Switching
terminates when V
FLTINT
reaches 2.9V. An external resistor connected in
parallel discharges the capacitor. Switching resumes when V
FLTINT
drops to
1.6V.
9 9 9 CS Current-Sense Resistor Connection
10, 12 10, 12 10, 12 AGND Analog Ground. Connect to PGND through a ground plane.
11 11 11 PGND Power Ground. Connect to AGND through a ground plane.
13 13 13 NDRV
G ate- D r i ver O utp ut. C onnect the N D RV outp ut to the g ate of the exter nal
N - channel FE T.
14 14 14 V
CC
9V Linear-Regulator Output. Decouple VCC with a minimum 1µF ceramic
capacitor to the AGND plane; also internally connected to the FET driver.
15 15 15 IN
Power-Supply Input. IN provides power for all internal circuitry. Decouple IN
with a minimum 0.1µF ceramic capacitor to AGND (see the Typical
Operating Circuit).
16 16 16 REG5
5V Linear-Regulator Output. Decouple to AGND with a 0.1µF ceramic
capacitor.
EP EP EP PAD Exposed Pad. Connect to GND.
MAX5068C MAX5068E
MAX5068D MAX5068F
SCOMP
UVLO/EN
FLTINT
Detailed Description
The MAX5068 is a current-mode PWM controller for use in isolated and nonisolated power-supply applications. A bootstrap UVLO with a programmable hysteresis, very low startup, and low operating current result in high-efficiency universal-input power supplies. In addi­tion to the internal bootstrap UVLO, the device also offers programmable input startup and turn-off volt­ages, programmed through the UVLO/EN input. When using the MAX5068 in the bootstrapped mode, if the power-supply output is shorted, the tertiary winding voltage drops below the 10V threshold, causing the bootstrap UVLO to turn off the gate drive to the external power MOSFET, reinitiating a startup sequence with soft-start.
The MAX5068 includes a cycle-by-cycle current limit that turns off the gate drive to the external MOSFET during an overcurrent condition. The MAX5068 integrat­ing fault protection reduces average power dissipation during persistent fault conditions (see the Integrating Fault Protection section).
The MAX5068 features a very accurate, wide-range, programmable oscillator that simplifies and optimizes the design of the magnetics. The MAX5068A/C/D are well suited for universal-input (rectified 85VACto 265VAC) or telecom (-36VDCto -72VDC) power sup­plies. The MAX5068B/E/F are well suited for low-input voltage (10.8VDCto 24VDC) power supplies.
The MAX5068 high-frequency, universal input, offline/ telecom, current-mode PWM controller integrates all the building blocks necessary for implementing AC-DC and DC-DC fixed-frequency power supplies. Isolated or non­isolated power supplies are easily constructed using either primary- or secondary-side regulation. Current­mode control with leading-edge blanking simplifies con­trol-loop design, and an external slope-compensation control stabilizes the current loop when operating at duty cycles above 50% (MAX5068C/D/E/F). The MAX5068A/B limit the maximum duty cycle to 50% for use in single-ended forward converters. The MAX5068C/D/E/F allow duty cycles up to 75% for use in flyback converters.
An input undervoltage lockout (UVLO) programs the input-supply startup voltage and ensures proper opera­tion during brownout conditions. An external voltage­divider programs the supply startup voltage. The MAX5068A/B/D/F feature a programmable UVLO hys­teresis. The MAX5068A/C/D feature an additional internal bootstrap UVLO with large hysteresis that requires a min­imum startup voltage of 23.6V. The MAX5068B/E/F start
up from a minimum voltage of 10.8V. Internal digital soft­start reduces output-voltage overshoot at startup.
A single external resistor programs the switching fre­quency from 12.5kHz to 1.25MHz. The MAX5068A/B/C/E provide a SYNC input for synchronization to an external clock. The maximum FET driver duty cycle is 50% for the MAX5068A/B, and 75% for the MAX5068C/D/E/F. Integrating fault protection ignores transient overcurrent conditions for a set length of time. The length of time is programmed by an external capacitor. The internal ther­mal-shutdown circuit protects the device if the junction temperature should exceed +170°C.
Power supplies designed with the MAX5068 use a high-value startup resistor, R1, which charges a reser­voir capacitor, C1 (Figure 1). During this initial period, while the voltage is less than the internal bootstrap UVLO threshold, the device typically consumes only 47µA of quiescent current. This low startup current and the large bootstrap UVLO hysteresis help to minimize the power dissipation across R1, even at the high end of the universal AC input voltage (265VAC).
The MAX5068 includes a cycle-by-cycle current limit that turns off the gate to the external MOSFET during an overcurrent condition. When using the MAX5068A/C/D in the bootstrap mode (if the power-supply output is shorted), the tertiary winding voltage drops below the
9.74V bootstrap UVLO to turn off the gate to the exter­nal power MOSFET. This reinitiates a startup sequence with soft-start.
Current-Mode Control
The MAX5068 offers a current-mode control operation feature, such as leading-edge blanking with a dual internal path that only blanks the sensed current signal applied to the input of the PWM controller. The current­limit comparator monitors CS at all times and provides cycle-by-cycle current limit without being blanked. The leading-edge blanking of the CS signal prevents the PWM comparator from prematurely terminating the on cycle. The CS signal contains a leading-edge spike that results from the MOSFET gate charge current, and the capacitive and diode reverse-recovery current of the power circuit. Since this leading-edge spike is nor­mally lower than the current-limit comparator threshold, current limiting is provided under all conditions.
Use the MAX5068C/D/E/F in flyback applications where wide line voltage and load-current variations are expected. Use the MAX5068A/B for forward/flyback converters where the maximum duty must be limited to less than 50%.
MAX5068
High-Frequency, Current-Mode PWM Controller
with Accurate Programmable Oscillator
_______________________________________________________________________________________ 9
MAX5068
Use the MAX5068C/D/E/F in forward converter applica­tions with greater than 50% duty cycle. The large duty cycle results in much lower operating primary RMS cur­rent through the MOSFET switch and, in most cases, requires a smaller output filter capacitor. The major dis­advantage to this is that the MOSFET voltage rating must be higher. The MAX5068C/D/E/F capacitor adjustable-slope-compensation feature allows for easy stabilization of the inner current loop.
Undervoltage Lockout
The MAX5068 features an input voltage UVLO/EN func­tion to enable the PWM controller before any operation can begin. The MAX5068C/E shut down if the voltage at UVLO/EN falls below its 1.18V threshold. The MAX5068A/B/D/F also incorporate an UVLO hysteresis input to set the desired turn-off voltage.
MAX5068C/E UVLO Adjustment
The MAX5068C/E have an input voltage UVLO/EN with a 1.231V threshold. Before any operation can com­mence, the UVLO/EN voltage must exceed the 1.231V threshold. The UVLO circuit keeps the PWM compara­tor, ILIM comparator, oscillator, and output driver shut down to reduce current consumption (see the Functional Diagram).
Calculate R6 in Figure 2 by using the following formula:
where V
ULR2
is the UVLO/ENs 1.231V rising threshold
and VONis the desired startup voltage. Choose an R7 value in the 20krange.
After a successful startup, the MAX5068C/E shut down if the voltage at UVLO/EN drops below its 1.18V threshold.
R
V
V
R
ON
ULR
617
2
=
 
 
×
High-Frequency, Current-Mode PWM Controller with Accurate Programmable Oscillator
10 ______________________________________________________________________________________
MAX5068A
IN
NDRV
CS
PGND
FBV
CC
AGND
REG5
UVLO/EN
RT
HYST
DT
FLTINT
D2
R1
C1
Q1
COMP
V
IN
C2
C3
C4
R3
R4
R6
R
HYST
R7
SYNC
R9
R8
R2
R5
C5
R
CS
VOUT
D1
C6

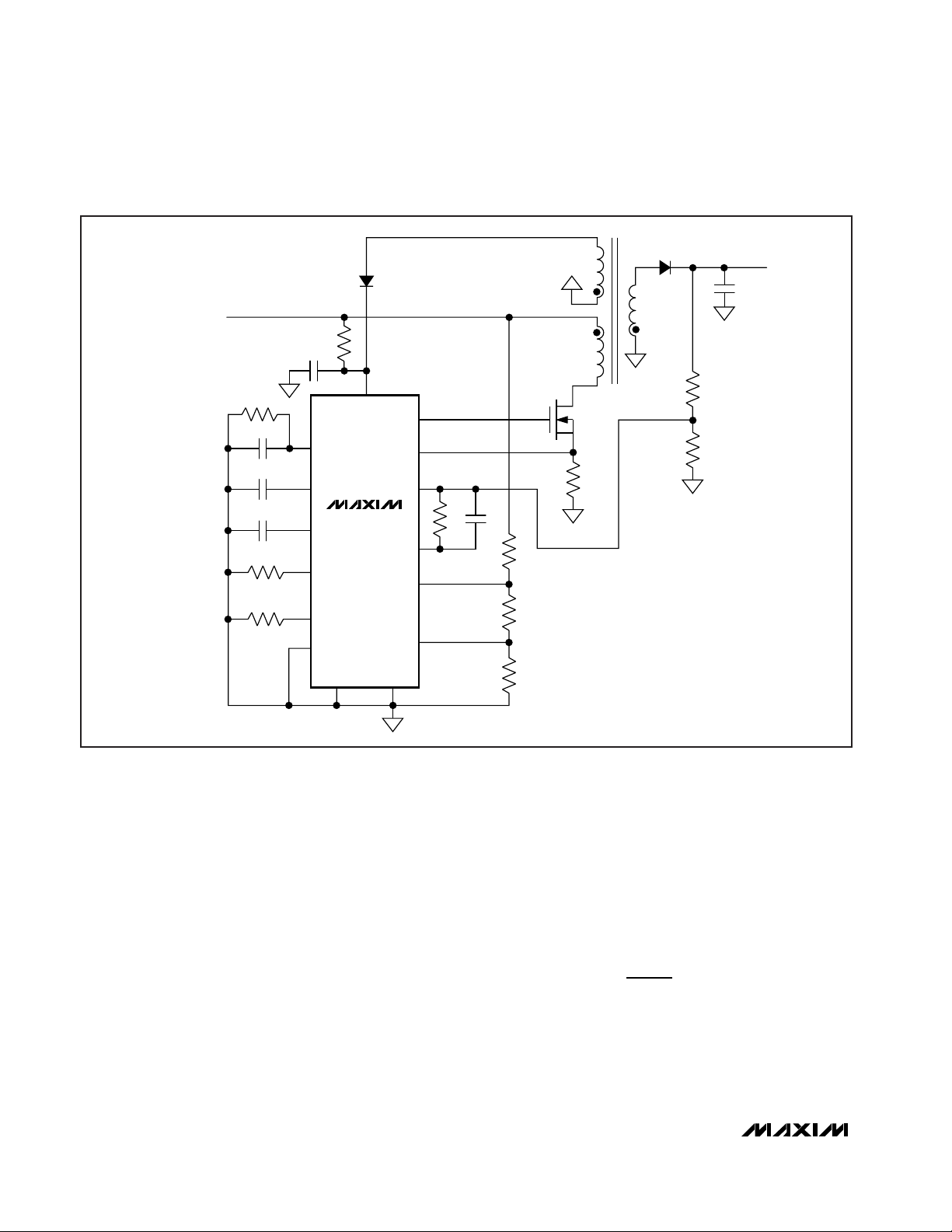

Figure 1. Nonisolated Power Supply with Programmable Input Supply Voltage
MAX5068A/B/D/F UVLO with
Programmable Hysteresis

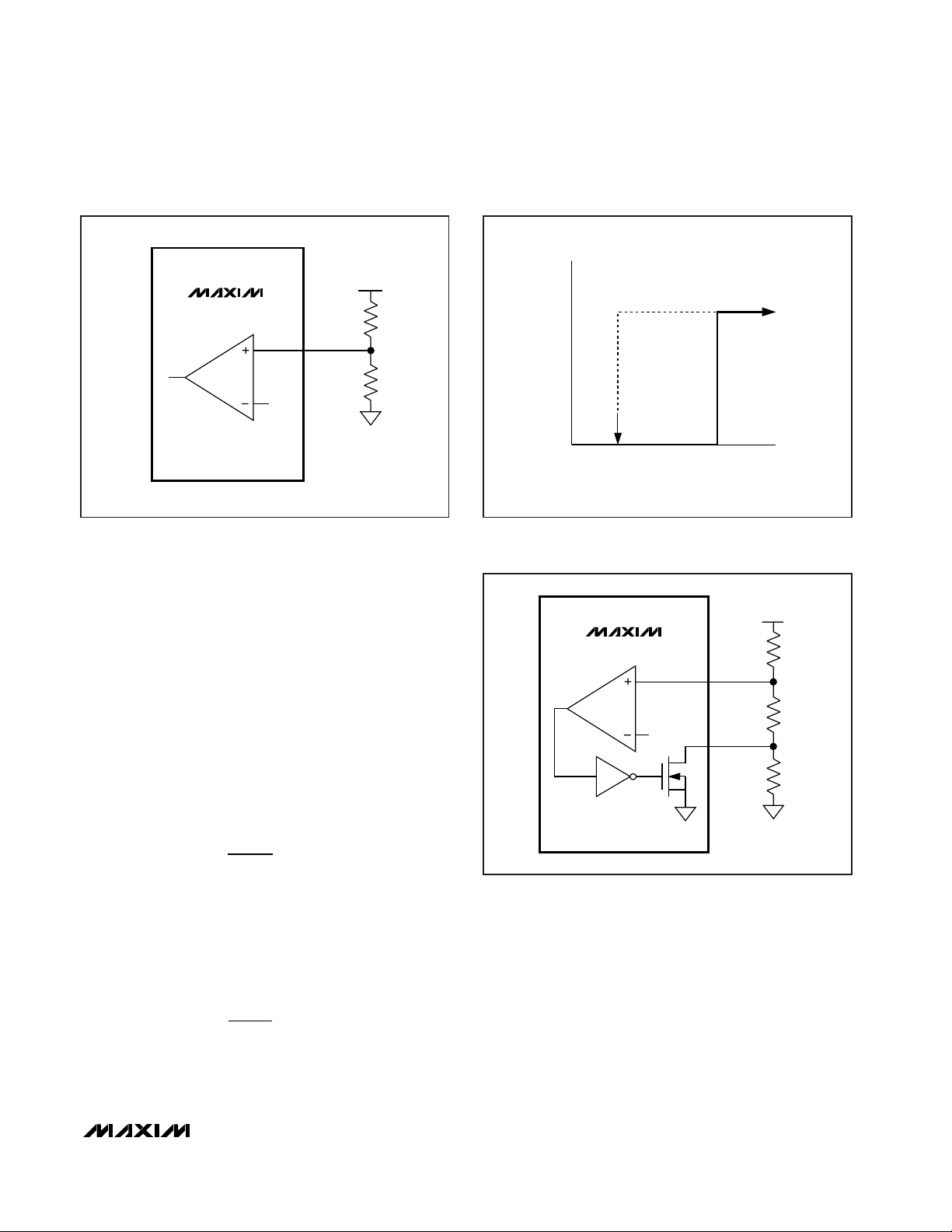

In addition to programmable undervoltage lockout dur­ing startup, the MAX5068A/B/D/F incorporate a UVLO/EN hysteresis that allows the user to set a volt­age (V
OFF
) to disable the controller (see Figure 3).
At the beginning of the startup sequence, UVLO/EN is below the 1.23V threshold, Q1 turns on connecting R
HYST
to GND (Figure 4). Once the UVLO 1.23V thresh­old is crossed, Q1 turns off, resulting in the series com­bination of R6, R
HYST
, and R7, placing the MAX5068 in
normal operating condition. Calculate the turn-on voltage (VON) by using the fol-
lowing formula:
where V
ULR2
is the UVLO/ENs 1.23V rising threshold.
Choose an R
HYST
value in the 20krange.
The MAX5068 turns off when the MAX5068 UVLO/EN falls below the 1.18V falling threshold. The turn-off volt­age (V
OFF
) is then defined as:
where V
ULF2
is the 1.18V UVLO/EN falling threshold.
Bootstrap Undervoltage Lockout
(MAX5068A/C/D Only)
In addition to the externally programmable UVLO func­tion offered by the MAX5068, the MAX5068A/C/D fea­ture an additional internal bootstrap UVLO for use in high-voltage power supplies (see the Functional Diagram). This allows the device to bootstrap itself dur­ing initial power-up. The MAX5068A/C/D start when V
IN
exceeds the bootstrap UVLO threshold of 23.6V.
RR
V
V
R
OFF
ULF
HYST
76 1
2
/ =
 
 
−−
R
V
V
R
ON
ULR
HYST
61
2
=
 
 
×
MAX5068
High-Frequency, Current-Mode PWM Controller
with Accurate Programmable Oscillator
______________________________________________________________________________________ 11
MAX5068C/E
1.23V
1.18V
UVLO/EN
R7
R6
V
IN
Figure 2. Setting the MAX5068C/E Undervoltage Lockout Threshold
V
HYST
= VON - V
OFF
V
OFF
V
ON
Figure 3. MAX5068 Hysteresis
MAX5068A/B/D/F
1.23V
1.18V
UVLO/EN
HYST
R
HYST
R6
R7
V
IN
Q1
Figure 4. Setting the MAX5068A/B/D/F Turn-On/Turn-Off Voltages
MAX5068
During startup, the UVLO circuit keeps the PWM com­parator, ILIM comparator, oscillator, and output driver shut down to reduce current consumption. Once V
IN
reaches 23.6V, the UVLO circuit turns on both the PWM and ILIM comparators, as well as the oscillator, and allows the output driver to switch. When VINdrops below 9.7V, the UVLO circuit shuts down the PWM comparator, ILIM comparator, oscillator, and output dri­ver returning the MAX5068A/C/D to the startup mode.
MAX5068A/C/D Startup Operation
Normally, VINis derived from the tertiary winding of the transformer. However, at startup there is no energy delivered through the transformer, hence, a special bootstrap sequence is required. Figure 5 shows the voltages on VINand VCCduring startup. Initially, both VINand VCCare zero. After the input voltage is applied, C1 charges through the startup resistor, R1, to an inter­mediate voltage (see Figure 1). At this point, the inter­nal regulator begins charging C3 (see Figure 5). Only 47µA of the current supplied by R1 is used by the MAX5068A/C/D. The remaining input current charges C1 and C3. The charging of C3 stops when the V
CC
voltage reaches approximately 9.5V. The voltage across C1 continues rising until it reaches the wake-up level of 23.6V. Once V
IN
exceeds the bootstrap UVLO threshold, NDRV begins switching the MOSFET and energy is transferred to the secondary and tertiary out­puts. If the voltage on the tertiary output builds to high­er than 9.74V (the bootstrap UVLO lower threshold), startup ends and sustained operation commences.
If V
IN
drops below 9.74V before startup is complete, the device goes back to low-current UVLO. If this occurs, increase the value of C1 to store enough energy to allow for the voltage at the tertiary winding to build up.
Startup Time Considerations for
Power Supplies Using the MAX5068A/C/D
The VINbypass capacitor, C1, supplies current imme­diately after wakeup (see Figure 1). The size of C1 and the connection configuration of the tertiary winding determine the number of cycles available for startup. Large values of C1 increase the startup time and also supply extra gate charge for more cycles during initial startup. If the value of C1 is too small, VINdrops below
9.74V because NDRV does not have enough time to switch and build up sufficient voltage across the tertiary output that powers the device. The device goes back into UVLO and does not start. Use low-leakage capaci­tors for C1 and C3.
Generally, offline power supplies keep typical startup times to less than 500ms, even in low-line conditions (85V
AC
input for universal offline applications or 36V
DC
for telecom applications). Size the startup resistor, R1, to supply both the maximum startup bias of the device (90µA) and the charging current for C1 and C3. The bypass capacitor, C3, must charge to 9.5V, and C1 must charge to 24V, within the desired time period of 500ms. Because of the internal soft-start time of the MAX5068, C1 must store enough charge to deliver cur­rent to the device for at least 2047 oscillator clock cycles. To calculate the approximate amount of capaci­tance required, use the following formula:
where IINis the MAX5068s internal supply current after startup (2.5mA typ), Q
gtot
is the total gate charge for Q1, fSWis the MAX5068s programmed switching fre­quency, V
HYST
is the bootstrap UVLO hysteresis (12V),
and tssis the internal soft-start time (2047 x 1 / f
OSC
).
Example: Ig= (8nC) (250kHz) ≅ 2.0mA
f
OSC
= 2 x 250kHz
Soft-start duration = 2047 x (1 / f
OSC
) = 4.1ms
Use a 2.2µF ceramic capacitor for C1.
C
mA mA ms
V
F1
25 2 41
12
154
(. ) (. )
.=
+
IQxf
C
IIxt
V
g gtot SW
IN g SS
HYST
( )
=
=+1
High-Frequency, Current-Mode PWM Controller with Accurate Programmable Oscillator
12 ______________________________________________________________________________________
100ms/div
MAX5068 V
IN
PIN
V
CC
2V/div
0V
5V/div
Figure 5. VINand VCCDuring Startup When Using the MAX5068 in Bootstrapped Mode (Also see Figure 1)
Assuming C1 > C3, calculate the value of R1 as follows:
where V
SUVR
is the bootstrap UVLO wakeup level
(23.6V max), V
IN(MIN)
is the minimum input supply volt-
age for the application (36V for telecom), and I
START
is
the V
IN
supply current at startup (90µA, max).
For example:
To minimize power loss on this resistor, choose a high­er value for R1 than the one calculated above (if a longer startup time can be tolerated).
The above startup method is applicable to a circuit sim­ilar to the one shown in Figure 1. In this circuit, the ter­tiary winding has the same phase as the output windings. Thus, the voltage on the tertiary winding at any given time is proportional to the output voltage and goes through the same soft-start period as the output voltage. The minimum discharge time of C1 from 22V to 10V must be greater than the soft-start time (t
SS
).
Oscillator/Switching Frequency
Use an external resistor at RT to program the MAX5068 internal oscillator frequency from 50kHz to 2.5MHz. The MAX5068A/B output switching frequency is one-half of the programmed oscillator frequency with a 50% duty cycle. The MAX5068C/D/E/F output switching frequen­cy is one-quarter of the programmed oscillator frequen­cy with a 75% duty cycle.
I
Vx F
ms
A
R
VV AA
k
C1
24 2 2
500
106
1
36 12
106 90
122 4
.
.
==
+
=
µ
µ
µµ
I
VC
ms
R
VxV
II
C
SUVR
IN MIN SUVR
C START
1
1
1
500
1
05
.
()
=
×
− +
MAX5068
High-Frequency, Current-Mode PWM Controller
with Accurate Programmable Oscillator
______________________________________________________________________________________ 13
MAX5068A
IN
NDRV
CS
PGND
FBV
CC
AGND
REG5
UVLO/EN
RT
HYST
DT
FLTINT
D2
R1
C1
Q1
COMP
V
IN
C2
C3
C4
R3
R4
R6
R
HYST
R7
SYNC
R2
R5
C5
R
CS
VOUT
D1
R11
C6
C10
C7
R12
R13
MAX8515
R9
R10R8
V
CC
PS2913
Figure 6. Secondary-Side, Regulated, Isolated Power Supply
MAX5068
Use the following formula to calculate the internal oscil­lator frequency:
where f
OSC
is the oscillator frequency and RRTis a
resistor connected from RT to AGND. Choose the appropriate resistor at RT to calculate the
desired output switching frequency (fSW):
The MAX5068A/B and the MAX5068C/D/E/F have pro­grammable output switching frequencies from 25kHz to
1.25MHz and 12.5kHz to 625kHz, respectively.
Dead-Time Adjustment
The MAX5068 programmable dead-time function (Figure 7) allows additional flexibility in optimizing mag­netics design and overcoming parasitic effects. The MAX5068A/B and the MAX5068C/D/E/F have a maxi­mum 50% and 75% duty cycle, respectively. In many applications, the duty cycle of the external MOSFET may need to be slightly decreased to prevent satura­tion in the transformers primary. The dead time can be configured from 30ns to 1 / (0.5 x f
SW
) when program­ming the MAX5068. Connect a resistor between DT and AGND to set the desired dead time using the following formula:
where RDTis in kand the dead time is in ns. Connect DT to REG5 to remove the delay and achieve
the MAX5068 maximum duty cycles.
External Synchronization
(MAX5068A/B/C/E)
The MAX5068A/B/C/E can be synchronized using an external clock at the SYNC input. For proper frequency synchronization, the SYNCs input frequency must be at least 25% higher than the MAX5068A/B/C/E pro­grammed internal oscillator frequency. Connect SYNC to AGND when not using an external clock.
Integrating Fault Protection
The integrating fault-protection feature allows transient overcurrent conditions to be ignored for a programma­ble amount of time, giving the power supply time to behave like a current source to the load. For example, this can occur under load current transients when the control loop requests maximum current to keep the out­put voltage from going out of regulation. Program the fault-integration time by connecting an external suitably sized capacitor to the FLTINT. Under sustained over­current faults, the voltage across this capacitor ramps up towards the FLTINT shutdown threshold (typically
2.8V). Once the threshold is reached, the power supply shuts down. A high-value bleed resistor connected in parallel with the FLTINT capacitor allows it to discharge towards the restart threshold (typically 1.6V). Once this threshold is reached, the supply restarts with a new soft-start cycle.
Note that cycle-by-cycle current limiting is provided at all times by CS with a threshold of 314mV (typ). The fault-integration circuit forces a 60µA current onto FLTINT each time that the current-limit comparator is tripped (see the Functional Diagram). Use the following formula to calculate the value of the capacitor neces­sary for the desired shutdown time of the circuit:
C
Ixt
V
FLTINT
FLTINT SH
.≅28
Dead time R ns
DT
. ()
60
29 4
RT
SW
RT
SW
R
f
for the MAX A B and
R
f
for the MAX C D E F
/
///
=
=
10 2
5068
10
4
5068
11
11
f
R
osc
RT
=
10
11
High-Frequency, Current-Mode PWM Controller with Accurate Programmable Oscillator
14 ______________________________________________________________________________________
DEAD TIME
NDRV
t
DT
< 50% < 50%
Figure 7. MAX5068 NDRV Dead-Time Timing Diagram
MAX5068A/B/C/E
AGND
RT
SYNC
Figure 8. External Synchronization of the MAX5068A/B/C/E
where I
FLTINT
= 60µA, tSHis the desired fault-integra­tion time during which current-limit events from the cur­rent-limit comparator are ignored. For example, a 0.1µF capacitor gives a fault-integration time of 4.7ms.
This is an approximate formula. Some testing may be required to fine-tune the actual value of the capacitor. To calculate the recovery time, use the following formula:
where tRTis the desired recovery time. Choose tRT= 10 x tSH. Typical values for tSHrange from
a few hundred microseconds to a few milliseconds.
Soft-Start
The MAX5068 soft-start feature allows the load voltage to ramp up in a controlled manner, eliminating output­voltage overshoot. Soft-start begins after UVLO is deasserted. The voltage applied to the noninverting node of the amplifier ramps from 0 to 1.23V in 2047 oscillator clock cycles (soft-start timeout period). Unlike other devices, the MAX5068 reference voltage to the internal amplifier is soft-started. This method results in superior control of the output voltage under heavy- and light-load conditions.
Internal Regulators
Two internal linear regulators power the MAX5068 inter­nal and external control circuits. VCCpowers the exter­nal N-channel MOSFET and is internally set to approximately 9.5V. The REG5 5V regulator has a 1mA sourcing capability and may be used to provide power to external circuitry. Bypass VCCand REG5 with 1µF and 0.1µF high quality capacitors, respectively. Use lower value ceramics in parallel to bypass other unwanted noise signals. Bootstrapped operation requires startup through a bleed resistor. Do not exces­sively load the regulators while the MAX5068 is in the power-up mode. Overloading the outputs can cause the MAX5068 to fail upon startup.
N-Channel MOSFET Switch Driver
NDRV drives an external N-channel MOSFET. The NDRV output is supplied by the internal regulator (V
CC
), which is internally set to approximately 9.5V. For the universal input-voltage range, the MOSFET used must be able to withstand the DC level of the high-line input voltage plus the reflected voltage at the primary of the transformer. For most applications that use the discontinuous flyback topology, a MOSFET rated at 600V is required. NDRV can source/sink in excess of 650mA/1000mA peak cur-
rent. Therefore, select a MOSFET that yields acceptable conduction and switching losses.
Error Amplifier
The MAX5068 includes an internal error amplifier that can regulate the output voltage in the case of a noniso­lated power supply (Figure 1). Calculate the output volt­age using the following equation:
where V
REF
= 1.23V. The amplifiers noninverting input internally connects to a digital soft-start reference voltage. This forces the output voltage to come up in an orderly and well-defined manner under all load conditions.
Slope Compensation (MAX5068C/D/E/F)
The MAX5068C/D/E/F use an internal-ramp generator for slope compensation. The internal-ramp signal resets at the beginning of each cycle and slews at the rate programmed by the external capacitor connected at SCOMP and the resistor at RT. Adjust the MAX5068 slew rate up to 90mV/µs using the following equation:
where RRTis the external resistor at RT that sets the oscil­lator frequency and C
SCOMP
is the capacitor at SCOMP.
PWM Comparator
The PWM comparator uses the instantaneous current, the error amplifier, and the slope compensation to determine when to switch NDRV off. In normal opera­tion, the N-channel MOSFET turns off when:
I
PRIMARY
x RCS> VEA– V
OFFSET
- V
SCOMP
where I
PRIMARY
is the current through the N-channel MOSFET, VEAis the output voltage of the internal amplifier, V
OFFSET
is the 1.6V internal DC offset and
V
SCOMP
is the ramp function starting at zero and slew­ing at the programmed slew rate (SR). When using the MAX5068 in a forward-converter configuration, the fol­lowing conditions must be met to avoid current-loop subharmonic oscillations:
where K = 0.75 and N
S
and NPare the number of turns on the secondary and primary side of the transformer, respectively. L is the secondary filter inductor. When
S P
CS OUT
N N
K
RV
L
SR
×
××
=
SR
RC
mV s
RT SCOMP
(/)=
×
×
165 10
6
µ
V
R R
xV
OUT REF
=+
 
 
1
8 9
R
t
C
FLTINT
RT
FLTINT
. ≅×0 595
MAX5068
High-Frequency, Current-Mode PWM Controller
with Accurate Programmable Oscillator
______________________________________________________________________________________ 15
MAX5068
optimally compensated, the current loop responds to input-voltage transients within one cycle.
Current Limit
The current-sense resistor (RCS), connected between the source of the MOSFET and ground, sets the current limit. The CS input has a voltage trip level (VCS) of 314mV. Use the following equation to calculate the value of RCS:
where I
PRI
is the peak current in the primary that flows
through the MOSFET at full load. When the voltage produced by this current (through the
current-sense resistor) exceeds the current-limit com­parator threshold, the MOSFET driver (NDRV) quickly terminates the current on-cycle. In most cases, a small RC filter is required to filter out the leading-edge spike on the sense waveform. Set the corner frequency to a few MHz above the switching frequency.
Applications Information
Layout Recommendations
Keep all PC board traces carrying switching currents as short as possible, and minimize current loops.
For universal AC input design, follow all applicable safe­ty regulations. Offline power supplies may require UL, VDE, and other similar agency approvals. Contact these agencies for the latest layout and component rules.
Typically, there are two sources of noise emission in a switching power supply: high di/dt loops and high dv/dt surfaces. For example, traces that carry the drain cur­rent often form high di/dt loops. Similarly, the heatsink of the MOSFET presents a dv/dt source, thus minimize the surface area of the heatsink as much as possible.
To achieve best performance and to avoid ground loops, use a solid ground-plane connection.
R
V I
CS
CS
PRI
=
High-Frequency, Current-Mode PWM Controller with Accurate Programmable Oscillator
16 ______________________________________________________________________________________
MAX5068
High-Frequency, Current-Mode PWM Controller
with Accurate Programmable Oscillator
______________________________________________________________________________________ 17
MAX5068C
IN
NDRV
CS
PGND
FBV
CC
AGND
REG5
UVLO/EN
RT
SCOMP
DT
FLTINT
D2
R1
C1
Q1
COMP
V
IN
C2
C3
C4
R3
R4
R6
R7
SYNC
R2
R5
C5
R
CS
VOUT
R11
C6
C10
R12
R13
MAX8515
R9
R10R8
V
CC
PS2913
C7
D1
Typical Operating Circuit
Selector Guide
PART
NUMBER
MAX DUTY
CYCLE
BOOTSTRAP
UVLO
STARTUP
PROGRAMMABLE
UVLO
HYSTERESIS
OSCILLATOR
SYNC
SLOPE
COMPENSATION
MAX5068A 50% Yes 23.6 Yes Yes No MAX5068B 50% No 10.8 Yes Yes No MAX5068C 75% Yes 23.6 No Yes Yes MAX5068D 75% Yes 23.6 Yes No Yes MAX5068E 75% No 10.8 No Yes Yes MAX5068F 75% No 10.8 Yes No Yes
VOLTAGE (V)
MAX5068
High-Frequency, Current-Mode PWM Controller with Accurate Programmable Oscillator
18 ______________________________________________________________________________________
MAX5068
Σ
NDRV
S
Q
R
OSC
DEAD
TIME
THERMAL
SHUTDOWN
PGND
DTRT
ERROR
AMP
PWM
COMPARATOR
CURENT-LIMIT COMPARATOR
2.8V/
1.6V
5k
70ns
BLANKING
COMP
FB
CS
AGND
R
Q
S
60µA
FLTINT
DIGITAL
SOFT-START
314mV
1.23V
REGULATOR
V
CC
IN
REG_OK
IN
V
CC
1.23V
REFERENCE
UVLO
1.23V/
1.18V
UVLO/EN
21.6V/
9.74V
V
IN
CLAMP
26V
BOOTSTRAP
UVLO
HYST*
REG5
1.6V
5V
OUT
SYNC**
SLOPE
COMPENSATION
***SCOMP
*MAX5068A/B/D AND MAX5068F ONLY. **MAX5068A/B/C AND MAX5068E ONLY. ***MAX5068C/D/E/F ONLY.
+
+
*
Functional Diagram
MAX5068
High-Frequency, Current-Mode PWM Controller
with Accurate Programmable Oscillator
______________________________________________________________________________________ 19
Chip Information
TRANSISTOR COUNT: 4,266 PROCESS: BiCMOS
TOP VIEW
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
RT
REG5
IN
V
CC
NDRV
AGND
PGND
AGND
CS
MAX5068C/E
TSSOP-EP
SYNC
SCOMP
FB
DT
UVLO/EN
COMP
FLTINT
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
RT
REG5
IN
V
CC
NDRV
AGND
PGND
AGND
CS
MAX5068D/F
TSSOP-EP
HYST
SCOMP
FB
DT
UVLO/EN
COMP
FLTINT
Pin Configurations (continued)
MAX5068
High-Frequency, Current-Mode PWM Controller with Accurate Programmable Oscillator
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
20 ____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600
© 2004 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.
Package Information
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information, go to www.maxim-ic.com/packages
.)
TSSOP 4.4mm BODY.EPS
PACKAGE OUTLINE, TSSOP, 4.40 MM BODY EXPOSED PAD
21-0108
D
1
1
Loading...
