General Description
The MAX1507 is an intelligent, stand-alone constant-current, constant-voltage (CCCV), thermally regulated linear
charger for a single-cell lithium-ion (Li+) battery. The
MAX1507 integrates the current-sense circuit, MOS pass
element, and thermal-regulation circuitry, and also eliminates the reverse-blocking Schottky diode to create the
simplest and smallest charging solution for hand-held
equipment.
The MAX1507 functions as a stand-alone charger to
control the charging sequence from the prequalification
state through fast-charge, top-off charge, and fullcharge indication.
Proprietary thermal-regulation circuitry limits the die
temperature when fast charging or while exposed to
high ambient temperatures, allowing maximum charging current without damaging the IC.
The MAX1507 achieves high flexibility by providing an
adjustable fast-charge current and thermal regulation
setpoints. Other features include the charging status
(CHG) of the battery and an active-low control input (EN).
The MAX1507 accepts a +4.25V to +13V supply, but disables charging when the input voltage exceeds +7V to
protect against unqualified or faulty AC adapters. The
MAX1507 operates over the extended temperature
range (-40°C to +85°C) and is available in a compact
8-pin thermally enhanced 3mm x 3mm Thin DFN package with 0.8mm height.
Applications
Cellular and Cordless Phones
PDAs
Digital Cameras and MP3 Players
USB Appliances
Charging Cradles and Docks
Bluetooth™ Equipment
Features
♦ Stand-Alone Linear 1-Cell Li+ Battery Charger
♦ No External FET, Reverse-Blocking Diode, or
Current-Sense Resistor Required
♦ Programmable Fast-Charge Current (0.8A max)
♦ Proprietary Programmable Die-Temperature
Regulation Control (+90°C, +100°C, and +130°C)
♦ +4.25V to +13V Input Voltage Range with Input
Overvoltage Protection (OVP) Above +7V
♦ Charge-Current Monitor for Fuel Gauging
♦ Low Dropout Voltage—130mV at 0.425A
♦ Input Power-Source Detection Output (VL) and
Charge-Enable Input (EN)
♦ Soft-Start Limits Inrush Current
♦ Charge Status Output (CHG) for LED or
Microprocessor Interface
♦ Small 3mm x 3mm 8-Pin Thin DFN Package,
0.8mm High
MAX1507
Linear Li+ Battery Charger with Integrated Pass FET
and Thermal Regulation in 3mm x 3mm Thin DFN
________________________________________________________________ Maxim Integrated Products 1
Pin Configuration
Ordering Information
Typical Operating Circuit
19-2899; Rev 0; 6/03
For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
EVALUATION KIT
AVAILABLE
Bluetooth is a trademark of Ericsson.
*EP = Exposed paddle.
PART TEMP RANGE PIN-PACKAGE
MAX1507ETA -40°C to +85°C 8 Thin DFN-EP* AGW
TOP
MARK
TOP VIEW
3mm x 3mm THIN DFN
BATT
TEMP
CHG
8
76
MAX1507
3
2
1
IN
VL
GND
INPUT
4.25V TO 13V
EN
5
4
ISET
ON
IN
1µF
MAX1507
CHG
OFF
EN
VL
0.47µF
BATT
1µF
ISET
TEMP
GND
Li+
4.2V
2.80kΩ
MAX1507
Linear Li+ Battery Charger with Integrated Pass FET
and Thermal Regulation in 3mm x 3mm Thin DFN
2 _______________________________________________________________________________________
ABSOLUTE MAXIMUM RATINGS
ELECTRICAL CHARACTERISTICS
(VIN= 5V, V
BATT
= 4.0V, TEMP = EN = CHG = unconnected, R
ISET
= 2.8kΩ to GND, CVL= 0.47µF, BATT bypassed to GND with 1µF,
T
A
= -40°C to +85°C, unless otherwise noted. Typical values are at TA= +25°C.) (Note 1)
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
IN, CHG to GND .....................................................-0.3V to +14V
VL, BATT, ISET, EN, TEMP to GND ..........................-0.3V to +6V
VL to IN...................................................................-14V to +0.3V
IN to BATT Continuous Current.............................................0.9A
Continuous Power Dissipation (T
A
= +70°C)
8-Pin TDFN (derate 24.4mW/°C above+70°C) ..........1951mW
Short-Circuit Duration.................................................Continuous
Operating Temperature Range ...........................-40°C to +85°C
Junction Temperature......................................................+150°C
Storage Temperature Range .............................-65°C to +150°C
Lead Temperature (soldering, 10s) .................................+300°C
Input Voltage Range 013V
Input Operating Range 4.25 6.50 V
ACOK Trip Point, IN
Overvoltage Lockout Trip Point
VL Output Voltage IVL = 100µA 3.3 V
VL Load Regulation IVL = 100µA to 2mA -71 -200 mV
VL Temperature Coefficient IVL = 100µA -2 mV/°C
VL Undervoltage Lockout Trip Point
BATT Input Current
Maximum RMS Charge Current 0.8 A
Battery Regulation Voltage I
BATT Removal Detection Threshold V
PARAMETER CONDITIONS MIN TYP MAX UNITS
VIN - V
V
IN
VIN rising 6.5 7 7.5
V
IN
Charging (IIN - I
Disabled, EN = VL 0.8 1.5IN Input Current
OFF state (V
VIN rising 2.95
Hysteresis 0.17
V
IN
EN = VL 4 10
BATT
BATT
, VIN rising 20 40 60
BATT
- V
, VIN falling 15 30 45
BATT
hysteresis 0.11
= 0 to 4V 3 10
= 0
rising 4.4 4.67 4.9 V
)12
BATT
= V
IN
= 4.0V) 0.065
BATT
= 0°C to +85°C 4.162 4.2 4.238
T
A
= -40°C to +85°C 4.150 4.2 4.250
T
A
mV
V
mA
V
µA
V
MAX1507
Linear Li+Battery Charger with Integrated Pass FET
and Thermal Regulation in 3mm x 3mm Thin DFN
_______________________________________________________________________________________ 3
Note 1: Limits are 100% production tested at TA= +25°C. Limits over operating temperature range are guaranteed through correla-
tion using statistical quality control (SQC) methods.
ELECTRICAL CHARACTERISTICS (continued)
(VIN= 5V, V
BATT
= 4.0V, TEMP = EN = CHG = unconnected, R
ISET
= 2.8kΩ to GND, CVL= 0.47µF, BATT bypassed to GND with 1µF,
T
A
= -40°C to +85°C, unless otherwise noted. Typical values are at TA= +25°C.) (Note 1)
BATT Removal Detection-Threshold Hysteresis 200 mV
Minimum BATT Bypass Capacitance 1 µF/A
Fast-Charge Current-Loop System Accuracy V
Precharge Current System Accuracy
V
Precharge Threshold Voltage V
BATT
Current-Sense Amplifier Gain, I
in Fast Charge Mode
Regulator Dropout Voltage (V
EN Logic Input Low Voltage 4.25V < VIN < 6.5V 0.52 V
EN Logic Input High Voltage 4.25V < VIN < 6.5V 1.3 V
EN Internal Pulldown Resistor 100 200 400 kΩ
CHG Output Low Current V
CHG Output High Leakage Current V
Full Battery Detection Current Threshold
(as a Percentage of the Fast-Charge Current)
PARAMETER CONDITIONS MIN TYP MAX UNITS
= 3.5V 478 520 562 mA
BATT
Percentage of the fast-charge current,
= 2.2V
V
BATT
TEMP = VL 130
TEMP = floating 100Die-Temperature-Regulation Set Point
TEMP = GND 90
rising 2.3 2.5 2.7 V
BATT
to I
SET
IN
BATT
- V
)V
BATT
= 500mA, V
I
BATT
= 4.1V, I
BATT
= 1V 5 12 20 mA
CHG
= 13V
CHG
falling 5 10 15 %
I
BATT
51015%
= 1.4V 0.880 0.958 1.035 mA/A
ISET
= 425mA 130 200 mV
BATT
TA = +25°C1
T
= +85°C 0.002
A
°C
µA
MAX1507
Linear Li+ Battery Charger with Integrated Pass FET
and Thermal Regulation in 3mm x 3mm Thin DFN
4 _______________________________________________________________________________________
Typical Operating Characteristics
(VIN= 5V, V
BATT
= 4.0V, TEMP = EN = CHG = unconnected, R
ISET
= 2.8kΩ to GND, CIN= 1µF, C
BATT
= 1µF, CVL= 0.47µF, TA=
+25°C, unless otherwise noted.)
0
0.5
1.0
1.5
2.0
SUPPLY CURRENT
vs. INPUT VOLTAGE
MAX1507 toc01
INPUT VOLTAGE (V)
SUPPLY CURRENT (mA)
0
6
8
2
410
12
I
BATT
= 0
0
0.5
1.0
1.5
2.0
DISABLED-MODE SUPPLY
CURRENT vs. INPUT VOLTAGE
MAX1507 toc02
INPUT VOLTAGE (V)
DISABLED-MODE SUPPLY CURRENT (mA)
0
EN = VL
6
8
4210
12
200
100
400
300
500
600
0
150
50
350
250
450
550
02.01.0 3.0 4.00.5 2.51.5 3.5 4.5
CHARGE CURRENT
vs. BATTERY VOLTAGE
MAX1507 toc03
BATTERY VOLTAGE (V)
CHARGE CURRENT (mA)
TEMP = VL
0
200
100
400
300
500
600
150
50
350
250
450
550
06824 101217935 1113
CHARGE CURRENT
vs. INPUT VOLTAGE
MAX1507 toc04
INPUT VOLTAGE (V)
CHARGE CURRENT (mA)
TEMP = VL
0
200
100
400
300
500
600
150
50
350
250
450
550
0 0.160.08 0.24 0.400.360.04 0.200.12 0.28 0.32
CHARGE CURRENT
vs. INPUT-VOLTAGE HEADROOM
MAX1507 toc05
VIN - V
BATT
(V)
CHARGE CURRENT (mA)
V
BATT
= 4.0V
4.186
4.180
4.198
4.192
4.204
4.210
4.189
4.183
4.201
4.195
4.207
-40 10-15 35 60 85
BATTERY REGULATION VOLTAGE
vs. TEMPERATURE
MAX1507 toc06
TEMPERATURE (°C)
BATTERY REGULATION VOLTAGE (V)
600
540
500
460
400
420
580
560
520
480
440
-40 10-15 356085
CHARGE CURRENT
vs. AMBIENT TEMPERATURE
MAX1507 toc07
AMBIENT TEMPERATURE (°C)
CHARGE CURRENT (mA)
TEMP = VL
0
300
700
500
900
200
100
600
400
800
1000
-40 10-15 35 60 85
CHARGE CURRENT
vs. AMBIENT TEMPERATURE (TEMP = VL)
MAX1507 toc08
AMBIENT TEMPERATURE (°C)
CHARGE CURRENT (mA)
V
BATT
= 4.0V
V
BATT
= 3.6V
R
ISET
= 1.87kΩ
MAX1507
Linear Li+ Battery Charger with Integrated Pass FET
and Thermal Regulation in 3mm x 3mm Thin DFN
_______________________________________________________________________________________ 5
Typical Operating Characteristics (continued)
(VIN= 5V, V
BATT
= 4.0V, TEMP = EN = CHG = unconnected, R
ISET
= 2.8kΩ to GND, CIN= 1µF, C
BATT
= 1µF, CVL= 0.47µF, TA=
+25°C, unless otherwise noted.)
0
200
600
400
800
100
300
700
500
900
1000
-40 10-15 35 60 85
CHARGE CURRENT
vs. AMBIENT TEMPERATURE (TEMP = OPEN)
MAX1507 toc09
AMBIENT TEMPERATURE (°C)
CHARGE CURRENT (mA)
V
BATT
= 4.0V
V
BATT
= 3.6V
R
ISET
= 1.87k
Ω
0
200
600
400
800
100
300
700
500
900
1000
-40 10-15 35 60 85
CHARGE CURRENT
vs. AMBIENT TEMPERATURE (TEMP = GND)
MAX1507 toc10
AMBIENT TEMPERATURE (°C)
CHARGE CURRENT (mA)
V
BATT
= 4.0V
V
BATT
= 3.6V
R
ISET
= 1.87k
Ω
Pin Description
PIN
FUNCTION
1 VL Internally Generated Logic Supply for Chip. Bypass VL to GND with a 0.47µF capacitor.
2 IN Input Supply Voltage. Bypass IN to GND with a 1µF capacitor to improve line noise and transient rejection.
3 GND Ground. Connect GND and exposed pad to a large copper trace for maximum power dissipation.
4 ISET
Charge-Current Program and Fast-Charge Current Monitor. Output current from ISET is 0.958mA per amp of
battery charging current. The charging current is set by connecting a resistor from ISET to GND. Fast-charge
current = 1461V / R
ISET
Ω.
5 EN
Logic-Level Enable Input. Drive EN high to disable charger. Pull EN low or float for normal operation. EN has
an internal 200kΩ pulldown resistor.
6 TEMP
Three-Level Input Pin. Connect TEMP to VL, GND, or leave floating. Sets maximum die temperature for
thermal regulation loop. Connection to GND = +90°C, floating = +100°C, VL = +130°C. TEMP is Hi-Z during
shutdown.
7 BATT Li+ Battery Connection. Bypass BATT to GND with a capacitor of at least 1µF per ampere of charge current.
8 CHG
Charging Indicator, Open-Drain Output. CHG goes low (and can turn on an LED) when charging begins.
CHG is high impedance when the battery current drops below 10% of the fast-charging current, or when EN
is high. Connect a pullup resistor to the µP’s I/O voltage when interfacing with a µP logic input.
— PAD
Exposed Pad. Connect exposed pad to a large copper trace for maximum power dissipation. The pad is
internally connected to GND.
NAME
MAX1507
Linear Li+ Battery Charger with Integrated Pass FET
and Thermal Regulation in 3mm x 3mm Thin DFN
6 _______________________________________________________________________________________
Detailed Description
The MAX1507 charger uses voltage, current, and thermal-control loops to charge a single Li+ cell and to protect the battery (Figure 1). When a Li+ battery with a
cell voltage below 2.5V is inserted, the MAX1507
charger enters the prequalification stage where it
precharges that cell with 10% of the user-programmed
fast-charge current. The CHG indicator output is driven
low (Figure 2) to indicate entry into the prequalification
state. Once the cell has passed 2.5V, the charger softstarts before it enters the fast-charge stage. The fastcharge current level is programmed through a resistor
from ISET to ground. As the battery voltage approaches 4.2V, the charging current is reduced. If the battery
current drops to less than 10% of the fast-charging current, the CHG indicator goes high impedance, signaling the battery is fully charged. At this point the
MAX1507 enters a constant voltage-regulation mode to
Figure 1. Functional Diagram
IN
ISET
IREF
OUTPUT DRIVER,
CURRENT SENSE,
AND LOGIC
MAX1507
TEMPERATURE
SENSOR
BATT
V
REF
+90°C
+100°C
+130°C
IN
VL
0.47µF
CHG
VL
V
LUVLO
V
INOVLO
REFOK
IN
REF
N
INOK
V
LOK
REFOK
ON
IN
BATT
LOGIC
200kΩ
GND
TEMP
EN
MAX1507
Linear Li+Battery Charger with Integrated Pass FET
and Thermal Regulation in 3mm x 3mm Thin DFN
_______________________________________________________________________________________ 7
maintain the battery at full charge. If, at any point while
charging the battery, the die temperature approaches
the user-selected temperature setting (TEMP pin), the
MAX1507 reduces the charging current so the die temperature does not exceed the temperature-regulation
set point.
The thermal-regulation loop limits the MAX1507 die
temperature to the value selected by the TEMP input by
reducing the charge current as necessary (see the
Thermal-Regulation Selection section). This feature not
only protects the MAX1507 from overheating, but also
allows higher charge current without risking damage to
the system.
EN
Charger Enable Input
EN is a logic input (active low) to enable the charger.
Drive EN low, leave floating, or connect to GND to
enable the charger control circuitry. Drive EN high to
disable the charger control circuitry. EN has a 200kΩ
internal pulldown resistance.
VL Internal Voltage Regulator
The MAX1507 linear charger contains an internal linear
regulator available on the VL output pin. VL requires a
0.47µF ceramic bypass capacitor to GND. VL is regulated to 3.3V whenever the input voltage is above 3.5V.
Figure 2. Charge State Diagram
I
CHARGE
OF ISET
> 20%
V
BATT
PRECHARGE
100% CHARGE CURRENT
V
< 2.4V
BATT
FAST CHARGE
100% CHARGER CURRENT
< 2.5V
LED = ON
LED = ON
V
BATT
> 2.5V
< 7V AND
IN
V
IN
V
EN = LOW
> V
BATT
AND
I
CHARGE
OF ISET
< 10%
SHUTDOWN
CHARGER = OFF
LED = OFF
ASYNCHRONOUS FROM
V
> 7V +
IN
> VIN +
V
BATT
EN = HIGH
ANYWHERE
VIN > 7V +
> VIN +
V
BATT
EN = HIGH
FULL BATT
LED = OFF
FULL BATT CONTINUES
TO REGULATE BATT
UP TO 4.2V
MAX1507
Linear Li+ Battery Charger with Integrated Pass FET
and Thermal Regulation in 3mm x 3mm Thin DFN
8 _______________________________________________________________________________________
X = Don’t care.
*I
FAST
is reduced as necessary to maintain the die temperature set by the TEMP input.
Table 1. CHG States
CHG
Charge Indicator Output
CHG is an open-drain current source for indicating
charge status. Table 1 describes the state of CHG during different stages of operation.
CHG is a nominal 12mA current source suitable for driving a charge-indication LED. If the MAX1507 is used
in conjunction with a microprocessor, a pullup resistor
to the logic I/O voltage allows CHG to indicate charge
status to the µP instead of driving an LED.
Soft-Start
An analog soft-start algorithm activates when entering
fast-charge mode. When the prequalification state is
complete (V
BATT
exceeds +2.5V), the charging current
ramps up in 3ms to the full charging current. This
reduces the inrush current on the input supply.
Applications Information
Charge-Current Selection
The maximum charging current is programmed by an
external R
ISET
resistor connected from ISET to GND.
Select the R
ISET
value based on the following formula:
I
FAST
= 1461V / R
ISET
Ω
where I
FAST
is in amps and R
ISET
is in ohms. ISET can
also be used to monitor the fast-charge current level.
The output current from the ISET pin is 0.958mA per
amp of charging current. The output voltage at ISET is
proportional to the charging current as follows:
V
ISET
= (I
CHG
x R
ISET
) / 1044
The voltage at ISET is nominally 1.4V at the selected
fast-charge current, and falls with charging current as
the cell becomes fully charged.
Thermal-Regulation Selection
Set the regulated die temperature of the MAX1507 with
the TEMP three-level logic input. The MAX1507
reduces the charge current to limit the die temperature
to the value set by TEMP. The MAX1507 operates normally while the thermal loop is active. An active thermal
loop does not indicate a fault condition. TEMP allows
the MAX1507 to maximize the charge current while providing protection against excessive power dissipation.
Connect TEMP to GND to regulate the die temperature
at +90°C. Leave TEMP floating to regulate the die temperature at +100°C. Connect TEMP to VL to regulate
the die temperature at +130°C.
Capacitor Selection
Connect a ceramic capacitor from BATT to GND for
proper stability. Use a 1µF X5R ceramic capacitor for
most applications.
Connect a 1µF ceramic capacitor from IN to GND. Use
a larger input bypass capacitor for high input voltages
or high charging currents to reduce supply noise.
Connect a 0.47µF ceramic capacitor from VL to GND.
Thermal Considerations
The MAX1507 is in a thermally enhanced thin DFN
package with exposed paddle. Connect the exposed
paddle of the MAX1507 to a large copper ground plane
to provide a thermal contact between the device and
the circuit board. The exposed paddle transfers heat
away from the device, allowing the MAX1507 to charge
the battery with maximum current, while minimizing the
increase in die temperature.
DC Input Sources
The MAX1507 operates from well-regulated DC
sources. The full-charging input-voltage range is 4.25V
to 7V. The device can stand up to 13V on the input
without damage to the IC. If VINis greater than 7V, then
the MAX1507 stops charging.
An appropriate power supply must provide at least
4.25V when sourcing the desired peak charging current. It also must stay below 6.5V when unloaded.
EN V
XV
Low 4.25V ≤ VIN ≤ 7V < 2.5V 10% of I
Low 4.25V ≤ VIN ≤ 7V ≥ 2.5V I
Low 4.25V ≤ VIN ≤ 7V 4.2V 10% of I
Low >7V X 0 Hi-Z Overvoltage
High X X 0 Hi-Z Disabled
IN
BATT
V
BATT
V
IN
I
BATT
0 Hi-Z Shutdown
FAST
* Low Fast Charge
FAST
FAST
CHG STATE
Low Prequalification
Hi-Z Full Charge
MAX1507
Linear Li+Battery Charger with Integrated Pass FET
and Thermal Regulation in 3mm x 3mm Thin DFN
_______________________________________________________________________________________ 9
Application Circuits
Stand-Alone Li+ Charger
The MAX1507 provides a complete Li+ charging solution. The Typical Application Circuit on the front page
shows the MAX1507 as a stand-alone Li+ battery
charger. The 2.8kΩ resistor connected to ISET sets a
charging current of 520mA. The LED indicates when
either fast-charge or precharge qualification has
begun. When the battery is full, the LED turns off.
Microprocessor-Interfaced Charger
Figure 3 shows the MAX1507 as a µP-cooperated Li+
battery charger. The MAX1507 starts charging the battery when EN is low. The µP can drive EN high to disable the charger. Use a logic-biased NPN transistor as
an inverter circuit to generate an AC_ON signal for the
system to detect the presence of an input supply. CHG
can be used to detect the charge status of a battery.
By monitoring V
ISET
, the system can measure the
charge current.
USB-Powered Li+ Charger
The universal serial bus (USB) provides a high-speed
serial communication port as well as power for the
remote device. The MAX1507 can be configured to
charge its battery at the highest current possible from
the host port. Figure 4 shows the MAX1507 as a USB
battery charger. To make the circuit compatible with
either 100mA or 500mA USB ports, the circuit initializes
at 95mA charging current. The microprocessor then
interrogates the host to determine its current capability.
If the host port is capable, the charging current is
increased to 435mA. The 435mA current was chosen to
avoid exceeding the 500mA USB specification.
Figure 3. µP Interfaced Li+ Battery Charger
AC/DC
ADAPTER
1µF
IN
MAX1507
CHG
TEMP
BATT
1µF
GND
VL
0.47µF
4.2V Li+
ROHM
DTC114EM
VI/O
AC_ON
SYSTEM
2.8kΩ
ISET
EN
CHARGE-CURRENT MONITOR
VI/O
LOW: CHARGE, HIGH: FULL OR OFF
MAX1507
Layout and Bypassing
Connect a 1µF ceramic input capacitor as close to the
device as possible. Provide a large copper GND plane
to allow the exposed paddle to sink heat away from the
device. Connect the battery to BATT as close to the
device as possible to provide accurate battery voltage
sensing. Make all high-current traces short and wide to
minimize voltage drops. For an example layout, refer to
the MAX1507/MAX1508 evaluation kit layout.
Chip Information
TRANSISTOR COUNT: 1812
PROCESS: BiCMOS
Linear Li+ Battery Charger with Integrated Pass FET
and Thermal Regulation in 3mm x 3mm Thin DFN
10 ______________________________________________________________________________________

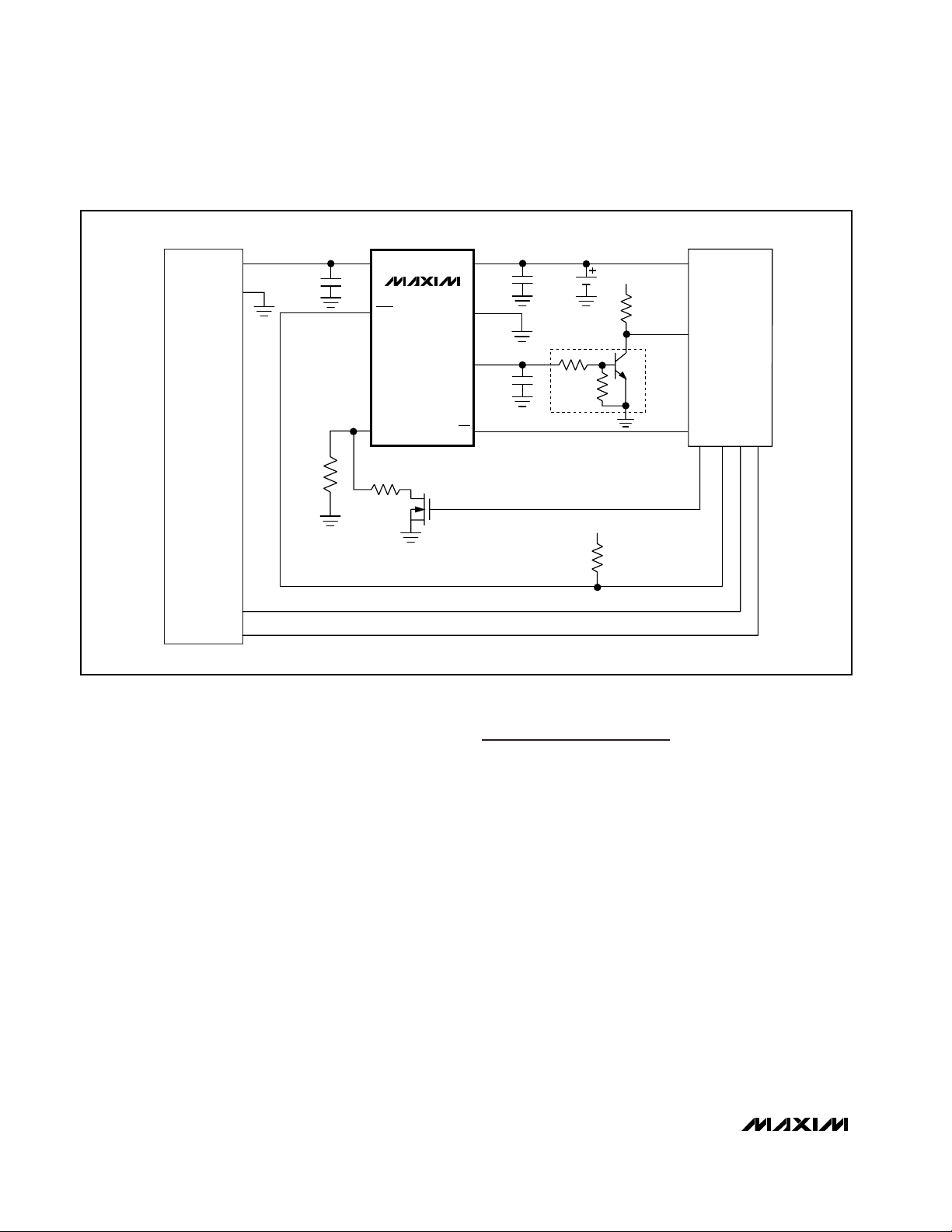

Figure 4. USB Battery Charger
USB PORT
VBUS
GND
IN
1µF
MAX1507
CHG
TEMP
ISET
15.4kΩ
4.3kΩ
N
D+
D-
BATT
1µF
GND
VL
0.47µF
EN
HIGH: 435mA, LOW: 95mA
4.2V Li+
ROHM
DTC114EM
VI/O
SYSTEM
VI/O
MAX1507
Linear Li+Battery Charger with Integrated Pass FET
and Thermal Regulation in 3mm x 3mm Thin DFN
______________________________________________________________________________________ 11
Package Information
(The package drawing(s) in this data sheet may not reflect the most current specifications. For the latest package outline information
go to www.maxim-ic.com/packages
.)
D
PIN 1
INDEX
AREA
A
A2
b
E
A1
L
DETAIL A
E2
C
e
L
C0.35
D2
k
C
L
L
PIN 1 ID
1N1
[(N/2)-1] x e
REF.
L
6, 8, &10L, QFN THIN.EPS
A
NUMBER OF LEADS SHOWN ARE FOR REFERENCE ONLY
e
PROPRIETARY INFORMATION
TITLE:
PACKAGE OUTLINE, 6, 8 & 10L,
TDFN, EXPOSED PAD, 3x3x0.80 mm
APPROVAL
e
DALLAS
SEMICONDUCTOR
DOCUMENT CONTROL NO. REV.
21-0137 D
1
2
MAX1507
Linear Li+ Battery Charger with Integrated Pass FET
and Thermal Regulation in 3mm x 3mm Thin DFN
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
12 ____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600
© 2003 Maxim Integrated Products Printed USA is a registered trademark of Maxim Integrated Products.
