General Description

The MAX15034 two-phase, configurable single- or dual­output buck controller has an input voltage range of

4.75V to 5.5V or 5V to 28V. A mode select input allows
for a dual-output supply or connecting two phases
together for a single-output, high-current supply. Each
output channel of the MAX15034 drives n-channel
MOSFETs and is capable of providing more than 25A of
load current. The MAX15034 uses average current­mode control with a switching frequency up to 1MHz
per phase where each phase is 180° out of phase with
respect to the other. Out-of-phase operation results in
significantly reduced input capacitor ripple current and
output voltage ripple in dual-phase, single-output volt­age applications. Each controller has its own high-per­formance current and voltage-error amplifier that can
be compensated for optimum output filter L-C values
and transient response.

The MAX15034 offers two enable inputs with accurate
turn-on thresholds to allow for output voltage sequencing
of the two outputs. The device’s switching frequency can
be programmed from 100kHz to 1MHz with an external
resistor. The MAX15034 can be synchronized to an
external clock. Each output voltage is adjustable from

0.61V to 5.5V. Additional features include thermal shut­down and hiccup-mode, short-circuit protection. Use the
MAX15034 with adaptive voltage positioning for applica­tions that require a fast transient response or accurate
output voltage regulation.

The MAX15034 is available in a thermally enhanced 28­pin TSSOP package capable of dissipating 2.1W. The
device is rated for operation over the -40°C to +125°C
automotive temperature range.

Applications

High-End Computers/Workstations/Servers

Graphics Cards

Networking Systems

Point-of-Load High-Current/High-Density
Telecom DC-DC Regulators

RAID Systems

Features

o 4.75V to 5.5V or 5V to 28V Input

o Dual-Output Synchronous Buck Controller

o Configurable for Two Separate Outputs (25A) or

One Single Output (50A)

o Average Current-Mode Control with Accurate

Adjustable Current Limit

o 180° Interleaved Operation Reduces Size of Input

Filter Capacitors

o Limits Reverse Current Sinking When Operated in

Parallel Mode

o Each Output is Adjustable from 0.61V to 5.5V

o Independently Programmable Adaptive Voltage

Positioning

o Monotonic Startup into Prebiased Outputs

o Independent Shutdown for Each Output

o 100kHz to 1MHz per Phase Programmable

Switching Frequency

o Oscillator Frequency Synchronization from

200kHz to 2MHz

o Digital Soft-Start on Outputs

o Hiccup-Mode Overcurrent Protection

o Overtemperature Shutdown

o Thermally Enhanced 28-Pin TSSOP Package

Capable of Dissipating 2.1W

MAX15034

Configurable, Single-/Dual-Output, Synchronous

Buck Controller for High-Current Applications

________________________________________________________________

Maxim Integrated Products

1

Ordering Information

19-4218; Rev 0; 7/08

For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.

+

Denotes a lead-free/RoHS-compliant package.

*

EP = Exposed pad.

PART TEMP RANGE PIN-PACKAGE

MAX15034AAUI+ -40°C to +125°C 28 TSSOP

MAX15034BAUI+ -40°C to +125°C 28 TSSOP-EP*

MAX15034

Configurable, Single-/Dual-Output, Synchronous
Buck Controller for High-Current Applications

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

IN, LX_ to AGND.....................................................-0.3V to +30V

BST_ to AGND........................................................-0.3V to +35V

DH_ to LX_ ....................................-0.3V to (V

BST_

- V

LX_

) + 0.3V

DL_ to PGND..............................................-0.3V to (V

DD

+ 0.3V)

BST_ to LX_ ..............................................................-0.3V to +6V

V

DD

to PGND............................................................-0.3V to +6V

AGND to PGND .....................................................-0.3V to +0.3V

AVGLIMIT, REG, RT/CLKIN, CSP_,

CSN_ to AGND ......................................................-0.3V to +6V

All Other Pins to AGND ............................-0.3V to (V

REG

+ 0.3V)

REG Continuous Output Current

(limited by power dissipation, no thermal or short-circuit

protection).........................................................................67mA

Continuous Power Dissipation (T

A

= +70°C) (Note 1)

28-Pin TSSOP (derate 14mW/°C above +70°C) ..........1117mW

28-Pin TSSOP-EP (derate 27mW/°C above +70°C) ........2162mW

Package Thermal Resistance (θ

JA

) (Note 1)

MAX15034A ................................................................71.6°C/W

MAX15034B ...................................................................37°C/W

Package Thermal Resistance (θ

JC

) (Note 1)

MAX15034A ...................................................................13°C/W

MAX15034B .....................................................................2°C/W

Operating Temperature Range .........................-40°C to +125°C

Maximum Junction Temperature .....................................+150°C

Storage Temperature Range .............................-60°C to +150°C

Lead Temperature (soldering, 10s) .................................+300°C

ELECTRICAL CHARACTERISTICS

(VIN= V

REG

= VDD= V

EN_

= +5V, TA= TJ= T

MIN

to T

MAX

, unless otherwise noted, circuit of Figure 6. Typical values are at TA= +25°C.)

(Note 2)

Note 1: Package thermal resistances were obtained using the method described in JEDEC specification JESD51-7, using a four-

layer board. For detailed information on package thermal considerations, refer to www.maxim-ic.com/thermal-tutorial

.

SYSTEM SPECIFICATIONS

Input Voltage Range V

Quiescent Supply Current I

STARTUP/INTERNAL REGULATOR OUTPUT (REG)

REG Undervoltage Lockout UVLO V

Hysteresis V

REG Output Accuracy VIN = 5.8V to 28V, I

REG Dropout VIN < 5.8V, I

INTERNAL REFERENCE

Internal Reference Voltage V

Digital Ramp Period for Soft-Start 1024

Soft-Start Voltage Steps 64 Steps

MOSFET DRIVERS

p-Channel Output Driver
Impedance

n-Channel Output Driver
Impedance

Output Driver Source Current I

Output Driver Sink Current I

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

R

R

DH_

DH_

IN

IN

HYST

EAN_

ON_P

ON_N

, I

DL_

, I

DL_

IN and REG shorted together for +5V
operation

f

= 500kHz, DH_ or DL_ = open 7 17 mA

OSC

rising 4.0 4.15 4.5 V

REG

SOURCE

= 60mA 0.5 V

SOURCE

EAN_ connected to
EAOUT_
(Note 3)

T

= 0 to 65mA 4.75 5.10 5.30 V

= -40°C to +125°C 0.605 0.6125 0.620 V

A

528

4.75 5.50

200 mV

1.35 3 Ω

0.45 1.35 Ω

2.5 A

5A

V

Clock

cycles

MAX15034

Configurable, Single-/Dual-Output, Synchronous

Buck Controller for High-Current Applications

_______________________________________________________________________________________ 3

ELECTRICAL CHARACTERISTICS (continued)

(VIN= V

REG

= VDD= V

EN_

= +5V, TA= TJ= T

MIN

to T

MAX

, unless otherwise noted, circuit of Figure 6. Typical values are at TA= +25°C.)

(Note 2)

Nonoverlap Time (Dead Time) t

RT/CLKIN Output Voltage V

RT/CLKIN Current Sourcing
Capability

RT/CLKIN Logic-High Threshold V

RT/CLKIN Logic-Low Threshold V

RT/CLKIN High Pulse Width t

RT/CLKIN Synchronization
Frequency Range

CURRENT LIMIT

Internal Average Current-Limit
Threshold

Reverse Average Current-Limit
Threshold

External Average Current-Limit
Threshold Adjustment

AVGLIMIT Ground Threshold
Voltage

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

NO

RT/CLKIN

I

RT/CLKIN

RT/CLKIN_H

RT/CLKIN_L

RT/CLKIN

f

RT/CLKIN

V

CL_

V

RCL_

V

CL_ADJ

V

AVGLIMIT_GND

C

or C

DH_

fSW = 1MHz nominal, RRT = 12.4kΩ -10 +10

V

CSP_

V

CSP_

Resistor-divider connected from REG
to AVGLIMIT to AGND

- V

- V

DL_

CSN_

CSN_

= 5nF

-7.5 +7.5

1.225 V

0.5 mA

2.4 V

0.8 V

30 ns

200 2000 kHz

20.4 22.5 24.75 mV

-3.0 -1.53 -0.1 mV

V

AVGLIMIT

-

0.6/36

550 mV

%

V

Leakage Current at AVGLIMIT I

DIGITAL FAULT INTEGRATION (DF_)

Number of Switching Cycles to
Shutdown in Current Limit

Number of Switching Cycles to
Recover from Shutdown

CURRENT-SENSE AMPLIFIER

CSP_ to CSN_ Input Resistance R

Common-Mode Range V

Input Offset Voltage V

Amplifier Gain A

AVGLIMIT

NS

NR

CMR(CS)

DF_

DF_

CS_

OS(CS)

V(CS)

V

AVGLIMIT

VIN = V
V

IN

VIN = 7V to 28V -0.3 +5.5 V

= 3V 100 nA

32,768

524,288

3.8 kΩ

= 4.75V to 5.5V or

REG

= 5V to 10V

-0.3 +3.6 V

100 μV

36 V/V

Clock

cycles

Clock

cycles

MAX15034

Configurable, Single-/Dual-Output, Synchronous
Buck Controller for High-Current Applications

4 _______________________________________________________________________________________

ELECTRICAL CHARACTERISTICS (continued)

(VIN= V

REG

= VDD= V

EN_

= +5V, TA= TJ= T

MIN

to T

MAX

, unless otherwise noted, circuit of Figure 6. Typical values are at TA= +25°C.)

(Note 2)

)

Note 2: The device is 100% production tested at TA= TJ= +125°C. Limits at TA= -40°C and TA= +25°C are guaranteed by design.
Note 3: The internal reference voltage accuracy is measured at the negative input of the error amplifiers (EAN_). Output voltage

accuracy must include external resistor-divider tolerances.

-3dB Bandwidth f

CSP_ Input Bias Current I

CURRENT-ERROR AMPLIFIER (CEA_)

Transconductance g

Open-Loop Gain A

VOLTAGE-ERROR AMPLIFIER (EAOUT_)

Open-Loop Gain A

Unity-Gain Bandwidth f

EAN_ Input Bias Current I

Error-Amplifier Output Clamping
High Voltage

Error-Amplifier Output Clamping
Low Voltage

EN_ INPUTS

EN_ Input High Voltage V

EN_ Hysteresis 0.05

EN_ Input Leakage Current I

Startup Delay Time to OUT_ t

MODE INPUT

MODE Logic-High Threshold V

MODE Logic-Low Threshold V

MODE Input Pulldown I

PREBIASED OUTPUT

Peak Sink Current-Limit
Threshold during Reference
Soft-Start

Digital Ramp Period for
Stepping Peak Sink Current
Limit after Reference Soft-Start

THERMAL SHUTDOWN

Thermal Shutdown T

Thermal Shutdown Hysteresis T

PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS

-3dB

CSA(IN)

m

VOL(CEA)

VOL(EA)

UGEA

BIAS(EA)

V

C LM P_ H I (E A)

V

C LM P_LO ( EA

ENH

EN

START_DELAY

MODE_H

MODE_L

PULLDWN

SHDN

HYST

4 MHz

V

= 5.5V, sinking 120

CSP_

V

= 0V, sourcing 30

CSP_

550 μS

No load 50 dB

70 dB

3 MHz

V

= 2.0V 100 nA

EAN_

With respect to V

With respect to V

EN rising 1.2 1.222 1.245

From EN_ rising to V

- V

V

CSP_

CSN_

CM

CM

-200 +200 nA

rising 1 ms

OUT_

2.4 V

1V

-0.234 V

0.8 V

5μA

-2.1 mV

448

160

10

μA

V

Clock

cycles

°C

MAX15034

Configurable, Single-/Dual-Output, Synchronous

Buck Controller for High-Current Applications

OSCILLATOR FREQUENCY vs. R

T

MAX15034 toc01

RT (kΩ)

OSCILLATOR FREQUENCY (kHz)

900800700600500400300200100

100

1000

10,000

10

0 1000

C

DH_

= C

DL_

= 0

SUPPLY CURRENT

vs. TEMPERATURE AND FREQUENCY

(V

IN

= 5V)

MAX15034 toc02a

TEMPERATURE (°C)

SUPPLY CURRENT (mA)

11095-25 -10 5 35 50 6520 80

2

4

6

8

10

12

14

16

0

-40 125

C

DH_

= C

DL_

= 0

fSW = 1MHz

fSW = 250kHz

fSW = 500kHz

fSW = 125kHz

SUPPLY CURRENT

vs. TEMPERATURE AND FREQUENCY

(V

IN

= 12V)

MAX15034 toc02b

TEMPERATURE (°C)

SUPPLY CURRENT (mA)

11095-25 -10 5 35 50 6520 80

2

4

6

8

10

12

14

16

0

-40 125

C

DH_

= C

DL_

= 0

fSW = 1MHz

fSW = 250kHz

fSW = 500kHz

fSW = 125kHz

SUPPLY CURRENT

vs. TEMPERATURE AND FREQUENCY

(V

IN

= 24V)

MAX15034 toc02c

TEMPERATURE (°C)

SUPPLY CURRENT (mA)

11095-25 -10 5 35 50 6520 80

2

4

6

8

10

12

14

16

0

-40 125

C

DH_

= C

DL_

= 0

fSW = 1MHz

fSW = 250kHz

fSW = 500kHz

fSW = 125kHz

SUPPLY CURRENT

vs. OSCILLATOR FREQUENCY

MAX15034 toc03

FREQUENCY (kHz)

SUPPLY CURRENT (mA)

18001600400 600 800 12001000 1400

7

8

9

10

11

12

13

14

6

200 2000

C

DH_

= C

DL_

= 0

VIN = 24V

VIN = 5V

VIN = 12V

SUPPLY CURRENT

vs. DRIVER LOAD CAPACITANCE

MAX15034 toc04

C

LOAD

(nF)

SUPPLY CURRENT (mA)

252015105

10

20

30

40

50

60

70

80

90

100

0

030

C

LOAD

= C

DH_

= C

DL_

REG LOAD REGULATION

MAX15034 toc05

I

REG

(mA)

V

REG

(V)

908070605040302010

4.95

5.00

5.05

5.10

4.90
0100

VIN = 12V

VIN = 24V

VIN = 5.5V

REG LINE REGULATION

MAX15034 toc06

VIN (V)

V

REG

(V)

2321191715131197

4.98

5.00

5.02

5.04

5.06

5.08

5.10

4.96
5

I

REG

= 0

I

REG

= 60mA

OUTPUT LOAD-TRANSIENT RESPONSE

MAX15034 toc07

2ms/div

10A/div

I

OUT

V

OUT

100mV/div
AC-COUPLED

20A

Typical Operating Characteristics

(Circuit of Figure 6, TA= +25°C, unless otherwise noted. VIN= 12V, V

OUT1

= 0.8V, V

OUT2

= 1.3V, fSW= 500kHz per phase.)

_______________________________________________________________________________________ 5

MAX15034

Configurable, Single-/Dual-Output, Synchronous
Buck Controller for High-Current Applications

6 _______________________________________________________________________________________

Typical Operating Characteristics (continued)

(Circuit of Figure 6, TA= +25°C, unless otherwise noted. VIN= 12V, V

OUT1

= 0.8V, V

OUT2

= 1.3V, fSW= 500kHz per phase.)

DRIVER RISE TIME

vs. LOAD CAPACITANCE

100

90

80

70

60

(ns)

50

RISE

t

40

30

20

10

0

022

HIGH-SIDE DRIVER RISE TIME

= 12V, C

(V

IN

DRIVER FALL TIME

vs. LOAD CAPACITANCE

40

DH_

C

(nF)

LOAD

MAX15034 toc08

DL_

201814 164 6 8 10 122

35

30

25

(ns)

20

FALL

t

15

10

5

0

022

C

(nF)

LOAD

DL_

DH_

MAX15034 toc09

201814 164 6 8 10 122

HIGH-SIDE DRIVER FALL TIME

LOAD

= 10nF)

MAX15034 toc10

DH_
2V/div

(V

IN

= 12V, C

LOAD

= 10nF)

MAX15034 toc11

DH_
2V/div

= 12V, C

IN

20ns/div

LOAD

20ns/div

= 10nF)

20ns/div

LOW-SIDE DRIVER RISE TIME

(V

IN

= 12V, C

LOAD

20ns/div

= 10nF)

MAX15034 toc12

DL_
2V/div

LOW-SIDE DRIVER FALL TIME

(V

MAX15034 toc13

DL_
2V/div

MAX15034

Configurable, Single-/Dual-Output, Synchronous

Buck Controller for High-Current Applications

TURN-ON/TURN-OFF WAVEFORM

MAX15034 toc15

1ms/div

V

OUT1

1V/div

EN1
5V/div

EN2
5V/div

V

OUT2

1V/div

_______________________________________________________________________________________ 7

Typical Operating Characteristics (continued)

(Circuit of Figure 6, TA= +25°C, unless otherwise noted. VIN= 12V, V

OUT1

= 0.8V, V

OUT2

= 1.3V, fSW= 500kHz per phase.)

SHORT-CIRCUIT CURRENT WAVEFORMS

(V

IN

= 5V)

MAX15034 toc16

200ms/div

I

OUT2

10A/div

I

OUT1

10A/div

AVERAGE CURRENT LIMIT

vs. V

AVGLIMIT

MAX15034 toc17

V

AVGLIMIT

(V)

AVERAGE CURRENT LIMIT (mV)

15

30

45

60

75

0

2.52.01.51.00.503.0

INTERNAL REFERENCE VOLTAGE

vs. TEMPERATURE

MAX15034 toc18

TEMPERATURE (°C)

INTERNAL REFERENCE VOLTAGE (V)

1109580655035205-10-25

0.610

0.615

0.620

0.605

-40 125

SWITCHING FREQUENCY

vs. TEMPERATURE

MAX15034 toc19

TEMPERATURE (°C)

SWITCHING FREQUENCY (kHz)

475

500

525

550

450

1109580655035205-10-25-40 125

OUT1/OUT2 OUT-OF-PHASE WAVEFORMS

(V

OUT1

= 0.8V, V

10μs/div

OUT2

= 1.3V)

MAX15034 toc14

LX1
10V/div

OUT1
100mV/div

LX2
10V/div

OUT2
100mV/div

MAX15034

Configurable, Single-/Dual-Output, Synchronous
Buck Controller for High-Current Applications

8 _______________________________________________________________________________________

Typical Operating Characteristics (continued)

(Circuit of Figure 6, TA= +25°C, unless otherwise noted. VIN= 12V, V

OUT1

= 0.8V, V

OUT2

= 1.3V, fSW= 500kHz per phase.)

SOFT-START WAVEFORM

MAX15034 toc22

400μs/div

EN2
5V/div

V

OUT2

500mV/div

V

EAN2

200mV/div

PREBIASED OUTPUT CONDITION

MAX15034 toc23

400μs/div

EN2
5V/div

0V

V

OUT2

500mV/div

DH2

5V/div

DL2

5V/div

EAOUT2
1V/div

INTERNAL AVERAGE CURRENT LIMIT

vs. TEMPERATURE

MAX15034 toc20

TEMPERATURE (°C)

INTERNAL AVERAGE CURRENT LIMIT (mV)

21

22

23

24

25

20

1109580655035205-10-25-40 125

INTERNAL AVERAGE REVERSE

CURRENT LIMIT vs. TEMPERATURE

MAX15034 toc21

INTERNAL AVERAGE CURRENT LIMIT (mV)

-2.5

-2.0

-1.5

-1.0

-0.5

0

-3.0

TEMPERATURE (°C)

1109580655035205-10-25-40 125

PEAK PULLUP AND PULLDOWN CURRENT

OR DRIVER AT DH_ AND DL_

MAX15034 toc24

200ns/div

C

LOAD

= 10nF

DH_
500mV/div

DL_
500mV/div

MAX15034

Configurable, Single-/Dual-Output, Synchronous

Buck Controller for High-Current Applications

_______________________________________________________________________________________ 9

Pin Description

PIN NAME FUNCTION

Current-Sense Differential Amplifier Negative Input for Output 2. Connect CSN2 to the negative terminal of

1 CSN2

2 CSP2

3 EAOUT2

4 EAN2

5 CLP2

6 AVGLIMIT

7 RT/CLKIN

8 AGND Analog Ground

9 MODE

10 CLP1

11 EAN1

12 EAOUT1

13 CSP1

14 CSN1

the sense resistor. The differential voltage between CSP2 and CSN2 is internally amplified by the current­sense amplifier (A

Current-Sense Differential Amplifier Positive Input for Output 2. Connect CSP2 to the positive terminal of the
sense resistor. The differential voltage between CSP2 and CSN2 is internally amplified by the current-sense
amplifier (A

Voltage Error-Amplifier Output 2. Connect to an external gain-setting feedback resistor. The error-amplifier
gain determines the output voltage load regulation for adaptive voltage positioning. This output also serves
as the compensation network connection from EAOUT2 to EAN2. A resistive network results in a drooped
output-voltage-regulation characteristic. An integrator configuration results in very tight output-voltage
regulation (see the Adaptive Voltage Positioning section).

Voltage Error-Amplifier Inverting Input for Output 2. Connect a resistive divider from V
AGND to set the output voltage. A compensation network connects from EAOUT2 to EAN2. A resistive
network results in a drooped output-voltage-regulation characteristic. An integrator configuration results in
very tight output-voltage regulation (see the Adaptive Voltage Positioning section).

Current-Error Amplifier Output 2. Compensate the current loop by connecting an R-C network from CLP2 to
AGND.

Average Current-Limit Programming. Connect a resistor-divider between REG, AVGLIMIT, and AGND to set
the average current-limit value (see the Programming Average the Current Limit section).

External Clock Input or Internal Frequency-Setting Connection. Connect a resistor from RT/CLKIN to AGND
to set the switching frequency. Connect an external clock at RT/CLKIN for external frequency
synchronization.

Mode Function Input. MODE selects between a single-output dual phase or a dual-output buck regulator.
When MODE is grounded, VEA1 and VEA2 connect to CEA1 and CEA2, respectively (see Figure 1) and the
device operates as a two-output, out-of-phase buck regulator. When MODE is connected to REG (logic
high), VEA2 is disconnected and VEA1 is routed to both CEA1 and CEA2.

Current-Error Amplifier Output 1. Compensate the current loop by connecting an R-C network from CLP1 to
AGND.

Voltage Error-Amplifier Inverting Input for Output 1. Connect a resistive divider from V
regulate the output voltage. A compensation network connects from EAOUT1 to EAN1. A resistive network
results in a drooped output-voltage-regulation characteristic. An integrator configuration results in very tight
output-voltage regulation (see the Adaptive Voltage Positioning section).

Voltage Error-Amplifier Output 1. Connect to an external gain-setting feedback resistor. The error-amplifier
gain determines the output-voltage-load regulation for adaptive voltage positioning. This output also serves
as the compensation network connection from EAOUT1 to EAN1. A resistive network results in a drooped
output-voltage-regulation characteristic. An integrator configuration results in very tight output-voltage
regulation (see the Adaptive Voltage Positioning section).

Current-Sense Differential Amplifier Positive Input for Output 1. Connect CSP1 to the positive terminal of the
sense resistor. The differential voltage between CSP1 and CSN1 is internally amplified by the current-sense
amplifier (A

Current-Sense Differential Amplifier Negative Input for Output 1. Connect CSN1 to the negative terminal of
the sense resistor. The differential voltage between CSP1 and CSN1 is internally amplified by the current­sense amplifier (A

V(CS)

V(CS)

= 36V/V).

V(CS)

= 36V/V).

= 36V/V).

= 36V/V).

V(CS)

to EAN2 to

OUT2

to EAN1 to

OUT1

MAX15034

Configurable, Single-/Dual-Output, Synchronous
Buck Controller for High-Current Applications

10 ______________________________________________________________________________________

Detailed Description

The MAX15034 switching power-supply controller can
be configured two ways. With the MODE input high, this
device operates as single-output, dual-phase, step­down switching regulators where each output is 180°
out of phase. With MODE connected low, the
MAX15034 operates as a dual-output, step-down
switching regulator. The average current-mode control
topology of the MAX15034 offers high-noise immunity
while having benefits similar to those of peak current­mode control. Average current-mode control has the
intrinsic ability to accurately limit the average current
sourced by the converter during a fault condition. When
a fault condition occurs, the error-amplifier output volt­age (EAOUT1 or EAOUT2) that connects to the positive

input of the transconductance amplifier (CA1 or CA2) is
clamped, thus limiting the output current.

The MAX15034 has internal logic to ensure each output’s
monotonic startup under prebias load conditions. This
facilitates glitch-free output voltage power-up in the pres­ence of another redundant/parallel voltage regulator.

The MAX15034 contains all blocks necessary for two
independently regulated average current-mode PWM
regulators. This device has two voltage error amplifiers
(VEA1 and VEA2), two current-error amplifiers (CEA1
and CEA2), two current-sensing amplifiers (CA1 and
CA2), two PWM comparators (CPWM1 and CPWM2),
and drivers for both low- and high-side power MOSFETs
(see Figure 1). Each PWM section is also equipped with
a pulse-by-pulse, current-limit protection and a fault
integration block for hiccup protection.

Pin Description (continued)

PIN NAME FUNCTION

15 EN1

16 BST1

17 DH1 High-Side Gate Driver Output 1. DH1 drives the gate of the high-side MOSFET.

18 LX1

19 DL1 Low-Side Gate Driver Output 1. Gate driver output for the synchronous MOSFET.

20 V

21 REG

22 IN Supply Voltage Connection. Connect IN to a 5V to 28V input supply.

23 PGND

24 DL2 Low-Side Gate Driver Output 2. Gate driver for the synchronous MOSFET.

25 LX2

26 DH2 High-Side Gate Driver Output 2. DH2 drives the gate of the high-side MOSFET.

27 BST2

28 EN2

— EP Exposed Pad. Connect exposed pad to ground plane (MAX15034BAUI only).

DD

Output 1 Enable. A logic-low shuts down channel 1’s MOSFET drivers. EN1 can be used for output
sequencing.

Boost Flying-Capacitor Connection. Reservoir capacitor connection for the high-side MOSFET driver
supply. Connect a 0.47μF ceramic capacitor between BST1 and LX1.

External Inductor Connection and Source Connection for the High-Side MOSFET for Output 1. LX1 also
serves as the return terminal for the high-side MOSFET driver.

Supply Voltage for Low-Side Drivers. REG powers VDD. Connect a parallel combination of 0.1μF and 1μF
ceramic capacitors from V
currents of the driver from the internal circuitry.

Internal 5V Regulator Output. REG is derived internally from IN and is used to power the internal bias
circuitry. Bypass REG to AGND with a 4.7μF ceramic capacitor.

Power Ground. Source connection for the low-side MOSFET. Connect V
PGND.

External Inductor Connection and Source Connection for the High-Side MOSFET for Output 2. Also serves
as the return terminal for the high-side MOSFET driver.

Boost Flying-Capacitor Connection. Reservoir capacitor connection for the high-side MOSFET driver
supply. Connect a 0.47μF ceramic capacitor between BST2 and LX2.

Output 2 Enable. A logic-low shuts down channel 2’s MOSFET drivers. EN2 can be used for output
sequencing.

to PGND and a 1Ω resistor from VDD to REG to filter out the high-peak

DD

’s bypass capacitor returns to

DD

MAX15034

Two enable comparators (CEN1 and CEN2) are avail­able to control and sequence the two PWM sections
through the enable (EN1 or EN2) inputs. An oscillator,
with an externally programmable frequency generates
two clock pulse trains and two ramps for both PWM
sections. The two clocks and the two ramps are 180°
out of phase with each other.

A linear regulator (REG) generates the 5V to supply the
device. This regulator has the output-current capability
necessary to provide for the MAX15034’s internal

circuitry and the power for the external MOSFET’s gate
drivers. Internal UVLO circuitry ensures that the
MAX15034 starts up when V

REG

is at the correct volt­age levels to guarantee safe operation of the IC and of
the power MOSFETs.

Finally, a thermal-shutdown feature protects the device
during thermal faults and shuts down the MAX15034
when the die temperature exceeds +160°C.

Figure 1. Block Diagram

Configurable, Single-/Dual-Output, Synchronous

Buck Controller for High-Current Applications

______________________________________________________________________________________ 11

CLP1

EAN1

REG

EN1

10

CA1

12EAOUT1

11

VEA1

IN

21

15

REG

= 5V

V

22

UVLO

FOR INTERNAL
BIASING

1.225V

2V

RAMP

CEN1

CEA1

P-P

DF1 AND

HICCUP

LOGIC

CPWM1

CONTROL

AND DRIVER

LOGIC 1

0°

CSP1

13

CSN1

14

BST1

16

DH1

17

LX1

18

V

20

DD

DL1

19

EN2

AGND

EAN2

EAOUT2

MODE

CLP2

6

V

= 0.61V

INTREF

28

8

VEA2

4

3

9

5

1.225V
CEN2

MUX

AVGLIMIT

THERMAL

SHUTDOWN

2V

P-P

RAMP

CEA2

OSCILLATOR

AND PHASE

SPLITTER

CPWM2

EXTERNAL FREQUENCY SYNC

180°

CONTROL

AND DRIVER

LOGIC 2

DF2 AND

HICCUP

LOGIC

CA2

V

DD

7

27

26

25

24

23

2

1

RT/CLKIN

BST2

DH2

LX2

DL2

PGND

CSP2

CSN2

MAX15034

Configurable, Single-/Dual-Output, Synchronous
Buck Controller for High-Current Applications

12 ______________________________________________________________________________________

Dual-Output/Dual-Phase Select (MODE)

The MAX15034 can operate as a dual-output, indepen­dently regulated buck converter, or as a dual-phase,
single-output buck converter. The MODE input selects
between the two operating modes. When MODE is
grounded (logic-low), VEA1 and VEA2 connect to CEA1
and CEA2, respectively (see Figure 1), and the device
operates as a two-output DC-DC converter. When
MODE is connected to REG (logic-high), VEA2 is dis­connected and VEA1 is routed to both CEA1 and CEA2
and the device works as a dual-phase, single-output
buck regulator with each output 180° out of phase with
respect to each other.

Supply Voltage Connections (VIN/V

REG

)

The MAX15034 accepts a wide input voltage range at
IN of 5V to 28V. An internal linear regulator steps down
V

IN

to 5.1V (typ) and provides power to the MAX15034.

The output of this regulator is available at REG. For V

IN

= 4.75V to 5.5V, connect IN and REG together external­ly. REG can supply up to 65mA for external loads.
Bypass REG to AGND with a 4.7μF ceramic capacitor
for high-frequency noise rejection and stable operation.

REG supplies the current for the MAX15034’s internal
circuitry and for the MOSFET gate drivers (when con­nected externally to V

DD

), and can source up to 65mA.

Calculate the maximum bias current (I

BIAS

) for the

MAX15034:

where IINis the quiescent supply current into IN (4mA,
typ), Q

GQ1

, Q

GQ2

, Q

GQ3

, Q

GQ4

are the total gate
charges of MOSFETs Q1 through Q4 at VGS= 5V (see
Figure 6), and fSWis the switching frequency of each
individual phase.

Low-Side MOSFET Driver Supply (VDD)

VDDis the power input for the low-side MOSFET dri­vers. Connect the regulator output REG externally to
VDDthrough an R-C lowpass filter. Use a 1Ω resistor
and a parallel combination of 1μF and 0.1μF ceramic
capacitors to filter out the high peak currents of the
MOSFET drivers from the sensitive internal circuitry.

High-Side MOSFET Drive Supply (BST_)

BST1 and BST2 supply the power for the high-side
MOSFET drivers for output 1 and output 2, respectively.
Connect BST1 and BST2 to VDDthrough rectifier
diodes D1 and D2 (see Figure 6). Connect a 0.1μF
ceramic capacitor between BST_ and LX_.

Minimize the trace inductance from BST_ and VDDto
the rectifier diodes, D1 and D2, and from BST_ and LX_
to the boost capacitors, C8 and C9 (see Figure 6). This
is accomplished by using short, wide trace lengths.

Undervoltage Lockout (UVLO)/

Power-On Reset (POR)/Soft-Start

The MAX15034 includes an undervoltage lockout
(UVLO) with hysteresis, and a power-on reset circuit for
converter turn-on and monotonic rise of the output volt­age. The UVLO threshold monitors V

REG

and is inter­nally set between 4.0V and 4.5V with 200mV of
hysteresis. Hysteresis eliminates chattering during
startup. Most of the internal circuitry, including the
oscillator, turns on when V

REG

reaches 4.5V. The
MAX15034 draws up to 4mA (typ) of current before
V

REG

reaches the UVLO threshold.

The compensation network at the current-error ampli­fiers (CLP1 and CLP2) provides an inherent soft-start of
the output voltage. It includes (R14 and C10) in parallel
with C11 at CLP1 and (R15 and C12) in parallel with
C13 at CLP2 (see Figure 6). The voltage at the current­error amplifier output limits the maximum current avail­able to charge the output capacitors. The capacitor at
CLP_ in conjunction with the finite output-drive current
of the current-error amplifier yields a finite rise time for
the output current and thus, the output voltage.

Setting the Switching Frequency (fSW)

An internal oscillator generates the 180oout-of-phase
clock signals required for both PWM modulators. The
oscillator also generates the 2V

P-P

voltage ramps nec­essary for the PWM comparators. The oscillator fre­quency can be set from 200kHz to 2MHz by an external
resistor (RT) connected from RT/CLKIN to AGND (see
Figure 6). The equation below shows the relationship
between RTand the switching frequency:

where R

RT

is in ohms and the per-phase switching fre-

quency is fSW= f

OSC

/2.

Use RT/CLKIN as a clock input to synchronize the
MAX15034 to an external frequency (f

RT/CLKIN

).
Applying an external clock to RT/CLKIN allows each
PWM section to work at a frequency equal to
f

RT/CLKIN

/2. An internal comparator with a 1.6V thresh-

old detects f

RT/CLKIN

. If f

RT/CLKIN

is present, internal
logic switches from the internal oscillator clock, to the
clock present at RT/CLKIN.

IIfQQQQ

=+×+++

BIAS IN SW GQ GQ GQ GQ

()

1234

.

×25 10

=

OSC

R

RT

10

Hz

MAX15034

Configurable, Single-/Dual-Output, Synchronous

Buck Controller for High-Current Applications

______________________________________________________________________________________ 13

Hiccup Fault Protection

The MAX15034 includes overload fault protection circuitry
that prevents damage to the power MOSFETs. The fault
protection consists of two digital fault integration blocks
that enable hiccuping under overcurrent conditions. This
circuit works as follows: for every clock cycle the current­limit threshold is exceeded, the fault integration counter
increments by one count. Thus, if the current-limit condi­tion persists, the counter reaches its shutdown threshold
in 32,768 counts and shuts down the external MOSFETs.
When the MAX15034 shuts down due to a fault, the
counter begins to count down (since the current-limit con­dition has ended), once every 16 clock cycles. Thus, the
device counts down for 524,288 clock cycles. At this
point, switching resumes. This produces an effective duty
cycle of 6.25% power-up and 93.75% power-down under
fault conditions. With a switching frequency set to
250kHz, power-up and power-down times are approxi­mately 131ms and 2.09s, respectively.

Control Loop

The MAX15034 uses an average current-mode control
topology to regulate the output voltage. The control
loop consists of an inner current loop and an outer volt­age loop. The inner current loop controls the output

current, while the outer voltage loop controls the output
voltage. The inner current loop absorbs the inductor
pole, reducing the order of the outer voltage loop to
that of a single-pole system. Figure 2 is the block dia­gram of OUT1’s control loop.

The current loop consists of a current-sense resistor,
R

SENSE

, a current-sense amplifier (CA1), a current­error amplifier (CEA1), an oscillator providing the carri­er ramp, and a PWM comparator (CPWM1). The
precision current-sense amplifier (CA1) amplifies the
sense voltage across R

SENSE

by a factor of 36. The
inverting input to CEA1 senses the output of CA1. The
output of CEA1 is the difference between the voltage­error amplifier output (EAOUT1) and the gained-up volt­age from CA1. The RC compensation network
connected to CLP1 provides external frequency com­pensation for the respective CEA1 (see the

Compensation

section). The start of every clock cycle
enables the high-side driver and initiates a PWM on­cycle. Comparator CPWM1 compares the output volt­age from CEA1 against a 0 to 2V ramp from the
oscillator. The PWM on-cycle terminates when the ramp
voltage exceeds the error voltage from the current-error
amplifier (CEA1).

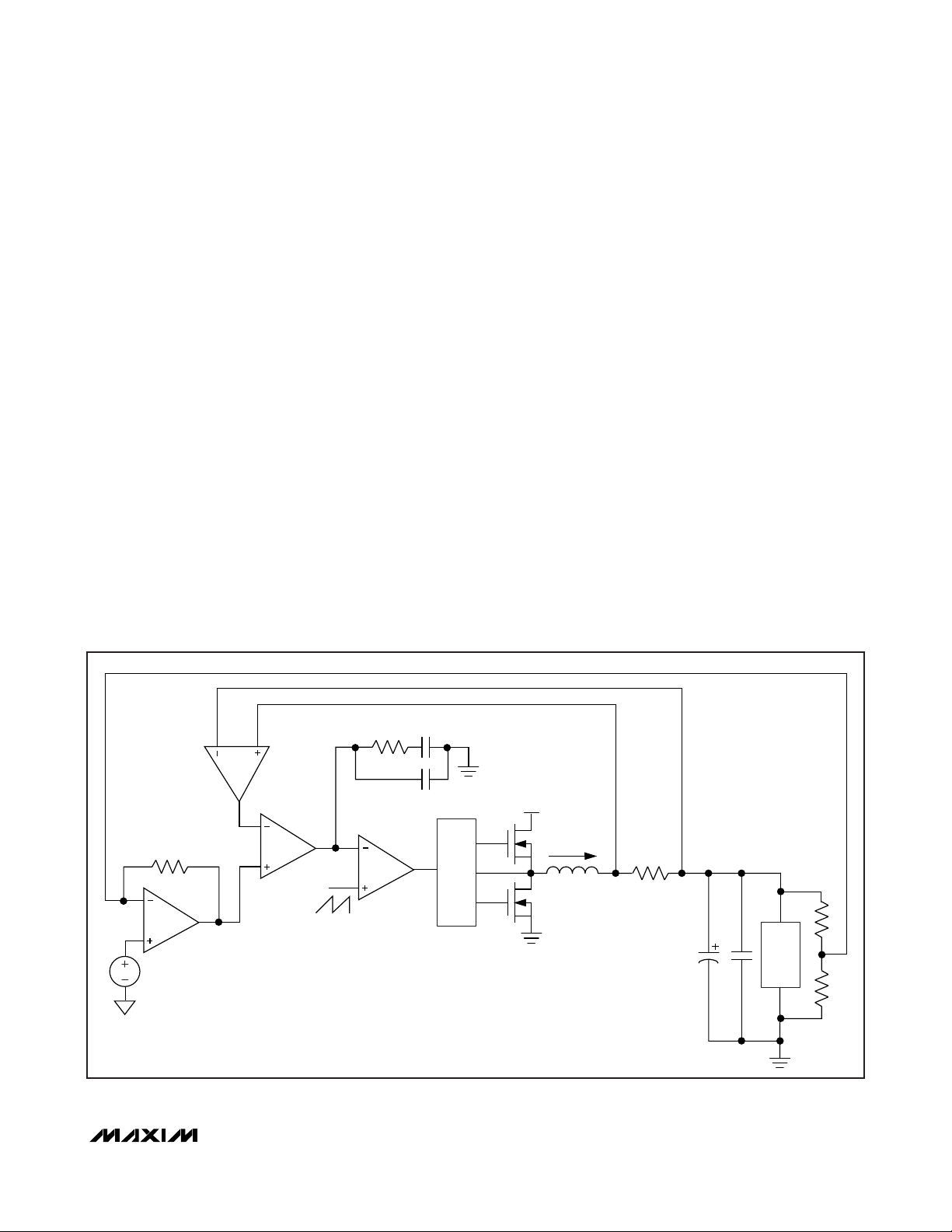

Figure 2. Current and Voltage Loops

CSN1

R

F

VEA1

V

= 0.61V

REF

CSP1

CA 1

CEA1

C

R

CF

CF

CLP1

CPWM1

2V

P-P

C

CFF

DRIVE

V

IN

I

L

R

SENSE

V

OUT1

R1

C

OUT

LOAD

R2

MAX15034

Configurable, Single-/Dual-Output, Synchronous
Buck Controller for High-Current Applications

14 ______________________________________________________________________________________

The outer voltage control loop consists of the voltage­error amplifier (VEA1). The noninverting input (EAN1) is
externally connected to the midpoint of a resistive volt­age-divider from OUT1 to EAN1 to AGND. The voltage
loop gain is set by using an external resistor from the
output of this amplifier (EAOUT1) to its inverting input
(EAN1). The noninverting input of (VEA1) is connected
to the 0.61V internal reference.

Current-Error Amplifier

The MAX15034 features two dedicated transconduc­tance current-error amplifiers CEA1 and CEA2 with a
typical gmof 550μS and 320μA output sink and source
capability. The current-error amplifier outputs (CLP1 and
CLP2) serve as the inverting input to the PWM compara­tors. CLP1 and CLP2 are externally accessible to pro­vide frequency compensation for the inner current loops
(see C

CFF

, CCF, and RCFin Figure 2). Compensate the
current-error amplifier so that the inductor current down
slope, which becomes the up slope at the inverting
input of the PWM comparator, is less than the slope of
the internally generated voltage ramp (see the

Compensation

section).

PWM Comparator and R-S Flip-Flop

The PWM comparator (CPWM1 or CPWM2) sets the
duty cycle for each cycle by comparing the current­error amplifier output to a 2V

P-P

ramp. At the start of
each clock cycle an R-S flip-flop resets and the high­side drivers (DH1 and DH2) turn on. The comparator
sets the flip-flop as soon as the ramp voltage exceeds
the current-error amplifier output voltage, thus terminat­ing the on-cycle.

Voltage-Error Amplifier

The voltage-error amplifier (VEA_) sets the gain of the
voltage control loop. Its output clamps to 1.14V and

-0.234V relative to VCM= 0.61V. Set the MAX15034 out­put voltage by connecting a voltage-divider from the
output to EAN_ to GND (see Figure 4). At no load, the
output of the voltage error amplifier is zero.

Use the equation below to calculate the no load voltage:

The voltage at full load is given by:

where Δ V

OUT

is the voltage-positioning window

described in the

Adaptive Voltage Positioning

section.

Adaptive Voltage Positioning

Powering new-generation ICs requires new techniques
to reduce cost, size, and power dissipation. Voltage
positioning (Figure 5) reduces the total number of out­put capacitors to meet a given transient response
requirement. Setting the no-load output voltage slightly
higher than the output voltage during nominally loaded
conditions allows a larger downward voltage excursion
when the output current suddenly increases.
Regulating at a lower output voltage under a heavy
load allows a larger upward-voltage excursion when
the output current suddenly decreases. A larger
allowed voltage-step excursion reduces the required
number of output capacitors and/or allows the use of
higher ESR capacitors.

The MAX15034 internal 0.6125V reference provides a
tolerance of ±1.25%. Using 0.1% resistors for R1 and
R2 allows a 4% variation from the nominal output volt­age. This available voltage range allows the reduction
of the total number of output capacitors to meet a given
transient response requirement resulting in a voltage­positioning window as shown in Figure 5.

From the allowable voltage-positioning window calcu­late the value of RFfrom the equation below.

where ΔV

OUT

is the allowable voltage-positioning win-

dow, R

SENSE

is the sense resistor, 36 is the current-

sense amplifier gain, and R1is as shown in Figure 4.

V

OUT NL()

.=×+

0 6125 1

⎛
⎜

⎝

⎞

R

1

⎟

R

⎠

2

⎛

⎞

R

V

OUT FL OUT()

.=×+

1

V

−0 6125 1

⎜
⎝

Δ

⎟

R

⎠

2

IR R

F

V

Δ

OUT

×××36

OUT SENSE

R

=

1

MAX15034

MOSFET Gate Drivers (DH_, DL_)

The high-side drivers (DH1 and DH2) and low-side dri­vers (DL1 and DL2) drive the gates of external n-channel
MOSFETs. The high-peak sink and source current capa­bility of these drivers provides ample drive for the fast
rise and fall times of the switching MOSFETs. Faster rise
and fall times result in reduced switching losses. For low­output, voltage-regulating applications where the duty

cycle is less than 50%, choose high-side MOSFETs (Q2
and Q4, Figure 6) with a moderate R

DS(ON)

and a very
low gate charge. Choose low-side MOSFETs (Q1 and
Q3, Figure 6) with very low R

DS(ON)

and moderate gate
charge. The driver block also includes a logic circuit that
provides an adaptive nonoverlap time (30ns typ) to pre­vent shoot-through currents during transition. Figure 7
shows the dual-phase, single-output buck regulator.

Figure 3. Current Comparator and MOSFET Driver Logic

Figure 4. Voltage Error Amplifier

Figure 5. Defining the Voltage-Positioning Window

Configurable, Single-/Dual-Output, Synchronous

Buck Controller for High-Current Applications

______________________________________________________________________________________ 15

CLP_

A

= 36V/V

CSP_

CSN_

GM

RAMP

CLK

EN_

IN

2 x fSW (V/S)

V

gm = 500μS

PWM

COMPARATOR

1.225V

V

OUT

V

CNTR

+ ΔV

OUT

V

DD

BST_

S

R

/2

Q

Q

DH_

LX_

DL_

PGND

VOLTAGE-POSITIONING WINDOW

R

F

R

1

C

OUT

LOAD

EAN_

R

2

V

= 0.61V

REF

EAOUT_

V

CNTR

- ΔV

V

CNTR

/2

OUT

NO LOAD

1/2 LOAD

LOAD (A)

FULL LOAD

MAX15034

Configurable, Single-/Dual-Output, Synchronous
Buck Controller for High-Current Applications

16 ______________________________________________________________________________________

Figure 6. Dual-Output Buck Regulator

V

IN

1μF

R1

0.8V/10A

680μF

C6

R4

1.74kΩ

R5

4.64kΩ

2mΩ

C2

(100mA, 30V)

V

REG

L1

0.5μH

0.1μF

R16

100kΩ

R17

100kΩ

V

IN

MAX15034

AVGLIMIT

REG

V

D1

22Ω

29.4kΩ

C15

0.1μF

Q2

IRF7821

Q1

IRF7832

R8

C14

0.1μF

C8

DD

BST1

DH1

LX1

DL1

CSP1
CSN1

EAN1

EAOUT1

EN1

EN2

PGND

RT/CLKIN

REG

BST2

DH2

LX2

DL2

PGND

CSP2

CSN2

EAN2

EAOUT2

MODE

CLP1

CLP2

AGND

22Ω

Q4

IRF7821

Q3

IRF7832

60.4kΩ

R3

1Ω

D2
(100mA, 30V)

C9

0.1μF

L2

0.8μH

R9

C10

R14

15nF

1kΩ

C11

120pF

C13

120pF

C12

15nF

R15
1kΩ

C3

0.1μF

2mΩ

R2

C4

4.7μF

5.11kΩ

4.75kΩ

C7
680μF

C5
10μF

R6

R7

1.3V/10A

EXTERNAL FREQUENCY SYNC

24.9kΩ

R18

19.6kΩ

R

T

R19
10kΩ

MAX15034

Figure 7. Dual-Phase, Single-Output Buck Regulator

Configurable, Single-/Dual-Output, Synchronous

Buck Controller for High-Current Applications

______________________________________________________________________________________ 17

V

IN

C5

C4

4.7μF

10μF

1.3V/20A

680μF

V

D1

(100mA, 30V)

C2

1μF

C8

0.1μF

R1

2mΩ

C6

L1

0.8μH

22Ω

Q2

IRF7821

Q1

IRF7832

DD

BST1

DH1

LX1

DL1

IN

MAX15034

REG

BST2

DH2

LX2

DL2

22Ω

Q4

IRF7821

Q3

IRF7832

D2
(100mA, 30V)

C9

0.1μF

L2

0.8μH

C3

0.1μF

2mΩ

R3

1Ω

R2

R4

5.11kΩ

R5

4.75kΩ

PGND

CSP1
CSN1

EAN1

R8

60.4kΩ

V

REG

R16

100kΩ

R17

100kΩ

C15

0.1μF

C14

0.1μF

EAOUT1

EN1

EN2

PGND

24.9kΩ

RT/CLKIN

R

T

AVGLIMIT

CSP2

CSN2

EAN2

EAOUT2

MODE

CLP1

CLP2

AGND

1kΩ

R15

1kΩ

R14

TO REG

C11

120pF

C13

120pF

C10

15nF

C12

15nF

EXTERNAL FREQUENCY SYNC

MAX15034

Configurable, Single-/Dual-Output, Synchronous
Buck Controller for High-Current Applications

18 ______________________________________________________________________________________

Design Procedures

Inductor Selection

The switching frequency per phase, peak-to-peak ripple
current in each phase, and allowable voltage ripple at
the output, determine the inductance value. Selecting
higher switching frequencies reduces the inductance
requirement, but at the cost of lower efficiency due to
the charge/discharge cycle of the gate and drain
capacitances in the switching MOSFETs. The situation
worsens at higher input voltages, since capacitive
switching losses are proportional to the square of the
input voltage. Lower switching frequencies on the other
hand increase the peak-to-peak inductor ripple current
(ΔI

L

), and therefore, increase the MOSFET conduction

losses (see the

Power MOSFET Selection

section for a

detailed description of MOSFET power loss).

When using higher inductor ripple current, the ripple can­cellation in the multiphase topology, reduces the input
and output capacitor RMS ripple current. Use the follow­ing equation to determine the minimum inductance value:

Choose ΔI

L

to be equal to approximately 30% of the out­put current per channel. Since ΔILaffects the output-rip­ple voltage, the inductance value may need minor
adjustment after choosing the output capacitors for full­rated efficiency. Choose inductors from the standard
high-current, surface-mount inductor series available
from various manufacturers. Particular applications may
require custom-made inductors. Use high-frequency core
material for custom inductors. High ΔILcauses large
peak-to-peak flux excursion increasing the core losses at
higher frequencies. The high-frequency operation cou­pled with high ΔIL, reduces the required minimum induc­tance and even makes the use of planar inductors
possible. The advantages of using planar magnetics
include low-profile design, excellent current sharing
between phases due to the tight control of parasitics, and
low cost. For example, the minimum inductance at VIN=
12V, V

OUT

= 0.8V, ΔIL= 3A, and fSW= 500kHz is 0.5μH.

The average current-mode control feature of the
MAX15034 limits the maximum inductor current, which
prevents the inductor from saturating. Choose an
inductor with a saturating current greater than the
worst-case peak inductor current:

where 24.75mV is the maximum average current-limit
threshold for the current-sense amplifier and R

SENSE

is

the sense resistor.

Power MOSFET Selection

When choosing the MOSFETs, consider the total gate
charge, R

DS(ON)

, power dissipation, the maximum
drain-to-source voltage, and package thermal imped­ance. The product of the MOSFET gate charge and on­resistance is a figure of merit, with a lower number
signifying better performance. Choose MOSFETs opti­mized for high-frequency switching applications. The
average gate-drive current from the MAX15034’s output
is proportional to the total capacitance it drives at DH1,
DH2, DL1, and DL2. The power dissipated in the
MAX15034 is proportional to the input voltage and the
average drive current. See the

Supply Voltage

Connections (VIN/V

REG

)

and the

Low-Side MOSFET

Drives Supply (VDD)

sections to determine the maxi­mum total gate charge allowed from all driver outputs
together.

The losses may be broken into four categories: conduc­tion loss, gate drive loss, switching loss, and output loss.
The following simplified power loss equation is true for
both MOSFETs in the synchronous buck-converter:

For the low-side MOSFET, the P

SWITCH

term becomes
virtually zero because the body diode of the MOSFET is
conducting before the MOSFET is turned on.

Tables 1 and 2 describe the different losses and shows
an approximation of the losses during that period.

Input Capacitance

The discontinuous input-current waveform of the buck
converter causes large ripple currents in the input
capacitor. The switching frequency, peak inductor cur­rent, and the allowable peak-to-peak voltage ripple
reflected back to the source, dictate the capacitance
requirement. Increasing the number of phases increas­es the effective switching frequency and lowers the
peak-to-average current ratio, yielding lower input
capacitance requirement. It can be shown that the
worst-case RMS current occurs when only one con­troller section is operating. The controller section with
the highest output power needs to be used in determin­ing the maximum input RMS ripple current requirement.
Increasing the output current drawn from the other out­of-phase controller section results in reducing the input

VV V

()

OUT IN MAX OUT

L

=

Vf I

××

IN SW L

I

_

L PEAK

24 75 10

−

()

Δ

. =×

R

SENSE

−

3

Δ

+

I

L

2

PP P

LOSS CONDUCTION GATEDRIVE

=+

PP

++

SWITCH OUTP

UUT

MAX15034

ripple current. A low-ESR input capacitor that can han­dle the maximum input RMS ripple current of one chan­nel must be used. The maximum RMS capacitor ripple
current is given by:

where I

MAX

is the full load current of the regulator. V

OUT

is the output voltage of the same regulator and CINis C5
in Figure 6. The ESR of the input capacitors wastes
power from the input and heats up the capacitor.
Reducing the ESR is important to maintain a high overall
efficiency and in reducing the heating of the capacitors.

Output Capacitors

The worst-case peak-to-peak inductor ripple current,
the allowable peak-to-peak output ripple voltage, and
the maximum deviation of the output voltage during

step loads determine the capacitance and the ESR
requirements for the output capacitors. The output rip­ple can be approximated as the inductor current ripple
multiplied by the output capacitor’s ESR (R

ESR_OUT

).

The peak-to-peak inductor current ripple is given by:

During a load step, the allowable deviation of the output
voltage during the fast transient load dictates the output
capacitance and ESR. The output capacitors supply the
load step until the controller responds with a greater duty
cycle. The response time (t

RESPONSE

) depends on the
closed-loop bandwidth of the regulator. The resistive
drop across the capacitor’s ESR and capacitor discharge
causes a voltage drop during a load step. Use a combi­nation of SP polymer and ceramic capacitors for better
transient load and ripple/noise performance.

Table 1. High-Side MOSFET Losses

Configurable, Single-/Dual-Output, Synchronous

Buck Controller for High-Current Applications

______________________________________________________________________________________ 19

LOSS DESCRIPTION SEGMENT LOSS

PIR

CONDUCTION RMS DS ON

where I

PVQQf

GATEDRIVE DD G GD SW

PVI

SWITCH IN LOA

where I

OUTPUT

≈×

RMS

=×

=×

GATE

QQ

OSS HS OSS LS

=

Conduction Loss

Gate Drive Loss

Switching Loss

Output Loss

Losses associated with MOSFET on-time and
on-resistance. I
and duty cycle.

Losses associated with charging and
discharging the gate capacitance of the
MOSFET every cycle. Use the MOSFET’s (Q
specification.

Losses during the drain voltage and drain
current transitions for every switching cycle.
Losses occur only during the Q
time period and not during the initial Q
period. The initial Q
gate voltage from zero to V
side MOSFET driver’s on-resistance and R
is the internal gate resistance of the high-side
MOSFET (Q
MOSFET data sheet).

Losses associated with Q
occur every cycle when the high-side MOSFET
turns on. The losses are caused by both
MOSFETs, but are dissipated in the high-side
MOSFET.

is a function of load current

RMS

period is the rise in the

GS1

TH. RDH_

GD

and Q

are found in the

GS2

of the MOSFET

OSS

and Q

GS2

is the high-

G

GD

GS1

GATE

)

=×

2

V

OUT

V

IN

()

DDSW

R=× (

2 ++ R

DH

() ()

2

()

II

LOAD

f

××

V

DD

_

GATE

+

×−

QQ

+()

GS GD

2

I

GATE

)

××P

Vf

IN SW

()

−

V

IN

VVV

II

CIN RMS MAX

≈

()

OUT IN OUT

VD

ΔI

=

L

OUT

Lf

−×()1

SW

MAX15034

Configurable, Single-/Dual-Output, Synchronous
Buck Controller for High-Current Applications

20 ______________________________________________________________________________________

Keep the maximum output-voltage deviation less than
or equal to the adaptive voltage-positioning window
(ΔV

OUT

). During a load step, assume a 50% contribu­tion each from the output capacitance discharge and
the voltage drop across the ESR (ΔV

OUT

= ΔV

ESR_OUT

+ ΔV

Q_OUT

). Use the following equations to calculate

the required ESR and capacitance value:

where I

LOAD_STEP

is the step in load current and

t

RESPONSE

is the response time of the controller.
Controller response time depends on the control-loop
bandwidth. C

OUT

is C6 and C7 in Figure 6.

Current Limit

The MAX15034 incorporates two forward current-limit
protection mechanisms, average current limit and hic­cup fault current limit, which accurately limit the output
current per phase. The average current-mode control
technique of the MAX15034 accurately limits the maxi­mum average output current per phase. The
MAX15034 senses the voltage across either a sense
resistor or can implement lossless inductor sense,
sensing the voltage across the parasitic resistance of
the inductor (DCR). Use either mechanism to limit the
maximum inductor current.

The minimum average voltage, at which the voltage
across the current-sense resistor is clamped, is either
internally set to 20.4mV or is controlled by the voltage
at AVGLIMIT. The AVGLIMIT ground threshold of
550mV (typ) is the threshold above which the control of
the average current-limit voltage is transferred from the
internal 20.4mV (min) reference to the externally set
V

AVGLIMIT

. For using the internal average current-limit
value, short AVGLIMIT to AGND. The minimum (inter­nally set) average current limit is set at:

For example, the current-sense resistor:

for a maximum output current limit of 10A. A standard
value is 2mΩ. Also, adjust the value of the current­sense resistor to compensate for parasitics associated
with the PCB. Select a noninductive resistor with an
appropriate wattage rating.

The implementation is shown in Figure 8.

When sensing directly across the inductor, connect an
RC circuit directly across the shunt or inductor (see
Figure 9).

Table 2. Low-Side MOSFET Losses

Note: The gate drive losses are distributed between the drivers and the MOSFETs in the ratio of the gate driver’s resistance and the
MOSFET’s internal gate resistance.

LOSS DESCRIPTION SEGMENT LOSSES

PIR

Conduction Loss

Gate Drive Loss

Losses associated with MOSFET on-time, I
is a function of load current and duty cycle.

Losses associated with charging and
discharging the gate of the MOSFET every
cycle. There is no QGD charging involved in this
MOSFET due to the zero-voltage turn-on. The
charge involved is (Q

- QGD).

G

V

Δ

ESR OUT

R

ESR OUT

_

C

OUT

=

It

LOAD STEP RESPONSE

=

_

I

LOAD STEP

_

×

_

Δ

V

Q OUT

_

RMS

CONDUCTION RMS DS ON

where I

PVQQf

RMS

GATEDRIVE DD G GD SW

I

LIMIT MIN

=×

2

VV

−

IN OUT

≈

=×

V

IN

()

.=20 4

()

R

SENSE

mV

()

×

I

LOAD

×−

mV

R

SENSE

20 4

==

10

A

204.. Ω

m

MAX15034

Set the RC time constant to be 1.1 to 1.2 times the
inductor time constant (L/DCR). Select C1 to be in the

0.1μF to 0.47μF range, and then calculate R1 from:

In some applications, it may be useful to add a resistor
(R2 in Figure 9) in series with the CSN_ connection to
minimize input offset error. Set R2 equal to R1. It may
also prove useful to add capacitor C3 (Figure 9) in

parallel with R2 to aid in short-circuit recovery. Set C3
equal to C1. Finally, it may be helpful to add a 100pF
(C2) capacitor immediately across the CSP_ and CSN_
inputs to minimize high-frequency noise pick-up at the
IC in some applications.

For current-sense resistors that have a noticeable
inductance component, use lossless inductor sense
implementation (and design procedure). See Figure 10.

Table 3 highlights the tradeoffs of each current-sense
method.

Configurable, Single-/Dual-Output, Synchronous

Buck Controller for High-Current Applications

______________________________________________________________________________________ 21

Figure 8. Noninductive Resistive Sense

Figure 9. Lossless Inductor Sense

Table 3. Current-Sense Configurations

MAX15034

CSP_

CSN_

MAX15034

CSP_

CSN_

LX_

LX_

C2*

L

OUT

INDUCTOR

L

R1

R

SENSE

DCR

C1

R2*

V

OUT

C3*

*OPTIONAL.

V

OUT

LH

12

.[]

Rk

1

[]

ΩΩ=

DCR m C F

××μ

[] []

1

μ

METHOD

Output Current-Sense Resistor High Allowed (highest accuracy) R

Equivalent Inductor DC Resistance Low Allowed No additional loss

CURRENT-SENSE

ACCURACY

INDUCTOR-SATURATION

PROTECTION

CURRENT-SENSE POWER

LOSS (EFFICIENCY)

x I

SENSE

OUT

2

MAX15034

Configurable, Single-/Dual-Output, Synchronous
Buck Controller for High-Current Applications

22 ______________________________________________________________________________________

The MAX15034 provides precision average current-limit
programmability while using standard sense resistors
or shunts. Use the equation below to determine the
appropriate V

AVGLIMIT

external reference voltage at

AVGLIMIT:

For example, assuming the desired average current
limit is 18A, and R

SENSE

= 2mΩ.

where R

SENSE

is determined from maximum load cur­rent, wattage rating, and circuit parasitics (see above)
and I

LOAD(MAX)

from circuit requirements. V

AVGLIMIT

is
the average current-limit reference voltage selected for
a desired I

LOAD(MAX)

and is set by a resistive voltage-

divider from REG to AGND. See the

Programming the

Average Current Limit

section.

The second current-protection circuit is the hiccup fault
protection as explained in the

Hiccup Fault Protection

section. The average current during a short at the out­put is given by:

Programming the Average Current Limit

The MAX15034 average current-limit reference voltage
is set by connecting a resistor-divider network from
REG to AGND, the center node is connected to
AVGLIMIT. The resistive divider’s upper resistor, R1, is
connected between REG and the AVGLIMIT. The resis­tive divider’s lower resistor, R2, is connected between
the AVGLIMIT and AGND.

The resistor-divider values are determined by first,
choosing R2. To minimize reference noise select R2
such that (R1 + R2) < 100kΩ; a typical value is 10kΩ.
Next, determine R1 from:

From the example above, assuming V

AVGLIMIT

= 1.91V:

A standard value for R1 is 16.2kΩ. Connect AVGLIMIT

to AGND for default current limit

V

Figure 10. Inductive Sense Resistor

SENSE RESISTOR (INDUCTIVE)

LX_

L

OUT

ESL

R

SENSE

V

OUT

MAX15034

CSP_

C2

CSN_

VRmIA

AVGLIMIT SENSE LOAD MAX

=× ×

()

Ω 6612 5.m

()

+56 [ ] [ ]

VmAmV

AVGLIMIT

=××

2 36 18 612 5

Ω .

()

mV V

==

1910 1 91

+

.

II

AVG SHORT LOAD MAX() ()

.=×0 0625

R1

C1

R2

C3

RR

12 1

Rk

⎛

V

⎜

V

⎝

AVGLIMIT

REG

=× −

⎛

k

10

=×Ω

⎜

V

⎝

AVGLIMT

⎛
⎜

⎝

191

.

V

5

⎞
⎟

⎠

V

5

(()

MAX

⎞

11618=× −

=ΩΩ

⎟
⎠

V

⎛
⎜

⎝

[]

V

.

20 4..mV

R

SENSE

−

1

k110

⎞
⎟

⎠

⎞
⎟

⎠

MAX15034

Reverse Current Limit

The MAX15034 limits the reverse current when the out­put capacitor voltage is higher than the preset output
voltage. Calculate the maximum reverse current limit
based on V

CLMP_LO

and the current-sense resistor

R

SENSE

.

Output-Voltage Setting

The output voltage is set by the combination of resistors
R1, R2, and RFas described in the

Voltage-Error

Amplifier

section. First select a value for resistor R2. Then

calculate the value of R1 from the following equation:

where V

OUT(NL)

is the voltage at no load. Then find the

value of R

F

from the following equation:

where ΔV

OUT

is the allowable drop in voltage from no
load to full load. RFis R8 and R9, R1 is R4 and R6, R2
is R5 and R7 in Figure 6.

Compensation

The MAX15034 uses an average current-mode control
scheme to regulate the output voltage (see Figure 2).
The main control loop consists of an inner current loop
and an outer voltage loop. The voltage error amplifier
(VEA1 and VEA2) provides the controlling voltage for
the current loop in each phase. The output inductor is
hidden inside the inner current loop. This simplifies the
design of the outer voltage control loop and also
improves the power-supply dynamics. The objective of
the inner current loop is to control the average inductor
current. The gain-bandwidth characteristic of the cur­rent loop can be tailored for optimum performance by
the compensation network at the output of the current­error amplifier (CEA1 or CEA2). Compared with peak
current-mode control, the current-loop gain crossover
frequency, fC, can be made approximately the same,
but the gain at low frequencies is much higher. This
results in the following advantages over peak current­mode control.

1) The average current tracks the programmed cur­rent with a high degree of accuracy.

2) Slope compensation is not required, but there is a
limit to the loop gain at the switching frequency to
achieve stability.

3) Noise immunity is excellent.

4) The average current-mode method can be used to
sense and control the current in any circuit branch.

For stability of the current loop, the amplified inductor­current downslope at the negative input of the PWM
comparator (CPWM1 and CPWM2) must not exceed
the ramp slope at the comparator’s positive input. This
puts an upper limit on the current-error amplifier gain at
the switching frequency. The inductor current downs­lope is given by V

OUT

/L where L is the value of the

inductor (L1 and L2 in Figure 6) and V

OUT

is the output
voltage. The amplified inductor current downslope at
the negative input of the PWM comparator is given by:

where R

SENSE

is the current-sense resistor (R1 and R2
in Figure 6) and gMx RCFis the gain of the current-error
amplifier (CEA_) at the switching frequency. The slope
of the ramp at the positive input of the PWM comparator
is 2V x fSW. Use the following equation to calculate the
maximum value of RCF(R14 or R15 in Figure 6).

The highest crossover frequency f

CMAX

is given by:

or alternatively:

Equation (1) can now be rewritten as:

F

Configurable, Single-/Dual-Output, Synchronous

Buck Controller for High-Current Applications

______________________________________________________________________________________ 23

−

I

REVERSE

155 10

.

=

R

×

SENSE

3

V

(.)

OUT NL

R

1

=

IR R

OUT SENSE

R

=

F

0 6125

−

()

0 6125

.

×××36

V

Δ

OUT

R

×

2

1

V

ΔΔV

OUT

L

=× ×××36

t

RgR

L

SENSE m C

fL

××

2

R

≤

CF

VR g

OUT SENSE m

f

CMAX

SW

×××

fV

SW IN

=

×2π

×

V

OUT

36

1()

fV

××2π

CMAX OUT

f

=

SW

V

IN

fL

××

π

R

=

CF

VR g

C

×××

IN S m

9

2()

MAX15034

In practical applications, pick the crossover frequency
(fC) in the range of:

First calculate R

CF

in equation 2 above. Calculate C

CF

so that:

where C

CF

is C10 and C12 in Figure 6.

Calculate C

CFF

so that:

where C

CFF

is C11 and C13 in Figure 6.

Applications Information

Independent Turn-On and Turn-Off

The MAX15034 can be used to regulate two outputs
from one controller. Each of the two outputs can be
turned on and off independently of one another by con­trolling the enable input of each phase (EN1 and EN2).
A logic-low on each enable pin shuts down the
MOSFET drivers for that phase. When the voltage on the
enable pin exceeds 1.2V, the drivers are turned on and
the output can come up to regulation. This method of
turning on the outputs allows the MAX15034 to be used
for power sequencing.

PCB Layout Guidelines

Careful PCB layout is critical to achieve low losses, low
output noise, and clean and stable operation. This is

especially true for dual-phase converters where one
channel can affect the other. Use the following guide­lines for PCB layout:

1) Place the V

DD

, REG, and the BST1 and BST2 bypass

capacitors close to the MAX15034.

2) Minimize all high-current switching loops.

3) Keep the power traces and load connections short.

This practice is essential for high efficiency. Use
thick copper PCBs (2oz or higher) to enhance effi­ciency and minimize trace inductance and resis­tance.

4) Run the current-sense lines CSP_ and CSN_ very

close to each other to minimize loop areas. Do not
cross these critical signal lines through power cir­cuitry. Sense the current right at the pads of the
current-sense resistors.

5) Place the bank of output capacitors close to the

load.

6) Isolate the power components on the top side from

the analog components on the bottom side with a
ground plane in between.

7) Provide enough copper area around the switching

MOSFETs, inductors, and sense resistors to aid in
thermal dissipation and reducing resistance.

8) Distribute the power components evenly across the

top side for proper heat dissipation.

9) Keep AGND and PGND isolated and connect them

at one single point close to the IC. Do not connect
them together anywhere else.

10) Place all input bypass capacitors for each input as

close to each other as is practical.

Configurable, Single-/Dual-Output, Synchronous
Buck Controller for High-Current Applications

24 ______________________________________________________________________________________

f

SW

10 2

C

=

CF

2 π

C

=

CFF

×× × ×

210π

f

SW

f

<<

C

10

fR

×× ×

CCF

1

fR

CCF

MAX15034

Configurable, Single-/Dual-Output, Synchronous

Buck Controller for High-Current Applications

Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.

Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600 ____________________

25

© 2008 Maxim Integrated Products is a registered trademark of Maxim Integrated Products, Inc.

Package Information

For the latest package outline information, go to

www.maxim-ic.com/packages

.

PACKAGE TYPE PACKAGE CODE DOCUMENT NO.

28 TSSOP U28-2

21-0066

28 TSSOP-EP U28E-4

21-0108

28

27

26

25

24

23

22

21

20

19

18

17

16

15

1

2

3

4

5

6

7

8

9

10

11

12

13

14

EN2

BST2

DH2

LX2

DL2

PGND

EN1

IN

REG

V

DD

DL1

LX1

DH1

BST1

CSN1

CSP1

EAOUT1

EAN1

CLP1

MODE

AGND

RT/CLKIN

AVGLIMIT

CLP2

EAN2

EAOUT2

CSP2

CSN2

TSSOP

TOP VIEW

MAX15034

*EXPOSED PAD

*CONNECT EXPOSED PAD TO GROUND PLANE.
MAX15034A DOES NOT HAVE AN EXPOSED PAD.

+

Pin Configuration Chip Information

PROCESS: BiCMOS
