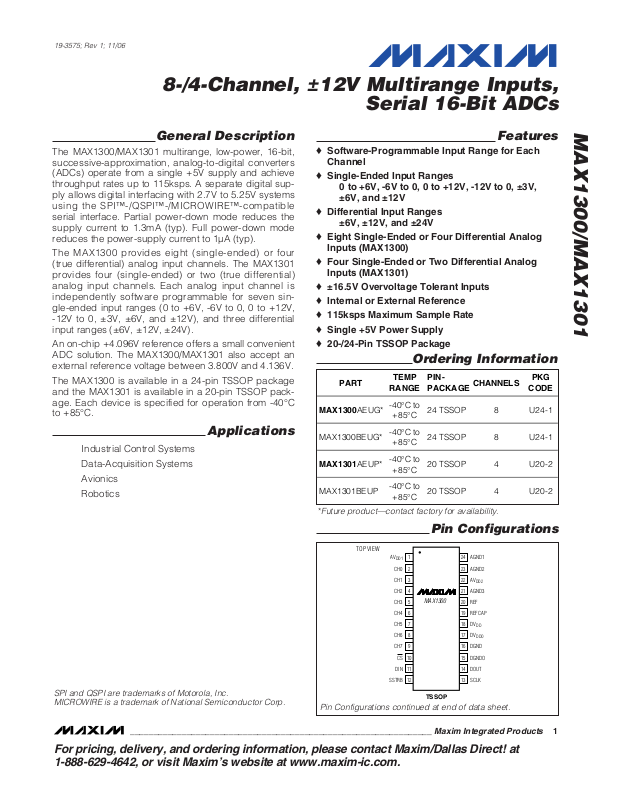

General Description

The MAX1300/MAX1301 multirange, low-power, 16-bit,
successive-approximation, analog-to-digital converters
(ADCs) operate from a single +5V supply and achieve
throughput rates up to 115ksps. A separate digital sup­ply allows digital interfacing with 2.7V to 5.25V systems
using the SPI™-/QSPI™-/MICROWIRE™-compatible
serial interface. Partial power-down mode reduces the
supply current to 1.3mA (typ). Full power-down mode
reduces the power-supply current to 1µA (typ).

The MAX1300 provides eight (single-ended) or four
(true differential) analog input channels. The MAX1301
provides four (single-ended) or two (true differential)
analog input channels. Each analog input channel is
independently software programmable for seven sin­gle-ended input ranges (0 to +6V, -6V to 0, 0 to +12V,

-12V to 0, ±3V, ±6V, and ±12V), and three differential
input ranges (±6V, ±12V, ±24V).

An on-chip +4.096V reference offers a small convenient
ADC solution. The MAX1300/MAX1301 also accept an
external reference voltage between 3.800V and 4.136V.

The MAX1300 is available in a 24-pin TSSOP package
and the MAX1301 is available in a 20-pin TSSOP pack­age. Each device is specified for operation from -40°C
to +85°C.

Applications

Industrial Control Systems

Data-Acquisition Systems

Avionics

Robotics

Features

♦ Software-Programmable Input Range for Each

Channel

♦ Single-Ended Input Ranges

0 to +6V, -6V to 0, 0 to +12V, -12V to 0, ±3V,
±6V, and ±12V

♦ Differential Input Ranges

±6V, ±12V, and ±24V

♦ Eight Single-Ended or Four Differential Analog

Inputs (MAX1300)

♦ Four Single-Ended or Two Differential Analog

Inputs (MAX1301)

♦ ±16.5V Overvoltage Tolerant Inputs

♦ Internal or External Reference

♦ 115ksps Maximum Sample Rate

♦ Single +5V Power Supply

♦ 20-/24-Pin TSSOP Package

MAX1300/MAX1301

8-/4-Channel, ±12V Multirange Inputs,

Serial 16-Bit ADCs

________________________________________________________________ Maxim Integrated Products 1

Pin Configurations

Ordering Information

24

23

22

21

20

19

18

17

1

2

3

4

5

6

7

8

AGND1

AGND2

AV

DD2

AGND3CH2

CH1

CH0

AV

DD1

TOP VIEW

REF

REFCAP

DV

DD

DV

DDO

CH6

CH5

CH4

CH3

16

15

14

13

9

10

11

12

DGND

DGNDO

DOUT

SCLKSSTRB

DIN

CS

CH7

TSSOP

MAX1300

19-3575; Rev 1; 11/06

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at
1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

PART

TEMP

PIN-

C H A N N EL S

PKG

CODE

MAX1300AEUG*

-40°C to
8

U24-1

MAX1300BEUG*

-40°C to
8

U24-1

MAX1301AEUP*

-40°C to
4

U20-2

MAX1301BEUP

-40°C to
4

U20-2

SPI and QSPI are trademarks of Motorola, Inc.
MICROWIRE is a trademark of National Semiconductor Corp.

Pin Configurations continued at end of data sheet.

*Future product—contact factory for availability.

RANGE

+85°C

+85°C

+85°C

+85°C

PACKAGE

24 TSSOP

24 TSSOP

20 TSSOP

20 TSSOP

MAX1300/MAX1301

8-/4-Channel, ±12V Multirange Inputs,
Serial 16-Bit ADCs

2 _______________________________________________________________________________________

ABSOLUTE MAXIMUM RATINGS

ELECTRICAL CHARACTERISTICS

(AV

DD1

= AV

DD2

= DVDD= DV

DDO

= 5V, AGND1 = DGND = DGNDO = AGND2 = AGND3 = 0, f

CLK

= 3.5MHz (50% duty cycle),

external clock mode, V

REF

= 4.096V (external reference operation), REFCAP = AV

DD1

, maximum single-ended bipolar input range

(±12V), C

DOUT

= 50pF, C

SSTRB

= 50pF, TA= -40°C to +85°C, unless otherwise noted. Typical values are at TA= +25°C.)

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.

AV

DD1

to AGND1 ....................................................-0.3V to +6V

AV

DD2

to AGND2 ....................................................-0.3V to +6V

DVDDto DGND ........................................................-0.3V to +6V

DV

DDO

to DGNDO ..................................................-0.3V to +6V

DVDDto DV

DDO

......................................................-0.3V to +6V

DVDD, DV

DDO

to AV

DD1

........................................-0.3V to +6V

AV

DD1

, DVDD, DV

DDO

to AV

DD2

..........................-0.3V to +6V

DGND, DGNDO, AGND3, AGND2 to AGND1 ......-0.3V to +0.3V

CS, SCLK, DIN, DOUT, SSTRB to

DGNDO ............................................-0.3V to (DV

DDO

+ 0.3V)

CH0–CH7 to AGND1 .........................................-16.5V to +16.5V

REF, REFCAP to AGND1.......................-0.3V to (AV

DD1

+ 0.3V)

Continuous Current (any pin) ...........................................±50mA

Continuous Power Dissipation (T

A

= +70°C)

20-Pin TSSOP (derate 11mW/°C above +70°C) ..........879mW

24-Pin TSSOP (derate 12.2mW/°C above +70°C) .......976mW

Operating Temperature Range ...........................-40°C to +85°C

Junction Temperature .....................................................+150°C

Storage Temperature Range .............................-65°C to +150°C

Lead Temperature (soldering, 10s) .................................+300°C

PARAMETER

CONDITIONS

UNITS

DC ACCURACY (Notes 1, 2)

Resolution 16 Bits

MAX130_A

±2

Integral Nonlinearity INL

MAX130_B

±4

LSB

Differential Nonlinearity DNL No missing codes -1 +2 LSB

Transition Noise External or internal reference 1

LSB

RMS

Unipolar 0

Bipolar

Unipolar 0

Offset Error

Differential inputs
(Note 3)

Bipolar

mV

Channel-to-Channel Gain
Matching

Unipolar or bipolar

%FSR

Channel-to-Channel Offset Error
Matching

Unipolar or bipolar 1.0 mV

Unipolar 10

Offset Temperature Coefficient

Bipolar 5

ppm/°C

Unipolar

Gain Error

Bipolar

%FSR

Unipolar 1.5

Gain Temperature Coefficient

Bipolar 1.0

ppm/°C

Unipolar Endpoint Overlap

Negative unipolar full scale to positive
unipolar zero-scale

020 LSB

DYNAMIC SPECIFICATIONS f

IN(SINE-WAVE)

= 5kHz, VIN = FSR - 0.05dB, f

SAMPLE

= 130ksps (Notes 1, 2)

Differential inputs, FSR = 48V 91

Single-ended inputs, FSR = 24V 89

Single-ended inputs, FSR = 12V 86

Signal-to-Noise Plus Distortion SINAD

Single-ended inputs, FSR = 6V 80 83

dB

SYMBOL

MIN TYP MAX

±1.0

±1.0

Single-ended inputs

-1.0 ±10

-2.0 ±20

0.025

±20

±40

±0.5

±0.3

MAX1300/MAX1301

8-/4-Channel, ±12V Multirange Inputs,

Serial 16-Bit ADCs

_______________________________________________________________________________________ 3

PARAMETER

CONDITIONS

UNITS

Differential inputs, FSR = 48V 91

Single-ended inputs, FSR = 24V 89

Single-ended inputs, FSR = 12V 86

Signal-to-Noise Ratio SNR

Single-ended inputs, FSR = 6V 83

dB

Total Harmonic Distortion
(Up to the 5th Harmonic)

THD -97 dB

Spurious-Free Dynamic Range SFDR 92 99 dB

Aperture Delay t

AD

Figure 21 15 ns

Aperture Jitter t

AJ

Figure 21

ps

Channel-to-Channel Isolation

dB

CONVERSION RATE

External clock mode, Figure 2

External acquisition mode, Figure 3 84Byte-Wide Throughput Rate

Internal clock mode, Figure 4

ksps

ANALOG INPUTS (CH0–CH3 MAX1301, CH0–CH7 MAX1300, AGND1)

Small-Signal Bandwidth All input ranges, VIN = 100mV

P-P

(Note 2) 2

MHz

Full-Power Bandwidth All input ranges, VIN = 4V

P-P

(Note 2)

kHz

R[2:1] = 001 -3 +3

R[2:1] = 010 -6 0

R[2:1] = 011 0 +6

R[2:1] = 100 -6 +6

R[2:1] = 101 -12 0

R[2:1] = 110 0

Input Voltage Range (Table 6) V

CH_

R[2:1] = 111 -12

V

Tr ue- D i ffer enti al Anal og C om m on­M od e V ol tag e Rang e

V

CMDR

DIF/SGL = 1 (Note 4) -14 +9 V

Common-Mode Rejection Ratio CMRR DIF/SGL = 1, input voltage range = ±3V 75 dB

Input Current I

CH_

-12V < V

CH_

< +12V

µA

Input Capacitance C

CH_

5pF

Input Resistance R

CH_

17 kΩ

ELECTRICAL CHARACTERISTICS (continued)

(AV

DD1

= AV

DD2

= DVDD= DV

DDO

= 5V, AGND1 = DGND = DGNDO = AGND2 = AGND3 = 0, f

CLK

= 3.5MHz (50% duty cycle),

external clock mode, V

REF

= 4.096V (external reference operation), REFCAP = AV

DD1

, maximum single-ended bipolar input range

(±12V), C

DOUT

= 50pF, C

SSTRB

= 50pF, TA= -40°C to +85°C, unless otherwise noted. Typical values are at TA= +25°C.)

SYMBOL

f

SAMPLE

MIN TYP MAX

100

105

700

-1250 +900

114

106

+12

+12

MAX1300/MAX1301

8-/4-Channel, ±12V Multirange Inputs,
Serial 16-Bit ADCs

4 _______________________________________________________________________________________

PARAMETER

CONDITIONS

UNITS

INTERNAL REFERENCE (Bypass REFCAP with 0.1µF to AGND1 and REF with 1.0µF to AGND1)

Reference Output Voltage V

REF

V

Reference Temperature
Coefficient

TC

REF

ppm/°C

REF shorted to AGND1 10

Reference Short-Circuit Current I

REFSC

REF shorted to AV

DD

-1

mA

Reference Load Regulation I

REF

= 0 to 0.5mA 0.1 10 mV

EXTERNAL REFERENCE (REFCAP = AVDD)

Reference Input Voltage Range V

REF

V

REFCAP Buffer Disable
Threshold

V

RCTH

(Note 5)

V

V

REF

= +4.096V, external clock mode,
external acquisition mode, internal clock
mode, or partial power-down mode

90

Reference Input Current I

REF

V

REF

= +4.096V, full power-down mode

µA

External clock mode, external acquisition
mode, internal clock mode, or partial
power-down mode

20 45 kΩ

Reference Input Resistance R

REF

Full power-down mode 40 MΩ

DIGITAL INPUTS (DIN, SCLK, CS)

Input High Voltage V

IH

0.7 x
V

Input Low Voltage V

IL

0.3 x
V

Input Hysteresis V

HYST

0.2 V

Input Leakage Current I

IN

VIN = 0 to DV

DDO

-10

µA

Input Capacitance C

IN

10 pF

DIGITAL OUTPUTS (DOUT, SSTRB)

DV

DDO

= 4.75V, I

SINK

= 10mA 0.4

Output Low Voltage V

OL

DV

DDO

= 2.7V, I

SINK

= 5mA 0.4

V

Output High Voltage V

OH

I

SOURCE

= 0.5mA

V

DOUT Tri-State Leakage Current

I

DDO

CS = DV

DDO

-10

µA

POWER REQUIREMENTS (AV

DD1

and AGND1, AV

DD2

and AGND2, DVDD and DGND, DV

DDO

and DGNDO)

Analog Supply Voltage AV

DD1

V

Digital Supply Voltage DV

DD

V

ELECTRICAL CHARACTERISTICS (continued)

(AV

DD1

= AV

DD2

= DVDD= DV

DDO

= 5V, AGND1 = DGND = DGNDO = AGND2 = AGND3 = 0, f

CLK

= 3.5MHz (50% duty cycle),

external clock mode, V

REF

= 4.096V (external reference operation), REFCAP = AV

DD1

, maximum single-ended bipolar input range

(±12V), C

DOUT

= 50pF, C

SSTRB

= 50pF, TA= -40°C to +85°C, unless otherwise noted. Typical values are at TA= +25°C.)

SYMBOL

MIN TYP MAX

4.056 4.096 4.136

±30

3.800 4.136

AV

DD1

- 0.4

DV

DV

DDO

DDO

- 0.4

±0.1 ±10

4.75 5.25

4.75 5.25

AV

DD1

- 0.1

200

DV

DDO

+10

+10

MAX1300/MAX1301

8-/4-Channel, ±12V Multirange Inputs,

Serial 16-Bit ADCs

_______________________________________________________________________________________ 5

PARAMETER

SYMBOL

CONDITIONS

MIN

TYP

MAX

UNITS

Preamplifier Supply Voltage AV

DD2

V

Digital I/O Supply Voltage DV

DDO

V

Internal reference 3 3.5

AV

DD1

Supply Current I

AVDD1

External clock mode,
external acquisition
mode, or internal
clock mode

External reference 2.5 3

mA

DVDD Supply Current I

DVDD

External clock mode, external acquisition
mode, or internal clock mode

0.9 2 mA

AV

DD2

Supply Current I

AVDD2

External clock mode, external acquisition
mode, or internal clock mode

25 mA

DV

DDO

Supply Current

External clock mode, external acquisition
mode, or internal clock mode

0.2 1 mA

Partial power-down mode 1.3 mA

Total Supply Current

Full power-down mode 1 µA

Power-Supply Rejection Ratio PSRR All analog input ranges

LSB

TIMING CHARACTERISTICS (Figures 15 and 16)

External clock mode

62

External acquisition mode

62

SCLK Period t

CP

Internal clock mode

83

µs

External clock mode

External acquisition mode 92

SCLK High Pulse Width (Note 6)

t

CH

Internal clock mode 40

ns

External clock mode

External acquisition mode 92

SCLK Low Pulse Width (Note 6) t

CL

Internal clock mode 40

ns

DIN to SCLK Setup t

DS

40 ns

DIN to SCLK Hold t

DH

0ns

SCLK Fall to DOUT Valid t

DO

40 ns

CS Fall to DOUT Enable t

DV

40 ns

ELECTRICAL CHARACTERISTICS (continued)

(AV

DD1

= AV

DD2

= DVDD= DV

DDO

= 5V, AGND1 = DGND = DGNDO = AGND2 = AGND3 = 0, f

CLK

= 3.5MHz (50% duty cycle),

external clock mode, V

REF

= 4.096V (external reference operation), REFCAP = AV

DD1

, maximum single-ended bipolar input range

(±12V), C

DOUT

= 50pF, C

SSTRB

= 50pF, TA= -40°C to +85°C, unless otherwise noted. Typical values are at TA= +25°C.)

I

DVDDO

4.75 5.25

2.70 5.25

17.5

±0.5

272

228

100

109

109

MAX1300/MAX1301

8-/4-Channel, ±12V Multirange Inputs,
Serial 16-Bit ADCs

6 _______________________________________________________________________________________

PARAMETER

SYMBOL

CONDITIONS

MIN

TYP

MAX

UNITS

CS Rise to DOUT Disable t

TR

40 ns

CS Fall to SCLK Rise Setup t

CSS

40 ns

CS High Minimum Pulse Width t

CSPW

40 ns

SCLK Fall to CS Rise Hold t

CSH

0ns

SSTRB Rise to CS Fall Setup (Note 4) 40 ns

DOUT Rise/Fall Time CL = 50pF 10 ns

SSTRB Rise/Fall Time CL = 50pF 10 ns

Note 1: Parameter tested at AV

DD1

= AV

DD2

= DVDD= DV

DDO

= 5V.

Note 2: See definitions in the Parameter Definitions section at the end of the data sheet.
Note 3: Guaranteed by correlation with single-ended measurements.
Note 4: Not production tested. Guaranteed by design.
Note 5: To ensure external reference operation, V

REFCAP

must exceed (AV

DD1

- 0.1V). To ensure internal reference operation, V

REFCAP

must be below (AV

DD1

- 0.4V). Bypassing REFCAP with a 0.1µF or larger capacitor to AGND1 sets V

REFCAP

≈ 4.096V. The tran-

sition point between internal reference mode and external reference mode lies between the REFCAP buffer disable threshold
minimum and maximum values (Figures 17 and 18).

Note 6: The SCLK duty cycle can vary between 40% and 60%, as long as the t

CL

and tCHtiming requirements are met.

ANALOG SUPPLY CURRENT

vs. ANALOG SUPPLY VOLTAGE

MAX1300/01 toc01

AV

DD1

(V)

I

AVDD1

(mA)

5.155.054.954.85

2.35

2.40

2.45

2.50

2.55

2.60

2.30

4.75 5.25

+85°C

+25°C

-40°C

EXTERNAL CLOCK MODE

PREAMPLIFIER SUPPLY CURRENT

vs. PREAMPLIFIER SUPPLY VOLTAGE

MAX1300/01 toc02

AV

DD2

(V)

I

AVDD2

(mA)

5.155.054.85 4.95

16

17

18

19

20

21

22

23

24

15

4.75 5.25

+85°C

+25°C

-40°C

EXTERNAL CLOCK MODE

DIGITAL SUPPLY CURRENT

vs. DIGITAL SUPPLY VOLTAGE

MAX1300/01 toc03

DVDD (V)

I

DVDD

(mA)

5.155.054.954.85

0.70

0.75

0.80

0.85

0.90

0.65

4.75 5.25

+85°C

+25°C

-40°C

EXTERNAL CLOCK MODE

Typical Operating Characteristics

(AV

DD1

= AV

DD2

= DVDD= DV

DDO

= 5V, AGND1 = DGND = DGNDO = AGND2 = AGND3 = 0, f

CLK

= 3.5MHz (50% duty cycle),

external clock mode, V

REF

= 4.096V (external reference operation), REFCAP = AV

DD1

, maximum single-ended bipolar input range,

C

DOUT

= 50pF, C

SSTRB

= 50pF; unless otherwise noted.)

ELECTRICAL CHARACTERISTICS (continued)

(AV

DD1

= AV

DD2

= DVDD= DV

DDO

= 5V, AGND1 = DGND = DGNDO = AGND2 = AGND3 = 0, f

CLK

= 3.5MHz (50% duty cycle),

external clock mode, V

REF

= 4.096V (external reference operation), REFCAP = AV

DD1

, maximum single-ended bipolar input range

(±12V), C

DOUT

= 50pF, C

SSTRB

= 50pF, TA= -40°C to +85°C, unless otherwise noted. Typical values are at TA= +25°C.)

MAX1300/MAX1301

8-/4-Channel, ±12V Multirange Inputs,

Serial 16-Bit ADCs

_______________________________________________________________________________________ 7

DIGITAL I/O SUPPLY CURRENT

vs. DIGITAL I/O SUPPLY VOLTAGE

MAX1300/01 toc04

DV

DDO

(V)

I

DVDDO

(mA)

5.155.054.85 4.95

0.12

0.14

0.16

0.18

0.20

0.22

0.24

0.26

0.28

0.10

4.75 5.25

+85°C

+25°C

-40°C

EXTERNAL CLOCK MODE

ANALOG SUPPLY CURRENT

vs. ANALOG SUPPLY VOLTAGE

MAX1300/01 toc05

AV

DD1

(V)

I

AVDD1

(mA)

5.155.054.954.85

0.47

0.49

0.51

0.53

0.55

0.45

4.75 5.25

+85°C

+25°C

-40°C

PARTIAL POWER-DOWN MODE

PREAMPLIFIER SUPPLY CURRENT

vs. PREAMPLIFIER SUPPLY VOLTAGE

MAX1300/01 toc06

AV

DD2

(V)

I

AVDD2

(mA)

5.155.054.954.85

0.12

0.14

0.16

0.18

0.20

0.10

4.75 5.25

+85°C

+25°C

-40°C

PARTIAL POWER-DOWN MODE

DIGITAL SUPPLY CURRENT

vs. DIGITAL SUPPLY VOLTAGE

MAX1300/01 toc07

DVDD (V)

I

DVDD

(mA)

5.154.85 5.054.95

0.122

0.124

0.126

0.128

0.130

0.132

0.134

0.136

0.120

4.75 5.25

PARTIAL POWER-DOWN MODE

+85°C

+25°C

-40°C

Typical Operating Characteristics (continued)

(AV

DD1

= AV

DD2

= DVDD= DV

DDO

= 5V, AGND1 = DGND = DGNDO = AGND2 = AGND3 = 0, f

CLK

= 3.5MHz (50% duty cycle),

external clock mode, V

REF

= 4.096V (external reference operation), REFCAP = AV

DD1

, maximum single-ended bipolar input range,

C

DOUT

= 50pF, C

SSTRB

= 50pF; unless otherwise noted.)

MAX1300/MAX1301

8-/4-Channel, ±12V Multirange Inputs,
Serial 16-Bit ADCs

8 _______________________________________________________________________________________

ANALOG SUPPLY CURRENT

vs. CONVERSION RATE

MAX1300/01 toc08

CONVERSION RATE (ksps)

I

AVDD1

(mA)

20015010050

0.5

1.0

1.5

2.0

2.5

3.0

0

0

EXTERNAL CLOCK MODE

PARTIAL
POWER-DOWN MODE

FULL
POWER-DOWN MODE

PREAMPLIFIER SUPPLY CURRENT

vs. CONVERSION RATE

MAX1300/01 toc09

I

AVDD2

(mA)

5

10

15

20

25

0

CONVERSION RATE (ksps)

200

150100500

f

CLK

= 7.5MHz (NOTE 7)

EXTERNAL CLOCK MODE

FULL POWER-DOWN MODE,
PARTIAL POWER-DOWN MODE

DIGITAL SUPPLY CURRENT

vs. CONVERSION RATE

MAX1300/01 toc10

I

DVDD

(mA)

0.2

0.4

0.6

0.8

1.0

1.2

1.4

1.6

1.8

0

0

CONVERSION RATE (ksps)

200

15010050

f

CLK

= 7.5MHz (NOTE 7)

FULL POWER-DOWN MODE

EXTERNAL CLOCK MODE,
PARTIAL POWER-DOWN MODE

DIGITAL I/O SUPPLY CURRENT

vs. CONVERSION RATE

MAX1300/01 toc11

CONVERSION RATE (ksps)

I

DVDDO

(mA)

20015010050

0.1

0.2

0.3

0.4

0.5

0.6

0

0

f

CLK

= 7.5MHz (NOTE 7)

EXTERNAL CLOCK MODE

FULL POWER-DOWN MODE,
PARTIAL POWER-DOWN MODE

Note 7: For partial power-down and full power-down modes, external clock mode was used for a burst of continuous samples.

Partial power-down or full power-down modes were entered thereafter. By using this method, the conversion rate was found
by averaging the number of conversions over the time starting from the first conversion to the end of the partial power-down
or full power-down modes.

Typical Operating Characteristics (continued)

(AV

DD1

= AV

DD2

= DVDD= DV

DDO

= 5V, AGND1 = DGND = DGNDO = AGND2 = AGND3 = 0, f

CLK

= 3.5MHz (50% duty cycle),

external clock mode, V

REF

= 4.096V (external reference operation), REFCAP = AV

DD1

, maximum single-ended bipolar input range,

C

DOUT

= 50pF, C

SSTRB

= 50pF; unless otherwise noted.)

MAX1300/MAX1301

8-/4-Channel, ±12V Multirange Inputs,

Serial 16-Bit ADCs

_______________________________________________________________________________________ 9

EXTERNAL REFERENCE INPUT CURRENT

vs. EXTERNAL REFERENCE INPUT VOLTAGE

MAX1300/01 toc12

EXTERNAL REFERENCE VOLTAGE (V)

EXTERNAL REFERENCE CURRENT (mA)

4.104.054.003.953.903.85

0.13

0.14

0.15

0.16

0.12

3.80 4.15

ALL MODES

GAIN DRIFT vs. TEMPERATURE

MAX1300/01 toc13

TEMPERATURE (°C)

GAIN ERROR (%FSR)

603510-15

-0.08

-0.06

-0.04

-0.02

0

0.02

0.04

0.06

0.08

0.10

-0.10

-40 85

±12V BIPOLAR RANGE

±3V BIPOLAR RANGE

OFFSET DRIFT vs. TEMPERATURE

MAX1300/01 toc14

TEMPERATURE (°C)

OFFSET ERROR (mV)

603510-15

-0.8

-0.6

-0.4

-0.2

0

0.2

0.4

0.6

0.8

1.0

-1.0

-40 85

±3V BIPOLAR RANGE

±12V BIPOLAR RANGE

CHANNEL-TO-CHANNEL ISOLATION

vs. INPUT FREQUENCY

MAX1300/01 toc15

FREQUENCY (kHz)

ISOLATION (dB)

100010010

-100

-80

-60

-40

-20

0

-120
1 10,000

f

SAMPLE

= 115ksps

±12V BIPOLAR RANGE
CH0 TO CH2

COMMON-MODE REJECTION RATIO

vs. FREQUENCY

MAX1300/01 toc16

FREQUENCY (kHz)

CMRR (dB)

100010010

-90

-80

-70

-60

-50

-40

-30

-20

-10

0

-100
1 10,000

f

SAMPLE

= 115ksps

±12V BIPOLAR RANGE

INTEGRAL NONLINEARITY

vs. DIGITAL OUTPUT CODE

MAX1300/01 toc17

DIGITAL OUTPUT CODE

INL (LSB)

52,42839,32113,107 26,214

-1.5

-1.0

-0.5

0

0.5

1.0

1.5

2.0

-2.0
0 65,535

f

SAMPLE

= 115ksps

±12V BIPOLAR RANGE

DIFFERENTIAL NONLINEARITY

vs. DIGITAL OUTPUT CODE

MAX1300/01 toc18

DIGITAL OUTPUT CODE

DNL (LSB)

52,42839,32113,107 26,214

-1.5

-1.0

-0.5

0

0.5

1.0

1.5

2.0

-2.0
0 65,535

f

SAMPLE

= 115ksps

±12V BIPOLAR RANGE

FFT AT 5kHz

MAX1300/01 toc19

FREQUENCY (kHz)

MAGNITUDE (dB)

5040302010

-120

-100

-80

-60

-40

-20

0

-140
0

f

SAMPLE

= 115ksps

f

IN(SINE WAVE)

= 5kHz

±12V BIPOLAR RANGE

Typical Operating Characteristics (continued)

(AV

DD1

= AV

DD2

= DVDD= DV

DDO

= 5V, AGND1 = DGND = DGNDO = AGND2 = AGND3 = 0, f

CLK

= 3.5MHz (50% duty cycle),

external clock mode, V

REF

= 4.096V (external reference operation), REFCAP = AV

DD1

, maximum single-ended bipolar input range,

C

DOUT

= 50pF, C

SSTRB

= 50pF; unless otherwise noted.)

MAX1300/MAX1301

8-/4-Channel, ±12V Multirange Inputs,
Serial 16-Bit ADCs

10 ______________________________________________________________________________________

SNR, SINAD, ENOB

vs. ANALOG INPUT FREQUENCY

MAX1300/01 toc20

FREQUENCY (kHz)

SNR, SINAD (dB)

10010

10

20

30

40

50

60

70

80

90

100

0

1 1000

ENOB (BITS)

7

8

9

10

11

12

13

14

15

16

6

ENOB

SINAD

SNR

f

SAMPLE

= 115ksps

±12V BIPOLAR RANGE

SNR, SINAD, ENOB vs. SAMPLE RATE

MAX1300/01 toc21

SAMPLE RATE (ksps)

SNR, SINAD (dB)

100101

20

40

60

80

100

0

0.1 1000

f

IN(SINE WAVE)

= 5kHz

±12V BIPOLAR RANGE

ENOB (BITS)

8

10

12

14

16

6

ENOB

SNR, SINAD

-SFDR, THD vs. SAMPLE RATE

MAX1300/01 toc22

SAMPLE RATE (ksps)

-SFDR, THD (dB)

100101

-100

-80

-60

-40

-20

0

-120

0.1 1000

f

IN(SINE WAVE)

= 5kHz

±12V BIPOLAR RANGE

THD

-SFDR

-SFDR, THD

vs. ANALOG INPUT FREQUENCY

MAX1300/01 toc23

FREQUENCY (kHz)

-SFDR, THD (dB)

10010

-100

-80

-60

-40

-20

0

-120
1 1000

f

SAMPLE

= 115ksps

±12V BIPOLAR RANGE

THD

-SFDR

ANALOG INPUT CURRENT

vs. ANALOG INPUT VOLTAGE

MAX1300/01 toc24

ANALOG INPUT VOLTAGE (V)

ANALOG INPUT CURRENT (mA)

9630-3-6-9

-0.6

-0.2

0.2

0.6

1.0

-1.0

-12 12

ALL MODES

SMALL-SIGNAL BANDWIDTH

MAX1300/01 toc25

FREQUENCY (kHz)

ATTENUATION (dB)

100010010

-40

-35

-30

-25

-20

-15

-10

-5

0

-45
1 10,000

Typical Operating Characteristics (continued)

(AV

DD1

= AV

DD2

= DVDD= DV

DDO

= 5V, AGND1 = DGND = DGNDO = AGND2 = AGND3 = 0, f

CLK

= 3.5MHz (50% duty cycle),

external clock mode, V

REF

= 4.096V (external reference operation), REFCAP = AV

DD1

, maximum single-ended bipolar input range,

C

DOUT

= 50pF, C

SSTRB

= 50pF; unless otherwise noted.)
