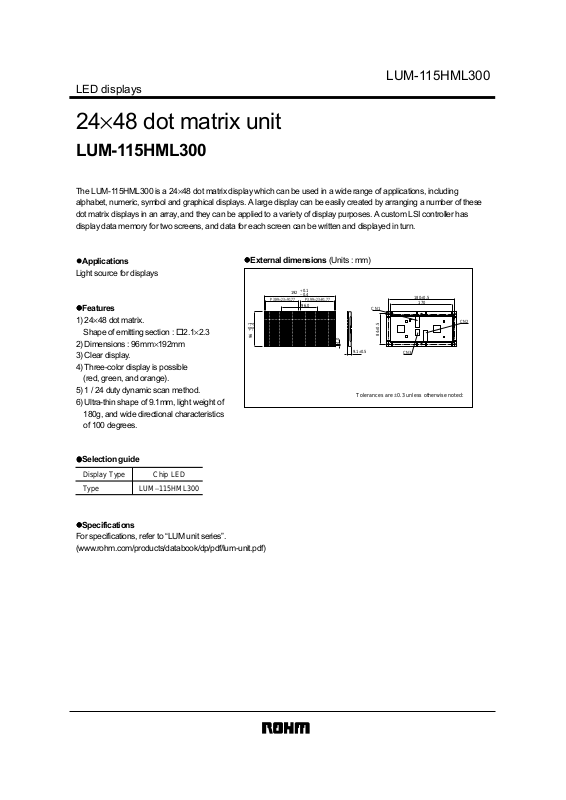

LUM-115HML300

LED displays

24×48 dot matrix unit

LUM-115HML300

The LUM-115HML300 is a 24×48 dot matrix display which can be used in a wide range of applications, including
alphabet, numeric, symbol and graphical displays. A large display can be easily created by arranging a number of these
dot matrix displays in an array, and they can be applied to a variety of display purposes. A custom LSI controller has
display data memory for two screens, and data for each screen can be written and displayed in turn.

External dimensions

Applications

!

Light source for displays

Features

!!!!

1) 24×48 dot matrix.
Shape of emitting section : "2.1×2.3

2) Dimensions : 96mm×192mm

3) Clear display.

4) Three-color display is possible
(red, green, and orange).

5) 1 / 24 duty dynamic scan method.

6) Ultra-thin shape of 9.1mm, light weight of
180g, and wide directional characteristics
of 100 degrees.

!!!!

P3.99×23=91.77 P3.99×23=91.77

+0.1

−0.4

96

192

+0.1

−0.4

96.0

(Units : mm)

4.0

9.1±0.5

Tolerances are ±0.3 unless otherwise noted:

CN1

180±0.5

170

CN2

84±0.5

CN3

Selection guide

!!!!

Display Type
Type

Specifications

!!!!

Chip LED

LUM−115HML300

For specifications, refer to “LUM unit series”.
(www.rohm.com/products/databook/dp/pdf/lum-unit.pdf)
