1 Overview

The Telit GE864 and GC864 modules are small, lightweight, low power consumption and RoHS compliant devices that allow digital communication services wherever a GSM 850, 900, DCS 1800 or PCS 1900 network is present. The GE864 is a low cost connector-less best solution for medium to high quantity projects.

The GC864 is provided with a 80 pin Molex board to board connector and a 50 Ohm Murata RF connector.

The GE864-PY and GC864-PY models integrate the “EASY SCRIPT” on top of all other features of the

GE864-QUAD and GC864-QUAD. The Python, is an engine script interpreter, allowing self controlled

operations. With the EASY SCRIPT feature the GE864-PY and GC864-PY become a finite product, they just needs your script to be run.

The GC864-QUAD with SIM holder has an integrated SIM holder on the board and identical technical characteristics as the classic GC864-QUAD.

All GE864 and GC864 models includes features like GPRS Class 10, Voice, Circuit Switched Data transfer, Fax, Phonebook and SMS support, ‘EASY GPRS’ embedded TCP/IP stack and battery charging capabilities.

The GE864 and GC864 are specifically designed and developed by Telit for OEM usage and dedicated to portable data, voice and telemetric applications such as:

• Telemetry and Telecontrol (SCADA applications)

• Security systems

• Automated Meter Reading (AMR)

• Vending machines

• POS terminals

• PDAs and Mobile Computing

• Phones and Payphones

• Automotive and Fleet Management applications

• Battery powered applications needing a battery charger

• Return channel for digital broadcasting

• Applications, where the external application processor can be replaced by the PYTHON

engine provided by the GE864-PY or GC864-PY

All four models support the following functionalities

• EASY GPRS (AT driven embedded TCP/IP protocol stack)

• EASY SCAN (full GSM frequency scanning)

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

• JAMMING DETECT & REPORT (detect the presence of disturbing devices)

• CMUX

• SAP (SIM Access Profile)

• Multisocket

From the interface point of view, the GE864 and GC864 provide the following:

• Full RS232 UART, CMOS level (ASC0) interface for AT commands:

- Autobauding from 2.4 up to 57.6 Kbps

- Fixed baud rate up to 115.2 Kbps

• Two wires RS232, CMOS level (ASC1) for PYTHON debug:

• SIM card interface, 1.8 / 3 volts with auto-detection, hot insertion

• 21 x GPIO ports (max)

• 3 x A/D converters

• 1 x D/A converter

• 1 x buzzer output

• 1 x vibrator motor driver output

• 1 x single led supply output

In order to meet the competitive OEM and vertical market stringent requirements, Telit supports its customers with a dedicated Support Policy with:

• Telit Evaluation Kit EVK2 to help you develop you application;

• A Website with all updated information available;

• an high level specialist technical support to assist you in your development;

For more updated information concerning product Roadmap and availability, technical characteristics, commercial and other issues, please check on the Telit website www.telit.com

> Products > Modules.

NOTE: Some of the performances of the Telit modules depend on SW version installed on the module itself. The Telit modules SW group is continuously working in order to add new features and improve the overall performances. The Telit modules are easily upgradeable by the developer using the Telit Flash Programmer. Furthermore, all the Telit modules have the conformity assessment against R&TTE.

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

2 General Product Description

2.1 Dimensions

2.1.1 GE864

The Telit GE864 module overall dimension are:

• Length: 30 mm

• Width: 30 mm

• Thickness: 2.8 mm

2.1.2 GC864

The Telit GC864 module overall dimensions are:

• Length: 36.2 mm

• Width: 30 mm

• Thickness: 3.2 mm

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

2.2 Weight

weight

GE864 6 gr

GC864 6,1 gr

2.3 Environmental requirements

The Telit GE864 and GC864 modules are compliant with the applicable ETSI reference documentation GSM 05.05 Release1998.

2.3.1 Temperature range

Operating

Temperature

Range

Storage and Non

Operating

Temperature Range

(*) Functional: the module is able to make and receive voice calls, data calls, SMS and make GPRS traffic.

GE864-QUAD /

GE864-PY

–20°C ÷ +55°C –20°C ÷ +55°C

–40°C ÷ +85°C –40°C ÷ +85°C

GC864-QUAD /

GC864-PY

Note

The module is fully functional(*) in all

the temperature range, and it fully

meets the ETSI specifications.

The module is fully functional (*) in all the temperature range. Temperatures

outside the range –20°C ÷ +55°C,

might slightly deviate from ETSI

specifications.

2.3.2 Vibration Test (non functional)

• 10 ÷12Hz ASD = 1.92m 2 /s 3

• 12 ÷ 150Hz –3dB/oct

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

2.3.3 RoHS compliance

As a part of Telit corporate policy regarding environmental protection, the GE864 and GC864 comply with the RoHS (Restriction of Hazardous Substances) directive of the European Union (EU Directive 2002/95/EG).

2.4 Operating Frequency

The operating frequencies in GSM, DCS, PCS modes are conform to the GSM specifications.

Mode Freq. TX (MHz) Freq. RX (MHz) Channels (ARFC) TX - RX offset

850 824.2÷848.8 869.2÷893.8 0 ÷ 124 45 MHz

E-GSM-900

DCS-1800 1710.2 - 1784.8 1805.2 - 1879.8 512 – 885 95 MHz

PCS-1900 1850.2 - 1909.8 1930.2 - 1989.8 512 - 810 80 MHz

890.0 - 914.8 935.0 - 959.8 0 – 124 45 MHz

880.2 - 889.8 925.2 - 934.8 975 - 1023 45 MHz

2.5 Transmitter output power

GSM–850/900

The Telit GE864 and GC864 transceiver modules in GSM–850/900 operating mode are class 4 in accordance with the specifications which determine the nominal 2W peak RF power (+33dBm) on 50 Ohm.

DCS–1800/PCS–1900

The Telit GE864 and GC864 transceiver modules in DCS–1800/PCS–1900 operating mode are class 1 in accordance with the specifications which determine the nominal 1W peak RF power (+30dBm) on 50 Ohm.

2.6 Reference sensitivity

GSM–850/900

The sensitivity of the Telit GE864 and GC864 modules according to the specifications for the class 4 GSM 850/900 portable terminals are –107 dBm typical in normal operating conditions.

DCS–1800/PCS–1900

The sensitivity of the Telit GE864 and GC864 module according to the specifications for the class 1 portable terminals DCS-1800/PCS 1900 are –106 dBm typical in normal operating conditions.

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

2.7 Antenna

The antenna that the customer chooses to use should fulfill the following requirements:

Depending by frequency band(s) provided by

Frequency range

Bandwidth

For further information please refer to the GE864 and GC864 Hardware User Guide.

the network operator, the customer shall use the most suitable antenna for that/those band(s) 80 MHz in EGSM 900, 70 MHz if GSM 850, 170 MHz in DCS, 140 MHz PCS band

2.7.1 GC864 Antenna connector

The GC864 module is equipped with a 50 Ohm RF connector from Murata, GSC type P/N MM9329- 2700B. The suitable counterpart is Murata MXTK92 Type or MXTK88 Type.

Moreover, the GC864 has the antenna pads on the back side of the PCB. This allows the manual soldering of the coaxial cable directly on the back side of the PCB. However, the soldering is not an advisable solution for a reliable connection of the antenna.

2.8 Supply voltage

The external power supply must be connected to VBATT signal and must fulfill the following requirements:

POWER SUPPLY

Nominal Supply Voltage Max Supply Voltage 4.2 V 4.5 V Supply voltage range

SW rel. 7.02.xx4 or older

3.8 V 3.8 V

3.4 V - 4.2 V 3.22 V – 4.5 V

SW rel. 7.03.x00 or newer

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

NOTE: Operating voltage range must never be exceeded; care must be taken in order to fulfill min/max voltage requirements.

2.9 Power consumption

The typical current consumption of the Telit GE864 and GC864 are:

Power off current (typical)

< 26 μA;

Stand–by current (GSM Idle)

Operating current in voice channel

Operating current in GPRS class 10

< 22 mA (< 4 mA using command AT+CFUN=5)

<200 mA @ worst network conditions

< 370 mA @ worst network conditions

2.10 Embodied Battery charger

The battery charger is suited for 3.7V Li-Ion rechargeable battery (suggested capacity 500-1000mAH). The Charger needs only a CURRENT LIMITED power source input and charges the battery directly through VBATT connector pins.

Battery charger input pin

Battery pins

Battery charger input voltage min

Battery charger input voltage typ

Battery charger input voltage max

Battery charger input current max

Battery type

NOTE: If embodied battery charger is used, then a LOW ESR capacitor of at least 100μF must be

mounted in parallel to VBATT pin. NOTE: when power is supplied to the CHARGE pin, a battery must always be connected to the VBATT pin of the GE864 / GC864.

CHARGE

VBATT, GND

5.0 V

5.5 V

7.0 V

400mA

Li-Ion rechargeable

2.11 User Interface

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

The user interface is managed by AT commands specified on the ITU-T V.250, GSM 07.07 and 07.05 specifications.

2.11.1 Speech Coding

The GE864 and GC864 voice codec support the following rates:

• Half Rate

• Full rate

• Enhanced Full Rate

• Adaptive Multi Rate

2.11.2 SIM Reader

The GE864 and GC864 support phase 2 GSM11.14 - SIM 1.8V and 3V ONLY with an external SIM connector. For 5V SIM operation an external level translator can be added.

2.11.3 SMS

The GE864 and GC864 support the following SMS types:

• Mobile Terminated (MT) class 0 – 3 with signaling of new incoming SMS, SIM full, SMS read

• Mobile Originated class 0 – 3 with writing, memorize in SIM and sending

• Cell Broadcast compatible with CB DRX with signaling of new incoming SMS.

2.11.4 Real Time Clock and Alarm

The Telit GE864 and GC864 support the Real Time Clock and Alarm functions through AT commands, furthermore an alarm output pin (GPIO6) can be configured to indicate the alarm with a hardware line output. Furthermore the Voltage Output of the RTC power supply is provided so that a backup capacitor can be added to increase the RTC autonomy.

2.11.5 Data/fax transmission

The Telit GE864 and GC864 support:

• GPRS Class 10, MS Class B

• CSD up to 14.4 Kbps

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

• Fax service, Class 1 Group 3

2.11.6 Local security management

The local security management can be done with the lock of Subscriber Identity module (SIM), and security code request at power–up.

2.11.7 Call control

The call cost control function is supported.

2.11.8 Phonebook

This function allows the storing of the telephone numbers in SIM memory. The capability depends on SIM version and embedded memory.

2.11.9 Characters management

The Telit GE864 and GC864 supports the IRA characters set (International Reference Alphabet), in TEXT and PDU mode.

2.11.10 SIM related functions

Activation and deactivation of the numbers stored in phone book FDN, ADN and PINs are supported. Extension at the PIN2 for the PUK2 insertion capability for lock condition is supported.

2.11.11 Call status indication

The call status indication by AT commands is supported.

2.11.12 Automatic answer (Voice, Data or FAX)

After a specified number of rings, the module will automatically answer with a beep. The user can set the number of rings by means of the command ATS0=<n>.

Telit GE864 and GC864 Product Description

2.11.13 Supplementary services (SS)

The following supplementary services are supported:

• Call Barring,

• Call Forwarding,

• Calling Line Identification Presentation (CLIP),

• Calling Line Identification Restriction (CLIR),

• Call Waiting, other party call Waiting Indication,

• Call Hold, other party Hold / Retrieved Indication,

• Closed User Group supplementary service (CUG),

• Advice of Charge,

• Unstructured SS Mobile Originated (MO)

80273ST10008a Rev. 14 - 18/09/08

2.11.14 Acoustic signaling

The acoustic signaling of the GE864 and GC864 on the selected acoustic device are the following:

• Call waiting;

• Ringing tone;

• SMS received tone;

• Busy tone;

• Power on/off tone;

• Off Hook dial tone;

• Congestion tone;

• Connected tone;

• Call dropped;

• No service tone;

• Alarm tone.

2.11.15 Buzzer output

The General Purpose I/O pin GPIO7 can be configured to output the BUZZER output signal, with only an external MOSFET/transistor and a diode a Buzzer can be directly driven. The ringing tone and the other signaling tones can be redirected to this Buzzer output with a specific AT command.

2.11.16 RF Transmission Monitor

As alternate function of the GPIO5, the GE864 and GC864 provide the RF transmission monitor. When the alternate function is activated, the pin of GPIO5 changes to HIGH every time the module transmits

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

an RF signal and remains HIGH for the duration of the transmission sequence, i.e. it does not change with every GSM signal burst.

2.12 Logic level specifications

Where not specifically stated, all the interface circuits work at 2.8V CMOS logic levels. To get more detailed information about the logic level specifications used in the Telit GE864 and Telit GC864interface circuits please consult the Hardware User Guide.

2.12.1 Reset signal

Signal Function I/O GE864 ball GC864 pin

RESET Phone reset I/O A2 54

RESET is used to reset the GE864 and GC864. Whenever this signal is pulled low, the GE864 / GC864 is reset. When the device is reset it stops any operation and after the release of the reset it is unconditionally rebooted, without doing any detach operation from the network where it is registered to. This behavior is not like a proper shut down because any GSM device is requested to issue a detach request on turn off. For this reason the Reset signal must not be used to normally shutting down the device, but only as an emergency exit in the rare case the device remains stuck waiting for some network response. The RESET is internally controlled on start-up to achieve always a proper power-on reset sequence, so there's no need to control this pin on start-up. It may only be used to reset a device already on that is not responding to any command.

NOTE: do not use this signal to power off the Telit GE864 / GC864 module. Use the ON_OFF* signal to perform this function or the AT#SHDN command.

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

2.13 Audio levels specifications

The audio of the GE864 / GC864 is organized into two main paths:

• internal path (called also MT)

• external path (called also HF)

These two paths are meant respectively for handset and headset/hands-free use. The GE864 / GC864 has a built in echo canceller and a noise suppressor, tuned separately for the two audio paths; for the internal path the echo canceller parameters are suited to cancel the echo generated by a handset, while for the external audio path they are suited for a hands-free use. For more information on the audio refer to the Hardware User Guide.

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

2.14 Converters

2.14.1 ADC Converter

The on board ADCs are 11-bit converter. They are able to read a voltage level in the range of 0÷2 volts applied on the ADC pin input, store and convert it into 11 bit word.

Input Voltage range 0 2 Volt

AD conversion - 11 bits

Resolution - < 1 mV

Sampling rate 1 (idle) 60 (on traffic) sec

Min Max Units

2.14.2 DAC Converter

The on board DAC is a 10 bit converter, able to generate an analogue value based a specific input in the range from 0 up to 1023. However, an external low-pass filter is necessary. See the HW User Guide for the details.

Voltage range (filtered) 0 2,6 Volt Range 0 1023 Steps

Min Max Units

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

2.15 Mounting the GE864 on your Board

2.15.1 General

The Telit GE864 modules has been designed in order to be compliant with a standard lead-free SMT process. For detailed information about PCB pad design and conditions to use in SMT process please consult Hardware User Guide.

2.16 Mounting the GC864 on your board

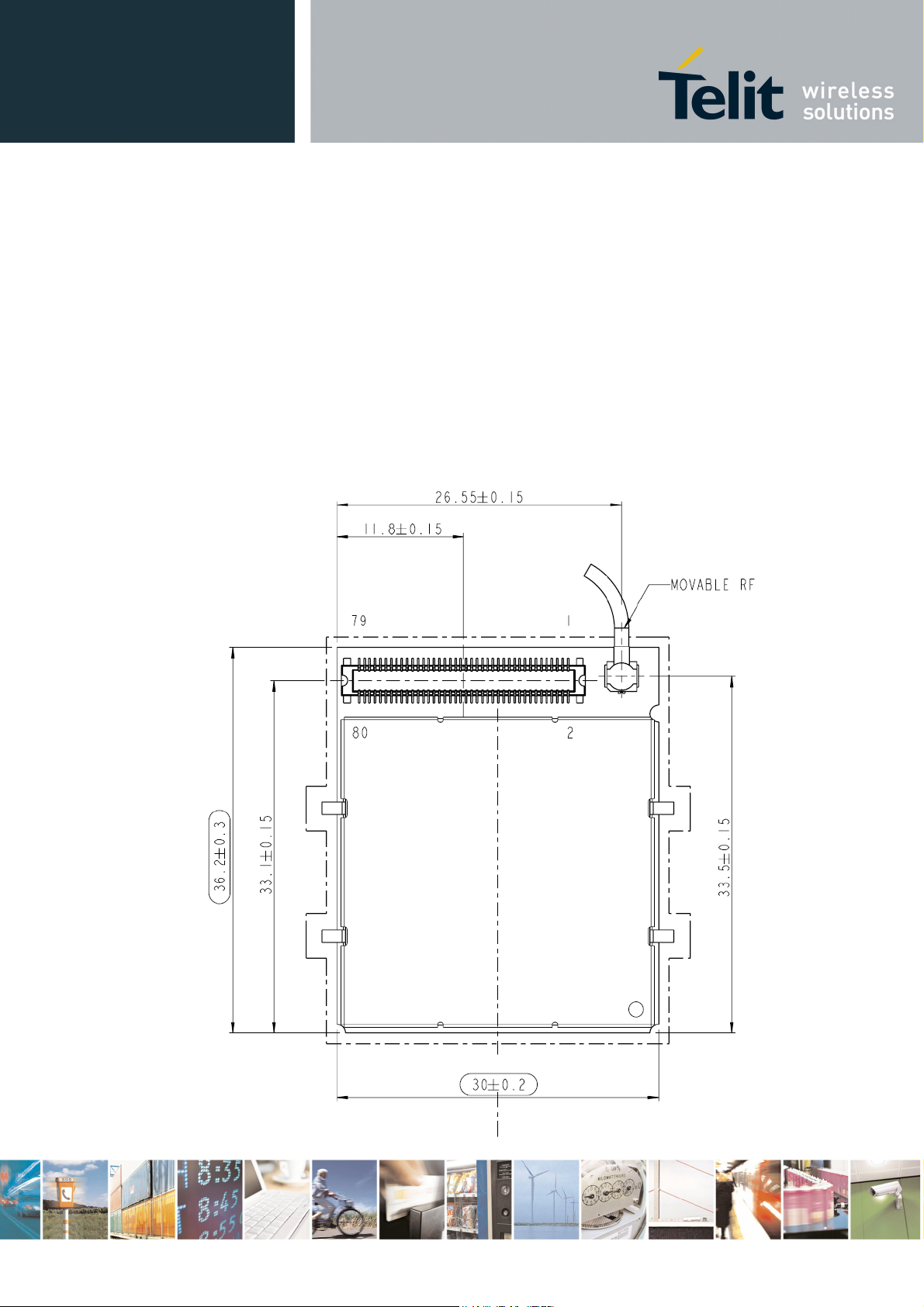

The position of the Molex board to board connector and the pin 1 are shown in the following picture.

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

NOTE: metal tabs present on GC864 should be connected to GND

2.17 Packing system

The Telit GE864 and GC864 are packaged on trays of 20 pieces each. This is especially suitable for the GE864 according to SMT processes for pick & place movement requirements.

The size of the tray is: 329 x 176mm NOTE: These trays can withstand at the maximum temperature of 65° C.

Section A-A

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

3 Evaluation Kit

In order to assist you in the development of your Telit GE864 / GC864 module based application, Telit can supply the EVK2 Evaluation Kit with appropriate power supply, SIM card housing, RS 232 serial port level translator, direct UART connection, Handset, Headset and Hands-free (car kit) audio, antenna. The EVK2 provides a fully functional solution for a complete data/phone application. The standard serial RS232 9 pin connector placed on the Evaluation Kit allows the connection of the

EVK2 system with a PC or other DTE.

The development of the applications utilizing the Telit GE864 / GC864 module must present a proper design of all the interfaces towards and from the module (e.g. power supply, audio paths, level translators), otherwise a decrease in the performances will be introduced or, in the worst case, a wrong design can even lead to an operating failure of the module. In order to assist the hardware designer in his project phase, the EVK2 board presents a series of different solutions, which will cover the most common design requirements on the market, and which can be easily integrated in the OEM design as building blocks or can be taken as starting points to develop a specific one.

GE864 Evaluation Kit

For a detailed description of the Telit Evaluation Kit refer to the documentation provided with the Telit

GE864 / GC864 Hardware User Guide and EVK2 User Manual.

App

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

4 Software Features

4.1 Enhanced Easy GPRS Extension

4.1.1 Overview

The Easy GPRS feature allows the Telit GE864 / GC864 user to contact a device in internet and establish with it a raw data flow over the GPRS and Internet networks. This feature can be seen as a way to obtain a "virtual" serial connection between the Application Software on the Internet machine involved and the controller of the Telit GE864 / GC864 module, regardless of all the software stacks underlying. An example of the protocol stack involved in the devices is reported:

Local

lication

EASY

GPRS

Serial Line

Driver

V. 24

Controller

Device

EASY

GPRS

Data on

Board

V. 24

Telit‘s

Module

TCP/UDP

VViirrttuuaall SSeerriiaall LLiinnkk

NNeettwwoorrkk IInntteerrwwoorrkkiinngg

GPRS Network and Internet

This particular implementation allows to the devices interfacing to the Telit GE864 / GC864 module the use of the GPRS and Internet packet service without the need to have an internal TCP/IP stack since this function is embedded inside the module. Easy GPRS overcomes some of the known limitations of the previous implementation and implements some new features such as:

Remote

lication

TCP/UDP

Remote

Device

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

• Keep the GPRS context active even after the closing of a socket, allowing the application to keep the same IP address;

• Also Mobile terminated (incoming) connections can be made, now it is possible to receive incoming TCP connection requests;

• A new internal firewall has been implemented in order to guarantee a certain level of security on internet applications.

4.1.2 Easy GPRS definition

The Easy GPRS feature provides a way to replace the need of an Internet TCP/IP stack at the terminal equipment side. The steps that will be required to obtain a virtual serial connection (that is actually a socket) to the Internet peer are:

• configuring the GPRS Access

• configuring the embedded TCP/IP stack behavior

• defining the Internet Peer to be contacted

• request the GPRS and socket connections to be opened (host is connected)

• exchange raw data

• close the socket and GPRS context

All these steps are achieved through AT commands. As for common modem interface, two logical status are involved: command mode and data traffic mode.

• In Command Mode Internet stack and to start up the data traffic.

• In data traffic mode will be encapsulated in the previously configured TCP / IP packets which will be sent to the other side of the network and vice versa. Control plane of ongoing socket connection is deployed internally to the module.

For more detailed information regarding GPRS please consult Easy GPRS User Guide and AT Commands Reference Guide.

(CM), some AT commands are provided to configure the Data Module

(Socket Mode, SKTM), the client can send/receive a raw data stream which

SSooc

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

4.2 Multisocket

New functionality of the Telit modules, multisocket is an extension of Telit Easy GPRS feature, which allows the user to have two contexts activated (that means two different IP address), more than one socket connection (with a maximum of 6) and simultaneous FTP client service.

The basic idea of multisocket is the possibility of suspend a socket connection with the escape sequence +++.

With IP Easy we can use a SKTD to open a socket connection and go online. After online activities we use +++ sequence to close the connection (see the figure below).

OOnnlliinnee mmooddee

DDaattaa TTrraaffffiicc

Where the green part represents the module command mode while the red part is the online mode.

Now, the online mode can be suspended with the escape sequence by using the multisocket feature. During suspend mode the data received by the socket will be buffered. These data will be displayed after socket resumption, as shown in the figure below:

OOnn LLiinnee

DDaattaa

ckkeettiissssttiillllaalliivvee

++++++

DDaattaa

OOnn LLiinnee

SSuus

sppeenndd

OOnn LLiinne

SSuus

sppeenndd

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

This new feature allows the user to switch between online mode and command mode without closing the connection and eventually opening another socket (or resuming the suspended one) or FTP connection.

Another feature is the possibility to associate any socket connection to a specific context, this means that we can use different IP addresses for the connections (max 2). Socket identifier is called Connection Id (selects which socket we want to use from 1 up to 6) and every Connection Id is associated to a context.

For more detailed information please consult Easy GPRS User Guide.

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

4.3 Jammed Detect & Report Extension

4.3.1 Overview

The Jammed Detect & Report feature allows a Telit GE864 / GC864 to detect the presence of a disturbing device such as a Communication Jammer and give indication to the user and/or send a report of that to the network. This feature can be very important in alarm, security and safety applications that rely on the module for the communications. In these applications, the presence of a Jammer device can compromise the whole system reliability and functionality and therefore shall be recognized and reported either to the local system for countermeasure actions or to the network providing remote actions. An example scenario could be an intrusion detection system that uses the module for sending the alarm indication for example with an SMS to the system owner, and a thief income using a Jammer to prevent any communication between the GSM module and the network. In such a case, the module detects the Jammer presence even before the break in and can trigger an alarm siren, other communication devices (PSTN modem) or directly report this condition to the network that can provide further security services for example sending SMS to the owner or police. Obviously this last service depends also from network infrastructure support and it may not be supported by some networks.

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

4.4 CMUX

CMUX (Converter-Multiplexer) is a multiplexing protocol implemented in the Telit module that can be used to send any data, SMS, fax, TCP data.

4.4.1 Product architecture

The Multiplexer mode enables one serial interface to transmit data to four different customer applications. This is achieved by providing four virtual channels using a Multiplexer (Mux).

This is especially advantageous when a fax/data/GPRS call is ongoing. Using the Multiplexer features, e.g. controlling the module or using the SMS service can be done via the additional channels without disturbing the data flow; access to the second UART is not necessary.

Furthermore, several accesses to the module can be created with the Multiplexer. This is of great advantage when several independent electronic devices or interfaces are used.

To access the three virtual interfaces, both the GSM engine and the customer application must contain Mux components, which communicate over the multiplexer protocol.

In Multiplexer mode, AT commands and data are encapsulated into packets. Each packet has channel identification and may vary in length.

4.4.2 Implementation feature and limitation

• 7.10 CMUX Basic Option used

• CMUX implementation support four full DLCI (Serial Port)

• Every CMUX instance has its own user profile storage in NVM

• Independent setting of unsolicited message.

• In case of GPS product one serial port can be dedicated to NMEA output.

• Every CMUX instance has its own independent flow control

NOTE: More details about the Multiplexer mode are available in the Cmux User Guide.

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

4.5 Easy Script Extension - Python interpreter

4.5.1 Overview

NOTE: This feature is available only for the

The Easy Script Extension is a feature that allows driving the modem "internally", writing the controlling application directly in a nice high level language: Python. The Easy Script Extension is aimed at low complexity applications where the application was usually done by a small microcontroller that managed some I/O pins and the GE864-PY and GC864-PY through the AT command interface.

A schematic of such a configuration can be:

FFLLAASSHH RROOMM

GGSSMM--GGPPRRSS

PPrroottooccooll SSttaacckk

FFLLAASSHH

mmeemmoorryy

RROOMM

PPHHYYSSIICCAALL AATT SSEERRIIAALL

HHAARRDDWWAARREE RREESSOOUURRCCEESS

Telit GE864-PY and GC864-PY.

EEXXTTEERRNNAALL

CCOONNTTRROOLLLLEERR

GGEE886644--PPYY // GGCC886644--PPYY

PPOORRTT

AATT ccoommmmaannddss

GGPPRRSS MMOODDEEMM

EENNGGIINNEE

RRAAMM ffoorr

GGSSMM--GGPPRRSS

mmooddeemm

RRAAMM

PPrroottooccooll SSttaacck

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

In order to eliminate this external controller, and further simplify the programming of the sequence of operations, inside the GE864-PY / GC864-PY it is included:

• Python script interpreter engine v. 1.5.2+

• around 3MB of Non Volatile Memory room for the user scripts and data

• 1.2 MB RAM reserved for Python engine usage

A schematic of this approach is:

FFLLAASSHH RROOMM

AAvvaaiillaabbllee UUsseerr

NNVVMM FFLLAASSHH

MMeemmoorryy

((33MMbbyytte

GGSSMM--GGPPRRSS

))

PPrroottooccooll SSttaacckk

FFLLAASSHH

RROOMM

mmeemmoorryy

GGEE886644--PPYY // GGCC886644--PPYY

PPYYTTHHOONN IINNTTEERRPPRREETTEERR

EENNGGIINNEE

MMDDMM mmoodduullee

VVIIRRTTUUAALL IINNTTEERRNNAALL AATT

SSEERRIIAALL PPOORRTT

AATT ccoommmmaannddss

GGPPRRSS MMOODDEEMM

EENNGGIINNE

HHAARRDDWWAARREE RREESSOOUURRCCEESS

RRAAMM

AAvvaaiillaabbllee RRAAMM

ffoorr PPyytthhoonn IInntteerrpprreetteerr

((11..55MMbbyytte

RRAAMM ffoorr

GGSSMM--GGPPRRSS

mmooddeemm

PPrroottooccooll SSttaacck

))

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

4.5.2 Python 1.5.2+ Copyright Notice

The Python code implemented into the Telit module is copyrighted by Stichting Mathematisch Centrum, this is the license: Copyright © 1991-1995 by Stichting Mathematisch Centrum, Amsterdam, The Netherlands. All Rights Reserved Copyright (c) 1995-2001 Corporation for National Research Initiatives; All Rights Reserved. Copyright (c) 2001, 2002, 2003, 2004 Python Software Foundation; All Rights Reserved. Copyright (c) 2001-2008 Python Software Foundation; All Rights Reserved. All Rights Reserved are retained in Python. Permission to use, copy, modify, and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appear in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the names of Stichting Mathematisch Centrum or CWI or Corporation for National Research Initiatives or CNRI not be used in advertising or publicity pertaining to distribution of the software without specific, written prior permission. While CWI is the initial source for this software, a modified version is made available by the Corporation for National Research Initiatives (CNRI) at the Internet address ftp://ftp.python.org

STICHTING MATHEMATISCH CENTRUM AND CNRI DISCLAIM ALL WARRANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS, IN NO EVENT SHALL STICHTING MATHEMATISCH CENTRUM OR CNRI BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

rry

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

4.5.3 Python implementation description

Python scripts are text files stored in NVM inside the Telit GE864-PY / GC864-PY. There's a file system inside the module that allows to write and read files with different names on one single level (no subdirectories are supported). Attention: it is possible to run only one Python script at the time.

The Python script is executed in a task inside the Telit module at the lowest priority, making sure this does not interfere with GSM/GPRS normal operations. This allows serial ports, protocol stack etc. to run independently from the Python script. The Python script interacts with the Telit module functionality through four build-in interfaces.

MMOODD LLiibbrraarryy

PPrriinntt

CCoommmmaanndd

SSeerriiaall ppoorrtt 11 ((AASSCC11)) eexx

TTR

SSEERR22 LLiibbrraarryy

CCEE

GGPPRRSS MMooddeemm EEnnggiinnee

Viirrttuuaall IInntteerrnnaall AATT SSeerriiaall PPoorrtt

MMDDMM LLiibbrraarryy

MMDDMM22LLiib

PPyytthhoonn EEnnggiinnee wwiitthh

UUPPGGRRAADDAABBLLEE ssooffttwwaarree ssccrriipptt

rddwwaarree RReessoouurrcceess

HHa

SSPPII LLiib

SSeerriiaall ppoorrtt 00 ((AASSCC00)) eexx

PPRROOG

SSEERR LLiibbrraarryy

raarryy

IIIICCLLiib

GGPPIIOO LLiibbrraarryy

AAnntteennnnaa

GGSSMM

GGPPIIOO

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

• The MDM interface is the most important one. It allows Python script to send AT commands, receive responses and unsolicited indications, send data to the network and receive data from the network during connections. It is quite the same as the usual serial port interface in the

Telit module. The difference is that this interface is not a real serial port but just an internal

software bridge between Python and mobile internal AT command handling engine. All AT commands working in the Telit module are working in this software interface as well. Some of them have no meaning on this interface, such as those regarding serial port settings. The usual concept of flow control keeps its meaning over this interface, but it's managed internally.

• The MDM2 interface is the second interface between Python and mobile internal AT command handling. It is used to send AT commands from Python script to mobile and receive AT responses from mobile to Python script when the classic MDM built-in module already in use.

• The SER interface allows Python script to read from and write to the real, physical serial port

where usually the AT command interface resides, for example to read NMEA information from a GPS device. When Python is running this serial port is free to be used by Python script because it is not used as AT command interface since the AT parser is mapped into the internal virtual serial port. No flow control is available from Python on this port.

• The SER2 interface allows Python script to read from and write to the real physical serial port

ASC1, that is usually available for trace and debug.

• The GPIO interface allows Python script to handle general purpose input output faster than

through AT commands, skipping the command parser and going directly to control the pins.

• The MOD interface is a collection of useful functions.

• The IIC interface is an implementation on the Python core of the IIC bus Master. It allows

Python to create one or more IIC bus on the available GPIO pins.

• The SPI interface is an implementation on the Python core of the SPI bus Master. It allows

Python to create one or more SPI bus on the available GPIO pins.

For the debug, the print command is directly forwarded on the EMMI TX pin (second serial port) at baud rate115200bps 8N1.

4.5.4 Python core supported features

The Python core version is 1.5.2+ (string methods added to 1.5.2). You can use all Python statements and almost all Python built-in types and functions.

Built-in types and functions not

supported

complex marshal

float imp long _main_

docstring _builtin_

sys md5

Available modules

(all others are not supported)

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

4.5.5 Python Build-in Custom Modules

Several build in custom modules have been included in the python core, specifically aimed at the hardware environment of the module.

The build in modules included are:

MDM

MDM2

SER

SER2

GPIO

MOD

IIC

SPI

NOTE: More details about the Python modules are available in the Easy Script in Python Guide.

interface between Python and mobile internal AT command handling second interface between Python and mobile internal AT command handling interface between Python and mobile internal serial port ASC0 direct handling interface between Python and mobile internal serial port ASC1 direct handling interface between Python and mobile internal general purpose input output direct handling interface between Python and mobile miscellaneous functions custom software Inter IC bus that can be mapped on creation over almost any GPIO pin available custom software Serial Protocol Interface bus that can be mapped on creation over almost any GPIO pin available

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

4.6 SAP: SIM Access Profile

4.6.1 Product architecture

The SAP feature allows the module to use the SIM of a remote SIM Server. This feature is implemented using special AT Command on a Virtual circuit of the CMUX interface.

4.6.2 Implementation feature

• SAP is based on 7.10 CMUX Basic Option used

• Only SAP Client features

• Logic HW flow control is recommended on the Virtual instance selected for the SAP command.

4.6.3 Remote SIM Message Command Description

The module sends request commands to the client application through a binary message that is crowned in the CMUX message. The client application shall extract the message and send it to the SAP server, through the appropriate protocols (e.g. by RFCOMM, that is the Bluetooth serial port emulation entity). The client application shall extract all the messages sent by SAP server and put them in the CMUX message, to sent to the module.

The module satisfies the following feature requirements:

• Connection management

• Transfer APDU

• Transfer ATR

• Power SIM on

• Report Status

• Error Handling

Every feature needs some procedures support:

Feature Procedure

Connect Connection Management Report Status

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

Transfer ATR Disconnection Initiated by the Client

Disconnection Initiated by the Server Transfer APDU Transfer APDU Transfer ATR Transfer ATR

Power SIM on Power SIM on

Transfer ATR Report Status Report Status Error Handling Error Response

Report Status, Disconnection Initiated by the Server and Error Response are independent messages sent by server. The other procedures consist of couples of messages, started by client.

NOTE: More details about the SAP are available in the SAP User Guide.

4.7 TFUS (Telit Firmware Update Service)

Telit Firmware Update Service (TFUS) provides a cost-effective, fast, secure and reliable way for wirelessly reflashing the firmware on mobile devices, ensuring that embedded software is up-to-date with the latest enhancements and features.

Customers, who want to benefit from this service, must pass through the Telit certification program, where Telit will assist the customer in validating the correct implementation of FOTA.

4.7.1 FOTA (Firmware Over The Air)

Telit, which has signed a partnership agreement with the worldwide leader of Firmware OTA technology Red Bend, has integrated its unique vCurrent® Mobile client software for use in its m2m product portfolio. Telit is therefore able to upgrade its products by transmitting only a delta file, which represents the difference between one firmware version and another.

All Telit modules, starting from SW version 7.03.x00, support Over-the-Air firmware update. Note that this service will be enabled only after signing specific agreement with Telit.

See “TFUS Application Note” for details in www.telit.com

Application Notes

> Product > GSM/GPRS > Product Family >

5 AT Commands

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

The Telit GE864 / GC864 module can be driven via the serial interface using the standard AT commands

The Telit GE864 / GC864 module is compliant with:

1. Hayes standard AT command set, in order to maintain the compatibility with existing SW programs.

2. ETSI GSM 07.07 specific AT command and GPRS specific commands.

3. ETSI GSM 07.05 specific AT commands for SMS (Short Message Service) and CBS (Cell Broadcast Service)

4. FAX Class 1 compatible commands

Moreover the Telit GE864 / GC864 module supports also Telit proprietary AT commands for special purposes. For a more information about AT commands supported by GE864/GC864 modules please refer to document AT Commands Reference Guide, code 80000ST10025a.

The AT is an ATTENTION command and is used as a prefix to other parameters in a string. The AT command combined with other parameters can be set up in the communications package or typed in manually as a command line instruction.

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

6 Conformity Assessment Issues

The Telit GE864 and GC864 are assessed to be conform to the R&TTE Directive. If the antenna connected to the module is conforming to the requirements specified under this document, it requires no further evaluation under Article 3.2 of the R&TTE Directive and do not require further involvement of a R&TTE Directive Notified Body for the final product. In all other cases, or if the manufacturer of the final product is in doubt then the equipment integrating the radio module must be assessed against Article 3.2 of the R&TTE Directive.

In all cases assessment of the final product must be made against the Essential requirements of the R&TTE Directive Articles 3.1(a) and (b), safety and EMC respectively, and any relevant Article 3.3 requirements.

The Telit GE864 and GC864 are conforming to the following European Union Directives:

• R&TTE Directive 1999/5/EC (Radio Equipment & Telecommunications Terminal Equipments)

• Low Voltage Directive 73/23/EEC and product safety

• Directive 89/336/EEC for conformity for EMC

In order to satisfy the essential requisite of the R&TTE 99/5/EC directive, the GE864 module is compliant with the following standards:

• GSM (Radio Spectrum). Standard: EN 301 511 and 3GPP 51.010-1

• EMC (Electromagnetic Compatibility). Standards: EN 301 489-1 and EN 301 489-7

• LVD (Low Voltage Directive) Standards: EN 60 950

In this document and the Hardware User Guide, Software User Guide all the information you may need for developing a product meeting the R&TTE Directive is included.

Furthermore the Telit GE864 / GC864 module is FCC Approved as module to be installed in other devices. This device is to be used only for fixed and mobile applications. If the final product after integration is intended for portable use, a new application and FCC is required. The Telit GE864 / GC864 is conforming with the following US Directives:

• Use of RF Spectrum. Standards: FCC 47 Part 24 (GSM 1900)

• EMC (Electromagnetic Compatibility). Standards: FCC47 Part 15

To meet the FCC's RF exposure rules and regulations:

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

• The system antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all the persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

• The system antenna(s) used for this module must not exceed 3 dBi for mobile and fixed or mobile operating configurations.

• Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Manufacturers of mobile, fixed or portable devices incorporating this module are advised to clarify any regulatory questions and to have their complete product tested and approved for FCC compliance.

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

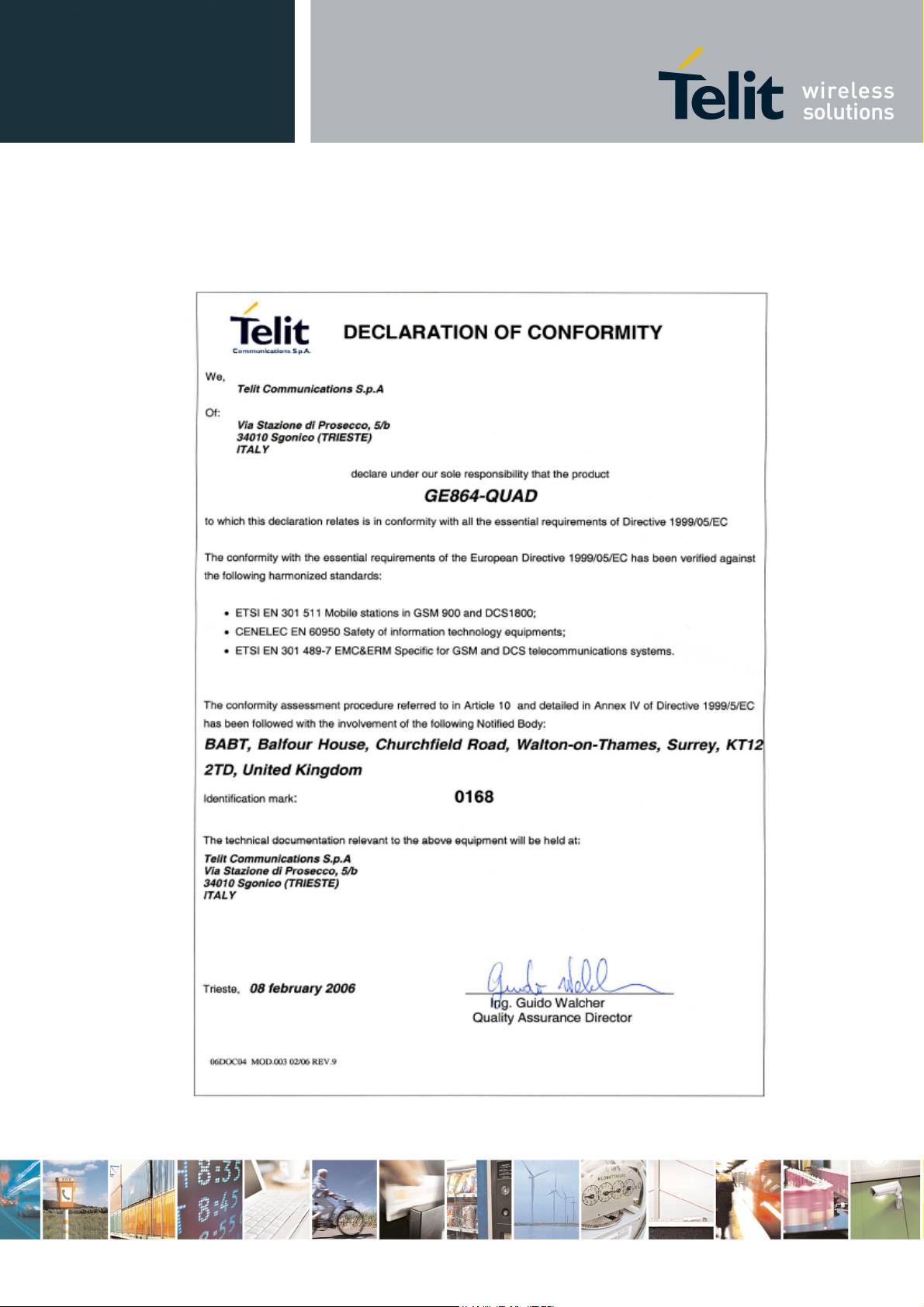

6.1 GE864-QUAD Conformity Assessment

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

6.2 GE864-PY Conformity Assessment

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

6.3 GE864-QUAD/PY : RoHS certificate

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

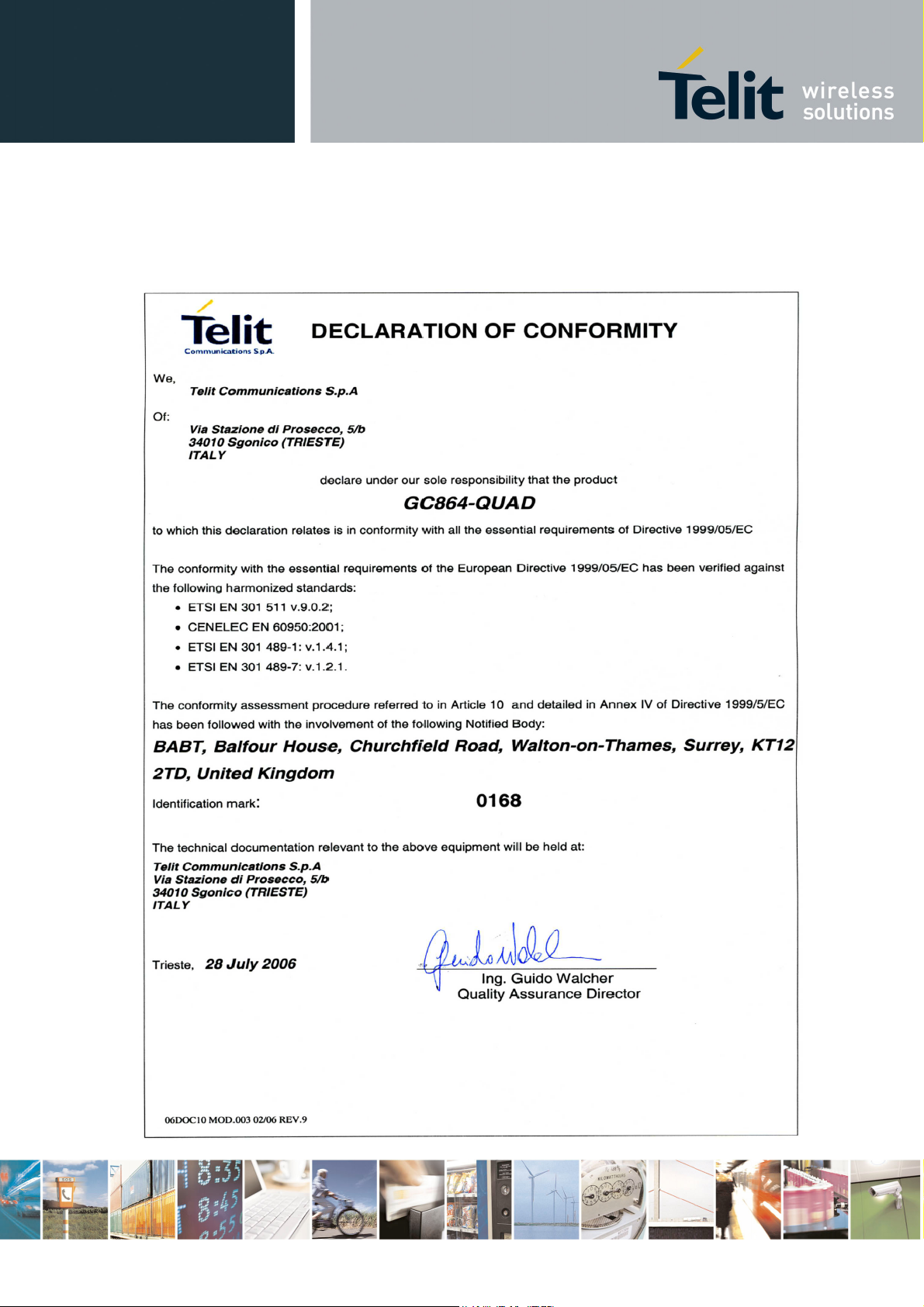

6.4 GC864-QUAD: Conformity Assessment

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

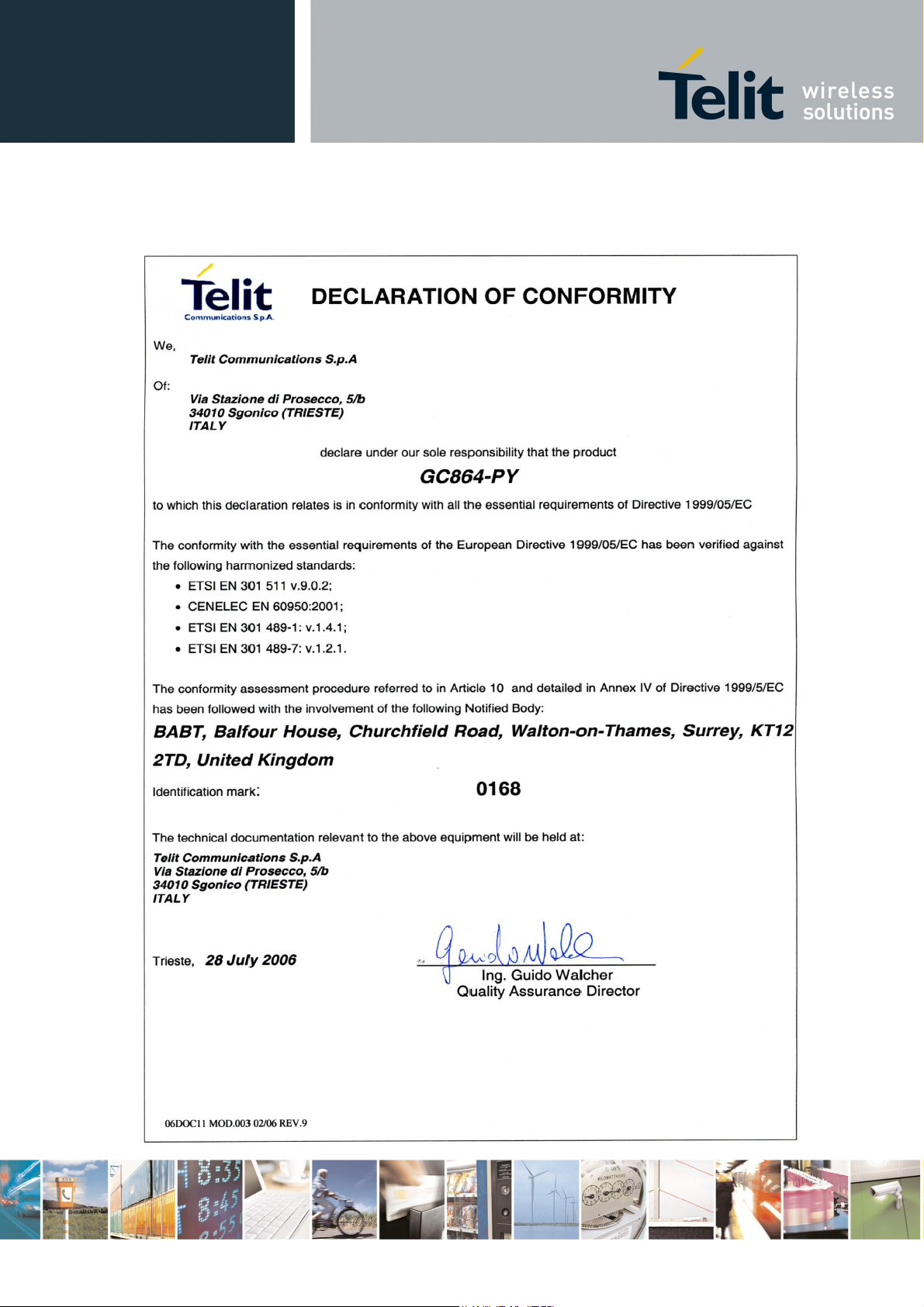

6.5 GC864-PY: Conformity Assessment

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

6.6 GC864-QUAD/PY : RoHS certificate

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

6.7 GE864-QUAD/PY: FCC Equipment Authorization

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

6.8 GC864-QUAD/PY: FCC Equipment Authorization

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

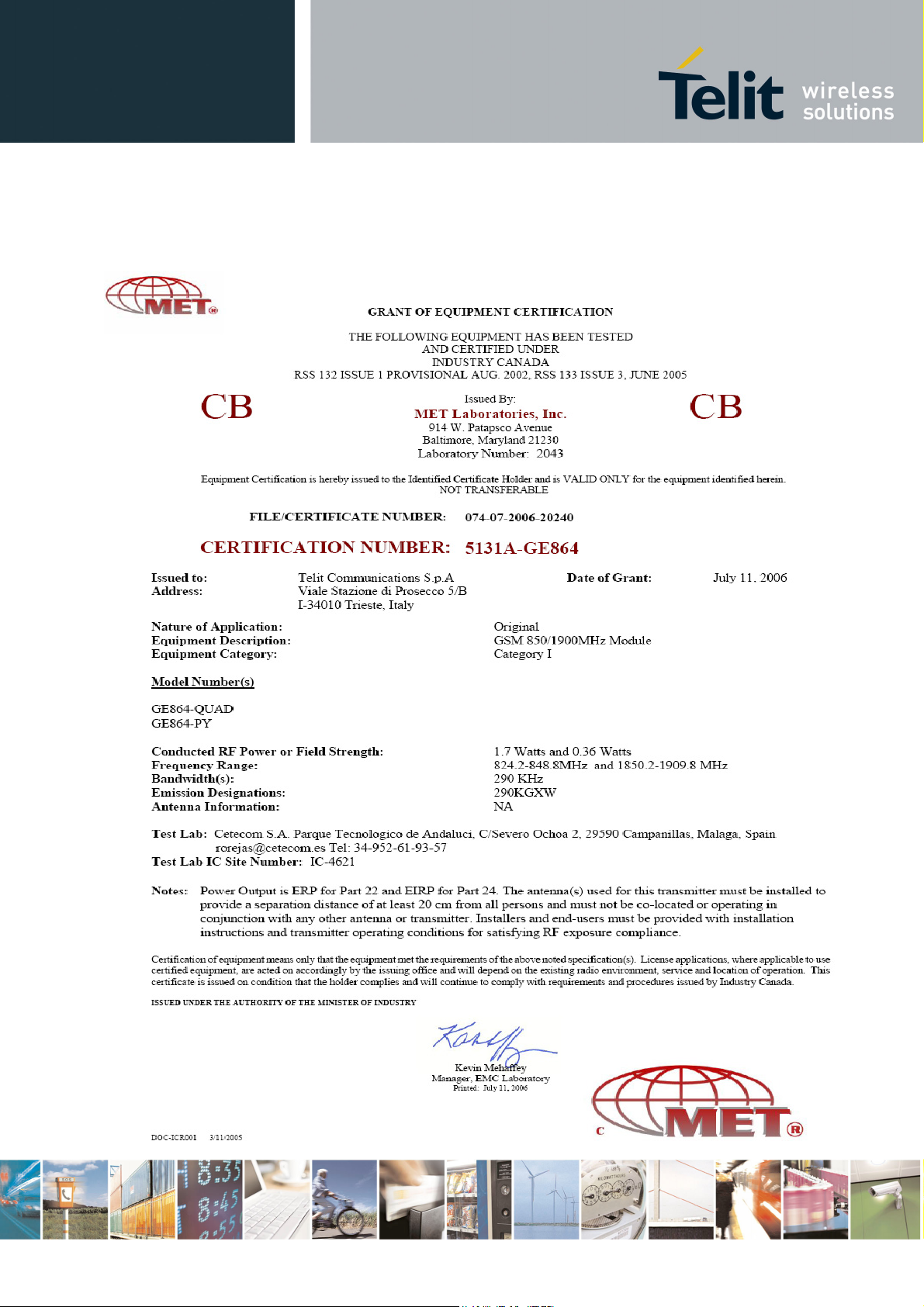

6.9 GE864-QUAD/PY: IC Equipment Authorization

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

6.10 GC864-QUAD/PY: IC Equipment Authorization

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

7 SAFETY RECOMMENDATIONS

READ CAREFULLY

Be sure the use of this product is allowed in the country and in the environment required. The use of this product may be dangerous and has to be avoided in the following areas:

 Where it can interfere with other electronic devices in environments such as hospitals, airports,

aircrafts, etc

 Where there is risk of explosion such as gasoline stations, oil refineries, etc

It is responsibility of the user to enforce the country regulation and the specific environment regulation.

Do not disassemble the product; any mark of tampering will compromise the warranty validity.

We recommend following the instructions of the hardware user guides for a correct wiring of the product. The product has to be supplied with a stabilized voltage source and the wiring has to be conforming to the security and fire prevention regulations.

The product has to be handled with care, avoiding any contact with the pins because electrostatic discharges may damage the product itself. Same cautions have to be taken for the SIM, checking carefully the instruction for its use. Do not insert or remove the SIM when the product is in power saving mode.

The system integrator is responsible of the functioning of the final product; therefore, care has to be taken to the external components of the module, as well as of any project or installation issue, because the risk of disturbing the GSM network or external devices or having impact on the security. Should there be any doubt, please refer to the technical documentation and the regulations in force.

Every module has to be equipped with a proper antenna with specific characteristics. The antenna has to be installed with care in order to avoid any interference with other electronic devices and has to guarantee a minimum distance from the body (20 cm). In case of this requirement cannot be satisfied, the system integrator has to assess the final product against the SAR regulation.

The European Community provides some Directives for the electronic equipments introduced on the market. All the relevant information’s are available on the European Community website:

http://europa.eu.int/comm/enterprise/rtte/dir99-5.htm

The text of the Directive 99/05 regarding telecommunication equipments is available, while the applicable Directives (Low Voltage and EMC) are available at:

http://europa.eu.int/comm/enterprise/electr_equipment/index_en.htm

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

8 GE864 and GC864 Technical Support

Telit’s technical support to GE864 and GC864 wireless modems customers consists in:

• Technical documentation >Modules > selected model.

• Engineering support conditions.

: available for download into the Website www.telit.com >Products

: accessible via E-Mail service with 48 hr replies assured under normal

9 List of acronyms

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

ACM ASCII AT CB CBS CCM CLIP CLIR CMOS CR CSD CTS DAI DCD DCE DRX DSR DTA DTE DTMF DTR EMC ETSI FTA GPRS GSM HF IMEI IMSI IRA ITU IWF LCD LED LF ME MMI MO MS

Accumulated Call Meter American Standard Code for Information Interchange Attention commands Cell Broadcast Cell Broadcasting Service Call Control Meter Calling Line Identification Presentation Calling Line Identification Restriction Complementary Metal-Oxide Semiconductor Carriage Return Circuit Switched Data Clear To Send Digital Audio Interface Data Carrier Detected Data Communications Equipment Data Receive Data Set Ready Data Terminal Adaptor Data Terminal Equipment Dual Tone Multi Frequency Data Terminal Ready Electromagnetic Compatibility European Telecommunications Equipment Institute Full Type Approval (ETSI) General Radio Packet Service Global System for Mobile communication Hands Free International Mobile Equipment Identity International Mobile Subscriber Identity International Reference Alphabet International Telecommunications Union Inter-Working Function Liquid Crystal Display Light Emitting Diode Linefeed Mobile Equipment Man Machine Interface Mobile Originated Mobile Station

MT OEM PB PDU PH PIN PLMN PUCT PUK RACH RLP RMS RTS RI SCA SIM SMD SMS SMSC SS TIA UDUB USSD

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

Mobile Terminated Other Equipment Manufacturer Phone Book Protocol Data Unit Packet Handler Personal Identity Number Public Land Mobile Network Price per Unit Currency Table PIN Unblocking Code Random Access Channel Radio Link Protocol Root Mean Square Ready To Send Ring Indicator Service Center Address Subscriber Identity Module Surface Mounted Device Short Message Service Short Message Service Center Supplementary Service Telecommunications Industry Association User Determined User Busy Unstructured Supplementary Service Data

Telit GE864 and GC864 Product Description

10 Document Change Log

80273ST10008a Rev. 14 - 18/09/08

RReevviissiioonn DDaattee

DRAFT #0 Draft for comments DRAFT #1 23/06/2005 Updated Para 2.16 Interfaces on GE864 and Pins allocation

DRAFT #2 04/08/2005 1 Overview: updated

ISSUE #3 25/01/2006 GC864 drawings and size: added

ISSUE #4 21/03/2006 DAC converter Max voltage range filtered: changed

ISSUE #5 04/05/2006 2.13.1 Reset signal: unconditionally rebooted page 20

ISSUE #6 04/08/2006 2.8 back layout of PCB with SIM pads

[[dddd//mmmm//yyyyyyyy]

CChhaannggeess

]

Added BGA Balls layout Updated Para 2.17 Updated Para 2.18 Updated Para 3

2.3 Environmental requirements: changed

2.6 reference sensitivity: updated

2.16: Interfaces on GE864 and Pins allocation: changed

2.17 with all info regarding the soldering process: changed Disclaimer: added Safety Recommendation: added AT commands Availability table: added

GC864 Antenna connector: added RF Transmission Monitor: added DAC Converter: changed GE864 balls allocation: E10 ball now reserved GC864 pins allocation: added Mounting the GC864 on your board: added Conformity assessment Issues: changed GE864-QUAD Conformity assessment: added Safety Recommendations: changed GE864 and GC864 Technical Support: changed

Debug of the GE864 in production: added GC864 drawing: changed Mounting the GC864 on your board: changed

2.19.3 Molex connector p/n: changed to LF

2.21.Mounting the GC864 on your board: metal tabs

2.12.12 Indication of network service availability: changed text regarding pin START_LED

2.12.16 DTMF Tones: changed minimum duration of DTMF tone

2.19.1 GE864 balls allocation: update; added NOTE after the balls table (page 29); added note for the line SIMVCC (page 26)

2.19.2 GE864 BGA balls layout update

2.19.3 GC864 pins allocation: added NOTE after the pin table (page

34); added note for the line SIMVCC (page 32)

Telit GE864 and GC864 Product Description

80273ST10008a Rev. 14 - 18/09/08

2.20.3 Recommended foot prints for the application (GE864): added

2.20.4 Debug of the GE864 in production (changed)

5.4 CMUX: new paragraph

5.4 SAP: new paragraph 6 AT commands: added AT commands (CMUX, SAP and others: see rows in yellow)

7.2 GE864-PY Conformity assessment added

7.3 GC864-QUAD Conformity assessment added

7.4 GC864-PY Conformity assessment added

7.5 GE864-QUAD/PY: FCC Equipment Authorization

7.6 GC864-QUAD/PY: FCC Equipment Authorization

7.7 GE864-QUAD/PY: IC Equipment Authorization

7.8 GC864-QUAD/PY: IC Equipment Authorization

ISSUE #7 23/10/2006 2.2 Weight: changed weight value for GC864

2.7 Antenna: changed bandwidth values

2.10 Power Consumption: updated operating current in GPRS

2.16 Audio levels specifications: updated microphone and speaker characteristics

2.19.3 GC864 pins allocation: pin 49 PWRMON changed in output (page 33)

2.22.1 GE864 orientation on the tray: updated module image

5.3 Easy Script Extension - Python Interpreter: updated schema 6 AT commands: cancelled AT commands table

7.3 GE864-QUAD/PY: RoHS certificate

7.6 GC864-QUAD/PY: RoHS certificate

ISSUE #8 08/02/2007 2.11 Power Consumption: updated operating current in GSM

general review of the document complete revision of the document: removed camera, and come paragraphs transferred to the HW or SW User Guide

ISSUE #9 12/11/2007 -Introduced new discaimer

-Updated temperature range values

-Added Python’s new features

-Added Multisocket paragraph ISSUE #10 15/01/2008 Added CE mark ISSUE #11 11/03/2008 Updated temperature specification ISSUE #12 16/05/2008 Added new GC864-QUAD variant with SIM holder on the board ISSUE #13 16/07/2008 Updated temperature range specification ISSUE #14 18/09/2008 Updated applicability list

Updated temperature range specification Updated RoHS compliance certification Added FOTA service description

Rainbow Electronics GC864-PY User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

GE864 and GC864 Product Description

Contents

1 Overview

2 General Product Description

2.1 Dimensions

2.1.1 GE864

2.1.2 GC864

2.2 Weight

2.3 Environmental requirements

2.3.1 Temperature range

2.3.2 Vibration Test (non functional)

2.3.3 RoHS compliance

2.4 Operating Frequency

2.5 Transmitter output power

2.6 Reference sensitivity

2.7 Antenna

2.7.1 GC864 Antenna connector

2.8 Supply voltage

2.9 Power consumption

2.10 Embodied Battery charger

2.11 User Interface

2.11.1 Speech Coding

2.11.2 SIM Reader

2.11.3 SMS

2.11.4 Real Time Clock and Alarm

2.11.5 Data/fax transmission

2.11.6 Local security management

2.11.7 Call control

2.11.8 Phonebook

2.11.9 Characters management

2.11.10 SIM related functions

2.11.11 Call status indication

2.11.12 Automatic answer (Voice, Data or FAX)

2.11.13 Supplementary services (SS)

2.11.14 Acoustic signaling

2.11.15 Buzzer output

2.11.16 RF Transmission Monitor

2.12 Logic level specifications

2.12.1 Reset signal

2.13 Audio levels specifications

2.14 Converters

2.14.1 ADC Converter

2.14.2 DAC Converter

2.15 Mounting the GE864 on your Board

2.15.1 General

2.16 Mounting the GC864 on your board

2.17 Packing system

3 Evaluation Kit

4 Software Features

4.1 Enhanced Easy GPRS Extension

4.1.1 Overview

4.1.2 Easy GPRS definition

4.2 Multisocket

4.3 Jammed Detect & Report Extension

4.3.1 Overview

4.4 CMUX

4.4.1 Product architecture

4.4.2 Implementation feature and limitation

4.5 Easy Script Extension - Python interpreter

4.5.1 Overview

4.5.2 Python 1.5.2+ Copyright Notice

4.5.3 Python implementation description

4.5.4 Python core supported features

4.5.5 Python Build-in Custom Modules

4.6 SAP: SIM Access Profile

4.6.1 Product architecture

4.6.2 Implementation feature

4.6.3 Remote SIM Message Command Description

4.7 TFUS (Telit Firmware Update Service)

4.7.1 FOTA (Firmware Over The Air)

5 AT Commands

6 Conformity Assessment Issues

6.1 GE864-QUAD Conformity Assessment

6.2 GE864-PY Conformity Assessment

6.3 GE864-QUAD/PY : RoHS certificate

6.4 GC864-QUAD: Conformity Assessment
