Features

• High Performance, Low Power AVR

• Advanced RISC Architecture

– 123 Powerful Instructions – Most Single Clock Cycle Execution – 32 x 8 General Purpose Working Registers – Fully Static Operation

• Non-volatile Program and Data Memories

– 2/4/8K Byte of In-System Programmable Program Memory Flash

(ATtiny261/461/861)

Endurance: 10,000 Write/Erase Cycles

– 128/256/512 Bytes In-System Programmable EEPROM (ATtiny261/461/861)

Endurance: 100,000 Write/Erase Cycles – 128/256/512 Bytes Internal SRAM (ATtiny261/461/861) – Programming Lock for Self-Programming Flash Program and EEPROM Data

Security

• Peripheral Features

– 8/16-bit Timer/Counter with Prescaler and Two PWM Channels – 8/10-bit High Speed Timer/Counter with Separate Prescaler

3 High Frequency PWM Outputs with Separate Output Compare Registers

Programmable Dead Time Generator – Universal Serial Interface with Start Condition Detector – 10-bit ADC

11 Single Ended Channels

16 Differential ADC Channel Pairs

15 Differential ADC Channel Pairs with Programmable Gain (1x, 8x, 20x, 32x) – Programmable Watchdog Timer with Separate On-chip Oscillator – On-chip Analog Comparator

• Special Microcontroller Features

– debugWIRE On-chip Debug System – In-System Programmable via SPI Port – External and Internal Interrupt Sources – Low Power Idle, ADC Noise Reduction, and Power-down Modes – Enhanced Power-on Reset Circuit – Programmable Brown-out Detection Circuit – Internal Calibrated Oscillator

• I/O and Packages

– 16 Programmable I/O Lines – 20-pin PDIP, 20-pin SOIC and 32-pad MLF

• Operating Voltage:

– 1.8 - 5.5V for ATtiny261V/461V/861V – 2.7 - 5.5V for ATtiny261/461/861

• Speed Grade:

– ATtiny261V/461V/861V: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 10 MHz @ 2.7 - 5.5V – ATtiny261/461/861: 0 - 10 MHz @ 2.7 - 5.5V, 0 - 20 MHz @ 4.5 - 5.5V

• Industrial Temperature Range

• Low Power Consumption

– Active Mode: 1 MHz, 1.8V: 380μA – Power-down Mode: 0.1μA at 1.8V

8-Bit Microcontroller

8-bit

Microcontroller with 2/4/8K Bytes In-System Programmable Flash

ATtiny261/V ATtiny461/V ATtiny861/V

Preliminary

2588B–AVR–11/06

1. Pin Configurations

Figure 1-1. Pinout ATtiny261/461/861

PDIP/SOIC

(MOSI/DI/SDA/OC1A/PCINT8) PB0

(MISO/DO/OC1A/PCINT9) PB1

(SCK/USCK/SCL/OC1B/PCINT10) PB2

(OC1B/PCINT11) PB3

(ADC7/OC1D/CLKI/XTAL1/PCINT12) PB4

(ADC8/OC1D/CLKO/XTAL2/PCINT13) PB5

(ADC9/INT0/T0/PCINT14) PB6

(ADC10/RESET/PCINT15) PB7

(OC1B/PCINT11) PB3

VCC

GND

(ADC7/OC1D/CLKI/XTAL1/PCINT12) PB4

(ADC8/OC1D/CLKO/XTAL2/PCINT13) PB5

1 2 3 4 5

VCC

GND

7 8 9 10

PB2 (SCK/USCK/SCL/OC1B/PCINT10)

PB1 (MISO/DO/OC1A/PCINT9)

32313029282726

1 2 3 4 5 6 7 8

QFN/MLF

20 19 18 17 16 15 14 13 12 11

PB0 (MOSI/DI/SDA/OC1A/PCINT8)

NCNCNC

PA0 (ADC0/DI/SDA/PCINT0)

PA0 (ADC0/DI/SDA/PCINT0) PA1 (ADC1/DO/PCINT1) PA2 (ADC2/INT1/USCK/SCL/PCINT2) PA3 (AREF/PCINT3) AGND AVCC PA4 (ADC3/ICP0/PCINT4) PA5 (ADC4/AIN2/PCINT5) PA6 (ADC5/AIN0/PCINT6) PA7 (ADC6/AIN1/PCINT7)

PA1 (ADC1/DO/PCINT1)

PA2 (ADC2/INT1/USCK/SCL/PCINT2)

PA3 (AREF/PCINT3)

AGND

AVCC

PA4 (ADC3/ICP0/PCINT4)

9101112131415

(ADC9/INT0/T0/PCINT14) PB6

(ADC10/RESET/PCINT15) PB7

(ADC6/AIN1/PCINT7) PA7

(ADC4/AIN2/PCINT5) PA5

(ADC5/AIN0/PCINT6) PA6

Note: The large center pad underneath the QFN/MLF package should be soldered to ground on the board to ensure good mechanical

stability.

1.1 Disclaimer

Typical values contained in this data sheet are based on simulations and characterization of other AVR microcontrollers manufactured on the same process technology. Min and Max values will be available after the device is characterized.

ATtiny261/461/861

2588B–AVR–11/06

2. Overview

2.1 Block Diagram

ATtiny261/461/861

The ATtiny261/461/861 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny261/461/861 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Figure 2-1. Block Diagram

GND

Watchdog

Timer

Watchdog

Oscillator

Circuits /

Clock

Generation

EEPROM

Timer/Counter0 A/D Conv.

Powe r

Supervision

POR / BOD &

RESET

Timer/Counter1

VCC

debugWIRE

PROGRAM

CPU

LOGIC

SRAMFlash

AVCC

AGND

AREF

2588B–AVR–11/06

DATA B U S

USI

Analog Comp.

PORT A (8)PORT B (8)

PA[0..7]PB[0..7]

Internal Bandgap

RESET XTAL[1..2]

The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.

The ATtiny261/461/861 provides the following features: 2/4/8K byte of In-System Programmable Flash, 128/256/512 bytes EEPROM, 128/256/512 bytes SRAM, 6 general purpose I/O lines, 32 general purpose working registers, one 8-bit Timer/Counter with compare modes, one 8-bit high speed Timer/Counter, Universal Serial Interface, Internal and External Interrupts, a 4-channel, 10-bit ADC, a programmable Watchdog Timer with internal Oscillator, and three software selectable power saving modes. The Idle mode stops the CPU while allowing the SRAM, Timer/Counter, ADC, Analog Comparator, and Interrupt system to continue functioning. The Power-down mode saves the register contents, disabling all chip functions until the next Interrupt or Hardware Reset. The ADC Noise Reduction mode stops the CPU and all I/O modules except ADC, to minimize switching noise during ADC conversions.

The device is manufactured using Atmel’s high density non-volatile memory technology. The On-chip ISP Flash allows the Program memory to be re-programmed In-System through an SPI serial interface, by a conventional non-volatile memory programmer or by an On-chip boot code running on the AVR core.

The ATtiny261/461/861 AVR is supported with a full suite of program and system development tools including: C Compilers, Macro Assemblers, Program Debugger/Simulators, In-Circuit Emulators, and Evaluation kits.

2.2 Pin Descriptions

2.2.1 VCC

Supply voltage.

2.2.2 GND

Ground.

2.2.3 AVCC

Analog supply voltage.

2.2.4 AGND

Analog ground.

2.2.5 Port A (PA7..PA0)

Port A is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The Port A output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port A pins that are externally pulled low will source current if the pull-up resistors are activated. The Port A pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port A also serves the functions of various special features of the ATtiny261/461/861 as listed on page 65.

ATtiny261/461/861

2588B–AVR–11/06

2.2.6 Port B (PB7..PB0)

Port B is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit). The Port B output buffers have symmetrical drive characteristics with both high sink and source capability. As inputs, Port B pins that are externally pulled low will source current if the pull-up resistors are activated. The Port B pins are tri-stated when a reset condition becomes active, even if the clock is not running.

Port B also serves the functions of various special features of the ATtiny261/461/861 as listed on page 61.

ATtiny261/461/861

2.2.7 R

ESET

Reset input. A low level on this pin for longer than the minimum pulse length will generate a reset, even if the clock is not running. The minimum pulse length is given in Table 23-3 on page

189. Shorter pulses are not guaranteed to generate a reset.

2588B–AVR–11/06

3. Resources

A comprehensive set of development tools, application notes and datasheets are available for download on http://www.atmel.com/avr.

ATtiny261/461/861

2588B–AVR–11/06

4. About Code Examples

This documentation contains simple code examples that briefly show how to use various parts of the device. These code examples assume that the part specific header file is included before compilation. Be aware that not all C compiler vendors include bit definitions in the header files and interrupt handling in C is compiler dependent. Please confirm with the C compiler documentation for more details.

ATtiny261/461/861

2588B–AVR–11/06

5. AVR CPU Core

5.1 Overview

This section discusses the AVR core architecture in general. The main function of the CPU core is to ensure correct program execution. The CPU must therefore be able to access memories, perform calculations, control peripherals, and handle interrupts.

Figure 5-1. Block Diagram of the AVR Architecture

Data Bus 8-bit

Flash

Program

Memory

Instruction

Decoder

Control Lines

Program

Counter

Direct Addressing

Status

and Control

32 x 8

General

Purpose

Registrers

ALU

Indirect Addressing

Data

SRAM

EEPROM

Interrupt

Unit

Watchdog

Timer

Analog

Comparator

I/O Module1

I/O Module 2

I/O Module n

I/O Lines

In order to maximize performance and parallelism, the AVR uses a Harvard architecture – with separate memories and buses for program and data. Instructions in the Program memory are executed with a single level pipelining. While one instruction is being executed, the next instruction is pre-fetched from the Program memory. This concept enables instructions to be executed in every clock cycle. The Program memory is In-System Reprogrammable Flash memory.

The fast-access Register File contains 32 x 8-bit general purpose working registers with a single clock cycle access time. This allows single-cycle Arithmetic Logic Unit (ALU) operation. In a typical ALU operation, two operands are output from the Register File, the operation is executed, and the result is stored back in the Register File – in one clock cycle.

ATtiny261/461/861

2588B–AVR–11/06

ATtiny261/461/861

Six of the 32 registers can be used as three 16-bit indirect address register pointers for Data Space addressing – enabling efficient address calculations. One of the these address pointers can also be used as an address pointer for look up tables in Flash Program memory. These added function registers are the 16-bit X-, Y-, and Z-register, described later in this section.

The ALU supports arithmetic and logic operations between registers or between a constant and a register. Single register operations can also be executed in the ALU. After an arithmetic operation, the Status Register is updated to reflect information about the result of the operation.

Program flow is provided by conditional and unconditional jump and call instructions, able to directly address the whole address space. Most AVR instructions have a single 16-bit word format. Every Program memory address contains a 16- or 32-bit instruction.

During interrupts and subroutine calls, the return address Program Counter (PC) is stored on the Stack. The Stack is effectively allocated in the general data SRAM, and consequently the Stack size is only limited by the total SRAM size and the usage of the SRAM. All user programs must initialize the SP in the Reset routine (before subroutines or interrupts are executed). The Stack Pointer (SP) is read/write accessible in the I/O space. The data SRAM can easily be accessed through the five different addressing modes supported in the AVR architecture.

The memory spaces in the AVR architecture are all linear and regular memory maps.

A flexible interrupt module has its control registers in the I/O space with an additional Global Interrupt Enable bit in the Status Register. All interrupts have a separate Interrupt Vector in the Interrupt Vector table. The interrupts have priority in accordance with their Interrupt Vector position. The lower the Interrupt Vector address, the higher the priority.

The I/O memory space contains 64 addresses for CPU peripheral functions as Control Registers, SPI, and other I/O functions. The I/O memory can be accessed directly, or as the Data Space locations following those of the Register File, 0x20 - 0x5F.

5.2 ALU – Arithmetic Logic Unit

The high-performance AVR ALU operates in direct connection with all the 32 general purpose working registers. Within a single clock cycle, arithmetic operations between general purpose registers or between a register and an immediate are executed. The ALU operations are divided into three main categories – arithmetic, logical, and bit-functions. Some implementations of the architecture also provide a powerful multiplier supporting both signed/unsigned multiplication and fractional format. See the “Instruction Set” section for a detailed description.

5.3 Status Register

The Status Register contains information about the result of the most recently executed arithmetic instruction. This information can be used for altering program flow in order to perform conditional operations. Note that the Status Register is updated after all ALU operations, as specified in the Instruction Set Reference. This will in many cases remove the need for using the dedicated compare instructions, resulting in faster and more compact code.

The Status Register is not automatically stored when entering an interrupt routine and restored when returning from an interrupt. This must be handled by software.

2588B–AVR–11/06

5.3.1 SREG – AVR Status Register

The AVR Status Register – SREG – is defined as:

Bit 76543210

0x3F (0x5F) I T H S V N Z C SREG

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

• Bit 7 – I: Global Interrupt Enable

The Global Interrupt Enable bit must be set for the interrupts to be enabled. The individual interrupt enable control is then performed in separate control registers. If the Global Interrupt Enable Register is cleared, none of the interrupts are enabled independent of the individual interrupt enable settings. The I-bit is cleared by hardware after an interrupt has occurred, and is set by the RETI instruction to enable subsequent interrupts. The I-bit can also be set and cleared by the application with the SEI and CLI instructions, as described in the instruction set reference.

• Bit 6 – T: Bit Copy Storage

The Bit Copy instructions BLD (Bit LoaD) and BST (Bit STore) use the T-bit as source or destination for the operated bit. A bit from a register in the Register File can be copied into T by the BST instruction, and a bit in T can be copied into a bit in a register in the Register File by the BLD instruction.

• Bit 5 – H: Half Carry Flag

The Half Carry Flag H indicates a Half Carry in some arithmetic operations. Half Carry is useful in BCD arithmetic. See the “Instruction Set Description” for detailed information.

• Bit 4 – S: Sign Bit, S = N

⊕ V

The S-bit is always an exclusive or between the Negative Flag N and the Two’s Complement Overflow Flag V. See the “Instruction Set Description” for detailed information.

• Bit 3 – V: Two’s Complement Overflow Flag

The Two’s Complement Overflow Flag V supports two’s complement arithmetics. See the “Instruction Set Description” for detailed information.

• Bit 2 – N: Negative Flag

The Negative Flag N indicates a negative result in an arithmetic or logic operation. See the “Instruction Set Description” for detailed information.

• Bit 1 – Z: Zero Flag

The Zero Flag Z indicates a zero result in an arithmetic or logic operation. See the “Instruction Set Description” for detailed information.

• Bit 0 – C: Carry Flag

The Carry Flag C indicates a carry in an arithmetic or logic operation. See the “Instruction Set Description” for detailed information.

ATtiny261/461/861

2588B–AVR–11/06

5.4 General Purpose Register File

The Register File is optimized for the AVR Enhanced RISC instruction set. In order to achieve the required performance and flexibility, the following input/output schemes are supported by the Register File:

• One 8-bit output operand and one 8-bit result input

• Two 8-bit output operands and one 8-bit result input

• Two 8-bit output operands and one 16-bit result input

• One 16-bit output operand and one 16-bit result input

Figure 5-2 shows the structure of the 32 general purpose working registers in the CPU.

Figure 5-2. AVR CPU General Purpose Working Registers

General R14 0x0E

Purpose R15 0x0F

Working R16 0x10

Registers R17 0x11

ATtiny261/461/861

7 0 Addr.

R0 0x00

R1 0x01

R2 0x02

…

R13 0x0D

…

R26 0x1A X-register Low Byte

R27 0x1B X-register High Byte

R28 0x1C Y-register Low Byte

R29 0x1D Y-register High Byte

R30 0x1E Z-register Low Byte

R31 0x1F Z-register High Byte

Most of the instructions operating on the Register File have direct access to all registers, and most of them are single cycle instructions.

As shown in Figure 5-2, each register is also assigned a Data memory address, mapping them directly into the first 32 locations of the user Data Space. Although not being physically implemented as SRAM locations, this memory organization provides great flexibility in access of the registers, as the X-, Y- and Z-pointer registers can be set to index any register in the file.

5.4.1 The X-register, Y-register, and Z-register

The registers R26..R31 have some added functions to their general purpose usage. These registers are 16-bit address pointers for indirect addressing of the data space. The three indirect address registers X, Y, and Z are defined as described in Figure 5-3 on page 12.

2588B–AVR–11/06

5.5 Stack Pointer

Figure 5-3. The X-, Y-, and Z-registers

15 XH XL 0

X-register 707 0

R27 (0x1B) R26 (0x1A)

15 YH YL 0

Y-register 707 0

R29 (0x1D) R28 (0x1C)

15 ZH ZL 0

Z-register 7070

R31 (0x1F) R30 (0x1E)

In the different addressing modes these address registers have functions as fixed displacement, automatic increment, and automatic decrement (see the instruction set reference for details).

The Stack is mainly used for storing temporary data, for storing local variables and for storing return addresses after interrupts and subroutine calls. The Stack Pointer Register always points to the top of the Stack. Note that the Stack is implemented as growing from higher memory locations to lower memory locations. This implies that a Stack PUSH command decreases the Stack Pointer.

The Stack Pointer points to the data SRAM Stack area where the Subroutine and Interrupt Stacks are located. This Stack space in the data SRAM must be defined by the program before any subroutine calls are executed or interrupts are enabled. The Stack Pointer must be set to point above 0x60. The Stack Pointer is decremented by one when data is pushed onto the Stack with the PUSH instruction, and it is decremented by two when the return address is pushed onto the Stack with subroutine call or interrupt. The Stack Pointer is incremented by one when data is popped from the Stack with the POP instruction, and it is incremented by two when data is popped from the Stack with return from subroutine RET or return from interrupt RETI.

The AVR Stack Pointer is implemented as two 8-bit registers in the I/O space. The number of bits actually used is implementation dependent. Note that the data space in some implementations of the AVR architecture is so small that only SPL is needed. In this case, the SPH Register will not be present

5.5.1 SPH and SPL – Stack Pointer Register

Bit 1514131211109 8

0x3E (0x5E) SP15 SP14 SP13 SP12 SP11 SP10 SP9 SP8 SPH

0x3D (0x5D) SP7 SP6 SP5 SP4 SP3 SP2 SP1 SP0 SPL

76543210

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND

RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND RAMEND

ATtiny261/461/861

2588B–AVR–11/06

5.6 Instruction Execution Timing

This section describes the general access timing concepts for instruction execution. The AVR CPU is driven by the CPU clock clk chip. No internal clock division is used.

Figure 5-4 shows the parallel instruction fetches and instruction executions enabled by the Har-

vard architecture and the fast access Register File concept. This is the basic pipelining concept to obtain up to 1 MIPS per MHz with the corresponding unique results for functions per cost, functions per clocks, and functions per power-unit.

Figure 5-4. The Parallel Instruction Fetches and Instruction Executions

1st Instruction Fetch

1st Instruction Execute

2nd Instruction Fetch

2nd Instruction Execute

3rd Instruction Fetch

3rd Instruction Execute

4th Instruction Fetch

clk

CPU

ATtiny261/461/861

, directly generated from the selected clock source for the

CPU

T1 T2 T3 T4

Figure 5-5 shows the internal timing concept for the Register File. In a single clock cycle an ALU

operation using two register operands is executed, and the result is stored back to the destination register.

Figure 5-5. Single Cycle ALU Operation

Total Execution Time

ALU Operation Execute

Result Write Back

5.7 Reset and Interrupt Handling

The AVR provides several different interrupt sources. These interrupts and the separate Reset Vector each have a separate Program Vector in the Program memory space. All interrupts are assigned individual enable bits which must be written logic one together with the Global Interrupt Enable bit in the Status Register in order to enable the interrupt.

The lowest addresses in the Program memory space are by default defined as the Reset and Interrupt Vectors. The complete list of vectors is shown in ”Interrupts” on page 48. The list also determines the priority levels of the different interrupts. The lower the address the higher is the priority level. RESET has the highest priority, and next is INT0 – the External Interrupt Request

clk

T1 T2 T3 T4

CPU

2588B–AVR–11/06

When an interrupt occurs, the Global Interrupt Enable I-bit is cleared and all interrupts are disabled. The user software can write logic one to the I-bit to enable nested interrupts. All enabled interrupts can then interrupt the current interrupt routine. The I-bit is automatically set when a Return from Interrupt instruction – RETI – is executed.

There are basically two types of interrupts. The first type is triggered by an event that sets the Interrupt Flag. For these interrupts, the Program Counter is vectored to the actual Interrupt Vector in order to execute the interrupt handling routine, and hardware clears the corresponding Interrupt Flag. Interrupt Flags can also be cleared by writing a logic one to the flag bit position(s) to be cleared. If an interrupt condition occurs while the corresponding interrupt enable bit is cleared, the Interrupt Flag will be set and remembered until the interrupt is enabled, or the flag is cleared by software. Similarly, if one or more interrupt conditions occur while the Global Interrupt Enable bit is cleared, the corresponding Interrupt Flag(s) will be set and remembered until the Global Interrupt Enable bit is set, and will then be executed by order of priority.

The second type of interrupts will trigger as long as the interrupt condition is present. These interrupts do not necessarily have Interrupt Flags. If the interrupt condition disappears before the interrupt is enabled, the interrupt will not be triggered.

When the AVR exits from an interrupt, it will always return to the main program and execute one more instruction before any pending interrupt is served.

Note that the Status Register is not automatically stored when entering an interrupt routine, nor restored when returning from an interrupt routine. This must be handled by software.

When using the CLI instruction to disable interrupts, the interrupts will be immediately disabled. No interrupt will be executed after the CLI instruction, even if it occurs simultaneously with the CLI instruction. The following example shows how this can be used to avoid interrupts during the timed EEPROM write sequence..

Assembly Code Example

in r16, SREG ; store SREG value

cli ; disable interrupts during timed sequence

sbi EECR, EEMPE ; start EEPROM write

sbi EECR, EEPE

out SREG, r16 ; restore SREG value (I-bit)

C Code Example

char cSREG;

cSREG = SREG; /* store SREG value */

/* disable interrupts during timed sequence */

_CLI();

EECR |= (1<<EEMPE); /* start EEPROM write */

EECR |= (1<<EEPE);

SREG = cSREG; /* restore SREG value (I-bit) */

ATtiny261/461/861

2588B–AVR–11/06

When using the SEI instruction to enable interrupts, the instruction following SEI will be executed before any pending interrupts, as shown in this example.

Assembly Code Example

sei ; set Global Interrupt Enable

sleep; enter sleep, waiting for interrupt

; note: will enter sleep before any pending

; interrupt(s)

C Code Example

_SEI(); /* set Global Interrupt Enable */

_SLEEP(); /* enter sleep, waiting for interrupt */

/* note: will enter sleep before any pending interrupt(s) */

5.7.1 Interrupt Response Time

The interrupt execution response for all the enabled AVR interrupts is four clock cycles minimum. After four clock cycles the Program Vector address for the actual interrupt handling routine is executed. During this four clock cycle period, the Program Counter is pushed onto the Stack. The vector is normally a jump to the interrupt routine, and this jump takes three clock cycles. If an interrupt occurs during execution of a multi-cycle instruction, this instruction is completed before the interrupt is served. If an interrupt occurs when the MCU is in sleep mode, the interrupt execution response time is increased by four clock cycles. This increase comes in addition to the start-up time from the selected sleep mode.

ATtiny261/461/861

A return from an interrupt handling routine takes four clock cycles. During these four clock cycles, the Program Counter (two bytes) is popped back from the Stack, the Stack Pointer is incremented by two, and the I-bit in SREG is set.

2588B–AVR–11/06

6. AVR Memories

This section describes the different memories in the ATtiny261/461/861. The AVR architecture has two main memory spaces, the Data memory and the Program memory space. In addition, the ATtiny261/461/861 features an EEPROM Memory for data storage. All three memory spaces are linear and regular.

6.1 In-System Re-programmable Flash Program Memory

The ATtiny261/461/861 contains 2/4/8K byte On-chip In-System Reprogrammable Flash memory for program storage. Since all AVR instructions are 16 or 32 bits wide, the Flash is organized as 1024/2048/4096 x 16.

The Flash memory has an endurance of at least 10,000 write/erase cycles. The ATtiny261/461/861 Program Counter (PC) is 10/11/12 bits wide, thus addressing the 1024/2048/4096 Program memory locations. ”Memory Programming” on page 168 contains a detailed description on Flash data serial downloading using the SPI pins.

Constant tables can be allocated within the entire Program memory address space (see the LPM – Load Program memory instruction description).

Timing diagrams for instruction fetch and execution are presented in ”Instruction Execution Tim-

ing” on page 13.

Figure 6-1. Program Memory Map

6.2 SRAM Data Memory

Figure 6-2 shows how the ATtiny261/461/861 SRAM Memory is organized.

The lower 224/352/608 Data memory locations address both the Register File, the I/O memory and the internal data SRAM. The first 32 locations address the Register File, the next 64 locations the standard I/O memory, and the last 128/256/512 locations address the internal data SRAM.

The five different addressing modes for the Data memory cover: Direct, Indirect with Displacement, Indirect, Indirect with Pre-decrement, and Indirect with Post-increment. In the Register File, registers R26 to R31 feature the indirect addressing pointer registers.

Program Memory

0x0000

0x03FF/0x07FF/0x0FFF

The direct addressing reaches the entire data space.

The Indirect with Displacement mode reaches 63 address locations from the base address given by the Y- or Z-register.

ATtiny261/461/861

2588B–AVR–11/06

ATtiny261/461/861

When using register indirect addressing modes with automatic pre-decrement and post-increment, the address registers X, Y, and Z are decremented or incremented.

The 32 general purpose working registers, 64 I/O Registers, and the 128/256/512 bytes of internal data SRAM in the ATtiny261/461/861 are all accessible through all these addressing modes. The Register File is described in ”General Purpose Register File” on page 11.

Figure 6-2. Data Memory Map

Data Memory

6.2.1 Data Memory Access Times

This section describes the general access timing concepts for internal memory access. The internal data SRAM access is performed in two clk

Figure 6-3. On-chip Data SRAM Access Cycles

clk

CPU

Address

Data

32 Registers

64 I/O Registers

Internal SRAM

(128/256/512 x 8)

T1 T2 T3

Compute Address

0x0000 - 0x001F 0x0020 - 0x005F 0x0060

0x0DF/0x15F/0x25F

cycles as described in Figure 6-3.

CPU

Address valid

Write

Read

6.3 EEPROM Data Memory

The ATtiny261/461/861 contains 128/256/512 bytes of data EEPROM memory. It is organized as a separate data space, in which single bytes can be read and written. The EEPROM has an endurance of at least 100,000 write/erase cycles. The access between the EEPROM and the CPU is described in the following, specifying the EEPROM Address Registers, the EEPROM Data Register, and the EEPROM Control Register. For a detailed description of Serial data downloading to the EEPROM, see page 181.

2588B–AVR–11/06

Memory Access Instruction

Next Instruction

6.3.1 EEPROM Read/Write Access

The EEPROM Access Registers are accessible in the I/O space.

The write access times for the EEPROM are given in Table 6-1. A self-timing function, however, lets the user software detect when the next byte can be written. If the user code contains instructions that write the EEPROM, some precautions must be taken. In heavily filtered power supplies, V period of time to run at a voltage lower than specified as minimum for the clock frequency used. See ”Preventing EEPROM Corruption” on page 20 for details on how to avoid problems in these situations.

In order to prevent unintentional EEPROM writes, a specific write procedure must be followed. Refer to ”Atomic Byte Programming” on page 18 and ”Split Byte Programming” on page 18 for details on this.

When the EEPROM is read, the CPU is halted for four clock cycles before the next instruction is executed. When the EEPROM is written, the CPU is halted for two clock cycles before the next instruction is executed.

6.3.2 Atomic Byte Programming

Using Atomic Byte Programming is the simplest mode. When writing a byte to the EEPROM, the user must write the address into the EEARL Register and data into EEDR Register. If the EEPMn bits are zero, writing EEPE (within four cycles after EEMPE is written) will trigger the erase/write operation. Both the erase and write cycle are done in one operation and the total programming time is given in Table 1. The EEPE bit remains set until the erase and write operations are completed. While the device is busy with programming, it is not possible to do any other EEPROM operations.

is likely to rise or fall slowly on Power-up/down. This causes the device for some

6.3.3 Split Byte Programming

It is possible to split the erase and write cycle in two different operations. This may be useful if the system requires short access time for some limited period of time (typically if the power supply voltage falls). In order to take advantage of this method, it is required that the locations to be written have been erased before the write operation. But since the erase and write operations are split, it is possible to do the erase operations when the system allows doing time-critical operations (typically after Power-up).

6.3.4 Erase

To erase a byte, the address must be written to EEAR. If the EEPMn bits are 0b01, writing the EEPE (within four cycles after EEMPE is written) will trigger the erase operation only (programming time is given in Table 1). The EEPE bit remains set until the erase operation completes. While the device is busy programming, it is not possible to do any other EEPROM operations.

6.3.5 Write

To write a location, the user must write the address into EEAR and the data into EEDR. If the EEPMn bits are 0b10, writing the EEPE (within four cycles after EEMPE is written) will trigger the write operation only (programming time is given in Table 1). The EEPE bit remains set until the write operation completes. If the location to be written has not been erased before write, the data that is stored must be considered as lost. While the device is busy with programming, it is not possible to do any other EEPROM operations.

ATtiny261/461/861

2588B–AVR–11/06

ATtiny261/461/861

The calibrated Oscillator is used to time the EEPROM accesses. Make sure the Oscillator frequency is within the requirements described in ”OSCCAL – Oscillator Calibration Register” on

page 32.

The following code examples show one assembly and one C function for erase, write, or atomic write of the EEPROM. The examples assume that interrupts are controlled (e.g., by disabling interrupts globally) so that no interrupts will occur during execution of these functions.

Assembly Code Example

EEPROM_write:

; Wait for completion of previous write

sbic EECR,EEPE

rjmp EEPROM_write

; Set Programming mode

ldi r16, (0<<EEPM1)|(0<<EEPM0)

out EECR, r16

; Set up address (r18:r17) in address register

out EEARH, r18

out EEARL, r17

; Write data (r16) to data register

out EEDR, r16

; Write logical one to EEMPE

sbi EECR,EEMPE

; Start eeprom write by setting EEPE

sbi EECR,EEPE

ret

C Code Example

void EEPROM_write(unsigned char ucAddress, unsigned char ucData)

{

/* Wait for completion of previous write */

while(EECR & (1<<EEPE))

;

/* Set Programming mode */

EECR = (0<<EEPM1)|(0<<EEPM0);

/* Set up address and data registers */

EEAR = ucAddress;

EEDR = ucData;

/* Write logical one to EEMPE */

EECR |= (1<<EEMPE);

/* Start eeprom write by setting EEPE */

EECR |= (1<<EEPE);

}

2588B–AVR–11/06

The next code examples show assembly and C functions for reading the EEPROM. The examples assume that interrupts are controlled so that no interrupts will occur during execution of these functions.

Assembly Code Example

EEPROM_read:

; Wait for completion of previous write

sbic EECR,EEPE

rjmp EEPROM_read

; Set up address (r18:r17) in address register

out EEARH, r18

out EEARL, r17

; Start eeprom read by writing EERE

sbi EECR,EERE

; Read data from data register

in r16,EEDR

ret

C Code Example

unsigned char EEPROM_read(unsigned char ucAddress)

{

/* Wait for completion of previous write */

while(EECR & (1<<EEPE))

;

/* Set up address register */

EEAR = ucAddress;

/* Start eeprom read by writing EERE */

EECR |= (1<<EERE);

/* Return data from data register */

return EEDR;

}

6.3.6 Preventing EEPROM Corruption

During periods of low V too low for the CPU and the EEPROM to operate properly. These issues are the same as for board level systems using EEPROM, and the same design solutions should be applied.

An EEPROM data corruption can be caused by two situations when the voltage is too low. First, a regular write sequence to the EEPROM requires a minimum voltage to operate correctly. Secondly, the CPU itself can execute instructions incorrectly, if the supply voltage is too low.

EEPROM data corruption can easily be avoided by following this design recommendation:

Keep the AVR RESET active (low) during periods of insufficient power supply voltage. This can be done by enabling the internal Brown-out Detector (BOD). If the detection level of the internal BOD does not match the needed detection level, an external low V be used. If a reset occurs while a write operation is in progress, the write operation will be completed provided that the power supply voltage is sufficient.

ATtiny261/461/861

, the EEPROM data can be corrupted because the supply voltage is

reset protection circuit can

2588B–AVR–11/06

6.4 I/O Memory

The I/O space definition of the ATtiny261/461/861 is shown in ”Register Summary” on page 218.

All ATtiny261/461/861 I/Os and peripherals are placed in the I/O space. All I/O locations may be accessed by the LD/LDS/LDD and ST/STS/STD instructions, transferring data between the 32 general purpose working registers and the I/O space. I/O Registers within the address range 0x00 - 0x1F are directly bit-accessible using the SBI and CBI instructions. In these registers, the value of single bits can be checked by using the SBIS and SBIC instructions. Refer to the instruction set section for more details. When using the I/O specific commands IN and OUT, the I/O addresses 0x00 - 0x3F must be used. When addressing I/O Registers as data space using LD and ST instructions, 0x20 must be added to these addresses.

For compatibility with future devices, reserved bits should be written to zero if accessed. Reserved I/O memory addresses should never be written.

Some of the Status Flags are cleared by writing a logical one to them. Note that, unlike most other AVRs, the CBI and SBI instructions will only operate on the specified bit, and can therefore be used on registers containing such Status Flags. The CBI and SBI instructions work with registers 0x00 to 0x1F only.

The I/O and Peripherals Control Registers are explained in later sections.

6.4.1 General Purpose I/O Registers

The ATtiny261/461/861 contains three General Purpose I/O Registers. These registers can be used for storing any information, and they are particularly useful for storing global variables and Status Flags. General Purpose I/O Registers within the address range 0x00 - 0x1F are directly bit-accessible using the SBI, CBI, SBIS, and SBIC instructions.

ATtiny261/461/861

6.5 Register Description

6.5.1 EEARH and EEARL – EEPROM Address Register

Bit 76543210

0x1F (0x3F) -------EEAR8EEARH

0x1E (0x3E) EEAR7 EEAR6 EEAR5 EEAR4 EEAR3 EEAR2 EEAR1 EEAR0 EEARL

Bit 76543210

Read/Write RRRRRRRR/W

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value0000000X

Initial Value XXXXXXXX

• Bit 7:1 – Res6:0: Reserved Bits

These bits are reserved for future use and will always read as 0 in ATtiny261/461/861.

• Bits 8:0 – EEAR8:0: EEPROM Address

The EEPROM Address Registers – EEARH and EEARL – specifies the high EEPROM address in the 128/256/512 bytes EEPROM space. The EEPROM data bytes are addressed linearly between 0 and 127/255/511. The initial value of EEAR is undefined. A proper value must be written before the EEPROM may be accessed.

2588B–AVR–11/06

6.5.2 EEDR – EEPROM Data Register

Bit 76543210

0x1D (0x3D) EEDR7 EEDR6 EEDR5 EEDR4 EEDR3 EEDR2 EEDR1 EEDR0 EEDR

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

• Bits 7:0 – EEDR7:0: EEPROM Data

For the EEPROM write operation the EEDR Register contains the data to be written to the EEPROM in the address given by the EEAR Register. For the EEPROM read operation, the EEDR contains the data read out from the EEPROM at the address given by EEAR.

6.5.3 EECR – EEPROM Control Register

Bit 76543210

0x1C (0x3C) – – EEPM1 EEPM0 EERIE EEMPE EEPE EERE EECR

Read/Write R R R/W R/W R/W R/W R/W R/W

Initial Value 0 0 X X 0 0 X 0

• Bit 7 – Res: Reserved Bit

This bit is reserved for future use and will always read as 0 in ATtiny261/461/861. For compatibility with future AVR devices, always write this bit to zero. After reading, mask out this bit.

• Bit 6 – Res: Reserved Bit

This bit is reserved in the ATtiny261/461/861 and will always read as zero.

• Bits 5, 4 – EEPM1 and EEPM0: EEPROM Programming Mode Bits

The EEPROM Programming mode bits setting defines which programming action that will be triggered when writing EEPE. It is possible to program data in one atomic operation (erase the old value and program the new value) or to split the Erase and Write operations in two different operations. The Programming times for the different modes are shown in Table 6-1. While EEPE is set, any write to EEPMn will be ignored. During reset, the EEPMn bits will be reset to 0b00 unless the EEPROM is busy programming.

Table 6-1. EEPROM Mode Bits

Programming

EEPM1 EEPM0

0 0 3.4 ms Erase and Write in one operation (Atomic Operation)

0 1 1.8 ms Erase Only

1 0 1.8 ms Write Only

1 1 – Reserved for future use

Time Operation

• Bit 3 – EERIE: EEPROM Ready Interrupt Enable

Writing EERIE to one enables the EEPROM Ready Interrupt if the I-bit in SREG is set. Writing EERIE to zero disables the interrupt. The EEPROM Ready Interrupt generates a constant interrupt when Non-volatile memory is ready for programming.

ATtiny261/461/861

2588B–AVR–11/06

ATtiny261/461/861

• Bit 2 – EEMPE: EEPROM Master Program Enable

The EEMPE bit determines whether writing EEPE to one will have effect or not.

When EEMPE is set, setting EEPE within four clock cycles will program the EEPROM at the selected address. If EEMPE is zero, setting EEPE will have no effect. When EEMPE has been written to one by software, hardware clears the bit to zero after four clock cycles.

• Bit 1 – EEPE: EEPROM Program Enable

The EEPROM Program Enable Signal EEPE is the programming enable signal to the EEPROM. When EEPE is written, the EEPROM will be programmed according to the EEPMn bits setting. The EEMPE bit must be written to one before a logical one is written to EEPE, otherwise no EEPROM write takes place. When the write access time has elapsed, the EEPE bit is cleared by hardware. When EEPE has been set, the CPU is halted for two cycles before the next instruction is executed.

• Bit 0 – EERE: EEPROM Read Enable

The EEPROM Read Enable Signal – EERE – is the read strobe to the EEPROM. When the correct address is set up in the EEAR Register, the EERE bit must be written to one to trigger the EEPROM read. The EEPROM read access takes one instruction, and the requested data is available immediately. When the EEPROM is read, the CPU is halted for four cycles before the next instruction is executed. The user should poll the EEPE bit before starting the read operation. If a write operation is in progress, it is neither possible to read the EEPROM, nor to change the EEAR Register.

6.5.4 GPIOR2 – General Purpose I/O Register 2

Bit 76543210

0x0C (0x2C) MSB LSB GPIOR2

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

6.5.5 GPIOR1 – General Purpose I/O Register 1

Bit 76543210

0x0B (0x2B) MSB LSB GPIOR1

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

6.5.6 GPIOR0 – General Purpose I/O Register 0

Bit 76543210

0x0A (0x2A) MSB LSB GPIOR0

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value 0 0 0 0 0 0 0 0

2588B–AVR–11/06

7. System Clock and Clock Options

7.1 Clock Systems and their Distribution

Figure 7-1 presents the principal clock systems in the AVR and their distribution. All of the clocks

need not be active at a given time. In order to reduce power consumption, the clocks to modules not being used can be halted by using different sleep modes, as described in ”Power Manage-

ment and Sleep Modes” on page 34. The clock systems are detailed below.

Figure 7-1. Clock Distribution

7.1.1 CPU Clock – clk

The CPU clock is routed to parts of the system concerned with operation of the AVR core. Examples of such modules are the General Purpose Register File, the Status Register and the Data memory holding the Stack Pointer. Halting the CPU clock inhibits the core from performing general operations and calculations.

7.1.2 I/O Clock – clk

I/O

The I/O clock is used by the majority of the I/O modules, like Timer/Counter. The I/O clock is also used by the External Interrupt module, but note that some external interrupts are detected by asynchronous logic, allowing such interrupts to be detected even if the I/O clock is halted.

7.1.3 Flash Clock – clk

The Flash clock controls operation of the Flash interface. The Flash clock is usually active simultaneously with the CPU clock.

7.1.4 ADC Clock – clk

The ADC is provided with a dedicated clock domain. This allows halting the CPU and I/O clocks in order to reduce noise generated by digital circuitry. This gives more accurate ADC conversion results.

ATtiny261/461/861

CPU

FLASH

ADC

2588B–AVR–11/06

ATtiny261/461/861

7.1.5 Internal PLL for Fast Peripheral Clock Generation - clk

The internal PLL in ATtiny261/461/861 generates a clock frequency that is 8x or 4x multiplied from a source input depending on the Low Speed Mode (LSM) bit. The source of the PLL input clock is the output of the internal RC oscillator having a frequency of 8.0 MHz. Thus the output of the PLL, the fast peripheral clock is 64 MHz or 32 MHz. The fast peripheral clock, or a clock prescaled from that, can be selected as the clock source for Timer/Counter1. See the Figure 7-2

on page 25.

The PLL is locked on the RC oscillator and adjusting the RC oscillator via OSCCAL register will adjust the fast peripheral clock at the same time. However, even if the RC oscillator is taken to a higher frequency than 8 MHz, the fast peripheral clock frequency saturates at 85 MHz (worst case) and remains oscillating at the maximum frequency. It should be noted that the PLL in this case is not locked any longer with the RC oscillator clock.

Therefore, it is recommended not to take the OSCCAL adjustments to a higher frequency than 8 MHz in order to keep the PLL in the correct operating range. The internal PLL is enabled only when the PLLE bit in the register PLLCSR is set or the CKSEL fuses are programmed to ‘0001’. The bit PLOCK from the register PLLCSR is set when PLL is locked.

Both internal RC oscillator and PLL are switched off in power down and stand-by sleep modes.

Figure 7-2. PCK Clocking System

PCK

2588B–AVR–11/06

7.2 Clock Sources

The device has the following clock source options, selectable by Flash Fuse bits as shown below. The clock from the selected source is input to the AVR clock generator, and routed to the appropriate modules.

(1)

Table 7-1. Device Clocking Options Select

Device Clocking Option CKSEL3..0 PB4 PB5

External Clock 0000 XTAL1 I/O

PLL Clock 0001 I/O I/O

Calibrated Internal RC Oscillator 8.0 MHz 0010 I/O I/O

Watchdog Oscillator 128 kHz 0011 I/O I/O

External Low-frequency Oscillator 01xx XTAL1 XTAL2

External Crystal/Ceramic Resonator (0.4 - 0.9 MHz) 1000 XTAL1 XTAL2

External Crystal/Ceramic Resonator (0.4 - 0.9 MHz) 1001 XTAL1 XTAL2

External Crystal/Ceramic Resonator (0.9 - 3.0 MHz) 1010 XTAL1 XTAL2

External Crystal/Ceramic Resonator (0.9 - 3.0 MHz) 1011 XTAL1 XTAL2

External Crystal/Ceramic Resonator (3.0 - 8.0 MHz) 1100 XTAL1 XTAL2

External Crystal/Ceramic Resonator (3.0 - 8.0 MHz) 1101 XTAL1 XTAL2

External Crystal/Ceramic Resonator (8.0 - 20.0 MHz) 1110 XTAL1 XTAL2

External Crystal/Ceramic Resonator (8.0 - 20.0 MHz) 1111 XTAL1 XTAL2

vs. PB4 and PB5 Functionality

Note: 1. For all fuses “1” means unprogrammed while “0” means programmed.

The various choices for each clocking option is given in the following sections. When the CPU wakes up from Power-down or Power-save, the selected clock source is used to time the startup, ensuring stable Oscillator operation before instruction execution starts. When the CPU starts from reset, there is an additional delay allowing the power to reach a stable level before commencing normal operation. The Watchdog Oscillator is used for timing this real-time part of the start-up time. The number of WDT Oscillator cycles used for each time-out is shown in Table 7-

Table 7-2. Number of Watchdog Oscillator Cycles

7.3 Default Clock Source

The device is shipped with CKSEL = “0010”, SUT = “10”, and CKDIV8 programmed. The default clock source setting is therefore the Internal RC Oscillator running at 8 MHz with longest start-up time and an initial system clock prescaling of 8. This default setting ensures that all users can make their desired clock source setting using an In-System or High-voltage Programmer.

7.4 External Clock

To drive the device from an external clock source, CLKI should be driven as shown in Figure 7-

3. To run the device on an external clock, the CKSEL Fuses must be programmed to “0000”.

Typ Time-out Number of Cycles

4 ms 512

64 ms 8K (8,192)

ATtiny261/461/861

2588B–AVR–11/06

Figure 7-3. External Clock Drive Configuration

ATtiny261/461/861

EXTERNAL

CLOCK

SIGNAL

CLKI

GND

When this clock source is selected, start-up times are determined by the SUT Fuses as shown in

Table 7-3.

Table 7-3. Start-up Times for the External Clock Selection

Start-up Time from Power-

SUT1..0

00 6 CK 14CK BOD enabled

01 6 CK 14CK + 4 ms Fast rising power

10 6 CK 14CK + 64 ms Slowly rising power

11 Reserved

down and Power-save

Additional Delay from

Reset Recommended Usage

Note that the System Clock Prescaler can be used to implement run-time changes of the internal clock frequency while still ensuring stable operation. Refer to ”System Clock Prescaler” on page

31 for details.

7.5 High Frequency PLL Clock - PLL

There is an internal PLL that provides nominally 64 MHz clock rate locked to the RC Oscillator for the use of the Peripheral Timer/Counter1 and for the system clock source. When selected as a system clock source, by programming the CKSEL fuses to ‘0001’, it is divided by four like shown in Table 7-4. When this clock source is selected, start-up times are determined by the SUT fuses as shown in Table 7-5. See also ”PCK Clocking System” on page 25.

Table 7-4. PLLCK Operating Modes

CKSEL3..0 Nominal Frequency

0001 16 MHz

Table 7-5. Start-up Times for the PLLCK

Start-up Time from Power

SUT1..0

00 1K (1024) + 4 ms 14CK + 4 ms BOD enabled

01 16K (16384) + 4 ms 14CK + 4 ms Fast rising power

10 1K (1024) + 64 ms 14CK + 4 ms Slowly rising power

11 16K (16384) + 64 ms 14CK + 4 ms Slowly rising power

CLK

Down

Additional Delay from

Reset (VCC = 5.0V) Recommended usage

2588B–AVR–11/06

7.6 Calibrated Internal RC Oscillator

By default, the Internal RC Oscillator provides an approximate 8.0 MHz clock. Though voltage and temperature dependent, this clock can be very accurately calibrated by the user. See Table

23-1 on page 188 and ”Internal Oscillator Speed” on page 211 for more details. The device is

shipped with the CKDIV8 Fuse programmed. See ”System Clock Prescaler” on page 31 for more details.

This clock may be selected as the system clock by programming the CKSEL Fuses as shown in

Table 7-6 on page 28. If selected, it will operate with no external components. During reset,

hardware loads the pre-programmed calibration value into the OSCCAL Register and thereby automatically calibrates the RC Oscillator. The accuracy of this calibration is shown as Factory calibration in Table 23-1 on page 188.

By changing the OSCCAL register from SW, see ”OSCCAL – Oscillator Calibration Register” on

page 32, it is possible to get a higher calibration accuracy than by using the factory calibration.

The accuracy of this calibration is shown as User calibration in Table 23-1 on page 188.

When this Oscillator is used as the chip clock, the Watchdog Oscillator will still be used for the Watchdog Timer and for the Reset Time-out. For more information on the pre-programmed calibration value, see the section ”Calibration Byte” on page 170.

Table 7-6. Internal Calibrated RC Oscillator Operating Modes

Frequency Range

7.3 - 8.1 0010

Notes: 1. The device is shipped with this option selected.

2. The frequency ranges are preliminary values. Actual values are TBD.

3. If 8 MHz frequency exceeds the specification of the device (depends on V Fuse can be programmed in order to divide the internal frequency by 8.

(2)

(MHz) CKSEL3..0

(1)(3)

), the CKDIV8

When this Oscillator is selected, start-up times are determined by the SUT Fuses as shown in

Table 7-7 on page 28.

Table 7-7. Start-up Times for the Internal Calibrated RC Oscillator Clock Selection

Start-up Time

SUT1..0

00 6 CK 14CK BOD enabled

01 6 CK 14CK + 4 ms Fast rising power

(1)

11 Reserved

Note: 1. The device is shipped with this option selected.

from Power-down

6 CK 14CK + 64 ms Slowly rising power

Additional Delay from

Reset (VCC = 5.0V) Recommended Usage

ATtiny261/461/861

2588B–AVR–11/06

7.7 128 kHz Internal Oscillator

The 128 kHz internal Oscillator is a low power Oscillator providing a clock of 128 kHz. The frequency is nominal at 3V and 25°C. This clock may be select as the system clock by programming the CKSEL Fuses to “0011”.

When this clock source is selected, start-up times are determined by the SUT Fuses as shown in

Table 7-8.

Table 7-8. Start-up Times for the 128 kHz Internal Oscillator

ATtiny261/461/861

Start-up Time from Power-

SUT1..0

00 6 CK 14CK BOD enabled

01 6 CK 14CK + 4 ms Fast rising power

10 6 CK 14CK + 64 ms Slowly rising power

11 Reserved

down and Power-save

7.8 Low-frequency Crystal Oscillator

To use a 32.768 kHz watch crystal as the clock source for the device, the low-frequency crystal oscillator must be selected by setting CKSEL fuses to ‘0100’. The crystal should be connected as shown in Figure 7-4. Refer to the 32 kHz Crystal Oscillator Application Note for details on oscillator operation and how to choose appropriate values for C1 and C2.

When this oscillator is selected, start-up times are determined by the SUT fuses as shown in

Table 7-9.

Table 7-9. Start-up Times for the Low Frequency Crystal Oscillator Clock Selection

Start-up Time from

Power Down and Power

SUT1..0

00 1K (1024) CK

01 1K (1024) CK

10 32K (32768) CK 64 ms Stable frequency at start-up

Save

Additional Delay from

Reset Recommended Usage

Additional Delay from

Reset (VCC = 5.0V) Recommended usage

(1)

4 ms

64 ms Slowly rising power

Fast rising power or BOD enabled

Notes: 1. These options should only be used if frequency stability at start-up is not important for the

7.9 Crystal Oscillator

XTAL1 and XTAL2 are input and output, respectively, of an inverting amplifier which can be configured for use as an On-chip Oscillator, as shown in Figure 7-4. Either a quartz crystal or a ceramic resonator may be used.

C1 and C2 should always be equal for both crystals and resonators. The optimal value of the capacitors depends on the crystal or resonator in use, the amount of stray capacitance, and the electromagnetic noise of the environment. Some initial guidelines for choosing capacitors for use with crystals are given in Table 7-10. For ceramic resonators, the capacitor values given by the manufacturer should be used.

2588B–AVR–11/06

11 Reserved

application.

Figure 7-4. Crystal Oscillator Connections

XTAL2

XTAL1

GND

The Oscillator can operate in three different modes, each optimized for a specific frequency range. The operating mode is selected by the fuses CKSEL3..1 as shown in Table 7-10.

Table 7-10. Crystal Oscillator Operating Modes

Recommended Range for Capacitors C1 and

CKSEL3..1 Frequency Range (MHz)

(1)

100

101 0.9 - 3.0 12 - 22

110 3.0 - 8.0 12 - 22

111 8.0 - 12 - 22

Notes: 1. This option should not be used with crystals, only with ceramic resonators.

0.4 - 0.9 –

C2 for Use with Crystals (pF)

The CKSEL0 Fuse together with the SUT1..0 Fuses select the start-up times as shown in Table

7-11.

Table 7-11. Start-up Times for the Crystal Oscillator Clock Selection

Start-up Time from

Power-down and

CKSEL0 SUT1..0

0 00 258 CK

0 01 258 CK

0 10 1K (1024) CK

0 11 1K (1024)CK

1 00 1K (1024)CK

1 01 16K (16384) CK 14CK

1 10 16K (16384) CK 14CK + 4.1 ms

1 11 16K (16384) CK 14CK + 65 ms

Power-save

(1)

(2)

Additional Delay

from Reset

(VCC = 5.0V) Recommended Usage

14CK + 4.1 ms

14CK + 65 ms

14CK

14CK + 4.1 ms

14CK + 65 ms

Ceramic resonator, fast rising power

Ceramic resonator, slowly rising power

Ceramic resonator, BOD enabled

Ceramic resonator, fast rising power

Ceramic resonator, slowly rising power

Crystal Oscillator, BOD enabled

Crystal Oscillator, fast rising power

Crystal Oscillator, slowly rising power

ATtiny261/461/861

2588B–AVR–11/06

Notes: 1. These options should only be used when not operating close to the maximum frequency of the

2. These options are intended for use with ceramic resonators and will ensure frequency stability

7.10 Clock Output Buffer

The device can output the system clock on the CLKO pin. To enable the output, the CKOUT Fuse has to be programmed. This mode is suitable when the chip clock is used to drive other circuits on the system. Note that the clock will not be output during reset and the normal operation of I/O pin will be overridden when the fuse is programmed. Any clock source, including the internal RC Oscillator, can be selected when the clock is output on CLKO. If the System Clock Prescaler is used, it is the divided system clock that is output.

7.11 System Clock Prescaler

The ATtiny261/461/861 system clock can be divided by setting the Clock Prescale Register – CLKPR. This feature can be used to decrease power consumption when the requirement for processing power is low. This can be used with all clock source options, and it will affect the clock frequency of the CPU and all synchronous peripherals. clk are divided by a factor as shown in Table 7-12.

ATtiny261/461/861

device, and only if frequency stability at start-up is not important for the application. These options are not suitable for crystals.

at start-up. They can also be used with crystals when not operating close to the maximum frequency of the device, and if frequency stability at start-up is not important for the application.

I/O

, clk

ADC

, clk

CPU

, and clk

FLASH

7.11.1 Switching Time

When switching between prescaler settings, the System Clock Prescaler ensures that no glitches occur in the clock system and that no intermediate frequency is higher than neither the clock frequency corresponding to the previous setting, nor the clock frequency corresponding to the new setting.

The ripple counter that implements the prescaler runs at the frequency of the undivided clock, which may be faster than the CPU’s clock frequency. Hence, it is not possible to determine the state of the prescaler – even if it were readable, and the exact time it takes to switch from one clock division to another cannot be exactly predicted.

From the time the CLKPS values are written, it takes between T1 + T2 and T1 + 2*T2 before the new clock frequency is active. In this interval, 2 active clock edges are produced. Here, T1 is the previous clock period, and T2 is the period corresponding to the new prescaler setting.

2588B–AVR–11/06

7.12 Register Description

7.12.1 OSCCAL – Oscillator Calibration Register

Bit 76543210

0x31 (0x51) CAL7 CAL6 CAL5 CAL4 CAL3 CAL2 CAL1 CAL0 OSCCAL

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value Device Specific Calibration Value

• Bits 7:0 – CAL7:0: Oscillator Calibration Value

The Oscillator Calibration Register is used to trim the Calibrated Internal RC Oscillator to remove process variations from the oscillator frequency. A pre-programmed calibration value is automatically written to this register during chip reset, giving the Factory calibrated frequency as specified in Table 23-1 on page 188. The application software can write this register to change the oscillator frequency. The oscillator can be calibrated to frequencies as specified in Table 23-

1 on page 188. Calibration outside that range is not guaranteed.

Note that this oscillator is used to time EEPROM and Flash write accesses, and these write times will be affected accordingly. If the EEPROM or Flash are written, do not calibrate to more than 8.8 MHz. Otherwise, the EEPROM or Flash write may fail.

The CAL7 bit determines the range of operation for the oscillator. Setting this bit to 0 gives the lowest frequency range, setting this bit to 1 gives the highest frequency range. The two frequency ranges are overlapping, in other words a setting of OSCCAL = 0x7F gives a higher frequency than OSCCAL = 0x80.

The CAL6..0 bits are used to tune the frequency within the selected range. A setting of 0x00 gives the lowest frequency in that range, and a setting of 0x7F gives the highest frequency in the range.

7.12.2 CLKPR – Clock Prescale Register

Bit 7 6543210

0x28 (0x48) CLKPCE – – – CLKPS3 CLKPS2 CLKPS1 CLKPS0 CLKPR

Read/Write R/W R R R R/W R/W R/W R/W

Initial Value 0 0 0 0 See Bit Description

• Bit 7 – CLKPCE: Clock Prescaler Change Enable

The CLKPCE bit must be written to logic one to enable change of the CLKPS bits. The CLKPCE bit is only updated when the other bits in CLKPR are simultaniosly written to zero. CLKPCE is cleared by hardware four cycles after it is written or when the CLKPS bits are written. Rewriting the CLKPCE bit within this time-out period does neither extend the time-out period, nor clear the CLKPCE bit.

• Bits 6:4 – Res: Reserved Bits

These bits are reserved bits in the ATtiny261/461/861 and will always read as zero.

• Bits 3:0 – CLKPS3:0: Clock Prescaler Select Bits 3 - 0

These bits define the division factor between the selected clock source and the internal system clock. These bits can be written run-time to vary the clock frequency to suit the application requirements. As the divider divides the master clock input to the MCU, the speed of all synchro-

ATtiny261/461/861

2588B–AVR–11/06

ATtiny261/461/861

nous peripherals is reduced when a division factor is used. The division factors are given in

Table 7-12.

To avoid unintentional changes of clock frequency, a special write procedure must be followed to change the CLKPS bits:

1. Write the Clock Prescaler Change Enable (CLKPCE) bit to one and all other bits in CLKPR to zero.

2. Within four cycles, write the desired value to CLKPS while writing a zero to CLKPCE.

Interrupts must be disabled when changing prescaler setting to make sure the write procedure is not interrupted.

The CKDIV8 Fuse determines the initial value of the CLKPS bits. If CKDIV8 is unprogrammed, the CLKPS bits will be reset to “0000”. If CKDIV8 is programmed, CLKPS bits are reset to “0011”, giving a division factor of eight at start up. This feature should be used if the selected clock source has a higher frequency than the maximum frequency of the device at the present operating conditions. Note that any value can be written to the CLKPS bits regardless of the CKDIV8 Fuse setting. The Application software must ensure that a sufficient division factor is chosen if the selcted clock source has a higher frequency than the maximum frequency of the device at the present operating conditions. The device is shipped with the CKDIV8 Fuse programmed.

Table 7-12. Clock Prescaler Select

CLKPS3 CLKPS2 CLKPS1 CLKPS0 Clock Division Factor

0000 1

0001 2

0010 4

0011 8

0100 16

0101 32

0110 64

0111 128

1000 256

1001 Reserved

1010 Reserved

1011 Reserved

1100 Reserved

1101 Reserved

1110 Reserved

1111 Reserved

2588B–AVR–11/06

8. Power Management and Sleep Modes

The high performance and industry leading code efficiency makes the AVR microcontrollers an ideal choise for low power applications.

Sleep modes enable the application to shut down unused modules in the MCU, thereby saving power. The AVR provides various sleep modes allowing the user to tailor the power consumption to the application’s requirements.

8.1 Sleep Modes

Figure 7-1 on page 24 presents the different clock systems in the ATtiny261/461/861, and their

distribution. The figure is helpful in selecting an appropriate sleep mode. Table 8-1 shows the different sleep modes and their wake up sources.

Table 8-1. Active Clock Domains and Wake-up Sources in the Different Sleep Modes

Active Clock Domains Oscillators Wake-up Sources

8.2 Idle Mode

FLASH

CPU

clk

Sleep Mode

Idle X X X X X X XXXX

ADC Noise Reduction

Power-down X

Standby X

Note: 1. For INT0 and INT1, only level interrupt.

clk

ADC

PCK

clkIOclk

XXX

clk

Main Clock

Source Enabled

INT0, INT1 and

(1)

Pin Change

SPM/EEPROM

Ready

ADC

WDT

USI

X XXX

To enter any of the three sleep modes, the SE bit in MCUCR must be written to logic one and a SLEEP instruction must be executed. The SM1..0 bits in the MCUCR Register select which sleep mode (Idle, ADC Noise Reduction, Power-down, or Standby) will be activated by the SLEEP instruction. See Table 8-2 for a summary.

If an enabled interrupt occurs while the MCU is in a sleep mode, the MCU wakes up. The MCU is then halted for four cycles in addition to the start-up time, executes the interrupt routine, and resumes execution from the instruction following SLEEP. The contents of the Register File and SRAM are unaltered when the device wakes up from sleep. If a reset occurs during sleep mode, the MCU wakes up and executes from the Reset Vector.

When the SM1..0 bits are written to 00, the SLEEP instruction makes the MCU enter Idle mode, stopping the CPU but allowing Analog Comparator, ADC, Timer/Counter, Watchdog, and the interrupt system to continue operating. This sleep mode basically halts clk

CPU

and clk

FLASH

, while

allowing the other clocks to run.

Other I/O

Idle mode enables the MCU to wake up from external triggered interrupts as well as internal ones like the Timer Overflow. If wake-up from the Analog Comparator interrupt is not required, the Analog Comparator can be powered down by setting the ACD bit in the Analog Comparator Control and Status Register – ACSR. This will reduce power consumption in Idle mode. If the ADC is enabled, a conversion starts automatically when this mode is entered.

ATtiny261/461/861

2588B–AVR–11/06

8.3 ADC Noise Reduction Mode

When the SM1..0 bits are written to 01, the SLEEP instruction makes the MCU enter ADC Noise Reduction mode, stopping the CPU but allowing the ADC, the external interrupts, and the Watchdog to continue operating (if enabled). This sleep mode halts clk while allowing the other clocks to run.

This improves the noise environment for the ADC, enabling higher resolution measurements. If the ADC is enabled, a conversion starts automatically when this mode is entered. Apart form the ADC Conversion Complete interrupt, only an External Reset, a Watchdog Reset, a Brown-out Reset, an SPM/EEPROM ready interrupt, an external level interrupt on INT0 or a pin change interrupt can wake up the MCU from ADC Noise Reduction mode.

8.4 Power-down Mode

When the SM1..0 bits are written to 10, the SLEEP instruction makes the MCU enter Powerdown mode. In this mode, the Oscillator is stopped, while the external interrupts, and the Watchdog continue operating (if enabled). Only an External Reset, a Watchdog Reset, a Brown-out Reset, an external level interrupt on INT0, or a pin change interrupt can wake up the MCU. This sleep mode halts all generated clocks, allowing operation of asynchronous modules only.

Note that if a level triggered interrupt is used for wake-up from Power-down mode, the changed level must be held for some time to wake up the MCU. Refer to ”External Interrupts” on page 50 for details

ATtiny261/461/861

I/O

, clk

, and clk

CPU

FLASH

8.5 Standby Mode

When the SM1..0 bits are written to 11 and an external crystal/resonator clock option is selected, the SLEEP instruction makes the MCU enter Standby mode. This mode is identical to Powerdown with the exception that the Oscillator is kept running. From Standby mode, the device wakes up in six clock cycles.

8.6 Power Reduction Register

The Power Reduction Register (PRR), see ”PRR – Power Reduction Register” on page 37, pro- vides a method to stop the clock to individual peripherals to reduce power consumption. The current state of the peripheral is frozen and the I/O registers can not be read or written. Resources used by the peripheral when stopping the clock will remain occupied, hence the peripheral should in most cases be disabled before stopping the clock. Waking up a module, which is done by clearing the bit in PRR, puts the module in the same state as before shutdown.

Module shutdown can be used in Idle mode and Active mode to significantly reduce the overall power consumption. See ”Supply Current of I/O modules” on page 200 for examples. In all other sleep modes, the clock is already stopped.

8.7 Minimizing Power Consumption

There are several issues to consider when trying to minimize the power consumption in an AVR controlled system. In general, sleep modes should be used as much as possible, and the sleep mode should be selected so that as few as possible of the device’s functions are operating. All functions not needed should be disabled. In particular, the following modules may need special consideration when trying to achieve the lowest possible power consumption.

2588B–AVR–11/06

8.7.1 Analog to Digital Converter

If enabled, the ADC will be enabled in all sleep modes. To save power, the ADC should be disabled before entering any sleep mode. When the ADC is turned off and on again, the next conversion will be an extended conversion. Refer to ”ADC – Analog to Digital Converter” on

page 142 for details on ADC operation.

8.7.2 Analog Comparator

When entering Idle mode, the Analog Comparator should be disabled if not used. When entering ADC Noise Reduction mode, the Analog Comparator should be disabled. In the other sleep modes, the Analog Comparator is automatically disabled. However, if the Analog Comparator is set up to use the Internal Voltage Reference as input, the Analog Comparator should be disabled in all sleep modes. Otherwise, the Internal Voltage Reference will be enabled, independent of sleep mode. Refer to ”AC – Analog Comparator” on page 138 for details on how to configure the Analog Comparator.

8.7.3 Brown-out Detector

If the Brown-out Detector is not needed in the application, this module should be turned off. If the Brown-out Detector is enabled by the BODLEVEL Fuses, it will be enabled in all sleep modes, and hence, always consume power. In the deeper sleep modes, this will contribute significantly to the total current consumption. Refer to ”Brown-out Detection” on page 41 for details on how to configure the Brown-out Detector.

8.7.4 Internal Voltage Reference

The Internal Voltage Reference will be enabled when needed by the Brown-out Detection, the Analog Comparator or the ADC. If these modules are disabled as described in the sections above, the internal voltage reference will be disabled and it will not be consuming power. When turned on again, the user must allow the reference to start up before the output is used. If the reference is kept on in sleep mode, the output can be used immediately. Refer to ”Internal Volt-

age Reference” on page 42 for details on the start-up time.

8.7.5 Watchdog Timer

8.7.6 Port Pins

ATtiny261/461/861

If the Watchdog Timer is not needed in the application, this module should be turned off. If the Watchdog Timer is enabled, it will be enabled in all sleep modes, and hence, always consume power. In the deeper sleep modes, this will contribute significantly to the total current consumption. Refer to ”Watchdog Timer” on page 42 for details on how to configure the Watchdog Timer.

When entering a sleep mode, all port pins should be configured to use minimum power. The most important thing is then to ensure that no pins drive resistive loads. In sleep modes where both the I/O clock (clk

) and the ADC clock (clk

I/O

) are stopped, the input buffers of the device

ADC

will be disabled. This ensures that no power is consumed by the input logic when not needed. In some cases, the input logic is needed for detecting wake-up conditions, and it will then be enabled. Refer to the section ”Digital Input Enable and Sleep Modes” on page 57 for details on which pins are enabled. If the input buffer is enabled and the input signal is left floating or has an analog signal level close to V

/2, the input buffer will use excessive power.

For analog input pins, the digital input buffer should be disabled at all times. An analog signal level close to V

/2 on an input pin can cause significant current even in active mode. Digital

input buffers can be disabled by writing to the Digital Input Disable Registers (DIDR0, DIDR1).

2588B–AVR–11/06

Refer to ”DIDR0 – Digital Input Disable Register 0” on page 160 or ”DIDR1 – Digital Input Dis-

able Register 1” on page 160 for details.

8.8 Register Description

8.8.1 MCUCR – MCU Control Register

The MCU Control Register contains control bits for power management.

Bit 76543210

0x35 (0x55)

Read/Write R R/W R/W R/W R/W R R/W R/W

Initial Value00000000

• Bit 5 – SE: Sleep Enable

The SE bit must be written to logic one to make the MCU enter the sleep mode when the SLEEP instruction is executed. To avoid the MCU entering the sleep mode unless it is the programmer’s purpose, it is recommended to write the Sleep Enable (SE) bit to one just before the execution of the SLEEP instruction and to clear it immediately after waking up.

• Bits 4, 3 – SM1:0: Sleep Mode Select Bits 2..0

These bits select between the three available sleep modes as shown in Table 8-2.

– PUD SE SM1 SM0 — ISC01 ISC00 MCUCR

ATtiny261/461/861

Table 8-2. Sleep Mode Select

SM1 SM0 Sleep Mode

00Idle

0 1 ADC Noise Reduction

1 0 Power-down

1 1 Standby

• Bit 2 – Res: Reserved Bit

This bit is a reserv ed bit in the ATtiny261/461/861 and will always read as zero.

8.8.2 PRR – Power Reduction Register

Bit 76543 2 10

0x36 (0x56) – - - - PRTIM1 PRTIM0 PRUSI PRADC PRR

Read/WriteRRRRR/WR/WR/WR/W

Initial Value 0 0 0 0 0 0 0 0

• Bits 7, 6, 5, 4- Res: Reserved Bits

These bits are reserved bits in the ATtiny261/461/861 and will always read as zero.

• Bit 3- PRTIM1: Power Reduction Timer/Counter1

Writing a logic one to this bit shuts down the Timer/Counter1 module. When the Timer/Counter1 is enabled, operation will continue like before the shutdown.

2588B–AVR–11/06

• Bit 2- PRTIM0: Power Reduction Timer/Counter0

Writing a logic one to this bit shuts down the Timer/Counter0 module. When the Timer/Counter0 is enabled, operation will continue like before the shutdown.

• Bit 1 - PRUSI: Power Reduction USI

Writing a logic one to this bit shuts down the USI by stopping the clock to the module. When waking up the USI again, the USI should be re initialized to ensure proper operation.

• Bit 0 - PRADC: Power Reduction ADC

Writing a logic one to this bit shuts down the ADC. The ADC must be disabled before shut down. The analog comparator cannot use the ADC input MUX when the ADC is shut down.

ATtiny261/461/861

2588B–AVR–11/06

9. System Control and Reset

]

9.0.1 Resetting the AVR

During reset, all I/O Registers are set to their initial values, and the program starts execution from the Reset Vector. The instruction placed at the Reset Vector must be a RJMP – Relative Jump – instruction to the reset handling routine. If the program never enables an interrupt source, the Interrupt Vectors are not used, and regular program code can be placed at these locations. The circuit diagram in Figure 9-1 shows the reset logic. ”System and Reset Character-

istics” on page 189 defines the electrical parameters of the reset circuitry.

The I/O ports of the AVR are immediately reset to their initial state when a reset source goes active. This does not require any clock source to be running.

After all reset sources have gone inactive, a delay counter is invoked, stretching the internal reset. This allows the power to reach a stable level before normal operation starts. The time-out period of the delay counter is defined by the user through the SUT and CKSEL Fuses. The different selections for the delay period are presented in ”Clock Sources” on page 26.

9.0.2 Reset Sources

The ATtiny261/461/861 has four sources of reset:

• Power-on Reset. The MCU is reset when the supply voltage is below the Power-on Reset

threshold (V

• External Reset. The MCU is reset when a low level is present on the RESET

the minimum pulse length.

• Watchdog Reset. The MCU is reset when the Watchdog Timer period expires and the

Watchdog is enabled.

• Brown-out Reset. The MCU is reset when the supply voltage V

threshold (V

POT

BOT

) and the Brown-out Detector is enabled.

ATtiny261/461/861

pin for longer than

is below the Brown-out Reset

2588B–AVR–11/06

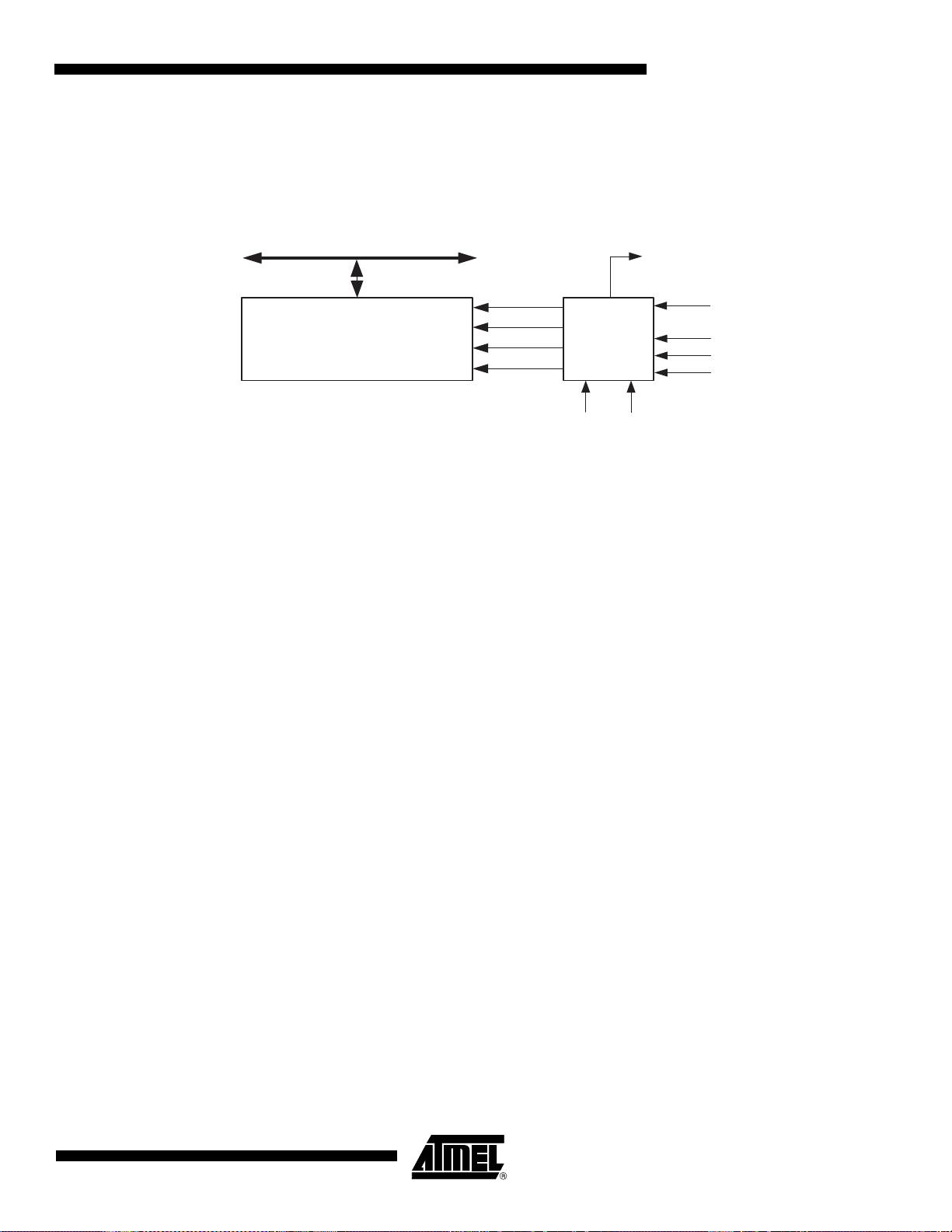

Figure 9-1. Reset Logic

BODLEVEL [1..0]

Pull-up Resistor

SPIKE

FILTER

Power-on Reset

Circuit

Brown-out

Reset Circuit

Watchdog

Oscillator

Clock

Generator

CKSEL[1:0]

SUT[1:0

DATA BU S

MCU Status

BORF

PORF

WDRF

EXTRF

Delay Counters

TIMEOUT

9.0.3 Power-on Reset

A Power-on Reset (POR) pulse is generated by an On-chip detection circuit. The detection level is defined in ”System and Reset Characteristics” on page 189. The POR is activated whenever V

is below the detection level. The POR circuit can be used to trigger the Start-up Reset, as

well as to detect a failure in supply voltage.

A Power-on Reset (POR) circuit ensures that the device is reset from Power-on. Reaching the Power-on Reset threshold voltage invokes the delay counter, which determines how long the device is kept in RESET after V when V

decreases below the detection level.

rise. The RESET signal is activated again, without any delay,

TOUT

Tied to V

Figure 9-2. MCU Start-up, RESET

RESET

TIME-OUT

INTERNAL

RESET

POT

RST

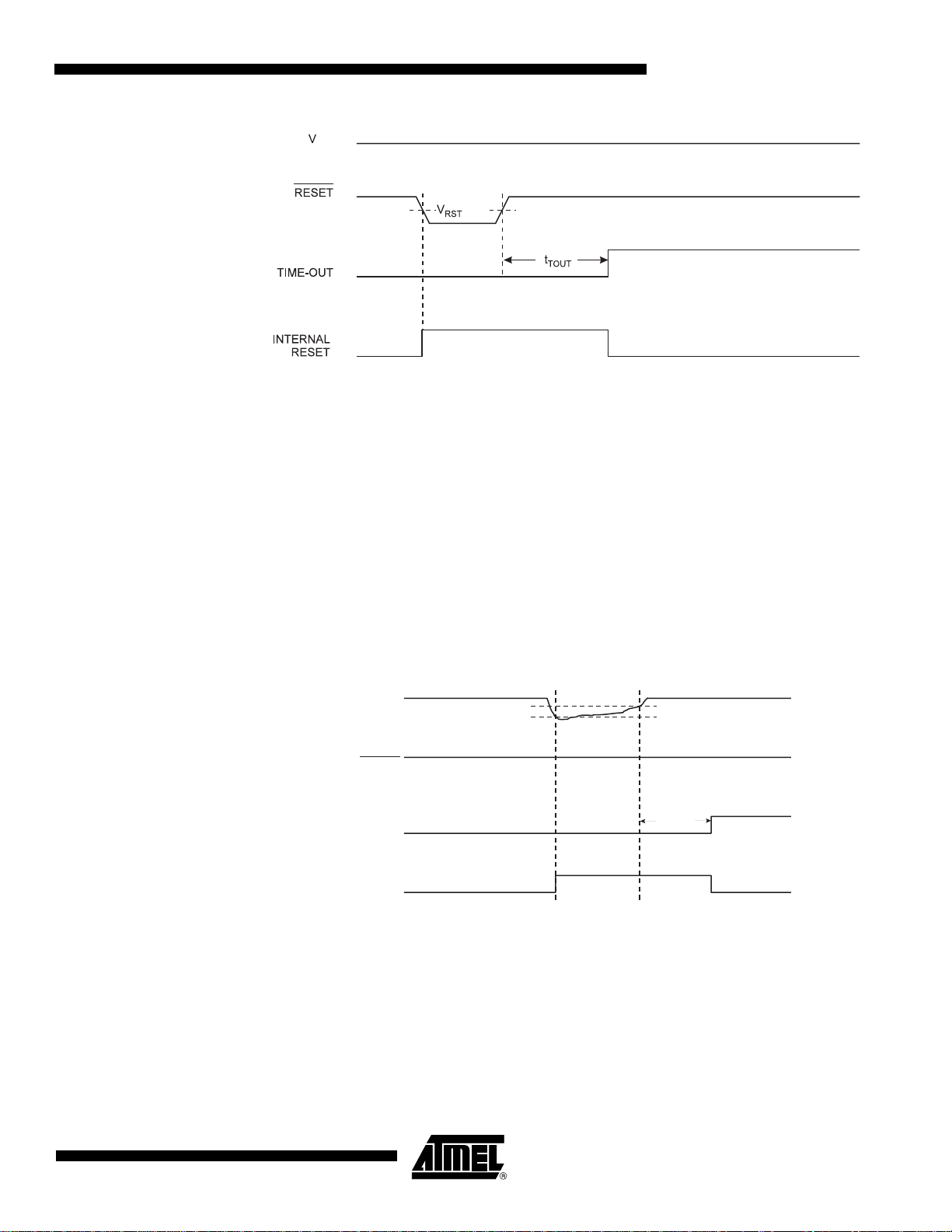

Figure 9-3. MCU Start-up, RESET Extended Externally

RESET

TIME-OUT

POT

RST

TOUT

9.0.4 External Reset

ATtiny261/461/861

INTERNAL

RESET

An External Reset is generated by a low level on the RESET

pin if enabled. Reset pulses longer than the minimum pulse width (see ”System and Reset Characteristics” on page 189) will gener- ate a reset, even if the clock is not running. Shorter pulses are not guaranteed to generate a reset. When the applied signal reaches the Reset Threshold Voltage – V edge, the delay counter starts the MCU after the Time-out period – t

TOUT –

– on its positive

RST

has expired.

2588B–AVR–11/06

Figure 9-4. External Reset During Operation

9.0.5 Brown-out Detection

ATtiny261/461/861 has an On-chip Brown-out Detection (BOD) circuit for monitoring the V level during operation by comparing it to a fixed trigger level. The trigger level for the BOD can be selected by the BODLEVEL Fuses. The trigger level has a hysteresis to ensure spike free Brown-out Detection. The hysteresis on the detection level should be interpreted as V V

BOT

When the BOD is enabled, and V

9-5), the Brown-out Reset is immediately activated. When V

BOT+

expired.

ATtiny261/461/861

+ V

HYST

/2 and V

BOT-

= V

BOT

- V

/2.

HYST

decreases to a value below the trigger level (V

increases above the trigger level

in Figure 9-5), the delay counter starts the MCU after the Time-out period t

in Figure

BOT-

TOUT

BOT+

has

9.0.6 Watchdog Reset

The BOD circuit will only detect a drop in V longer than t

given in ”System and Reset Characteristics” on page 189.

BOD

if the voltage stays below the trigger level for

Figure 9-5. Brown-out Reset During Operation

RESET

TIME-OUT

INTERNAL

RESET

BOT-

BOT+

TOUT

When the Watchdog times out, it will generate a short reset pulse of one CK cycle duration. On the falling edge of this pulse, the delay timer starts counting the Time-out period t

TOUT

. Refer to

page 42 for details on operation of the Watchdog Timer.

2588B–AVR–11/06

Figure 9-6. Watchdog Reset During Operation

9.1 Internal Voltage Reference

ATtiny261/461/861 features an internal bandgap reference. This reference is used for Brown-out Detection, and it can be used as an input to the Analog Comparator or the ADC.

9.1.1 Voltage Reference Enable Signals and Start-up Time

The voltage reference has a start-up time that may influence the way it should be used. The start-up time is given in ”System and Reset Characteristics” on page 189. To save power, the reference is not always turned on. The reference is on during the following situations:

1. When the BOD is enabled (by programming the BODLEVEL [2..0] Fuse).

2. When the bandgap reference is connected to the Analog Comparator (by setting the

3. When the ADC is enabled. Thus, when the BOD is not enabled, after setting the ACBG bit or enabling the ADC, the user

must always allow the reference to start up before the output from the Analog Comparator or ADC is used. To reduce power consumption in Power-down mode, the user can avoid the three conditions above to ensure that the reference is turned off before entering Power-down mode.

9.2 Watchdog Timer

The Watchdog Timer is clocked from an On-chip Oscillator which runs at 128 kHz. By controlling the Watchdog Timer prescaler, the Watchdog Reset interval can be adjusted as shown in Table

9-3 on page 46. The WDR – Watchdog Reset – instruction resets the Watchdog Timer. The

Watchdog Timer is also reset when it is disabled and when a Chip Reset occurs. Ten different clock cycle periods can be selected to determine the reset period. If the reset period expires without another Watchdog Reset, the ATtiny261/461/861 resets and executes from the Reset Vector. For timing details on the Watchdog Reset, refer to Table 9-3 on page 46.

The Wathdog Timer can also be configured to generate an interrupt instead of a reset. This can be very helpful when using the Watchdog to wake-up from Power-down.

To prevent unintentional disabling of the Watchdog or unintentional change of time-out period, two different safety levels are selected by the fuse WDTON as shown in Table 9-1. Refer to

”Timed Sequences for Changing the Configuration of the Watchdog Timer” on page 43 for

details.

ACBG bit in ACSR).

ATtiny261/461/861

2588B–AVR–11/06

ATtiny261/461/861

Table 9-1. WDT Configuration as a Function of the Fuse Settings of WDTON

WDTON

Safety

Level

WDT Initial State

How to Disable the WDT

How to Change Timeout

Unprogrammed 1 Disabled Timed sequence No limitations

Programmed 2 Enabled Always enabled Timed sequence

Figure 9-7. Watchdog Timer

OSC/2K

OSC/4K

WATCHDOG

PRESCALER

OSC/8K

OSC/16K

OSC/32K

MCU RESET

OSC/64K

OSC/128K

OSC/512K

OSC/256K

OSC/1024K

128 kHz

OSCILLATOR

WATCHDOG

RESET

WDP0 WDP1 WDP2 WDP3

WDE

9.3 Timed Sequences for Changing the Configuration of the Watchdog Timer

The sequence for changing configuration differs slightly between the two safety levels. Separate procedures are described for each level.

9.3.1 Safety Level 1

9.3.2 Safety Level 2

In this mode, the Watchdog Timer is initially disabled, but can be enabled by writing the WDE bit to one without any restriction. A timed sequence is needed when disabling an enabled Watchdog Timer. To disable an enabled Watchdog Timer, the following procedure must be followed:

1. In the same operation, write a logic one to WDCE and WDE. A logic one must be written

to WDE regardless of the previous value of the WDE bit.

2. Within the next four clock cycles, in the same operation, write the WDE and WDP bits as

desired, but with the WDCE bit cleared.

In this mode, the Watchdog Timer is always enabled, and the WDE bit will always read as one. A timed sequence is needed when changing the Watchdog Time-out period. To change the Watchdog Time-out, the following procedure must be followed:

1. In the same operation, write a logical one to WDCE and WDE. Even though the WDE

always is set, the WDE must be written to one to start the timed sequence.

2. Within the next four clock cycles, in the same operation, write the WDP bits as desired,

but with the WDCE bit cleared. The value written to the WDE bit is irrelevant.

2588B–AVR–11/06

9.4 Register Description

9.4.1 MCUSR – MCU Status Register

The MCU Status Register provides information on which reset source caused an MCU Reset.

Bit 76543210

0x34 (0x54) – – – – WDRF BORF EXTRF PORF MCUSR

Read/Write R R R R R/W R/W R/W R/W

Initial Value 0 0 0 0 See Bit Description

• Bits 7:4 – Res: Reserved Bits

These bits are reserved bits in the ATtiny261/461/861 and will always read as zero.

• Bit 3 – WDRF: Watchdog Reset Flag

This bit is set if a Watchdog Reset occurs. The bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 2 – BORF: Brown-out Reset Flag

This bit is set if a Brown-out Reset occurs. The bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 1 – EXTRF: External Reset Flag

This bit is set if an External Reset occurs. The bit is reset by a Power-on Reset, or by writing a logic zero to the flag.

• Bit 0 – PORF: Power-on Reset Flag

This bit is set if a Power-on Reset occurs. The bit is reset only by writing a logic zero to the flag.

To make use of the Reset Flags to identify a reset condition, the user should read and then reset the MCUSR as early as possible in the program. If the register is cleared before another reset occurs, the source of the reset can be found by examining the Reset Flags.

9.4.2 WDTCR – Watchdog Timer Control Register

Bit 76543210

0x21 (0x41) WDIF WDIE WDP3 WDCE WDE WDP2 WDP1 WDP0 WDTCR

Read/WriteR/WR/WR/WR/WR/WR/WR/WR/W

Initial Value 0 0 0 0 X 0 0 0

• Bit 7 – WDIF: Watchdog Timeout Interrupt Flag

This bit is set when a time-out occurs in the Watchdog Timer and the Watchdog Timer is configured for interrupt. WDIF is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, WDIF is cleared by writing a logic one to the flag. When the I-bit in SREG and WDIE are set, the Watchdog Time-out Interrupt is executed.

• Bit 6 – WDIE: Watchdog Timeout Interrupt Enable

When this bit is written to one, WDE is cleared, and the I-bit in the Status Register is set, the Watchdog Time-out Interrupt is enabled. In this mode the corresponding interrupt is executed instead of a reset if a timeout in the Watchdog Timer occurs.

If WDE is set, WDIE is automatically cleared by hardware when a time-out occurs. This is useful for keeping the Watchdog Reset security while using the interrupt. After the WDIE bit is cleared,

ATtiny261/461/861

2588B–AVR–11/06

ATtiny261/461/861

the next time-out will generate a reset. To avoid the Watchdog Reset, WDIE must be set after each interrupt.

Table 9-2. Watchdog Timer Configuration

WDE WDIE Watchdog Timer State Action on Time-out

0 0 Stopped None

0 1 Running Interrupt

1 0 Running Reset

1 1 Running Interrupt

• Bit 4 – WDCE: Watchdog Change Enable

This bit must be set when the WDE bit is written to logic zero. Otherwise, the Watchdog will not be disabled. Once written to one, hardware will clear this bit after four clock cycles. Refer to the description of the WDE bit for a Watchdog disable procedure. This bit must also be set when changing the prescaler bits. See Section “9.3” on page 43.

• Bit 3 – WDE: Watchdog Enable

When the WDE is written to logic one, the Watchdog Timer is enabled, and if the WDE is written to logic zero, the Watchdog Timer function is disabled. WDE can only be cleared if the WDCE bit has logic level one. To disable an enabled Watchdog Timer, the following procedure must be followed:

1. In the same operation, write a logic one to WDCE and WDE. A logic one must be written

to WDE even though it is set to one before the disable operation starts.

2. Within the next four clock cycles, write a logic 0 to WDE. This disables the Watchdog. In safety level 2, it is not possible to disable the Watchdog Timer, even with the algorithm

described above. See Section “9.3” on page 43.

In safety level 1, WDE is overridden by WDRF in MCUSR. See ”MCUSR – MCU Status Regis-

ter” on page 44 for description of WDRF. This means that WDE is always set when WDRF is set.

To clear WDE, WDRF must be cleared before disabling the Watchdog with the procedure described above. This feature ensures multiple resets during conditions causing failure, and a safe start-up after the failure.

Note: If the watchdog timer is not going to be used in the application, it is important to go through a

watchdog disable procedure in the initialization of the device. If the Watchdog is accidentally enabled, for example by a runaway pointer or brown-out condition, the device will be reset, which in turn will lead to a new watchdog reset. To avoid this situation, the application software should always clear the WDRF flag and the WDE control bit in the initialization routine.

• Bits 5, 2:0 – WDP3..0: Watchdog Timer Prescaler 3, 2, 1, and 0

The WDP3..0 bits determine the Watchdog Timer prescaling when the Watchdog Timer is enabled. The different prescaling values and their corresponding Timeout Periods are shown in

Table 9-3 on page 46.

2588B–AVR–11/06

Table 9-3. Watchdog Timer Prescale Select

Number of WDT Oscillator

WDP3 WDP2 WDP1 WDP0

0 0 0 0 2K (2048) cycles 16 ms

0 0 0 1 4K (4096) cycles 32 ms

0 0 1 0 8K (8192) cycles 64 ms

0 0 1 1 16K (16384) cycles 0.125 s

0 1 0 0 32K (32764) cycles 0.25 s

0 1 0 1 64K (65536) cycles 0.5 s

0 1 1 0 128K (131072) cycles 1.0 s

0 1 1 1 256K (262144) cycles 2.0 s

1 0 0 0 512K (524288) cycles 4.0 s

1 0 0 1 1024K (1048576) cycles 8.0 s

1010

1011

1100

1101

1110

1111

Cycles

Reserved

Typical Time-out at

VCC = 5.0V

ATtiny261/461/861

2588B–AVR–11/06

ATtiny261/461/861

The following code example shows one assembly and one C function for turning off the WDT. The example assumes that interrupts are controlled (e.g., by disabling interrupts globally) so that no interrupts will occur during execution of these functions.

Assembly Code Example

WDT_off:

WDR

; Clear WDRF in MCUSR

ldi r16, (0<<WDRF)

out MCUSR, r16

; Write logical one to WDCE and WDE

; Keep old prescaler setting to prevent unintentional Watchdog Reset

in r16, WDTCR

ori r16, (1<<WDCE)|(1<<WDE)

out WDTCR, r16

; Turn off WDT

ldi r16, (0<<WDE)

out WDTCR, r16

ret

C Code Example

(1)

void WDT_off(void)

{

_WDR();

/* Clear WDRF in MCUSR */

MCUSR = 0x00

/* Write logical one to WDCE and WDE */

WDTCR |= (1<<WDCE) | (1<<WDE);

/* Turn off WDT */

WDTCR = 0x00;

}

Note: 1. The example code assumes that the part specific header file is included.

2588B–AVR–11/06

10. Interrupts

This section describes the specifics of the interrupt handling as performed in ATtiny261/461/861. For a general explanation of the AVR interrupt handling, refer to ”Reset and Interrupt Handling”

on page 13.

10.1 Interrupt Vectors in ATtiny261/461/861

Table 10-1. Reset and Interrupt Vectors

Vector

No.

1 0x0000 RESET

2 0x0001 INT0 External Interrupt Request 0

3 0x0002 PCINT Pin Change Interrupt Request

4 0x0003 TIMER1_COMPA Timer/Counter1 Compare Match A

5 0x0004 TIMER1_COMPB Timer/Counter1 Compare Match B

6 0x0005 TIMER1_OVF Timer/Counter1 Overflow

7 0x0006 TIMER0_OVF Timer/Counter0 Overflow

8 0x0007 USI_START USI Start

9 0x0008 USI_OVF USI Overflow

10 0x0009 EE_RDY EEPROM Ready

11 0x000A ANA_COMP Analog Comparator

12 0x000B ADC ADC Conversion Complete

13 0x000C WDT Watchdog Time-out

14 0x000D INT1 External Interrupt Request 1

15 0x000E TIMER0_COMPA Timer/Counter0 Compare Match A

Program Address Source Interrupt Definition

External Pin, Power-on Reset, Brown-out Reset, Watchdog Reset

16 0x000F TIMER0_COMPB Timer/Counter0 Compare Match B

17 0x0010 TIMER0_CAPT Timer/Counter1 Capture Event

18 0x0011 TIMER1_COMPD Timer/Counter1 Compare Match D

19 0x0012 FAULT_PROTECTION Timer/Counter1 Fault Protection

If the program never enables an interrupt source, the Interrupt Vectors are not used, and regular program code can be placed at these locations. The most typical and general program setup for the Reset and Interrupt Vector Addresses in ATtiny261/461/861 is:

Address Labels Code Comments

0x0000 rjmp RESET ; Reset Handler

0x0001 rjmp EXT_INT0 ; IRQ0 Handler

0x0002 rjmp PCINT ; PCINT Handler

0x0003 rjmp TIM1_COMPA ; Timer1 CompareA Handler

0x0004 rjmp TIM1_COMPB ; Timer1 CompareB Handler

0x0005 rjmp TIM1_OVF ; Timer1 Overflow Handler

0x0006 rjmp TIM0_OVF ; Timer0 Overflow Handler

ATtiny261/461/861

2588B–AVR–11/06

ATtiny261/461/861

0x0007 rjmp USI_START ; USI Start Handler

0x0008 rjmp USI_OVF ; USI Overflow Handler

0x0009 rjmp EE_RDY ; EEPROM Ready Handler

0x000A rjmp ANA_COMP ; Analog Comparator Handler

0x000B rjmp ADC ; ADC Conversion Handler

0x000C rjmp WDT ; WDT Interrupt Handler

0x000D rjmp EXT_INT1 ; IRQ1 Handler

0x000E rjmp TIM0_COMPA ; Timer0 CompareA Handler

0x000F rjmp TIM0_COMPB ; Timer0 CompareB Handler

0x0010 rjmp TIM0_CAPT ; Timer0 Capture Event Handler

0x0011 rjmp TIM1_COMPD ; Timer1 CompareD Handler

0x0012 rjmp FAULT_PROTECTION ; Timer1 Fault Protection

0x0013 RESET: ldi r16, low(RAMEND) ; Main program start

0x0014 ldi r17, high(RAMEND); Tiny861 have also SPH

0x0015 out SPL, r16 ; Set Stack Pointer to top of RAM

0x0016 out SPH, r17 ; Tiny861 have also SPH

0x0017 sei ; Enable interrupts

0x0018 <instr> xxx

... ... ... ...

2588B–AVR–11/06

11. External Interrupts

The External Interrupts are triggered by the INT0 or INT1 pin or any of the PCINT15..0 pins. Observe that, if enabled, the interrupts will trigger even if the INT0, INT1 or PCINT15..0 pins are configured as outputs. This feature provides a way of generating a software interrupt. Pin change interrupts PCI will trigger if any enabled PCINT15..0 pin toggles. The PCMSK Register control which pins contribute to the pin change interrupts. Pin change interrupts on PCINT15..0 are detected asynchronously. This implies that these interrupts can be used for waking the part also from sleep modes other than Idle mode.

The INT0 and INT1 interrupts can be triggered by a falling or rising edge or a low level. This is set up as indicated in the specification for the MCU Control Register – MCUCR. When the INT0 interrupt is enabled and is configured as level triggered, the interrupt will trigger as long as the pin is held low. Note that recognition of falling or rising edge interrupts on INT0 or INT1 requires the presence of an I/O clock, described in ”Clock Systems and their Distribution” on page 24. Low level interrupt on INT0 is detected asynchronously. This implies that this interrupt can be used for waking the part also from sleep modes other than Idle mode. The I/O clock is halted in all sleep modes except Idle mode.

Note that if a level triggered interrupt is used for wake-up from Power-down, the required level must be held long enough for the MCU to complete the wake-up to trigger the level interrupt. If the level disappears before the end of the Start-up Time, the MCU will still wake up, but no interrupt will be generated. The start-up time is defined by the SUT and CKSEL Fuses as described in ”System Clock and Clock Options” on page 24.

11.1 Register Description

11.1.1 MCUCR – MCU Control Register

The MCU Register contains control bits for interrupt sense control.

Bit 76543210

0x35 (0x55)

Read/Write R R/W R/W R/W R/W R R/W R/W

Initial Value00000000

• Bits 1, 0 – ISC01, ISC00: Interrupt Sense Control 0 Bit 1 and Bit 0

The External Interrupt 0 is activated by the external pin INT0 or INT1 if the SREG I-flag and the corresponding interrupt mask are set. The level and edges on the external INT0 or INT1 pin that activate the interrupt are defined in Table 11-1. The value on the INT0 or INT1 pin is sampled before detecting edges. If edge or toggle interrupt is selected, pulses that last longer than one clock period will generate an interrupt. Shorter pulses are not guaranteed to generate an interrupt. If low level interrupt is selected, the low level must be held until the completion of the currently executing instruction to generate an interrupt.

Table 11-1. Interrupt 0 Sense Control

ISC01 ISC00 Description

0 0 The low level of INT0 or INT1 generates an interrupt request.

0 1 Any logical change on INT0 or INT1 generates an interrupt request.

1 0 The falling edge of INT0 or INT1 generates an interrupt request.

1 1 The rising edge of INT0 or INT1 generates an interrupt request.

– PUD SE SM1 SM0 – ISC01 ISC00 MCUCR

ATtiny261/461/861

2588B–AVR–11/06

11.1.2 GIMSK – General Interrupt Mask Register

Bit 76543210

0x3B (0x5B) INT1INT0PCIE1PCIE0––––GIMSK

Read/Write R/W R/W R/W R/w R R R R

Initial Value00000000

• Bit 7 – INT1: External Interrupt Request 1 Enable

When the INT1 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), the external pin interrupt is enabled. The Interrupt Sense Control0 bits 1/0 (ISC01 and ISC00) in the MCU Control Register (MCUCR) define whether the external interrupt is activated on rising and/or falling edge of the INT1 pin or level sensed. Activity on the pin will cause an interrupt request even if INT1 is configured as an output. The corresponding interrupt of External Interrupt Request 1 is executed from the INT1 Interrupt Vector.

• Bit 6 – INT0: External Interrupt Request 0 Enable

When the INT0 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), the external pin interrupt is enabled. The Interrupt Sense Control0 bits 1/0 (ISC01 and ISC00) in the MCU Control Register (MCUCR) define whether the external interrupt is activated on rising and/or falling edge of the INT0 pin or level sensed. Activity on the pin will cause an interrupt request even if INT0 is configured as an output. The corresponding interrupt of External Interrupt Request 0 is executed from the INT0 Interrupt Vector.

ATtiny261/461/861

• Bit 5 – PCIE1: Pin Change Interrupt Enable

When the PCIE1 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), pin change interrupt is enabled. Any change on any enabled PCINT7..0 or PCINT15..12 pin will cause an interrupt. The corresponding interrupt of Pin Change Interrupt Request is executed from the PCI Interrupt Vector. PCINT7..0 and PCINT15..12 pins are enabled individually by the PCMSK0 and PCMSK1 Register.

• Bit 4 – PCIE0: Pin Change Interrupt Enable

When the PCIE0 bit is set (one) and the I-bit in the Status Register (SREG) is set (one), pin change interrupt is enabled. Any change on any enabled PCINT11..8 pin will cause an interrupt. The corresponding interrupt of Pin Change Interrupt Request is executed from the PCI Interrupt Vector. PCINT11..8 pins are enabled individually by the PCMSK1 Register.

• Bits 3..0 – Res: Reserved Bits

These bits are reserved bits in the ATtiny261/461/861 and will always read as zero.

11.1.3 GIFR – General Interrupt Flag Register

Bit 76543210

0x3A (0x5A) INT1INTF0PCIF–––––GIFR

Read/WriteR/WR/WR/WRRRRR

Initial Value00000000

• Bit 7– INTF1: External Interrupt Flag 1

When an edge or logic change on the INT1 pin triggers an interrupt request, INTF1 becomes set (one). If the I-bit in SREG and the INT1 bit in GIMSK are set (one), the MCU will jump to the corresponding Interrupt Vector. The flag is cleared when the interrupt routine is executed.

2588B–AVR–11/06

Alternatively, the flag can be cleared by writing a logical one to it. This flag is always cleared when INT1 is configured as a level interrupt.

• Bit 6 – INTF0: External Interrupt Flag 0

When an edge or logic change on the INT0 pin triggers an interrupt request, INTF0 becomes set (one). If the I-bit in SREG and the INT0 bit in GIMSK are set (one), the MCU will jump to the corresponding Interrupt Vector. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be cleared by writing a logical one to it. This flag is always cleared when INT0 is configured as a level interrupt.

• Bit 5 – PCIF: Pin Change Interrupt Flag

When a logic change on any PCINT15 pin triggers an interrupt request, PCIF becomes set (one). If the I-bit in SREG and the PCIE bit in GIMSK are set (one), the MCU will jump to the corresponding Interrupt Vector. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be cleared by writing a logical one to it.

• Bits 4:0 – Res: Reserved Bits

These bits are reserved bits in the ATtiny261/461/861 and will always read as zero.

11.1.4 PCMSK0 – Pin Change Mask Register A

Bit 76543210

0x23 (0x43) PCINT7 PCINT6 PCINT5 PCINT4 PCINT3 PCINT2 PCINT1 PCINT0 PCMSK0

Read/Write R/W R/W R/W R/w R/W R/W R/W R/W

Initial Value11001000

• Bits 7:0 – PCINT7:0: Pin Change Enable Mask 7..0

Each PCINT7:0 bit selects whether pin change interrupt is enabled on the corresponding I/O pin. If PCINT7:0 is set and the PCIE1 bit in GIMSK is set, pin change interrupt is enabled on the corresponding I/O pin. If PCINT7..0 is cleared, pin change interrupt on the corresponding I/O pin is disabled.

11.1.5 PCMSK1 – Pin Change Mask Register B

Bit 76543210

0x22 (0x42) PCINT15 PCINT14 PCINT13 PCINT12 PCINT11 PCINT10 PCINT9 PCINT8 PCMSK1

Read/Write R/W R/W R/W R/w R/W R/W R/W R/W

Initial Value11111111

• Bits 7:0 – PCINT15:8: Pin Change Enable Mask 15..8

Each PCINT15:8 bit selects whether pin change interrupt is enabled on the corresponding I/O pin. If PCINT11:8 is set and the PCIE0 bit in GIMSK is set, pin change interrupt is enabled on the corresponding I/O pin, and if PCINT15:12 is set and the PCIE1 bit in GIMSK is set, pin

change interrupt is enabled on the corresponding I/O pin. If PCINT15:8 is cleared, pin change

interrupt on the corresponding I/O pin is disabled.

ATtiny261/461/861

2588B–AVR–11/06

12. I/O Ports

12.1 Overview

ATtiny261/461/861

All AVR ports have true Read-Modify-Write functionality when used as general digital I/O ports. This means that the direction of one port pin can be changed without unintentionally changing the direction of any other pin with the SBI and CBI instructions. The same applies when changing drive value (if configured as output) or enabling/disabling of pull-up resistors (if configured as input). Each output buffer has symmetrical drive characteristics with both high sink and source capability. The pin driver is strong enough to drive LED displays directly. All port pins have individually selectable pull-up resistors with a supply-voltage invariant resistance. All I/O pins have protection diodes to both V

acteristics” on page 185 for a complete list of parameters.

Figure 12-1. I/O Pin Equivalent Schematic

and Ground as indicated in Figure 12-1. Refer to ”Electrical Char-

Pxn

"General Digital I/O" for

All registers and bit references in this section are written in general form. A lower case “x” represents the numbering letter for the port, and a lower case “n” represents the bit number. However, when using the register or bit defines in a program, the precise form must be used. For example, PORTB3 for bit no. 3 in Port B, here documented generally as PORTxn. The physical I/O Registers and bit locations are listed in ”Register Description” on page 68.

Three I/O memory address locations are allocated for each port, one each for the Data Register – PORTx, Data Direction Register – DDRx, and the Port Input Pins – PINx. The Port Input Pins I/O location is read only, while the Data Register and the Data Direction Register are read/write. However, writing a logic one to a bit in the PINx Register, will result in a toggle in the corresponding bit in the Data Register. In addition, the Pull-up Disable – PUD bit in MCUCR disables the pull-up function for all pins in all ports when set.

Using the I/O port as General Digital I/O is described in ”Ports as General Digital I/O” on page

54. Most port pins are multiplexed with alternate functions for the peripheral features on the

device. How each alternate function interferes with the port pin is described in ”Alternate Port

Functions” on page 58. Refer to the individual module sections for a full description of the alter-

nate functions.

See Figure

Logic

Details

2588B–AVR–11/06

Note that enabling the alternate function of some of the port pins does not affect the use of the other pins in the port as general digital I/O.

12.2 Ports as General Digital I/O

The ports are bi-directional I/O ports with optional internal pull-ups. Figure 12-2 shows a functional description of one I/O-port pin, here generically called Pxn.

Figure 12-2. General Digital I/O

Pxn

PUD: PULLUP DISABLE SLEEP: SLEEP CONTROL clk

: I/O CLOCK

I/O

(1)

SLEEP

SYNCHRONIZER

DLQ

PINxn

PUD

Q D

DDxn

CLR

RESET

PORTxn

CLR

RESET

WDx: WRITE DDRx RDx: READ DDRx WRx: WRITE PORTx RRx: READ PORTx REGISTER RPx: READ PORTx PIN WPx: WRITE PINx REGISTER

RRx

WDx

RDx

RPx

clk

I/O

WRx

DATA BUS

WPx

Note: 1. WRx, WPx, WDx, RRx, RPx, and RDx are common to all pins within the same port. clk

12.2.1 Configuring the Pin

Each port pin consists of three register bits: DDxn, PORTxn, and PINxn. As shown in ”Register

Description” on page 68, the DDxn bits are accessed at the DDRx I/O address, the PORTxn bits

at the PORTx I/O address, and the PINxn bits at the PINx I/O address.

The DDxn bit in the DDRx Register selects the direction of this pin. If DDxn is written logic one, Pxn is configured as an output pin. If DDxn is written logic zero, Pxn is configured as an input pin.

If PORTxn is written logic one when the pin is configured as an input pin, the pull-up resistor is activated. To switch the pull-up resistor off, PORTxn has to be written logic zero or the pin has to be configured as an output pin. The port pins are tri-stated when reset condition becomes active, even if no clocks are running.

ATtiny261/461/861

SLEEP, and PUD are common to all ports.

I/O

2588B–AVR–11/06

If PORTxn is written logic one when the pin is configured as an output pin, the port pin is driven high (one). If PORTxn is written logic zero when the pin is configured as an output pin, the port pin is driven low (zero).

12.2.2 Toggling the Pin

Writing a logic one to PINxn toggles the value of PORTxn, independent on the value of DDRxn. Note that the SBI instruction can be used to toggle one single bit in a port.

12.2.3 Switching Between Input and Output

When switching between tri-state ({DDxn, PORTxn} = 0b00) and output high ({DDxn, PORTxn} = 0b11), an intermediate state with either pull-up enabled {DDxn, PORTxn} = 0b01) or output low ({DDxn, PORTxn} = 0b10) must occur. Normally, the pull-up enabled state is fully acceptable, as a high-impedant environment will not notice the difference between a strong high driver and a pull-up. If this is not the case, the PUD bit in the MCUCR Register can be set to disable all pull-ups in all ports.

Switching between input with pull-up and output low generates the same problem. The user must use either the tri-state ({DDxn, PORTxn} = 0b00) or the output high state ({DDxn, PORTxn} = 0b10) as an intermediate step.

Table 12-1 summarizes the control signals for the pin value.

Table 12-1. Port Pin Configurations

ATtiny261/461/861

DDxn PORTxn

0 0 X Input No Tri-state (Hi-Z)

0 1 0 Input Yes Pxn will source current if ext. pulled low.

0 1 1 Input No Tri-state (Hi-Z)

1 0 X Output No Output Low (Sink)

1 1 X Output No Output High (Source)

12.2.4 Reading the Pin Value

Independent of the setting of Data Direction bit DDxn, the port pin can be read through the PINxn Register bit. As shown in Figure 12-2, the PINxn Register bit and the preceding latch constitute a synchronizer. This is needed to avoid metastability if the physical pin changes value near the edge of the internal clock, but it also introduces a delay. Figure 12-3 shows a timing diagram of the synchronization when reading an externally applied pin value. The maximum and minimum propagation delays are denoted t

PUD

(in MCUCR) I/O Pull-up Comment

pd,max

and t

respectively.

pd,min

2588B–AVR–11/06

Figure 12-3. Synchronization when Reading an Externally Applied Pin value

SYSTEM CLK

INSTRUCTIONS

XXX in r17, PINx

XXX

SYNC LATCH

PINxn

r17

0x00 0xFF

pd, max

pd, min

Consider the clock period starting shortly after the first falling edge of the system clock. The latch is closed when the clock is low, and goes transparent when the clock is high, as indicated by the shaded region of the “SYNC LATCH” signal. The signal value is latched when the system clock goes low. It is clocked into the PINxn Register at the succeeding positive clock edge. As indicated by the two arrows tpd,max and tpd,min, a single signal transition on the pin will be delayed between ½ and 1½ system clock period depending upon the time of assertion.

When reading back a software assigned pin value, a nop instruction must be inserted as indicated in Figure 12-4. The out instruction sets the “SYNC LATCH” signal at the positive edge of the clock. In this case, the delay tpd through the synchronizer is one system clock period.

Figure 12-4. Synchronization when Reading a Software Assigned Pin Value

SYSTEM CLK

r16

INSTRUCTIONS

out PORTx, r16 nop in r17, PINx

0xFF

SYNC LATCH

PINxn

r17

0x00 0xFF

The following code example shows how to set port B pins 0 and 1 high, 2 and 3 low, and define the port pins from 4 to 5 as input with a pull-up assigned to port pin 4. The resulting pin values are read back again, but as previously discussed, a nop instruction is included to be able to read back the value recently assigned to some of the pins.

ATtiny261/461/861

2588B–AVR–11/06

ATtiny261/461/861

Assembly Code Example

...

; Define pull-ups and set outputs high

; Define directions for port pins

ldi r16,(1<<PB4)|(1<<PB1)|(1<<PB0)

ldi r17,(1<<DDB3)|(1<<DDB2)|(1<<DDB1)|(1<<DDB0)

out PORTB,r16

out DDRB,r17

; Insert nop for synchronization

nop

; Read port pins

in r16,PINB

...

(1)

C Code Example

unsigned char i;

...

/* Define pull-ups and set outputs high */

/* Define directions for port pins */

PORTB = (1<<PB4)|(1<<PB1)|(1<<PB0);

DDRB = (1<<DDB3)|(1<<DDB2)|(1<<DDB1)|(1<<DDB0);

/* Insert nop for synchronization*/

_NOP();

/* Read port pins */

i = PINB;

...

Note: 1. For the assembly program, two temporary registers are used to minimize the time from pull-

ups are set on pins 0, 1 and 4, until the direction bits are correctly set, defining bit 2 and 3 as low and redefining bits 0 and 1 as strong high drivers.

12.2.5 Digital Input Enable and Sleep Modes

As shown in Figure 12-2, the digital input signal can be clamped to ground at the input of the schmitt-trigger. The signal denoted SLEEP in the figure, is set by the MCU Sleep Controller in Power-down mode, Power-save mode, and Standby mode to avoid high power consumption if some input signals are left floating, or have an analog signal level close to V

SLEEP is overridden for port pins enabled as external interrupt pins. If the external interrupt request is not enabled, SLEEP is active also for these pins. SLEEP is also overridden by various other alternate functions as described in ”Alternate Port Functions” on page 58.

If a logic high level (“one”) is present on an asynchronous external interrupt pin configured as “Interrupt on Rising Edge, Falling Edge, or Any Logic Change on Pin” while the external interrupt is not enabled, the corresponding External Interrupt Flag will be set when resuming from the above mentioned Sleep mode, as the clamping in these sleep mode produces the requested logic change.

2588B–AVR–11/06

/2.

12.2.6 Unconnected Pins

If some pins are unused, it is recommended to ensure that these pins have a defined level. Even though most of the digital inputs are disabled in the deep sleep modes as described above, floating inputs should be avoided to reduce current consumption in all other modes where the digital inputs are enabled (Reset, Active mode and Idle mode).

The simplest method to ensure a defined level of an unused pin, is to enable the internal pull-up. In this case, the pull-up will be disabled during reset. If low power consumption during reset is important, it is recommended to use an external pull-up or pulldown. Connecting unused pins directly to V accidentally configured as an output.

12.3 Alternate Port Functions

Most port pins have alternate functions in addition to being general digital I/Os. Figure 12-5 shows how the port pin control signals from the simplified Figure 12-2 can be overridden by alternate functions. The overriding signals may not be present in all port pins, but the figure serves as a generic description applicable to all port pins in the AVR microcontroller family.

or GND is not recommended, since this may cause excessive currents if the pin is

ATtiny261/461/861

2588B–AVR–11/06

ATtiny261/461/861

Figure 12-5. Alternate Port Functions

Pxn

(1)

PUOExn

PUOVxn

DDOExn

DDOVxn

PVOExn

PVOVxn

DIEOExn

DIEOVxn

SLEEP

SYNCHRONIZER

SET

DLQ

CLR

PINxn

CLR

PORTxn

CLR

RESET

DDxn

PUD

CLR

WDx

RDx

RRx

WRx

PTOExn

WPx

DATA BUS

RPx

clk

I/O

DIxn

AIOxn

PUOExn: Pxn PULL-UP OVERRIDE ENABLE PUOVxn: Pxn PULL-UP OVERRIDE VALUE DDOExn: Pxn DATA DIRECTION OVERRIDE ENABLE DDOVxn: Pxn DATA DIRECTION OVERRIDE VALUE PVOExn: Pxn PORT VALUE OVERRIDE ENABLE PVOVxn: Pxn PORT VALUE OVERRIDE VALUE DIEOExn: Pxn DIGITAL INPUT-ENABLE OVERRIDE ENABLE DIEOVxn: Pxn DIGITAL INPUT-ENABLE OVERRIDE VALUE SLEEP: SLEEP CONTROL PTOExn: Pxn, PORT TOGGLE OVERRIDE ENABLE

PUD: PULLUP DISABLE WDx: WRITE DDRx RDx: READ DDRx RRx: READ PORTx REGISTER WRx: WRITE PORTx RPx: READ PORTx PIN WPx: WRITE PINx clk

: I/O CLOCK

I/O

DIxn: DIGITAL INPUT PIN n ON PORTx AIOxn: ANALOG INPUT/OUTPUT PIN n ON PORTx

Note: 1. WRx, WPx, WDx, RRx, RPx, and RDx are common to all pins within the same port. clk

SLEEP, and PUD are common to all ports. All other signals are unique for each pin.

I/O

2588B–AVR–11/06

Table 12-2 summarizes the function of the overriding signals. The pin and port indexes from Fig- ure 12-5 are not shown in the succeeding tables. The overriding signals are generated internally

in the modules having the alternate function.

Table 12-2. Generic Description of Overriding Signals for Alternate Functions

Signal Name Full Name Description

If this signal is set, the pull-up enable is controlled by the PUOV signal. If this signal is cleared, the pull-up is enabled when {DDxn, PORTxn, PUD} = 0b010.

If PUOE is set, the pull-up is enabled/disabled when PUOV is set/cleared, regardless of the setting of the DDxn, PORTxn, and PUD Register bits.

If this signal is set, the Output Driver Enable is controlled by the DDOV signal. If this signal is cleared, the Output driver is enabled by the DDxn Register bit.

If DDOE is set, the Output Driver is enabled/disabled when DDOV is set/cleared, regardless of the setting of the DDxn Register bit.

If this signal is set and the Output Driver is enabled, the port value is controlled by the PVOV signal. If PVOE is cleared, and the Output Driver is enabled, the port Value is controlled by the PORTxn Register bit.

PUOE

PUOV

DDOE

DDOV

PVOE

Pull-up Override Enable

Pull-up Override Val ue

Data Direction Override Enable

Data Direction Override Value

Por t Value Override Enable

PVOV

PTOE

DIEOE

DIEOV

DI Digital Input

AIO

Por t Value Override Value

Port Toggle Override Enable

Digital Input Enable Override Enable

Digital Input Enable Override Val ue

Analog Input/Output

If PVOE is set, the port value is set to PVOV, regardless of the setting of the PORTxn Register bit.

If PTOE is set, the PORTxn Register bit is inverted.

If this bit is set, the Digital Input Enable is controlled by the DIEOV signal. If this signal is cleared, the Digital Input Enable is determined by MCU state (Normal mode, sleep mode).

If DIEOE is set, the Digital Input is enabled/disabled when DIEOV is set/cleared, regardless of the MCU state (Normal mode, sleep mode).

This is the Digital Input to alternate functions. In the figure, the signal is connected to the output of the schmitt-trigger but before the synchronizer. Unless the Digital Input is used as a clock source, the module with the alternate function will use its own synchronizer.

This is the Analog Input/Output to/from alternate functions. The signal is connected directly to the pad, and can be used bidirectionally.

The following subsections shortly describe the alternate functions for each port, and relate the overriding signals to the alternate function. Refer to the alternate function description for further details.

ATtiny261/461/861

2588B–AVR–11/06

12.3.1 Alternate Functions of Port B

The Port B pins with alternate function are shown in Table 12-3.

Table 12-3. Port B Pins Alternate Functions

Port Pin Alternate Function

ATtiny261/461/861

PB7 RESET

PB6 ADC9 / T0 / INT0 / PCINT14

PB5 XTAL2 / CLKO / OC1D / ADC8 / PCINT13

PB4 XTAL1 / CLKI / OC1D

PB3 OC1B / PCINT11

PB2 SCK / USCK / SCL / OC1B /PCINT10

PB1 MISO / DO / OC1A / PCINT9

PB0 MOSI / DI / SDA / OC1A

/ dW / ADC10 / PCINT15

/ ADC7 / PCINT12

/ PCINT8

The alternate pin configuration is as follows:

• Port B, Bit 7 - RESET

/ dW/ ADC10/ PCINT15

RESET, Reset pin: When the RSTDISBL Fuse is programmed, this pin functions as a normal I/O pin, and the part will have to rely on Power-on Reset and Brown-out Reset as its reset sources. When the RSTDISBL Fuse is unprogrammed, the reset circuitry is connected to the pin, and the pin can not be used as an I/O pin.

If PB7 is used as a reset pin, DDB7, PORTB7 and PINB7 will all read 0.

dW: When the debugWIRE Enable (DWEN) Fuse is programmed and Lock bits are unprogrammed, the RESET port pin is configured as a wire-AND (open-drain) bi-directional I/O pin with pull-up enabled and becomes the communication gateway between target and emulator.

2588B–AVR–11/06

ADC10: ADC input Channel 10. Note that ADC input channel 10 uses analog power.

PCINT15: Pin Change Interrupt source 15.

• Port B, Bit 6 - ADC9/ T0/ INT0/ PCINT14

ADC9: ADC input Channel 9. Note that ADC input channel 9 uses analog power.

T0: Timer/Counter0 counter source.

INT0: The PB6 pin can serve as an External Interrupt source 0.

PCINT14: Pin Change Interrupt source 14.

• Port B, Bit 5 - XTAL2/ CLKO/ ADC8/ PCINT13

XTAL2: Chip clock Oscillator pin 2. Used as clock pin for crystal Oscillator or Low-frequency crystal Oscillator. When used as a clock pin, the pin can not be used as an I/O pin.

CLKO: The divided system clock can be output on the PB5 pin, if the CKOUT Fuse is programmed, regardless of the PORTB5 and DDB5 settings. It will also be output during reset.

OC1D Output Compare Match output: The PB5 pin can serve as an external output for the Timer/Counter1 Compare Match D when configured as an output (DDA1 set). The OC1D pin is also the output pin for the PWM mode timer function.

ADC8: ADC input Channel 8. Note that ADC input channel 8 uses analog power.

PCINT13: Pin Change Interrupt source 13.

• Port B, Bit 4 - XTAL1/ CLKI/ OC1B/ ADC7/ PCINT12

XTAL1/CLKI: Chip clock Oscillator pin 1. Used for all chip clock sources except internal calibrated RC Oscillator. When used as a clock pin, the pin can not be used as an I/O pin.

OC1D

: Inverted Output Compare Match output: The PB4 pin can serve as an external output for the Timer/Counter1 Compare Match D when configured as an output (DDA0 set). The OC1D is also the inverted output pin for the PWM mode timer function.

ADC7: ADC input Channel 7. Note that ADC input channel 7 uses analog power.

PCINT12: Pin Change Interrupt source 12.

• Port B, Bit 3 - OC1B/ PCINT11

OC1B, Output Compare Match output: The PB3 pin can serve as an external output for the Timer/Counter1 Compare Match B. The PB3 pin has to be configured as an output (DDB3 set (one)) to serve this function. The OC1B pin is also the output pin for the PWM mode timer function.

PCINT11: Pin Change Interrupt source 11.

• Port B, Bit 2 - SCK/ USCK/ SCL/ OC1B

SCK: Master Clock output, Slave Clock input pin for SPI channel. When the SPI is enabled as a Slave, this pin is configured as an input regardless of the setting of DDB2. When the SPI is enabled as a Master, the data direction of this pin is controlled by DDB2. When the pin is forced by the SPI to be an input, the pull-up can still be controlled by the PORTB2 bit.

USCK: Three-wire mode Universal Serial Interface Clock.

SCL: Two-wire mode Serial Clock for USI Two-wire mode.

OC1B

: Inverted Output Compare Match output: The PB2 pin can serve as an external output for the Timer/Counter1 Compare Match B when configured as an output (DDB2 set). The OC1B is also the inverted output pin for the PWM mode timer function.

PCINT10: Pin Change Interrupt source 10.

• Port B, Bit 1 - MISO/ DO/ OC1A/ PCINT9

MISO: Master Data input, Slave Data output pin for SPI channel. When the SPI is enabled as a Master, this pin is configured as an input regardless of the setting of DDB1. When the SPI is enabled as a Slave, the data direction of this pin is controlled by DDB1. When the pin is forced by the SPI to be an input, the pull-up can still be controlled by the PORTB1 bit.

DO: Three-wire mode Universal Serial Interface Data output. Three-wire mode Data output overrides PORTB1 value and it is driven to the port when data direction bit DDB1 is set (one). PORTB1 still enables the pull-up, if the direction is input and PORTB1 is set (one).

/ PCINT10

OC1A: Output Compare Match output: The PB1 pin can serve as an external output for the Timer/Counter1 Compare Match B when configured as an output (DDB1 set). The OC1A pin is also the output pin for the PWM mode timer function.

PCINT9: Pin Change Interrupt source 9.

ATtiny261/461/861

2588B–AVR–11/06

ATtiny261/461/861

• Port B, Bit 0 - MOSI/ DI/ SDA/ OC1A/ PCINT8

MOSI: SPI Master Data output, Slave Data input for SPI channel. When the SPI is enabled as a Slave, this pin is configured as an input regardless of the setting of DDB0. When the SPI is enabled as a Master, the data direction of this pin is controlled by DDB0. When the pin is forced by the SPI to be an input, the pull-up can still be controlled by the PORTB0 bit.

DI: Data Input in USI Three-wire mode. USI Three-wire mode does not override normal port functions, so pin must be configure as an input for DI function.

SDA: Two-wire mode Serial Interface Data.

OC1A

: Inverted Output Compare Match output: The PB0 pin can serve as an external output for the Timer/Counter1 Compare Match B when configured as an output (DDB0 set). The OC1A is also the inverted output pin for the PWM mode timer function.

PCINT8: Pin Change Interrupt source 8.

2588B–AVR–11/06

Table 12-4 and Table 12-5 relate the alternate functions of Port B to the overriding signals

shown in Figure 12-5 on page 59.

Table 12-4. Overriding Signals for Alternate Functions in PB7..PB4

Signal Name

PUOE

PB7/RESET/dW/ ADC10/PCINT15

(1)

RSTDISBL DWEN

•

(1)

PB6/ADC9/T0/INT0/ PCINT14

PB5/XTAL2/CLKO/ OC1D/ADC8/PCINT13

(1)

PB4/XTAL1/OC1D/ ADC7/PCINT12

0 INTRC • EXTCLK INTRC

PUOV 1 0 0 0

(1)

DDOE

RSTDISBL DWEN

•

(1)

0 INTRC • EXTCLK INTRC

DDOV debugWire Transmit 0 0 0

PVOE 0 0 OC1D Enable OC1D Enable

PVOV 0 0 OC1D OC1D

PTOE 0 0 0 0

DIEOE 0

RSTDISBL

+ (PCINT5

• PCIE + ADC9D)

INTRC • EXTCLK + PCINT4 • PCIE + ADC8D

INTRC + PCINT12

• PCIE + ADC7D

DIEOV ADC10D ADC9D (INTRC • EXTCLK) + ADC8D INTRC • ADC7D

DI PCINT15 T0/INT0/PCINT14 PCINT13 PCINT12

AIO RESET / ADC10 ADC9 XTAL2, ADC8 XTAL1, ADC7

Note: 1. 1 when the Fuse is “0” (Programmed).

Table 12-5. Overriding Signals for Alternate Functions in PB3..PB0

(1)

Signal Name

PB3/OC1B/ PCINT11

PB2/SCK/USCK/SCL/

C1B/PCINT10

PB1/MISO/DO/OC1A/ PCINT9

PB0/MOSI/DI/SDA/ OC1A/PCINT8

PUOE 0 0 0 0

PUOV 0 0 0 0

DDOE 0 USI_TWO_WIRE • USIPOS

DDOV 0

PVOE OC1B Enable

(USI_SCL_HOLD + PORTB2

OC1B Enable

) • DDB2 • USIPOS

+ USIPOS •

USI_TWO_WIRE • DDRB2

OC1A Enable + USIPOS

• USI_THREE_WIRE

PVOV OC1B OC1B OC1A + (DO • USIPOS

PTOE 0 USI_PTOE • USIPOS

DIEOE PCINT11 • PCIE

PCINT10 • PCIE + USISIE • USIPOS

PCINT9 • PCIE

USI_TWO_WIRE • USIPOS

+ PORTB0) •

(SDA DDRB0 • USIPOS

OC1A Enabl (USI_TWO_WIRE •

DDRB0 • USIPOS

)OC1A

PCINT8 • PCIE + (USISIE • USIPOS

e +

DIEOV 0 0 0 0

DI PCINT11 USCK/SCL/PCINT10 PCINT9 DI/SDA/PCINT8

AIO

Note: 1. INTRC means that one of the internal RC Oscillators are selected (by the CKSEL fuses),

EXTCK means that external clock is selected (by the CKSEL fuses).

)

ATtiny261/461/861

2588B–AVR–11/06

12.3.2 Alternate Functions of Port A

The Port A pins with alternate function are shown in Table 12-6.

Table 12-6. Port B Pins Alternate Functions

Port Pin Alternate Function

PA7 ADC6 / AIN0 / PCINT7

PA6 ADC5 / AIN1 / PCINT6

PA5 ADC4 / AIN2 / PCINT5

PA4 ADC3 /ICP0/ PCINT4

PA3 AREF / PCINT3

PA2 ADC2 / INT1 / USCK / SCL / PCINT2

PA1 ADC1 / DO / PCINT1

PA0 ADC0 / DI / SDA / PCINT0

The alternate pin configuration is as follows:

• Port A, Bit 7- ADC6/AIN0/PCINT7

ADC6: Analog to Digital Converter, Channel 6

ATtiny261/461/861

AIN0: Analog Comparator Input. Configure the port pin as input with the internal pull-up switched off to avoid the digital port function from interfering with the function of the Analog Comparator.

PCINT7: Pin Change Interrupt source 8.

• Port A, Bit 6 - ADC5/AIN1/PCINT6

ADC5: Analog to Digital Converter, Channel 5.

AIN1: Analog Comparator Input. Configure the port pin as input with the internal pull-up switched off to avoid the digital port function from interfering with the function of the Analog Comparator.

PCINT6: Pin Change Interrupt source 6.

• Port A, Bit 5 - ADC4/AIN2/PCINT5

ADC4: Analog to Digital Converter, Channel 4.

AIN2: Analog Comparator Input. Configure the port pin as input with the internal pull-up switched off to avoid the digital port function from interfering with the function of the Analog Comparator.

PCINT5: Pin Change Interrupt source 5.

• Port A, Bit 4 - ADC3/ICP0/PCINT4

ADC3: Analog to Digital Converter, Channel 3.

ICP0: Timer/Counter0 Input Capture Pin.

PCINT4: Pin Change Interrupt source 4.

2588B–AVR–11/06

• Port A, Bit 3 - AREF/PCINT3

AREF: External analog reference for ADC. Pullup and output driver are disabled on PA3 when the pin is used as an external reference or internal voltage reference with external capacitor at the AREF pin.

PCINT3: Pin Change Interrupt source 3.

• Port A, Bit 2 - ADC2/INT1/USCK/SCL/PCINT2

ADC2: Analog to Digital Converter, Channel 2.

INT1: The PA2 pin can serve as an External Interrupt source 1.

USCK: Three-wire mode Universal Serial Interface Clock.

SCL: Two-wire mode Serial Clock for USI Two-wire mode.

PCINT2: Pin Change Interrupt source 2.

• Port A, Bit 1 - ADC1/DO/PCINT1

ADC1: Analog to Digital Converter, Channel 1.

DO: Three-wire mode Universal Serial Interface Data output. Three-wire mode Data output overrides PORTA1 value and it is driven to the port when data direction bit DDA1 is set. PORTA1 still enables the pull-up, if the direction is input and PORTA1 is set.

PCINT1: Pin Change Interrupt source 1.

• Port A, Bit 0 - ADC0/DI/SDA/PCINT0

ADC0: Analog to Digital Converter, Channel 0.

DI: Data Input in USI Three-wire mode. USI Three-wire mode does not override normal port functions, so pin must be configure as an input for DI function.

SDA: Two-wire mode Serial Interface Data.

PCINT0: Pin Change Interrupt source 0.

Table 12-7 and Table 12-8 relate the alternate functions of Port A to the overriding signals

shown in Figure 12-5 on page 59.

Table 12-7. Overriding Signals for Alternate Functions in PA7..PA4

Signal Name

PUOE0000

PUOV0000

DDOE0000

DDOV0000

PVOE0000

PVOV0000

PTOE0000

DIEOE PCINT7 • PCIE +

DIEOV ADC6D

DI PCINT7 PCINT6 PCINT5 ICP0/PCINT4

AIO ADC6, AIN0 ADC5, AIN1 ADC4, AIN2 ADC3

PA7/ADC6/AIN0/ PCINT7

ADC6D

PA6/ADC5/AIN1/ PCINT6

PCINT6 • PCIE + ADC5D

ADC5D ADC4D ADC3D

PA5/ADC4/AIN2/ PCINT5

PCINT5 • PCIE + ADC4D

PA4/ADC3/ICP0/ PCINT4

PCINT4 • PCIE + ADC3D

ATtiny261/461/861

2588B–AVR–11/06

ATtiny261/461/861

Table 12-8. Overriding Signals for Alternate Functions in PA3..PA0

Signal Name

PUOE 0 0 0 0

PUOV 0 0 0 0

DDOE 0 USI_TWO_WIRE • USIPOS

DDOV 0 (USI_SCL_HOLD +

PVOE 0 USI_TWO_WIRE • DDRB2 USI_THREE_WIRE

PVOV 0 0 DO • USIPOS 0

PTOE 0 USI_PTOE • USIPOS 0 0

DIEOE PCINT3 • PCIE PCINT2 • PCIE + INT1 +

DIEOV 0 ADC2D

DI PCINT3 USCK/SCL/INT1/ PCINT2 PCINT1 DI/SDA/PCINT0

AIO AREF ADC2 ADC1 ADC0

PA3 /A RE F/ PCINT3

PA2/ADC2/INT1/ USCK/SCL/PCINT2

PORTB2

ADC2D + USISIE • USIPOS

) • DDB2 • USIPOS

PA1/ADC1/DO/ PCINT1

• USIPOS

PCINT1 • PCIE + ADC1D

ADC1D ADC0D

PA0/ADC0/DI/SDA/ PCINT0

USI_TWO_WIRE • USIPOS

(SDA + PORTB0) • DDRB0 • USIPOS

USI_TWO_WIRE • DDRB0 • USIPOS

PCINT0 • PCIE + ADC0D + USISIE • USIPOS

2588B–AVR–11/06

12.4 Register Description

12.4.1 MCUCR – MCU Control Register

Bit 7 6 5 4 3 2 1 0

0x35 (0x55)

Read/Write R R/W R/W R/W R/W R R R

Initial Value 0 0 0 0 0 0 0 0

• Bit 6 – PUD: Pull-up Disable

When this bit is written to one, the pull-ups in the I/O ports are disabled even if the DDxn and PORTxn Registers are configured to enable the pull-ups ({DDxn, PORTxn} = 0b01). See ”Con-

figuring the Pin” on page 54 for more details about this feature.

12.4.2 PORTA – Port A Data Register

Bit 76543210

0x1B (0x3B) PORTA7 PORTA6 PORTA5 PORTA4 PORTA3 PORTA2 PORTA1 PORTA0 PORTA

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

12.4.3 DDRA – Port A Data Direction Register

Bit 76543210

0x1A (0x3A) DDA7 DDA6 DDA5 DDA4 DDA3 DDA2 DDA1 DDA0 DDRA

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

-PUDSE SM1 SM0 - ISC01 ISC00 MCUCR

12.4.4 PINA – Port A Input Pins Address

Bit 76543210

0x19 (0x39) PINA7 PINA6 PINA5 PINA4 PINA3 PINA2 PINA1 PINA0 PINA

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value N/A N/A N/A N/A N/A N/A N/A N/A

12.4.5 PORTB – Port B Data Register

Bit 76543210

0x18 (0x38) PORTB7 PORTB6 PORTB5 PORTB4 PORTB3 PORTB2 PORTB1 PORTB0 PORTB

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

12.4.6 DDRB – Port B Data Direction Register

Bit 76543210

0x17 (0x37) DDB7 DDB6 DDB5 DDB4 DDB3 DDB2 DDB1 DDB0 DDRB

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

12.4.7 PINB – Port B Input Pins Address

Bit 76543210

0x16 (0x36) PINB7 PINB6 PINB5 PINB4 PINB3 PINB2 PINB1 PINB0 PINB

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value N/A N/A N/A N/A N/A N/A N/A N/A

ATtiny261/461/861

2588B–AVR–11/06

13. Timer/Counter0 Prescaler

The Timer/Counter can be clocked directly by the system clock (by setting the CSn2:0 = 1). This provides the fastest operation, with a maximum Timer/Counter clock frequency equal to system clock frequency (f clock source. The prescaled clock has a frequency of either f f

/1024. See Table 13-1 on page 71 for details.

CLK_I/O

13.0.1 Prescaler Reset

The prescaler is free running, i.e., operates independently of the Clock Select logic of the Timer/Counter. Since the prescaler is not affected by the Timer/Counter’s clock select, the state of the prescaler will have implications for situations where a prescaled clock is used. One example of prescaling artifacts occurs when the timer is enabled and clocked by the prescaler (6 > CSn2:0 > 1). The number of system clock cycles from when the timer is enabled to the first count occurs can be from 1 to N+1 system clock cycles, where N equals the prescaler divisor (8, 64, 256, or 1024). It is possible to use the Prescaler Reset for synchronizing the Timer/Counter to program execution.

13.0.2 External Clock Source

An external clock source applied to the T0 pin can be used as Timer/Counter clock (clk T0 pin is sampled once every system clock cycle by the pin synchronization logic. The synchronized (sampled) signal is then passed through the edge detector. equivalent block diagram of the T0 synchronization and edge detector logic. The registers are clocked at the positive edge of the internal system clock ( high period of the internal system clock.

ATtiny261/461/861

). Alternatively, one of four taps from the prescaler can be used as a

CLK_I/O

/8, f

CLK_I/O

Figure 13-1 shows a functional

clk

). The latch is transparent in the

I/O

CLK_I/O

/64, f

CLK_I/O

/256, or

). The

The edge detector generates one clk

pulse for each positive (CSn2:0 = 7) or negative (CSn2:0

= 6) edge it detects. See Table 13-1 on page 71 for details.

Figure 13-1. T0 Pin Sampling

clk

I/O

DQDQ

Edge DetectorSynchronization

Tn_sync

(To Clock Select Logic)

The synchronization and edge detector logic introduces a delay of 2.5 to 3.5 system clock cycles from an edge has been applied to the T0 pin to the counter is updated.

Enabling and disabling of the clock input must be done when T0 has been stable for at least one system clock cycle, otherwise it is a risk that a false Timer/Counter clock pulse is generated.

Each half period of the external clock applied must be longer than one system clock cycle to ensure correct sampling. The external clock must be guaranteed to have less than half the system clock frequency (f

ExtClk

< f

/2) given a 50/50% duty cycle. Since the edge detector uses

clk_I/O

sampling, the maximum frequency of an external clock it can detect is half the sampling frequency (Nyquist sampling theorem). However, due to variation of the system clock frequency and duty cycle caused by Oscillator source (crystal, resonator, and capacitors) tolerances, it is recommended that maximum frequency of an external clock source is less than f

clk_I/O

/2.5.

2588B–AVR–11/06

An external clock source can not be prescaled.

Figure 13-2. Prescaler for Timer/Counter0

clk

I/O

PSR0

Synchronization

Note: 1. The synchronization logic on the input pins (T0) is shown in Figure 13-1.

Clear

clk

13.1 Register Description

13.1.1 TCCR0B – Timer/Counter0 Control Register B

Bit 76543210

0x33 (0x53)

Read/Write R R R R/W R/W R/W R/W R/W

Initial Value00000000

• Bit 4 – TSM: Timer/Counter Synchronization Mode

Writing the TSM bit to one activates the Timer/Counter Synchronization mode. In this mode, the value that is written to the PSR0 bit is kept, hence keeping the Prescaler Reset signal asserted. This ensures that the Timer/Counter is halted and can be configured without the risk of advancing during configuration. When the TSM bit is written to zero, the PSR0 bit is cleared by hardware, and the Timer/Counter start counting.

• Bit 3 – PSR0: Prescaler Reset Timer/Counter0

When this bit is one, the Timer/Counter0 prescaler will be Reset. This bit is normally cleared immediately by hardware, except if the TSM bit is set.

• Bits 2, 1, 0 – CS02, CS01, CS00: Clock Select0, Bit 2, 1, and 0

The Clock Select0 bits 2, 1, and 0 define the prescaling source of Timer0.

- - - TSM PSR0 CS02 CS01 CS01 TCCR0B

ATtiny261/461/861

2588B–AVR–11/06

ATtiny261/461/861

Table 13-1. Clock Select Bit Description

CS02 CS01 CS00 Description

0 0 0 No clock source (Timer/Counter stopped)

001clk

010clk

011clk

100clk

101clk

1 1 0 External clock source on T0 pin. Clock on falling edge.

1 1 1 External clock source on T0 pin. Clock on rising edge.

If external pin modes are used for the Timer/Counter0, transitions on the T0 pin will clock the counter even if the pin is configured as an output. This feature allows software control of the counting.

/(No prescaling)

I/O

/8 (From prescaler)

I/O

/64 (From prescaler)

I/O

/256 (From prescaler)

I/O

/1024 (From prescaler)

I/O

2588B–AVR–11/06

14. Timer/Counter0

14.1 Features

• Clear Timer on Compare Match (Auto Reload)

• Input Capture unit

• Four Independent Interrupt Sources (TOV0, OCF0A, OCF0B, ICF0)

• 8-bit Mode with Two Independent Output Compare Units

• 16-bit Mode with One Independent Output Compare Unit

14.2 Overview

Timer/Counter0 is a general purpose 8-/16-bit Timer/Counter module, with two/one Output Compare units and Input Capture feature.

The Timer/Counter0 general operation is described in 8-/16-bit mode. A simplified block diagram of the 8-/16-bit Timer/Counter is shown in Figure 14-1. For the actual placement of I/O pins, refer to ”Pinout ATtiny261/461/861” on page 2. CPU accessible I/O Registers, including I/O bits and I/O pins, are shown in bold. The device-specific I/O Register and bit locations are listed in the

”Register Description” on page 84.

Figure 14-1. 8-/16-bit Timer/Counter Block Diagram

TCNTnH

Timer/Counter

Count

Clear

Direction

TCNTnL

Control Logic

TOP

TOVn (Int. Req.)

Clock Select

clk

Edge

Detector

( From Prescaler )

14.2.1 Registers

Fixed TOP value

OCnA (Int. Req.)

OCnB (Int. Req.)

ICFn (Int. Req.)

( From Analog

Comparator Ouput )

ICPn

OCRnA

Edge

Detector

Noise

Canceler

DATA BU S

OCRnB

TCCRnA TCCRnB

The Timer/Counter0 Low Byte Register (TCNT0L) and Output Compare Registers (OCR0A and OCR0B) are 8-bit registers. Interrupt request (abbreviated to Int.Req. in Figure 14-1) signals are all visible in the Timer Interrupt Flag Register (TIFR). All interrupts are individually masked with the Timer Interrupt Mask Register (TIMSK). TIFR and TIMSK are not shown in the figure.

In 16-bit mode the Timer/Counter consists one more 8-bit register, the Timer/Counter0 High Byte Register (TCNT0H). Furthermore, there is only one Output Compare Unit in 16-bit mode as the two Output Compare Registers, OCR0A and OCR0B, are combined to one 16-bit Output Compare Register. OCR0A contains the low byte of the word and OCR0B contains the high byte of the word. When accessing 16-bit registers, special procedures described in section ”Access-

ing Registers in 16-bit Mode” on page 80 must be followed.

ATtiny261/461/861

2588B–AVR–11/06

14.2.2 Definitions

ATtiny261/461/861

Many register and bit references in this section are written in general form. A lower case “n” replaces the Timer/Counter number, in this case 0. A lower case “x” replaces the Output Compare Unit, in this case Compare Unit A or Compare Unit B. However, when using the register or bit defines in a program, the precise form must be used, i.e., TCNT0L for accessing Timer/Counter0 counter value and so on.

The definitions in Table 14-1 are also used extensively throughout the document.

Table 14-1. Definitions

BOTTOM The counter reaches the BOTTOM when it becomes 0.

MAX

TOP

The counter reaches its MAXimum when it becomes 0xFF (decimal 255) in 8-bit mode or 0xFFFF (decimal 65535) in 16-bit mode.

The counter reaches the TOP when it becomes equal to the highest value in the count sequence. The TOP value can be assigned to be the fixed value 0xFF/0xFFFF (MAX) or the value stored in the OCR0A Register.

14.3 Timer/Counter Clock Sources

The Timer/Counter can be clocked internally, via the prescaler, or by an external clock source on the T0 pin. The Clock Select logic is controlled by the Clock Select (CS02:0) bits located in the Timer/Counter Control Register 0 B (TCCR0B), and controls which clock source and edge the Timer/Counter uses to increment its value. The Timer/Counter is inactive when no clock source is selected. The output from the Clock Select logic is referred to as the timer clock (clk details on clock sources and prescaler, see ”Timer/Counter0 Prescaler” on page 69.

14.4 Counter Unit

The main part of the 8-bit Timer/Counter is the programmable bi-directional counter unit. Figure

14-3 shows a block diagram of the counter and its surroundings.

Table 14-2. Counter Unit Block Diagram

DATA B US

TCNTn Control Logic

count

TOVn

(Int.Req.)

clk

Clock Select

Edge

Detector

). For

2588B–AVR–11/06

( From Prescaler )

top

Signal description (internal signals):

count Increment or decrement TCNT0 by 1.

clk

Timer/Counter clock, referred to as clkT0 in the following.

top Signalize that TCNT0 has reached maximum value.

The counter is incremented at each timer clock (clk

) until it passes its TOP value and then

restarts from BOTTOM. The counting sequence is determined by the setting of the WGM00 bits located in the Timer/Counter Control Register (TCCR0A). For more details about counting sequences, see ”Modes of Operation” on page 74. clk

can be generated from an external or

internal clock source, selected by the Clock Select bits (CS02:0). When no clock source is selected (CS02:0 = 0) the timer is stopped. However, the TCNT0 value can be accessed by the CPU, regardless of whether clk counter clear or count operations. The Timer/Counter Overflow Flag (TOV0) is set when the counter reaches the maximum value and it can be used for generating a CPU interrupt.

14.5 Modes of Operation

The mode of operation is defined by the Timer/Counter Width (TCW0), Input Capture Enable (ICEN0) and Wave Generation Mode (WGM00) bits in ”TCCR0A – Timer/Counter0 Control Reg-

ister A” on page 84. Table 14-3 shows the different Modes of Operation.

Table 14-3. Modes of operation

is present or not. A CPU write overrides (has priority over) all

Timer/Counter Mode

Mode ICEN0 TCW0 WGM00

0 0 0 0 Normal 8-bit Mode 0xFF Immediate MAX (0xFF)

1 0 0 1 8-bit CTC OCR0A Immediate MAX (0xFF)

2 0 1 X 16-bit Mode 0xFFFF Immediate MAX (0xFFFF)

3 1 0 X 8-bit Input Capture Mode 0xFF Immediate MAX (0xFF)

4 1 1 X 16-bit Input Capture Mode 0xFFFF Immediate MAX (0xFFFF)

of Operation TOP

Update of

OCRx at

TOV Flag

14.5.1 Normal 8-bit Mode

In the Normal 8-bit mode, see Table 14-3 on page 74, the counter (TCNT0L) is incrementing until it overruns when it passes its maximum 8-bit value (MAX = 0xFF) and then restarts from the bottom (0x00). The Overflow Flag (TOV0) will be set in the same timer clock cycle as the TCNT0L becomes zero. The TOV0 Flag in this case behaves like a ninth bit, except that it is only set, not cleared. However, combined with the timer overflow interrupt that automatically clears the TOV0 Flag, the timer resolution can be increased by software. There are no special cases to consider in the Normal 8-bit mode, a new counter value can be written anytime. The Output Compare Unit can be used to generate interrupts at some given time.

14.5.2 Clear Timer on Compare Match (CTC) 8-bit Mode

In Clear Timer on Compare or CTC mode, see Table 14-3 on page 74, the OCR0A Register is used to manipulate the counter resolution. In CTC mode the counter is cleared to zero when the counter value (TCNT0) matches the OCR0A. The OCR0A defines the top value for the counter, hence also its resolution. This mode allows greater control of the Compare Match output frequency. It also simplifies the operation of counting external events.

Set on

The timing diagram for the CTC mode is shown in Figure 14-2. The counter value (TCNT0) increases until a Compare Match occurs between TCNT0 and OCR0A, and then counter (TCNT0) is cleared.

ATtiny261/461/861

2588B–AVR–11/06

Figure 14-2. CTC Mode, Timing Diagram

TCNTn

ATtiny261/461/861

OCnx Interrupt Flag Set

Period

An interrupt can be generated each time the counter value reaches the TOP value by using the OCF0A Flag. If the interrupt is enabled, the interrupt handler routine can be used for updating the TOP value. However, changing TOP to a value close to BOTTOM when the counter is running with none or a low prescaler value must be done with care since the CTC mode does not have the double buffering feature. If the new value written to OCR0A is lower than the current value of TCNT0, the counter will miss the Compare Match. The counter will then have to count to its maximum value (0xFF) and wrap around starting at 0x00 before the Compare Match can occur. As for the Normal mode of operation, the TOV0 Flag is set in the same timer clock cycle that the counter counts from MAX to 0x00.

14.5.3 16-bit Mode

In 16-bit mode, see Table 14-3 on page 74, the counter (TCNT0H/L) is a incrementing until it overruns when it passes its maximum 16-bit value (MAX = 0xFFFF) and then restarts from the bottom (0x0000). The Overflow Flag (TOV0) will be set in the same timer clock cycle as the TCNT0H/L becomes zero. The TOV0 Flag in this case behaves like a 17th bit, except that it is only set, not cleared. However, combined with the timer overflow interrupt that automatically clears the TOV0 Flag, the timer resolution can be increased by software. There are no special cases to consider in the Normal mode, a new counter value can be written anytime. The Output Compare Unit can be used to generate interrupts at some given time.

14.5.4 8-bit Input Capture Mode

The Timer/Counter0 can also be used in an 8-bit Input Capture mode, see Table 14-3 on page

74 for bit settings. For full description, see the section ”Input Capture Unit” on page 76.

1 4

2 3

14.5.5 16-bit Input Capture Mode

The Timer/Counter0 can also be used in a 16-bit Input Capture mode, see Table 14-3 on page

74 for bit settings. For full description, see the section ”Input Capture Unit” on page 76.

2588B–AVR–11/06

14.6 Input Capture Unit

The Timer/Counter incorporates an Input Capture unit that can capture external events and give them a time-stamp indicating time of occurrence. The external signal indicating an event, or multiple events, can be applied via the ICP0 pin or alternatively, via the analog-comparator unit. The time-stamps can then be used to calculate frequency, duty-cycle, and other features of the signal applied. Alternatively the time-stamps can be used for creating a log of the events.

The Input Capture unit is illustrated by the block diagram shown in Figure 14-3. The elements of the block diagram that are not directly a part of the Input Capture unit are gray shaded.

Figure 14-3. Input Capture Unit Block Diagram

TEMP (8-bit)

DATA BUS

(8-bit)

ICP0

OCR0B (8-bit)

WRITE

ICR0 (16-bit Register)

ACO*

Analog

Comparator

OCR0A (8-bit)

ACIC0* ICNC0 ICES0

Noise

Canceler

TCNT0H (8-bit) TCNT0L (8-bit)

TCNT0 (16-bit Counter)

Edge

Detector

ICF0 (Int.Req.)

The Output Compare Register OCR0A is a dual-purpose register that is also used as an 8-bit Input Capture Register ICR0. In 16-bit Input Capture mode the Output Compare Register OCR0B serves as the high byte of the Input Capture Register ICR0. In 8-bit Input Capture mode the Output Compare Register OCR0B is free to be used as a normal Output Compare Register, but in 16-bit Input Capture mode the Output Compare Unit cannot be used as there are no free Output Compare Register(s). Even though the Input Capture register is called ICR0 in this section, it is refering to the Output Compare Register(s).

When a change of the logic level (an event) occurs on the Input Capture pin (ICP0), alternatively on the Analog Comparator output (ACO), and this change confirms to the setting of the edge detector, a capture will be triggered. When a capture is triggered, the value of the counter (TCNT0) is written to the Input Capture Register (ICR0). The Input Capture Flag (ICF0) is set at the same system clock as the TCNT0 value is copied into Input Capture Register. If enabled (TICIE0=1), the Input Capture Flag generates an Input Capture interrupt. The ICF0 flag is automatically cleared when the interrupt is executed. Alternatively the ICF0 flag can be cleared by software by writing a logical one to its I/O bit location.

ATtiny261/461/861

2588B–AVR–11/06

14.6.1 Input Capture Trigger Source

The default trigger source for the Input Capture unit is the Input Capture pin (ICP0). Timer/Counter0 can alternatively use the Analog Comparator output as trigger source for the Input Capture unit. The Analog Comparator is selected as trigger source by setting the Analog Comparator Input Capture Enable (ACIC0) bit in the Timer/Counter Control Register A (TCCR0A). Be aware that changing trigger source can trigger a capture. The Input Capture Flag must therefore be cleared after the change.

Both the Input Capture pin (ICP0) and the Analog Comparator output (ACO) inputs are sampled using the same technique as for the T0 pin (Figure 13-1 on page 71). The edge detector is also identical. However, when the noise canceler is enabled, additional logic is inserted before the edge detector, which increases the delay by four system clock cycles. An Input Capture can also be triggered by software by controlling the port of the ICP0 pin.

14.6.2 Noise Canceler

The noise canceler improves noise immunity by using a simple digital filtering scheme. The noise canceler input is monitored over four samples, and all four must be equal for changing the output that in turn is used by the edge detector.

The noise canceler is enabled by setting the Input Capture Noise Canceler (ICNC0) bit in Timer/Counter Control Register B (TCCR0B). When enabled the noise canceler introduces additional four system clock cycles of delay from a change applied to the input, to the update of the ICR0 Register. The noise canceler uses the system clock and is therefore not affected by the prescaler.

ATtiny261/461/861

14.6.3 Using the Input Capture Unit

The main challenge when using the Input Capture unit is to assign enough processor capacity for handling the incoming events. The time between two events is critical. If the processor has not read the captured value in the ICR0 Register before the next event occurs, the ICR0 will be overwritten with a new value. In this case the result of the capture will be incorrect.

When using the Input Capture interrupt, the ICR0 Register should be read as early in the interrupt handler routine as possible. The maximum interrupt response time is dependent on the maximum number of clock cycles it takes to handle any of the other interrupt requests.

Measurement of an external signal’s duty cycle requires that the trigger edge is changed after each capture. Changing the edge sensing must be done as early as possible after the ICR0 Register has been read. After a change of the edge, the Input Capture Flag (ICF0) must be cleared by software (writing a logical one to the I/O bit location). For measuring frequency only, the trigger edge change is not required (if an interrupt handler is used).

14.7 Output Compare Unit

The comparator continuously compares Timer/Counter (TCNT0) with the Output Compare Registers (OCR0A and OCR0B), and whenever the Timer/Counter equals to the Output Compare Regisers, the comparator signals a match. A match will set the Output Compare Flag at the next timer clock cycle. In 8-bit mode the match can set either the Output Compare Flag OCF0A or OCF0B, but in 16-bit mode the match can set only the Output Compare Flag OCF0A as there is only one Output Compare Unit. If the corresponding interrupt is enabled, the Output Compare Flag generates an Output Compare interrupt. The Output Compare Flag is automatically cleared

2588B–AVR–11/06

when the interrupt is executed. Alternatively, the flag can be cleared by software by writing a logical one to its I/O bit location. Figure 14-4 shows a block diagram of the Output Compare unit.

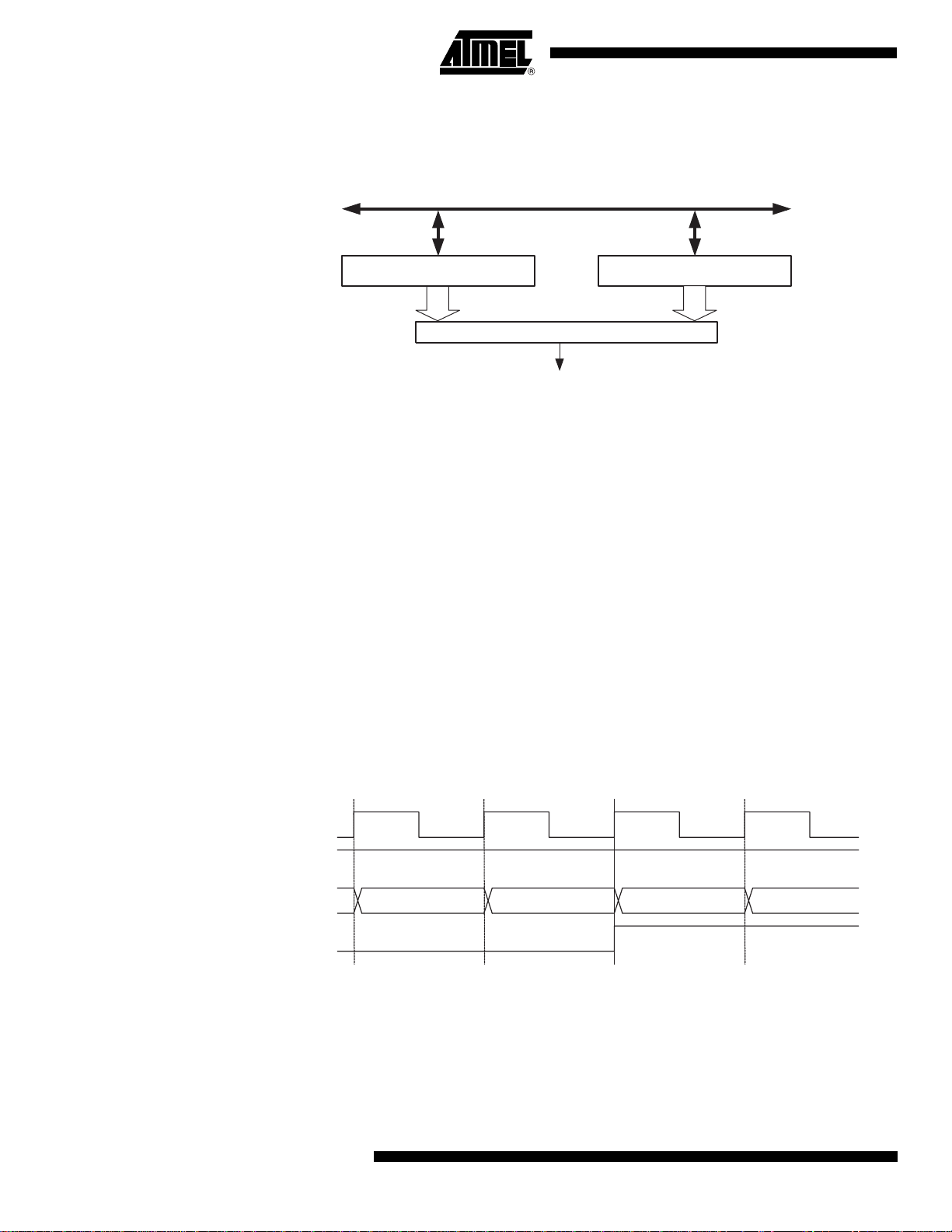

Figure 14-4. Output Compare Unit, Block Diagram

DATA B US

OCRnx

14.7.1 Compare Match Blocking by TCNT0 Write

All CPU write operations to the TCNT0H/L Register will block any Compare Match that occur in the next timer clock cycle, even when the timer is stopped. This feature allows OCR0A/B to be initialized to the same value as TCNT0 without triggering an interrupt when the Timer/Counter clock is enabled.

14.7.2 Using the Output Compare Unit

Since writing TCNT0H/L will block all Compare Matches for one timer clock cycle, there are risks involved when changing TCNT0H/L when using the Output Compare Unit, independently of whether the Timer/Counter is running or not. If the value written to TCNT0H/L equals the OCR0A/B value, the Compare Match will be missed.

14.8 Timer/Counter Timing Diagrams

The Timer/Counter is a synchronous design and the timer clock (clkT0) is therefore shown as a clock enable signal in the following figures. The figures include information on when Interrupt Flags are set. Figure 14-5 contains timing data for basic Timer/Counter operation. The figure shows the count sequence close to the MAX value.

(8/16-bit Comparator )

OCFnx (Int.Req.)

TCNTn

Figure 14-5. Timer/Counter Timing Diagram, no Prescaling

clk

I/O

clk

(clk

/1)

I/O

TCNTn MAX - 1 MAX BOTTOM BOTTOM + 1

TOVn

Figure 14-6 shows the same timing data, but with the prescaler enabled.

ATtiny261/461/861

2588B–AVR–11/06

ATtiny261/461/861

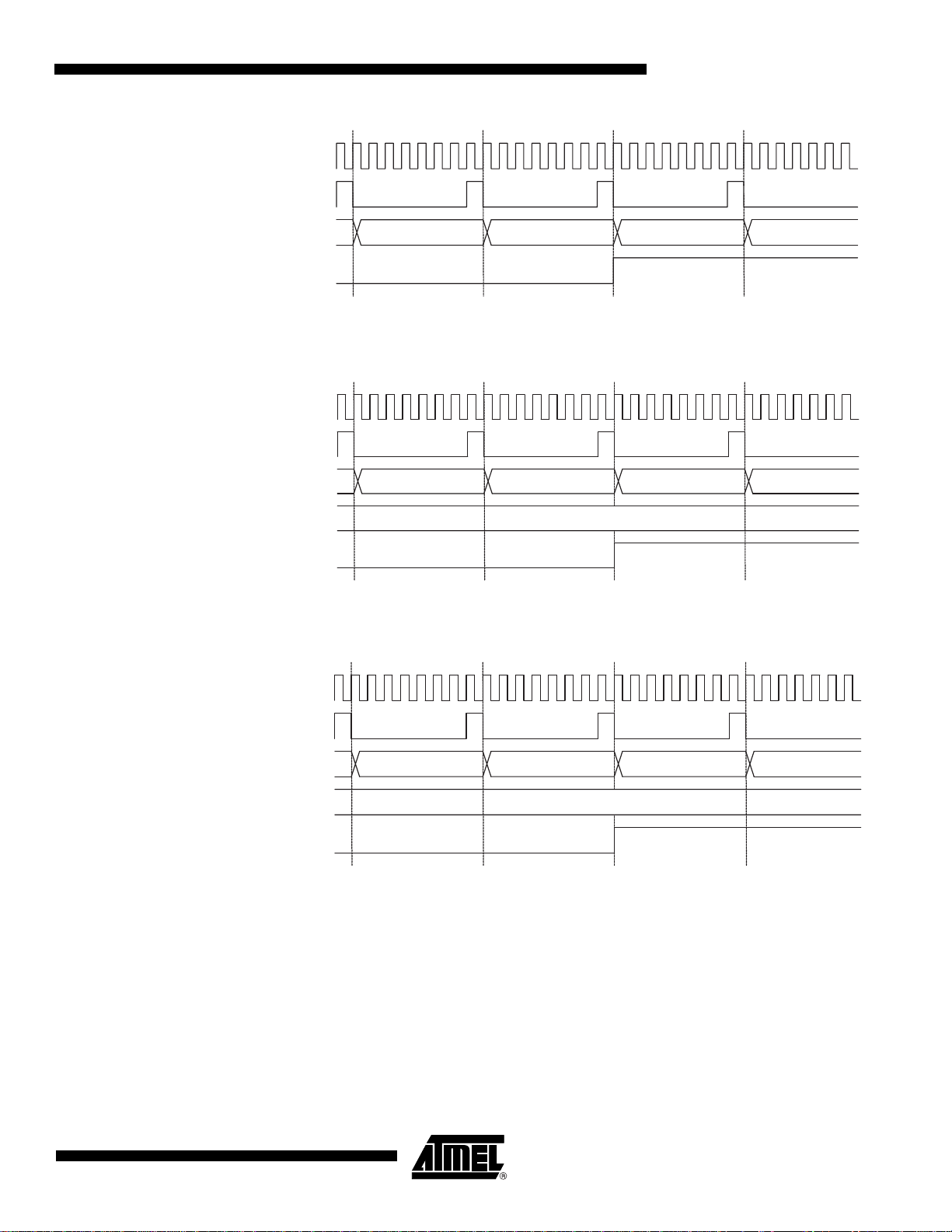

Figure 14-6. Timer/Counter Timing Diagram, with Prescaler (f

clk

I/O

clk

(clk

/8)

I/O

TCNTn

TOVn

MAX - 1 MAX BOTTOM BOTTOM + 1

clk_I/O

/8)

Figure 14-7 shows the setting of OCF0A and OCF0B in Normal mode.

Figure 14-7. Timer/Counter Timing Diagram, Setting of OCF0x, with Prescaler (f

clk

I/O

clk

(clk

/8)

I/O

TCNTn

OCRnx

OCFnx

OCRnx - 1 OCRnx OCRnx + 1 OCRnx + 2

OCRnx Value

clk_I/O

/8)

shows the setting of OCF0A and the clearing of TCNT0 in CTC mode.

Figure 14-8. Timer/Counter Timing Diagram, CTC mode, with Prescaler (f

clk

PCK

clk

(clk

/8)

PCK

TCNTn

(CTC)

OCRnx

OCFnx

TOP - 1 TOP BOTTOM BOTTOM + 1

TOP

clk_I/O

/8)

2588B–AVR–11/06

14.9 Accessing Registers in 16-bit Mode

In 16-bit mode (the TCW0 bit is set to one) the TCNT0H/L and OCR0A/B or TCNT0L/H and OCR0B/A are 16-bit registers that can be accessed by the AVR CPU via the 8-bit data bus. The 16-bit register must be byte accessed using two read or write operations. The 16-bit Timer/Counter has a single 8-bit register for temporary storing of the high byte of the 16-bit access. The same temporary register is shared between all 16-bit registers. Accessing the low byte triggers the 16-bit read or write operation. When the low byte of a 16-bit register is written by the CPU, the high byte stored in the temporary register, and the low byte written are both copied into the 16-bit register in the same clock cycle. When the low byte of a 16-bit register is read by the CPU, the high byte of the 16-bit register is copied into the temporary register in the same clock cycle as the low byte is read.

There is one exception in the temporary register usage. In the Output Compare mode the 16-bit Output Compare Register OCR0A/B is read without the temporary register, because the Output Compare Register contains a fixed value that is only changed by CPU access. However, in 16bit Input Capture mode the ICR0 register formed by the OCR0A and OCR0B registers must be accessed with the temporary register.

To do a 16-bit write, the high byte must be written before the low byte. For a 16-bit read, the low byte must be read before the high byte.

ATtiny261/461/861

2588B–AVR–11/06

ATtiny261/461/861

The following code examples show how to access the 16-bit timer registers assuming that no interrupts updates the temporary register. The same principle can be used directly for accessing the OCR0A/B registers.

Assembly Code Example

...

; Set TCNT0 to 0x01FF

ldi r17,0x01

ldi r16,0xFF

out TCNT0H,r17 out TCNT0L,r16

; Read TCNT0 into r17:r16

in r16,TCNT0L in r17,TCNT0H

...

C Code Example

unsigned int i;

...

/* Set TCNT0 to 0x01FF */

TCNT0H = 0x01;

TCNT0L = 0xff;

/* Read TCNT0 into i */

i = TCNT0L;

i |= ((unsigned int)TCNT0H << 8);

...

Note: 1. The example code assumes that the part specific header file is included.

For I/O registers located in extended I/O map, “IN”, “OUT”, “SBIS”, “SBIC”, “CBI”, and “SBI” instructions must be replaced with instructions that allow access to extended I/O. Typically “LDS” and “STS” combined with “SBRS”, “SBRC”, “SBR”, and “CBR”.

The assembly code example returns the TCNT0H/L value in the r17:r16 register pair.

It is important to notice that accessing 16-bit registers are atomic operations. If an interrupt occurs between the two instructions accessing the 16-bit register, and the interrupt code updates the temporary register by accessing the same or any other of the 16-bit timer registers, then the result of the access outside the interrupt will be corrupted. Therefore, when both the main code and the interrupt code update the temporary register, the main code must disable the interrupts during the 16-bit access.

2588B–AVR–11/06

The following code examples show how to do an atomic read of the TCNT0 register contents. Reading any of the OCR0 register can be done by using the same principle.

Assembly Code Example

TIM0_ReadTCNT0:

; Save global interrupt flag

in r18,SREG

; Disable interrupts

cli

; Read TCNT0 into r17:r16

in r16,TCNT0L in r17,TCNT0H

; Restore global interrupt flag

out SREG,r18

ret

C Code Example

unsigned int TIM0_ReadTCNT0( void )

{

unsigned char sreg;

unsigned int i;

/* Save global interrupt flag */

sreg = SREG;

/* Disable interrupts */

_CLI();

/* Read TCNT0 into i */

i = TCNT0L;

i |= ((unsigned int)TCNT0H << 8);

/* Restore global interrupt flag */

SREG = sreg;

return i;

}

Note: 1. The example code assumes that the part specific header file is included.

The assembly code example returns the TCNT0H/L value in the r17:r16 register pair.

ATtiny261/461/861

2588B–AVR–11/06

ATtiny261/461/861

The following code examples show how to do an atomic write of the TCNT0H/L register contents. Writing any of the OCR0A/B registers can be done by using the same principle.

Assembly Code Example

TIM0_WriteTCNT0:

; Save global interrupt flag

in r18,SREG

; Disable interrupts

cli

; Set TCNT0 to r17:r16

out TCNT0H,r17 out TCNT0L,r16

; Restore global interrupt flag

out SREG,r18

ret

C Code Example

void TIM0_WriteTCNT0( unsigned int i )

{

unsigned char sreg;

/* Save global interrupt flag */

sreg = SREG;

/* Disable interrupts */

_CLI();

/* Set TCNT0 to i */

TCNT0H = (i >> 8);

TCNT0L = (unsigned char)i;

/* Restore global interrupt flag */

SREG = sreg;

}

Note: 1. The example code assumes that the part specific header file is included.

The assembly code example requires that the r17:r16 register pair contains the value to be written to TCNT0H/L.

14.9.1 Reusing the temporary high byte register

If writing to more than one 16-bit register where the high byte is the same for all registers written, then the high byte only needs to be written once. However, note that the same rule of atomic operation described previously also applies in this case.

2588B–AVR–11/06

14.10 Register Description

14.10.1 TCCR0A – Timer/Counter0 Control Register A

Bit 76543210

0x15 (0x35)

Read/Write R/W R/W R/W R/W R/W R R R/W

Initial Value00000000

• Bit 7– TCW0: Timer/Counter0 Width

When this bit is written to one 16-bit mode is selected as described Figure 14-5 on page 78. Timer/Counter0 width is set to 16-bits and the Output Compare Registers OCR0A and OCR0B are combined to form one 16-bit Output Compare Register. Because the 16-bit registers TCNT0H/L and OCR0B/A are accessed by the AVR CPU via the 8-bit data bus, special procedures must be followed. These procedures are described in section ”Accessing Registers in 16-

bit Mode” on page 80.

• Bit 6– ICEN0: Input Capture Mode Enable

When this bit is written to onem, the Input Capture Mode is enabled.

• Bit 5 – ICNC0: Input Capture Noise Canceler

Setting this bit activates the Input Capture Noise Canceler. When the noise canceler is activated, the input from the Input Capture Pin (ICP0) is filtered. The filter function requires four successive equal valued samples of the ICP0 pin for changing its output. The Input Capture is therefore delayed by four System Clock cycles when the noise canceler is enabled.

TCW0 ICEN0 ICNC0 ICES0 ACIC0 – – WGM00 TCCR0A

• Bit 4 – ICES0: Input Capture Edge Select

This bit selects which edge on the Input Capture Pin (ICP0) that is used to trigger a capture event. When the ICES0 bit is written to zero, a falling (negative) edge is used as trigger, and when the ICES0 bit is written to one, a rising (positive) edge will trigger the capture. When a capture is triggered according to the ICES0 setting, the counter value is copied into the Input Capture Register. The event will also set the Input Capture Flag (ICF0), and this can be used to cause an Input Capture Interrupt, if this interrupt is enabled.

• Bit 3 - ACIC0: Analog Comparator Input Capture Enable

When written logic one, this bit enables the input capture function in Timer/Counter0 to be triggered by the Analog Comparator. The comparator output is in this case directly connected to the input capture front-end logic, making the comparator utilize the noise canceler and edge select features of the Timer/Counter0 Input Capture interrupt. When written logic zero, no connection between the Analog Comparator and the input capture function exists. To make the comparator trigger the Timer/Counter0 Input Capture interrupt, the TICIE0 bit in the Timer Interrupt Mask Register (TIMSK) must be set.

• Bits 2:1 – Res: Reserved Bits

These bits are reserved bits in the ATtiny261/461/861 and will always read as zero.

• Bit 0 – WGM00: Waveform Generation Mode

This bit controls the counting sequence of the counter, the source for maximum (TOP) counter value, see Figure 14-5 on page 78. Modes of operation supported by the Timer/Counter unit are:

ATtiny261/461/861

2588B–AVR–11/06

Normal mode (counter) and Clear Timer on Compare Match (CTC) mode (see ”Modes of Oper-

ation” on page 74).

14.10.2 TCNT0L – Timer/Counter0 Register Low Byte

Bit 76543210

0x32 (0x52) TCNT0L[7:0] TCNT0L

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

The Timer/Counter0 Register Low Byte, TCNT0L, gives direct access, both for read and write operations, to the Timer/Counter unit 8-bit counter. Writing to the TCNT0L Register blocks (disables) the Compare Match on the following timer clock. Modifying the counter (TCNT0L) while the counter is running, introduces a risk of missing a Compare Match between TCNT0L and the OCR0x Registers. In 16-bit mode the TCNT0L register contains the lower part of the 16-bit Timer/Counter0 Register.

14.10.3 TCNT0H – Timer/Counter0 Register High Byte

Bit 76543210

0x14 (0x34) TCNT0H[7:0] TCNT0H

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

ATtiny261/461/861

When 16-bit mode is selected (the TCW0 bit is set to one) the Timer/Counter Register TCNT0H combined to the Timer/Counter Register TCNT0L gives direct access, both for read and write operations, to the Timer/Counter unit 16-bit counter. To ensure that both the high and low bytes are read and written simultaneously when the CPU accesses these registers, the access is performed using an 8-bit temporary high byte register (TEMP). This temporary register is shared by all the other 16-bit registers. See ”Accessing Registers in 16-bit Mode” on page 80

14.10.4 OCR0A – Timer/Counter0 Output Compare Register A

Bit 76543210

0x13 (0x33) OCR0A[7:0] OCR0A

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

The Output Compare Register A contains an 8-bit value that is continuously compared with the counter value (TCNT0L). A match can be used to generate an Output Compare interrupt.

In 16-bit mode the OCR0A register contains the low byte of the 16-bit Output Compare Register. To ensure that both the high and the low bytes are written simultaneously when the CPU writes to these registers, the access is performed using an 8-bit temporary high byte register (TEMP). This temporary register is shared by all the other 16-bit registers. See ”Accessing Registers in

16-bit Mode” on page 80.

14.10.5 OCR0B – Timer/Counter0 Output Compare Register B

Bit 76543210

0x12 (0x32) OCR0B[7:0] OCR0B

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial Value00000000

2588B–AVR–11/06

The Output Compare Register B contains an 8-bit value that is continuously compared with the counter value (TCNT0L in 8-bit mode and TCNTH in 16-bit mode). A match can be used to generate an Output Compare interrupt.

In 16-bit mode the OCR0B register contains the high byte of the 16-bit Output Compare Register. To ensure that both the high and the low bytes are written simultaneously when the CPU writes to these registers, the access is performed using an 8-bit temporary high byte register (TEMP). This temporary register is shared by all the other 16-bit registers. See ”Accessing Reg-

isters in 16-bit Mode” on page 80.

14.10.6 TIMSK – Timer/Counter0 Interrupt Mask Register

Bit 76543210

0x39 (0x59)

Read/Write R/W R/W R/W R/W R/W R/W R/W R

Initial Value00000000

OCIE1D OCIE1A OCIE1B OCIE0A OCIE0B TOIE1 TOIE0 TICIE0 TIMSK

• Bit 4 – OCIE0A: Timer/Counter0 Output Compare Match A Interrupt Enable

When the OCIE0A bit is written to one, and the I-bit in the Status Register is set, the Timer/Counter0 Compare Match A interrupt is enabled. The corresponding interrupt is executed if a Compare Match in Timer/Counter0 occurs, i.e., when the OCF0A bit is set in the Timer/Counter 0 Interrupt Flag Register – TIFR0.

• Bit 3 – OCIE0B: Timer/Counter Output Compare Match B Interrupt Enable

When the OCIE0B bit is written to one, and the I-bit in the Status Register is set, the Timer/Counter Compare Match B interrupt is enabled. The corresponding interrupt is executed if a Compare Match in Timer/Counter occurs, i.e., when the OCF0B bit is set in the Timer/Counter Interrupt Flag Register – TIFR0.

• Bit 1 – TOIE0: Timer/Counter0 Overflow Interrupt Enable

When the TOIE0 bit is written to one, and the I-bit in the Status Register is set, the Timer/Counter0 Overflow interrupt is enabled. The corresponding interrupt is executed if an overflow in Timer/Counter0 occurs, i.e., when the TOV0 bit is set in the Timer/Counter 0 Interrupt Flag Register – TIFR0.

• Bit 0 – TICIE0: Timer/Counter0, Input Capture Interrupt Enable

When this bit is written to one, and the I-flag in the Status Register is set (interrupts globally enabled), the Timer/Counter1 Input Capture interrupt is enabled. The corresponding Interrupt Vector (See Section “10.” on page 48.) is executed when the ICF0 flag, located in TIFR, is set.

ATtiny261/461/861

2588B–AVR–11/06

14.10.7 TIFR – Timer/Counter0 Interrupt Flag Register

Bit 76543210

0x38 (0x58)

Read/Write R/W R/W R/W R/W R/W R/W R/W R

Initial Value00000000

OCF1D OCF1A OCF1B OCF0A OCF0B TOV1 TOV0 ICF0 TIFR

• Bit 4– OCF0A: Output Compare Flag 0 A

The OCF0A bit is set when a Compare Match occurs between the Timer/Counter0 and the data in OCR0A – Output Compare Register0. OCF0A is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, OCF0A is cleared by writing a logic one to the flag. When the I-bit in SREG, OCIE0A (Timer/Counter0 Compare Match Interrupt Enable), and OCF0A are set, the Timer/Counter0 Compare Match Interrupt is executed.

The OCF0A is also set in 16-bit mode when a Compare Match occurs between the Timer/Counter and 16-bit data in OCR0B/A. The OCF0A is not set in Input Capture mode when the Output Compare Register OCR0A is used as an Input Capture Register.

• Bit 3 – OCF0B: Output Compare Flag 0 B

The OCF0B bit is set when a Compare Match occurs between the Timer/Counter and the data in OCR0B – Output Compare Register0 B. OCF0B is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, OCF0B is cleared by writing a logic one to the flag. When the I-bit in SREG, OCIE0B (Timer/Counter Compare B Match Interrupt Enable), and OCF0B are set, the Timer/Counter Compare Match Interrupt is executed.

ATtiny261/461/861

The OCF0B is not set in 16-bit Output Compare mode when the Output Compare Register OCR0B is used as the high byte of the 16-bit Output Compare Register or in 16-bit Input Capture mode when the Output Compare Register OCR0B is used as the high byte of the Input Capture Register.

• Bit 1 – TOV0: Timer/Counter0 Overflow Flag

The bit TOV0 is set when an overflow occurs in Timer/Counter0. TOV0 is cleared by hardware when executing the corresponding interrupt handling vector. Alternatively, TOV0 is cleared by writing a logic one to the flag. When the SREG I-bit, TOIE0 (Timer/Counter0 Overflow Interrupt Enable), and TOV0 are set, the Timer/Counter0 Overflow interrupt is executed.

• Bits 0 – ICF0: Timer/Counter0, Input Capture Flag

This flag is set when a capture event occurs on the ICP0 pin. When the Input Capture Register (ICR0) is set to be used as the TOP value, the ICF0 flag is set when the counter reaches the TOP value.

ICF0 is automatically cleared when the Input Capture Interrupt Vector is executed. Alternatively, ICF0 can be cleared by writing a logic one to its bit location.

2588B–AVR–11/06

15. Timer/Counter1 Prescaler

Figure 15-1 shows the Timer/Counter1 prescaler that supports two clocking modes, a synchro-

nous clocking mode and an asynchronous clocking mode. The synchronous clocki ng mode uses

the system clock (CK) as a clock timebase and asynchronous mode uses the fast peripheral clock (PCK) as a clock time base. The PCKE bit from the PLLCSR register enables the asynchronous mode when it is set (‘1’).

Figure 15-1. Timer/Counter1 Prescaler

PCKE

CK PCK

64/32 MHz

S A

CS10 CS11 CS12 CS13

PSR1

T1CK

14-BIT

T/C PRESCALER

T1CK

T1CK/2

T1CK/4

T1CK/8

T1CK/16

T1CK/32

T1CK/64

T1CK/128

T1CK/256

TIMER/COUNTER1 COUNT ENABLE

T1CK/512

T1CK/1024

T1CK/2048

T1CK/4096

T1CK/16384

T1CK/8192

In the asynchronous clocking mode the clock selections are from PCK to PCK/16384 and stop, and in the synchronous clocking mode the clock selections are from CK to CK/16384 and stop. The clock options are described in Table 15-1 on page 90 and the Timer/Counter1 Control Register, TCCR1B.

The frequency of the fast peripheral clock is 64 MHz or 32 MHz in Low Speed mode (the LSM bit in PLLCSR register is set to one). The Low Speed Mode is recommended to use when the supply voltage below 2.7 volts are used.

15.0.1 Prescaler Reset

Setting the PSR1 bit in TCCR1B register resets the prescaler. It is possible to use the Prescaler Reset for synchronizing the Timer/Counter to program execution.

15.0.2 Prescaler Initialization for Asynchronous Mode

To change Timer/Counter1 to the asynchronous mode follow the procedure below:

1. Enable PLL.

2. Wait 100 µs for PLL to stabilize.

3. Poll the PLOCK bit until it is set.

4. Set the PCKE bit in the PLLCSR register which enables the asynchronous mode.

ATtiny261/461/861

2588B–AVR–11/06

15.1 Register Description

15.1.1 PLLCSR – PLL Control and Status Register

Bit 76543210

0x29 (0x49)LSM----PCKEPLLEPLOCKPLLCSR

Read/WriteR/WRRRRR/WR/WR

Initial value0000000/10

• Bit 7- LSM: Low Speed Mode

The Low Speed mode is selected, if the LSM bit is written to one, and then the fast peripheral clock is scaled down from 64 MHz to 32 MHz. As default the LSM bit is reset to zero, the Low Speed Mode is disabled and the fast peripheral clock is 64 MHz. The Low Speed Mode must be set, if the supply voltage is below 2.7 volts, because the Timer/Counter1 is not running fast enough on low voltage levels. It is recommended that the Timer/Counter1 is stopped whenever the LSM bit is written.

• Bit 6:3- Res : Reserved Bits

These bits are reserved bits in the ATtiny261/461/861 and always read as zero.

ATtiny261/461/861

• Bit 2- PCKE: PCK Enable

The PCKE bit change the Timer/Counter1 clock source. When it is set, the asynchronous clock mode is enabled and fast 64 MHz (or 32 MHz in Low Speed Mode) PCK clock is used as a Timer/Counter1 clock source. If this bit is cleared, the synchronous clock mode is enabled, and system clock CK is used as Timer/Counter1 clock source. It is safe to set this bit only when the PLL is locked i.e the PLOCK bit is 1. Note that the PCKE bit can be set only, if the PLL has been enabled earlier. The PLL is enabled when the CKSEL fuses have been programmed to 0x0001 (the PLL clock mode is selected) or the PLLE bit has been set to one.

• Bit 1- PLLE: PLL Enable

When the PLLE is set, the PLL is started and if needed internal RC-oscillator is started as a PLL reference clock. If PLL is selected as a system clock source the value for this bit is always 1.

• Bit 0- PLOCK: PLL Lock Detector

When the PLOCK bit is set, the PLL is locked to the reference clock. The PLOCK bit should be ignored during initial PLL lock-in sequence when PLL frequency overshoots and undershoots, before reaching steady state. The steady state is obtained within 100 µs. After PLL lock-in it is recommended to check the PLOCK bit before enabling PCK for Timer/Counter1.

15.1.2 TCCR1B – Timer/Counter1 Control Register B

Bit 76543210

0x2F (0x4F) - PSR1

Read/Write R/W R/W R/W R/W R/W R/W R/W R/W

Initial value00000000

DTPS11 DTPS10 CS13 CS12 CS11 CS10 TCCR1B

2588B–AVR–11/06

• Bit 7 - Res: Reserved Bit

• Bit 6 - PSR1 : Prescaler Reset Timer/Counter1

When this bit is set (one), the Timer/Counter prescaler (TCNT1 is unaffected) will be reset. The bit will be cleared by hardware after the operation is performed. Writing a zero to this bit will have no effect. This bit will always read as zero.

• Bits 3:0 - CS13, CS12, CS11, CS10: Clock Select Bits 3, 2, 1, and 0

The Clock Select bits 3, 2, 1, and 0 define the prescaling source of Timer/Counter1.

Table 15-1. Timer/Counter1 Prescale Select

Asynchronous

CS13 CS12 CS11 CS10

0000T/C1 stoppedT/C1 stopped

0001PCK CK

0010PCK/2CK/2

0011PCK/4CK/4

0100PCK/8CK/8

0101PCK/16CK/16

0110PCK/32CK/32

0111PCK/64CK/64

1000PCK/128CK/128

1001PCK/256CK/256

1010PCK/512CK/512

1011PCK/1024CK/1024

1100PCK/2048CK/2048

1101PCK/4096CK/4096

1110PCK/8192CK/8192

1111PCK/16384CK/16384

Clocking Mode

Synchronous Clocking Mode

The Stop condition provides a Timer Enable/Disable function.

ATtiny261/461/861

2588B–AVR–11/06

16. Timer/Counter1

16.1 Features

• 10/8-Bit Accuracy

• Three Independent Output Compare Units

• Clear Timer on Compare Match (Auto Reload)

• Glitch Free, Phase and Frequency Correct Pulse Width Modulator (PWM)

• Variable PWM Period

• Independent Dead Time Generators for each PWM channels

• Five Independent Interrupt Sources (TOV1, OCF1A, OCD1B, OCF1D, FPF1)

• High Speed Asynchronous and Synchronous Clocking Modes

• Separate Prescaler Unit

16.2 Overview

Timer/Counter1 is a general purpose high speed Timer/Counter module, with three independent Output Compare Units, and with PWM support.

The Timer/Counter1 features a high resolution and a high accuracy usage with the lower prescaling opportunities. It can also support three accurate and high speed Pulse Width Modulators using clock speeds up to 64 MHz. In PWM mode Timer/Counter1 and the output compare registers serve as triple stand-alone PWMs with non-overlapping non-inverted and inverted outputs. Similarly, the high prescaling opportunities make this unit useful for lower speed functions or exact timing functions with infrequent actions. A simplified block diagram of the Timer/Counter1 is shown in Figure 16-1. For actual placement of the I/O pins, refer to ”Pinout

ATtiny261/461/861” on page 2. The device-specific I/O register and bit locations are listed in the ”Register Description” on page 113.

ATtiny261/461/861

2588B–AVR–11/06

Figure 16-1. Timer/Counter1 Block Diagram

TOV1 OCF1B OC1AOCF1A

OCF1D

OC1A

OC1B

OC1D

FAULT_PROTECTION

TOIE1

OCIE1A

T/C INT. MASK

TIMER/COUNTER1 (TCNT1)

OCIE1B

10-BIT COMPARATOR

10-BIT OUTPUT COMPARE REGISTER A

8-BIT OUTPUT COMPARE REGISTER A (OCR1A)

TOV1

OCIE1D

T/C INT. FLAG

CLK

COUNT

CLEAR

DIRECTION

DEAD TIME GENERATOR

OCF1A

OCF1B

OCF1D

10-BIT COMPARATOR

10-BIT OUTPUT COMPARE REGISTER B

8-BIT OUTPUT COMPARE REGISTER B (OCR1B)

OCW1A

OCW1B

OCW1D

T/C CONTROL

COM1B1

COM1A0

COM1B0

FOC1B

FOC1A

COM1A1

8-BIT OUTPUT COMPARE REGISTER C (OCR1C)

8-BIT DATABUS

DEAD TIME GENERATOR

T/C CONTROL

PSR1

PWM1B

PSR1

PWM1A

10-BIT COMPARATOR

10-BIT OUTPUT COMPARE REGISTER C

PSR1

TIMER/COUNTER1 CONTROL LOGIC

CS13

CS10

CS11

CS12

10-BIT COMPARATOR

10-BIT OUTPUT COMPARE REGISTER D

8-BIT OUTPUT COMPARE REGISTER D (OCR1D)

DEAD TIME GENERATOR

T/C CONTROL REGISTER C (TCCR1C)

COM1D0

COM1D1

COM1A0

COM1B0

COM1A1

COM1B1

FOC1D

PWM1D

T/C CONTROL REGISTER C (TCCR1D)

FPIE1

FPES1

FPNC1

FPEN1

OC1OE5

OC1OE4

T/C CONTROL REGISTER D (TCCR1E)

2-BIT HIGH BYTE REGISTER (TC1H)

FPAC1

OC1OE3

OC1OE2

FPIE1

FPF1

OC1OE1

FPF1

WGM11

OC1OE0

WGM10

16.2.1 Speed

16.2.2 Accuracy

16.2.3 Registers

The maximum speed of the Timer/Counter1 is 64 MHz. However, if a supply voltage below 2.7 volts is used, it is highly recommended to use the Low Speed Mode (LSM), because the Timer/Counter1 is not running fast enough on low voltage levels. In the Low Speed Mode the fast peripheral clock is scaled down to 32 MHz. For more details about the Low Speed Mode, see ”PLLCSR – PLL Control and Status Register” on page 89.

The Timer/Counter1 is a 10-bit Timer/Counter module that can alternatively be used as an 8-bit Timer/Counter. The Timer/Counter1 registers are basically 8-bit registers, but on top of that there is a 2-bit High Byte Register (TC1H) that can be used as a common temporary buffer to access the two MSBs of the 10-bit Timer/Counter1 registers by the AVR CPU via the 8-bit data bus, if the 10-bit accuracy is used. Whereas, if the two MSBs of the 10-bit registers are written to

zero the Timer/Counter1 is working as an 8-bit Timer/Counter. When reading the low byte of any

8-bit register the two MSBs are written to the TC1H register, and when writing the low byte of any 8-bit register the two MSBs are written from the TC1H register. Special procedures must be followed when accessing the 10-bit Timer/Counter1 values via the 8-bit data bus. These procedures are described in the section ”Accessing 10-Bit Registers” on page 110.

The Timer/Counter (TCNT1) and Output Compare Registers (OCR1A, OCR1B, OCR1C and OCR1D) are 8-bit registers that are used as a data source to be compared with the TCNT1 contents. The OCR1A, OCR1B and OCR1D registers determine the action on the OC1A, OC1B and OC1D pins and they can also generate the compare match interrupts. The OCR1C holds the

ATtiny261/461/861

2588B–AVR–11/06

16.2.4 Synchronization

ATtiny261/461/861

Timer/Counter TOP value, i.e. the clear on compare match value. The Timer/Counter1 High Byte Register (TC1H) is a 2-bit register that is used as a comm on te mporary buffer to access the MSB bits of the Timer/Counter1 registers, if the 10-bit accuracy is used.

Interrupt request (overflow TOV1, and compare matches OCF1A, OCF1B, OCF1D and fault protection FPF1) signals are visible in the Timer Interrupt Flag Register (TIFR) and Timer/Counter1 Control Register D (TCCR1D). The interrupts are individually masked with the Timer Interrupt Mask Register (TIMSK) and the FPIE1 bit in the Timer/Counter1 Control Register D (TCCR1D).

Control signals are found in the Timer/Counter Control Registers TCCR1A, TCCR1B, TCCR1C, TCCR1D and TCCR1E.

In asynchronous clocking mode the Timer/Counter1 and the prescaler allow running the CPU from any clock source while the prescaler is operating on the fast peripheral clock (PCK) having frequency of 64 MHz (or 32 MHz in Low Speed Mode). This is possible because there is a synchronization boundary between the CPU clock domain and the fast peripheral clock domain.

Figure 16-2 shows Timer/Counter 1 synchronization register block diagram and describes syn-

chronization delays in between registers. Note that all clock gating details are not shown in the figure.

The Timer/Counter1 register values go through the internal synchronization registers, which cause the input synchronization delay, before affecting the counter operation. The registers TCCR1A, TCCR1B, TCCR1C, TCCR1D, OCR1A, OCR1B, OCR1C and OCR1D can be read back right after writing the register. The read back values are delayed for the Timer/Counter1 (TCNT1) register, Timer/Counter1 High Byte Register (TC1H) and flags (OCF1A, OCF1B, OCF1D and TOV1), because of the input and output synchronization.

The system clock frequency must be lower than half of the PCK frequency, because the synchronization mechanism of the asynchronous Timer/Counter1 needs at least two edges of the PCK when the system clock is high. If the frequency of the system clock is too high, it is a risk that data or control values are lost.

2588B–AVR–11/06

Figure 16-2. Timer/Counter1 Synchronization Register Block Diagram.

8-BIT DATABUS

IO-registers Input synchronization

OCR1A OCR1A_SI

OCR1B OCR1B_SI

OCR1C OCR1C_SI

OCR1D OCR1D_SI

TCCR1A TCCR1A_SI

TCCR1B TCCR1B_SI

TCCR1C TCCR1C_SI

TCCR1D

TCNT1 TCNT1_SI

TC1H TC1H_SI

OCF1A OCF1A_SI

OCF1B OCF1B_SI

OCF1D OCF1D_SI

TOV1 TOV1_SI

PCKE

PCK

registers

TCCR1D_SI

Timer/Counter1 Output synchronization

TCNT1

registers

TCNT1_SO

TC1H_SO

OCF1A_SO

OCF1B_SO

OCF1D_SO

TOV1_SO

TCNT1

TC1H

OCF1A

OCF1B

OCF1D

TOV1

16.2.5 Definitions

SYNC MODE

ASYNC MODE

1/2 CK Delay 1 CK Delay

~1/2 CK Delay 1 PCK Delay 1 PCK Delay ~1 CK Delay

1 CK Delay 1/2 CK Delay

Many register and bit references in this section are written in general form. A lower case “n” replaces the Timer/Counter number, in this case 0. A lower case “x” replaces the Output Compare Unit, in this case Compare Unit A, B, C or D. However, when using the register or bit defines in a program, the precise form must be used, i.e., TCNT1 for accessing Timer/Counter1 counter value and so on. The definitions in Table 16-1 are used extensively throughout the document.

Table 16-1. Definitions

BOTTOM The counter reaches the BOTTOM when it becomes 0.

MAX The counter reaches its MAXimum value when it becomes 0x3FF (decimal 1023).

TOP

The counter reaches the TOP value (stored in the OCR1C) when it becomes equal to the highest value in the count sequence. The TOP has a value 0x0FF as default after reset.

ATtiny261/461/861

2588B–AVR–11/06

16.3 Counter Unit

ATtiny261/461/861

The main part of the Timer/Counter1 is the programmable bi-directional counter unit. Figure 16-

3 shows a block diagram of the counter and its surroundings.

Figure 16-3. Counter Unit Block Diagram

DATA B US

clk

count

TCNT1 Control Logic

clear

direction

TOV1

Timer/Counter1 Count Enable ( From Prescaler )

PCKE PCK

bottom

top

Signal description (internal signals):

count TCNT1 increment or decrement enable.

direction Select between increment and decrement.

clear Clear TCNT1 (set all bits to zero).

clk

Timer/Counter clock, referred to as clkT1 in the following.

top Signalize that TCNT1 has reached maximum value.

bottom Signalize that TCNT1 has reached minimum value (zero).

Depending of the mode of operation used, the counter is cleared, incremented, or decremented at each timer clock (clk

). The timer clock is generated from an synchronous system clock or an

asynchronous PLL clock using the Clock Select bits (CS13:0) and the PCK Enable bit (PCKE). When no clock source is selected (CS13:0 = 0) the timer is stopped. However, the TCNT1 value can be accessed by the CPU, regardless of whether clk

is present or not. A CPU write over-

rides (has priority over) all counter clear or count operations.

The counting sequence of the Timer/Counter1 is determined by the setting of the WGM10 and PWM1x bits located in the Timer/Counter1 Control Registers (TCCR1A, TCCR1C and TCCR1D). For more details about advanced counting sequences and waveform generation, see

”Modes of Operation” on page 101. The Timer/Counter Overflow Flag (TOV1) is set according to

the mode of operation selected by the PWM1x and WGM10 bits. The Overflog Flag can be used for generating a CPU interrupt.

16.3.1 Counter Initialization for Asynchronous Mode

To change Timer/Counter1 to the asynchronous mode follow the procedure below:

1. Enable PLL.

2. Wait 100 µs for PLL to stabilize.

3. Poll the PLOCK bit until it is set.

4. Set the PCKE bit in the PLLCSR register which enables the asynchronous mode.

2588B–AVR–11/06

16.4 Output Compare Unit

The comparator continuously compares TCNT1 with the Output Compare Registers (OCR1A, OCR1B, OCR1C and OCR1D). Whenever TCNT1 equals to the Output Compare Register, the comparator signals a match. A match will set the Output Compare Flag (OCF1A, OCF1B or OCF1D) at the next timer clock cycle. If the corresponding interrupt is enabled, the Output Compare Flag generates an Output Compare interrupt. The Output Compare Flag is automatically cleared when the interrupt is executed. Alternatively, the flag can be cleared by software by writing a logical one to its I/O bit location. The Waveform Generator uses the match signal to generate an output according to operating mode set by the PWM1x, WGM10 and Compare Output mode (COM1x1:0) bits. The top and bottom signals are used by the Waveform Generator for handling the special cases of the extreme values in some modes of operation (See Section

“16.7” on page 101.). Figure 16-4 shows a block diagram of the Output Compare unit.

Figure 16-4. Output Compare Unit, Block Diagram

8-BIT DATA BUS

OCRnx

TOP

BOTTOM

FOCn

TCnH

(10-bit Comparator )

Waveform Generator

OCWnx

10-BIT TCNTn10-BIT OCRnx

TCNTn

OCFnx (Int.Req.)

PWMnx

WGM10

COMnX1:0

The OCR1x Registers are double buffered when using any of the Pulse Width Modulation (PWM) modes. For the normal mode of operation, the double buffering is disabled. The double buffering synchronizes the update of the OCR1x Compare Registers to either top or bottom of the counting sequence. The synchronization prevents the occurrence of odd-length, non-symmetrical PWM pulses, thereby making the output glitch-free. See Figure 16-5 for an example.

During the time between the write and the update operation, a read from OCR1A, OCR1B, OCR1C or OCR1D will read the contents of the temporary location. This means that the most recently written value always will read out of OCR1A, OCR1B, OCR1C or OCR1D.

ATtiny261/461/861

2588B–AVR–11/06

Figure 16-5. Effects of Unsynchronized OCR Latching

16.4.1 Force Output Compare

In non-PWM waveform generation modes, the match output of the comparator can be forced by writing a one to the Force Output Compare (FOC1x) bit. Forcing Compare Match will not set the OCF1x Flag or reload/clear the timer, but the Waveform Output (OCW1x) will be updated as if a real Compare Match had occurred (the COM1x1:0 bits settings define whether the Waveform Output (OCW1x) is set, cleared or toggled).

Synchronized WFnx Latch

Unsynchronized WFnx Latch

ATtiny261/461/861

Compare Value changes

Glitch

Counter Value

Compare Value

Output Compare Waveform OCWnx

Counter Value

Compare Value

Output Compare Wafeform OCWnx

16.4.2 Compare Match Blocking by TCNT1 Write

All CPU write operations to the TCNT1 Register will block any Compare Match that occur in the next timer clock cycle, even when the timer is stopped. This feature allows OCR1x to be initialized to the same value as TCNT1 without triggering an interrupt when the Timer/Counter clock is enabled.

16.4.3 Using the Output Compare Unit

Since writing TCNT1 in any mode of operation will block all Compare Matches for one timer clock cycle, there are risks involved when changing TCNT1 when using the Output Compare Unit, independently of whether the Timer/Counter is running or not. If the value written to TCNT1 equals the OCR1x value, the Compare Match will be missed, resulting in incorrect waveform generation. Similarly, do not write the TCNT1 value equal to BOTTOM when the counter is down-counting.

The setup of the Waveform Output (OCW1x) should be performed before setting the Data Direction Register for the port pin to output. The easiest way of setting the OCW1x value is to use the Force Output Compare (FOC1x) strobe bits in Normal mode. The OC1x keeps its value even when changing between Waveform Generation modes.

Be aware that the COM1x1:0 bits are not double buffered together with the compare value. Changing the COM1x1:0 bits will take effect immediately.

2588B–AVR–11/06

16.5 Dead Time Generator

The Dead Time Generator is provided for the Timer/Counter1 PWM output pairs to allow driving external power control switches safely. The Dead Time Generator is a separate block that can be used to insert dead times (non-overlapping times) for the Timer/Counter1 complementary output pairs OC1x and OC1x “01”. The sharing of tasks is as follows: the Waveform Generator generates the Waveform Output (OCW1x) and the Dead Time Generator generates the non-overlapping PWM output pair from the Waveform Output. Three Dead Time Generators are provided, one for each PWM output. The non-overlap time is adjustable and the PWM output and it’s complementary output are adjusted separately, and independently for both PWM outputs.

Figure 16-6. Output Compare Unit, Block Diagram

top

bottom

FOCn

when the PWM mode is enabled and the COM1x1:0 bits are set to

Waveform Generator

OCWnx

Dead Time Generator

OCnx

OCnx pin

PWMnx

WGM10

COMnx

CK OR PCK CLOCK

DTPSn

DTnH DTnL

The Dead Time Generation is based on the 4-bit down counters that count the dead time, as shown in Figure 16-7. There is a dedicated prescaler in front of the Dead Time Generator that can divide the Timer/Counter1 clock (PCK or CK) by 1, 2, 4 or 8. This provides for large range of dead times that can be generated. The prescaler is controlled by two control bits DTPS11..10. The block has also a rising and falling edge detector that is used to start the dead time counting

period. Depending on the edge, one of the transitions on the rising edges, OC1x or OC1x

is delayed until the counter has counted to zero. The comparator is used to compare the counter with zero and stop the dead time insertion when zero has been reached. The counter is loaded with a 4-bit DT1H or DT1L value from DT1 I/O register, depending on the edge of the Waveform Output (OCW1x) when the dead time insertion is started. The Output Compare Output are delayed by one timer clock cycle at minimum from the Waveform Output when the Dead Time is

adjusted to zero. The outputs OC1x and OC1x

are inverted, if the PWM Inversion Mode bit

PWM1X is set. This will also cause both outputs to be high during the dead time.

Figure 16-7. Dead Time Generator

PWM1X

CK OR PCK

CLOCK

DEAD TIME PRE-SCALER

CLOCK CONTROL

COMPARATOR

4-BIT COUNTER

OCnx

DTPSn

TCCRnB REGISTER

OCWnx

ATtiny261/461/861

DTnH

DTn I/O REGISTER

DTnL

PWM1X

DATA BUS (8-bit)

2588B–AVR–11/06

ATtiny261/461/861

The length of the counting period is user adjustable by selecting the dead time prescaler setting by using the DTPS11:10 control bits, and selecting then the dead time value in I/O register DT1. The DT1 register consists of two 4-bit fields, DT1H and DT1L that control the dead time periods of the PWM output and its' complementary output separately in terms of the number of pres-

caled dead time generator clock cycles. Thus the rising edge of OC1x and OC1x

different dead time periods as the t t

non-overlap / falling edge

is adjusted by the 4-bit DT1L value.

non-overlap / rising edge

is adjusted by the 4-bit DT1H value and the

Figure 16-8. The Complementary Output Pair, COM1x1:0 = 1

OCWnx

OCnx

(COMnx = 1)

non-overlap / rising edgetnon-overlap / falling edge

can have

16.6 Compare Match Output Unit

The Compare Output Mode (COM1x1:0) bits have two functions. The Waveform Generator uses the COM1x1:0 bits for defining the inverted or non-inverted Waveform Output (OCW1x) at the next Compare Match. Also, the COM1x1:0 bits control the OC1x and OC1x

Figure 16-9 shows a simplified schematic of the logic affected by the COM1x1:0 bit setting. The

I/O Registers, I/O bits, and I/O pins in the figure are shown in bold. Only the parts of the general I/O Port Control Registers (DDR and PORT) that are affected by the COM1x1:0 bits are shown.

In Normal Mode (non-PWM) the Dead Time Generator is disabled and it is working like a synchronizer: the Output Compare (OC1x) is delayed from the Waveform Output (OCW1x) by one timer clock cycle. Whereas in Fast PWM Mode and in Phase and Frequency Correct PWM Mode when the COM1x1:0 bits are set to “01” both the non-inverted and the inverted Output Compare output are generated, and an user programmable Dead Time delay is inserted for these complementary output pairs (OC1x and OC1x to Normal mode when any other COM1x1:0 bit setup is used. When referring to the OC1x state, the reference is for the Output Compare output (OC1x) from the Dead Time Generator, not the OC1x pin. If a system reset occur, the OC1x is reset to “0”.

The general I/O port function is overridden by the Output Compare (OC1x / OC1x Dead Time Generator if either of the COM1x1:0 bits are set. However, the OC1x pin direction (input or output) is still controlled by the Data Direction Register (DDR) for the port pin. The Data Direction Register bit for the OC1x and OC1x output before the OC1x and OC1x independent of the Output Compare mode.

pin output source.

). The functionality in PWM modes is similar

) from the

pins (DDR_OC1x and DDR_OC1x) must be set as

values are visible on the pin. The port override function is

2588B–AVR–11/06

The design of the Output Compare Pin Configuration logic allows initialization of the OC1x state before the output is enabled. Note that some COM1x1:0 bit settings are reserved for certain modes of operation. For Output Compare Pin Configurations refer to Table 16-2 on page 102,

Table 16-3 on page 104, Table 16-4 on page 105, and Table 16-5 on page 107.

Figure 16-9. Compare Match Output Unit, Schematic

clk

I/O

PORTB0

DDRB0

WGM11

OC1OE1:0

COM1A1:0

Output Compare Pin Configuration

OC1A PIN

PORTB1

OCW1A

clk

Dead Time Generator A

OC1A

OC1A PIN

DDRB1

WGM11 OC1OE3:2

COM1B1:0

Output Compare Pin Configuration

PORTB2

DDRB2

1 0

OC1B PIN

DATA BU S

PORTB3

DDRB3

OCW1B

clk

Dead Time Generator B

OC1B

WGM11 OC1OE5:4

COM1D1:0

Output Compare Pin Configuration

OC1B PIN

PORTB4

DDRB4

1 0

OC1D PIN

PORTB5

OCW1D

clk

Dead Time Generator D

DDRB5

16.6.1 Compare Output Mode and Waveform Generation

The Waveform Generator uses the COM1x1:0 bits differently in Normal mode and PWM modes. For all modes, setting the COM1x1:0 = 0 tells the Waveform Generator that no action on the OCW1x Output is to be performed on the next Compare Match. For compare output actions in the non-PWM modes refer to Table 16-6 on page 113. For fast PWM mode, refer to Table 16-7

on page 113, and for the Phase and Frequency Correct PWM refer to Table 16-8 on page 114.

A change of the COM1x1:0 bits state will have effect at the first Compare Match after the bits are written. For non-PWM modes, the action can be forced to have immediate effect by using the FOC1x strobe bits.

100

ATtiny261/461/861

OC1D

2588B–AVR–11/06

OC1D PIN

Rainbow Electronics ATtiny861V User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Features

1. Pin Configurations

1.1 Disclaimer

2. Overview

2.1 Block Diagram

2.2 Pin Descriptions

2.2.1 VCC

2.2.2 GND

2.2.3 AVCC

2.2.4 AGND

2.2.5 Port A (PA7..PA0)

2.2.6 Port B (PB7..PB0)

3. Resources

4. About Code Examples

5. AVR CPU Core

5.1 Overview

5.3 Status Register

5.4 General Purpose Register File

5.4.1 The X-register, Y-register, and Z-register

5.5 Stack Pointer

5.6 Instruction Execution Timing

5.7 Reset and Interrupt Handling

5.7.1 Interrupt Response Time

6. AVR Memories

6.1 In-System Re-programmable Flash Program Memory

6.2 SRAM Data Memory

6.2.1 Data Memory Access Times

6.3 EEPROM Data Memory

6.3.1 EEPROM Read/Write Access

6.3.2 Atomic Byte Programming

6.3.3 Split Byte Programming

6.3.4 Erase

6.3.5 Write

6.3.6 Preventing EEPROM Corruption

6.4 I/O Memory

6.4.1 General Purpose I/O Registers

6.5 Register Description

7. System Clock and Clock Options

7.1 Clock Systems and their Distribution

7.2 Clock Sources

7.3 Default Clock Source

7.4 External Clock

7.6 Calibrated Internal RC Oscillator

7.7 128 kHz Internal Oscillator

7.8 Low-frequency Crystal Oscillator

7.9 Crystal Oscillator

7.10 Clock Output Buffer

7.11 System Clock Prescaler

7.11.1 Switching Time

7.12 Register Description

8. Power Management and Sleep Modes

8.1 Sleep Modes

8.2 Idle Mode

8.3 ADC Noise Reduction Mode

8.4 Power-down Mode

8.5 Standby Mode

8.6 Power Reduction Register

8.7 Minimizing Power Consumption

8.7.1 Analog to Digital Converter

8.7.2 Analog Comparator

8.7.3 Brown-out Detector

8.7.4 Internal Voltage Reference

8.7.5 Watchdog Timer

8.7.6 Port Pins

8.8 Register Description

9. System Control and Reset

9.0.1 Resetting the AVR

9.0.2 Reset Sources

9.0.3 Power-on Reset

9.0.4 External Reset

9.0.5 Brown-out Detection

9.0.6 Watchdog Reset

9.1 Internal Voltage Reference

9.1.1 Voltage Reference Enable Signals and Start-up Time

9.2 Watchdog Timer

9.3 Timed Sequences for Changing the Configuration of the Watchdog Timer
