Main Features

• High Sensitivity and High SNR Performance 2/3" CMOS Sensor

• Total Resolution of 2.5M (with 5 µm Square Pixels)

• High Data Rate: 150 Mpixels/s Provides 60 Frame/s at 2M Resolution (for 2M60)

• Camera Link

• Flexible and Easy to Operate via Serial Communication Control

– Gain: 0 dB to 18 dB in 3 dB Steps – Bit Depth: 8, 10 or 12-bit Data – Contrast Expansion – Shutter Time Pogrammable – Trigger Mode: Free-run or External Trigger Mode – Programmable ROI – Test Pattern

• Column FPN Correction

• Programmable Look-up Table

• Single Power Supply: DC 12V to 24V Provided on Hirose-6 Connector

• Input TTL Trigger Signal and Output TTL Shutter Signal on Hirose-5 Connector

• Compact Design: 44 × 44 × 45 mm (w, h, l)

• C-mount Adapter

• High Reliability - CE and FCC Compliant

Data Format (Base Configuration - 2 Channels)

Product Description

This camera features an outstanding sensitivity and dynamic range even at maximal speeds. The ROI allows to increase the frame rate (for instance, 157 fps in VGA format 2M60). ATMOS™ cameras are based on a rolling shutter CMOS sensor.

The configuration interface provides access to advanced functions (contrast expansion, image calibration, LUT). The versatile and compact mechanical housing enables you to implement various configurations.

These features combined with a compelling price, make ATMOS tive for demanding users of megapixel cameras.

an attractive alterna-

Camera Link® Areascan Cameras

™

ATMOS ATMOS

2M60

™

2M30

Preliminary

Applications

High-speed, dynamic range performance and reliability of this camera make it suitable for machine vision, especially:

Material Inspection (e.g. glass, IC, PCB)

•

• Robot Guidance

• Metrology

and various applications like:

Microscopy

•

• Surveillance Demanding Tasks

5440A–IMAGE–10/05

1. Typical Performances

Table 1-1. Camera Typical Performances

Sensor Characteristics at Maximum Pixel Rate

2M60 2M30 Unit

Resolution H × V 2096 × 1184 2096 × 1184 Pixels

Pixel size (square) 5 × 5 5 × 5 µm

Maximum frame rate 48 24 Hz

Pixel rate 150 75 MHz

Camera Performances

Bit depth 8, 10 or 12 Bits

Spectral range 350–1000 nm

Linearity ±2% in 5% and 95% of FSR

PRNU 1.5% rms

FPN 0.1% rms

Peak Response @ G = 0 33

(1)

LSB/nJ/cm

Output RMS Noise Dynamic range

< 3 LSB rms

> 62.5

Conversion factor 11 e

Dark Current 1500 e

Over Illumination Behavior 75 Esat

Mechanical and Electrical Interface

Size (w × h × l) 44 × 44 × 45 mm

Weight 115 g

Lens Mount C-mount

∆x, y = ± 250

Sensor Alignment

∆z = ±150

= ± 0.7

∆0

= 0-200

∆tilt

degree

Power supply single 12 to 24 VDC

Power consumption < 3 W

Operating temperature 0 to 55 (non-condensing) °C

Storage temperature -40 to 70 °C

Note: 1. Measured with light source 3200°K and BG38 IR cut-off filter 2 mm thickness.

/ LSB

µm µm

µm

ATMOS -2M60/2M30 [Preliminary]

5440A–IMAGE–10/05

[Preliminary] ATMOS -2M60/2M30

Figure 1-1. Responsivity Diagram

100%

80%

η = 70%

Responsivity at 0 dB gain

60%

40%

20%

Response (%)

300 400 500 600 700 800 900 1000

Figure 1-2. Quantum Efficiency

0,8 0,7

0,6 0,5

0,4 0,3

0,2 0,1

η = 50%

η = 60%

Wavelength (nm)

Quantum Efficiency

5440A–IMAGE–10/05

500 800

Wavelength (nm)

2. Standard Conformity

The cameras have been tested in the following conditions:

• Camera with complete Atmel housing

• Shielded power supply cable

• Camera Link data transfer cable ref. 14B26-SZLB-500-OLC (3M™)

• Linear AC-DC power supply

Atmel recommends using the same configuration to ensure compliance with the following standards.

2.1 CE Conformity

The ATMOS cameras comply with the European directive 89/336/CEE (EN55022 A/CISPR22 A, EN55024, EN61000-6-2).

2.2 FCC conformity

ATMOS Cameras comply with Part 15 of FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

ATMOS -2M60/2M30 [Preliminary]

5440A–IMAGE–10/05

3. Camera Description

Figure 3-1. Camera Synoptic

[Preliminary] ATMOS -2M60/2M30

DC power

Camera Link

I/F

Trigger

Shutter

CameraLink

Transceiver

Power Supplies

Data

Strobe, LVAL

FVAL

Trigger

Shutter

Serial Line

Sequencer

Controller

Microcontroller

CMOS

SENSOR

The camera is based on a single tap CMOS sensor which delivers a 12-bit digital video signal at its output. An FPGA has been implemented for image processing (FPN column correction, conversion LUT, contrast expansion). The camera is powered by a single DC power supply from 12V to 24V. The functional interface (data and control) is provided with the Camera Link interface. The camera uses the base configuration of the Camera Link standard.

Note: DVAL permanently tied to 1 (high) level.

Data is delivered on two channels. The data format configuration might be in 12-bit, 10-bit, or 8bit. It is possible to use external triggers with the camera (CC1 signal or TTL_IO trigger input) in different trigger modes see ”Synchronization Modes” on page 6 The camera configuration and settings are done via the Camera Link serial communication. This interface is used for:

5440A–IMAGE–10/05

• Gain and offset setting

• Data output format

• Synchronization modes: free-run or external trigger modes

• Shutter time

• Test pattern generation

• Upload and download of correction data (FPN column correction, LUT)

4. Timing

4.1 Synchronization Modes

The camera operates in rolling shutter mode.

4.1.1 Optimal Use of the Rolling Shutter

As shown in the following timing diagrams, Figure 4-1, exposure does not happen at the same time for all lines. When using the camera with a strobe light or a shutter element all the lines are exposed during the same time and no image distortion is visible when capturing fast moving objects.

The integration time for each line is: readout (+ programmable shutter time, when used). A shutter signal is provided to strobe a light source or to drive a shutter element. You can set the camera to operate in one of the following synchronization modes: periodic, triggered, triggered without full reset and ITC. See register Mode Control @ 204H, Internal Register Mapping on

page 16.

4.1.2 Free-run Mode (or Periodic Mode)

Principle: The camera operates in periodic mode.

The period is defined by readout time (+ programmable shutter time, when used). Valid data is forwarded to the Camera Link interface during the next frame readout starting with the first line.

If shutter time is set to 0:

The frame N is readout while the first line integrates for frame N+1. As soon as the frame N readout has ended starts the readout of frame N +1.

Figure 4-1. Free-run Mode Chronogram

Line 1

Integration

Line 1 Readout

and Reset

Line n Readout

and Reset

(frame N)

Line n

Integration

(Frame N)

Frame N

Readout

Frame N+1

Readout

ATMOS -2M60/2M30 [Preliminary]

5440A–IMAGE–10/05

[Preliminary] ATMOS -2M60/2M30

)

If shutter time is set to > 0:

Readout is suspended between two consecutive frame readout and shutter output signal is activated (programmable polarity) for a time configurable within 0 to Tsh range by step of T1.

Table 4-1. Shutter Time Values at Free-run Mode

Label Description 2M60 2M30

Tsh Maximum shutter time (ms) 655 1310

T1 Step duration (µs) 10 20

Figure 4-2. Free-run Mode and Shutter Chronogram

Line 1

Integration

Line 1

Readout

and Rese

(Frame N

4.1.3 Triggered Mode

Line n

Line n Readout and Reset

Shutter

out

Frame N - 1

Readout

Time

Programmable

Shutter Time

Integration

(Frame N)

Frame N

Readout Time

The maximum frame rate of 48 frame/s for the 2M60 camera (or 24 frame/s for the 2M30 camera) is given in this mode with a shutter time set to 0.

See register Aperture Shutter Time @ 246H, Internal Register Mapping on page 16.

Principle: An external trigger starts the reset of the sensor, then snap and readout of a frame, the integration time is defined by readout time (+ programmable shutter time, when used).

The trigger event initiates the following sequence:

5440A–IMAGE–10/05

• Stop of readout frame in progress and reset of readout pointer to line 1

• Readout of previous dummy frame and integration start of the frame N. The readout data of

previous frame is not forwarded on Camera Link interface (FVAL inactive)

• Shutter output signal is activated during a time programmable within 0 to Tsh range by step

of T1

• Readout of frame N. The readout data is forwarded to the Camera Link interface (FVAL

active) starting with the first line

• Readout of dummy frames (to prevent against large dark current integration) while the

camera waits for the next trigger event

The trigger delay is a few µs. The minimum pulse duration is 1 µs. The edge of trigger is programmable. The source of trigger is selectable between Camera Link CC1 signal and TTL/IO trigger input. The period is defined by readout time + programmable shutter time + readout time + wait. Therefore the minimum period is 2

× readout time.

See register Aperture Shutter Time @ 246H, Internal Register Mapping on page 16.

Table 4-2. Shutter Time Values at Triggered Mode

Label Description 2M60 2M30

Tsh Maximum shutter time (ms) 655 1310

T1 Step duration (µs) 10 20

Figure 4-3. Triggered Mode Chronogram

Trigger N EventTrigger In

Trigger Delay

Line 1 reset

Line 1

Integration

(Frame N)

Line 1 Readout

and Reset

Shutter out

FVAL

4.1.4 Triggered Mode without Full Reset Principle: An external trigger starts the snap and readout of a frame, without resetting the sen-

sor. The integration time is defined by readout time (+ programmable shutter time, when used).

The trigger event initiates the following sequence:

• Stop of readout frame in progress and reset of readout pointer to line 1

• Shutter output signal is activated during a time programmable within 0 to Tsh range by step of T1

Line n Reset

Line n

Integration

(Frame N)

Programmable

Shutter Time

Frame N

Readout

Line n Readout

and Reset

ATMOS -2M60/2M30 [Preliminary]

5440A–IMAGE–10/05

[Preliminary] ATMOS -2M60/2M30

• Readout of frame N. The readout data is forwarded to the Camera Link interface (FVAL active) starting with the first line

• Readout of dummy frames (to prevent against large dark current integration) while the camera waits for the next trigger event

The trigger delay is a few µs. The minimum pulse duration is 1 µs. The edge of trigger is programmable. The source of trigger is selectable between Camera Link CC1 signal and TTL_IO trigger input. The period is defined by the programmable shutter time + readout time + wait. Therefore the minimum period is reduced to 1 × readout time. As the integration time is not the same for all lines (in the following timing diagram line n integration time is greater than line 1 integration time) this mode must be used with a pulsed light source or a shutter element. Moreover any residual light when shutter output signal is inhibited must be avoided. The exposure time is defined by the shutter time and all the lines are exposed during the same time.

See register Aperture Shutter Time @ 246H Internal Register Mapping on page 16.

Table 4-3. Shutter Time Values at Triggered Mode without Full Reset

Label Description 2M60 2M30

Tsh Maximum shutter time (ms) 655 1310

T1 Step duration (µs) 10 20

Figure 4-4. Triggered Mode Without Full Reset Chronogram

Trigger N EventTrigger In

Trigger Delay

Line1 Reset

Line n Reset

FVA

Shutter out

Line 1

Integration

(Frame N)

Programmable

Shutter Time

Line n

Integration

(Frame N)

Line 1 Readout

and Reset

Line n Readout

Frame N

Readout

and Reset

5440A–IMAGE–10/05

4.1.5 ITC Mode Principle: An external sync controls both the integration time and the frame rate.

The trigger event initiates the following sequence:

• Stop of readout frame in progress and reset of readout pointer to line 1

• Shutter output signal is activated during a time defined by the high state of the ITC signal

• Readout of frame N. The readout data is forwarded to the Camera Link interface (FVAL active) starting with the first line

• Readout of dummy frames (to prevent against large dark current integration) while the camera waits for the next trigger event

The integration delay is a few µs. The minimum pulse duration is 1 µs. The source of ITC signal is selectable between Camera Link CC1 signal and TTL_IO trigger input. See Register Mode Control @ 204H Internal Register Mapping on page 16. The period is defined by the ITC signal period.

As the integration time is not the same for all lines (in the following timing diagram line n integration time is greater than line 1 integration time) this mode must be used with a pulsed light source or a shutter element. Moreover any residual light when shutter output signal is inhibited must be avoided. The exposure time is defined by the ITC signal high state time and all the lines are exposed during the same time.

Figure 4-5. ITC Mode Chronogram

ITC in

Trigger Delay

Line 1 Reset

Line n Reset

Shutter out

FVAL

Trigger N Event

Line 1 Integration (Frame N)

Line n

Integration

(Frame N)

Shutter Time

Line 1 Readout

and Reset

Line n Readout

and Reset

Frame N

Readout

ATMOS -2M60/2M30 [Preliminary]

5440A–IMAGE–10/05

4.2 Ouput Data Timing

Table 4-4. Timing Values

Label Description Min Typ Max

Figure 4-6. Output Data Chronogram

[Preliminary] ATMOS -2M60/2M30

Ts Input setup to clock delay 1ns

Th Output hold from clock delay 1ns

LVAL

STROBE

DATA

5. Camera Features

5.1 Region of Interest

The full resolution of the camera is 2096 pixels by 1184 lines.You might program a smaller resolution in order to reduce the readout time. You must be careful that depending on the sequencing mode, the exposure time can be reduced too.The authorized values for horizontal size are 32 to 2096 pixels. This value is rounded to the lower multiple of 16 pixels. The authorized values for vertical size are 32 to 1184 lines. This value is rounded to the lower multiple of 9 lines. See registers ROI area @ 280H, 282H, 284H and 286H Internal Register Mapping on

page 16.

Examples of frame rate versus resolution:

First Valid Pixel Last Valid Pixel

5.2 Analog Gain

5440A–IMAGE–10/05

Table 5-1. R.O.I Performance

ROI Size Frame Rate 2M60 (fps) Frame Rate 2M30 (fps)

2096 × 1184 48 24

1920 × 1080 60 30

1600 × 999 75.7 37

640 × 477 157 78

The analog gain can be adjusted by setting the gain register via the serial communication.

• Gain adjusted from 0 dB to 18 dB: code 0 to 6

• Step 3 dB

• Nominal gain (factory configuration): 0 dB

See register Sensor Analog Gain @ 240H, Internal Register Mapping on page 16.

5.3 Output Format

5.4 Test Pattern

The data format available on the Camera Link output interface is programmable via the serial interface.

Note: The pixel depth is set by default at 12-bit, it can be set to 10 or 8-bit. The assignment for each con-

figuration comply with the specifications of the Camera Link interface standard. See register Mode Control bits [3:2] @ 204H, Internal Register Mapping page 16 .

In normal mode, the digital video signal from the sensor is available on the Camera Link output interface. For test purposes a digital pattern is generated and is available instead of the video signal in the Camera Link output interface. The pattern can be fixed or sliding. The fixed digital pattern is ramp-up from 960 LSB code to 2008 LSB code (line width). The same pattern is shown for each line:

Figure 5-1. Test Pattern View

The sliding pattern starts with the fixed pattern, the first code of each line is then incremented by two on each frame. It is useful to validate the connection to the acquisition system before the adjustment settings of the image capture. The output format is the only processing which applies to the test pattern. See ”Digital Processing Synoptic” on page 14.

See register Mode Control bits [1:0] @ 204H, Internal Register Mapping on page 16.

5.5 Contrast Expansion

This processing does not apply to the test pattern. The digital gain and offset can be adjusted via the serial communication in order to focus on a particular part of the dynamic range.

• Gain adjusted from x1 to x32.875: code 0 to 255

• Step 0.125

• Nominal gain (factory configuration):

See register Digital Gain @ 242H, Internal Register Mapping on page 16.

• Offset adjusted from -4096 to +4095: code 0 to 8191 in 2's complement

• Step 1

• Nominal offset (factory configuration): 0

See register Digital Offset @ 244H, Internal Register Mapping on page 16.

See register Processing Control bits [1:0] @ 202H, Internal Register Mapping on page 16.

× 1

ATMOS -2M60/2M30 [Preliminary]

5440A–IMAGE–10/05

5.6 Look- up Table (LUT)

The look-up Table is a conversion table which applies to the sensor data. At each input pixel value corresponds a single output value. This allows you to apply a correction table like a gamma correction for example. The Look-up Table does not apply to the test pattern. The Lookup Table might be generated by the camera by programming the gamma setting:

• Gamma 0.125 to 7.875: code 1 to 63 (0 not admitted)

You might also write your own correction table via the serial communication channel. Four banks are available to store four distinct correction tables.

See register LUT Coefficient Save in Dataflash @ 10DH, Internal Register Mapping on page 16.

See register LUT Coefficient Restore in Dataflash @ 10EH, Internal Register Mapping on

page 16. See register Processing Control bit 2 @ 202H, Internal register mapping on page 16.

5.7 Fixed Pattern Noise (FPN) Correction

The fixed pattern noise (FPN) is a spatial fluctuation of the sensor data particularly between successive columns. The purpose is to calculate an offset for each column of the frame in the darkness. The table of column offsets is stored in the internal memory. If the FPN correction is then enabled the offset values are subtracted to the value of the input pixel. Two methods are available to realize this processing: the off-line calibration and the online correction.

[Preliminary] ATMOS -2M60/2M30

5.8 Off-line Calibration

A calibration step is required while the camera is in darkness condition. Offset coefficients for each column are calculated on an average value measured on the 1024 first lines. Offset coefficients are 8-bit data. Therefore to be efficient the pixel value should be always within the values 1LSB to 255 LSB. If not, the overflow/underflow flags are set in the status register. The calibration step must be done in full resolution. Calibration data can be saved in nonvolatile memory and four distinct banks are reserved for this use. You might access to these banks in read or write mode.

See register Processing Control bits [4:3] @ 202H, Internal register mapping on page 16.

See register Calibration Control @ 200H, Internal register mapping on page 16.

See register FPN Coefficient Save in Dataflash @ 10BH, Internal register mapping on page 16.

See register FPN Coefficient Restore in Dataflash @ 10CH, Internal Register Mapping on

page 16.

5.9 Online Correction

No calibration step is required. When online correction is enabled the camera calculates the offset coefficients for each column on masked lines and then processes the input sensor data. These coefficients are updated at each frame. The calculated values are less accurate with these methods but unlike the off-line calibration do not depend on the settings like the analog gain.

5440A–IMAGE–10/05

See register Processing Control bits [4:3] @ 202H, Internal Register Mapping on page 16.

See register FPN Coefficient Save in Dataflash @ 10BH,Internal Register Mapping on page 16.

See register FPN Coefficient Restore in Dataflash @ 10CH, Internal Register Mapping on

page 16.

5.10 Digital Processing Synoptic

Figure 5-2. Synoptic

Pattern

Sensor_Out

Coef_FPN

Offset

Gain

5.11 Defective Pixels Correction

The sensor may present defective pixels. Hot pixels have a higher value than the average of their neighbor pixels. A correction can be applied by replacing these defective pixels by the average value of their neighbors. The threshold which determines if a pixel is defective can be programmed. This threshold is defined in LSB value above the average value of the neighbor pixels.

See register Defective Pixel Control @ 2C4H, Internal Register Mapping on page 16.

See register Hot Pixel Detection Threshold @ 2C0H, Internal Register Mapping on page 16.

5.12 LED Indicator

The green LED on the rear panel gives information on the internal state of the camera. On power up, after internal configuration, the LED flashes on and has the following behavior (decreasing priority order):

C P T

LUT

MUX

FORMAT

Pixel_Out

• Internal hardware error or configuration error: fast blinking

• Waiting for external trigger (triggered and ITC modes): slow blinking

• All other situation: continuous

ATMOS -2M60/2M30 [Preliminary]

5440A–IMAGE–10/05

6. Electrical Interface

6.1 Power Supply

It is recommended to insert a 1A fuse between the power supply and the camera. The voltage ripple of the power supply shall be below ±50 mVp-p at BW = 50 MHz to have full camera performance.

Table 6-1. Power Supply Description

Signal Name I/O Type Description

PWR P - DC power input: +12V to + 24V

GND P - Electrical and mechanical ground

Note: I = input, O = output, I/O = bi-directional signal, P = power/ground, NC = not connected.

6.2 Command and Control

The Camera Link interface provides four LVDS signals dedicated to camera control (CC1 to CC4). On the ATMOS, one of them is used to synchronize the camera on external events.

Table 6-2. Camera Link Input Description

[Preliminary] ATMOS -2M60/2M30

6.3 Video Data

Signal Name I/O Type Description

TRIG1 I RS644 CC1 - Synchronization input

Note: I = input, O = output, I/O = bi-directional signal, P = power/ground, NC = not connected.

The TTL/I/O interface provides two TTL signals dedicated to camera control.

Table 6-3. TTL/IO Description

Signal Name I/O Type Description

TRIGGER I 5 V-TTL External trigger input

SHUTTER O 3 V-TTL

Note: I = input, O = output, I/O = bi-directional signal, P = power/ground, NC = not connected.

Shutter output, maximum output current

1.6 mA

See register Mode Control @ 204H, Internal Register Mapping on page 16.

Data and Enable signals are provided on the Camera Link interface.

Table 6-4. Camera Link Output Description

Signal Name I/O Type Description

ODD-D[11-0] O RS644 Odd pixel data, ODD-00 = LSB, ODD-11 = MSB

EVEN-D[11-0] O RS644 Even pixel data, EVEN-00 = LSB, EVEN-11 = MSB

STROBE O RS644 Output data clock, data valid on the rising edge

5440A–IMAGE–10/05

LVAL O RS644 Line valid or line enable, active high signal

FVAL O RS644 Frame valid or frame enable, active high signal

Note: 1. I = input, O = output, I/O = bi-directional signal, P = power/ground, NC = not connected.

2. Note: DVAL, as defined in the Camera Link standard, is not used. DVAL is permanently tied to 1 (high) level.

6.4 Serial Communication

The Camera Link interface provides two LVDS signal pairs for the communication between the camera and the frame grabber. This is an asynchronous serial communication based on RS-232 protocol.

The configuration of the serial line is:

• Full duplex/without handshaking

• 8-bit data, no parity bit, 1 stop bit

• 9600 bauds at power up, then programmable up to 115200 bauds (see register Communication Speed Multiplieur @ 001H, Internal Register Mapping on page 16.

Table 6-5. Camera Link Serial Communication Description

Signal Name I/O Type Description

SerTFG O RS644

SerTC I RS644

6.4.1 Internal Register

Differential pair for serial communication to the frame grabber

Differential pair for serial communication from the frame grabber

Table 6-6. Internal Register Mapping

Access Type

Start Addr

(Hex) Size (Dec)

000 1 RO RO

001 1 RW - 1

040 51 RO - Hardware identifier

080 8 RO - Firmware identifier

0C0 51 RW - User identifier

100 4 RW RW Status (ref. Camera Status Management)

104 4 WO -

108 1 RO -

109 1 WO -

End

Addr (Hex)

Processing Internal Task

Factory

Settings Description

Synchronization register for serial communication (value 00)

Communication speed multiplier (9600 115,2K): volatile register 1, 2, 3, 4, 6, 8, 12

Lock/Unlock mode: advanced user/user 1: Lock advanced user mode (into user mode) Unlock key value: unlock user

Privilege level 1: Advanced user mode 2: User mode

Current configuration save in Eeprom 1: User settings (allowed only for advanced

user mode) 2 to 4: User settings

ATMOS -2M60/2M30 [Preliminary]

5440A–IMAGE–10/05

[Preliminary] ATMOS -2M60/2M30

Table 6-6. Internal Register Mapping (Continued)

Access Type

Start Addr

(Hex) Size (Dec)

10A 1 RW - 0

10B 1 WO -

10C 1 RW - 1

10D 1 WO -

10E 1 RW - 1

200 2 RW RW 0

202 2 RW - 0

End

Addr (Hex)

Processing Internal Task

Factory

Settings Description

Current configuration restore from Eeprom 1 to 4: User settings

FPN coefficient save in dataflash 1 to 4 (1 allowed only for advanced user

mode)

FPN coefficient restore in dataflash 1 to 4

LUT coefficient save in dataflash 1 to 4 (1 allowed only for advanced user

mode)

LUT coefficient restore in dataflash 1 to 4

Calibration control [0] = off-line calibration enabled (0: disabled; 1: enabled)

Processing control: [0] = offset correction enable (0: disabled;

1: enabled) [1] = gain correction enable (0: disabled;

1: enabled) [2] = look-up table correction enable

(0: disabled; 1: enabled)[ [4:3] = fpn correction mode (00: disabled;

01: off-line fpn correction enabled; 11: online fpn correction enabled)

204 2 RW - 0

206 1 WO

5440A–IMAGE–10/05

Mode control: [1:0] = test pattern (00: disabled; 01: fixed

test pattern; 10: dynamic test pattern) [3:2] = output format (00:12-bit; 01:10-bit;

10:8-bit) [[7:5] = synchronization mode (000: Free-

run; 001: External triggered; 010: external triggered without full reset; 011: integration time controlled); others reserved

[8] = trigger source (0: Camera Link; 1: external)

[9] = trigger polarity (0:positive edge; 1: negative edge)

[10] = shutter polarity output (0: positive edge; 1: negative edge)

Software reset: 1 = camera reset

Table 6-6. Internal Register Mapping (Continued)

Access Type

Start Addr

(Hex) Size (Dec)

240 2 RW - 0

242 2 RW - 0

244 2 RW - 0

246 2 RW - 1

248 2 RW - 1600

280 8 287 RW ROI area:

End

Addr (Hex)

Processing Internal Task

Factory

Settings Description

Sensor analog gain: [3:0] = analog gain; value from 0 dB (= 0) to

18 dB (= 6) by step of 3 dB

Digital gain (extended dynamic range): [7:0] = gain; value from 1.000 (= 0) to

32.875 (= 255) in Q 8.3 representation

Digital offset (extended dynamic range): [12:0] = offset; value from -4096 to

+ 4095 in 2's complement

Aperture shutter time: [15:0] = shutter time; value from 0 to 65535

(for 2M60: 0 to 655 ms by step of 10 µs) (for 2M30: 0 to 1310 ms by step of 20µs)

ERS: [10:0] value from 0% (= 0,Dark) to 100%

(= 1600, clear) in Q11.4 representation

2C0 2 RW 50

2C4 1 RW - 0

300 1 WO -

1000 1312 151F RW - 0

2000 8192 3FFF RW - linear

Addr 280, size 2, default 0: ROI horizontal start value from 0 to 2080 Addr 282, size 2, default 0 ROI vertical start value from 0 to 1182 Addr 284, size 2, default 1920 ROI vertical size value from 32 to 2096 Addr 286, size 2, default 1080 ROI vertical size value from 32 to 1184

Hot pixel detection threshold: [10:0] = hot pixel threshold

Defective pixels control: [0] = hot pixel detection

(0: disabled; 1: enabled

Gamma correction: [5:0] = gamma settings; value from 0.125 (= 1) to 7.875 (= 63) in Q6.3 representation

FPN coefficients (8-bit): Format: Fpn [0]; Fpn[1]; Fpn [2];…

Look-up table (4096 × 16-bit): Format: Lut [0]; Lut [1]; … ; Lut [4095]

value: 0 to 4095

Note: RO: Read Only register, WO: Write Only register, RW: Read and Write register.

ATMOS -2M60/2M30 [Preliminary]

5440A–IMAGE–10/05

6.4.2 Camera Settings Memory

ATMOS cameras have 5 banks to save settings:

• Bank 0 contains the factory settings. This bank cannot be modified by the user

• Bank 1 to 4 are used to store 4 different settings

• Bank 1 might be protected by an advanced user (see Register @ 104H). Contact Atmel for details

7. Connector Description

All connectors are on the rear panel. Better results are obtained by using shielded cables (foil and braid shielded).

Note: cables for digital signals shall be twisted pairs.

7.1 Power Supply

Camera connector type: Hirose HR10A-7R-6PB (male)

Cable connector type: Hirose HR10A-7P-6S (female)

Figure 7-1. Power Supply Pinout

[Preliminary] ATMOS -2M60/2M30

Power Connector : J01

Signal Pin Signal Pin

PWR 1 GND 4

NC 2 NC 5

PWR 3 GND 6

Receptacle Viewed from Camera Back

5440A–IMAGE–10/05

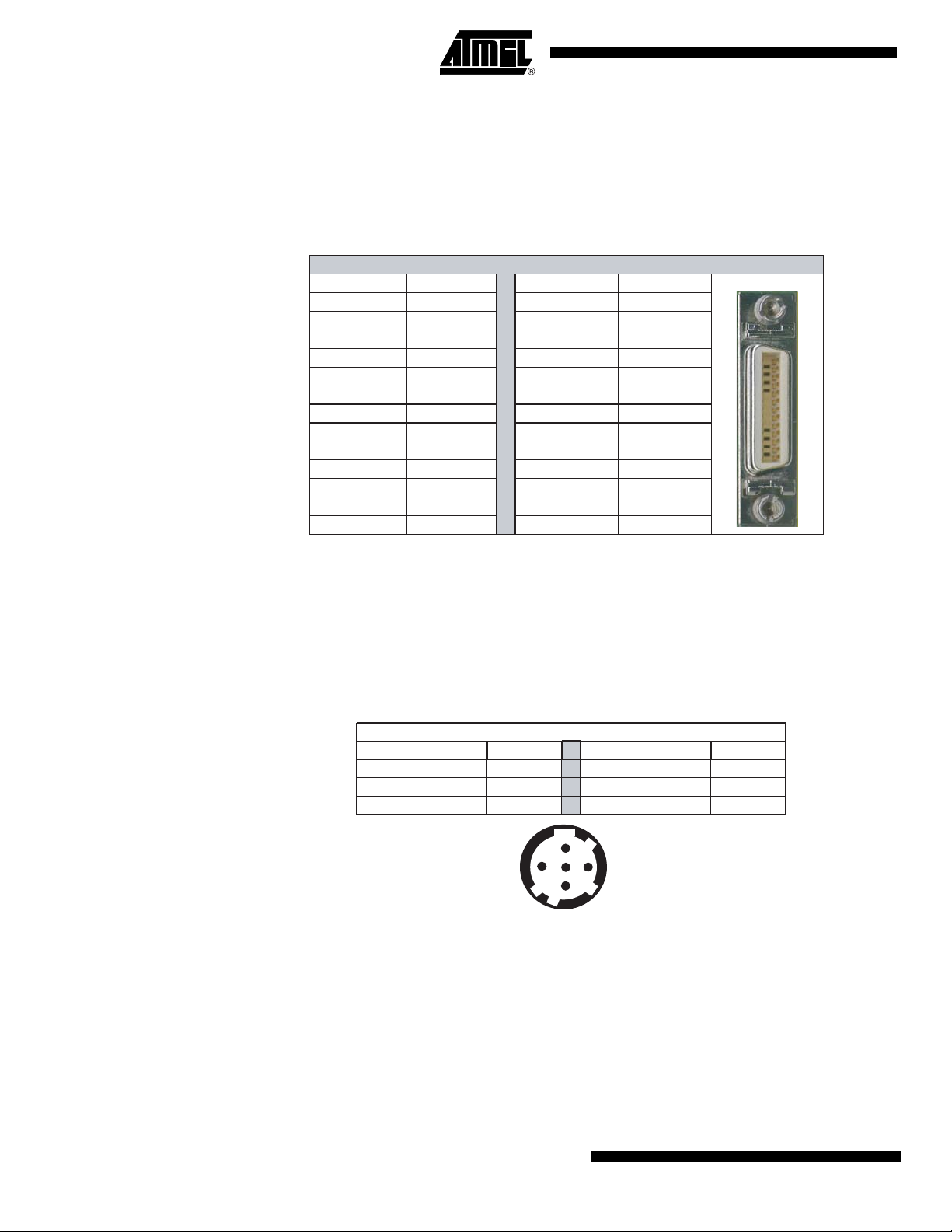

7.2 Camera Link Connector

Standard Camera Link cable shall be used to ensure the full electrical compatibility.

• Camera connector type: MDR-26 (female) ref. 3M 10226-2210VE

• We recommend to use a Camera Link standard shielded cable as 3M 14X26-SZLB-XXX-0LC

Figure 7-2. Camera Link Pinout

Command and Control Connector : J02

Signal Pin Signal Pin

GND 1 GND 14

X0- 2 X0+ 15

X1- 3 X1+ 16

X2- 4 X2+ 17

Xclk- 5 Xclk+ 18

X3- 6 X3+ 19

SerTC+ 7 SerTC- 20

SerTFG- 8 SerTFG+ 21

CC1- 9 CC1+ 22

CC2+ 10 CC2- 23

CC3- 11 CC3+ 24

CC4+ 12 CC4- 25

GND 13 GND 26

7.3 TTL I/O

Camera connector type: Hirose HR10A-7R-5SB (female)

Cable connector type: Hirose HR10A-7P-5P (male)

Figure 7-3. TTL/IO Pinout

TTL IO Connector : J03

Signal Pin Signal Pin

TRIGGER 1 GND 4

GND 2 NC 5

SHUTTER 3

Receptacle Viewed from Camera Back

ATMOS -2M60/2M30 [Preliminary]

5440A–IMAGE–10/05

8. Mechanical Drawing

Note: (All dimensions are in mm)

Figure 8-1. Front Panel View

[Preliminary] ATMOS -2M60/2M30

Figure 8-2. Front Panel Mechanical Drawing

φ35

sensor

38.5

Note: 1. A and B are mechanical reference plans.

2. Sensor alignment ∆x, y refers to the optical axis.

3. Sensor alignment ∆0

4 x (M3 x

First Pixel

of Line 1

1 - 32 UN -

(C mount)

refers to the reference plans.

Camera

Link

Power Supply

2 x (M4 x

(on the 4 sides)

44.75

12 3.75

5440A–IMAGE–10/05

Figure 8-3. Rear Panel

Figure 8-4. Rear Panel Mechanical Drawing

12-24V

Camera Link

31.30

9.90

TTL IO

22.80

ATMOS -2M60/2M30 [Preliminary]

5440A–IMAGE–10/05

[Preliminary] ATMOS -2M60/2M30

9. Ordering Code

Table 9-1. Ordering Code

Part Number Description

AT71-ATM2M60M-B0

AT71-ATM2M30M-B0

ATMOS 2M60 with housing + power supply connector + TTL I/O Connector + CD-Rom

ATMOS 2M30 with housing + power supply connector + TTL I/O Connector + CD-Rom

Delivery:

ATMOS areascan cameras are delivered with:

• Power supply female connector HR10A-7P-6S

• TTL I/O male connector HR10A-7P-5P

• CD-rom with:

– Friendly software CommCam

– Documentation

Note: Optical lens is not provided.

5440A–IMAGE–10/05

Atmel Corporation Atmel Operations

2325 Orchard Parkway San Jose, CA 95131, USA Tel: 1(408) 441-0311 Fax: 1(408) 487-2600

Regional Headquarters

Europe

Atmel Sarl Route des Arsenaux 41 Case Postale 80 CH-1705 Fribourg Switzerland Tel: (41) 26-426-5555 Fax: (41) 26-426-5500

Asia

Room 1219 Chinachem Golden Plaza 77 Mody Road Tsimshatsui East Kowloon Hong Kong Tel: (852) 2721-9778 Fax: (852) 2722-1369

Japan

9F, Tonetsu Shinkawa Bldg. 1-24-8 Shinkawa Chuo-ku, Tokyo 104-0033 Japan Tel: (81) 3-3523-3551 Fax: (81) 3-3523-7581

Memory

2325 Orchard Parkway San Jose, CA 95131, USA Tel: 1(408) 441-0311 Fax: 1(408) 436-4314

Microcontrollers

2325 Orchard Parkway San Jose, CA 95131, USA Tel: 1(408) 441-0311 Fax: 1(408) 436-4314

La Chantrerie BP 70602 44306 Nantes Cedex 3, France Tel: (33) 2-40-18-18-18 Fax: (33) 2-40-18-19-60

ASIC/ASSP/Smart Cards

Zone Industrielle 13106 Rousset Cedex, France Tel: (33) 4-42-53-60-00 Fax: (33) 4-42-53-60-01

1150 East Cheyenne Mtn. Blvd. Colorado Springs, CO 80906, USA Tel: 1(719) 576-3300 Fax: 1(719) 540-1759

Scottish Enterprise Technology Park Maxwell Building East Kilbride G75 0QR, Scotland Tel: (44) 1355-803-000 Fax: (44) 1355-242-743

RF/Automotive

Theresienstrasse 2 Postfach 3535 74025 Heilbronn, Germany Tel: (49) 71-31-67-0 Fax: (49) 71-31-67-2340

1150 East Cheyenne Mtn. Blvd. Colorado Springs, CO 80906, USA Tel: 1(719) 576-3300 Fax: 1(719) 540-1759

Biometrics/Imaging/Hi-Rel MPU/ High Speed Converters/RF Datacom

Avenue de Rochepleine BP 123 38521 Saint-Egreve Cedex, France Tel: (33) 4-76-58-30-00 Fax: (33) 4-76-58-34-80

Literature Requests

www.atmel.com/literature

Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN ATMEL’S TERMS AND CONDI-

TIONS OF SALE LOCATED ON ATMEL’S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no

representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel’s products are not intended, authorized, or warranted for use as components in applications intended to support or sustain life.

© Atmel Corporation 2005. All rights reserved. Atmel®, logo and combinations thereof, and Everywhere You Are®, DataFlash® and others are registered trademarks Automated Imaging Association. Other terms and product names may be trademarks of others.

and ATMOS™ and others , are trademarks of Atmel Corporation or its subsidiaries. Camera Link® is the trademark of

Printed on recycled paper.

5440A–IMAGE–10/05

Rainbow Electronics ATMOS 2M60 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Main Features

Product Description

Applications

1. Typical Performances

2. Standard Conformity

2.1 CE Conformity

2.2 FCC conformity

3. Camera Description

4. Timing

4.1 Synchronization Modes

4.1.1 Optimal Use of the Rolling Shutter

4.1.2 Free-run Mode (or Periodic Mode)

4.1.3 Triggered Mode

4.1.4 Triggered Mode without Full Reset Principle: An external trigger starts the snap and readout of a frame, without resetting the sen-

4.1.5 ITC Mode Principle: An external sync controls both the integration time and the frame rate.

4.2 Ouput Data Timing

5. Camera Features

5.1 Region of Interest

5.2 Analog Gain

5.3 Output Format

5.4 Test Pattern

5.5 Contrast Expansion

5.6 Look- up Table (LUT)

5.7 Fixed Pattern Noise (FPN) Correction

5.8 Off-line Calibration

5.9 Online Correction

5.10 Digital Processing Synoptic

5.11 Defective Pixels Correction

5.12 LED Indicator

6. Electrical Interface

6.1 Power Supply

6.2 Command and Control

6.3 Video Data

6.4 Serial Communication

6.4.1 Internal Register

6.4.2 Camera Settings Memory

7. Connector Description

7.1 Power Supply

7.2 Camera Link Connector

7.3 TTL I/O

8. Mechanical Drawing

9. Ordering Code
