Features

• Single 2.5V - 3.6V or 2.7V - 3.6V Supply

• Serial Peripheral Interfa ce (SPI) Compati ble

• 20 MHz Max Clock Frequency

• Page Program Operation

– Single Cycle Reprogram (Erase and Program)
– 4096 Pages (528 Bytes/Page) Main Memory

• Supports Page and Block Erase Operations

• Two 528-byte SRAM Data Buffers – Allows Receiving of Data

while Reprogramming of Nonvolatile Memory

• Continuous Read Capability through Entire Array

– Ideal for Code Shadowing Applic ation s

• Low Power Dissipation

– 4 mA Active Read Current Typical
– 2 µA CMOS Standby Current Typical

• Hardware Data Protection Feature

• 100% Compatible to AT45DB161

• 5.0V-tolerant Inputs: SI, SCK, CS, RESET and WP Pins

• Commercial and Industrial Temperature Ranges

16-megabit

2.5-volt Only or

2.7-volt Only
DataFlash

®

Description

The AT45DB161B is a 2.5-volt or 2.7-volt only, serial interface Flash memory ideally
suited for a wide variety of digital voice-, image-, program code- and data-storage
applications. Its 17,301,504 bits of memory are organized as 4096 pages of 528 bytes
each. In addition to the main memor y, the AT45DB161B also con tains two SRAM
data buffers of 528 bytes each. The buffers allow receiving of data wh il e a pag e in th e
main memory is being reprogrammed, as well as reading or writing a continuous data

Pin Configurations

Pin Name Function

CS

Chip Select
SCK Serial Clock
SI Serial Input
SO Serial Output
WP

Hardware Page Write

Protect Pin
RESET
RDY/BUSY

Chip Reset

Ready/Busy

DataFlash Card

(1)

Top View through Package

7654321

RDY/BUSY

RESET

GND

NC
NC
CS

SCK

SI
SO
NC
NC
NC
NC
NC
NC
NC

WP

VCC
GND

SCK

1
2
3
4

NC

5

NC

6
7
8

NC

9

NC

10

NC

11

CS

12
13

SI

14

SO

SOIC

1
2
3
4
5
6
7
8
9
10
11
12
13
14

TSOP Top View

28

VCC

27

NC

26

NC

25

WP

24

RESET

23

RDY/BUSY

22

NC

21

NC

20

NC

19

NC

18

NC

17

NC

16

NC

15

NC

Type 1

CBGA Top View

through Package

2345

1

A
B
C
D
E

NC

NC

NC

NC

GND

SCK

VCC

NC

RDY/BSY

CS

WP

NC

SI

SO

RESET

NC

NC

NC

NC

28

NC

27

NC

26

NC

25

NC

24

NC

23

NC

22

NC

21

NC

20

NC

19

NC

18

NC

17

NC

16

NC

15

NC

NC
NC
NC
NC
NC

AT45DB161B

Note: 1. See AT45DCB002 Datasheet.

Rev. 2224E–DFLSH–10/02

1

Block Diagram

stream. EEPRO M emulation ( bit or byte a lterability) i s easily hand led with a s elf­contained three step Read-Mo dify-Wr ite operati on.Unli ke conv entional F lash memo ries
that are accessed randomly with multiple address l ines and a parallel in terface, the
DataFlash uses a SPI se rial interface to se quentially access its data . DataFlash sup­ports SPI mode 0 and mode 3. The simple serial interfac e facilitates hardware layout,
increases system reliability, minimizes switching noise, and reduces package size and
active pin count. The device is optimized for use in many commercial and i ndustrial
applications where high density, low pin count, low voltage, and low power are essential.
The device operates at clock frequencies up to 20 MHz with a typical active read current
consumption of 4 mA.

To allow for simple in-system reprogrammability, the AT45DB161B does not require
high input voltages for programming. The device operates from a single power supply,

2.5V to 3.6V or 2.7V to 3.6V, for both the program and read operations. The
AT45DB161B is enabled through the chip select pin (CS

) and accessed via a three-wire
interface consisting of the Serial Input (SI), Serial Output (SO), and the Serial Clock
(SCK).

All programming cycles are self-timed, and no separate erase cycle is required before
programming.

When the device is shipped from Atmel, the most significant page of the memory array
may not be erased. In other words, the contents of the last page may not be filled with
FFH.

WP

FLASH MEMORY ARRAY

Memory Array

PAGE (528 BYTES)

BUFFER 2 (528 BYTES)BUFFER 1 (528 BYTES)

SCK

CS

RESET

VCC

GND

RDY/BUSY

I/O INTERFACE

SOSI

To provide optimal flexibility, the memory array of the AT45DB161B is divided into three
levels of granularity comprising of sectors, blocks, and pages. The Memory Architecture
Diagram illus trates the br eakdown of eac h leve l and details the nu mber o f pages per
sector and block. All program operations to the DataFlash occur on a page-by-page
basis; however, the optional erase operations can be performe d at the block or pag e
level.

2

AT45DB161B

2224E–DFLSH–10/02

Memory Architectur e Diagram

AT45DB161B

SECTOR ARCHITECTURE

SECTOR 0 = 8 Pages

4,224 bytes (4K + 128)

SECTOR 1 = 248 Pages

130,944 bytes (124K + 3,968)

SECTOR 2 = 256 Pages

135,168 bytes (128K + 4K)

SECTOR 3 = 256 Pages

135,168 bytes (128K + 4K)

SECTOR 16 = 256 Pages

135,168 bytes (128K + 4K)

SECTOR 0

BLOCK ARCHITECTURE PAGE ARCHITECTURE

SECTOR 1SECTOR 2

BLOCK 0
BLOCK 1

BLOCK 30
BLOCK 31
BLOCK 32
BLOCK 33

BLOCK 62
BLOCK 63
BLOCK 64
BLOCK 65
BLOCK 66

BLOCK 509
BLOCK 510
BLOCK 511

Block = 4224 bytes

(4K + 128)

8 Pages

BLOCK 0

BLOCK 1

PAGE 0
PAGE 1

PAGE 6
PAGE 7
PAGE 8
PAGE 9

PAGE 14
PAGE 15
PAGE 16
PAGE 17
PAGE 18

PAGE 4093
PAGE 4094
PAGE 4095

Page = 528 bytes

(512 + 16)

Device Operation The device operation is controlled by instructions from the host processor. The list of

instructions and their associated opcodes are contained in Tables 1 through 4. A valid
instruction starts wit h the falling ed ge of CS
and the desired buffer or main memory address location. While the CS
gling the SCK pin controls the loading of the opcode and the desired buffer or main
memory address loc ation thro ugh the SI (seri al input) pin . All instr uctions, addr esses
and data are transferred with the most significant bit (MSB) first.

Buffer addressing is reference d in the datas heet usin g the termin ology BFA 9 - BFA0 to
denote the ten address bits required to designate a byte address within a buffer. Main
memory addressing is referenced using the terminology PA11 - PA0 and BA9 - BA0
where PA11 - PA0 denotes the 12 address bits r equired to designate a page address
and BA9 - BA0 denotes the ten address bits required to designate a byte address within
the page.

followed by th e appr opriate 8 -bit opc ode

pin is low, tog-

Read Commands By specifying the appro priate opcode, data c an be read from the main mem ory or from

either one of the two data buffers. The DataFlash supports two categories of read
modes in relation to th e SCK s ignal . The dif ferenc es be tween the modes are in res pect
to the inactive state of the SCK si gnal as well as whi ch cloc k cycl e data wi ll begin to be
output. The two categories, which are comprised of four modes total, are defined as
Inactive Clock Polarity Low or Inactive Clock Polarity High and SPI Mode 0 or SPI
Mode 3. A separate opcode (refer to Table 1 on page 10 for a complete list) is used to
select which category will be used for reading. Please refer to the “Detailed Bit-level
Read Timing” diagrams i n this datasheet fo r details on the clock cycle sequences for
each mode.

CONTINUOUS ARRAY READ: By supplyin g an initial sta rting address for the main
memory array, the Continuous Array Read command can b e utilized to sequentially
read a continuous strea m of data from the device by simp ly pro viding a cl ock sig nal; no
additional addressing information or control signals need to be provided. The DataFlash
incorporates an internal address counter that will automatically increment on every clock

2224E–DFLSH–10/02

3

cycle, allowing one con tinuous read ope ration without th e need of addition al address
sequences. To perform a continuous read, an opcode of 68H or E8H must be clocked
into the device followed by 24 address bits and 32 don’t care bits. The first two bits of
the 24-bit address sequence are reserved for upward and downward compatibility to
larger and smaller density devices (see Notes under “Command Sequence for
Read/Write Operatio ns” d ia gram) . T he next 12 address bits (PA11 - PA0) specify which
page of the main memory array to read, and the last ten bits (BA9 - BA0) of the 24-bit
address sequence specify the starting byte address within the page. The 32 don’t care
bits that follow t he 24 a ddr ess bi ts are nee ded to initialize the re ad oper at ion . F ol lo win g
the 32 don’t care bits, additional clock pulses on the SCK pin will result in serial data
being output on the SO (serial output) pin.

The CS
care bits, and the read ing of data. When the en d of a page in ma in memor y is reache d
during a Continuous Array Read, the device will continue reading at the beginning of the
next page with no delays incurred during the page boundary crossover (the crossover
from the end of one pag e to the beginn ing of the nex t page). When th e last bit in the
main memory array has been read, the device will continue reading back at the begin­ning of the first page of memory. As with crossing over page boundar ies, no dela ys will
be incurred when wrapping around from the end of the array to the beginning of the
array.

A low-to-high tran sition on the CS
SO pin. The maximum SCK frequency allowable for the Continuous Array Read is
defined by the f
ers and leaves the contents of the buffers unchanged.

MAIN MEMORY PAGE READ: A Main Memory Page Read allows the user to read data
directly from any one of the 4096 pages in the main memory, bypassing both of the data
buffers and leaving the contents of the buffers unchanged. To start a page read, an
opcode of 52H or D2 H m us t b e cl oc ke d i nto th e d ev ice fol low ed by 24 a ddres s bi ts an d
32 don’t care bits. The first two bits of the 24-bit address sequence are reserved bits, the
next 12 address bits (PA11 - PA0) specify the page address, and the next ten address
bits (BA9 - BA0) specify the starting byte address within the page. The 32 don’t care bits
which follow the 24 address bits are sent to initialize the read operation. Following the
32 don’t care bits, addi ti onal pul s es on S CK r esul t in serial data being ou tput on the SO
(serial output) pin. The CS
address bits, the don’t care bits, and the reading of data. When the end of a page in
main memory is reached during a Main Memory Page Read, the device will continue
reading at the beginning of the same page. A low-to-high transition on the CS
terminate the read operation and tri-state the SO pin.

pin must remain low during the loading of the opcode, the address bits, the don’t

pin will terminate the rea d operation and tri-state the

specification. T he Contin uous Array Read bypass es both da ta buff-

CAR

pin must remain lo w during the loading of the opcod e, the

pin will

BUFFER READ: Data can be read from either one of the two bu ffers, usin g different
opcodes to specif y whi ch bu ffer t o r ea d fro m. A n opc od e o f 5 4H o r D4H is u sed to read
data from buffer 1, an d a n o pco de of 5 6H or D6H is used to re ad data from buffer 2. To
perform a Buffer Read, the eight bits of the opcode must be followed by 14 don’t care
bits, ten address bits, and eight don’t care bits. Since the buffer size is 528 bytes, ten
address bits (BFA9 - B F A0 ) ar e required to specify t he fir s t by te of d ata to be read from
the buffer. The CS
bits, the don’t care bits, and the reading of data. When the end of a buffer is reached,
the device will continue reading back at the beginning of the buffer. A low-to-high transi­tion on the CS

STATUS REGISTER RE AD: The st atus regi ster c an b e us ed to deter mine the device ’s
Ready/Busy statu s, the resu lt of a Ma in Memory Page to Buf fer Compa re operati on, or
the device density. To read the status register, an opcode of 57H or D7H must be

4

AT45DB161B

pin must remain low during the loading of the opcode, the address

pin will terminate the read operation and tri-state the SO pin.

2224E–DFLSH–10/02

AT45DB161B

loaded into the device. After the last bit of the opcode is shifted in, the eight bits of the
status register, startin g with the MSB (bi t 7), will be shift ed out on the SO pin dur ing the
next eight clock cycles. The five most significant bits of the status register will contain
device information, while the remaining three least-significant bits are reserved for future
use and will have undefined value s. After bit 0 of the status register has been shifted
out, the sequence will repeat itself (as long as CS
gled) starting again with bit 7. The data in the status register is constantly updated, so
each repeating sequence will output new data.

Status Register Format

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

RDY/BUSY COMP1011XX

Ready/Busy status is indicated using bit 7 of the status register. If bit 7 is a 1, then the
device is not busy and is ready to accept the next command. If bit 7 is a 0, then the
device is in a busy state. The user can continuously poll bit 7 of the s tatus register by
stopping SCK at a l ow lev el on ce bi t 7 has b een ou tput . T he status o f b it 7 wi ll continue
to be output on the SO pin, and once the device is no longer busy, the state of SO will
change from 0 to 1. There are eight operations which can cause the device to be in a
busy state: Main Memory Page to Buffer Transfer, Main Memory Page to Buffer Com­pare, Buffer to Ma in Me mory P age P rogram with Buil t-in E rase, Buff er to M ain M emory
Page Program without Built-in Erase, Page Erase, Block Erase, Main Memory Page
Program, and Auto Page Rewrite.

remains low and SCK is being tog-

Program and Erase Commands

The result of the most recent Main Memory Page to Buffer Compare operation is indi­cated using bit 6 of the status register. If bit 6 is a 0, then the data in the main memory
page matches the data in the buffer. If bit 6 is a 1, then at least one bit of the data in the
main memory page does not match the data in the buffer.

The device density is indicated using bits 5, 4, 3 and 2 of the status register. For the
AT45DB161B, the four bits are 1, 0, 1 and 1. The decimal value of these four binary bits
does not equate to the device density; the fou r bits represent a c ombinational code
relating to differ ing d ensiti es of S erial DataFl ash device s, all owing a to tal of s ixt een d if­ferent density configurations.

BUFFER WRITE: Data can be shifted in fr om the SI pi n into eith er buffe r 1 or buffe r 2.
To load data into either buffer, an 8-bit opcode, 84H for buffer 1 or 87H for buffer 2, must
be followed by 14 don ’t care bit s and ten ad dress bits (BFA9 - BFA0). The ten address
bits specify th e first byt e in the buffer to be writ ten. The dat a is entere d followin g the
address bits. If the end of the data buffer is reached, the device will wrap around back to
the beginning of the buffer. Dat a will cont inue to be loaded i nto the buf fer until a low- to­high transition is detected on the CS

BUFFER TO MAIN MEMORY PAGE PROGRAM WITH BUILT-IN ERASE: Data writte n
into either buffer 1 or buffer 2 can be programmed into the main memory. To start the
operation, an 8-bit opcode , 83H fo r buffe r 1 or 8 6H for bu ffer 2, m ust be fol lo wed by th e
two reserved bits, 12 address bits (PA 11 - PA0) that specify the page in the main
memory to be written, and ten additional don’t care bits. When a low-to-high transition
occurs on the CS
and then program the data stored in the buffer into the specified page in the main mem­ory. Both the erase and the programming of the page are internally self-timed and
should take place in a maximum time of t
cate that the part is busy.

pin, the part will first erase the selected page in main memory to all 1s

pin.

. During this time, the status register will indi-

EP

2224E–DFLSH–10/02

5

BUFFER TO MAIN MEMORY PAGE PROGRAM WITHOUT BUILT-IN ERASE: A

previously erased page within m ain memory can be programmed with the c ontents of
either buffer 1 or buffer 2. To start the operat ion, an 8-bit opcod e, 88H for buffer 1 or
89H for buffer 2, must be followed by the two reserved bits, 12 address bits
(PA11 - PA0) that specify the page i n the m ain memo ry to be written , and ten additional
don’t care bits. When a low-to-high transition occurs on the CS

pin, the part will program
the data stored in the buffer into the specifi ed p age in the main memory. It is n ec essa ry
that the page in main memory that is being programmed has been previously erased.
The programming of the page is internally self-timed and should take place in a maxi­mum time of t

. During this time, the status register will indicate that the part is busy.

P

Successive page programming operations without doing a page erase are not recom­mended. In other words, changing bytes within a page from a “1” to a “0” during multiple
page programming operations without erasing that page is not recommended.

PAGE ER AS E: The op tional P age Erase command can be used to individua lly er ase
any page in the main mem ory array a llowing th e Buffer to Mai n Memo ry Page Progra m
without Built-in Eras e com mand t o be utilize d at a later tim e. To perfo rm a Page Er ase,
an opcode of 81H must be loaded into the device, followed by two reserved bits,
12 address bits (PA11 - PA0), and ten don’t care bits. The 12 address bits are used to
specify which page of the memory array is to be erased. When a low-to-high transition
occurs on the CS
internally self-timed and should take place in a maximum time of t

pin, the part will erase the selected page to 1s. The erase operation is

. During this time,

PE

the status register will indicate that the part is busy.
BLOCK ERASE: A block of eight pa ges ca n be eras ed at on e time al lowi ng the Bu ffer

to Main Memory Page Pr ogra m wi thou t B uil t- in Eras e c om man d to be u til iz ed to r ed uc e
programming times when writi ng large amounts o f data to the d evice. To perform a
Block Erase, an opcode of 50H must be loaded into the device, followed by two
reserved bits, nine address bits (PA 11 - PA3 ), and 13 don ’t care bits. T he nine addre ss
bits are used t o spe cify wh ich block of ei ght p ages is to be erased . Whe n a low-to -hig h
transition occurs on the CS

pin, the part will erase the selected block of eight pages to
1s. The erase operation is internally self-timed and should take place in a maximum
time of t

. During this time, the status register will indicate that the part is busy.

BE

Block Erase Addressi ng

PA11 PA10 PA9 PA8 PA7 PA6 PA5 PA4 PA3 PA2 PA1 PA0 Block

000000000XXX0
000000001XXX1
000000010XXX2
000000011XXX3

•

•

•
111111100XXX508
111111101XXX509
111111110XXX510
111111111XXX511

6

•

•

•

•

•

•

•

•

•

AT45DB161B

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

2224E–DFLSH–10/02

•

•

•

AT45DB161B

MAIN MEMORY PAGE PROGRAM THROUGH BUFFER: This operation is a combina-

tion of the Buffer Write and Buffer to Main Memor y Page Program wi th Built-in Erase
operations. Data is first shifted into buffer 1 or buffer 2 from the SI pin and then pro­grammed into a specified page in the main memory. To initiate the operation, an 8-bit
opcode, 82H for buffer 1 or 85H for buffer 2, must be followed by the two reserved bits
and 22 address bits. The 12 most signifi cant add ress bits (P A11 - PA 0) se lect th e page
in the main memory where data is to be written, and the next ten address bits
(BFA9 - BFA0) select the first byte in the buffer to be written. After all address bits are
shifted in, the part w ill ta ke dat a fr om the SI pi n an d s tor e it in one of t he d ata buffers. If
the end of the buffer is reached, the device will wrap around back to the beginning of the
buffer. When there is a low-to-high transition on the CS
selected pag e in main m emory t o all 1s and the n progr am the da ta sto red in the buffer
into the specified page in the main memory. Both the erase and the programming of the
page are internally self-timed and should take place in a maximum of time t
this time, the status register will indicate that the part is busy.

Additional Commands MAIN MEMORY PAGE TO BUFFER TRANSFER: A page of data can be transferred

from the main memory t o either buffer 1 or buffer 2. To sta rt the operation, an 8-bit
opcode, 53H for buffer 1 and 55H for buffer 2, must be followed by the two reserved bits,
12 address bits (PA11 - PA0) which specify the page in main memory that is to be trans­ferred, and ten don ’t care bits. Th e CS
load the opcode, the address bits, and the don’t care bits from the SI pin. The transfer of
the page of data from the main memory to the buffer will begin when the CS
tions from a low to a high state. During the transfer of a page of data (t
register can be read to determine whether the transfer has been completed or not.

pin must be low while tog gling the SCK pi n to

pin, the part will first erase the

. During

EP

pin transi-

), the sta tus

XFR

MAIN MEMORY PAGE TO BUFFER COMPARE: A page of data in main memory can
be compared to the data in buffer 1 or buffer 2. To initiate the operation, an 8-bit opcode,
60H for buffer 1 and 61H for buffer 2, mus t be foll owed by 24 address bits consis ting of
the two reserved bits, 12 ad dress bits (P A11 - PA0 ) which specify the page in the mai n
memory that is to be compared to the buffer, and ten don’t care bits. The CS

pin must be
low while toggling the SCK pin to load the opcode, t he address bi ts, and th e don’t ca re
bits from the SI pin. On the low-to-high transition of the CS

pin, the 528 bytes in the
selected main me mory pa ge w il l b e compared with the 528 by tes i n b uffe r 1 or buffer 2.
During this time (t

), the statu s reg iste r wil l indi cate that the part is b usy . On c ompl e-

XFR

tion of the compare operation, bit 6 of the status register is updated with the result of the
compare.

AUT O PAG E RE WR IT E: This mode is only needed if multiple bytes within a page or
multiple pages of data are mod ified in a random fashion . This mode is a comb ina tion of
two operations: Main Memory Page to Buffer Transfer and Buffer to Main Memory Page
Program with Built-in Er as e. A pa ge o f dat a is fi rst tr an sf er red fr om the m ain mem or y to
buffer 1 or buffer 2, and then the same data (from buffer 1 or buffer 2) is programmed
back into its original page of main memory. To start the rewrite operation, an 8-bit
opcode, 58H for buffer 1 or 5 9H for buffer 2, must be followe d by the two r eserv ed bits,
12 address bits (PA11 - PA0) that specify the page in main memory to be rewritten, and
ten additional don’t care bits. When a low-to-hi gh transition oc curs on the CS

pin, the
part will first transfer data from the page in main memory to a buffer and then program
the data from the buffer back into same page of main memory. The operation is inter­nally self-timed and s hould take place in a ma ximum time of t

. During this time, the

EP

status register will indicate that the part is busy.

2224E–DFLSH–10/02

7

If a sector is programmed or reprogrammed sequentiall y page-by-pa ge, then the pr o­gramming algorithm shown in Figure 1 on page 26 is recommended. Otherwise, if
multiple bytes in a page or several pages are programmed randomly in a sector, then
the programming alg orithm s hown i n Fig ure 2 on page 27 is r ecom mended. Each page
within a sector must be updated/rewritten at least once within every 10,000 cumulative
page erase/program operations in that sector.

Operation Mode Summary

The modes described can be separated into two groups – modes which make use of the
Flash memory array (Group A) and modes which do not make use of the Flash memory
array (Group B).

Group A modes consist of:

1. Main Memory Page Read

2. Main Memory Page to Buffer 1 (or 2) Transfer

3. Main Memory Page to Buffer 1 (or 2) Compare

4. Buffer 1 (or 2) to Main Memory Page Program with Built-in Erase

5. Buffer 1 (or 2) to Main Memory Page Program without Built-in Erase

6. Page Erase

7. Block Erase

8. Main Memory Page Program through Buffer

9. Auto Page Rewrite
Group B modes consist of:

1. Buffer 1 (or 2) Read

2. Buffer 1 (or 2) Write

3. Status Register Read
If a Group A mode is in pr ogress (n ot fully completed) then another mo de in Group A

should not be started. However, during this time in which a Gr oup A mode is in
progress, modes in Group B can be started.

This gives the Serial DataFlash the ability to virtually accommodate a continuous data
stream. While data is being programmed into main memory from buffer 1, data can be
loaded into b uffer 2 (or v ice ver sa). S ee appl icatio n note AN-4 (“Using Atmel ’s Ser ial
DataFlash”) for more details.

Pin Descriptions SERIAL INPUT (SI): The SI pin is an input-only pin and is used to shift data into the

device. The SI pin is used for all data input including opcodes and address sequences.
SERIAL OUTPUT (SO): The SO pin is an output-only pin and is used to shift data out

from the device.
SERIAL CLOCK (SCK): The SCK pin is an input-only pin and is used to control the flow

of data to and fr om the Da taFlas h. Data is alw ays cloc ked in to the de vice on the risi ng
edge of SCK and clocked out of the device on the falling edge of SCK.

CHIP SELECT (CS

device is not selected, data will not be accepted on the SI pin, and the SO pin will
remain in a high-impedance state. A high-to-low transition on the CS
start an operation, and a low-to-high transition on the CS
operation.

8

AT45DB161B

): The DataFlash is selected when the CS pin is low. When the

pin is required to

pin is required to end an

2224E–DFLSH–10/02

AT45DB161B

WRITE PROTECT: If the WP pin is held low, the first 25 6 page s of the main memo ry

cannot be reprogrammed. T he on ly way to repro gram the first 256 pages is to first dr ive
the protect pin high and the n use the program co mmands previo usly mentio ned. The

pin is internally pulled hi gh; ther efore , connecti on of the WP pin is not necessary if

WP
this pin and feature wi ll not be util ized . Howeve r, it is reco mmende d that th e WP
driven high externally whenever possible.

RESET: A low state on the reset pin (RESET) will terminate the operation in progress
and reset the interna l state machi ne to a n id le sta te. Th e device will r emai n in the reset
condition as long as a low level is present on the RESET
resume once the RESET

The device incorporates an internal power-on reset circuit, so there are no restrictions
on the RESET pin during power-on sequences. The RESET pin is also internally pulled
high; therefore, conne ct ion of th e RE SE T
not be utilized. However, it is recommended that the RESET
nally whenever possible.

READY/BUSY: This open drain output pin will be dr iven low w hen the dev ice is bus y in
an internally self-timed operation. This pin, which is normally in a high state (through

W external pull-up resistor), will be pulled low during programming operations, com-

a1k
pare operations, and during page-to-buffer transfers.

pin is brought back to a high level.

pin is not necessary if thi s pi n a nd fe atur e w ill

pin. Normal operation can

pin be driven high exter-

pin be

The busy status indicates that the Flash memory array and one of the buffers cannot be
accessed; read and write operations to the other buffer can still be performed.

Power-on/Reset State When power is first applied to the device, or when recovering from a reset condition, the

device will defau lt to S PI Mode 3. In add ition, th e SO pin will be i n a high -impedanc e
state, and a high-to -low tran sition on the CS
tion. The SPI mode wil l be automatically sel ected on every falli ng edge of CS
sampling the inactive clock state.

pin will be required to start a valid instruc-

by

2224E–DFLSH–10/02

9

Table 1. Read Commands

Command SCK Mode Opcode

Continuous Array Read

Main Memory Page Read

Buffer 1 Read

Buffer 2 Read

Status Register Read

Inactive Clock Polarity Low or High 68H
SPI Mode 0 or 3 E8H
Inactive Clock Polarity Low or High 52H
SPI Mode 0 or 3 D2H
Inactive Clock Polarity Low or High 54H
SPI Mode 0 or 3 D4H
Inactive Clock Polarity Low or High 56H
SPI Mode 0 or 3 D6H
Inactive Clock Polarity Low or High 57H
SPI Mode 0 or 3 D7H

Table 2. Program and Erase Commands

Command SCK Mode Opcode

Buffer 1 Write Any 84H
Buffer 2 Write Any 87H
Buffer 1 to Main Memory Page Program with Built-in Erase Any 83H
Buffer 2 to Main Memory Page Program with Built-in Erase Any 86H
Buffer 1 to Main Memory Page Program without Built-in Erase Any 88H
Buffer 2 to Main Memory Page Program without Built-in Erase Any 89H
Page Erase Any 81H
Block Erase Any 50H
Main Memory Page Program through Buffer 1 Any 82H
Main Memory Page Program through Buffer 2 Any 85H

Table 3. Additional Commands

Command SCK Mode Opcode

Main Memory Page to Buffer 1 Transfer Any 53H
Main Memory Page to Buffer 2 Transfer Any 55H
Main Memory Page to Buffer 1 Compare Any 60H
Main Memory Page to Buffer 2 Compare Any 61H
Auto Page Rewrite through Buffer 1 Any 58H
Auto Page Rewrite through Buffer 2 Any 59H

Note: In Tables 2 and 3, an SCK mode designation of “Any” denotes any one of the four modes of operation (Inactive Clock Polarity

Low, Inactive Clock Polarity High, SPI Mode 0, or SPI Mode 3).

10

AT45DB161B

2224E–DFLSH–10/02

AT45DB161B

R

d

R

d

PA11PA10PA

PA6PA5PA4PA3PA2PA1PA0BA9BA

BA5BA4BA3BA2BA1BA

Table 4. Detailed Bit-level Addressing Sequence

Address Byte Address Byte Address Byte

Additional

Don’t Care

eserve

Opcode Opcode

50H 01010000r r PPPPPPPPPxxxxxxxxxxxxx N/A
52H 01010010r r PPPPPPPPPPPPBBBBBBBBBB 4 Bytes
53H 01010011r r PPPPPPPPPPPPxxxxxxxxxx N/A
54H 01010100xxxxxxxxxxxxxxBBBBBBBBBB 1 Byte
55H 01010101r r PPPPPPPPPPPPxxxxxxxxxx N/A
56H 01010110xxxxxxxxxxxxxxBBBBBBBBBB 1 Byte
57H 01010111 N/A N/A N/A N/A
58H 01011000r r PPPPPPPPPPPPxxxxxxxxxx N/A
59H 01011001r r PPPPPPPPPPPPxxxxxxxxxx N/A
60H 01100000r r PPPPPPPPPPPPxxxxxxxxxx N/A
61H 01100001r r PPPPPPPPPPPPxxxxxxxxxx N/A
68H 01101000r r PPPPPPPPPPPPBBBBBBBBBB 4 Bytes
81H 10000001r r PPPPPPPPPPPPxxxxxxxxxx N/A
82H 10000010r r PPPPPPPPPPPPBBBBBBBBBB N/A
83H 10000011r r PPPPPPPPPPPPxxxxxxxxxx N/A
84H 10000100xxxxxxxxxxxxxxBBBBBBBBBB N/A
85H 10000101r r PPPPPPPPPPPPBBBBBBBBBB N/A
86H 10000110r r PPPPPPPPPPPPxxxxxxxxxx N/A
87H 10000111xxxxxxxxxxxxxxBBBBBBBBBB N/A
88H 10001000r r PPPPPPPPPPPPxxxxxxxxxx N/A

89H 10001001r r PPPPPPPPPPPPxxxxxxxxxx N/A
D2H 11010010r r PPPPPPPPPPPPBBBBBBBBBB 4 Bytes
D4H 11010100xxxxxxxxxxxxxxBBBBBBBBBB 1 Byte
D6H 11010110xxxxxxxxxxxxxxBBBBBBBBBB 1 Byte
D7H 11010111 N/A N/A N/A N/A
E8H 11101000r r PPPPPPPPPPPPBBBBBBBBBB 4 Bytes

eserve

9

PA8

PA7

8

BA7

BA6

Note: r = Reserved Bit

P = Page Address Bit
B = Byte/Buffer Address Bit
x = Don’t Care

0

Bytes

Required

11

2224E–DFLSH–10/02

Absolute Maximum Ratings*

Temperature under Bias................................ -55°C to +125°C

Storage Temperature.....................................-65°C to +150°C

All Input Voltages
(including NC Pins)

with Respect to Ground...................................-0.6V to +6.25V

All Output Voltages

with Respect to Ground.............................-0.6V to V

+ 0.6V

CC

*NOTICE: Stresses beyond those listed under “Absolute

Maximum Ratings” may cause permanent dam­age to the dev ice . This i s a stress r at ing onl y and
functional operati on of the de vic e at these or an y
other conditions beyond those indicated in the
operational sections of this specification is not
implied. Exposure to absolute maximum rating
conditions for extended periods may affect
device reliability.

DC and AC Operating Range

AT45DB161B (2.5V Version) AT45DB161B

Com. 0°C to 70°C0°C to 70°C

Operating Temperature (Case)

Ind. – -40°C to 85°C

V

Power Supply

CC

(1)

2.5V to 3.6V 2.7V to 3.6V

Note: 1. After power is applied and VCC is at the minimum specified datasheet value, the system should wait 20 ms before an opera-

tional mode is started.

DC Characteristics

Symbol Parameter Condition Min Typ Max Units

I

SB

Standby Current CS, RESET, WP = VCC, all inputs

210µA

at CMOS levels

(1)

I

I

CC1

CC2

Active Current, Read
Operation

Active Current,

f = 20 MHz; I
V

= 3.6V

CC

= 0 mA;

OUT

410mA

VCC = 3.6V 15 35 mA

Program/Erase Operation

I

LI

I

LO

V

IL

V

IH

V

OL

V

OH

Note: 1. I

Input Load Current VIN = CMOS levels 1 µA
Output Leakage Current V

= CMOS levels 1 µA

I/O

Input Low Voltage 0.6 V
Input High Voltage 2.0 V
Output Low Voltage IOL = 1.6 mA; VCC = 2.7V 0.4 V
Output High Voltage IOH = -100 µA VCC - 0.2V V

during a buffer re ad is 20mA maximum.

cc1

12

AT45DB161B

2224E–DFLSH–10/02

AC Characteristics

AT45DB161B

AT45DB161B

(2.5V Version) AT45DB161B

Symbol Parameter

f
f
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t

SCK

CAR

WH

WL

CS

CSS

CSH

CSB

SU

H

HO

DIS

V

XFR

EP

P

PE

BE

RST

REC

SCK Frequency 15 20 MHz
SCK Frequency for Continuous Array Read 15 20 MHz
SCK High Time 30 22 ns
SCK Low Time 30 22 ns
Minimum CS High Ti me 250 250 ns
CS Setup Time 250 250 ns
CS Hold Time 250 250 ns
CS High to RDY/BUSY Low 200 200 ns
Data In Setup Time 10 5 ns
Data In Hold Time 15 10 ns
Output Hold Time 0 0 ns
Output Disable Time 20 18 ns
Output Valid 25 20 ns
Page to Buffer Transfer/Compare Time 300 250 µs
Page Erase and Programming Time 20 20 ms
Page Programming Ti me 14 14 ms
Page Erase Time 8 8 ms
Block Erase Time 12 12 ms
RESET Pulse Width 10 10 µs
RESET Recovery Time 1 1 µs

UnitsMin Max Min Max

2224E–DFLSH–10/02

13

Input Test Waveforms and Measurement Levels

AC

DRIVING

LEVELS

tR, tF < 3 ns (10% to 90%)

2.4V

0.45V

2.0

0.8

Output T est Load

DEVICE
UNDER

TEST

30 pF

AC
MEASUREMENT
LEVEL

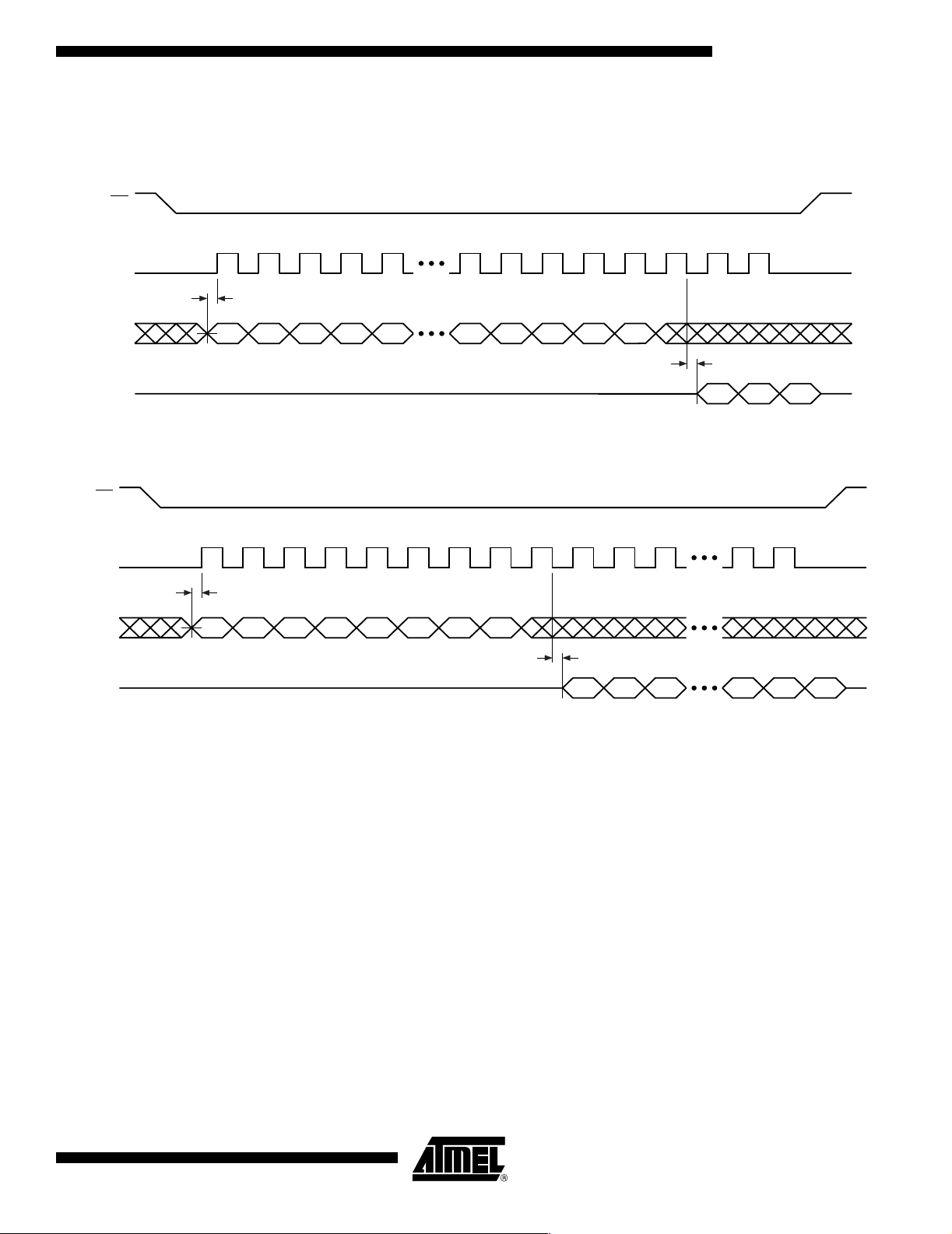

AC Waveforms

Two different timing diagrams are shown below. Waveform 1 shows the SCK signal
being low when CS
nal being high when CS

makes a high-to-low transition, and Waveform 2 shows the SCK sig-

makes a high-to-low transition. Both waveforms show valid
timing diagrams. The setup and hold times for the SI signal are referenced to the low-to­high transition on the SCK signal.

Waveform 1 shows timing that is also compatible with SPI Mode 0, and Waveform 2
shows timing that is compatible with SPI Mode 3.

Waveform 1 – Inactive Clock Polarity Low and SPI Mode 0

CS

SCK

HIGH IMPEDANCE

SO

SI

VALID IN

t

WH

t

CSS

t

SU

t

WL

t

V

t

H

t

HO

VALID OUT

Waveform 2 – Inactive Clock Polarity High and SPI Mode 3

CS

t

CSH

t

CS

t

DIS

HIGH IMPEDANCE

t

CS

14

t

CSS

SCK

HIGH Z

SO

SI

AT45DB161B

t

WL

t

V

t

SU

VALID OUT

VALID IN

t

WH

t

HO

t

H

t

CSH

t

DIS

HIGH IMPEDANCE

2224E–DFLSH–10/02

Reset Timing (Inactive Clock Polarity Low Shown)

CS

SCK

RESET

t

RST

t

REC

AT45DB161B

t

CSS

SO

HIGH IMPEDANCE HIGH IMPEDANCE

SI

Note: The CS signal should be in the high state before the RESET signal is deasserted.

Command Sequence for Read/Write Operations (except Status Register Read)

SI CMD 8 bits

MSB

Reserved for

larger densities

Page Address

(PA11-PA0)

Notes: 1. “r” designates bits reserved for larger densities.

2. It is recommended that “r” be a logical “0” for densities of 16M bits or smaller.

3. For densities larger than 16M bits, the “r” bits become the most significant Page Address bit for the appropriate density.

8 bits

8 bits

Byte/Buffer Address

(BA9-BA0/BFA9-BFA0)

LSBr r X X X X X X X X X X X X X X X X X X X X X X

2224E–DFLSH–10/02

15

Write Operations The following block diagram and waveforms illustrate the various write sequences

y

available.

FLASH MEMORY ARRAY

PAGE (528 BYTES)

BUFFER 1 TO

MAIN MEMORY

PAGE PROGRAM

BUFFER 1

WRITE

THROUGH BUFFER 2

MAIN MEMORY PAGE
PROGRAM THROUGH
BUFFER 1

I/O INTERFACE

Main Memory Page Program through Buffers

CS

SI

CMD n n+1 Last Byte

r r , PA11-6

PA5-0, BFA9-8

BFA7-0

Buffer Write

CS

MAIN MEMORY

PAGE PROGRAM

SI

BUFFER 2 TO
MAIN MEMORY
PAGE PROGRAM

BUFFER 2 (528 BYTES)BUFFER 1 (528 BYTES)

BUFFER 2
WRITE

· Completes writing into selected buffer

· Starts self-timed erase/program operation

· Completes writing into selected buffer

SI

CMD X

X···X, BFA9-8

BFA7-0

n

n+1

Last Byte

Buffer to Main Memory Page Program (Data from Buffer Programmed into Flash Page)

Starts self-timed erase/program operation

CS

Each transition represents

8 bits and 8 clock c

16

AT45DB161B

cles

SI

CMD PA5-0, XX X

r r , PA11-6

n = 1st byte read
n+1 = 2nd byte read

2224E–DFLSH–10/02

AT45DB161B

y

Read Operations The following block diagram and waveforms illustrate the various r ead sequences

available.

FLASH MEMORY ARRAY

PAGE (528 BYTES)

MAIN MEMORY

PAGE TO

BUFFER 1

MAIN MEMORY
PAGE TO
BUFFER 2

BUFFER 2 (528 BYTES)BUFFER 1 (528 BYTES)

BUFFER 1

READ

MAIN MEMORY PAGE READ

BUFFER 2
READ

I/O INTERFACE

SO

Main Memory Page Read

CS

XXX

SO

SI

CMD

r r , PA11-6

PA5-0, BA9-8

BA7-0 X

Main Memory Page to Buffer Transfer (Data from Flash Page Read into Buffer)

Starts reading page data into buffer

CS

n n+1

Buffer Read

CS

SO

Each transition represents

8 bits and 8 clock c

2224E–DFLSH–10/02

SI

cles

SO

SI

CMD

CMD

X

r r , PA11-6

X···X, BFA9-8

PA5-0, XX X

BFA7-0

X

n n+1

n = 1st byte read
n+1 = 2nd byte read

17

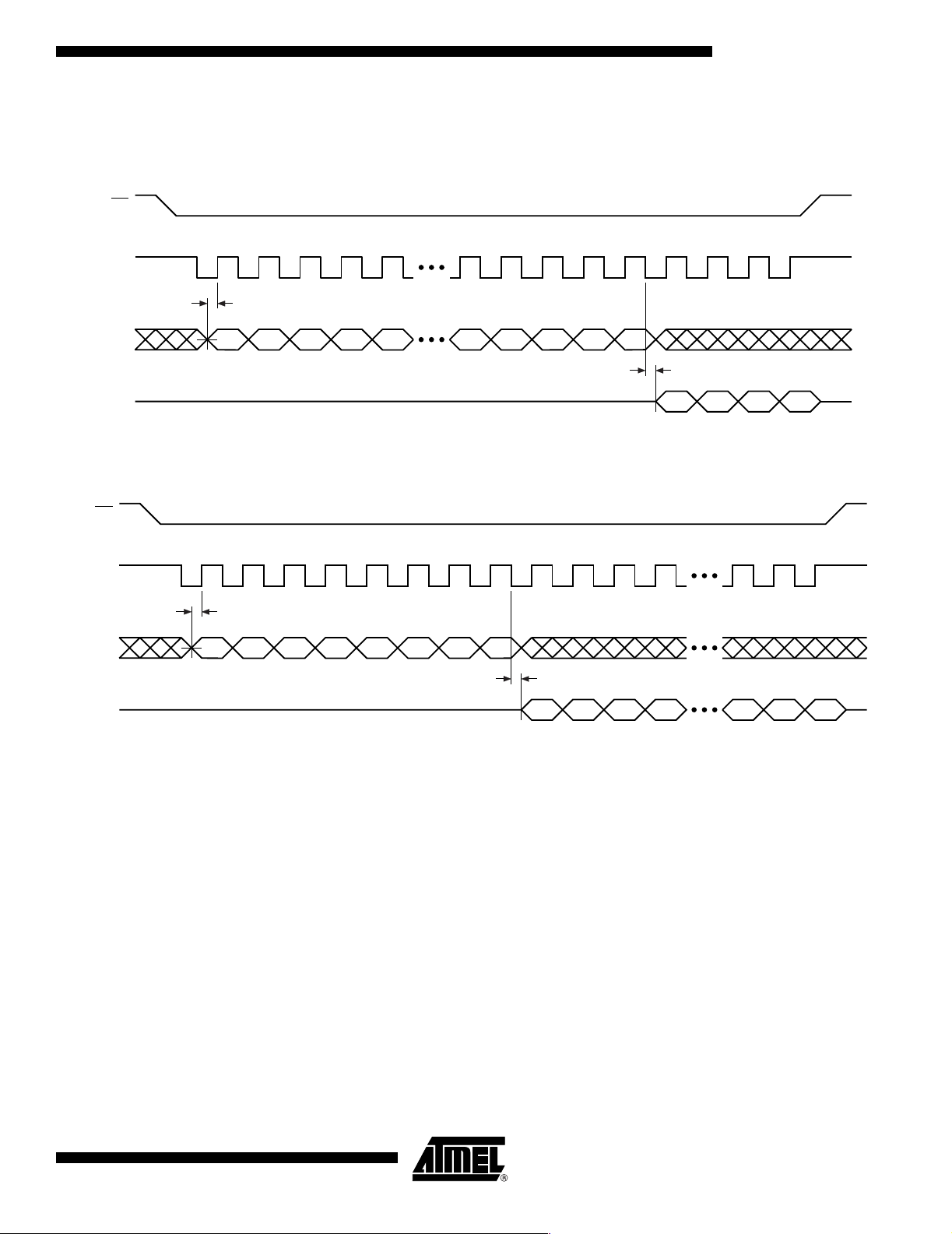

Detailed Bit-level Read Timing – Inactive Clock Polarity Low

Continuous Array Read (Opcode: 68H)

CS

SCK

SI

SO

t

SU

12 63 64 65 66 67 68

1XX

0

t

V

HIGH-IMPEDANCE

Main Memory Page Read (Opcode: 52H)

CS

SCK

SI

t

SU

12345 60 61 62 63 64 65 66 67

COMMAND OPCODE

0

10

1

0

DATA OUT

D7D

D

6

XXX

LSB MSB

D

5

D1D0D7D6D

2

BIT 4223

OF

PAGE n

XX

PAGE n+1

BIT 0

OF

5

SO

HIGH-IMPEDANCE

t

V

DATA OUT

D

7

MSB

D

D

6

5

18

AT45DB161B

2224E–DFLSH–10/02

AT45DB161B

Detailed Bit-level Read Timing – Inactive Clock Po larity Low (Continued)

Buffer Read (Opcode: 54H or 56H)

CS

SCK

SO

SI

t

SU

12345 36 37 38 39 40 41 42 43

COMMAND OPCODE

0

10

1

0

HIGH-IMPEDANCE

Status Register Read (Opcode: 57H)

CS

SCK

SI

SO

t

SU

12345 7891011 12 16 17

COMMAND OPCODE

0

10

1

0

HIGH-IMPEDANCE

XXX

6

111

t

XX

t

V

V

STATUS REGISTER OUTPUT

D

D

7

MSB

D

6

5

DATA OUT

D

7

MSB

D

1

D

6

D

LSB MSB

D

5

D

0

7

2224E–DFLSH–10/02

19

Detailed Bit-level Read Timing – Inactive Clock Polarity High

Continuous Array Read (Opcode: 68H)

CS

SCK

SI

SO

12 63 64 65 66 67

t

SU

1XXX

0

t

V

HIGH-IMPEDANCE

Main Memory Page Read (Opcode: 52H)

CS

SCK

SI

12345 61 62 63 64 65 66 67

t

SU

COMMAND OPCODE

1

0

0

10

DATA OUT

D7D6D

XXX

LSB MSB

D

5

D1D0D7D6D

2

BIT 4223

OF

PAGE n

XX

PAGE n+1

BIT 0

OF

5

68

SO

HIGH-IMPEDANCE

t

V

D

MSB

7

DATA OUT

D

D

6

5

D

4

20

AT45DB161B

2224E–DFLSH–10/02

AT45DB161B

Detailed Bit-level Read Timing – Inactive Clock Polarity High (Continued)

Buffer Read (Opcode: 54H or 56H)

CS

SCK

SI

SO

12345 37 38 39 40 41 42 43

t

SU

COMMAND OPCODE

1

0

0

10

HIGH-IMPEDANCE

Status Register Read (Opcode: 57H)

CS

SCK

SI

SO

12345 7891011 12 17 18

t

SU

0

COMMAND OPCODE

0

10

1

HIGH-IMPEDANCE

XXX

6

111

t

44

XX

t

V

V

D

MSB

STATUS REGISTER OUTPUT

D

7

D

6

5

MSB

D

D

4

DATA OUT

D

7

D

6

D

0

LSB MSB

D

5

4

D

D

7

6

2224E–DFLSH–10/02

21

Detailed Bit-level Read Timing – SPI Mode 0

Continuous Array Read (Opcode: E8H)

CS

SCK

SI

SO

t

SU

12 62 63 64 65 66 67

1XXX

1

t

V

HIGH-IMPEDANCE

Main Memory Page Read (Opcode: D2H)

CS

SCK

SI

t

SU

12345 60 61 62 63 64 65 66 67

COMMAND OPCODE

0

10

1

1

DATA OUT

D7D6D

XXX

LSB MSB

D

5

D1D0D7D

2

BIT 4223

OF

PAGE n

XX

BIT 0

OF

PAGE n+1

D

6

5

22

SO

AT45DB161B

HIGH-IMPEDANCE

t

V

D

7

MSB

DATA OUT

D

D

6

5

D

4

2224E–DFLSH–10/02

Detailed Bit-level Read Timing – SPI Mode 0 (Continued)

Buffer Read (Opcode: D4H or D6H)

CS

AT45DB161B

SCK

t

SU

12345 36 37 38 39 40 41 42 43

COMMAND OPCODE

SI

SO

1

1

10

0

HIGH-IMPEDANCE

Status Register Read (Opcode: D7H)

CS

SCK

SI

SO

t

SU

12345 7891011 12 16 17

COMMAND OPCODE

0

10

1

1

HIGH-IMPEDANCE

XXX

6

111

t

V

D

MSB

7

XX

t

V

D

7

MSB

DATA OUT

D

6

STATUS REGISTER OUTPUT

D

6

D

D

4

5

D

D

5

1

D

4

D

D

0

LSB MSB

7

2224E–DFLSH–10/02

23

Detailed Bit-level Read Timing – SPI Mode 3

Continuous Array Read (Opcode: E8H)

CS

SCK

SI

SO

12 63 64 65 66 67

t

SU

1XXX

1

t

V

HIGH-IMPEDANCE

Main Memory Page Read (Opcode: D2H)

CS

SCK

SI

12345 61 62 63 64 65 66 67

t

SU

COMMAND OPCODE

0

10

1

1

DATA OUT

D7D6D

XXX

LSB MSB

D

5

D1D0D7D6D

2

BIT 4223

OF

PAGE n

XX

PAGE n+1

BIT 0

OF

5

68

24

SO

AT45DB161B

HIGH-IMPEDANCE

t

V

D

MSB

7

DATA OUT

D

D

6

5

D

4

2224E–DFLSH–10/02

Detailed Bit-level Read Timing – SPI Mode 3 (Continued)

Buffer Read (Opcode: D4H or D6H)

CS

AT45DB161B

SCK

12345 37 38 39 40 41 42 43

t

SU

COMMAND OPCODE

SI

SO

1

1

10

0

HIGH-IMPEDANCE

Status Register Read (Opcode: D7H)

CS

SCK

SI

SO

12345 7891011 12 17 18

t

SU

COMMAND OPCODE

0

10

1

1

HIGH-IMPEDANCE

XXX

6

111

t

V

D

MSB

XX

t

V

D

7

MSB

STATUS REGISTER OUTPUT

D

D

7

6

D

5

4

DATA OUT

D

D

6

5

D

0

LSB MSB

44

D

4

D

D

7

6

2224E–DFLSH–10/02

25

Figure 1. Algorithm for Sequentially Programming or Reprogramming the Entire Array

START

provide address

and data

BUFFER WRITE

(84H, 87H)

MAIN MEMORY PAGE PROGRAM

THROUGH BUFFER

(82H, 85H)

BUFFER TO MAIN

MEMORY PAGE PROGRAM

(83H, 86H)

END

Notes: 1. This type of algorithm is used for applications in which the entire array is programmed sequentially, filling the array page-by-

page.

2. A page can be written using either a Main Memory Page Program operation or a Buffer Write operation followed by a Buffer
to Main Memory Page Program operation.

3. The algorithm above shows the programming of a single page. The algorithm will be repeated sequentially for each page
within the entire array.

26

AT45DB161B

2224E–DFLSH–10/02

Figure 2. Algorithm for Randomly Modifying Data

AT45DB161B

START

provide address of

page to modify

TO BUFFER TRANSFER

MAIN MEMORY PAGE PROGRAM

THROUGH BUFFER

(82H, 85H)

AUTO PAGE REWRITE

MAIN MEMORY PAGE

(53H, 55H)

(58H, 59H)

INCREMENT PAGE

ADDRESS POINTER

If planning to modify multiple
bytes currently stored within
a page of the Flash array

BUFFER WRITE

(84H, 87H)

BUFFER TO MAIN

MEMORY PAGE PROGRAM

(83H, 86H)

(2)

(2)

END

Notes: 1. To preserve data integrity, each page of a DataFlash sector must be updated/rewritten at least once within every 10,000

cumulative page erase/progr am ope rations.

2. A Page Address Pointer must be maintained to indicate which page is to be rewritten. The Auto Page Rewrite command
must use the address specified by the Page Address Pointer.

3. Other algorithms can be used to rewrite portions of the Flash array. Low-power applications may choose to wait until 10,000
cumulative page erase/program operations have accumulated before rewriting all pages of the sector. See application note
AN-4 (“Using Atmel’s Serial DataFlash”) for more details.

Sector Addressing

PA11 PA10 PA9 PA8 PA7 PA6 PA5 PA4 PA3 Sector

0 0 0 000000 0
0 0 0 0XXXXX 1
0 0 0 1XXXXX 2
0 0 1 0XXXXX 3

• • • •••••• •

• • • •••••• •

• • • •••••• •
1 1 0 0XXXXX 13
1 1 0 1XXXXX 14
1 1 1 0XXXXX 15
1 1 1 1XXXXX 16

2224E–DFLSH–10/02

27

Orderi ng Information

f

SCK

(MHz)

15 10 0.01 AT45DB161B-CC-2.5

20 10 0.01 AT45DB161B-CC

20 10 0.01 AT45DB161B-CI

ICC (mA)

Ordering Code Package Operation RangeActive Standby

AT45DB161B-RC-2.5
AT45DB161B-TC-2.5

AT45DB161B-RC
AT45DB161B-TC

AT45DB161B-RI
AT45DB161B-TI

24C1
28R
28T

24C1
28R
28T

24C1
28R
28T

Commercial

(0°C to 70°C)

2.5V to 3.6V
Commercial

(0°C to 70°C)

Industrial

(-40°C to 85°C)

Package Type

24C1 24-ball (5 x 5 Array), Plastic Chip-scale Ball Grid Array (CBGA)
28R 28-lead, 0.330" Wide, Plastic Gull Wing Small Outline Package (SOIC)
28T 28-lead, Plastic Thin Small Outline Package (TSOP)

28

AT45DB161B

2224E–DFLSH–10/02

Packaging Information

24C1 – CBGA

Dimensions in Millimeters and (Inches).
Controlling dimension: Millimeters.

8.10(0.319)

7.90(0.311)

AT45DB161B

6.10(0.240)

5.90(0.232)

A1 ID

SIDE VIEW

1.00 (0.039) REF

1.00 (0.0394) BSC

NON-ACCUMULATIVE

1.00 (0.0394) BSC

NON-ACCUMULATIVE

54321

A

B

C

D

E

TOP VIEW

4.0 (0.157)

BOTTOM VIEW

0.30 (0.012)MIN

1.40 (0.055) MAX

2.00 (0.079) REF

4.0 (0.157)

0.46 (0.018)
DIA BALL TYP

2325 Orchard Parkway

R

San Jose, CA 95131

2224E–DFLSH–10/02

TITLE

24C1, 24-ball (5 x 5 Array), 6 x 8 x 1.4 mm Body, 1.0 mm Ball

Pitch Chip-scale Ball Grid Array Package (CBGA)

DRAWING NO.

24C1

04/11/01

REV.

A

29

28R – SOIC

B

E

1

PIN 1

e

D

A

1

0º ~ 8º

C

L

Note: 1. Dimensions D and E1 do not include mold Flash
or protrusion. Mold Flash or protrusion shall not exceed

0.25 mm (0.010").

E

A

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

A 2.39 – 2.79
A1 0.002 – 0.014
D 18.00 – 18.50 Note 1
E 11.70 – 12.50
E1 8.59 – 8.79 Note 1
B 0.356 – 0.508
C 0.203 – 0.305
L 0.94 – 1.27
e 1.27 TYP

MIN

NOM

MAX

NOTE

30

2325 Orchard Parkway

R

San Jose, CA 95131

AT45DB161B

TITLE
28R, 28-lead, 0.330" Body Width,

Plastic Gull Wing Small Outline (SOIC)

10/08/2002

DRAWING NO.

28R

2224E–DFLSH–10/02

REV.

B

28T – TSOP

AT45DB161B

PIN 1

Pin 1 Identifier

D1

D

e

E

b

A2

A

A1

Notes: 1. This package conforms to JEDEC reference MO-183.

2. Dimensions D1 and E do not include mold protrusion. Allowable
protrusion on E is 0.15 mm per side and on D1 is 0.25 mm per side.

3. Lead coplanarity is 0.10 mm maximum.

0º ~ 5º

SEATING PLANE

SYMBOL

c

L

L1

GAGE PLANE

COMMON DIMENSIONS

(Unit of Measure = mm)

MIN

A – – 1.20
A1 0.05 – 0.15
A2 0.90 1.00 1.05
D 13.20 13.40 13.60
D1 11.70 11.80 11.90 Note 2
E 7.90 8.00 8.10 Note 2
L 0.50 0.60 0.70

L1 0.25 BASIC

b 0.17 0.22 0.27
c 0.10 – 0.21
e 0.55 BASIC

NOM

MAX

NOTE

2325 Orchard Parkway

R

San Jose, CA 95131

2224E–DFLSH–10/02

TITLE

28T, 28-lead (8 x 13.4 mm) Plastic Thin Small Outline

Package, Type I (TSOP)

DRAWING NO.

28T

10/18/01

REV.

B

31

Atmel Headquarters Atmel Operations

Corporate Headquarters

2325 Orchard Parkway
San Jose, CA 95131
TEL [phone]
FAX [phone]

Europe

Atmel Sarl
Route des Arsenaux 41
Case Postale 80
CH-1705 Fribourg
Switzerland
TEL [phone]
FAX [phone]

Asia

Room 1219
Chinachem Gol den P laza
77 Mody Road Tsimshatsui
East Kowloon
Hong Kong
TEL [phone]
FAX [phone]

Japan

9F, Tonetsu Shinkawa Bldg.
1-24-8 Shin kawa
Chuo-ku, Tokyo 104-0033
Japan
TEL [phone]
FAX [phone]

Memory

2325 Orchard Parkway
San Jose, CA 95131
TEL [phone]
FAX [phone]

Microcontrollers

2325 Orchard Parkway
San Jose, CA 95131
TEL [phone]
FAX [phone]

La Chantrerie
BP 70602
44306 Nantes Cedex 3, France
TEL [phone]
FAX [phone]

ASIC/ASSP/Smart Cards

Zone Industrielle
13106 Rousset Cedex, France
TEL [phone]
FAX [phone]

1150 East Cheyenne Mtn. Blvd.
Colorado Springs, CO 80906
TEL [phone]
FAX [phone]

Scottish Enterprise Technology Park
Maxwell Building
East Kilbride G75 0QR, Scotland
TEL [phone]
FAX [phone]

RF/Automotive

Theresienstrasse 2
Postfach 3535
74025 Heilbro nn, Ge rmany
TEL [phone]
FAX [phone]

1150 East Cheyenne Mtn. Blvd.
Colorado Springs, CO 80906
TEL [phone]
FAX [phone]

Biometrics/Imaging/Hi-Rel MPU/
High Speed Converters/RF Datacom

Avenue de Rochepleine
BP 123
38521 Saint-Egreve Cedex, France
TEL [phone]
FAX [phone]

e-mail

[e-mail]

Web Site

http://www.atmel.com

© Atmel Corporation 2002.

Atmel Corporation makes no warranty for the use of its products, other than those expressly contained in the Company’s standard warranty
which is detailed in Atmel’s Ter ms and Conditions located on the Company’s web site. The Company assumes no responsibility for any errors
which may appear in this document, reserves the right to change devices or specifications detailed herein at any time without notice, and does
not make any commitment to update the information contained herein. No licenses to patents or other intellectual property of Atmel are granted
by the Company in connection with the sale of Atmel products, expressly or by implication. Atmel’s products are not authorized for use as critical
components in life support devices or systems.

Atmel® and DataFlash® are the registered trademarks of Atmel.
Other terms and product names may be the trademarks of others

Printed on recycled paper.

2224E–DFLSH–10/02

/xM
