Features

•

Fast Read Access Time - 70 ns

•

Dual Voltage Range Operation

– Low Voltage Power Supply Range, 3. 0V to 3.6V
– or Standard 5V ± 10% Supply Range

•

Compatible with JEDEC Standard AT27C010

•

Low Power CMOS Operation

– 20 µA max. (less than 1 µA typical) Standby for V

CC

= 3.6V

– 29 mW max. Active at 5 MHz for VCC = 3.6V

•

JEDEC Standard Packages

– 32-Lead PLCC
– 32-Lead TSOP (8 x 20 mm)
– 32-Lead VSOP (8 x 14 mm)

•

High Reliability CMOS Technology

– 2,000V ESD Protection
– 200 mA Latchup Immunity

•

Rapid™ Programming Algorithm - 100 µs/b y te (typic al)

•

CMOS and TTL Compatible Inputs and Outputs

– JEDEC Standard for LVTTL

•

Integrated Product Identification Code

•

Commercial and Industrial Temperature Ranges

Description

The AT27LV010A is a high performance, low power, low voltage 1,048,576-bit one­time programmable read on ly mem ory (O TP EPRO M) organ ized as 12 8K by 8 bi ts. It
requires only one supply in t he range of 3. 0V to 3. 6V in normal r ead mo de oper ation ,
making it ideal for fast, portable systems using battery power.

(continued)

1-Megabit
(128K x 8)
Low Voltage
OTP EPROM

AT27LV010A

Pin Configurations

Pin Name Function

A0 - A16 Addresses
O0 - O7 Outputs
CE
OE
PGM Program Strobe
NC No Connect

PLCC Top View

A12
432

5

A7

6

A6

7

A5

8

A4

9

A3

10

A2

11

A1

12

A0

13

O0

14151617181920

O1

A15

O2

A16

VPP
1

O3O4O5

GND

Chip Enable
Output En able

VCC

PGM

NC

323130

29

A14

28

A13

27

A8

26

A9

25

A11

24

OE

23

A10

22

CE

21

O7

O6

A11

A13
A14

NC

PGM

VCC
VPP

A16
A15
A12

TSOP/VSOP Top View

Type 1

1
2

A9

3

A8

4
5
6
7
8
9
10
11
12
13

A7

14

A6

15

A5

16

A4

OE

32

A10

31

CE

30

O7

29

O6

28

O5

27

O4

26

O3

25

GND

24

O2

23

O1

22

O0

21

A0

20

A1

19

A2

18

A3

17

Rev. 0548C–10/98

1

Atmel’s innovative desi gn techniques provide fast sp eeds
that rival 5V parts while keepi ng the lo w power con sump­tion of a 3.3V supply. At V

= 3.0V, any byte c an be

CC

accessed in less than 70 ns. With a typical power dissipa­tion of only 18 mW at 5 MHz and V

= 3.3V, the

CC

AT27LV010A consumes less than one fifth the power of a
standard 5V EPROM. Stan dby mod e su ppl y c urre nt is typ i­cally less than 1 µA at 3.3V.

The AT27LV010A is availa ble in in dus try stan dard J EDE C­approved one-time progr am ma ble (OTP ) pl astic P LCC an d
TSOP packages. Al l devic es featur e two-lin e contro l (CE

) to give designers the flexibility to prevent bus

OE
contention.

The AT27LV010A operating with V

at 3.0V produces TTL

CC

level outputs that are compatible with standard TTL logic
devices operating at V

= 5.0V. The device is also capa-

CC

ble of standard 5-volt operation making it ideally suited for
dual supply range systems or card products that are plug­gable in both 3-volt and 5-volt hosts.

Atmel’s AT27LV010A has additional features to ensure

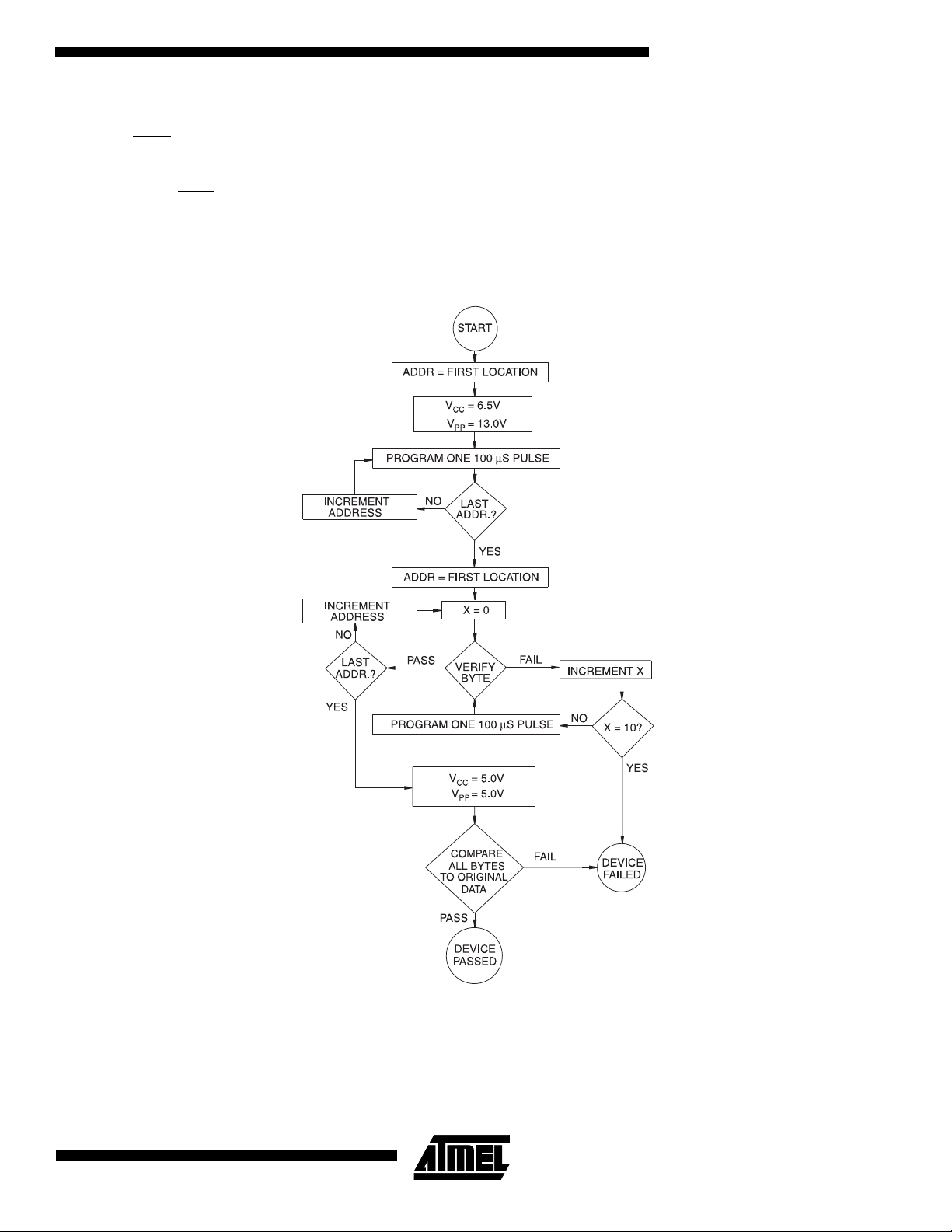

high quality and eff icie nt produc tion use. Th e Rapid™ Pro­gramming Algorithm reduces the time required to program
the part and guarantees reliable programming. Program­ming time is typically only 100 µs/byte. The Inte grated

Product Identific ation Code electr onically identifi es the
device and manufacturer. This feature is used by i ndustry
standard programming equipment to sele ct the prope r pro­gramming algori thms an d voltag es. The AT 27LV01 0A pro­grams exactly the same way as a standard 5V AT27C010
and uses the same programming equipment.

System Considerations

Switching between active and standby conditions via the
Chip Enable pin may produ ce tra ns ien t vo ltag e ex cu rs i ons .

,

Unless accommodated by the system design, these tran­sients may exceed data sheet limits, resulting in device
non-conforman ce. At a mini mum, a 0.1 µF high frequency,
low inherent inductance, ceramic capacitor should be uti­lized for each device. This capacitor should be connected
between the V
close to the device as possible. Additionally, to stabilize the
supply voltage level on printed circuit boards with large
EPROM arrays, a 4.7 µF bulk electrolytic capacitor should
be utilized, again connected between the V
terminals. This capacitor should be positioned as close as
possible to the point where the power supply is connected
to the array.

and Ground terminals of the device, as

CC

and Ground

CC

Block Diagram

2

AT27LV010A

Absolute Maximum Ratings*

Temperature Under Bias.................................. -40°C to +85°C

Storage Temperature..................................... -65°C to +125°C

Voltage on Any Pin with

Respect to Ground .........................................-2.0V to +7.0V

Voltage on A9 with

Respect to Ground ......................................-2.0V to +14.0V

AT27LV010A

*NOTICE: Stresses beyond those listed under “Absolute

Maximum Ratings” may cause permanent dam­age to the de vic e. T his is a stres s r ating o nly an d
functional opera tion of the device at these or any

(1)

(1)

other conditions beyond those indicated in the
operational sections of this specification is not
implied. Exposure to absolute maximum rating
conditions for extended periods may affect
device reli abi li ty

VPP Supply Voltage with

Respect to Ground .......................................-2.0V to +14.0V

(1)

Note: 1. Minimum voltage is -0.6V dc which may undershoot to -2.0V for pulses of less than 20 ns. Maximum output pin voltage is

+ 0.75V dc which may be exceeded if certain precautions are observed (consult application notes) and which may

V

CC

overshoot to +7.0V for pulses of less than 20 ns.

Operating Modes

Mode \ Pin CE OE PGM Ai V

(2)

Read
Output Disable
Standby
Rapid Program
PGM Verify
PGM Inhibit

(2)

(2)

(3)

(3)

(3)

Product Identification

Notes: 1 . X can be V

(3)(5)

or VIH.

IL

V

IL

V

IL

XVIHXXXV

V

IH

V

IL

V

IL

V

IH

V

IL

XX X XV

V

IH

V

IL

XX X VPPV

V

IL

(1)

X

V

IL

V

IH

X

Ai X V

Ai V
Ai V

A9 = V

(4)

H

A0 = VIH or VIL

A1 - A16 = V

IL

2. Read, output disable, and standby modes require, 3.0V ≤ VCC ≤ 3.6V, or 4.5V ≤ VCC ≤ 5.5V.

3. Refer to Programming C haracteri stics. Programming modes require V

= 6.5V.

CC

4. VH = 12.0 ± 0.5V.

5. Two identifier bytes may be selected. All Ai inputs are held low (VIL), except A9 which is set to VH and A0 which is toggle d low
(V

) to select the Manufacturer’s Identification byte and high (VIH) to select the Device Code byte.

IL

PP

PP

PP

XV

V

CC

(2)

CC

(2)

CC

(2)

CC

(3)

V

CC

(3)

V

CC

(3)

CC

(3)

CC

Outputs

D

OUT

High Z
High Z
D

IN

D

OUT

High Z

Identification
Code

3

DC and AC Operating Conditions for Read Operation

AT27LV010A

-70 -90 -12 -15

Operating Temperature
(Case)

Com. 0°C - 70°C 0°C - 70°C 0°C - 70°C 0°C - 70°C
Ind. -40°C - 85°C -40°C - 85°C -40°C - 85°C -40°C - 85°C

3.0V to 3.6V 3.0V to 3.6V 3.0V to 3.6V 3.0V to 3.6V

Power Supply

V

CC

5V ± 10% 5V ± 10% 5V ± 10% 5V ± 10%

DC and Operating Characteristics for Read Operation

Symbol Parameter Condition Min Max Units
VCC = 3.0V to 3.6V

I

LI

I

LO

(2)

I

PP1

I

SB

I

CC

V

IL

V

IH

V

OL

V

OH

V

= 4.5V to 5.5V

CC

I

LI

I

LO

(2)

I

PP1

I

SB

I

CC

V

IL

V

IH

V

OL

V

OH

Notes: 1. VCC must be applied simultaneously with or before VPP, and removed simultaneously with or after VPP.

Input Load Current VIN = 0V to V
Output Leakage Current V

(1)

V

Read/Standby Current VPP = V

PP

(1)

V

Standby Current

CC

= 0V to V

OUT

CC

I

(CMOS), CE = V

SB1

I

(TTL), CE = 2.0 to VCC + 0.5V 100 µA

SB2

VCC Active Current f = 5 MHz, I

CC

CC

CC

= 0 mA, CE = V

OUT

0.3V 20 µA

±

IL

±1 µA
±5 µA

10 µA

8mA
Input Low Voltage -0.6 0.8 V
Input High Voltage 2.0 VCC + 0.5 V
Output Low Voltage IOL = 2.0 mA 0.4 V
Output High Voltage IOH = -2.0 mA 2.4 V

Input Load Current VIN = 0V to V
Output Leakage Current V

(1)

V

Read/Standby Current VPP = V

PP

(1)

V

Standby Current

CC

= 0V to V

OUT

CC

I

(CMOS), CE = VCC ± 0.3V 100 µA

SB1

I

(TTL), CE = 2.0 to VCC + 0.5V 1 mA

SB2

VCC Active Current f = 5 MHz, I

CC

CC

= 0 mA, CE = V

OUT

IL

±1 µA
±5 µA

10 µA

25 mA
Input Low Voltage -0.6 0.8 V
Input High Voltage 2.0 VCC + 0.5 V
Output Low Voltage IOL = 2.1 mA 0.4 V
Output High Voltage IOH = -400 µA2.4V

2. VPP may be connected directly to VCC, except during programming. The supply current would then be the sum of ICC and IPP.

4

AT27LV010A

AC Characteristics for Read Operation

VCC = 3.0V to 3.6V and 4.5V to 5.5V

AT27LV010A

AT27LV010A

-70 -90 -12 -15

Symbol Parameter Condition

t
t
t

t

ACC

CE

OE

DF

(3)

(2)

(2)(3)

(4)(5)

Address to Output Delay CE = OE = V
CE to Output Delay OE = V
OE to Output Delay CE = V

IL

IL

OE or CE High to Output
Float, whiche v er occurred
first

Output Hold from

t

OH

Address, CE

or OE,

whichever occurred first

AC Waveforms for Read Operation

Min Max Min Max Min Max Min Max

IL

70 90 120 150 ns
70 90 120 150 ns
40 50 50 60 ns

35 40 40 50 ns

0000ns

(1)

Units

Notes: 1. Timing measurement references are 0.8V and 2.0V. Input AC drive levels are 0.45V and 2.4V, unless otherwise specified.

2. OE may be delayed up to tCE - tOE after the falling edge of CE without impact on tCE.
may be delayed up to t

3. OE

- tOE after the address is valid without impact on t

ACC

ACC

.

4. This parameter is only sampled and is not 100% tested.

5. Output float is defined as the point when data is no longer driven.

5

Input Test Wavef orms and

Output Test Load

Measurement Level

, tF < 20 ns (10% to 90%)

t

R

Note: CL = 100 pF including
jig capacitance.

Pin Capacitance

f = 1 MHz, T = 25°C

Symbol Ty p Max Units Conditions

C

IN

C

OUT

Note: 1. Typical values for nominal supply voltage. This parameter is only sampled and is not 100% tested.

(1)

48pFV
812pFV

IN

OUT

= 0V

= 0V

6

AT27LV010A

AT27LV010A

Programming Waveforms

(1)

Notes: 1. The Input Timing Reference is 0.8V for VIL and 2.0V for VIH.

2. tOE and t

are characteristics of the device but must be accommodated by the programmer.

DFP

3. When programming the AT27LV010A a 0.1 µF capacitor is required across VPP and ground to suppress spurious voltage

transients.

DC Programming Characteristics

TA = 25 ± 5°C, VCC = 6.5 ± 0.25V, VPP = 13.0 ± 0.25V

Symbol Parameter T est Condit ions

I

LI

V

IL

V

IH

V

OL

V

OH

I

CC2

I

PP2

V

ID

Input Load Current VIN = VIL, V

IH

Input Low Level -0.6 0.8 V
Input High Level 2.0 V
Output Low Voltage IOL = 2.1 mA 0.4 V
Output High Voltage I

= -400 µA2.4 V

OH

VCC Supply Current (Program and Verify) 40 mA
VPP Supply Current CE = PGM = V
A9 Product Identification Voltage 11.5 12.5 V

Limits

UnitsMin Max

10

±

+ 0.5 V

CC

IL

20 mA

A

µ

7

AC Programming Characteristics

TA = 25 ± 5°C, VCC = 6.5 ± 0.25V, VPP = 13.0 ± 0.2V

Symbol Parameter T est Condit ions

Limits

(1)

UnitsMin Max

t

AS

t

CES

t

OES

t

DS

t

AH

t

DH

t

DFP

t

VPS

t

VCS

t

PW

t

OE

t

PRT

Notes: 1. VCC must be applied simultaneously or before V

Address Setup Time
CE Setup Time 2
OE Setup Time 2
Data Setup Time 2
Address Hold Time 0
Data Hold Time 2
OE High to Output Float Delay

(2)

VPP Setup Time 2

Input Rise and Fall Times:

(10% to 90%) 20 ns

Input Pulse Levels:

0.45V to 2.4V

Input Timing Reference Level:

0.8V to 2.0 V

VCC Setup Time 2
PGM Program Pulse Width

(3)

Data Valid from OE 150 ns
V

Pulse Rise Time During

PP

Output Timing Reference Level:

0.8V to 2.0 V

Programming

PP

and removed simultaneously or after VPP.

2. This parameter is only sample d and i s not 1 00% te sted. O utput Float i s defi ned as the po int wh ere dat a is no longe r driv en—

see timing diagram.

3. Program Pulse width tolerance is 100

µsec

5%.

±

Atmel’s 27LV010A Integrated Product Identification Code

2

0 130 ns

95 105

50 ns

(1)

µ

s

µ

s

µ

s

µ

s

µ

s

µ

s

µ

s

µ

s

µ

s

Pins

Codes

Hex

DataA0 O7 O6 O5 O4 O3 O2 O1 O0

Manufacturer 000011110 1E
Device Type 100000101 05

Note: 1. The AT27LV010A has the same Product Identification Code as the AT27C010. Both are programming compatible.

8

AT27LV010A

Rapid Programming Algorithm

A 100 µs PGM pulse width is used to program. The
address is set to the first location. V

is raised to 13.0V. Eac h address i s first program med

V

PP

with one 100 µs PGM
verification / reprogramming loop is executed for each
address. In the event a byte fails to pa ss verificat ion, up to
10 successive 100 µs pulses are applied with a v erifi catio n

pulse without verificat ion. Then a

is raised to 6.5V and

CC

AT27LV010A

after each pulse. If the byte fails to verify after 10 pulses
have been applied, the part is consi dered failed. After the
byte verifies properly, the next address is selected until all
have been checked. V

5.0V. All bytes are read again and compared wi th th e orig i­nal data to determine if the device passes or fails.

is then lowered to 5.0V and VCC to

PP

9

Ordering Information

ICC (mA)

V

t

ACC

(ns)

70 8 0.02 AT27LV010A-70JC

90 8 0.02 AT27LV010A-90JC

120 8 0.02 AT27LV010A-12JC

150 8 0.02 AT27LV010A-15JC

= 3.6V

CC

Ordering Code Package Operation RangeActive Standby

AT27LV010A-70TC
AT27LV010A-70VC

8 0.02 AT27LV010A-70JI

AT27LV010A-70TI
AT27LV010A-70VI

AT27LV010A-90TC
AT27LV010A-90VC

8 0.02 AT27LV010A-90JI

AT27LV010A-90TI
AT27LV010A-90VI

AT27LV010A-12TC
AT27LV010A-12VC

8 0.02 AT27LV010A-12JI

AT27LV010A-12TI
AT27LV010A-12VI

AT27LV010A-15TC
AT27LV010A-15VC

8 0.02 AT27LV010A-15JI

AT27LV010A-15TI
AT27LV010A-15VI

32J
32T
32V

32J
32T
32V

32J
32T
32V

32J
32T
32V

32J
32T
32V

32J
32T
32V

32J
32T
32V

32J
32T
32V

Commercial

(0°C to 70°C)

Industrial

(-40°C to 85°C)

Commercial

(0°C to 70°C)

Industrial

(-40°C to 85°C)

Commercial

(0°C to 70°C)

Industrial

(-40°C to 85°C)

Commercial

(0°C to 70°C)

Industrial

(-40°C to 85°C)

Package Type

32J 32-Lead, Plastic J-Leaded Chip Carrier (PLCC)
32T 32-Lead, Plastic Thin Small Outline Package (TSOP) (8 x 20 mm)
32V 32-Lead, Plastic Thin Small Outline Package (VSOP) (8 x 14 mm)

10

AT27LV010A

Packaging Information

AT27LV010A

32J

, 32-Lead, Plastic J-Leaded Chip Carrier (PLCC)

Dimensions in Inches and (Millimeters)

JEDEC STANDARD MS-016 AE

.045(1.14) X 45˚

.032(.813)

.026(.660)

.050(1.27) TYP

PIN NO.1
IDENTIFY

.553(14.0)
.547(13.9)

.300(7.62) REF

.430(10.9)
.390(9.90)

AT CONTACT
POINTS

.453(11.5)
.447(11.4)

.495(12.6)
.485(12.3)

.025(.635) X 30˚ - 45˚

.595(15.1)

.585(14.9)

.022(.559) X 45˚ MAX (3X)

.012(.305)
.008(.203)

.530(13.5)
.490(12.4)

.021(.533)
.013(.330)

.030(.762)
.015(.381)
.095(2.41)

.060(1.52)
.140(3.56)
.120(3.05)

32T

, 32-Lead, Plastic Thin Small Outline Package
(TSOP)
Dimensions in Millimeters and (Inches)*

JEDEC OUTLINE MO-142 BD

INDEX
MARK

0.50(.020)
BSC

0

REF

5

7.50(.295)
REF

8.20(.323)

7.80(.307)

0.15(.006)

0.05(.002)

18.5(.728)

18.3(.720)

0.25(.010)

0.15(.006)

0.70(.028)

0.50(.020)

20.2(.795)

19.8(.780)

1.20(.047) MAX

*Controlling dimension: millimeters

0.20(.008)

0.10(.004)

32V

, 32-Lead, Plastic Thin Small Outline Package
(VSOP)
Dimensions in Inches and (Millimeters)

JEDEC OUTLINE MO-142 BA

INDEX
MARK

0.50(.020)
BSC

0

REF

5

7.50(.295)
REF

8.10(.319)

7.90(.311)

0.15(.006)

0.05(.002)

12.5(.492)

12.3(.484)

0.25(.010)

0.15(.006)

0.70(.028)

0.50(.020)

14.2(.559)

13.8(.543)

1.20(.047) MAX

0.20(.008)

0.10(.004)

11

Atmel Headquarters Atmel Operations

Corporate Headquarters

2325 Orchard Parkway
San Jose, CA 95131
TEL [phone]
FAX [phone]

Europe

Atmel U.K., Ltd.
Coliseum Business Centre
Riverside Way
Camberley, Surrey GU15 3YL
England
TEL [phone]
FAX [phone]

Asia

Atmel Asia, Ltd.
Room 1219
Chinachem Golden Plaza
77 Mody Road
Tsimshatsui East
Kowloon, Hong Kong
TEL [phone]
FAX [phone]

Japan

Atmel Japan K.K.
Tonetsu Shinkawa Bldg., 9F
1-24-8 Shinka wa
Chuo-ku, Tokyo 104-0033
Japan
TEL [phone]
FAX [phone]

Atmel Colorado Springs

1150 E. Cheyenne Mtn. Blvd.
Colorado Springs, CO 80906
TEL [phone]
FAX [phone]

Atmel Rousset

Zone Indu strie lle
13106 Rousset Cedex, France
TEL [phone]
FAX [phone]

Fax-on-Demand

North America:
1-[phone]

International:
1-[phone]

e-mail

[e-mail]

Web Site

http://www.atmel.com

BBS

1-[phone]

© Atmel Corporation 1998.

Atmel Corporation makes no warranty for the use of its products, other than those expressly contained in the Company’s standard war­ranty which is detailed in Atmel’s Terms and Conditions located on the Company’s website. The Company assumes no responsibility for
any errors which may appear in this document, reserves the right to change devices or specifications detailed herein at any time without
notice, and does not make any commitment to update the information contained herein. No licenses to patents or other intellectual prop­erty of Atmel are granted by the Company in connection with the sale of Atmel products, expressly or by implication. Atmel’s products are
not authorized for use as critical components in life support devices or systems.

®

Marks bearing
Ter ms and product names in this document may be trademarks of others.

and/or ™ are registered trademarks and trademarks of Atmel Corporation.

Printed on recycled paper.

0548C–10/98/xM
