Features

• Low-voltage and Standard-voltage Operation

–2.7(V
–1.8(V

=2.7Vto5.5V)

CC

=1.8Vto3.6V)

CC

• Internally Organized 16,384 x 8 and 32,768 x 8

• 2-wire Serial Interface

• Schmitt Trigger, Filtered Inputs for Noise Suppression

• Bidirectional Data Transfer Protocol

• 1 MHz (5V), 400 kHz (2.7V, 2.5V) and 100 kHz (1.8V) Compatibility

• Write Protect Pin for Hardware and Software Data Protection

• 64-byte Page Write Mode (Partial Page Writes Allowed)

• Self-timed Write Cycle (5 ms Typical)

• High Reliability

– Endurance: 100,000 Write Cycles
– Data Retention: 40 Years

• Automotive Grade and Extended Temperature Devices Available

• 8-pin JEDEC PDIP, 8-pin JEDEC and EIAJ SOIC, 8-pin TSSOP, 14-pin TSSOP and 8-ball

dBGA

TM

Packages

Description

The AT24C128/256 provides 131,072/262,144 bits of serial electrically erasable and
programmable read only memory (EEPROM) organized as 16,384/32,768 words of 8
bits each. The device’s cascadable feature allows up to 4 devices to share a common
2-wire bus. The device is optimized for use in many industrial and commercial applica­tions where low power and low voltage operation are essential. The devices are
available in space-saving 8-pin JEDEC PDIP, 8-pin JEDEC SOIC, 8-pin EIAJ SOIC, 8­pin TSSOP, 14-pin TSSOP and 8-ball dBGA packages. In addition, the entire family is
available in 2.7V (2.7V to 5.5V) and 1.8V (1.8V to 3.6V) versions.

2-wire Serial
EEPROMs

128K (16,384 x 8)

256K (32,768 x 8)

AT24C128
AT24C256

Pin Configurations

Pin Name Function

A0 - A1 Address Inputs

SDA Serial Data

SCL Serial Clock Input

WP Write Protect

NC No Connect

8-pin PDIP

A0
A1

NC

GND

8-ball dBGA

VCC

WP
SCL
SDA

Bottom View

1
2
3
4

GND

8-pin SOIC

1

8

VCC

7

WP

6

SCL

5

SDA

A0
A1

NC

GND

2
3
4

VCC

8

WP

7

SCL

6

SDA

5

8-pin TSSOP

1

8

7

6

5

A0

2

A1

3

NC

4

GND

A0
A1

NC

GND

1
2
3
4

8

VCC

7

WP

6

SCL

5

SDA

14-pin TSSOP

1

A0

A1
NC
NC
NC
NC

2
3
4
5
6
7

14

VCC

13

WP

12

NC

11

NC

10

NC

9

SCL

8

SDA

Rev. 0670H–SEEPR–07/02

1

Absolute Maximum Ratings*

Operating Temperature .................................. -55°Cto+125°C

Storage Temperature ..................................... -65°Cto+150°C

Voltage on Any Pin

with Respect to Ground .....................................-1.0V to +7.0V

Maximum Operating Voltage .......................................... 6.25V

DC Output Current ........................................................ 5.0 mA

Block Diagram

*NOTICE: Stresses beyond those listed under “Absolute

Maximum Ratings” may cause permanent dam­age to the device. This is a stress rating only and
functional operation of the device at these or any
other conditions beyond those indicated in the
operational sections of this specification is not
implied. Exposure to absolute maximum rating
conditions for extended periods may affect device
reliability.

2

AT24C128/256

0670H–SEEPR–07/02

AT24C128/256

Pin Description SERIAL CLOCK (SCL): The SCL input is used to positive edge clock data into each

EEPROM device and negative edge clock data out of each device.

SERIAL DATA (SDA): The SDA pin is bidirectional for serial data transfer. This pin is open­drain driven and may be wire-ORed with any number of other open-drain or open collector
devices.

DEVICE/PAGE ADDRESSES (A1, A0): TheA1andA0pinsaredeviceaddressinputsthat
are hardwired or left not connected for hardware compatibility with AT24C32/64. When the
pins are hardwired, as many as four 128K/256K devices may be addressed on a single bus
system (device addressing is discussed in detail under the Device Addressing section). When
the pins are not hardwired, the default A

WRITE PROTECT (WP): The write protect input, when tied to GND, allows normal write oper­ations.WhenWPistiedhightoV
unconnected, WP is internally pulled down to GND. Switching WP to V
ation creates a software write protect function.

and A0are zero.

1

, all write operations to the memory are inhibited. If left

CC

prior to a write oper-

CC

Memory Organization

AT24C128/256, 128K/256K SERIAL EEPROM: The 128K/256K is internally organized as

256/512 pages of 64-bytes each. Random word addressing requires a 14/15-bit data word
address.

0670H–SEEPR–07/02

3

Pin Capacitance

(1)

Applicable over recommended operating range from TA=25°C, f = 1.0 MHz, VCC=+1.8V.

Symbol Test Condition Max Units Conditions

C

I/O

C

IN

Input/Output Capacitance (SDA) 8 pF V

I/O

=0V

Input Capacitance (A0,A1,SCL) 6 pF VIN=0V

Note: 1. This parameter is characterized and is not 100% tested.

DC Characteristics

(1)

Applicable over recommended operating range from: TAI=-40°Cto+85°C, VCC= +1.8V to +5.5V, TAC=0°Cto+70°C,
V

= +1.8V to +5.5V (unless otherwise noted).

CC

Symbol Parameter Test Condition Min Typ Max Units

V

V

V

I

I

I

I

I

CC1

CC2

CC3

CC1

CC2

SB1

SB2

SB3

Supply Voltage 1.8 3.6 V

Supply Voltage 2.5 5.5 V

Supply Voltage 4.5 5.5 V

Supply Current VCC= 5.0V READ at 400 kHz 1.0 2.0 mA

Supply Current VCC= 5.0V WRITE at 400 kHz 2.0 3.0 mA

V

Standby Current

(1.8V option)

Standby Current

(2.5V option)

Standby Current

(5.0V option)

=1.8V

CC

=3.6V 2.0

V

CC

V

=2.5V

CC

V

=5.5V 6.0

CC

V

=4.5-5.5V VIN=VCCor V

CC

V

IN=VCC

V

IN=VCC

or V

or V

SS

SS

SS

0.2 µA

0.5 µA

6.0 µA

I

LI

I

LO

V

IL

V

IH

V

OL2

V

OL1

Input Leakage Current VIN=VCCor V

Output Leakage
Current

Input Low Level

Input High Level

(1)

(1)

V

OUT=VCC

or V

SS

SS

Output Low Level VCC=3.0V IOL=2.1mA 0.4 V

Output Low Level VCC=1.8V IOL=0.15mA 0.2 V

Note: 1. VILmin and VIHmax are reference only and are not tested.

0.10 3.0 µA

0.05 3.0 µA

-0.6 VCCx0.3 V

VCCx0.7 VCC+0.5 V

4

AT24C128/256

0670H–SEEPR–07/02

AT24C128/256

AC Characteristics

Applicable over recommended operating range from TA=-40°Cto+85°C, VCC= +1.8V to +5.5V, CL = 100 pF (unless oth­erwise noted). Test conditions are listed in Note 2.

1.8-volt 2.5-volt 5.0-volt

Symbol Parameter

f

SCL

t

LOW

t

HIGH

t

AA

t

BUF

t

HD.STA

t

SU.STA

t

HD.DAT

t

SU.DAT

t

R

t

F

t

SU.STO

t

DH

t

WR

Endurance

Clock Frequency, SCL 100 400 1000 kHz

Clock Pulse Width Low 4.7 1.3 0.4 µs

Clock Pulse Width High 4.0 0.6 0.4 µs

Clock Low to Data Out Valid 0.1 4.5 0.05 0.9 0.05 0.55 µs

Time the bus must be free before a new
transmission can start

Start Hold Time 4.0 0.6 0.25 µs

Start Set-up Time 4.7 0.6 0.25 µs

Data In Hold Time 0 0 0 µs

Data In Set-up Time 200 100 100 ns

Inputs Rise Time

Inputs Fall Time

Stop Set-up Time 4.7 0.6 0.25 µs

Data Out Hold Time 100 50 50 ns

WriteCycleTime 20 10 10 ms

(1)

5.0V, 25°C, Page Mode 100K 100K 100K

UnitsMin Max Min Max Min Max

(1)

(1)

(1)

4.7 1.3 0.5 µs

1.0 0.3 0.3 µs

300 300 100 ns

Write

Cycles

Notes: 1. This parameter is characterized and is not 100% tested.

2. AC measurement conditions:
R

(connects to VCC): 1.3 kΩ (2.5V, 5V), 10 kΩ (1.8V)

L

Input pulse voltages: 0.3 V

to 0.7 V

CC

CC

Input rise and fall times: ≤50 ns
Input and output timing reference voltages: 0.5 V

CC

0670H–SEEPR–07/02

5

Device Operation

CLOCK and DATA TRANSITIONS: TheSDApinisnormallypulledhighwithanexternal

device. Data on the SDA pin may change only during SCL low time periods (refer to Data
Validity timing diagram). Data changes during SCL high periods will indicate a start or stop
condition as defined below.

START CONDITION: A high-to-low transition of SDA with SCL high is a start condition which
must precede any other command (refer to Start and Stop Definition timing diagram).

STOP CONDITION: A low-to-high transition of SDA with SCL high is a stop condition. After a
read sequence, the stop command will place the EEPROM in a standby power mode (refer to
Start and Stop Definition timing diagram).

ACK NOWLEDGE: All addresses and data words are serially transmitted to and from the
EEPROM in 8-bit words. The EEPROM sends a zero during the ninth clock cycle to acknowl­edge that it has received each word.

STANDBY MODE: The AT24C128/256 features a low power standby mode which is enabled:
a) upon power-up and b) after the receipt of the STOP bit and the completion of any internal
operations.

MEMORY RESET: After an interruption in protocol, power loss or system reset, any 2-wire
part can be reset by following these steps: (a) Clock up to 9 cycles, (b) look for SDA high in
each cycle while SCL is high and then (c) create a start condition as SDA is high.

6

AT24C128/256

0670H–SEEPR–07/02

Bus Timing (SCL: Serial Clock, SDA: Serial Data I/O)

Write Cycle Timing (SCL: Serial Clock, SDA: Serial Data I/O)

AT24C128/256

SCL

SDA

Note: 1. The write cycle time tWRis the time from a valid stop condition of a write sequence to the end of the internal clear/write cycle.

8th BIT

WORD n

ACK

STOP

CONDITION

(1)

t

WR

START

CONDITION

0670H–SEEPR–07/02

7

Data Validity

Start and Stop Definition

Output Acknowledge

8

AT24C128/256

0670H–SEEPR–07/02

AT24C128/256

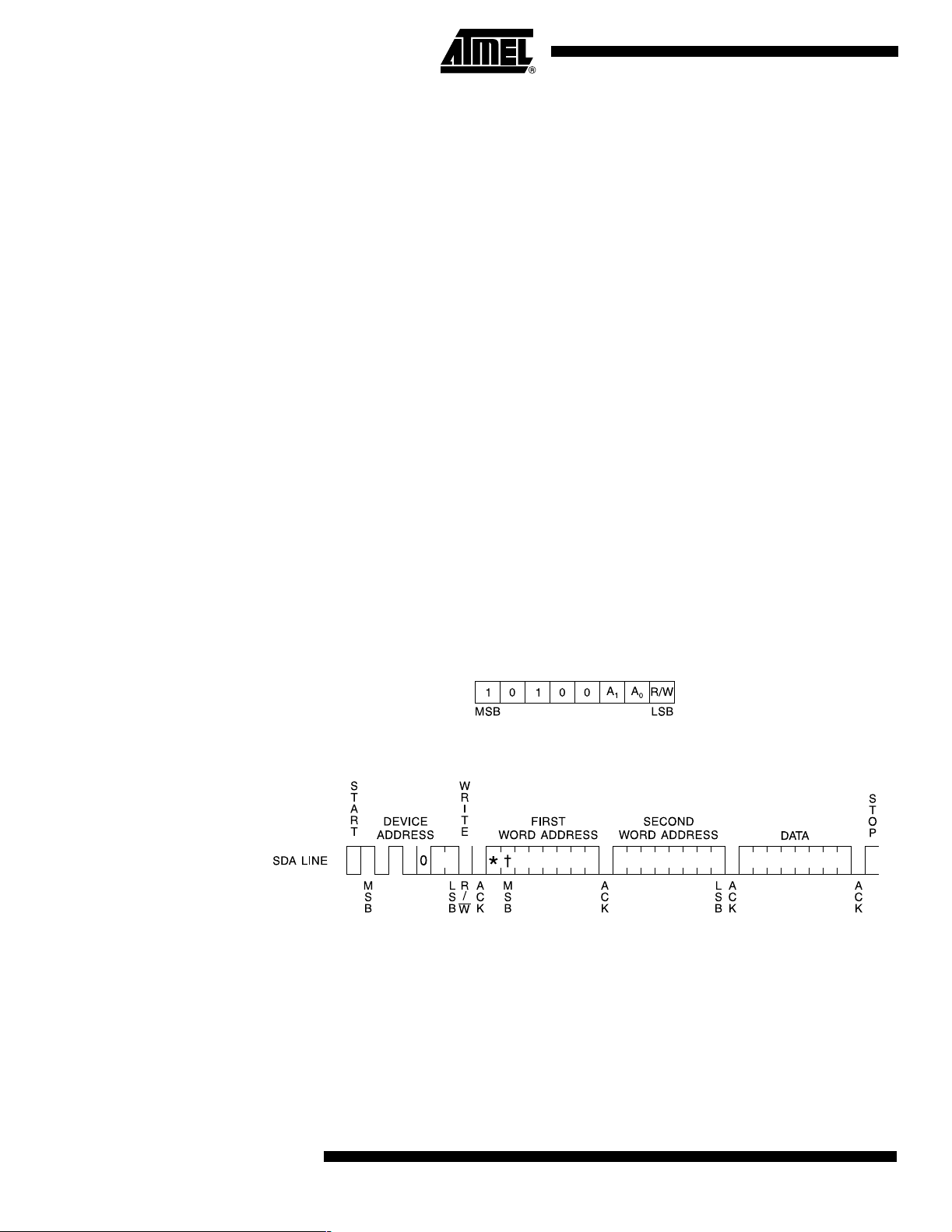

Device Addressing

Write Operations

The 128K/256K EEPROM requires an 8-bit device address word following a start condition to
enable the chip for a read or write operation (refer to Figure 1). The device address word con­sists of a mandatory one, zero sequence for the first five most significant bits as shown. This is
common to all 2-wire EEPROM devices.

The 128K/256K uses the two device address bits A1, A0 to allow as many as four devices on
the same bus. These bits must compare to their corresponding hardwired input pins. The A1
and A0 pins use an internal proprietary circuit that biases them to a logic low condition if the
pins are allowed to float.

The eighth bit of the device address is the read/write operation select bit. A read operation is
initiated if this bit is high and a write operation is initiated if this bit is low.

Upon a compare of the device address, the EEPROM will output a zero. If a compare is not
made, the device will return to a standby state.

DATA SECURITY: The AT24C128/256 has a hardware data protection scheme that allows the
user to write protect the whole memory when the WP pin is at V

BYTE WRITE: A write operation requires two 8-bit data word addresses following the device
address word and acknowledgment. Upon receipt of this address, the EEPROM will again
respond with a zero and then clock in the first 8-bit data word. Following receipt of the 8-bit
data word, the EEPROM will output a zero. The addressing device, such as a microcontroller,
then must terminate the write sequence with a stop condition. At this time the EEPROM
enters an internally-timed write cycle, t
during this write cycle and the EEPROM will not respond until the write is complete (refer to
Figure 2).

, to the nonvolatile memory. All inputs are disabled

WR

CC

.

PAG E W RI TE : The 128K/256K EEPROM is capable of 64-byte page writes.

A page write is initiated the same way as a byte write, but the microcontroller does not send a
stop condition after the first data word is clocked in. Instead, after the EEPROM acknowledges
receipt of the first data word, the microcontroller can transmit up to 63 more data words. The
EEPROM will respond with a zero after each data word received. The microcontroller must
terminate the page write sequence with a stop condition (refer to Figure 3).

The data word address lower 6 bits are internally incremented following the receipt of each
data word. The higher data word address bits are not incremented, retaining the memory page
row location. When the word address, internally generated, reaches the page boundary, the
following byte is placed at the beginning of the same page. If more than 64 data words are
transmitted to the EEPROM, the data word address will “roll over” and previous data will be
overwritten. The address “roll over” during write is from the last byte of the current page to the
first byte of the same page.

ACKNOWLEDGE POLLING: Once the internally-timed write cycle has started and the
EEPROM inputs are disabled, acknowledge polling can be initiated. This involves sending a
start condition followed by the device address word. The read/write bit is representative of the
operation desired. Only if the internal write cycle has completed will the EEPROM respond
with a zero, allowing the read or write sequence to continue.

0670H–SEEPR–07/02

9

Read Operations

Read operations are initiated the same way as write operations with the exception that the
read/write select bit in the device address word is set to one. There are three read operations:
current address read, random address read and sequential read.

CURRENT ADDRESS READ: The internal data word address counter maintains the last
address accessed during the last read or write operation, incremented by one. This address
stays valid between operations as long as the chip power is maintained. The address “roll
over” during read is from the last byte of the last memory page, to the first byte of the first
page.

Once the device address with the read/write select bit set to one is clocked in and acknowl­edged by the EEPROM, the current address data word is serially clocked out. The
microcontroller does not respond with an input zero but does generate a following stop condi­tion (refer to Figure 4).

RANDOM READ: A random read requires a “dummy” byte write sequence to load in the data
word address. Once the device address word and data word address are clocked in and
acknowledged by the EEPROM, the microcontroller must generate another start condition.
The microcontroller now initiates a current address read by sending a device address with the
read/write select bit high. The EEPROM acknowledges the device address and serially clocks
out the data word. The microcontroller does not respond with a zero but does generate a fol­lowing stop condition (refer to Figure 5).

SEQUENTIAL READ: Sequential reads are initiated by either a current address read or a ran­dom address read. After the microcontroller receives a data word, it responds with an
acknowledge. As long as the EEPROM receives an acknowledge, it will continue to increment
the data word address and serially clock out sequential data words. When the memory
address limit is reached, the data word address will “roll over” and the sequential read will con­tinue. The sequential read operation is terminated when the microcontroller does not respond
with a zero but does generate a following stop condition (refer to Figure 6).

Figure 1. Device Address

Figure 2. Byte Write

10

AT24C128/256

0670H–SEEPR–07/02

Figure 3. Page Write

Notes: (* = DON’TCAREbit)

(† =DON’T CARE bit for the 128K)

Figure 4. Current Address Read

AT24C128/256

Figure 5. Random Read

Notes: (* = DON’TCAREbit)

(† =DON’T CARE bit for the 128K)

Figure 6. Sequential Read

0670H–SEEPR–07/02

11

AT24C128 Ordering Information

Ordering Code Package Operation Range

AT24C128-10PI-2.7

AT24C128N-10SI-2.7
AT24C128W-10SI-2.7
AT24C128-10UI-2.7
AT24C128T1-10TI-2.7

AT24C128-10PI-1.8
AT24C128N-10SI-1.8
AT24C128W-10SI-1.8
AT24C128-10UI-1.8
AT24C128T1-10TI-1.8

Note: For 2.7V devices used in the 4.5V to 5.5V range, please refer to performance values in the AC and DC characteristics tables.

8P3

8S1
8S2
8U1
14A2

8P3
8S1
8S2
8U1
14A2

Industrial

(-40°Cto85°C)

Industrial

(-40°Cto85°C)

Package Type

8P3 8-lead, 0.300" Wide, Plastic Dual Inline Package (PDIP)

8S1 8-lead, 0.150" Wide, Plastic Gull Wing Small Outline Package (JEDEC SOIC)

8S2 8-lead, 0.200" Wide, Plastic Gull Wing Small Outline Package (EIAJ SOIC)

8U1 8-ball, die Ball Grid Array Package (dBGA)

14A2 14-lead, 0.170" Wide, Thin Shrink Small Outline Package (TSSOP)

Options

-2.7 Low-voltage (2.7V to 5.5V)

-1.8 Low-voltage (1.8V to 3.6V)

12

AT24C128/256

0670H–SEEPR–07/02

AT24C128/256

AT24C256 Ordering Information

Ordering Code Package Operation Range

AT24C256-10PI-2.7

AT24C256N-10SI-2.7
AT24C256W-10SI-2.7
AT24C256-10UI-2.7
AT24C256-10TI-2.7

AT24C256-10PI-1.8
AT24C256N-10SI-1.8
AT24C256W-10SI-1.8
AT24C256-10UI-1.8
AT24C256-10TI-1.8

Note: For 2.7V devices used in the 4.5V to 5.5V range, please refer to performance values in the AC and DC characteristics tables.

8P3

8S1
8S2
8U6
8A2

8P3
8S1
8S2
8U6
8A2

Industrial

(-40°Cto85°C)

Industrial

(-40°Cto85°C)

Package Type

8P3 8-lead, 0.300" Wide, Plastic Dual Inline Package (PDIP)

8S1 8-lead, 0.150" Wide, Plastic Gull Wing Small Outline Package (JEDEC SOIC)

8S2 8-lead, 0.200" Wide, Plastic Gull Wing Small Outline Package (EIAJ SOIC)

8U6 8-ball, die Ball Grid Array Package (dBGA)

8A2 8-lead, 0.170" Wide, Thin Shrink Small Outline Package (TSSOP)

Options

-2.7 Low-voltage (2.7V to 5.5V)

-1.8 Low-voltage (1.8V to 3.6V)

0670H–SEEPR–07/02

13

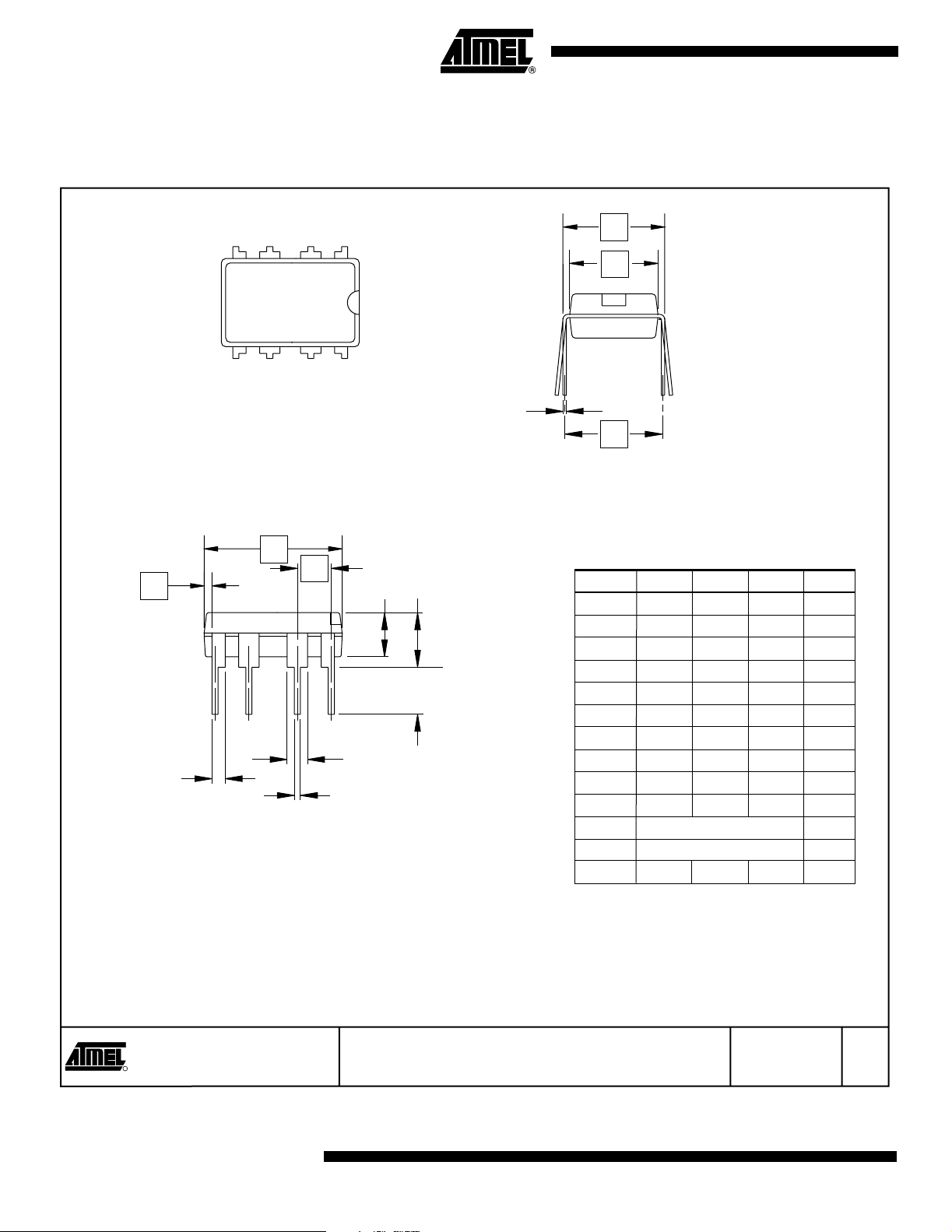

Packaging Information

8P3 – PDIP

D1

b3

4 PLCS

Top View

D

e

Side View

N

1

b

b2

A2 A

E

E1

c

eA

End View

COMMON DIMENSIONS

(Unit of Measure = inches)

SYMBOL

A 0.210 2

A2 0.115 0.130 0.195

b 0.014 0.018 0.022 5

b2 0.045 0.060 0.070 6

b3 0.030 0.039 0.045 6

c 0.008 0.010 0.014

D 0.355 0.365 0.400 3

L

D1 0.005 3

E 0.300 0.310 0.325 4

E1 0.240 0.250 0.280 3

e 0.100 BSC

eA 0.300 BSC 4

L 0.115 0.130 0.150 2

MIN

NOM

MAX

NOTE

Notes: 1. This drawing is for general information only; refer to JEDEC Drawing MS-001, Variation BA for additional information.

14

2. Dimensions A and L are measured with the package seated in JEDEC seating plane Gauge GS-3.

3. D, D1 and E1 dimensions do not include mold Flash or protrusions. Mold Flash or protrusions shall not exceed 0.010 inch.

4. E and eA measured with the leads constrained to be perpendicular to datum.

5. Pointed or rounded lead tips are preferred to ease insertion.

6. b2 and b3 maximum dimensions do not include Dambar protrusions. Dambar protrusions shall not exceed 0.010 (0.25 mm).

TITLE

2325 Orchard Parkway

R

San Jose, CA 95131

8P3, 8-lead, 0.300" Wide Body, Plastic Dual
In-line Package (PDIP)

AT24C128/256

DRAWING NO.

8P3

0670H–SEEPR–07/02

01/09/02

REV.

B

8S1 – JEDEC SOIC

Top View

AT24C128/256

1

2

3

H

N

A2

L

e

D

Side View

E

End View

B

A

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

A – – 1.75

B – – 0.51

C

C – – 0.25

D – – 5.00

E – – 4.00

e 1.27 BSC

H – – 6.20

L – – 1.27

MIN

NOM

MAX

NOTE

Note:

This drawing is for general information only. Refer to JEDEC Drawing MS-012 for proper dimensions, tolerances, datums, etc.

2325 Orchard Parkway

R

San Jose, CA 95131

0670H–SEEPR–07/02

TITLE
8S1, 8-lead (0.150" Wide Body), Plastic Gull Wing

Small Outline (JEDEC SOIC)

DRAWING NO.

8S1 A

10/10/01

REV.

15

8S2 – EIAJ SOIC

1

H

N

Top View

e

b

A

D

COMMON DIMENSIONS

(Unit of Measure = mm)

Side View

SYMBOL

A 1.78 2.03

A1

C

L

E

End View

Notes: 1. This drawing is for general information only; refer to EIAJ Drawing EDR-7320 for additional information.

2. Mismatch of the upper and lower dies and resin burrs aren't included.

3. It is recommended that upper and lower cavities be equal. If they are different, the larger dimension shall be regarded.

4. Determines the true geometric position.

5. Values b,C apply to pb/Sn solder plated terminal. The standard thickness of the solder layer shall be 0.010 +0.010/-0.005 mm.

A1 0.05 0.33

b 0.35 0.51 5

C 0.18 0.25 5

D 5.13 5.38

E 5.13 5.41 2, 3

H 7.62 8.38

L 0.51 0.89

e 1.27 BSC 4

MIN

NOM

MAX

NOTE

5/2/02

16

2325 Orchard Parkway

R

San Jose, CA 95131

AT24C128/256

TITLE
8S2, 8-lead, 0.209" Body, Plastic Small

Outline Package (EIAJ)

DRAWING NO.

8S2

0670H–SEEPR–07/02

REV.

B

8U1 – dBGA

ZM80.0

YXZM51.0

D

AT24C128/256

E

Pin 1 Mark
this corner

Top View

-Z-

A

A1

#

#

#

#

SYMBOL

D 3.73

D1 0.74 TYP

E 2.21

E1 0.73 TYP

e 0.75 TYP

d 0.75 TYP

A 0.90 REF

A1 0.49 0.52 0.55

A2 0.35 0.38 0.41

Ø

8

1

2

7

3

6

Øb

d

4

5

D1

E1

Bottom View

e

A2

Side View

Notes: 1. This drawing is for general information only. No JEDEC Drawing to refer to for additional information.

2. Dimension is measured at the maximum solder ball diameter, parallel to primary datum Z.

COMMON DIMENSIONS

(Unit of Measure = mm)

MIN

b 0.47 0.50 0.53

NOM

MAX

NOTE

1/9/02

2325 Orchard Parkway
San Jose, CA 95131

R

0670H–SEEPR–07/02

TITLE

8U1, 8-ball 0.75 pitch, Die Ball Grid Array

Package (dBGA) AT24C128 (AT19863)

DRAWING NO.

8U1

REV.

A

17

8U6 – dBGA

ZM80.0

YXZM51.0

D

E

Pin 1 Mark
this corner

Top View

-Z-

8

1

2

7

3

6

Øb

d

4

5

D1

E1

Bottom View

e

A2

Side View

Notes: 1. This drawing is for general information only. No JEDEC drawing to refer to for additional information.

2. Dimension is measured at the maximum solder ball diameter, parallel to primary datum Z.

#

#

#

#

A

A1

SYMBOL

D −−3.73

D1 0.74 TYP

E −−2.25

E1 0.75 TYP

e 0.75 TYP

d 0.75 TYP

A 0.90 REF

A1 0.49 0.52 0.55

A2 0.35 0.38 0.41

Ø

COMMON DIMENSIONS

(Unit of Measure = mm)

MIN

b 0.47 0.50 0.53

TITLE

2325 Orchard Parkway
San Jose, CA 95131

R

8U6, 8-ball 0.75 pitch, Die Ball Grid Array
Package (dBGA) AT24C256 (AT19884)

NOM

DRAWING NO.

MAX

8U6

NOTE

02/04/02

REV.

A

18

AT24C128/256

0670H–SEEPR–07/02

8A2 – TSSOP

Pin 1 indicator

this corner

AT24C128/256

123

N

Top View

b

e

D

Side View

A2

E1

E

L1

L

End View

COMMON DIMENSIONS

(Unit of Measure = mm)

SYMBOL

A

D 2.90 3.00 3.10 2, 5

E 6.40 BSC

E1 4.30 4.40 4.50 3, 5

A ––1.20

A2 0.80 1.00 1.05

b 0.19 – 0.30 4

e 0.65 BSC

L 0.45 0.60 0.75

L1 1.00 REF

MIN

NOM

MAX

NOTE

Notes: 1. This drawing is for general information only. Refer to JEDEC Drawing MO-153, Variation AA, for proper dimensions, tolerances,

0670H–SEEPR–07/02

datums, etc.

2. Dimension D does not include mold Flash, protrusions or gate burrs. Mold Flash, protrusions and gate burrs shall not exceed

0.15 mm (0.006 in) per side.

3. Dimension E1 does not include inter-lead Flash or protrusions. Inter-lead Flash and protrusions shall not exceed 0.25 mm
(0.010 in) per side.

4. Dimension b does not include Dambar protrusion. Allowable Dambar protrusion shall be 0.08 mm total in excess of the
b dimension at maximum material condition. Dambar cannot be located on the lower radius of the foot. Minimum space between
protrusion and adjacent lead is 0.07 mm.

5. Dimension D and E1 to be determined at Datum Plane H.

2325 Orchard Parkway

R

San Jose, CA 95131

TITLE

8A2, 8-lead, 4.4 mm Body, Plastic

Thin Shrink Small Outline Package (TSSOP)

DRAWING NO.

8A2

5/30/02

REV.

B

19

14A2–TSSOP

E1

E

b

L

L1

End View

e

Top View

A

D

A2

Side View

Notes: 1. This drawing is for general information only. Please refer to JEDEC Drawing MO-153, Variation AB-1 for

R

additional information.

2. Dimension "D" does not include mold Flash, protrusions or gate burrs. Mold Flash, protrusions and gate
burrs shall not exceed 0.15 mm (0.006 in) per side.

3. Dimension "E1" does not include inter-lead Flash or protrusions. Inter-lead Flash and protrusions shall not
exceed 0.25 mm (0.010 in) per side.

4. Dimension "b" does not include Dambar protrusion. Allowable Dambar protrusion shall be 0.08 mm total
in excess of the "b" dimension at maximum material condition. Dambar cannot be located on the lower
radius of the foot. Minimum space between protrusion and adjacent lead is 0.07 mm.

5. Dimension "D" and "E1" to be determined at Datum Plane H.

TITLE

2325 Orchard Parkway
San Jose, CA 95131

14A2,14-lead (4.4 x 5 mm Body), 0.65 Pitch,
Thin Shrink Small Outline Package (TSSOP)

SYMBOL

D 4.90 5.00 5.10 2, 5

E 6.40 BSC

E1 4.30 4.40 4.50 3, 5

A 1.20

A2 0.80 1.00 1.05

b 0.19 0.30 4

e 0.65 BSC

L 0.45 0.60 0.75

L1 1.00 REF

COMMON DIMENSIONS

(Unit of Measure = mm)

MIN

NOM

MAX

DRAWING NO.

14A2 A

NOTE

12/28/01

REV.

20

AT24C128/256

0670H–SEEPR–07/02

Atmel Headquarters Atmel Operations

Corporate Headquarters

2325 Orchard Parkway
San Jose, CA 95131
TEL [phone]
FAX [phone]

Europe

Atmel Sarl
Route des Arsenaux 41
Case Postale 80
CH-1705 Fribourg
Switzerland
TEL [phone]
FAX [phone]

Asia

Room 1219
Chinachem Golden Plaza
77 Mody Road Tsimhatsui
East Kowloon
Hong Kong
TEL [phone]
FAX [phone]

Japan

9F, Tonetsu Shinkawa Bldg.
1-24-8 Shinkawa
Chuo-ku, Tokyo 104-0033
Japan
TEL [phone]
FAX [phone]

Memory

2325 Orchard Parkway
San Jose, CA 95131
TEL [phone]
FAX [phone]

Microcontrollers

2325 Orchard Parkway
San Jose, CA 95131
TEL [phone]
FAX [phone]

La Chantrerie
BP 70602
44306 Nantes Cedex 3, France
TEL [phone]
FAX [phone]

ASIC/ASSP/Smart Cards

Zone Industrielle
13106 Rousset Cedex, France
TEL [phone]
FAX [phone]

1150 East Cheyenne Mtn. Blvd.
Colorado Springs, CO 80906
TEL [phone]
FAX [phone]

Scottish Enterprise Technology Park
Maxwell Building
East Kilbride G75 0QR, Scotland
TEL [phone]
FAX [phone]

RF/Automotive

Theresienstrasse 2
Postfach 3535
74025 Heilbronn, Germany
TEL [phone]
FAX [phone]

1150 East Cheyenne Mtn. Blvd.
Colorado Springs, CO 80906
TEL [phone]
FAX [phone]

Biometrics/Imaging/Hi-Rel MPU/
High Speed Converters/RF Datacom

Avenue de Rochepleine
BP 123
38521 Saint-Egreve Cedex, France
TEL [phone]
FAX [phone]

e-mail

[e-mail]

Web Site

http://www.atmel.com

© Atmel Corporation 2002.

Atmel Corporation makes no warranty for the use of its products, other than those expressly contained in the Company’s standard warranty
whichisdetailedinAtmel’s Terms and Conditions located on the Company’s web site. The Company assumes no responsibility for any errors
which may appear in this document, reserves the right to change devices or specifications detailed herein at any time without notice, and does
not make any commitment to update the information contained herein. No licenses to patents or other intellectual property of Atmel are granted
by the Company in connection with the sale of Atmel products, expressly or by implication. Atmel’s products are not authorized for use as critical
components in life support devices or systems.

AT ME L®is the registered trademark of Atmel; dBGA™is the trademark of Atmel.

Other terms and product names may be the trademarks of others.

Printed on recycled paper.

0670H–SEEPR–07/02 xM
