ADC1175-50 8-Bit, 50 MSPS, 125 mW A/D Converter
General Description
The ADC1175-50 is a low power, 50 MSPS analog-to-digital converter that digitizes signals to 8 bits while consuming just 125 mW (typ). The ADC1175-50 uses a unique architecture that achieves 6.8 Effective Bits at 25 MHz input and 50 MHz clock frequency. Output formatting is straight binary coding.
The excellent DC and AC characteristics of this device, together with its low power consumption and +5V single supply operation, make it ideally suited for many video and imaging applications, including use in portable equipment. Furthermore, the ADC1175-50 is resistant to latch-up and the outputs are short-circuit proof. The top and bottom of the ADC1175-50’sreference ladder is available for connections, enabling a wide range of input possibilities. The low input capacitance (7 pF, typical) makes this device easier to drive than conventional flash converters and the power down mode reduces power consumption to less than 5 mW.
TheADC1175-50 is offered in SOIC (EIAJ), TSSOP and LLP (a molded lead frame-based chip-scale package.) It is de­signed to operate over the commercial temperature range of
−20˚C to +75˚C.
Features
n Internal Track-and-Hold function n Single +5V operation n Internal reference bias resistors
n Industry standard pinout n Power-down mode (
Key Specifications
n Resolution 8 Bits n Maximum Sampling Frequency 50 MSPS (min) n THD 54 dB (typ) n DNL 0.7 LSB (typ) n ENOB n Guaranteed No Missing Codes n Differential Phase 0.5˚ (typ) n Differential Gain 1.0% (typ) n Power Consumption 125 mW (typ), 190 mW (max)
@
fIN= 25 MHz 6.8 Bits (typ)
(Excluding Reference Current)
Applications
n Digital Still Cameras n CCD Imaging n Electro-Optics n Medical Imaging n Communications n Video Digitization n Digital Television n Multimedia
<
5 mW)
ADC1175-50 8-Bit, 50 MSPS, 125 mW A/D Converter
December 2000
Connection Diagram
24-pin SOLC and TSSOP
Top View
DS100896-1
24-pin LLP (CSP)
DS100896-34
Bottom View
© 2001 National Semiconductor Corporation DS100896 www.national.com
Ordering Information
ADC1175-50CIJM SOIC (EIAJ) ADC1175-50CIJMX SOIC (EIAJ) (tape and reel)
ADC1175-50
ADC1175-50CIMT TSSOP ADC1175-50CIMTX TSSOP (tape and reel) ADC1175-50CILQ LLP (tape and reel - 1, 000 units) ADC1175-50CILQX LLP (tape and reel - 4, 500 units)
Block Diagram
Pin Descriptions and Equivalent Circuits
Pin No.
19
(17)
16
(14)
Symbol Equivalent Circuit Description
V
IN
V
RTS
DS100896-2
(LLP pins in parentheses)
Analog signal input. Conversion range is VRTto
.
V
RB
Reference Top Bias with internal pull up resistor. Short this pin to V ladder.
to self-bias the reference
RT
www.national.com 2
Pin Descriptions and Equivalent Circuits (LLP pins in parentheses) (Continued)
ADC1175-50
Pin No.
17
(15)
23
(21)
22
(20)
Symbol Equivalent Circuit Description
Analog input that is the high (top) side of the reference ladder of the ADC. Nominal range is 1.0V
V
RT
to AV
, optimized value of 2.6V. Voltages on V
DD
and VRBinputs define the VINconversion range. Bypass well. See Section 2.0 for more information.
Analog input that is the low (bottom) side of the reference ladder of the ADC. Nominal range is 0.0V
V
RB
to 4.0V, with optimized value of 0.6V. Voltage on
and VRBinputs define the VINconversion
V
RT
range. Bypass well. See Section 2.0 for more information.
Reference Bottom Bias with internal pull down
V
RBS
resistor. Short to V ladder. Bypass well if not grounded. See Section
to self-bias the reference
RB
2.0 for more information.
RT
1
(23)
12
(10)
3 thru
10
(1 thru
8)
PD
CLK
D0–D7
CMOS/TTL compatible Digital input that, when high, puts the ADC1175-50 into a power-down mode where total power consumption is typically less than 5 mW. With this pin low, the device is in the normal operating mode.
CMOS/TTL compatible digital clock input. VINis sampled on the falling edge of CLK input.
Conversion data digital Output pins. D0 is the LSB, D7 is the MSB. Valid data is output just after the rising edge of the CLK input. These pins are in a high impedance mode when the PD pin is low.
www.national.com3
Pin Descriptions and Equivalent Circuits (LLP pins in parentheses) (Continued)
Pin No.
ADC1175-50
11, 13, 14 (9, 11,
12)
2, 24
(22,
24)
15, 18
(13,
16)
20, 21
(18,
19)
Symbol Equivalent Circuit Description
Positive digital supply pin. Connect to a clean, quiet
and DVDDshould have
DD
DV
voltage source of +5V. AV
DD
a common source and be separately bypassed with a 10 µF capacitor and a 0.1 µF ceramic chip capacitor. See Section 4.0 for more information.
The ground return for the digital supply. AVSSand
should be connected together close to the
DV
SS
DV
SS
ADC1175-50. Positive analog supply pin. Connect to a clean,
quiet voltage source of +5V. AV
AV
DD
have a common source and be separately bypassed with a 10 µF capacitor and a 0.1 µF ceramic chip capacitor. See Section 4.0 for more information.
The ground return for the analog supply. AVSSand
should be connected together close to the
AV
SS
DV
SS
ADC1175-50 package.
and DVDDshould
DD
www.national.com 4
ADC1175-50
Absolute Maximum Ratings (Notes 1, 2)
If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
Supply Voltage (AV Voltage on Any Input or Output Pin −0.3V to +6.5V Reference Voltage (V CLK, PD Voltage Range −0.5 to (AVDD+0.5V) Digital Output Voltage (V Input Current at Any Pin (Note 3) Package Input Current (Note 3) Power Dissipation at T
,DVDD) 6.5V
DD
)AV
RT,VRB
OH,VOL
)V
DD
DD
± ±
= 25˚C See (Note 4)
A
to V
SS
to V
SS
25 mA 50 mA
ESD Susceptibility (Note 5)
Human Body Model 2000V Machine Model 250V
Soldering Temperature, Infrared,
(10 sec.) (Note 6) 235˚C Storage Temperature −65˚C to +150˚C Short Circuit Duration
(Single High Output to Ground) 1 Second
Operating Ratings (Notes 1, 2)
Operating Temperature Range −20˚C ≤ T Supply Voltage (AV
−DV
AV
DD
DD
Ground Difference |DV Upper Reference Voltage (V
,DVDD) +4.75V to +5.25V
DD
–AVSS| 0V to 100 mV
SS
) 1.0V to V
RT
≤ +75˚C
A
<
Lower Reference Voltage (VRB) 0V to 4.0V
Voltage Range VRBto V
V
IN
Converter Electrical Characteristics
The following specifications apply for AVDD=DVDD= +5.0 VDC, PD = 0V, VRT= +2.6V, VRB= 0.6V, CL= 20 pF, f 50 MHz at 50% duty cycle. Boldface limits apply for T
A=TMIN
Symbol Parameter Conditions
to T
; all other limits TA= 25˚C (Notes 7, 8).
MAX
Typical
(Note 9)
Limits
(Note 9)
DC ACCURACY
INL Integral Non Linearity Error V DNL Differential Non-Linearity
Resolution for No Missing Codes
E
OT
E
OB
Top Offset Voltage −12 mV Bottom Offset Voltage +10 mV
= 0.6V to 2.6V
IN
V
= 0.6V to 2.6V +0.7 +1.75 LSB (max)
IN
±
0.8
−0.7 −1.0 LSB (min)
±
1.95 LSB (max)
8 Bits
VIDEO ACCURACY
DP Differential Phase Error f DG Differential Gain Error f
= 4.43 MHz Modulated Ramp 0.5 deg
IN
= 4.43 MHz Modulated Ramp 1.0 %
IN
ANALOG INPUT AND REFERENCE CHARACTERISTICS
V
V
IN
C
IN
R
IN
Input Range 2.0
VINInput Capacitance RINInput Resistance
V
= 1.5V
IN
+0.7 Vrms
(CLK LOW) 4 pF (CLK HIGH) 7 pF
>
1MΩ
RB
V
RT
BW Full Power Bandwidth 120 MHz R
R R
I
V
V
RT
REF
RB
REF
RT
RB
Top Reference Resistor 320 Ω Reference Ladder Resistance VRTto V
RB
270
200 350
Bottom Reference Resistor 80 Ω
5.4 mA (min)
10.8 mA (max)
6.1 mA (min)
12.3 mA (max)
0.55
0.70
Reference Ladder Current
Reference Top Self Bias Voltage
Reference Bottom Self Bias Voltage
V
RT=VRTS,VRB=VRBS
V
RT=VRTS,VRB
=AV
VRTConnected to V Connected to V
RBS
VRTConnected to V Connected to V
RBS
SS
RTS,VRB
RTS,VRB
7
8
2.6
0.6
CLK
Units
(Limits)
V (min)
V (max)
Ω (min)
Ω (max)
V (min)
V (max)
V (min)
V (max)
=
0.5V
DD
RT
www.national.com5
Converter Electrical Characteristics (Continued)
The following specifications apply for AVDD=DVDD= +5.0 VDC, PD = 0V, VRT= +2.6V, VRB= 0.6V, CL= 20 pF, f 50 MHz at 50% duty cycle. Boldface limits apply for T
ADC1175-50
Symbol Parameter Conditions
A=TMIN
ANALOG INPUT AND REFERENCE CHARACTERISTICS
Connected to V
V
RT
V
RTS–VRBS
Self Bias Voltage Delta
Connected to V V
Connected to V
RT
Connected to AV
V
RT–VRB
Reference Voltage Differential 2
CONVERTER DYNAMIC CHARACTERISTICS
f
= 4.4 MHz, f
IN
f
= 19.9 MHz, f
IN
ENOB Effective Number of Bits
SINAD Signal-to-Noise & Distortion
SNR Signal-to-Noise Ratio
SFDR Spurious Free Dynamic Range
THD Total Harmonic Distortion
f
= 1.3 MHz, f
IN
f
= 4.4 MHz, f
IN
f
= 24.9 MHz, f
IN
f
= 4.4 MHz, f
IN
f
= 19.9 MHz, f
IN
f
= 1.3 MHz, f
IN
f
= 4.4 MHz, f
IN
f
= 24.9 MHz, f
IN
f
= 4.4 MHz, f
IN
f
= 19.9 MHz, f
IN
f
= 1.3 MHz, f
IN
f
= 4.4 MHz, f
IN
f
= 24.9 MHz, f
IN
= 1.3 MHz 57 dB
f
IN
f
= 4.4 MHz 56 dB
IN
f
= 24.9 MHz 51 dB
IN
= 1.3 MHz −55 dB
f
IN
f
= 4.4 MHz −54 dB
IN
f
= 24.9 MHz −51 dB
IN
POWER SUPPLY CHARACTERISTICS
IA ID
IA ID
DD DD
DD DD
Analog Supply Current DVDD=AVDD= 5.25V 13 mA Digital Supply Current DVDD=AVDD= 5.25V 11 mA
=AVDD= 5.25V,
DV
DD
=50MHz
+
Total Operating Current
f
CLK
DV
=AVDD= 5.25V,
DD
CLK Inactive (low) Power Consumption PD pin low 125 190 mW (max) Power Consumption PD pin high
CLK, PD DIGITAL INPUT CHARACTERISTICS
V
IH
V
IL
I
IH
I
IL
C
IN
Logical High Input Voltage 2.0 V (min) Logical Low Input Voltage 0.8 V (max) Logical High Input Current VIH=DVDD=AVDD= +5.25V Logical Low Input Current VIL= 0V, DVDD=AVDD= +5.25V Digital Input Capacitance 4 pF
DIGITAL OUTPUT CHARACTERISTICS
I
OH
I
OL
Output Current, Logic HIGH DVDD= 4.75V, VOH= 4.0V −1.1 mA (min) Output Current, Logic LOW DVDD= 4.75V, VOL= 0.4V 1.8 mA (min)
to T
RTS,VRB
RBS
RTS,VRB
SS
= 40 MHz 7.2 6.7 Bits (min)
CLK
CLK
= 50 MHz 7.3 Bits
CLK
= 50 MHz 7.2 Bits
CLK
CLK
= 40 MHz 45 42 dB (min)
CLK
CLK
= 50 MHz 46 dB
CLK
= 50 MHz 45 dB
CLK
CLK
= 40 MHz 46 42.5 dB (min)
CLK
CLK
= 50 MHz 48 dB
CLK
= 50 MHz 45 dB
CLK
CLK
; all other limits TA= 25˚C (Notes 7, 8).
MAX
Typical
(Note 9)
Limits
(Note 9)
2
2.3 V
= 40 MHz 7.0 6.4 Bits (min)
= 50 MHz 6.8 6.1 Bits (min)
= 40 MHz 44 40 dB (min)
= 50 MHz 43 38.4 dB (min)
= 40 MHz 44 41 dB (min)
= 50 MHz 44 40 dB (min)
25 36 mA (max)
14 mA
<
5mW mW
CLK
Units
(Limits)
1.89
2.20
1.0
2.8
±
5 µA (max)
±
5 µA (max)
(V (min) V (max)
V (min)
V (max)
=
www.national.com 6
Converter Electrical Characteristics (Continued)
The following specifications apply for AVDD=DVDD= +5.0 VDC, PD = 0V, VRT= +2.6V, VRB= 0.6V, CL= 20 pF, f 50 MHz at 50% duty cycle. Boldface limits apply for T
A=TMIN
Symbol Parameter Conditions
to T
; all other limits TA= 25˚C (Notes 7, 8).
MAX
Typical
(Note 9)
Limits
(Note 9)
DIGITAL OUTPUT CHARACTERISTICS
I
OZH,IOZL
TRI-STATE®Output Current
DD
=DVDD,orVOL=0V
V
OL
±
20 µA
= 5.25V, PD = DVDD,
DV
AC ELECTRICAL CHARACTERISTICS
f
C1
f
C2
t
OD
Maximum Conversion Rate 55 50 MHz (min) Minimum Conversion Rate 1 MHz
Output Delay CLK high to data valid 14
5 ns (min)
20 ns (max)
Pipeline Delay (Latency) 2.5 Clock Cycles
t
DS
t
AJ
t
OH
t
EN
Note 1: “Absolute Maximum Ratings” indicate limits beyond which damage to the device may occur. Operating Ratings indicate conditions for which the device is functional, but do not guarantee specific performance limits. For guaranteed specifications and test conditions, see the Electrical Characteristics. The guaranteed specifications apply only for the test conditions listed. Some performance characteristics may degrade when the device is not operated under the listed test conditions.
Note 2: All voltages are measured with respect to GND = AV Note 3: When the input voltage at any pin exceeds the power supplies (that is, less than AV
be limited to 25 mA. The 50 mA maximum package input current rating limits the number of pins that can safely exceed the power supplies with an input current of 25 mA to two.
Note 4: The absolute maximum junction temperature (T junction-to-ambient thermal resistance (θ TSSOP, θ this part is 98˚C/W for the EIAJ SOIC.) Note that the power dissipation of this device under normal operation will typically be about 258 mW (210 mW quiescent power +38 mW reference ladder power +10 mW due to 1 TTL load on each digital output. The values for maximum power dissipation listed above will be reached only when the ADC1175-50is operated in a severe fault condition (e.g., when input or output pins are driven beyond the power supply voltages, or the power supply polarity is reversed). Obviously, such conditions should always be avoided.
Note 5: Human body model is 100 pF capacitor discharged through a 1.5 kΩ resistor. Machine model is 220 pF discharged through 0Ω. Note 6: See AN-450, “Surface Mounting Methods and Their Effect on Product Reliability”, or the section entitled “Surface Mount” found in any post 1986 National
Semiconductor Linear Data Book for other methods of soldering surface mount devices. Note 7: The analog inputs are protected as shown below. Input voltage magnitudes up to 6.5V or 500 mV below GND will not damage this device. However, errors
in the A/D conversion can occur if the input goes above V must be ≤4.80 V
Sampline (Aperture) Delay CLK low to acquisition of data 3 ns Aperture Jitter 10 ps rms Output Hold Time CLK high to data invalid 10 ns PD Low to Data Valid Loaded as in
SS
max) for this device is 150˚C. The maximum allowable power dissipation is dictated by TJmax, the
) and the ambient temperature (TA), and can be calculated using the formula PDmax=(TJmax–TA)/θJA. In the 24-pin
is 92˚C/W, so PDmax = 1,358 mW at 25˚C and 815 mW at the maximum operating ambient temperature of 75˚C. (Typical thermal resistance, θJA,of
JA
to ensure accurate conversions.
DC
JA
J
or below GND by more than 50 mV. As an example, if AVDDis 4.75 VDC, the full-scale input voltage
DD
Figure 2
=DVSS= 0V, unless otherwise specified.
or DVSS, or greater than AVDDor DVDD), the current at that pin should
SS
140 ns
CLK
Units
(Limits)
=
ADC1175-50
Note 8: To guarantee accuracy, it is required that AV Note 9: Typical figures are at T
Level).
= 25˚C, and represent most likely parametric norms. Test limits are guaranteed to National’s AOQL (Average Outgoing Quality
J
DS100896-10
and DVDDbe well bypassed. Each VDDpin must be decoupled with separate bypass capacitors.
DD
www.national.com7
Typical Performance Characteristics AV
=DVDD=5V,f
DD
= 50 MHz, unless otherwise stated.
CLK
INL Plot
ADC1175-50
DNL vs Temperature
DS100896-11
DNL Plot
SNR vs Temp & f
INL vs Temperature
DS100896-12
IN
THD vs Temp & f
IN
DS100896-13
SINAD & ENOB vs Temp & f
tODvs Temperature
DS100896-14
IN
DS100896-17
SINAD & ENOB vs Clock Duty Cycle
Power Supply Current vs f
DS100896-15
DS100896-18
CLK
SFDR vs Temp & f
Spectral Response
DS100896-16
IN
DS100896-19
DS100896-20
www.national.com 8
DS100896-21
DS100896-22
Specification Definitions
ANALOG INPUT BANDWIDTH is a measure of the fre-
quency at which the reconstructed output fundamental drops 3 dB below its low frequency value for a full scale input. The test is performed with f multiples of f
. The input frequency at which the output is
CLK
−3 dB relative to the low frequency input signal is the full power bandwidth.
APERTURE JITTER is the time uncertainty of the sampling point (t
), or the range of variation in the sampling delay.
DS
BOTTOM OFFSET is the difference between the input volt­age that just causes the output code to transition to the first code and the negative reference voltage. Bottom Offset is defined as E
=VZT−VRB, where VZTis the first code
OB
DIFFERENTIAL GAIN ERROR is the percentage difference between the output amplitudes of a high frequency recon­structed sine wave at two different dc levels.
DIFFERENTIAL NON-LINEARITY (DNL) is the measure of the maximum deviation from the ideal step size of 1 LSB. DNL is measured at the rated clock frequency with a ramp input.
DIFFERENTIAL PHASE ERROR is the difference in the output phase of a reconstructed small signal sine wave at two different dc levels.
EFFECTIVE NUMBER OF BITS (ENOB, or EFFECTIVE BITS) is another method of specifying Signal-to-Noise and
1.76)/6.02 and says that the converter is equivalent to a perfect ADC of this (ENOB) number of bits.
INTEGRAL NON-LINEARITY (INL) is a measure of the deviation of each individual codes from a line drawn from zero scale (1/2 LSB below the first code transition) through positive full scale (1/2 LSB above the last code transition). The deviation of any given code from this straight line is measured from the center of that code value. The end point test method is used. INL is measured at rated clock fre­quency with a ramp input.
OUTPUT DELAY is the time delay after the rising edge of the input clock before the data update is present at the output pins.
equal to 100 kHz plus integer
IN
OUTPUT HOLD TIME is the length of time that the output data is valid after the rise of the input clock.
PIPELINE DELAY (LATENCY)is the number of clock cycles between initiation of conversion and when that data is pre­sented to the output stage. Data for any given sample is available the Pipeline Delay plus the Output Delay after that sample is taken. New data is available at every clock cycle, but the data lags the conversion by the pipeline delay.
SAMPLING (APERTURE) DELAY, or t
, is the time re-
DS
after the clock goes
DS
low. SIGNAL TO NOISE RATIO (SNR) is the ratio of the rms
value of the input signal to the rms value of the other spectral components below one-half the sampling frequency, not in­cluding harmonics or dc.
SIGNAL TO NOISE PLUS DISTORTION (S/(N+D) or SINAD) is the ratio of the rms value of the input signal to the
rms value of all of the other spectral components below half the clock frequency, including harmonics but excluding dc.
SPURIOUS FREE DYNAMIC RANGE (SFDR) is the differ­ence, expressed in dB, between the rms values of the input signal and the peak spurious signal, where a spurious signal is any signal present in the output spectrum that is not present at the input.
TOP OFFSET is the difference between the positive refer­ence voltage and the input voltage that just causes the output code to transition to full scale and is defined as E V
FT−VRT
. Where VFTis the full scale transition input volt-
OT
age. Note that this is different from the normal Full Scale Error.
TOTAL HARMONIC DISTORTION (THD) is the ratio of the rms total of the first six harmonic components to the rms value of the input signal.
ADC1175-50
=
www.national.com9
Timing Diagram
ADC1175-50
DS100896-23
FIGURE 1. ADC1175-50 Timing Diagram
FIGURE 2. tEN,t
Functional Description
The analog signal at V by V
and VRBare digitized to eight bits at up to 55 MSPS.
RT
Input voltages below V consist of all zeroes. Input voltages above V output word to consist of all ones. While the ADC1175-50 is optimized for top and bottom reference voltages (V V
) or 2.6V and 0.6V, respectively, and will give best per-
RB
formance at these values, V analog supply voltage, AV
4.0V. V V
RB
should always be at least 1.0V more positive than
RT
. With VRTvoltages above 2.8V, it is necessary to reduce
the clock frequency to maintain SINAD performance. If V
RT
and V
are connected together and VRBand V
RTS
are connected together, the nominal values of VRTand V
www.national.com 10
that is within the voltage range set
IN
will cause the output word to
RB
has a range of 1.0V to the
RT
, while VRBhas a range of 0V to
DD
will cause the
RT
and
RT
RBS
RB
DS100896-24
Test Circuit
DIS
are 2.6V and 0.6V, respectively. If VRTand V nected together and V V
is 2.3V.
RT
is grounded, the nominal value of
RB
RTS
Data is acquired at the falling edge of the clock and the digital equivalent of that data is available at the digital out­puts 2.5 clock cycles plus t
later. The ADC1175-50 will
OD
convert as long as the clock signal is present at the CLK pin. The Power Down pin (PD), when high, puts the ADC1175-50
are con-
Applications Information (All Schematic
pin numbers refer to the TSSOP.)
1.0 THE ANALOG INPUT
The analog input of the ADC1175-50 is a switch followed by an integrator. The capacitance seen at the input changes with the clock level, appearing as 4 pF when the clock is low,
and 7 pF when the clock is high. Since a dynamic capaci­tance is more difficult to drive than is a fixed capacitance, choose an amplifier that can drive this type of load. The CLC409 has been found to be an excellent device for driving the ADC1175-50. Do not drive the input beyond the supply rails.
Figure 3
gives an example of driving circuitry.
ADC1175-50
FIGURE 3. Driving the ADC1175-50. Choose an op-amp that can drive a dynamic capacitance.
2.0 REFERENCE INPUTS
The reference inputs V
(Reference Top) and VRB(Refer-
RT
ence Bottom) are the top and bottom of the reference ladder. Input signals between these two voltages will be digitized to 8 bits. External voltages applied to the reference input pins should be within the range specified in the Electrical Char­acteristics table (1.0V to AV
1.0V) for V
). Any device used to drive the reference pins
RB
should be able to source sufficient current into the V and sink sufficient current from the V
The reference ladder can be self-biased by connecting V to V
and connecting the VRBto V
RTS
for VRTand 0V to (AVDD−
DD
pin.
RB
to provide top and
RBS
pin
RT
RT
bottom reference voltages of approximately 2.6V and 0.6V, respectively, with V
Figure 3
.IfVRTand V
= 5.0V. This connection is shown in
CC
are tied together, but VRBis tied to
RTS
analog ground, a top reference voltage of approximately
2.3V is generated. The top and bottom of the ladder should be bypassed with 10 µF tantalum capacitors located close to the reference pins.
The reference self-bias circuit of
Figure 3
is very simple and the performance is adequate for many applications. Better linearity performance can generally be achieved by driving the reference pins with a low impedance source.
DS100896-25
By forcing a little current into or out of the top and bottom of the ladder, as shown in
Figure 4
, the top and bottom refer­ence voltages can be trimmed and performance improved over the self-bias method of
Figure 3
. The resistive divider at the amplifier inputs can be replaced with potentiometers, if desired. The LMC662 amplifier shown was chosen for its low offset voltage and low cost. Note that a negative power supply is needed for these amplifiers as the lower one may be required to go slightly negative to force the required reference voltage.
If reference voltages are desired that are more than a few tens of millivolts from the self-bias values, the circuit of
Figure 5
will allow forcing the reference voltages to whatever levels are desired. This circuit provides the best performance because of the low source impedance of the transistors. Note that the V
RTS
and V
pins are left floating.
RBS
To minimize noise effects and ensure accurate conversions, the total reference voltage range (V
RT−VRB
) should be a
minimum of 1.0V and a maximum of about 2.8V. TheADC1175-50 is designed to operate with top and bottom
references of 2.6V and 0.6V, respectively. However, it will function with reduced performance with a top reference volt­age as high as AV
.
DD
www.national.com11
Applications Information (All Schematic pin numbers refer to the TSSOP.) (Continued)
ADC1175-50
DS100896-26
FIGURE 4. Better Defining the ADC Reference Voltage. Self bias is still used, but the reference voltages are trimmed
by providing a small trim current with the operational amplifiers.
www.national.com 12
Applications Information (All Schematic pin numbers refer to the TSSOP.) (Continued)
ADC1175-50
DS100896-27
FIGURE 5. Driving the Reference to Force Desired Values requires driving with a low impedance source, provided by
the transistors. Note that pins 16 and 22 are not connected.
3.0 OUTPUT DATA TIMING
The Output Delay (t
) of the ADC1175-50 can be very close
OD
to one half clock cycle. Because of this, the output data transition occurs very near the falling edge of the ADC clock. To avoid clocking errors, you should use the
rising
edge of the ADC clock to latch the output data of the ADC1175-50 and
not
use the falling edge.
As with all high speed converters, the ADC1175-50 should be assumed to have little a.c. power supply rejection, espe­cially when self biasing is used by connecting V
RT
and V
RTS
together. No pin should ever have a voltage on it that is in excess of
the supply voltage or below ground, not even on a transient basis. This can be a problem upon application of power to a circuit. Be sure that the supplies to circuits driving the CLK,
4.0 POWER SUPPLY CONSIDERATIONS
Many A/D converters draw sufficient transient current to corrupt their own power supplies if not adequately bypassed. A 10 µF tantalum or aluminum electrolytic capacitor should be placed within an inch (2.5 centimeters) of the A/D power pins, with a 0.1 µF ceramic chip capacitor placed as close as possible to the converter’s power supply pins. Leadless chip capacitors are preferred because they have low lead induc­tance.
PD, analog input and reference pins do not come up any faster than does the voltage at the ADC1175-50 power pins.
5.0 THE ADC1175-50 CLOCK
Although the ADC1175-50 is tested and its performance is guaranteed with a 50 MHz clock, it typically will function with clock frequencies from 1 MHz to 55 MHz.
The clock should be one of low jitter and close to 50% duty
cycle. While a single voltage source should be used for the analog and digital supplies of the ADC1175-50, these supply pins should be isolated from each other to prevent any digital noise from being coupled to the analog power pins. We recommended a choke be used between the analog and digital supply lines, with a ceramic capacitor close to the analog supply pin. If a resistor is used in place of the choke, a maximum of 10Ω should be used.
The converter digital supply should
not
be the supply that is used for other digital circuitry on the board. It should be the same supply used for the A/D analog supply.
6.0 LAYOUT AND GROUNDING
Proper grounding and proper routing of all signals is essen­tial to ensure accurate conversion. Separate analog and digital ground planes that are connected beneath the ADC1175-50 are required to meet data sheet limits. The analog and digital grounds may be in the same layer, but should be separated from each other and should
never
overlap each other. Capacitive coupling between the typically noisy digital
ground plane and the sensitive analog circuitry can lead to poor performance that may seem impossible to isolate and
www.national.com13
Applications Information (All Schematic
pin numbers refer to the TSSOP.) (Continued) remedy. The solution is to keep the analog circuitry well
ADC1175-50
separated from the digital circuitry and from the digital ground plane.
Digital circuits create substantial supply and ground current transients. The logic noise thus generated could have sig­nificant impact upon system noise performance. The best logic family to use in systems with A/D converters is one which employs non-saturating transistor designs, or has low noise characteristics, such as the 74HC(T) and 74AC(T)Q families. The worst noise generators are logic families that draw the largest supply current transients during clock or signal edges, like the 74F and the 74AC(T) families. In general, slower logic families, such as 74LS and 74HC(T) will produce less high frequency noise than do high speed logic families, such as the 74F and 74AC(T) families.
Since digital switching transients are composed largely of high frequency components, total ground plane copper weight will have little effect upon the logic-generated noise. This is because of the skin effect. Total surface area is more important than is total ground plane volume.
An effective way to control ground noise is by connecting the analog and digital ground planes together beneath the ADC with a copper trace that is very narrow (about 1/16 inch) compared with the rest of the ground plane. This narrowing beneath the converter provides a fairly high impedance to the high frequency components of the digital switching cur­rents, directing them away from the analog pins. The rela­tively lower frequency analog ground currents do not see a significant impedance across this narrow ground connection.
The back of the LLP package has a large metal area inside the area bounded by the pins. This metal area is connected to the die substrate (ground). This pad may be left floating if desired. If it is connected to anything, it should be to ground near the connection between analog and digital ground planes. Soldering this metal pad to ground will help keep the die cooler and could yield improved performance because of the lower impedance between die and board grounds. How­ever, a poor layout could compromise performance.
Generally,analog and digital lines should cross each other at 90˚ to avoid getting digital noise into the analog path. In high frequency systems, however, avoid crossing analog and digital lines altogether. Clock lines should be isolated from ALL other lines, analog AND digital. Even the generally accepted 90˚ crossing should be avoided as even a little coupling can cause problems at high frequencies. Best per­formance at high frequencies and at high resolution is ob­tained with a straight signal path.
Be especially careful with the layout of inductors. Mutual inductance can change the characteristics of the circuit in which they are used. Inductors should not be placed side by side with each other, not even with just a small part of their bodies beside each other.
DS100896-28
FIGURE 6. Layout Examples Showing Separate Analog and Digital Ground Planes Connected below the ADC1175-50
Figure 6
www.national.com 14
gives an example of a suitable layout. All analog
7.0 DYNAMIC PERFORMANCE
The ADC1175-50 is ac tested and its dynamic performance is guaranteed. To meet the published specifications, the clock source driving the CLK input must be free of jitter. For best ac performance, isolating the ADC clock from any digital circuitry should be done with adequate buffers, as with a clock tree. See
Figure 7
.
Applications Information (All Schematic
pin numbers refer to the TSSOP.) (Continued)
DS100896-29

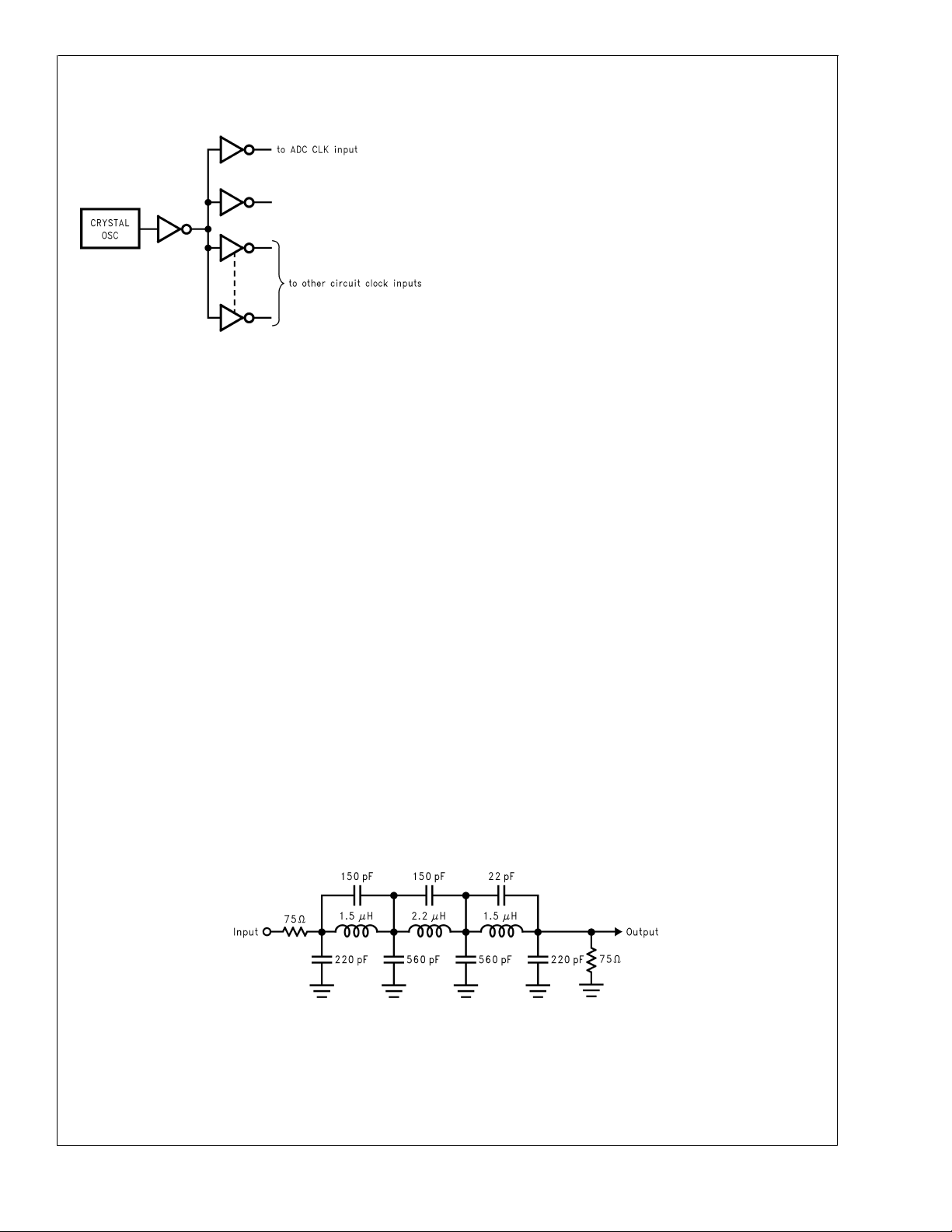

FIGURE 7. Isolating the ADC Clock from Digital
Circuitry
It is good practice to keep the ADC clock line as short as possible and to keep it well away from any other signals. Other signals can introduce jitter into the clock signal.
8.0 COMMON APPLICATION PITFALLS Driving the inputs (analog or digital) beyond the power
supply rails. For proper operation, all inputs should not go
more than 50 mV below the ground pins or 50 mV above the supply pins. Exceeding these limits on even a transient basis may cause faulty or erratic operation. It is not uncommon for high speed digital circuits (e.g., 74F and 74AC devices) to exhibit undershoot that goes more than a volt below ground. A resistor of about 50Ω to 100Ω in series with the offending digital input will usually eliminate the problem.
Care should be taken not to overdrive the inputs of the ADC1175-50. Such practice may lead to conversion inaccu­racies and even to device damage.
Attempting to drive a high capacitance digital data bus.
and DGND. These large charging cur-
DD
also be improved by adding 47Ω series resistors at each digital output, reducing the energy coupled back into the converter output pins.
Using an inadequate amplifier to drive the analog input.
As explained in Section 1.0, the capacitance seen at the input alternates between 4 pF and 7 pF with the clock. This dynamic capacitance is more difficult to drive than is a fixed capacitance, and should be considered when choosing a driving device. The CLC409 has been found to be an excel­lent device for driving the ADC1175-50.
Driving the V
pin or the VRBpin with devices that can
RT
not source or sink the current required by the ladder.As
mentioned in Section 2.0, care should be taken to see that any driving devices can source sufficient current into the V
RT
pin and sink sufficient current from the VRBpin. If these pins are not driven with devices than can handle the required current, these reference pins will not be stable, resulting in a reduction of dynamic performance.
Using a clock source with excessive jitter, using exces­sively long clock signal trace, or having other signals coupled to the clock signal trace. This will cause the
sampling interval to vary, causing excessive output noise and a reduction in SNR performance. Simple gates with RC timing is generally inadequate as a clock source.
Input test signal contains harmonic distortion that inter­feres with the measurement of dynamic signal to noise ratio. Harmonic and other interfering signals can be re-
moved by inserting a filter at the signal input. Suitable filters are shown in
Figure 8
and
Figure 9
. The circuit of
Figure 8
has a cutoff of about 5.5 MHz and is suitable for input frequencies of 1 MHz to 5 MHz. The circuit of
Figure 9
has a cutoff of about 11 MHz and is suitable for input frequencies of 5 MHz to 10 MHz. These filters should be driven by a generator of 75Ω source impedance and terminated with a 75Ω resistor.
Not considering the effect on a driven CMOS digital circuit(s) when the ADC1175-50 is in the power down mode. Because the ADC1175 output goes into a high im-
pedance state when in the power down mode, any CMOS device connected to these outputs will have their inputs floating. Should the inputs float to a level near 2.5V, the CMOS device could exhibit relative large currents through its input stage. The solution is to use pull-down resistors. The value of these resistors is not critical, as long as they do not cause excessive currents in the outputs of the ADC1175-50. These currents could result in degraded SNR and SINAD performance of the ADC1175-50. Values between 5 kΩ and 100 kΩ should work well.
ADC1175-50
DS100896-30
FIGURE 8. 5.5 MHz Low Pass filter to eliminate harmonics at the signal input. Use at input frequencies of 1 MHz to 5
MHz.
www.national.com15
Applications Information (All Schematic pin numbers refer to the TSSOP.) (Continued)
ADC1175-50
DS100896-31
FIGURE 9. 11 MHz Low Pass filter to eliminate harmonics at the signal input. Use at input frequencies of 5 MHz to 10
MHz
www.national.com 16
Physical Dimensions inches (millimeters) unless otherwise noted
ADC1175-50
24-Lead Package JM
Order Number ADC1175-50CIJM
NS Package Number M24D
www.national.com17
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
ADC1175-50
24-Lead Package TC
Order Number ADC1175-50CIMT
NS Package Number MTC24
www.national.com 18
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
ADC1175-50 8-Bit, 50 MSPS, 125 mW A/D Converter
24-Lead Package LLP
Order Number ADC1175-50CILQX
NS Package Number LQA24A
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT AND GENERAL COUNSEL OF NATIONAL SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, and whose failure to perform when properly used in accordance with instructions for use provided in the
2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
labeling, can be reasonably expected to result in a significant injury to the user.
National Semiconductor Corporation
Americas Tel: 1-800-272-9959 Fax: 1-800-737-7018 Email: support@nsc.com
www.national.com
National Semiconductor Europe
Fax: +49 (0) 180-530 85 86
Email: europe.support@nsc.com Deutsch Tel: +49 (0) 69 9508 6208 English Tel: +44 (0) 870 24 0 2171 Français Tel: +33 (0) 1 41 91 8790
National Semiconductor Asia Pacific Customer Response Group
Tel: 65-2544466 Fax: 65-2504466 Email: ap.support@nsc.com
National Semiconductor Japan Ltd.
Tel: 81-3-5639-7560 Fax: 81-3-5639-7507
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
