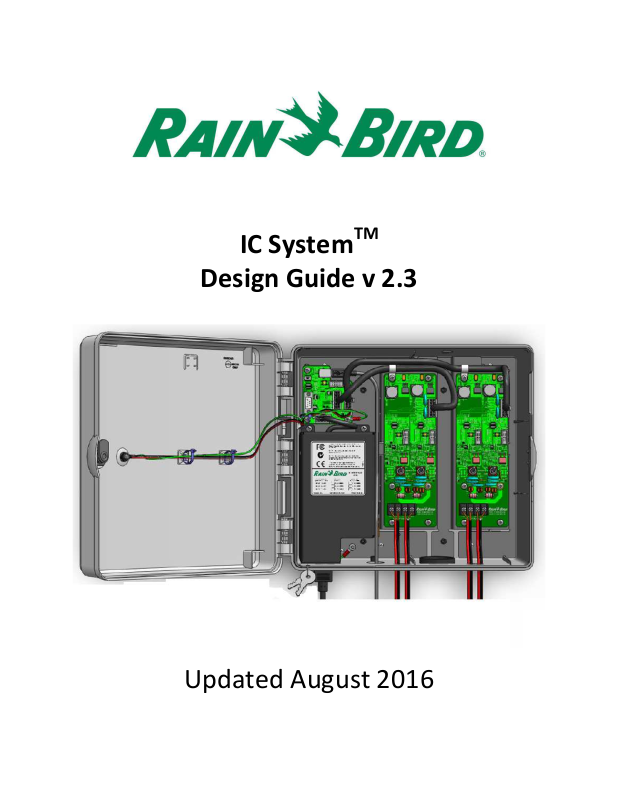

Rain Bird IC System Design Manual

TM
IC System
Design Guide v 2.3
2 IC System
TM
Design Guide, v2
.3
IC SystemTM – Product Definitions ................................................................................................................
Integrated Control Interface (ICI).................................................................................................................. 4
Integrated Control Module (ICM) ................................................................................................................. 5
Integrated Control Surge Device (ICSD) ........................................................................................................ 5
Components of the IC Interface (ICI) ............................................................................................................ 6
Uninterruptable Power Supply (UPS) ........................................................................................................... 7
How the System Works ................................................................................................................................. 8
Basic Design Data ..........................................................................................................................................
System Capacity .......................................................................................................................................... 10
Flexible Design ............................................................................................................................................ 10

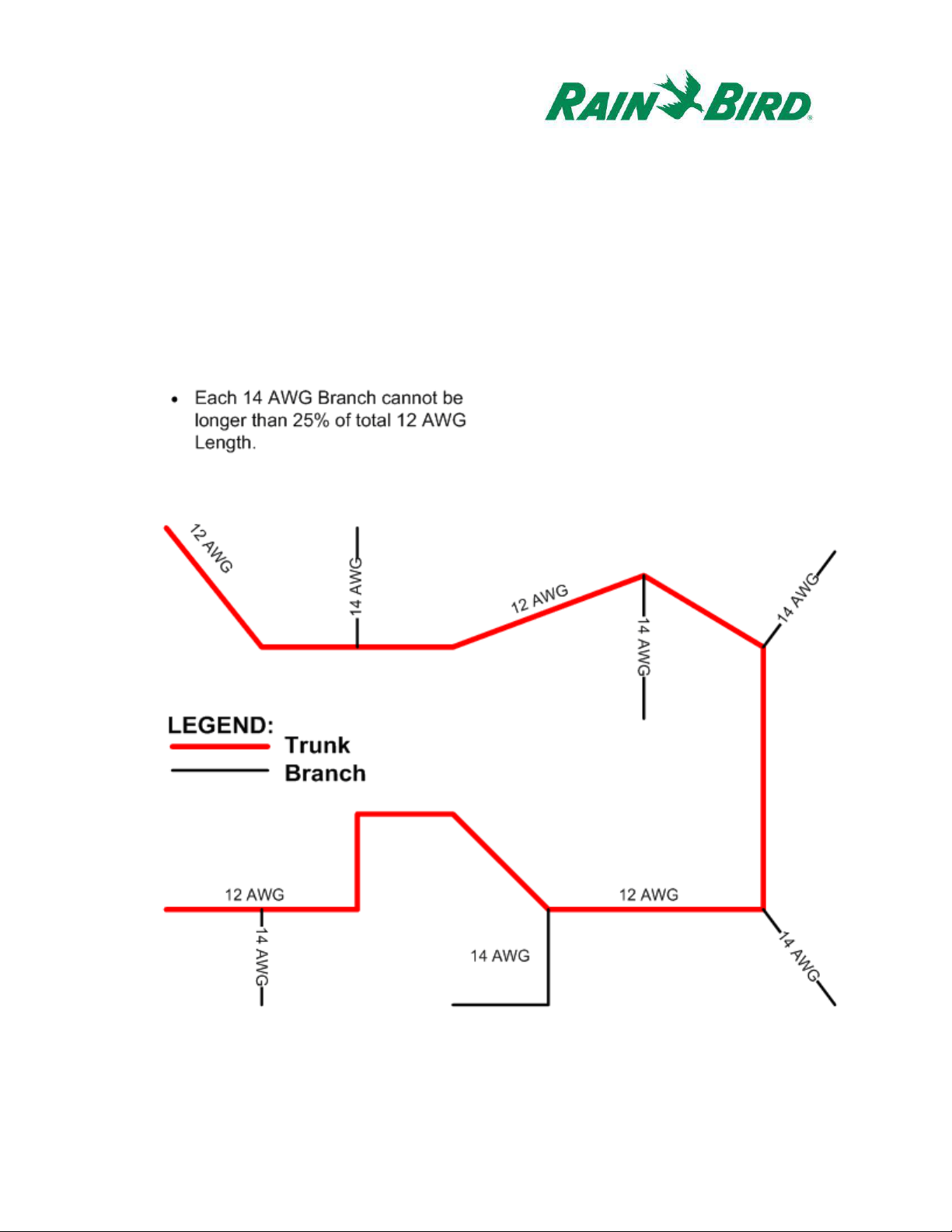

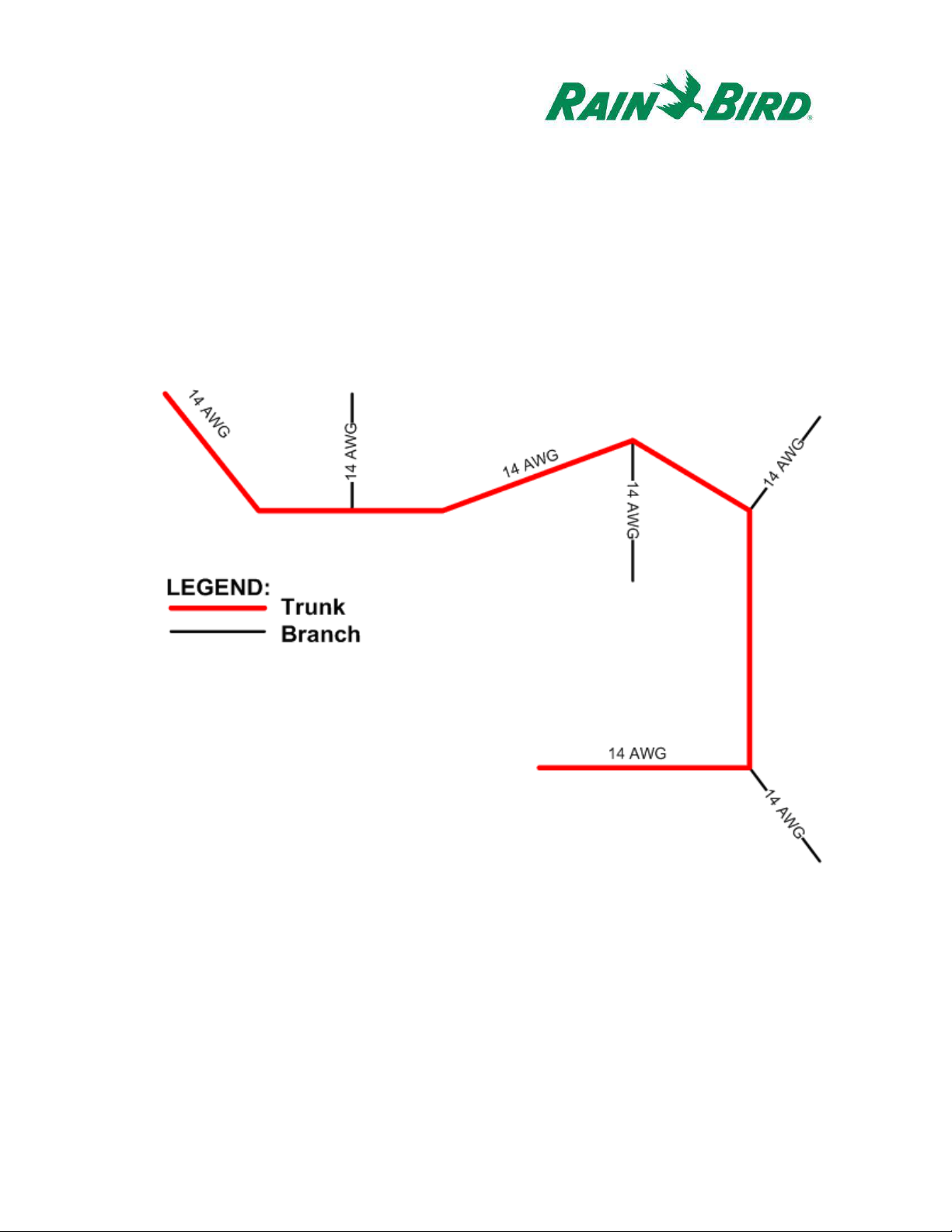

Wire Path .................................................................................................................................................... 11

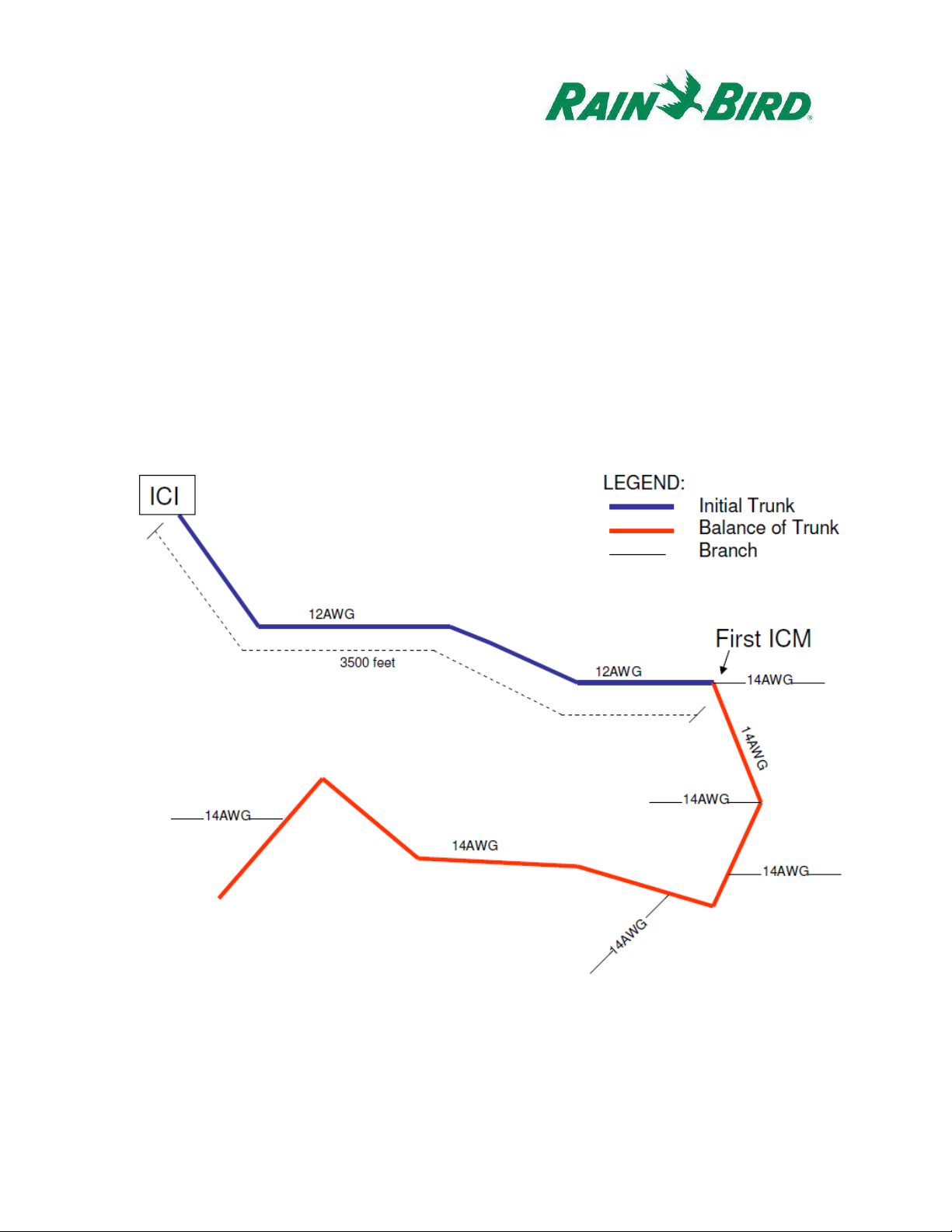

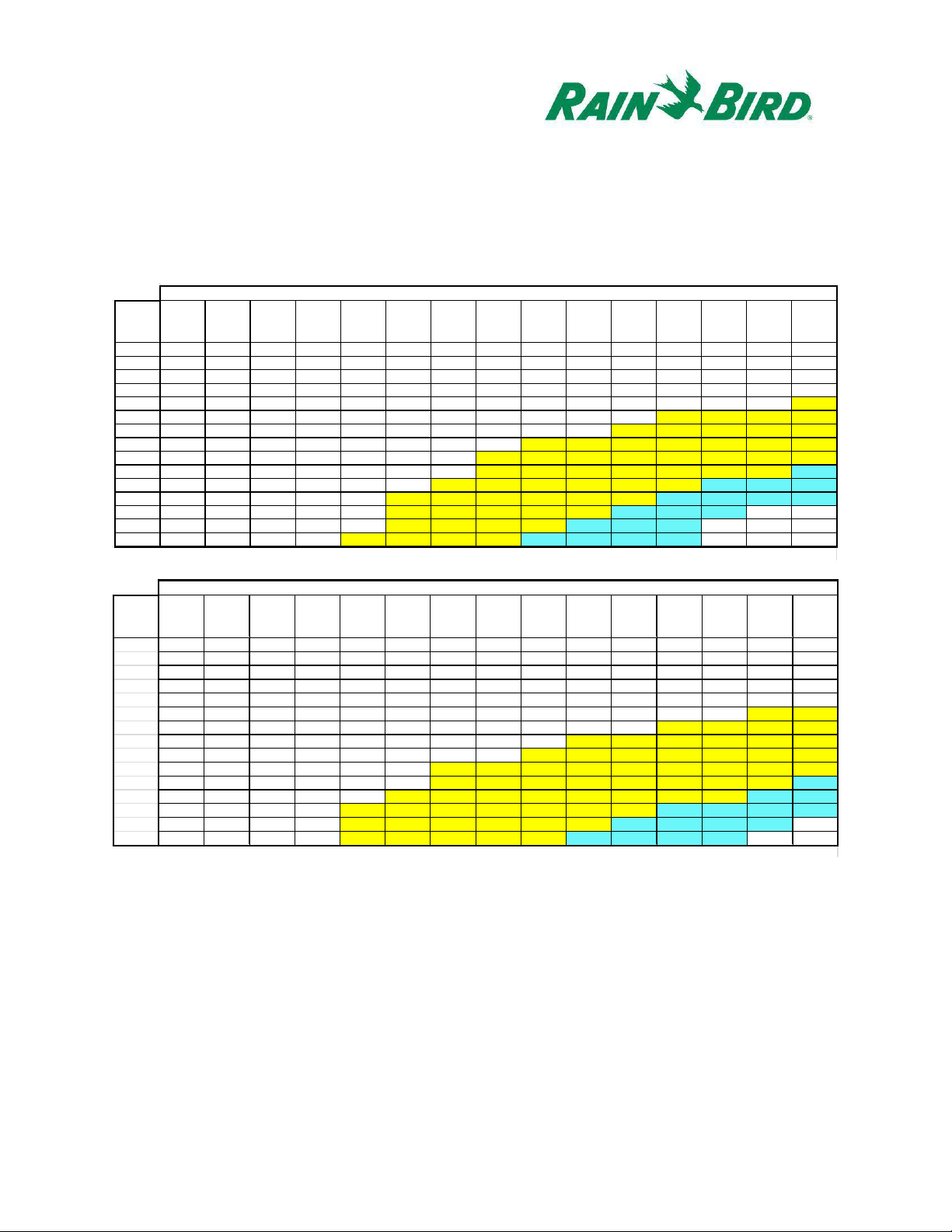

Wire Sizing Charts ....................................................................................................................................... 12
3
9
Examples .............................................................................................................................................. 13 - 15

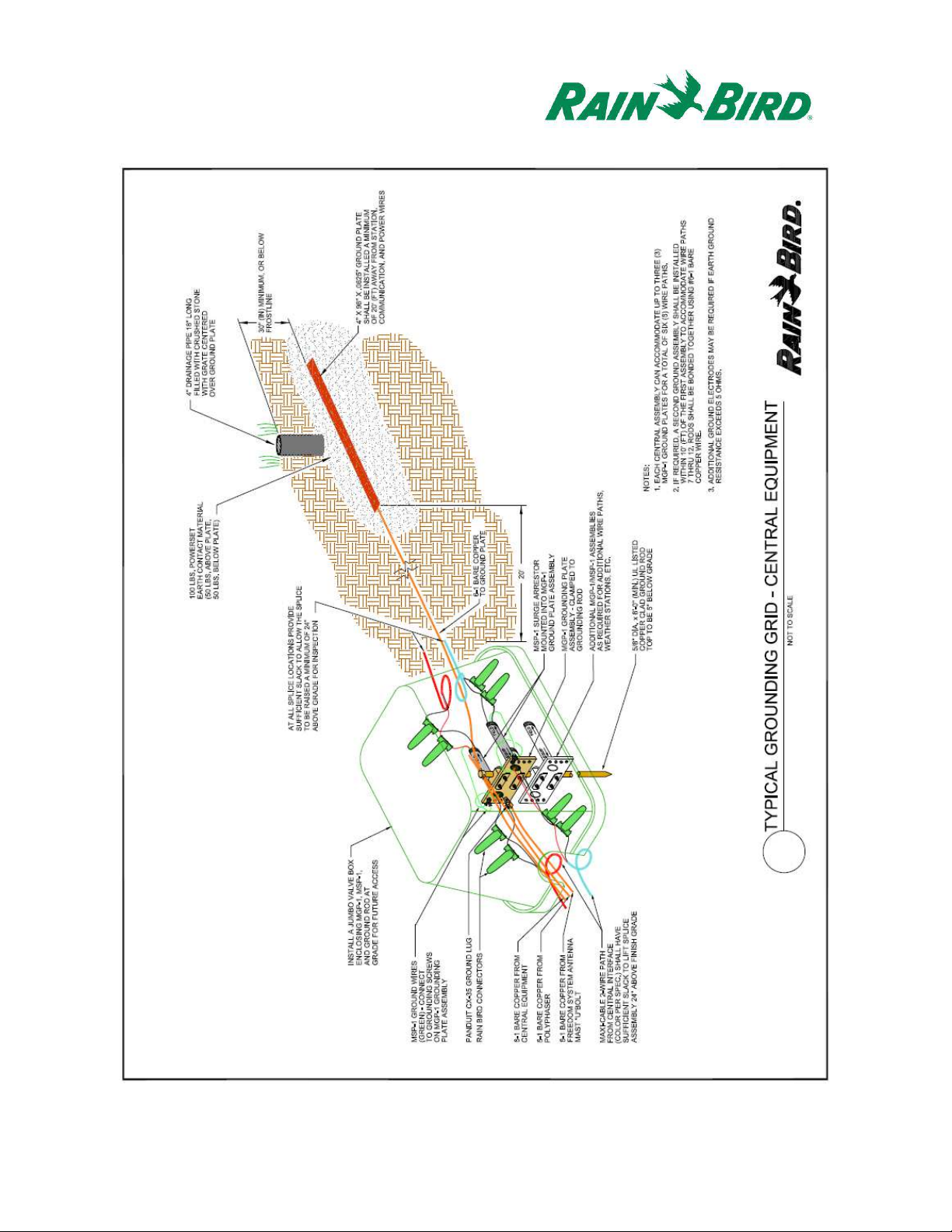

Grounding ...................................................................................................................................................
16
Types of Pipe Networks .............................................................................................................................. 17
Wire Path “Field Fuses” .............................................................................................................................. 18
Looping Communication Wire .................................................................................................................... 18
Combining Wire Paths at the Interface ...................................................................................................... 18
Remotely Locating an Integrated Control Interface (ICI) ............................................................................ 18
Introduction
This Design Guide is presented to help clarify standard design questions for the IC SystemTM. If there are
any questions or specific examples that may not be adequately addressed within this guide, please
contact your Rain Bird sales or service manager for additional clarification to aid in the proper design for
the specific application.
IC System– Product Definitions
Central Control Software
CirrusTM, Nimbus IITM, Stratus IITM and Stratus LTTM are the Central Control applications that are available
to operate with the IC System. The software is used to establish the irrigation system parameters,
operate the system and perform troubleshooting tasks. There are many troubleshooting diagnostic
features within the software that enable the user to quickly diagnose and identify the location of field
related issues on the course.
IC SystemTM Design Guide, v2.3 3
4 IC System
TM
Design Guide, v2
.3
ICI
The Integrated Control Interface (ICI) is the electronic hardware and firmware that accepts commands
from the Central Control Software and directs them to the field. The ICI also communicates intelligently
with the field in order to update the status back to the Central Control Software.

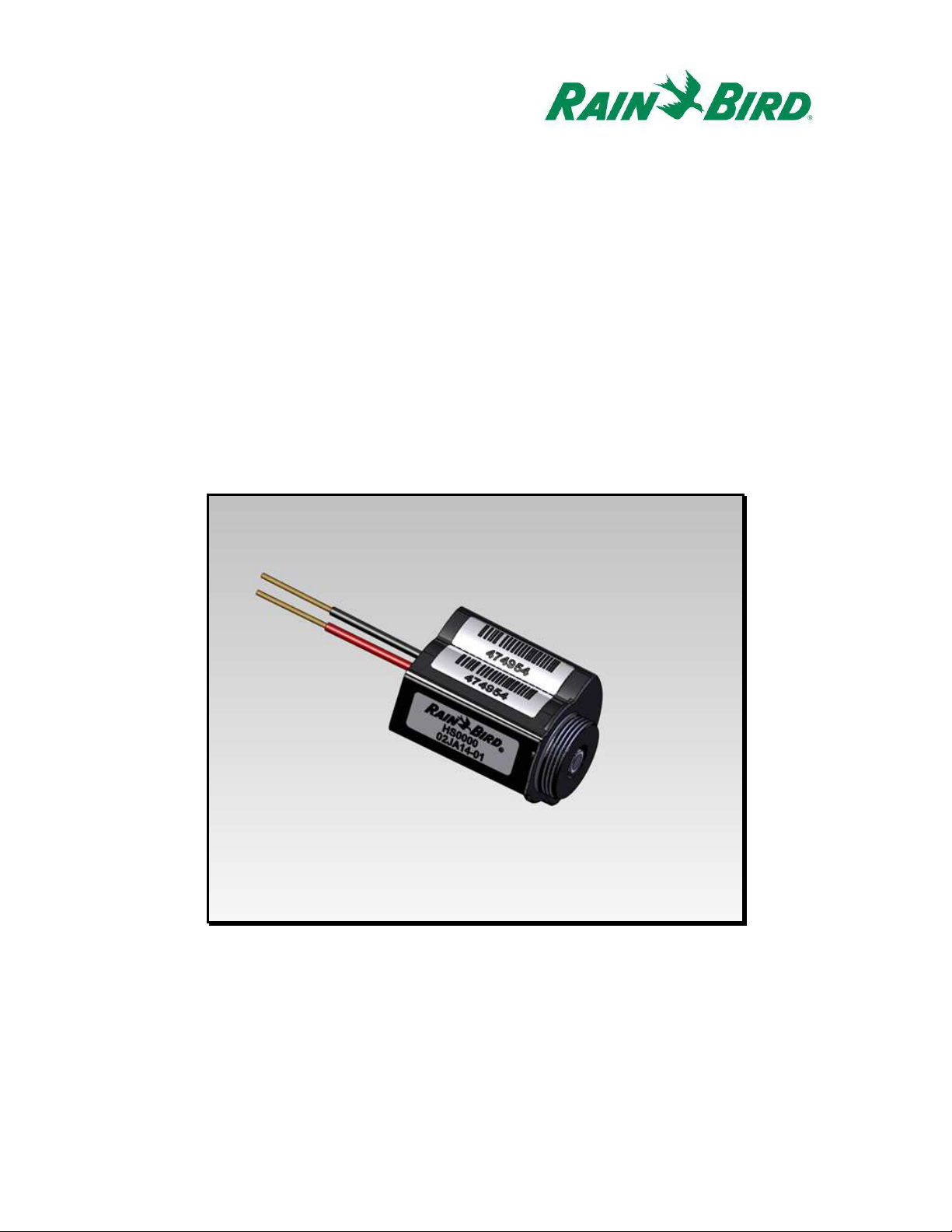

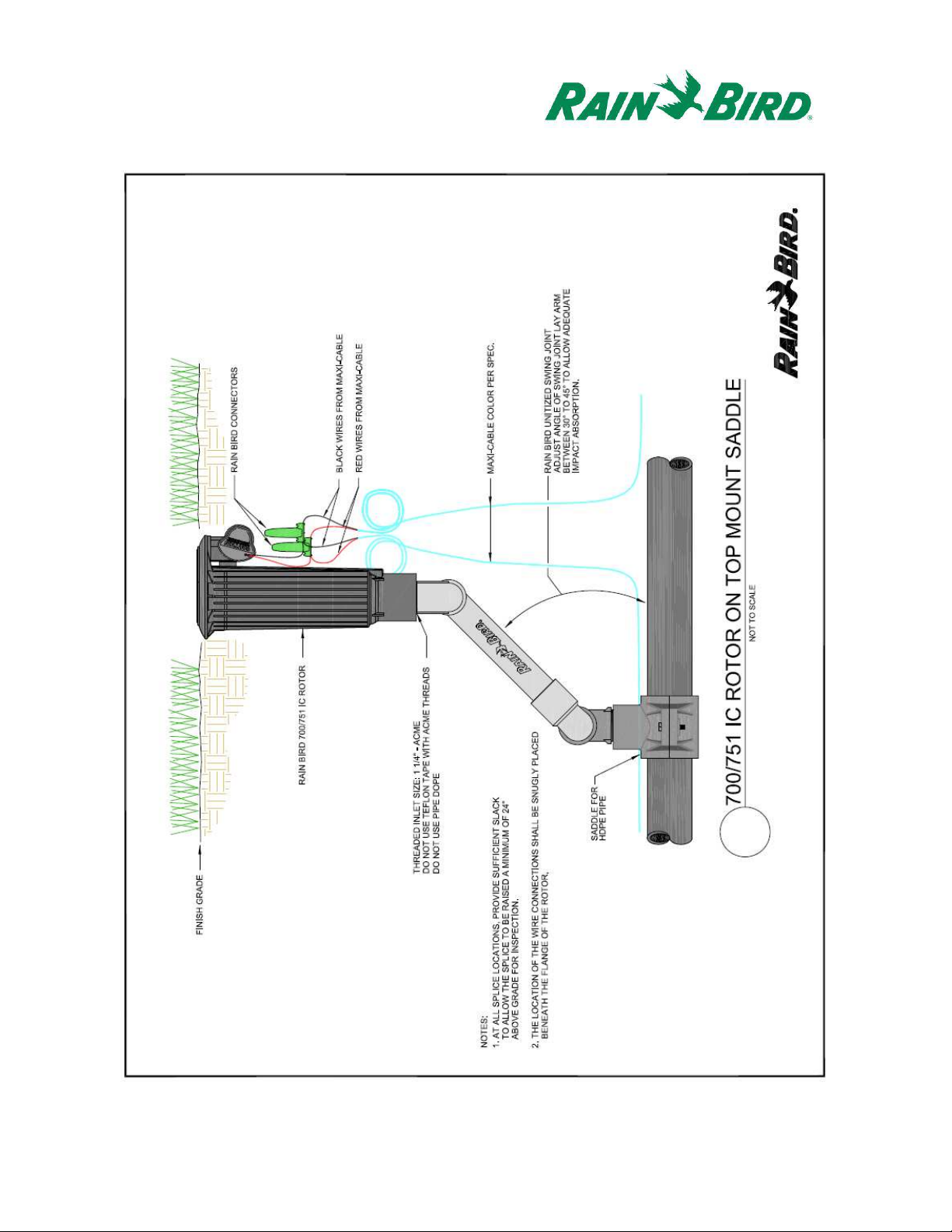

ICM
The Integrated Control Module (ICM) is mounted on Rain Bird manufactured valve-in-head golf rotors or
electric in-line valves. The ICM communicates directly to the Rain Bird central control software via Rain
Bird MAXITM cable two-wire path and the ICI interface. The central control software automatically
operates the rotors and valves throughout the golf course by activating each individual ICM as needed.
If the ICM is installed on Rain Bird electric in-line valves, an ICM valve adapter (ICMA) is required.
ICSD
The Integrated Control Surge Device (ICSD) provides surge protection for the system in case of lightning
strikes.
IC SystemTM Design Guide, v2.3 5
6 IC System
TM
Design Guide, v2
.3
Components of the Integrated Control Interface (ICI)
CPU Board
The CPU Board provides communication between the Central Control Computer and each of the wire
paths.
Driver Board
The Driver Board provides communication
between the CPU board and the ICMs in the
field. Depending upon the model, there may be
one or two Driver Boards in the ICI.
Uninterruptable Power Supply (UPS)
Rain Bird recommends the use of a UPS to provide battery backup in cases of fluctuating or loss of
power to the Integrated Control Interface (ICI). When operated by battery the IC SystemTM requires a
“pure sine wave” signal and not a modified, square or PWM wave.
The computer running the Central Control software and ICI should be powered through a UPS. Rain Bird
has verified APC model Smart-UPS 1500 for the IC System. Different countries may have differing
requirements and APC typically makes a Smart-UPS for each country according to the needs of that
country. If sourcing a Smart-UPS for a different country, please source the UPS in the country in which
the system will be operated. For example, do not purchase a Smart-UPS in the United States and ship it
to Asia. The local Rain Bird distributor can source the appropriate UPS in-country.
Less expensive UPS models are available in a variety of stores but it has been proven that these do not
produce the “pure sine wave” signal required by the IC System. Please purchase the APC Smart-UPS
1500 model for an IC System.
IC SystemTM Design Guide, v2.3 7
