M.T. H.
7020 Columbia Gateway Drive
Columbia, MD 21046-1532
www.mth-railking.com
Add some real excitement to your layout with this realistic
all-new accessory. While the “fire” isn’t real, the smoke and
water are!!
Watch as the smoke pours out of the factory. The fire glow from
inside gives off the impression that the factory is ablaze.
Fortunately, the fireman outside is on alert and is diligently
washing down the factory with his hose as real water streams out
and water is going in the window. The water is self-contained
inside the structure and recirculates through the fireman’s hose.
Everything comes painted and assembled. Installation is easy
and quick.
ELECTRIC TRAINS, INC.

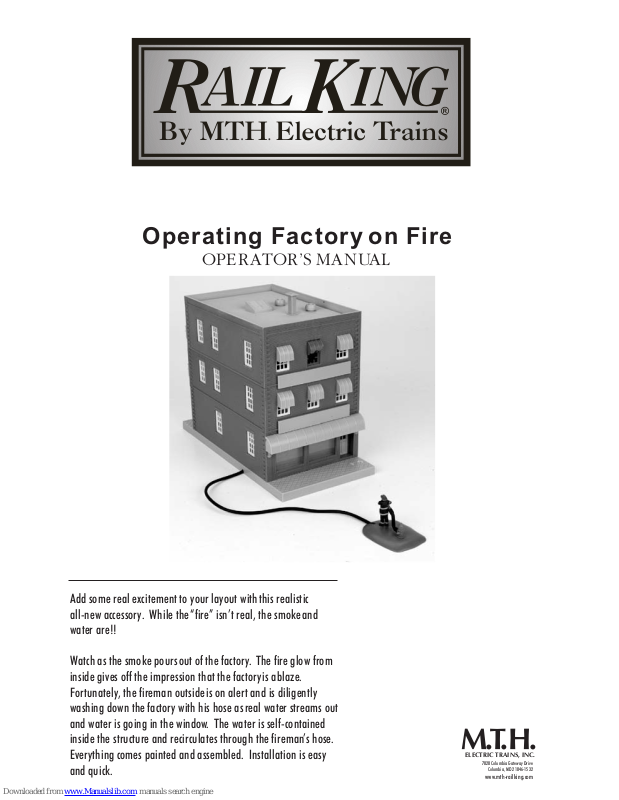

Operating Factory on Fire
OPERATOR’S MANUAL
CAUTION: ELECTRICALLY OPERATED PRODUCT:
Not recommended for children under 8 years of age without adult supervision. As with all electric products,
precautions should be observed during handling and use to reduce the risk of electric shock.
WARNING: When using electrical products, basic safety precautions should be followed including the following:
• Read this manual thoroughly before using this device.
• M.T.H. recommends that all users and persons supervising use examine the unit periodically for conditions
that may result in the risk of fire, electric shock, or injury to persons, such as damage to the primary cord, plug
blades, housing, output jacks or other parts. In the event such conditions exist, the unit should not be used
until properly repaired.
• This unit is intended for indoor use only.
• Do not operate with damaged wires or clips.
• Do not use this unit for other than its intended purpose. This unit was designed to operate with any AC or DC
output toy train transformer. See the transformer's operating instructions for more operating and safety
information.
Components
Fireman on Base
Ladder
Fireman that goes
on Ladder w/Hose Nozzel
Smoke Fluid Pipette
Cleaning Pin
Hose Cap
Set Up
Connect the red wire to the AC hot on your transformer, and the black wire to the ground on the transformer.
Operate between 12 and 18v.
Wiring Instructions
Smoke Unit
Remove cap from roof marked “S” and add 15-20 drops of smoke fluid through the smokestack before running.
We recommend M.T.H. ProtoSmoke, Seuthe or LGB fluids. Do not overfill the unit or the fluid may leak out and coat the
interior components. Failure to add fluid to the unit may damage the smoke unit heating element and/or wicking material.
THIS ACCESSORY CANNOT RUN WITHOUT FLUID IN THE SMOKE UNIT.
Remove cap from roof marked “W” and pour 1/4 cup water into water fill area (clear plastic pool). Do not over fill.
(The factory can function without water - the pump will not burn up).
To drain water, pull the rubber drain plug located on bottom of factory.
(Please note that the figure must be elevated above the water pool. If not, gravity will force water through the hose).
Adding Water
Smoke Unit
Drain Plug
Water Fill Area
Water Fill
Smoke Fill
AC
ACG
Figure Set Up
1) For the figure on the platform, attach hose from building to bottom of platform. Position figure 4 1/2” - 5 1/2” from building
and aim for the open window with fire damage. You may need to adjust the distance slightly once operation starts because
the water pressure will vary with different transformers and voltages.
You will need to use the hose cap to prevent water from
leaking when not in use.
WARNING: This product shoots out water. If you wet any electrical components on your layout you could cause short-circuiting
and serious injury could result. You must take the appropriate steps to waterproof the areas around this building.
Cap
Feet clamped
between rungs
Figure 1
Figure 2
2) For the figure on the ladder, attach hose from building to figure and attach figure to ladder. If you do not wish to use glue,
you can clamp the figure’s feet down w/the ladder (see Figure 1). Position figure to shoot water inside the window without a window
sheet (see Figure 2).
You will need to secure the ladder to your layout so the force of the water does not knock it over.
The window
without a window sheet
Figure 3
Light Removal
1) Remove 6 screws from base.
2) Remove 4 screws holding water fill and motor.
3) Remove two light housing mounting screws.
4) Remove red rotating light housing.
5) Pull out light bulbs.
6) Reassemble in reverse order.
Light Housing
Mounting Screws
Light Bulbs
Light Housing
Remove 6
Screws
In the event of a short circuit, the fuse will blow and
need to be replaced. This product takes a standard, fastacting 250V 2A Fuse. If you go to RadioShack®, we
recommend part #270-1052.
Fuse
Fuse
Maintenance
Cleaning Rod:
The nozzle needs to be cleaned after a few hours of use
because the smoke fluid will settle into the water. The
sediments can clog the nozzle that the fire fighter is
holding. To clean the nozzle you must take off the hose
connected to the nozzle and push the pin through the
nozzle starting at the small end. To help prevent the
hose from clogging up change the water in the
reservoir before each use.
Small End
of nozzle
where you
insert the pin
End of nozzle that
connects to the
hose
Notes:______________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
___________________________________________________
Service & Warranty Information
How to Get Service Under the Terms of the Limited One-Year Warranty
When you suspect an item is defective, please check the operator's manual for standard
operation and trouble-shooting techniques that may correct the problem. Additional
information may be found on the M.T.H. Website. Should you still require service, follow
the instructions below to obtain warranty service.
First, e-mail, write, call or fax a M.T.H. Authorized Service Center (ASC) in your area to obtain Repair
Authorization. You can find the list of ASCs on the M.T.H. Website, www.mth-railking.com. Authorized Service
Centers are required to make warranty repairs on items sold only from that store; all other repairs may-- or may not
be done at the store's own discretion. If you did not purchase the item directly from the ASC, you will need to
select a National Authorized Service Center (NASC). These centers are compensated by M.T.H. to perform
warranty service for any customer whose repair qualifies for warranty service. A list of NASC retailers can be
located on the M.T.H. Website or by calling 1-888-640-3700. Should the warranty no longer apply, you may
choose either an ASC or NASC retailer to service your M.T.H. Product. A reasonable service fee will be charged.
CAUTION: Make sure the product is packed in its original factory packaging including its foam and plastic
wrapping material to prevent damage to the merchandise. There is no need to return the entire set if only one of
the components is in need of repair unless otherwise instructed by the Service Center. The shipment must be
prepaid and we recommend that it be insured. A cover letter including your name, address, daytime phone
number, e-mail address (if available), Return Authorization number (if required by the service center, a copy of
your sales receipt and a full description of the problem must be included to facilitate the repairs. Please include
the description regardless of whether you discussed the problem with a service technician when contacting the
Service Center for your Return Authorization.
Please make sure you have followed the instructions carefully before returning any merchandise for service.
Authorized M.T.H. Service Centers are independently owned and operated and are not agents or representatives of
M.T.H. Electric Trains. M.T.H. assumes no responsibility, financial or otherwise, for material left in their
possession, or work done, by privately owned M.T.H. Authorized Service Centers.
If you need assistance at any time email MTH Service at , or call 410 381-2580.
Limited One-Year Warranty
All M.T.H. products purchased from an Authorized M.T.H. Train Merchant are covered by this warranty.
See our website at or call 1-888-640-3700 to identify an Authorized M.T.H. Train Merchant near you.
M.T.H. products are warrantied for one year from the date of purchase against defects in material or workmanship, excluding wear
items such as light bulbs, pick-up rollers, batteries, smoke unit wicks, and traction tires. We will repair or replace (at our option)
the defective part without charge for the parts or labor, if the item is returned to an M.T.H. Authorized Service Center (ASC) or
M.T.H. National Authorized Service Center (NASC) within one year of the original date of purchase. This warranty does not cover
damages caused by improper care, handling, or use. Transportation costs incurred by the customer are not covered under this
warranty.
Items sent for repair must be accompanied by a return authorization number, a description of the problem, and a copy of the
original sales receipt from an Authorized M.T.H. Train Merchant, which gives the date of purchase. If you are sending this
product to an Authorized Service Center, contact that Center for their return authorization.
This warranty gives you specific legal rights, and you may have other rights that vary from state to state. Specific questions
regarding the warranty may be forwarded to M.T.H. directly.
