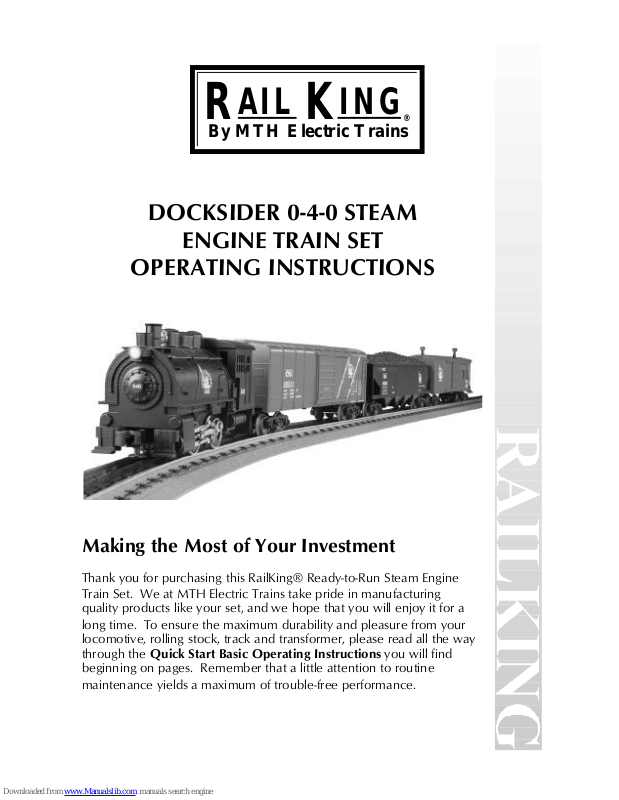

DOCKSIDER 0-4-0 STEAM

ENGINE TRAIN SET

OPERATING INSTRUCTIONS

Making the Most of Your Investment

Thank you for purchasing this RailKing® Ready-to-Run Steam Engine Train Set. We at MTH Electric Trains take pride in manufacturing quality products like your set, and we hope that you will enjoy it for a long time. To ensure the maximum durability and pleasure from your

locomotive, rolling stock, track and transformer, please read all the way through the Quick Start Basic Operating Instructions you will find

beginning on pages. Remember that a little attention to routine maintenance yields a maximum of trouble-free performance.

0-4-0 Steam Engine Instructions

Table Of Contents

QUICK START - BASIC OPERATION 4

Setting Up The RealTrax® Track System 4 Preparing The Locomotive & Cars For Operation 6 Lubrication 6 Operating The Locomotive & Cars 7 Electronic Reverse Unit 7 Transformer Operation 8 Special Reverse Unit Options 9

TRAIN SET MAINTENANCE 11

Oil 11 Grease 12

Locomotive Lamp Replacement 12 Caboose Lamp Replacement 13

RealTrax® TRACK LAYOUT PLANS 15 TRANSFORMER COMPATIBILITY CHART 18

EXPLODED PARTS VIEW DIAGRAM 19 SAFETY & WARNING PRECAUTIONS 23

SERVICE AND WARRANTY INFORMATION 24 HOW TO GET SERVICE 24

LIMITED ONE YEAR WARRANTY 24

0-4-0 Steam Engine Instructions

Compatibility

Our designers have sized the engine to operate on any traditional 0-27 or larger O Gauge track system, including RealTrax® using any standard AC transformer including the Z-500 transformer packaged in

your set. (See page 19 for a complete list of compatible transformers as well as wiring instructions.) All RailKing® products are compatible with most other 3-rail locomotives, rolling stock, and accessories.

Equipment Options

Your ready-to-run set features a 0-4-0 steam locomotive equipped with an operating headlight, mechanical whistle, ProtoSmoke® operating

smoke unit and a solid state electronic reverse unit. All are simple and fun to operate. In addition to the locomotive, your set should also

include a circle of RealTrax® track (8 curved sections), a RealTrax® lighted lock-on and wire harness set (for connecting the track to the transformer) and a 50-watt Z-500 transformer and controller.

You’ll find complete instructions for choosing and setting up options in the following pages. If you don’t read through the entire manual before starting to operate your equipment, be sure to check the Quick Start Basic Operating Instructions, which will give you the basics of the operating system.

CAUTION - ELECTRICALLY OPERATED PRODUCT:

Not recommended for children under ten years of age without adult supervision. As with all electric products, precautions should be

observed during handling and use to reduce the risk of electric shock.

Transformer Ratings:

Input: 120 VAC 60 HZ Only

Output: 18VAC, 3A 54VA

0-4-0 Steam Engine Instructions

Quick Start Operating Instructions

Track and Power

Although MTH Electric Trains manufactures its own track and transformers, you can run your locomotive on any 0-27 or wider-radius

O gauge track wired to draw power from any of the standard compatible AC transformers listed in the chart on page 19. Be sure

your track is in good condition—clean and securely connected—to keep the locomotive running and to prevent derailments. If you intend to utilize the RealTrax® track sections included in the set, see the directions below.

Setting Up the RealTrax® Circle

Unlike other O Gauge track systems, each RealTrax® track section features a realistic built-in roadbed base, solid nickel-silver track rails and realistic railroad ties, all designed to give the owner an authentic looking track system. In addition, each

RealTrax® track section employs the use of quick-connect connectors instead of track pins or

railjoiners to assemble the track sections to one

another. The quick connectors and built-in base allow RealTrax® track sections to be setup

anywhere, including some carpeted surfaces without the need for track nails or the worry of carpet stains.

You can set up literally hundreds of different track designs utilizing RealTrax® components. We’ve included just a few later in this manual for your reference. Each

Align Quick Connect

Plugs and Gently Push

RealTrax® Sections Together

Figure 1: Preparing to snap RealTrax® sections together by aligning Quick Connect Connectors together.

Figure 2: RealTrax® sections in properly connected position.

0-4-0 Steam Engine Instructions

layout specifies the space required and the components needed to complete the track design. You can purchase additional track components from any authorized MTH retailer.

The lighted lockon included in your set snaps into any RealTrax® track section roadbed and functions as the interface

between the track and the transformer. Each RealTrax® track section includes two “knock-out” tabs in the roadbed (on either end

of the track) that can be removed to reveal an opening for the lighted lockon. To remove this knock-out grab the knock-out with a pair of

pliers and gently twist the knock-out until it snaps away from the roadbed base. Once the knock-out

has been removed, snap the lighted lockon into the roadbed taking care

to make sure that the lockon arms snap into the roadbed electrical

receptors. To complete the connection between the RealTrax® track section and the transformer, simply plug in the color-coded wire

Knock-out

Must Be Removed

Before Lighted Lockon

Can Be Inserted

Figure 3: Top view position of lighted lockon preparing to enter RealTrax® section.

Figure 5: Underside view of RealTrax® track section with lighted lockon in fully seated position.

Remove

Knock-out

By Holding

& Twisting

With A Pair

Of Pliers

Figure 4: Underside view of RealTrax® section with “knock-out” removed and lighted lockon in position for insertion.

Figure 6: Top view of RealTrax® section with lighted lockon in fully seated position.

0-4-0 Steam Engine Instructions

harness that was included in your set.

Preparing the Locomotive & Cars For Operation

Before you run your locomotive, you must oil the locomotive.

Lubrication

Before you run the locomotive, use a light household or hobby oil to lubricate the gears. Apply

a small drop of oil (a pinpoint oiler will help

place the right amount of oil where you need it) to each of the points

indicated by figures 8 and

9. You may also want to use either a locomotive repair cradle or an old towel folded over to provide a protective bed for the locomotive shell while you’re working on it.

Also functions as a binding post.

Red Harness Wire/Plug

Black Harness Wire/Plug

Figure 7: Wiring up the Z-500 transformer to the lighted lockon.

Lubricate Pickup Rollers

Lubricate Side Rods

Figure 8: Lubrication points of RailKing 0-4-0 locomotive.

0-4-0 Steam Engine Instructions

Because the locomotive’s internal gearing has been greased at the factory, you shouldn’t need to add more grease until you have run the locomotive for 50 hours or owned it for a year, whichever comes first. See the section on lubrication, pages 11-12, for details.

Adding Smoke Fluid

The 0-4-0 contains a self-powered smoke unit that outputs a steady stream of smoke through the smoke stack on the top of the engine. The ON/OFF switch must be in the ON position in order for the smoke unit to function. See Fig. 10 below.

The smoke unit is essentially a small heating element and wick which soak up and then “cook" a mineral oil-based fluid, that creates a

harmless smoke. The smoke is then forced out of the stack via a small electric fan which runs at a constant speed. However, the smoke

intensity can be varied by changing the transformer voltage setting. The higher the setting, the more intense the smoke output

Before operating the engine, you should add smoke fluid to the smoke unit by pouring 15 - 25 drops of fluid into the locomotive’s smoke

stack. Use the included ProtoSmoke® smoke fluid vial or Seuthe, LGB or LVTS smoke fluid before you run the engine. If you don’t choose to

add the fluid, then the smoke unit switch should be turned off. Failure to either add the fluid or turn the switch off could lead to damage to the smoke unit heating element and or wicking. After

adding the fluid, gently blow into the stack to eliminate any air bubbles. Do not overfill the unit as overfilling can cause the fluid to leak out and coat the interior engine components. When the smoke output begins to

diminish while running the engine, an additional 20--25

drops of smoke fluid should be added or the smoke unit switch should be turned off.

When storing the engine for

ProtoSmoke® ON/OFF Switch

Figure 10: Locating the ProtoSmoke® ON/OFF Switch

0-4-0 Steam Engine Instructions

long periods of time, you may want to add at least 15 drops of fluid to keep the wick soaked with fluid and prevent it from drying out. After removing the engine from storage, it is advisable to add another 25 drops of fluid, letting the wick soak up the fluid for 15 minutes prior to operation.

Operating The Engine and Cars

Once the track has been assembled, the transformer has been wired to

the track lock-on, and the locomotive has been lubricated you are almost ready to begin running

your new train set. Place the engine and cars on the track and couple

them up to one another. If the coupler is already closed, pressing down on the coupler armature will open the coupler knuckle to allow the couplers to interlock with one another. The engine connects to the tender by a draw bar.

Before turning on the transformer, it is important to understand the features of your new train set.

Electronic Reverse Unit

The 0-4-0 model is controlled by an electronic reverse unit. The reverse unit operates in the same manner that all reverse units function by using forward, neutral and reverse states that are entered each time the throttle is turned on and off, or by using the transformer direction

button (if so equipped).

In addition to the electronic reverse unit, your new train set locomotive features a mechanical whistle that can be activated by pressing the

white Horn/Whistle button on your Z-500 transformer. Any compatible transformer horn/whistle button will also activate the whistle in your

new locomotive. Simply pressing the Horn/Whistle button whenever the throttle is above the OFF setting should activate the whistle. If the

whistle doesn’t blow, increase the throttle setting and press the button again. The whistle will blow as long as the button is depressed and voltage is applied to the track.

Pushing Down

On The Coupler

Armature Opens

The Coupler

Knuckle

Figure 11: Pushing down on the coupler armature tab to open up the coupler knuckle.

0-4-0 Steam Engine Instructions

Transformer Operation

The Z-500 provides the model railroad enthusiast with an easy to use, safe power source for AC-powered trains and accessories. Operation is quick and easy by following the setup diagram below.

Button Functions:

Bell: Press to activate a

digital sound system bell.

*Note: Pressing the bell button will have no effect on

your set engine because your locomotive is not equipped with a bell. Only

locomotives equipped with full digital sound systems

(which feature engine sounds, horns, bells, air-release sound effects, squeaking brakes and many other locomotive related sound effects) can utilize the bell

button.

Horn/Whistle: Press to activate the whistle Direction: Press to stop motion of train and press again to change

direction

Starting to Roll

Advance the transformer throttle. The locomotive's light will come on and the engine should now proceed in the forward direction. At this

point, advancing the throttle further will allow the engine to pick up speed, reducing the throttle will slow the engine down. Turning the throttle OFF and then back ON will park the engine into neutral. Cycling the throttle OFF and then back ON again one more time will allow the locomotive to enter reverse.

Tip: An alternative method to using the throttle to enter the next reverse unit state is to press the direction button. When depressed, the transformer interrupts all power to the track. Releasing the button reapplies power to the track at whatever voltage level the transformer throttle is set at.

DIRECTION

BELL

HORN

WHISTLE

POWER

AIL ING

By MTH Electric Trains

Figure 12: Z-500 Controls

0-4-0 Steam Engine Instructions

Special Reverse Unit Options

Locking Out The Reverse Unit Into A Single Direction

Your locomotive’s electronic reverse unit may be locked out into one of three positions; forward,

neutral or reverse. Locking the engine into one of

these three positions prevents the locomotive from cycling through the

reverse unit phases and is useful for operators employing block signal operations on their layout. Once locked into a position, turning the throttle OFF and then ON again will not allow the engine to enter the next reverse unit phase and instead keeps the engine in the current locked direction.

To lock the engine into one of the three positions, simply enter that position using the transformer throttle or direction button. Once in the

desired direction, remove the locomotive from the track and slide the ON/OFF switch located on the bottom of the tender (See Figure 13) to the OFF position. This locks the engine into the desired direction.

Sliding the switch back to the ON position resets the reverse unit into its normal cycling phases.

Reverse Unit Switch

Figure 13: Electronic Reverse Unit Lock-out Switch location (bottom chassis view).

0-4-0 Steam Engine Instructions

Train Set Maintenance Instructions

Proper locomotive performance requires regular attention to lubrication. The following guidelines should be followed to ensure that your set’s locomotive lasts for many years of operration

Oil

Before operating the locomotive, apply a small drop of oil to lubricate the side rods and pick up rollers. Use light household oil and apply

sparingly only to the points indicated by Figure 14. Wipe away any excess, especially if oil spills onto the finish of the locomotive. To

prevent accidental scratches or other damage to the locomotive shell while you are working, you may want to place the locomotive in a repair cradle or an old towel or other cloth folded to provide a firm but soft resting place.

Lubricate Pickup Rollers

Lubricate Side Rods

Figure 14: Lubrication points or RailKing® locomotive.

0-4-0 Steam Engine Instructions

Check the locomotive oiling points periodically to be sure they are moving freely and quietly. If they are not, apply a small amount of oil again. Also check the locomotive wheels for dirt build-up that can cause performance problems. Such dirt build-up can interfere with electrical contacts, reduce traction (especially on elevated track sections), and cause neoprene traction tires to wear out prematurely.

Grease

Grease should be added to the internal drive gears annually or after every 50 hours of operation. Grease can be added by inserting grease into the gear box inside the locomotive chassis. In order to access the gear box, the boiler must be removed from the chassis by unscrewing the four chassis screws as seen in Figure 15 below. Once the boiler is removed, the smoke unit and the light bracket must also be removed,

then the gear box can be opened up by unscrewing the three screws on the plate located in front of the motor. Grease can then be applied

into the gear box using a grease tube dispenser.

Lamp Replacement

The lights in your locomotive or caboose car may occationally burn out during normal operation. Should this occur, you will need to remove the boiler/caboose body from the chassis in order to replace the burned out bulb.

Figure 15: Removing the boiler to change the light bulb.

Figure 16: Locating and removing the light bulb.

0-4-0 Steam Engine Instructions

To remove the 0-4-0 locomotive boiler from its chassis, follow the body removal instructions (see figure 15). Once the body has been removed, rotate the headlight bulb counter-clockwise as seen in Figure 16 to remove.

To remove the caboose car body from its chassis, turn the car over and locate and remove the four mounting screws (one in each corner of the

car as seen in Figure 17) attaching the body to the chassis. Once the screws are removed, gently lift the car body up and away from the chassis.

After removing the body from the chassis, turn the chassis over and locate the car interior lamp housing mounted on the inside of the

chassis. Remove the burned out bulb by pushing the bulb downward and rotating it counter-clockwise as seen in Figure 18. Once the bulb has been removed, install the replacement bulb by pushing down and turning the bulb clockwise to lock into place.

Figure 17: Removing the caboose body from its chassis..

Figure 18: Locating and removing the interior bulb.

0-4-0 Steam Engine Instructions

Locomotive Smoke Unit Maintenance

Operating the engine without smoke fluid and with the smoke unit switch in the ON position can damage your smoke unit wick, causing the wick to become hard, blackened and unabsorbent around the heating element. When this occurs, it may be difficult for the wick to soak up the smoke fluid resulting in poor or no smoke output. If that occurs, we recommend that you inspect and/or replace the wick taking

care to not run the smoke unit without fluid in the future. You can inspect the wick to see if it needs replacement by removing the smoke

unit inspection cover from the body as seen in Fig. 21. After removing the chassis and inspection cover screws lift the inspection plate away and inspect the wick. If the wick is darkly discolored and hard, it should be replaced. Replacement wick and detailed instructions

are available directly from MTH Electric Trains.

Figure 20: Removing the locomotive body for smoke unit maintenance.

Figure 21: Opening the smoke unit for wick replacement.

0-4-0 Steam Engine Instructions

Approximate Layout Size:

102“ x 32” (2.6m x 0.8m)

Track List: Item #

(6)10“ Straight(40-1001) (10)O-31 Curved(40-1002) (4)O-31 Right Hand Switch(40-1004) (2)O-31 Left Hand Switch(40-1005) (4)5.5“ Straight(40-1012) (10)4.25“ Straight(40-1017) (4)3.5“ Straight(40-1018)

48.0 in

60.0 in

0.0 in

12.0 in

24.0 in

36.0 in

84.0 in12.0 in0.0 in 24.0 in 36.0 in 48.0 in 60.0 in 72.0 in 96.0 in

Approximate Layout Size:

96“ x 60” (2.4m x 1.5m)

Track List: Item #

(22)10“ Straight(40-1001) (21)O-31 Curved(40-1002) (2)O-31 Right Hand Switch(40-1004) (1)O-31 Left Hand Switch(40-1005) (1)90 Degree Crossing(40-1006) (2)5.0“ Straight(40-1016) (1)4.25“ Straight(40-1017) (2)3.5“ Straight(40-1018)

intXside.rrt size: 8.00 x 5.00 track sections: 52

RealTrax® Layout Plans

The following are just some of the many different track plans you can utilize when designing your model railroad. Each track plan contains a

table indicating which and how many track components you will need. Some track plans may require additional transformer power to

accommodate the current draws of the various accessories featured in the layout, including switches and lights.

0-4-0 Steam Engine Instructions

Approximate Layout Size:

84“ x 42” (2.1m x 1.1m)

Track List: Item #

(10)10“ Straight(40-1001) (8)O-31 Curved(40-1002) (3)O-31 Right Hand Switch(40-1004) (1)O-31 Left Hand Switch(40-1005) (3)5.5“ Straight(40-1012) (1)5.0“ Straight(40-1016) (2)4.25“ Straight(40-1017) (4)3.5“ Straight(40-1018)

intrevo31.rrt size: 8.00 x 4.00 track sections: 32

0.0 in

12.0 in

24.0 in

36.0 in

48.0 in

84.0 in12.0 in0.0 in 24.0 in 36.0 in 48.0 in 60.0 in 72.0 in 96.0 in

Approximate Layout Size:

92“ x 42” (2.3m x 1.1m)

Track List: Item #

(10)10“ Straight(40-1001) (12)O-31 Curved(40-1002)

(2)O-31 Right Hand Switch(40-1004) (2)O-31 Left Hand Switch(40-1005) (2)5.5“ Straight(40-1012) (2)5.0“ Straight(40-1016)

intsidings5.rrt size: 8.00 x 4.00 track sections: 30

0.0 in

12.0 in

24.0 in

36.0 in

48.0 in

84.0 in12.0 in0.0 in 24.0 in 36.0 in 48.0 in 60.0 in 72.0 in 96.0 in

Approximate Layout Size:

96“ x 48” (2.4m x 1.2m)

Track List: Item #

(3)10“ Straight(40-1001) (12)O-31 Curved(40-1002) (2)O-31 Right Hand Switch(40-1004) (2)O-31 Left Hand Switch(40-1005) (3)5.5“ Straight(40-1012) (2)5.0“ Straight(40-1016) (5)3.5“ Straight(40-1018) (2)O-31 Half-Curved(40-1022)

Approximate Layout Size:

92“ x 36” (2.3m x 0.9m)

Track List: Item #

(8)10“ Straight(40-1001) (8)O-31 Curved(40-1002) (2)O-31 Right Hand Switch(40-1004) (2)O-31 Left Hand Switch(40-1005) (1)90 Degree Crossing(40-1006) (4)5.5“ Straight(40-1012) (2)5.0“ Straight(40-1016) (2)4.25“ Straight(40-1017)

OvalX.rrt size: 8.00 x 4.00 track sections: 37

48.0 in

0.0 in

12.0 in

24.0 in

36.0 in

84.0 in12.0 in0.0 in 24.0 in 36.0 in 48.0 in 60.0 in 72.0 in 96.0 in

Approximate Layout Size:

90“ x 48” (2.3m x 1.2m)

Track List: Item #

(9)10“ Straight(40-1001) (13)O-31 Curved(40-1002) (2)O-31 Right Hand Switch(40-1004) (1)O-31 Left Hand Switch(40-1005) (2)5.5“ Straight(40-1012) (4)5.0“ Straight(40-1016) (2)4.25“ Straight(40-1017) (10)O-31 Half Curved(40-1022) (10)3.5“ Straight(40-1018)

Scurve1.rrt size: 8.00 x 4.00 track sections: 53

48.0 in

0.0 in

12.0 in

24.0 in

36.0 in

84.0 in12.0 in0.0 in 24.0 in 36.0 in 48.0 in 60.0 in 72.0 in 96.0 in

48.0 in

0.0 in

12.0 in

24.0 in

36.0 in

84.0 in12.0 in0.0 in 24.0 in 36.0 in 48.0 in 60.0 in 72.0 in 96.0 in

Approximate Layout Size:

96“ x 48” (2.4m x 1.2m)

Track List: Item #

(22)10“ Straight(40-1001) (10)O-31 Curved(40-1002) (3)O-31 Right Hand Switch(40-1004) (1)O-31 Left Hand Switch(40-1005)

(2)5.5“ Straight(40-1012) (2)3.5“ Straight(40-1018)

Siding.rrt size: 8.00 x 4.00 track sections: 40

Parts

Name and NumberPart #

1.)Shell ( # 840 )( black )FB-1200169

2.)Lens ( headlight )FA-1230022

3.)HandrailFB-1200103

4.)Stanchion ( black )FB-1200024

5.)Bell FB-1200101

6.)Name plate ( # 840 )FB-1200170

7.)ScrewIA-0000050 ( 6/32X8.0mm )( roundhead )

8.)BoltIA-0000265 ( M3X10.0mm )( w/ 3.5X4.0mm oversized shank )

9.)BoltIA-0000266 ( M3X10.0mm )( w/ 2.0X4.0mm oversized shank )

10.)Drive rod ( 56.3mm long )EC-1250018

11.)Side rod ( 55.0mm long )EC-1250019

12.)Crosshead EC-1250016

13.)Drive rod guide ( right )EA-1210007

14.)Drive rod guid e ( left )EA-1220007

15.)ScrewIA-0000021 ( 4/40X4.0mm )( roundhead )

16.)Bulb ( 18V )( screw base )CA-0230001

17.)BracketIH-0000088

18.)ScrewIA-0000003 ( 4/40X6.0mm )

19.)Smoke unitAA-1200013

20.)Motor mountBI-0000034

21.)ScrewIA-0000089 ( M2.5X6.0mm )( roundhead w/ lock washer )

22.)ScrewIA-0000058 ( M2X4.0mm )

23.)Switch ( small )BB-0000009

24.)Drive block ( 2 axle )DF-1200019

25.)Insulator ( pick-up )( top )BD-0000026

26.)Screw IA-0000015 ( M3X6.0mm )

27.)MotorBE-0000045

28.)Board ( reverse unit )AC-0000007

29 .)Nut ( 2.2X6.4X2.4mm )IC-0000010

30.)ScrewIA-0000264 ( 4/40X12.0mm )( roundhead )

31.)BracketIH-0000089

32.)Insulator ( clear plastic )BD-0000064 ( 17.5X41.0X0.5mm )

33.)T-barIG-0000001

34.)CouplerDD-0000011

35.)ArmatureDD-0000012

36.)Spring IE-0000022 ( 6.5X14.0mm ) ( w/ 0.5mm thick wire )

37.)Washer ID-0000060 ( cup shaped for spring to fit in )( 4.6X8.6X2.0mm )

38.)E-clip ( 3.0X8.0X0.5mm )IF-0000002

39.)Nut ( 2.5X5.0X7.0mm )IC-0000008

40.)Insulator (pick-up)(bottom)BD-0000024

41.)Pick -upBD-0000048 ( 8.0X11.0mm roller )( 28.0mm long )

42.)Pick-upBD-0000050 ( 8.0X11.0mm roller )( 24.0mm long )

*Requires Exchange All parts are priced as each

( JERSEY CENTRAL LINES )

( roundhead )

( plastic )( black )

( inside 7.0X1.1mm )

Docksider 0-4-0

__________

____________________

______________________________

Notes:______________________________________________

___________________________________________________ ___________________________________________________

___________________________________________________ ___________________________________________________ ___________________________________________________

___________________________________________________ ___________________________________________________

___________________________________________________ ___________________________________________________ ___________________________________________________

___________________________________________________ ___________________________________________________

___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________

Rail King Docksider 0-4-0 Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
