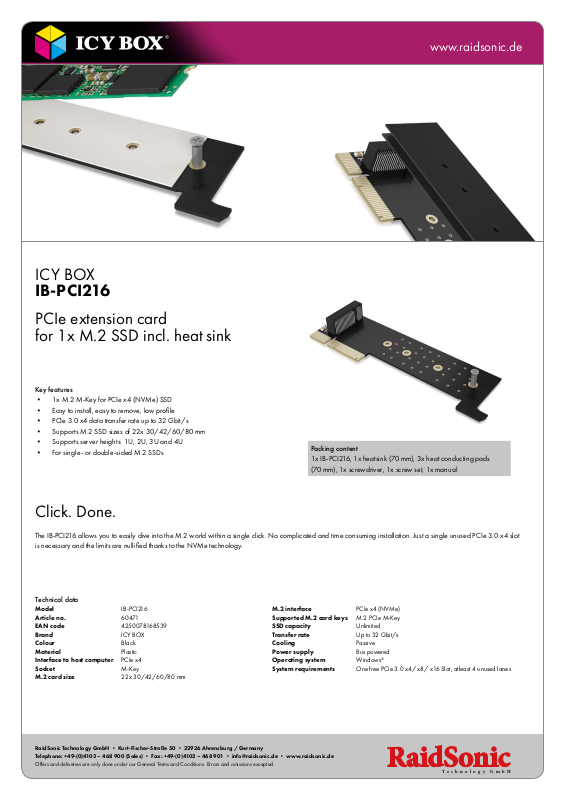

RaidSonic IB-PCI216 User Manual
Technology GmbH
www.raidsonic.de
ICY BOX
IB-PCI216
PCIe extension card
for 1x M.2 SSD incl. heat sink
Key features
• 1x M.2 M-Key for PCIe x4 (NVMe) SSD
• Easy to install, easy to remove, low profile
• PCIe 3.0 x4 data transfer rate up to 32 Gbit/s
• Supports M.2 SSD sizes of 22x 30/42/60/80 mm
• Supports server heights: 1U, 2U, 3U and 4U
• For single- or double-sided M.2 SSDs
Packing content
1x IB-PCI216, 1x heatsink (70 mm), 3x heat conducting pads
(70 mm), 1x screwdriver, 1x screw set, 1x manual
Click. Done.
The IB-PCI216 allows you to easily dive into the M.2 world within a single click. No complicated and time consuming installation. Just a single unused PCIe 3.0 x4 slot
is necessary and the limits are nullified thanks to the NVMe technology.
Technical data
Model
Article no.
EAN code
Brand
Colour
Material
Interface to host computer
Socket
M.2 card size
IB-PCI216
60471
4250078168539
ICY BOX
Black
Plastic
PCIe x4
M-Key
22x 30/42/60/80 mm
M.2 interface
Supported M.2 card keys
SSD capacity
Transfer rate
Cooling
Power supply
Operating system
System requirements
PCIe x4 (NVMe)
M.2 PCIe M-Key
Unlimited
Up to 32 Gbit/s
Passive
Bus powered
®
Windows
One free PCIe 3.0 x4/ x8/ x16 Slot, atleast 4 unused lanes
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telephone: +49-(0)4102 – 468 900 (Sales) • Fax: +49-(0)4102 – 468 901 • info@raidsonic.de • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
Technology GmbH
www.raidsonic.de
ICY BOX IB-PCI216
PCIe extension card
for 1x M.2 SSD incl. heat sink
Within a single click
After installing the SSD on the PCI card the adapter is easily fitted in the correct PCIe 3.0 slot and will be
ready for use immediately!
Fits like a glove
Due to the low profile design you can hardly find a better solution for flat computer systems, for example
server, where an M.2 NVMe is needed. And yet the IB-PCI216 offers the full functionality of a PCIe pass
through card.
Keep it cool
Of course we also thought about the cooling. Thanks to the supplied passive heat sinks, even the fastest
NVMe SSD keeps a cool head. A heat sink for 80 mm as well as adjustable thermal pads for single-sided
and double-sided memory modules are supplied.
Logistical data
Packing unit:
Total weight:
Gross weight (with packing):
Net weight:
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telephone: +49-(0)4102 – 468 900 (Sales) • Fax: +49-(0)4102 – 468 901 • info@raidsonic.de • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
20 pcs./carton
2.6 kg/carton
0.097 kg
0.010 kg
Dimension/carton:
Dimension (with packing):
Dimension of article:
Country of origin:
380x250x240 mm
10x40x20 mm
39x12x4 mm
China
