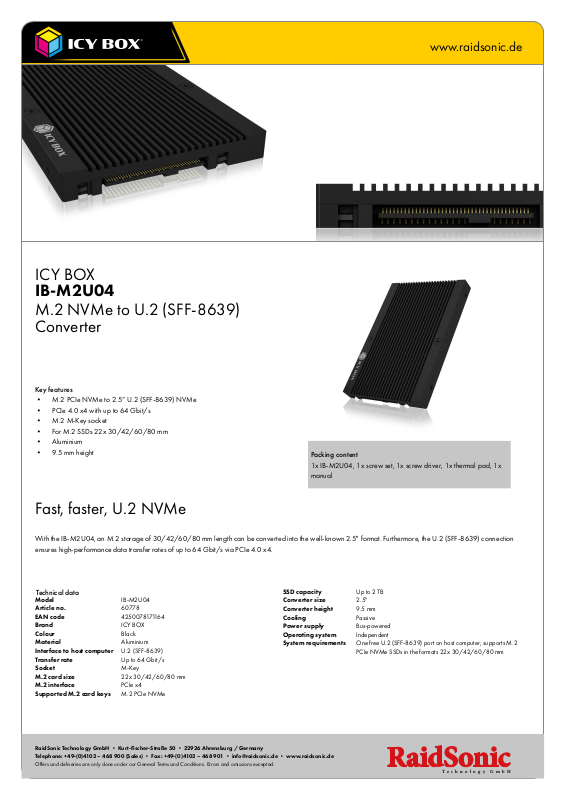

RaidSonic IB-M2U04 Specifications

ICY BOX

IB-M2U04

M.2 NVMe to U.2 (SFF-8639)

www.raidsonic.de

Converter

Key features

• M.2 PCIe NVMe to 2.5“ U.2 (SFF-8639) NVMe

• PCIe 4.0 x4 with up to 64 Gbit/s

• M.2 M-Key socket

• For M.2 SSDs 22x 30/42/60/80 mm

• Aluminium

• 9.5 mm height

Packing content

1x IB-M2U04, 1x screw set, 1x screw driver, 1x thermal pad, 1x
manual

Fast, faster, U.2 NVMe

With the IB-M2U04, an M.2 storage of 30/42/60/80 mm length can be converted into the well-known 2.5" format. Furthermore, the U.2 (SFF-8639) connection
ensures high-performance data transfer rates of up to 64 Gbit/s via PCIe 4.0 x4.

Technical data

Model
Article no.
EAN code
Brand
Colour
Material
Interface to host computer
Transfer rate
Socket
M.2 card size
M.2 interface
Supported M.2 card keys

IB-M2U04
607 78
4250078171164
ICY BOX
Black
Aluminium
U.2 (SFF-8639)
Up to 64 Gbit/s
M-Key
22x 30/42/60/80 mm
PCIe x4
M.2 PCIe NVMe

SSD capacity
Converter size
Converter height
Cooling
Power supply
Operating system
System requirements

Up to 2 TB

2.5"

9.5 mm
Passive
Bus-powered
Independent
One free U.2 (SFF-8639) port on host computer; supports M.2
PCIe NVMe SSDs in the formats 22x 30/42/60/80 mm

RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telephone: [phone] – 468 900 (Sales) • Fax: [phone] – 468 901 • [e-mail] • www.raidsonic.de

Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.

Technology GmbH

ICY BOX IB-M2U04
M.2 NVMe to U.2 (SFF-8639) Converter

www.raidsonic.de

The new sprinter in the storage segment

U.2 is finding its way more and more into professional storage solutions. No surprise, U.2 delivers PCIe
(NVMe) data transfer rates of up to 64 Gbit/s into the 2.5" format and supports HotSwap, which does not
apply to its M.2 counterpart.

M.2 NVMe now available as 2.5" U.2 SSD

The dimensions of the converter correspond to a standard 2.5" SSD with 9.5 mm height and is equally easy
to assemble.

Optimized cooling

Thanks to the cooling fins on the upper side, the surface can be increased which results in improved heat
dissipation. The all-over aluminium housing provides a further cooling factor and makes the converter
robust.

Logistical data

Packing unit:
Total weight:
Gross weight (with packing):
Net weight:

RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telephone: [phone] – 468 900 (Sales) • Fax: [phone] – 468 901 • [e-mail] • www.raidsonic.de

Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.

40 pcs./carton

7.9 kg/carton

0.176 kg

0.100 kg

Dimension/carton:
Dimension (with packing):
Dimension of article:
Country of origin:

500x220x300 mm
25x100x500 mm
100x69x9 mm
Taiwan
