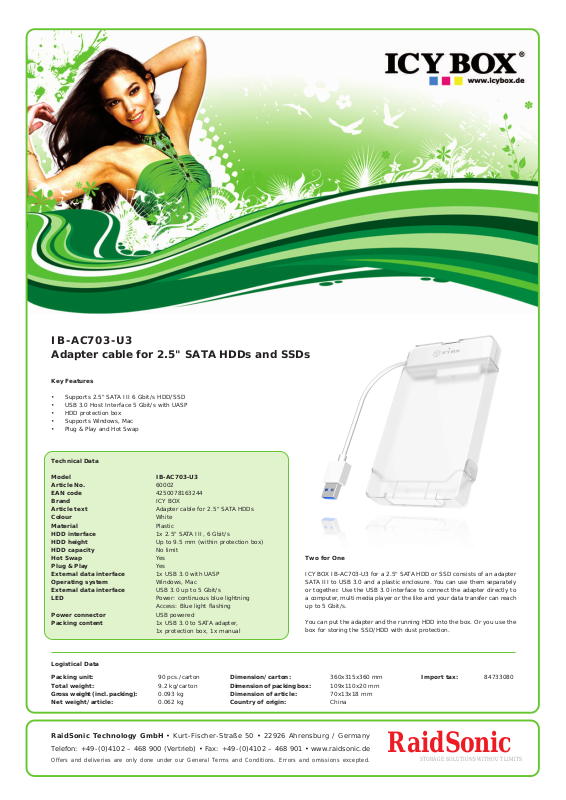

RaidSonic IB-AC703-U3 User Manual
IB-AC703-U3
Adapter cable for 2.5" SATA HDDs and SSDs
Key Features
• Supports 2.5" SATA III 6 Gbit/s HDD/SSD
• USB 3.0 Host Interface 5 Gbit/s with UASP
• HDD protection box
• Supports Windows, Mac
• Plug & Play and Hot Swap
Technical Data
Model IB-AC703-U3
Article No. 60002
EAN code 4250078163244
Brand ICY BOX
Article text Adapter cable for 2.5" SATA HDDs
Colour White
Material Plastic
HDD interface 1x 2.5" SATA III, 6 Gbit/s
HDD height Up to 9.5 mm (within protection box)
HDD capacity No limit
Hot Swap Yes
Plug & Play Yes
External data interface 1x USB 3.0 with UASP
Operating system Windows, Mac
External data interface USB 3.0 up to 5 Gbit/s
LED Power: continuous blue lightning
Access: Blue light flashing
Power connector USB powered
Packing content 1x USB 3.0 to SATA adapter,
1x protection box, 1x manual
Two for One
ICY BOX IB-AC703-U3 for a 2.5" SATA HDD or SSD consists of an adapter
SATA III to USB 3.0 and a plastic enclosure. You can use them separately
or together. Use the USB 3.0 interface to connect the adapter directly to
a computer , multi media player or the lik e and your data transfer can reach
up to 5 Gbit/s.
You can put the adapter and the running HDD into the box. Or you use the
box for storing the SSD/HDD with dust protection.
Logistical Data
Packing unit: 90 pcs./carton Dimension/carton: 360x315x360 mm Import tax: 84733080
Total weight: 9.2 kg/carton Dimension of packing box: 109x110x20 mm
Gross weight (incl. packing): 0.093 kg Dimension of article: 70x13x18 mm
Net weight/article: 0.062 kg Country of origin: China
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: +49-(0)4102 – 468 900 (Vertrieb) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
