External 5-Bay SINGLE System for 5x SATA 3.5" I/II/III HDDs
Handbuch
Externes 5fach SINGLE System für 3,5" SATA I/II/III Festplatten
Please read carefully the following information to prevent injuries, damage to material and device as well as
data loss:
Warning levels
Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of
occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.
DANGER
WARNING
CAUTION
IMPORTANT
Warns of a directly hazardous situation causing death or serious injury.
Warns of a potentially hazardous situation that may cause death or serious injury.
Warns of a potentially hazardous situation that may cause minor injury.
Warns of a potential situation that may cause material or environmental damage and disrupt operative
processes.
1. Risk of electrical shock
WARNING
Contact with parts conducting electricity
Risk of death by electrical shock
• Read the operating instructions prior to use
• Make sure the device has been de-energised prior to working on it
• Do not remove contact protection panels
• Avoid contact with conducting parts
• Do not bring plug contacts in contact with pointed and metal objects
• Use in intended environments only
• Operate the device using a power unit meeting the specifications of the type plate only!
• Keep the device/power unit away from humidity, liquid, vapour and dust
• Do not modify the device
• Do not connect the device during thunderstorms
• Approach specialist retailers if you require repairs
2. Hazards during assembly (if intended)
CAUTION
Sharp components
Potential injuries to fingers or hands during assembly (if intended)
• Read the operating instructions prior to assembly
• Avoid coming into contact with sharp edges or pointed components
• Do not force components together
• Use suitable tools
• Use potentially enclosed accessories and tools only
3. Hazards caused by a development of heat
IMPORTANT
Insufficient device/power unit ventilation
Overheating and failure of the device/power unit
• Prevent externally heating up components and ensure an exchange of air
• Do not cover the fan outlet and passive cooling elements
• Avoid direct sunlight on the device/power unit
• Guarantee sufficient ambient air for the device/power unit
Safety information IB-3805-C31
• Do not place objects on the device/power unit
4. Hazards caused by very small parts and packaging
WARNING
• Keep small parts and accessories away from children
• Store/dispose of plastic bags and packaging in an area that is inaccessible to children
• Do not hand over small parts and packaging to children
5. Potential data loss
IMPORTANT
• Always comply with the information in the operating instructions/quick installation guide
• Exclusively use the product once the specifications have been met
• Back up data prior to commissioning
• Back up data prior to connecting new hardware
• Use accessories enclosed with the product
6. Cleaning the device
IMPORTANT
• Disconnect the device prior to cleaning
• Aggressive or intense cleaning agents and solvents are unsuitable
• Make sure there is no residual moisture after cleaning
• We recommend cleaning devices using a dry, anti-static cloth
7. Disposing of the device
IMPORTANT
This icon on product and packaging indicates that this product must not be disposed of as part of domestic waste. In
compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and potentially
included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to
dispose of this product and potentially included batteries, please return it to the retailer or your local waste disposal
and recycling point.
Risk of suffocation
Risk of death by suffocation or swallowing
Data lost during commissioning
Potentially irreversible data loss
Harmful cleaning agents
Scratches, discolouration, damage caused by moisture or short circuit in the device
Environmental pollution, unsuitable for recycling
Potential environmental pollution caused by components, recycling circle interrupted
If you have any questions, please do not hesitate to contact our support at
support@raidsonic.de or visit our website at www.raidsonic.de.
Sicherheitshinweise IB-3805-C31
Zur Vermeidung körperlicher Schäden, sowie von Sach-, Geräteschäden und Datenverlust beachten Sie bitte
folgende Hinweise:
Warnstufen
Signalwort und Sicherheitszeichen kennzeichnen die Warnstufe und geben einen sofortigen Hinweis auf Wahrscheinlichkeit, Art
und Schwere der Folgen, wenn die Maßnahmen zur Vermeidung der Gefahr nicht befolgt werden.
GEFAHR
WARNUNG
VORSICHT
ACHTUNG
1. Gefahren durch elektrische Spannung
WARNUNG
• vor Benutzung Betriebsanleitung lesen
• vor Arbeiten am Gerät, Spannungsfreiheit sicherstellen
• Kontaktschutzblenden nicht entfernen
• Kontakt mit Spannungsführenden Komponenten vermeiden.
• Steckkontakte nicht mit spitzen und metallischen Gegenständen berühren
• Verwendung nur in dafür vorgesehenen Umgebungen
• Gerät ausschließlich mit Typenschildkonformen Netzteil betreiben!
• Gerät/Netzteil fern von Feuchtigkeit, Flüssigkeit, Dampf und Staub halten
• Eigenständige Modifikationen sind unzulässig
• Gerät nicht während eines Gewitters anschließen
• Geben Sie Ihr Gerät im Reparaturfall in den Fachhandel
2. Gefahren während Montage (wenn vorgesehen)
VORSICHT
• vor Montage, Betriebsanleitung lesen
• Kontakt mit scharfen Kanten oder spitzen Bauteilen vermeiden
• Bauteile nicht mit Gewalt zusammensetzen
• geeignetes Werkzeug verwenden
• nur gegebenenfalls mitgeliefertes Zubehör und Werkzeug verwenden
warnt vor einer unmittelbar gefährlichen Situation, die zum Tod oder zu schweren Verletzungen führen
wird.
warnt vor einer möglicherweise gefährlichen Situation, die zum Tod oder zu schweren Verletzungen
führen kann.
warnt vor einer möglicherweise gefährlichen Situation, die zu leichten Verletzungen führen kann.
warnt vor einer möglichen Situation, die zu Sach- und Umweltschäden führen und den Betriebsablauf
stören kann.
Kontakt mit elektrisch leitenden Teilen
Lebensgefahr durch Stromschlag
Scharfkantige Bauteile
Finger- oder Handverletzungen bei Zusammenbau (wenn vorgesehen) möglich
3. Gefahren durch Wärmeentwicklung
ACHTUNG
• externe Erwärmung vermeiden und Luftaustausch zulassen
• Lüfter-Auslass und passive Kühlkörper freihalten
Mangelhafte Belüftung des Geräts/Netzteils
Überhitzung und Ausfall des Geräts/Netzteils
Sicherheitshinweise IB-3805-C31
• direkte Sonneneinstrahlung auf Gerät/Netzteil vermeiden
• ausreichend Umgebungsluft für Gerät/Netzteil sicherstellen
• keine Gegenstände auf dem Gerät/Netzteil abstellen
4. Gefahren durch Kleinstteile und Verpackung
WARNUNG
• Kleinteile, Zubehör für Kinder unzugänglich verwahren
• Plastiktüten und Verpackung für Kinder unzugänglich verwahren/entsorgen
• Kleinteile und Verpackungen nicht in Kinderhände geben
5. Möglicher Datenverlust
ACHTUNG
• Unbedingt Hinweise in der Bedienungsanleitung/Schnellinstallationsanleitung beachten
• Produkt nur verwenden, wenn Spezifikationen erfüllt sind
• Datensicherung vor Inbetriebnahme durchführen
• Datensicherung vor Anschluss neuer Hardware durchführen
• dem Produkt beiliegendes Zubehör verwenden
6. Reinigung des Gerätes
ACHTUNG
Kurzschluss am Gerät
• vor Reinigung, das Gerät außer Betrieb nehmen
• aggressive bzw. scharfe Reinigungs- und Lösungsmittel sind ungeeignet
• nach der Reinigung sicherstellen, dass keine Restfeuchtigkeit vorhanden ist
• Reinigung der Geräte am besten mit trockenem Antistatiktuch durchführen
7. Entsorgung des Gerätes
ACHTUNG
Dieses auf dem Produkt und der Verpackung angebrachte Symbol zeigt an, dass dieses Produkt nicht mit dem Hausmüll entsorgt werden darf. In Übereinstimmung mit der Richtlinie über Elektro- und Elektronik-Altgeräte (WEEE) darf
dieses Elektrogerät und ggf. enthaltene Batterien nicht im normalen Hausmüll oder dem Gelben Sack entsorgt werden. Wenn Sie dieses Produkt und ggf. enthaltene Batterien entsorgen möchten, bringen Sie diese bitte zur Verkaufsstelle zurück oder zum Recycling-Sammelpunkt Ihrer Gemeinde.
Erstickungsgefahr
Lebensgefahr durch Ersticken oder Verschlucken
Datenverlust bei Inbetriebnahme
Unwiederbringlicher Datenverlust möglich
Schädigende Reinigungsmittel
Kratzer, Farbveränderungen, Feuchteschäden oder
Umweltverschmutzung, Wiederverwertung nicht möglich
Mögliche Umweltbelastung durch Bestandteile, Recyclingkreislauf unterbrochen
Bei Fragen kontaktieren Sie gerne unseren Support unter support@raidsonic.de oder besuchen Sie unsere Internetseite
www.raidsonic.de.
Manual IB-3805-C31
Key features
• External 5-bay SINGLE System for 5x 3.5" SATA I/II/III HDD
• HDD capacity unlimited
• Energy saving by supporting auto power off mode for HDDs and case fan
• EASY-Swap, assembling by trayless and toolless design
• Supported RAID level: SINGLE
• External data interface: USB 3.1 (Gen 2) with UASP Support
• Transfer rates: USB 3.1 up to 10 Gbit/s
• Additional USB 3.1 (Gen 2) Type-C
• Hard drives individual ON-/OFF-switch without loss of USB connection
• Plug & Play and Hot Swap
• LED for: Power, HDD in use and access
• Windows® macOS
®
Package content
1x IB-3805-C31, 1x power cable, 1x USB Type-C™ to Type-C™ cable, 1x USB Type-C™ to Type-A cable,
1x key, 1x manual
™

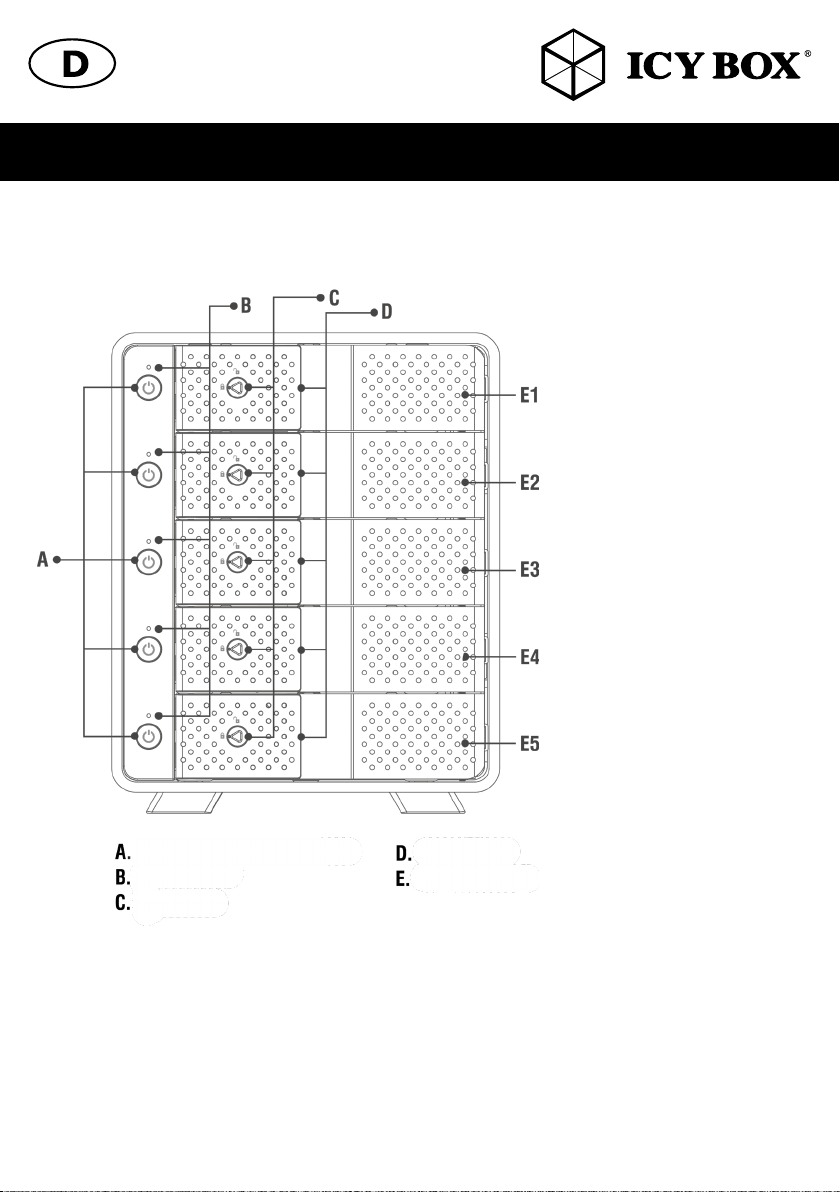

HUB interface
Manual IB-3805-C31
Independent power switch/drive
Status LED
Door lock
Door handle
Hard drive slot
Support for Kensington Lock
HOST Computer USB Type-C™ interface
HUB USB Type-C™ interface
120 mm fan
100-240 V power jack
Main power switch
Manual IB-3805-C31
DRIVE INSTALLATION
Before the installation
Note!
Before installing the hard drive, please disconnect the power plug from the outlet or turn off each drive bay individually. It may
cause electric shock accident or malfunction.
When connecting the hard drive, please note the electrostatic! Body’s static electricity may cause malfunction of the device.
Please touch the metal objects to discharge or wear the antistatic gloves before the operation.
Attention!
PCB of this device and HDDs are precision machinery, please be careful do not collision and please notice the direction of
HDD
Be careful the cutting edge inside may cut hand!
If hard disk already contains data, please backup data before installation to prevent data loss.
• Open the front door (make sure the lock is unlocked.).
• Insert the HDD into the corresponding slot.
Attention: Please notice the direction of HDD!
• Close the front door until it has been locked and the HDD locks into the connector.
• If required, the door of each drive bay can be locked.
• To remove a hard disk, carefully pull the handle of the front flap forward and loosen the internal connection of the hard disk
so that you can then remove the drive.
Note:
• To protect the drives and the device, you can turn off each drive bay individually without disconnecting the other drives when
you add or remove a drive.
• Connect the power adapter and connect the USB cable to your computer and power on the device via power switch of the
power supply at the rear side.
If the drive bays without hard disks are switched on, the corresponding LED lights up red.
If drive bays with inserted hard disks are switched on, the corresponding LED lights up blue.
During access, the corresponding LED flashes purple
(Optional) Connect any USB peripherals to the USB HUB port on the back of the enclosure.
DISK INITIALISATION
About data security
To protect your files and help prevent the loss of your data, we strongly recommend that you keep two copies of your data, one
copy on your IB-3805-C31 and a second copy either on your internal drive or another storage media such as CD, DVD, Tape
or an additional external drive.
Manual IB-3805-C31
Any loss or corruption of data while using the IB-3805-C31 is the sole responsibility of the user, and under no circumstances
will the manufacturer be held liable for compensation or the recovery of this data.
Windows
If the HDD is uninitialized, you may have to initialize it by doing steps as followed: At first click "Start", "Execute" on your PC
and key in "diskmgmt.msc". After that please press "Return" key.
1. Start disk initialization
®
Note: Please enable GPT if the total capacity is more than 2 TB and enable MBR if the total capacity is less than 2 TB.
2. Create new partition and format disk
Manual IB-3805-C31
3. Drive format completed
®
macOS
If the HDD is uninitialized, you may have to initialize it by doing steps as followed:
1. Click "Disk Utility" icon.
2. Drive initialisation
Manual IB-3805-C31
3. Choose the appropriated drive and click ‚‘Erase‘‘
4. Drive format in process
5. Format completed
Manual IB-3805-C31
GENERAL INFORMATION
Under Windows®, users can enable GPT when initializing drives with a total capacity of more than 2 TB.
If users enable MBR by mistake, in order to clean the partition table, you have to switch to another RAID mode and do the
RAID mode switch all over again referring to Setup. Then go back to the RAID mode you want, repeat the previous actions and
enable GPT when initializing drives.
For macOS® users: the total capacity of more than 2 TB could be recognized only for the operation system is 10.4.11 Tiger or
later.
When the USB cable is plugged out or the host computer set to stnd-by or off, the device goes to stand-by mode automatically.
Setting up motherboard’s power management in S3 is recommended. (For more details, please refer to
the user guide of motherboard BIOS setting).
If the device takes too long to initialize, please check if the drive is securely installed.
If there is noise with the fan, power off the device, unscrew the fan, take out the cover, clean the fan
and assemble it back.
If the noise is still present, you can change the fan with another identical fan of size 120 x 120 x 25 mm
If the fan stops working, do not dismantle it. Please send back to the retail store immediately.
Operation Environment: Temperature 0 ~ 60 °C
up to humidity 90% RH
Operating system:
• Windows
• macOS®
®
Handbuch IB-3805-C31
Hauptmerkmale
• Externes 5fach SINGLE System für 3,5" SATA I/II/III Festplatten
• Festplattenkapazität unbegrenzt
• Energiesparend durch automatischen Stand-By Modus für HDDs und Gehäuselüfter
• EASY-Swap, einfache Handhabung durch trägerlose Festplatteninstallation!
• Unterstützte RAID Level: SINGLE
• Externe Datenschnittstellen: USB 3.1 (Gen 2) mit UASP Unterstützung
• Übertragungsraten: USB 3.1 bis zu 10 Gbit/s
• Zusätzliche USB 3.1 (Gen 2) Type-C™ HUB Schnittstelle
• Festplatten einzeln zu- und abschaltbar ohne USB Verbindungsabbruch
• Plug & Play und Hot Swap
• LED für: Betrieb, Festplatte in Verwendung und Zugriff
• Windows® macOS
Verpackungsinhalt
1x IB-3805-C31, 1x Stromkabel, 1x USB Type-C™ zu Type-C™-Kabel, 1x USB Type-C™ zu Type-A-Kabel,
1x Schlüssel, 1x Handbuch
®
Handbuch IB-3805-C31
Einzelabschaltung/Laufwerk
Status LED
Festplattentürverriegelung
Festplattentürgriff
Festplattenschacht
Handbuch IB-3805-C31
Vorbereitung für Kensington Schloss
HOST Computer USB Type-C™ Schnittstelle
HUB USB Type-C™ Schnittstelle
120 mm Lüfter
100-240 V Stromanschluss
für Kaltgerätestromkabel
Hauptschalter
Handbuch IB-3805-C31
Hinweis!
Um Schäden oder Fehlfunktionen zu vermeiden trennen Sie die Stromzufuhr des Gerätes, bzw. schalten Sie den betreffenden
Laufwerksschacht ab, bevor Sie die Festplatten einsetzen oder entnehmen.
• Beim Einsetzen der Festplatten achten Sie auf mögliche elektrostatische Entladung, da diese zu Schäden oder Fehlfunktionen
führen kann. Berühren Sie vor der Installation ein „geerdetes“ Metallobjekt oder tragen antistatische Handschuhe.
Achtung!
Das Mainboard und die Festplatten sind sehr empfindliche Komponenten. Setzen Sie die Festplatten bitte vorsichtig ein und
achten auf die richtige Ausrichtung.
Gehen Sie behutsam vor, da im Inneren des Gerätes scharfe Kanten vorhanden sind.
Um Datenverlust vorzubeugen, sollte von Festplatten mit enthaltenen Daten vorher ein Backup durchgeführt werden.
• Öffnen Sie die entsprechende Frontklappe (stellen Sie sicher, dass das Schloss entriegelt ist).
• Schieben Sie die Festplatte in den entsprechenden Einschub.
Achtung: Achten Sie auf die richtige Ausrichtung der Festplatte.
• Schließen Sie die Frontklappe bis die Verriegelung einrastet um die Festplatte vollständig zu verbinden
• Bei Bedarf lässt sich die Tür eines jeden Laufwerkschachtes abschließen.
• Zur Entnahme einer Festplatte ziehen Sie bitte vorsichtig den Griff der Frontklappe nach vorne und lösen so die interne Verbindung der Festplatte um dann das Laufwerk entnehmen zu können.
Hinweis:
• Schließen Sie das Netzteil an und stellen die USB Verbindung zum Computer her und schalten das Gerät über den Netzteilschalter an der Rückseite des Gerätes ein.
Zum Schutz der Festplatten und des Gerätes können Sie jeden Festplattenschacht einzeln ausschalten, ohne dass ein Verbindungsabbruch der anderen Festplatten stattfindet, wenn Sie eine Festplatte hinzufügen oder entfernen.
Bei eingeschalteten Schächten ohne Festplatten leuchtet die zugehörige LED rot
Bei eingeschalteten Schächten mit Festplatten leuchtet die zugehörige LED blau
Bei Zugriff blinkt die entsprechende Festplatten LED lila
™
(Optional) Verbinden Sie weitere USB Geräte mit der USB Type-C
HUB Schnittstelle an der Rückseite des Gerätes.
Handbuch IB-3805-C31
Windows
Bei der Verwendung von unformatierten Laufwerken müssen diese unter Umständen zunächst initialisiert werden. Gehen Sie
dabei bitte wie folgt vor:
- Führen Sie “Start” und “Ausführen” an Ihrem Windows Rechner aus und tippen Sie „discmgmt.mcs“ ein.
- Drücken Sie die Entertaste.
1. Laufwerksinitialisierung starten.
Hinweis: Aktivieren Sie den GPT Modus, wenn die Gesamtkapazität 2 TB übersteigt, bzw. den MBR Modus, wenn die Kapazität des Laufwerks kleiner als 2 TB ist.
®
2. Neue Partition erstellen und formatieren.
3. Laufwerksformatierung abgeschlossen.
Handbuch IB-3805-C31
macOS® X
Bei der Verwendung von unformatierten Laufwerken müssen diese unter Umständen zunächst initialisiert werden. Gehen Sie
dabei bitte wie folgt vor:
1. Öffnen Sie das Festplattendienstprogramm.
2. Initialisieren Sie das Laufwerk mithilfe des Dienstprogrammes.
3. Wählen Sie das entsprechende Laufwerk und anschließend “Erase” (Löschen).
4. Formatierung wird durchgeführt
5. Nach Abschluss der Formatierung.
Handbuch IB-3805-C31
Handbuch IB-3805-C31
Allgemeine Hinweise
Unter Windows® haben Sie die Möglichkeit die Option GPT zu aktivieren um Laufwerke größer 2 TB zu initialisieren und zu
formatieren.
macOS® Benutzer können erst ab dem Betriebssystem Tiger 10.4.11 oder höher auf Laufwerke größer 2 TB zugreifen.
Wenn Sie das Schnittstellenkabel (USB) entfernen oder den Hostcomputer herunterfahren (Standby), schaltet das Gerät automatisch in den Stand-by Modus.
Wir empfehlen in den BIOS Einstellungen Ihres Mainboards das Power Management auf S3 einzustellen. (Nähere Informationen entnehmen Sie bitte der Bedienungsanleitung des Mainboardherstellers).
Sollte die Initialisierung zu lange dauern, überprüfen Sie bitte, ob das Laufwerk korrekt eingebaut wurde.
Sollte der Lüfter ungewöhnlich laut geworden sein, schalten Sie das Gerät bitte aus, entfernen die Stromversorgung und die
Seitenabdeckung mittels Schraubendreher, entnehmen den Lüfter zum Reinigen und installieren ihn anschließend wieder.
Sollte trotz Reinigung keine Besserung eingetreten sein, haben Sie die Möglichkeit den Lüfter gegen einen Lüfter gleicher Bauart (120x120x25 mm) zu ersetzen.
Sollte der Lüfter oder das Gerät ausfallen, können Sie im Rahmen der Gewährleistungszeit eine Reparatur über Ihren Händler
veranlassen.
Arbeitsumgebung: Temperatur 0 ~ 60 °C
Relative Luftfeuchtigkeit bis 90 %
The information contained in this manual is believed to be accurate and reliable. RaidSonic Technology GmbH assumes no responsibility
for any errors contained in this manual. RaidSonic Technology GmbH reserves the right to make changes in the specifications and/or design of the above mentioned product without prior notice. The diagrams contained in this manual may also not fully represent the product
that you are using and are there for illustration purposes only. RaidSonic Technology GmbH assumes no responsibility for any differences
between the product mentioned in this manual and the product you may have. Windows and the Windowslogo are registered trademarks
of Microsoft Corporation, Apple and Apple OS, MAC, iTunes and Machitosh are registered trademarks of Apple Computer Inc. All other
Copyright 2019 by RaidSonic Technology GmbH. All Rights Reserved
trademarks and brand names are the property of their respective owners.
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
