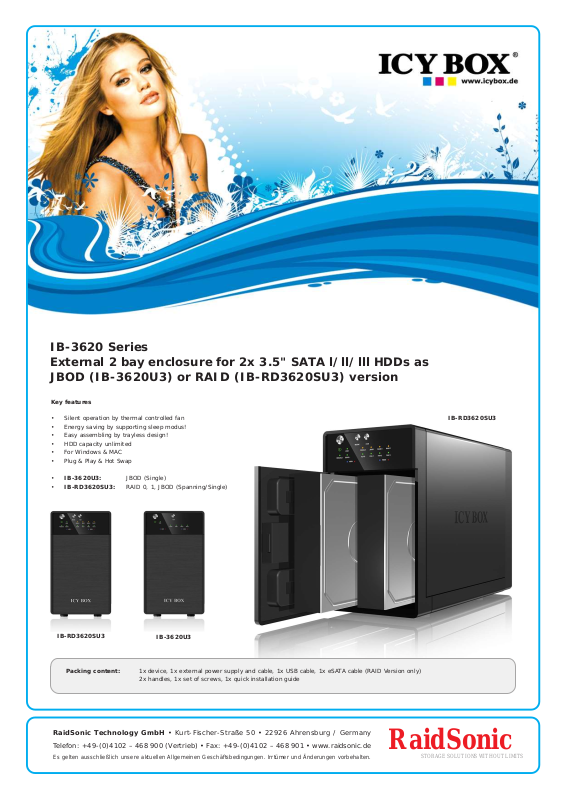

RaidSonic IB-3620U3 User Manual
IB-3620 Series
External 2 bay enclosure for 2x 3.5" SATA l/ll/lll HDDs as
JBOD (IB-3620U3) or RAID (IB-RD3620SU3) version
Key features
• Silent operation by thermal controlled fan
• Energy saving by supporting sleep modus!
• Easy assembling by trayless design!
• HDD capacity unlimited
• For Windows & MAC
• Plug & Play & Hot Swap
• IB-3620U3: JBOD (Single)
• IB-RD3620SU3: RAID 0, 1, JBOD (Spanning/Single)
IB-RD3620SU3
Packing content: 1x device, 1x external power supply and cable, 1x USB cable, 1x eSATA cable (RAID Version only)
IB-3620U3
2x handles, 1x set of screws, 1x quick installation guide
IB-RD3620SU3
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: +49-(0)4102 – 468 900 (Vertrieb) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Es gelten ausschließlich unsere aktuellen Allgemeinen Geschäftsbedingungen. Irrtümer und Änderungen vorbehalten.
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
Techniscal data
Model IB-3620U3 IB-RD3620SU3
Article No. 20620 20621
EAN Code 4250078186748 4250078186755
Brand ICY BOX
Article text External 2 bay JBOD system for External 2 bay RAID system for
3.5" SATA I/II/III HDDs 3.5" SATA I/II/III HDDs
Colour Black
Material Aluminium/plastic
HDD interface 3.5" SATA
HDD capacity unlimited (> 3 TB each HDD)
Hot Swap Yes
Plug & Play Yes
Ext. data interface USB 3.0 USB 3.0, eSATA
RAID level JBOD (Single) RAID 0, 1, JBOD (Spanning/Single)
LED: Power, fan, interface, HDD in use and access and additionell
HDD in use and RAID access (IB-RD3620SU3)
Fan 1x 60x60x10 mm smart fan, thermal controlled
OS Windows & MAC
Transfer rate USB 3.0 up to 5.0 Gbit/s, eSATA up to 3.0 Gbit/s
Power button Yes
Auto rebuilding No Yes
Power connector External power supply, Input: AC 100~240 V,
Output: 12 V / 3 A / 36 W (IB-3620U3), 12 V / 4 A /48 W (IB-RD3620SU3)
Description for RAID modes of IB-RD3620SU3
JBOD (RAID 0 Spanning) Spanning concatenates multiple hard drives as a single large volume; resulting in a seamless expansion of virtual
volumes beyond the physical limitations of separately connected hard drives. The data are written from HDD1 to HDD2.
JBOD (Single) Hard drives are being handled independently as separate logical volumes where files are stored.
RAID 0 (RAID 0 Striping) Striping is a method of concatenating multiple hard drives into one logical storage unit. It is the automated process of
writing data across multiple drives simultaneously. Striping is used to increase the performance of disk reads. The multiple
hard drives will write data in "column" effect. If one drive in a striped set fails, all of the data in the stripe set is lost.
RAID 1 (RAID1 Mirroring) Mirroring is the automated process of writing data to multiple drives simultaneously. Mirroring is used to provide
redundancy. If one drive fails, the redundant drive will continue to store the data and provide access to it. The failed
drive can then be replaced and the drive set can be rebuild.
IB-3620U3 IB-RD3620SU3
RAID
confirmation
button
Power
Sync switch
Logistical data: IB-3620U3 (a:) and IB-RD3620SU3 (b:)
Packing unit/carton: 10 pcs Dimension/carton: 606x503x290 mm Import tax: 84733080
Total weight/carton: a: 18.30 kg, b: 20.52 kg Dimension/packing: 293x270x155 mm
Gross weight/packing: a: 1.72 kg, b: 1.94 kg Dimension/article: 126x166x215 mm
Net weight/article: 1.11 kg Country of origin: Taiwan
input
USB 3.0
interface
Thermal controlled smart fan,
60x60x20 mm
Sync switch
Power
input
SATA
interface
USB 3.0
interface
