Please read carefully the following information to prevent injuries, damage to
material and device as well as data loss:
Warning levels
Signal words and safety codes indicate the warning level and provide immediate
information in terms of the probability of occurrence as well as the type and severity of the
consequences if the measures to prevent hazards are not complied with.
DANGER
WARNING
CAUTION
IMPORTANT
1. Risk of electrical shock
WARNING
• Read the operating instructions prior to use
• Make sure the device has been de-energised prior to working on it
• Do not remove contact protection panels
• Avoid contact with conducting parts
• Do not bring plug contacts in contact with pointed and metal objects
• Use in intended environments only
• Operate the device using a power unit meeting the specifications of the type plate only!
• Keep the device/power unit away from humidity, liquid, vapour and dust
• Do not modify the device
• Do not connect the device during thunderstorms
• Approach specialist retailers if you require repairs
2. Hazards during assembly (if intended)
CAUTION
• Read the operating instructions prior to assembly
• Avoid coming into contact with sharp edges or pointed components
• Do not force components together
• Use suitable tools
• Use potentially enclosed accessories and tools only
3. Hazards caused by a development of heat
IMPORTANT
• Prevent externally heating up components and ensure an exchange of air
• Do not cover the fan outlet and passive cooling elements
Warns of a directly hazardous situation causing death or serious injury.
Warns of a potentially hazardous situation that may cause
death or serious injury.
Warns of a potentially hazardous situation that may cause
minor injury.
Warns of a potential situation that may cause material or
environmental damage and disrupt operative processes.
Contact with parts conducting electricity
Risk of death by electrical shock
Sharp components
Potential injuries to fingers or hands during assembly (if
intended)
Insufficient device/power unit ventilation
Overheating and failure of the device/power unit
Safety information IB-1824ML-C31
• Avoid direct sunlight on the device/power unit
• Guarantee sufficient ambient air for the device/power unit
• Do not place objects on the device/power unit
4. Hazards caused by very small parts and packaging
WARNING
• Keep small parts and accessories away from children
• Store/dispose of plastic bags and packaging in an area that is inaccessible to children
• Do not hand over small parts and packaging to children
5. Potential data loss
IMPORTANT
• Always comply with the information in the operating instructions/quick installation guide
• Exclusively use the product once the specifications have been met
• Back up data prior to commissioning
• Back up data prior to connecting new hardware
• Use accessories enclosed with the product
6. Cleaning the device
IMPORTANT
• Disconnect the device prior to cleaning
• Aggressive or intense cleaning agents and solvents are unsuitable
• Make sure there is no residual moisture after cleaning
• We recommend cleaning devices using a dry, anti-static cloth
7. Disposing of the device
IMPORTANT
This icon on product and packaging indicates that this product must not be
disposed of as part of domestic waste. In compliance with the Waste Electrical and Electronic Equipment Directive (WEEE) this electrical device and
potentially included batteries must not be disposed of in conventional, domestic waste or recycling waste. If you would like to dispose of this product
and potentially included batteries, please return it to the retailer or your local
waste disposal and recycling point.
If you have any questions, please do not hesitate to contact our support at
support@raidsonic.de or visit our website at www.raidsonic.de.
Risk of suffocation
Risk of death by suffocation or swallowing
Data lost during commissioning
Potentially irreversible data loss
Harmful cleaning agents
Scratches, discolouration, damage caused by moisture or
short circuit in the device
Environmental pollution, unsuitable for recycling
Potential environmental pollution caused by components,
recycling circle interrupted
Sicherheitshinweise IB-1824ML-C31
Zur Vermeidung körperlicher Schäden, sowie von Sach-, Geräteschäden und
Datenverlust beachten Sie bitte folgende Hinweise:
Warnstufen
Signalwort und Sicherheitszeichen kennzeichnen die Warnstufe und geben einen sofortigen
Hinweis auf Wahrscheinlichkeit, Art und Schwere der Folgen, wenn die Maßnahmen zur
Vermeidung der Gefahr nicht befolgt werden.
GEFAHR
WARNUNG
VORSICHT
ACHTUNG
1. Gefahren durch elektrische Spannung
WARNUNG
• vor Benutzung Betriebsanleitung lesen
• vor Arbeiten am Gerät, Spannungsfreiheit sicherstellen
• Kontaktschutzblenden nicht entfernen
• Kontakt mit Spannungsführenden Komponenten vermeiden.
• Steckkontakte nicht mit spitzen und metallischen Gegenständen berühren
• Verwendung nur in dafür vorgesehenen Umgebungen
• Gerät ausschließlich mit Typenschildkonformen Netzteil betreiben!
• Gerät/Netzteil fern von Feuchtigkeit, Flüssigkeit, Dampf und Staub halten
• Eigenständige Modifikationen sind unzulässig
• Gerät nicht während eines Gewitters anschließen
• Geben Sie Ihr Gerät im Reparaturfall in den Fachhandel
2. Gefahren während Montage (wenn vorgesehen)
VORSICHT
• vor Montage, Betriebsanleitung lesen
• Kontakt mit scharfen Kanten oder spitzen Bauteilen vermeiden
• Bauteile nicht mit Gewalt zusammensetzen
• geeignetes Werkzeug verwenden
• nur gegebenenfalls mitgeliefertes Zubehör und Werkzeug verwenden
3. Gefahren durch Wärmeentwicklung
ACHTUNG
• externe Erwärmung vermeiden und Luftaustausch zulassen
• Lüfter-Auslass und passive Kühlkörper freihalten
warnt vor einer unmittelbar gefährlichen Situation, die zum
Tod oder zu schweren Verletzungen führen wird.
warnt vor einer möglicherweise gefährlichen Situation, die
zum Tod oder zu schweren Verletzungen führen kann.
warnt vor einer möglicherweise gefährlichen Situation, die
zu leichten Verletzungen führen kann.
warnt vor einer möglichen Situation, die zu Sach- und Umweltschäden führen und den Betriebsablauf stören kann.
Kontakt mit elektrisch leitenden Teilen
Lebensgefahr durch Stromschlag
Scharfkantige Bauteile
Finger- oder Handverletzungen bei Zusammenbau (wenn
vorgesehen) möglich
Mangelhafte Belüftung des Geräts/Netzteils
Überhitzung und Ausfall des Geräts/Netzteils
Sicherheitshinweise IB-1824ML-C31
• direkte Sonneneinstrahlung auf Gerät/Netzteil vermeiden
• ausreichend Umgebungsluft für Gerät/Netzteil sicherstellen
• keine Gegenstände auf dem Gerät/Netzteil abstellen
4. Gefahren durch Kleinstteile und Verpackung
WARNUNG
• Kleinteile, Zubehör für Kinder unzugänglich verwahren
• Plastiktüten und Verpackung für Kinder unzugänglich verwahren/entsorgen
• Kleinteile und Verpackungen nicht in Kinderhände geben
5. Möglicher Datenverlust
ACHTUNG
• Unbedingt Hinweise in der Bedienungsanleitung/Schnellinstallationsanleitung beachten
• Produkt nur verwenden, wenn Spezifikationen erfüllt sind
• Datensicherung vor Inbetriebnahme durchführen
• Datensicherung vor Anschluss neuer Hardware durchführen
• dem Produkt beiliegendes Zubehör verwenden
6. Reinigung des Gerätes
ACHTUNG
• vor Reinigung, das Gerät außer Betrieb nehmen
• aggressive bzw. scharfe Reinigungs- und Lösungsmittel sind ungeeignet
• nach der Reinigung sicherstellen, dass keine Restfeuchtigkeit vorhanden ist
• Reinigung der Geräte am besten mit trockenem Antistatiktuch durchführen
7. Entsorgung des Gerätes
ACHTUNG
Dieses auf dem Produkt und der Verpackung angebrachte Symbol zeigt an,
dass dieses Produkt nicht mit dem Hausmüll entsorgt werden darf. In Übereinstimmung mit der Richtlinie über Elektro- und Elektronik-Altgeräte (WEEE)
darf dieses Elektrogerät und ggf. enthaltene Batterien nicht im normalen
Hausmüll oder dem Gelben Sack entsorgt werden. Wenn Sie dieses Produkt und ggf. enthaltene Batterien entsorgen möchten, bringen Sie diese bitte
zur Verkaufsstelle zurück oder zum Recycling-Sammelpunkt Ihrer Gemeinde.
Bei Fragen kontaktieren Sie gerne unseren Support unter support@raidsonic.de oder
besuchen Sie unsere Internetseite www.raidsonic.de.
Erstickungsgefahr
Lebensgefahr durch Ersticken oder Verschlucken
Datenverlust bei Inbetriebnahme
Unwiederbringlicher Datenverlust möglich
Schädigende Reinigungsmittel
Kratzer, Farbveränderungen, Feuchteschäden oder Kurzschluss
am Gerät
Umweltverschmutzung, Wiederverwertung nich t möglich
Mögliche Umweltbelastung durch Bestandteile,
Recyclingkreislauf unterbrochen
Manual IB-1824ML-C31
Important product information
Dear Customer,
Please note the following information about the compatibility of USB Type-C™
enclosures and adapters, including this device!
• Your host computer must have a USB Type C™ or Type-A interface.
• The IB-1824ML-C31 also works with computers and notebooks with USB
3.0/2.0/1.1 Type-A interfaces by using the enclosed USB-Type-C™ to
type-A cable.
• The enclosure also works on devices with a Thunderbolt™ 3 interface with
the transfer rate of up to 10 Gbit/s specified by USB 3.1 (Gen 2).
• The Type-C ™ or Type-A plug can be connected with USB 3.0 or 2.0 standard in some notebooks and computers. The enclosure only supplies the
full data transfer rate of up to 10 Gbit/s to USB 3.1 (Gen 2) interfaces.
• The following operating systems are supported: Windows®, macOS®
External USB Type-C™ Enclosure for M.2 NVMe SSD - RGB illuminated!
With the help of the external USB 3.1 Type-C™ enclosure IB-1824ML-C31
you can take one NVMe SSD with you quickly and easily. It allows access
to M.2 SSDs of up to 2 TB no matter to which host you connect it. The IB1824ML-C31 is compatible with M.2 cards of 30, 42, 60 and 80 mm length,
suitable for a variety of applications such as high-speed storage, cloning a
drive or running a mobile operating system.
With the IB-1824ML-C31, sensitive data can now be protected against
changes and released again via a switch. With the practical mini tool supplied and a small hand movement, the switch on the IB-1824ML-C31 can be
moved to the desired position. Click - Safe.
Stylish RGB LED Illumination
Get the upgrade that you need to kick your NVMe performance and style to
the next level with the IB-1824ML-C31. The enclosure features two smooth,
stunning light bars to give you a dash of dazzling RGB lighting.
A PCIe controller give the NVMe inside the 1824ML-C31 incredible speeds
of up to 1000 MB/s read and write* via USB Type-C ™ while also making
your M.2 SSD more durable and more efficient. With a frame designed to
accentuate its lighting, for users who do not want to choose between performance or design.
* depends on SSD manufacturer and SSD model and version
Manual IB-1824ML-C31
Package content
1x IB-1824ML-C31 (drive not included), 1x Type-C™ to Type-C™ cable
1x Type-C™ to Type-A cable , 2x Silicon thermal pads (0.75 mm/grey,
1,0 mm/blue), 1x Heat sink, 1x Tool for write protection switch, 1x Screw
driver, 1x Set of screws, 1x Transport pouch, 1x Manual
Product overview
1234
1. Light strip changing colors
2. Switch for write protection activation
3. USB 3.1 (Gen2) Type-C™ interface to host connection
4. LED for power and write protection status
Manual IB-1824ML-C31
Key Features
• High-grade aluminium cover with innovative heatsink design
• RGB lighting with changing colours
• Interface to host computer: USB 3.1 (Gen 2) Type-C
• PCIe 3.0 x2 data transfer rates of up to 1000 megabyte per second
• M-Key socket for NVMe SSDs, 22x 30/42/60/80 mm
• Write protection activation via switch
• Supports Windows®, macOS
®
Installation
Important: During the installation process the drive has to be disconnected
from the host.
Screw nut-A
Screw-B
Screw-C
™
Manual IB-1824ML-C31

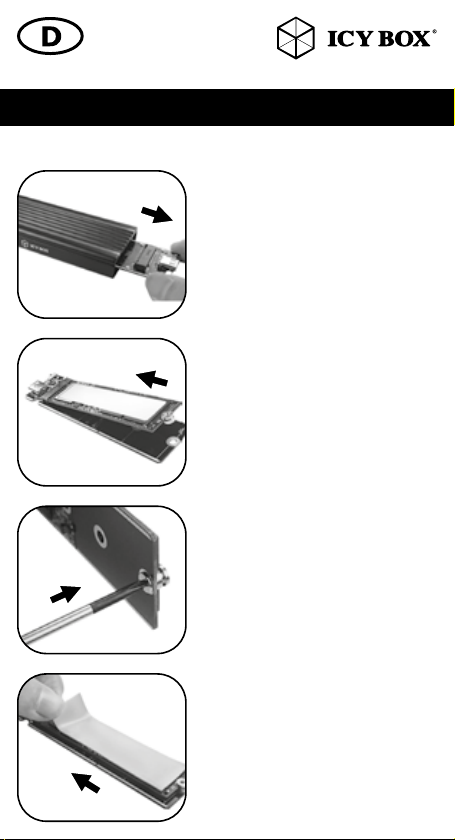

1. Take out the PCB.
2. Combine the circular notch of the
round M.2 holder with the semi-circular notch of the M.2 SSD and hold
it with one finger (the thinner side
upwards). Insert your SSD carefully
with the connection side into the M.2
socket at an angle of about 30° so it
fits in smoothly.
3. Then push the SSD card down
and fix the M.2 nut with screw-B as
displayed.
4. Place the delivered thermal pad
directly to the M.2 NVMe SSD.
To get in close contact with the enclosure for an optimal heat dissipation,
please use the right thermal pad
accordingly to your available M.2
NVMe SSD.
- 0,75 mm/grey for thicker SSDs
- 1,0 mm/blue for thinner SSDs
Manual IB-1824ML-C31
5. Put the heatsink on the thermal pad
and align the notch to the screw nut.
6. Install the PCB back into the track
inside the housing. Pay attention to the
correct alignment!
7. Install the cover and fasten two
screws-C. Please make sure the
write protection switch is placed in the
square hole when installing the cover.
Note! Change the write-protect mode before connecting to computer*
Manual IB-1824ML-C31
Usage
• Connect the IB-1824ML-C31 via the delivered cable to the correspon-
ding port of your host computer.
• When the IB-1824ML-C31 has been plugged correctly the LED will
turn on white!
• As soon as the write protection has been activated by switch, the LED
lights up red*
*Important! Changing of the write-protect mode will only be activated
when the device has been disconnected and then reconnected to the
host computer.
Application
• The external SSD can be connected to or disconnected from the com-
puter without shutting down the computer.
• Please await the end of read/write operations before disconnecting
the SSD to avoid data lost.
• A new SSD must first be initialized, partitioned and formatted by the
operation system to be displayed by the system.
• If the drive isn’t recognized instantly by the operating system please check:
- if the driver software is installed (USB)
- if the SSD is initialized, partitioned and formatted
Info: Drives must be initialized and have active partitions to be immediately
recognized as volumes in the operating system. If this is not the case, initialize
the drives in the volume management of your operating system.
The full USB 3.1 (Gen2) transfer rate can only be achieved with a compatible
USB 3.1 (Gen2) host computer. Furthermore, the USB 3.1 drivers must be
installed by the operating system. If this is not the case, install the appropriate
drivers for your operating system (Windows®, macOS®).
Handbuch IB-1824ML-C31
Wichtige Produktinformationen
Sehr geehrter Kunde,
Bitte nehmen Sie folgende Informationen zur Kompatibilität von USB
Type-C™ Gehäusen und Adaptern, inklusive dieses Geräts, zur Kenntnis!
• Ihr Hostcomputer muss über eine USB Type-C™ oder Type-A Schnitt-
stelle verfügen.
• Das IB-1824ML-C31 arbeitet auch mit Notebooks und PCs mit USB
3.0/2.0/1.1 Type-A Schnittstellen mittels des beiliegenden USBType-C™ zu Type-A Kabels.
• Das Gehäuse arbeitet auch an Geräten mit der Thunderbolt 3 Schnitt-
stelle mit der von USB 3.1 (Gen2) angegebenen Transferrate von bis
zu 10 Gbit/s.
• Die Type-C™ Schnittstelle kann in einigen Notebooks und PCs mit USB 3.0
oder 2.0 angebunden sein. Das Gehäuse liefert nur an USB 3.1 (Gen2)
Schnittstellen die volle Datenübertragungsrate von bis zu 10 Gbit/s.
• Folgende Betriebssysteme werden grundsätzlich unterstützt:
Windows®, macOS®
Externes USB Type-C™ Gehäuse für M.2 NVMe SSD mit RGB Beleuchtung!
Mit dem externen USB 3.1 Typ-C™ Gehäuse IB-1821ML-C31 können Sie
eine NVMe SSD schnell und einfach mitnehmen. Es erlaubt Zugriff auf M.2
Datenträger von bis zu 2 TB, egal mit welchem Host Sie es verbinden. Das
IB-1824ML-C31 ist kompatibel mit M.2 SSDs der Längen 30, 42, 60 und 80
mm, und für eine Vielzahl von Anwendungen wie Hochgeschwindigkeitsspeicherung, Klonen eines Laufwerks oder das Ausführen eines mobilen
Betriebssystems geeignet.
Mit dem IB-1824ML-C31 können sensible Daten auf der verbauten M.2 SSD
per Schalter vor Veränderungen geschützt und wieder freigegeben werden.
Mit dem mitgelieferten, praktischen Mini-Werkzeug und einer kleinen Handbewegung lässt sich der dafür zuständige Schalter des IB-1824ML-C31 in die
gewünschte Position bewegen. Klick - Sicher.
Stylishe RGB-LED-Beleuchtung
Holen Sie sich das Upgrade um Ihre NVMe-Leistung und Ihren Style auf das
nächste Level zu heben - mit dem IB-1824ML-C31. Das Gehäuse verfügt über
zwei LED Leisten mit fließend übergehender RGB Ambient-Beleuchtung, die
Ihre Individualität zum Ausdruck bringen.
Ein PCIe-Controller verleiht dem NVMe im Inneren dem 1824ML-C31 un-
Handbuch IB-1824ML-C31
glaubliche Geschwindigkeiten von bis zu 1000 MB/s Lesen und Schreiben*
und macht Ihre M.2 SSD gleichzeitig langlebiger und effizienter. Durch die
akzentuierte Beleuchtung brauchen Sie nicht zwischen Leistung oder Design
zu wählen.
* Abhängig von SSD Hersteller, SSD Model und Version
Verpackungsinhalt
1x IB-1824ML-C31 (Laufwerk nicht im Lieferumfang enthalten), 1x Type-C™
zu Type-C™ Kabel , 1x Type-C™ zu Type-A Kabel , 2x Silikon Wärmeleitpads (0,75 mm/grau, 1,0 mm/blau), 1x Kühlkörper, 1x Werkzeug für
Schreibschutz-Schalter, 1x Schraubendreher, 1x Schraubenset, 1x Transporttasche, 1x Handbuch
Produktübersicht
1234
1. Leuchtstreifen mit wechselnden Farben
2. Schalter für Schreibschutz-Aktivierung
3. USB 3.1 (Gen2) Type-C™ Anschluss zum Hostcomputer
4. LED für Betrieb, Zugriff und Schreibschutz-Status
Handbuch IB-1824ML-C31
Hauptmerkmale
• Hochwertige Aluminiumgehäuse im innovativen Kühlrippendesign
• RGB Beleuchtung mit wechselnden Farben
• Anschluss zum Hostcomputer: USB 3.1 (Gen 2) Type-C™ und Type-A
• PCIe 3.0 x2 Datenübertragungsraten mit bis zu 1000 Megabyte pro
Sekunde
• M-Key Sockel für NVMe SSDs, 22 x 30/42/60/80 mm
• Schreibschutz - Aktivierung per Schalter
• LED für Betrieb und Festplattenzugriff
• Unterstützt Windows®, macOS®
Einbau
Wichtig: Während der Installation des Laufwerks darf das Gehäuse
nicht am Computer angeschlossen sein.
Screw nut-A
Screw-B
Screw-C
Handbuch IB-1824ML-C31
1. Entnehmen Sie die Platine.
2. Setzen Sie die runde M.2 Halterung
in die halbkreisförmige Aussparung
am Ende der M.2 SSD ein und halten
diese mit einem Finger fest (dünnere
Seite nach oben). Platzieren Sie Ihre
SSD vorsichtig mit der Anschlussseite
und in einem Winkel von ca. 30° in
den M.2-Slot, so dass sie sich widerstandslos einfügt.
3. Drücken Sie die SSD dann vorsichtig nach unten und fixieren die
M.2 Halterung mittels der gelieferten
Schraube –B.
4. Bringen Sie das mitgelieferte Wärmeleitpad direkt auf der eingebauten M.2 NVMe
SSD an.
Um einen direkten Kontakt mit dem Gehäuse
herzustellen und somit eine optimale Wärmeableitung zu gewährleiste, verwenden Sie
bitte das richtige Wärmeleitpad entsprechend
Ihrer verfügbaren M.2 NVMe SSD.
- 0,75 mm/grau für dickere SSDs
- 1,0 mm/blau für dünnere SSDs
Handbuch IB-1824ML-C31

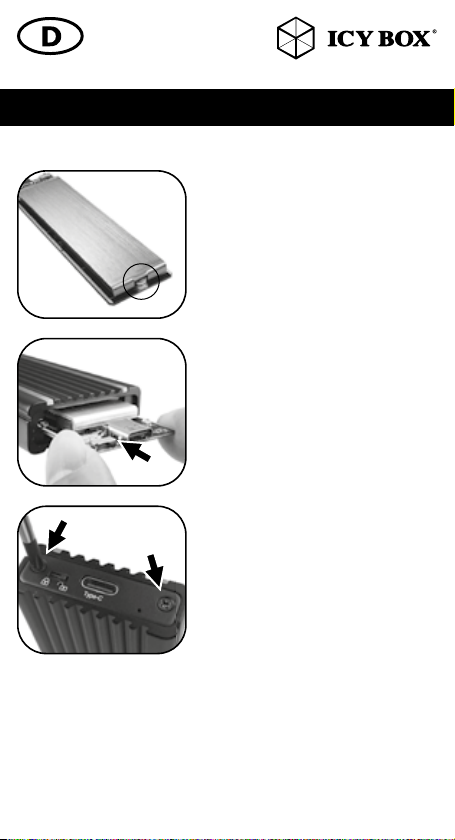

5. Setzen Sie den mitgelieferten
Kühlkörper auf das Wärmeleitpad und
richten Sie dessen Kerbe auf die M.2
Halterung aus.
6. Schieben Sie die Platine mitsamt der
SSD vorsichtig bis zum Anschlag in die
Führungsschiene des Gehäuses.
Achten Sie auf die korrekte Ausrichtung!
7. Befestigen die vordere Abdeckung
unter der Verwendung der beiden
Schrauben –C. Stellen Sie sicher,
dass der Schreibschutzschalter in der
entsprechenden Aussparung der Abdeckung platziert ist.
Hinweis! Ändern Sie die Schreibschutzeinstellung bevor Sie das Gerät an
den Computer anschließen*
Handbuch IB-1824ML-C31
Verwendung
• Verbinden Sie das IB-1824ML-C31 mittels des beiliegenden Kabels mit
dem entsprechenden Anschluss Ihres Computers.
• Wurde das IB-1824ML-C31 richtig eingesteckt, leuchtet die LED weiß
auf.
• Sobald der Schreibschutz per Schalter aktiviert wurde, leuchtet die
LED rot auf*
*Wichtig! Die Änderung des Schreibschutzmodus erfolgt nur, wenn
das Gerät getrennt und dann wieder mit dem Hostcomputer verbunden wurde.
Anwendung
• Die externe SSD kann im laufenden Betrieb des Rechners angeschlos-
sen oder von diesem getrennt werden.
• Bitte das Ende von Schreib- und Lesevorgängen abwarten bevor ein
angeschlossenes Gehäuse vom Rechner getrennt wird, um Datenverlust
zu vermeiden.
• Eine neue SSD muss vom Betriebssystem erst initialisiert, partitioniert
und formatiert werden, um vom System angezeigt zu werden.
• Wenn die SSD nicht sofort vom System erkannt wird bitte prüfen:
- ob die Treibersoftware installiert ist (USB)
- ob die SSD initialisiert, partitioniert und formatiert ist
Info: Laufwerke müssen initialisiert sein und aktive Partitionen besitzen, damit
diese sofort als Datenträger im Betriebssystem erkannt werden. Falls dies nicht
der Fall sein sollte, initialisieren Sie die Laufwerke in der Datenträgerverwaltung Ihres Betriebssystems.
Die volle USB 3.1 (Gen2) Transferrate kann nur mit einem kompatiblen USB
3.1 (Gen2) Hostcomputer erreicht werden. Des Weiteren müssen die USB
3.1 Treiber seitens des Betriebssystems installiert sein. Sollte dies nicht der Fall
sein, installieren Sie die passenden Treiber für Ihr Betriebssystem (Windows®,
macOS®).
Informieren Sie sich hierzu bitte auf www.icybox.de.
The information contained in this manual is believed to be accurate and reliable. RaidSonic Technology GmbH assumes no responsibility for any errors contained in this manual. RaidSonic Technology GmbH reserves the right to make changes in the specifications and/or design of the above
mentioned product without prior notice. The diagrams contained in this manual may also not fully
represent the product that you are using and are there for illustration purposes only. RaidSonic
Technology GmbH assumes no responsibility for any differences between the product mentioned
in this manual and the product you may have. Apple and macOS are registered trademarks of
Apple Computer Inc. Microsoft, Windows and the Windows logo are registered trademarks of
Microsoft Corporation. Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation
in the U.S. and/or other countries.
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
