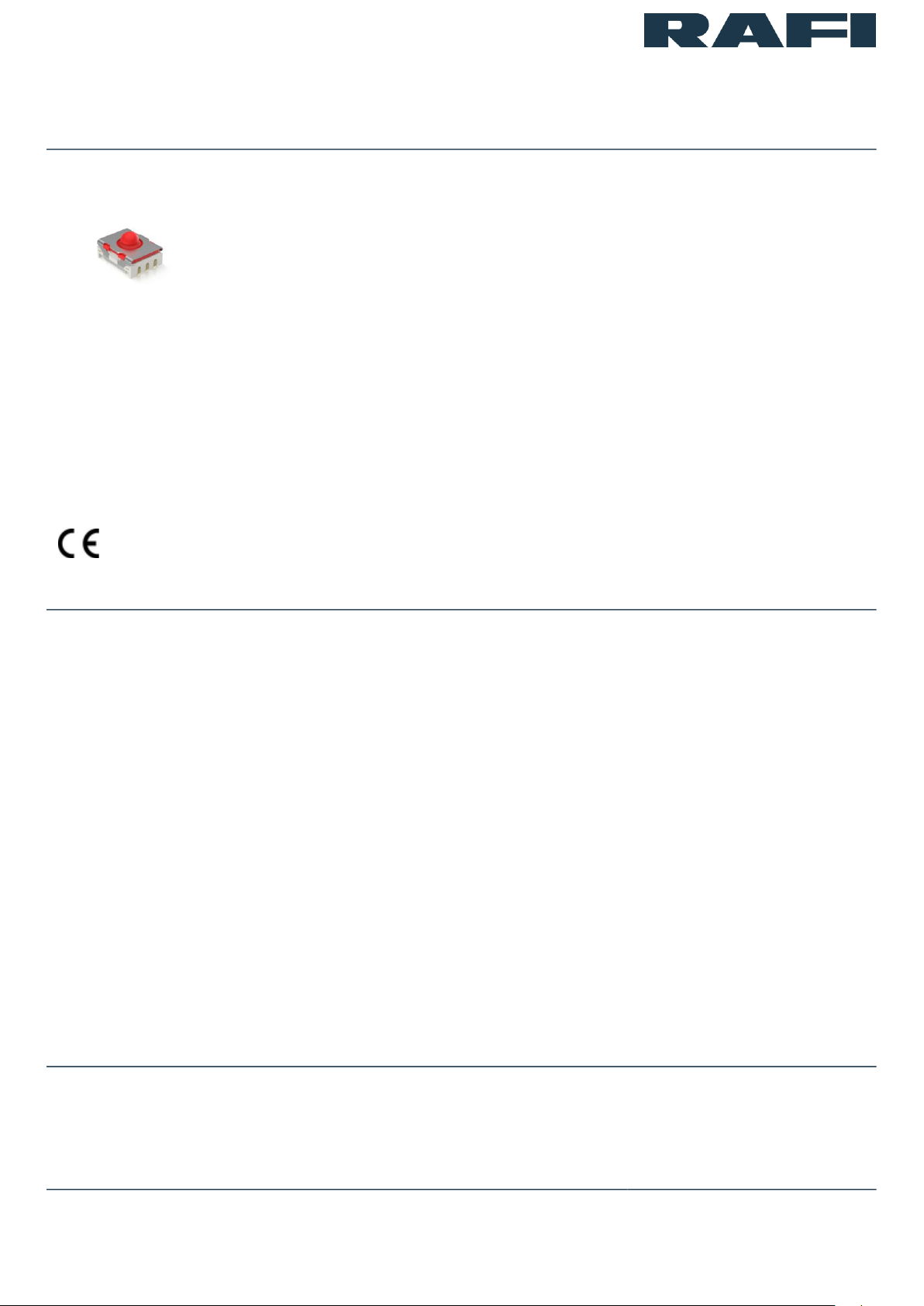

Technisches Datenblatt
Messen-Steuern-Regeln
Maschinen- und Anlagenbau
Automotive
Elektromedizin
Goldkontakte, sicheres Schalten bei
niedrigen Strömen
Besonderes taktiles Feedback
Hohe Packungsdichte durch kleinen
Formfaktor (5,1 x 6,4 mm)
Unterschiedliche Betätigungskräfte
Ring- und Vollausleuchtung der
Tastenfläche durch Stößel
Variable Bauhöhen durch Stößel
Anschlusstechnik: SMT
Traceability durch Produktkennzeichnung
nach DIN EN ISO 9001
Geeignet für die wichtigsten Lötverfahren
Wellen-Lötbad für THT-Versionen
Reflow-Löten für SMT-Versionen
Dampfphasen-Löten für SMT-Versionen
Handlötung
Verarbeitung der SMT-Ausführung mit SMT-Bestückungsautomaten
IMDS-Eintrag
Verpackung im Blistergurt, Spule mit 2.100 Stück
Vorschlag für Schablonendruck: 150 µm-Schablone mit 10% Pad-Verkleinerung auf Fläche
1.14.002.101/0000
MICON 5, SMT Standard, 2,9 ± 0,6 N, 1 S
Haupt- / Anwendungsgebiete
Spezielle Features
Beschreibung
Die MICON 5 Kurzhubtaster sind extrem schaltsichere Bauelemente mit sehr geringem Platzbedarf. Sie können einzeln, in Reihen
oder als Tastenfelder angeordnet werden. Für den Einsatz unter Folie empfehlen wir die MICON 5-Taster mit Stößeln zu
kombinieren.Die Eigenschaften auf einen Blick:
Technische Daten
Allgemein
Arbeitstemperatur, min. -40 °C
Lagertemperatur, min. -40 °C
Arbeitstemperatur, max. 90 °C
Lagertemperatur, max. 90 °C
The information in this data sheet only contains general descriptions and / or performance features, which may not apply precisely as
described to the respective application, and which my change due to further product enhancements. The technical data, illustrations and
other information about our products are the mere results of individual technical testing. These descriptions and other product features are
only binding if they expressly agreed upon at the time of the conclusion of a binding contract. In all other cases, we reserve the right to
make technical changes as well as changes of availability. Pictures and other graphic illustrations are approximations only. All product names
may be trademarks or brand names of the RAFI Group or any other sub-supplier of RAFI. The use of such by any third parties for their own
purposes may infringe the rights of the respective entity holding those rights.
Stand:27.06.2022Seite:1/7
RAFI GmbH & Co. KG
Ravensburger Str. 128-134
88276 Berg / Ravensburg
Germany
www.rafi-group.com,
info.headquarters@rafi-group.com
Technisches Datenblatt
RAFI eCatalog
1.14.002.101/0000
beleuchtbar nein
Lötverfahren Reflow
Lötwärmebeständigkeit nach
Norm
Verpackung Blister
Verpackungseinheit 2.100 Stück
Nettogewicht 0,3 g
Lebensdauer 1.000.000 Zyklen
B10 1.300.000 Zyklen
MSL Moisture Sensitivity Level 1
Schockfestigkeit gem. Norm IEC
60068-2-27
Schwingbeständigkeit gem. Norm
IEC 60068-2-6
MOQ Auftrag 2.100 Stück
RoHS konform ja
REACH konform ja
Material der Komponente Silikon
Einbaumaße
Einbauhöhe 3,85 ± 0.1 mm
Raster, min. 6 x 7,8 mm
Außenmaß Länge 6,4 ± 0.1 mm
Außenmaß Breite 5,1 ± 0.1 mm
Außenmaß Höhe 3,85 ± 0.1 mm
Mechanische Kennwerte
Betätigungsfunktion tastend
Betätigungskraft, max. 4 N
Betätigungskraft, min. 2,9 ± 0,6 N
Schaltweg 0,7 ± 0.15 mm
Kontaktfunktion 1 S
Kontaktsystem Sprungkontakt
Kontaktwerkstoff Gold
Anschluss rückseitig SMT
Lötbarkeit Ja
Elektrische Kennwerte
Schaltspannung, min. 0,02 V
Schaltspannung, max. 35 V
Spannungsfestigkeit 250 V
Schaltstrom, min. 0,00001 A
Schaltstrom, max. 0,1 A
Schaltleistung, max. 1 W
DIN EN 60068-2-58
DIN EN 61760-1
100 g bei 6 ms Amplitude halbsinusförmig
5 g bei 10...500 Hz
Direkte Links
The information in this data sheet only contains general descriptions and / or performance features, which may not apply precisely as
described to the respective application, and which my change due to further product enhancements. The technical data, illustrations and
other information about our products are the mere results of individual technical testing. These descriptions and other product features are
only binding if they expressly agreed upon at the time of the conclusion of a binding contract. In all other cases, we reserve the right to
make technical changes as well as changes of availability. Pictures and other graphic illustrations are approximations only. All product names
may be trademarks or brand names of the RAFI Group or any other sub-supplier of RAFI. The use of such by any third parties for their own
purposes may infringe the rights of the respective entity holding those rights.
Stand:27.06.2022Seite:2/7
RAFI GmbH & Co. KG
Ravensburger Str. 128-134
88276 Berg / Ravensburg
Germany
www.rafi-group.com,
info.headquarters@rafi-group.com
Technisches Datenblatt
1.14.002.101/0000

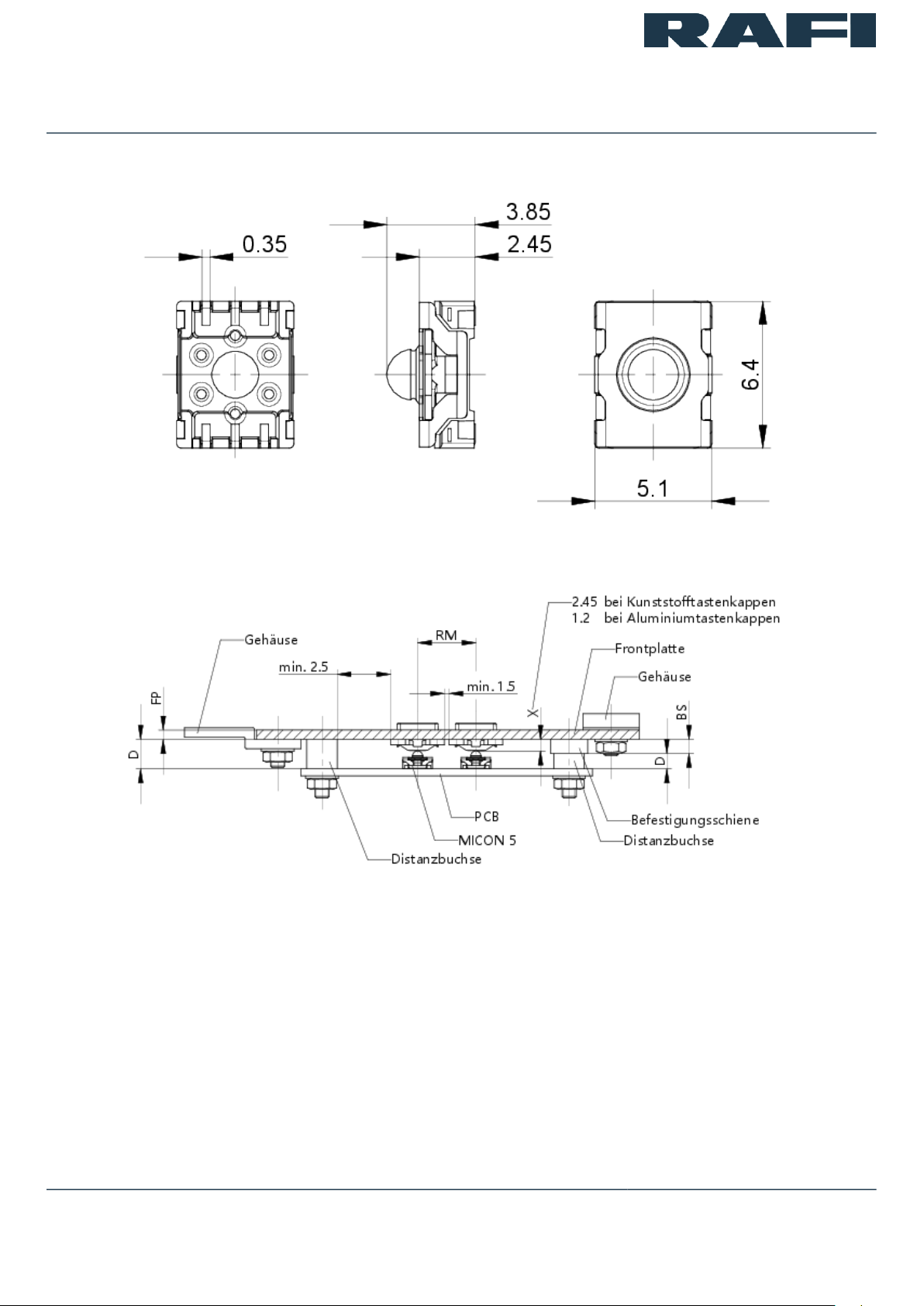

Zeichnungen
Maß-Zeichnungen
System-Zeichnung
The information in this data sheet only contains general descriptions and / or performance features, which may not apply precisely as
described to the respective application, and which my change due to further product enhancements. The technical data, illustrations and
other information about our products are the mere results of individual technical testing. These descriptions and other product features are
only binding if they expressly agreed upon at the time of the conclusion of a binding contract. In all other cases, we reserve the right to
make technical changes as well as changes of availability. Pictures and other graphic illustrations are approximations only. All product names
may be trademarks or brand names of the RAFI Group or any other sub-supplier of RAFI. The use of such by any third parties for their own
purposes may infringe the rights of the respective entity holding those rights.
Stand:27.06.2022Seite:3/7
RAFI GmbH & Co. KG
Ravensburger Str. 128-134
88276 Berg / Ravensburg
Germany
www.rafi-group.com,
info.headquarters@rafi-group.com
Technisches Datenblatt
1.14.002.101/0000

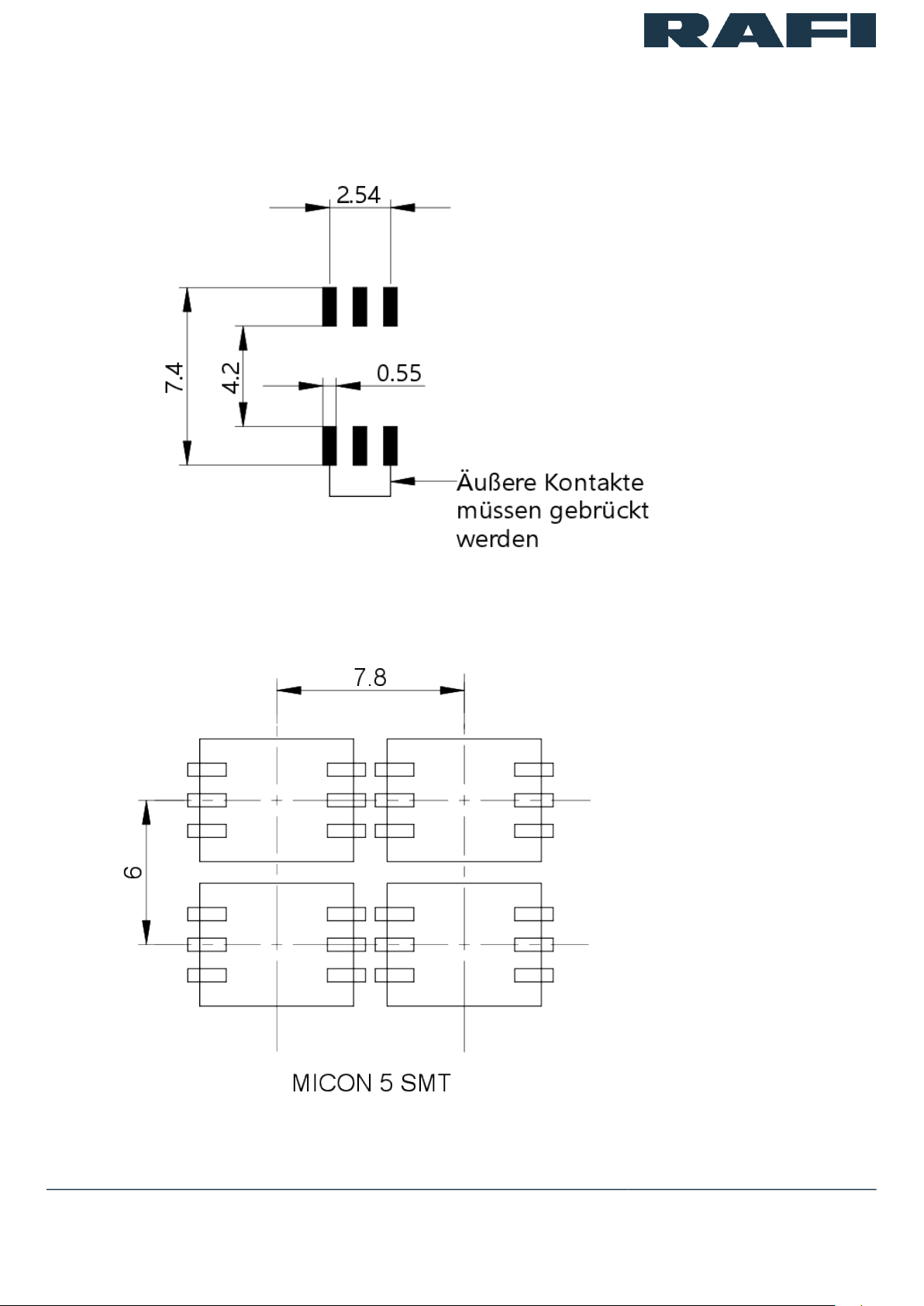

Leiterplatten-Zeichnung
Leiterplatten-Zeichnung
The information in this data sheet only contains general descriptions and / or performance features, which may not apply precisely as
described to the respective application, and which my change due to further product enhancements. The technical data, illustrations and
other information about our products are the mere results of individual technical testing. These descriptions and other product features are
only binding if they expressly agreed upon at the time of the conclusion of a binding contract. In all other cases, we reserve the right to
make technical changes as well as changes of availability. Pictures and other graphic illustrations are approximations only. All product names
may be trademarks or brand names of the RAFI Group or any other sub-supplier of RAFI. The use of such by any third parties for their own
purposes may infringe the rights of the respective entity holding those rights.
Stand:27.06.2022Seite:4/7
RAFI GmbH & Co. KG
Ravensburger Str. 128-134
88276 Berg / Ravensburg
Germany
www.rafi-group.com,
info.headquarters@rafi-group.com
Technisches Datenblatt
1.14.002.101/0000

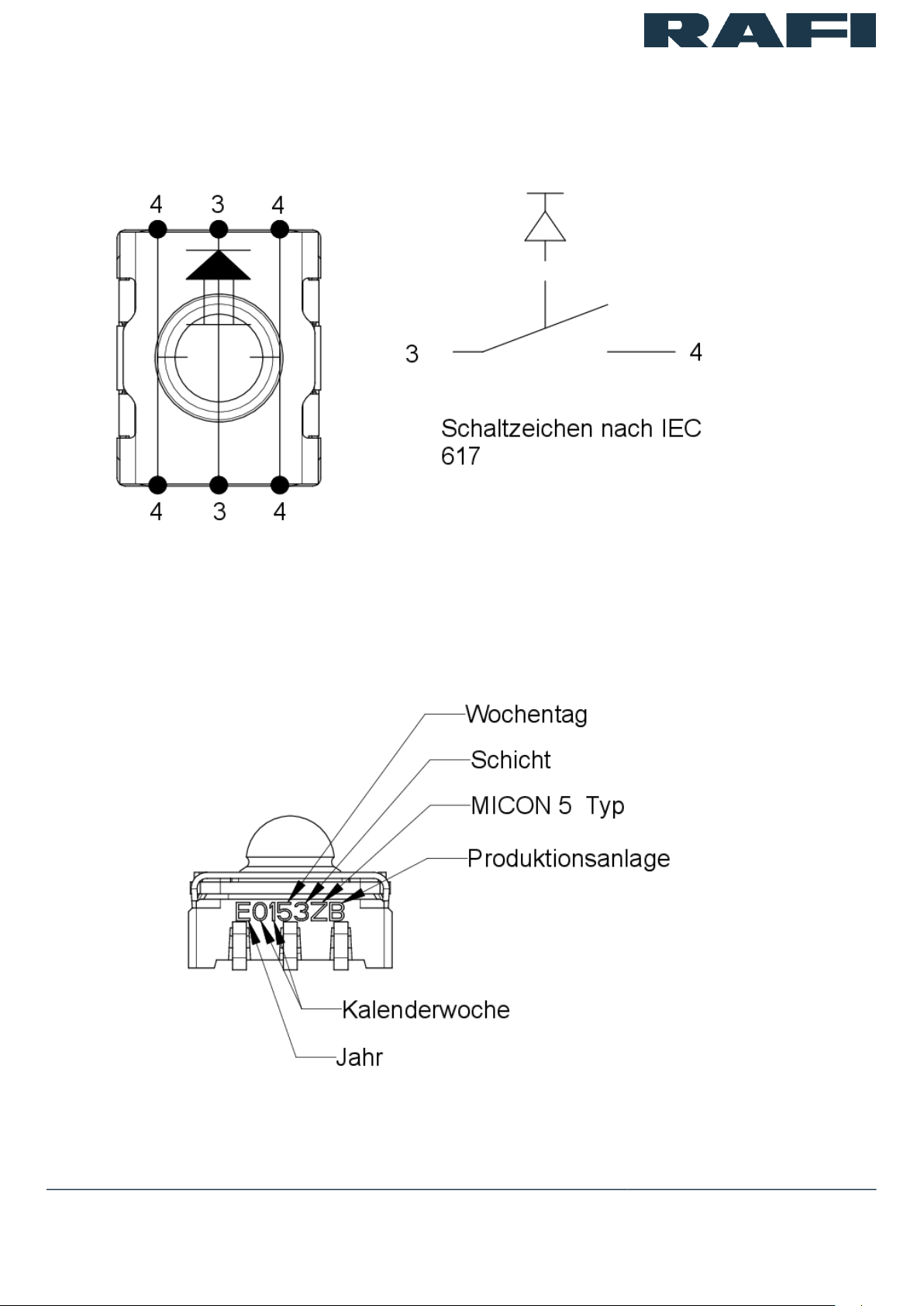

Schaltschema-Zeichnung
Produktkennzeichnung-Zeichnung
The information in this data sheet only contains general descriptions and / or performance features, which may not apply precisely as
described to the respective application, and which my change due to further product enhancements. The technical data, illustrations and
other information about our products are the mere results of individual technical testing. These descriptions and other product features are
only binding if they expressly agreed upon at the time of the conclusion of a binding contract. In all other cases, we reserve the right to
make technical changes as well as changes of availability. Pictures and other graphic illustrations are approximations only. All product names
may be trademarks or brand names of the RAFI Group or any other sub-supplier of RAFI. The use of such by any third parties for their own
purposes may infringe the rights of the respective entity holding those rights.
Stand:27.06.2022Seite:5/7
RAFI GmbH & Co. KG
Ravensburger Str. 128-134
88276 Berg / Ravensburg
Germany
www.rafi-group.com,
info.headquarters@rafi-group.com
Technisches Datenblatt
1.14.002.101/0000

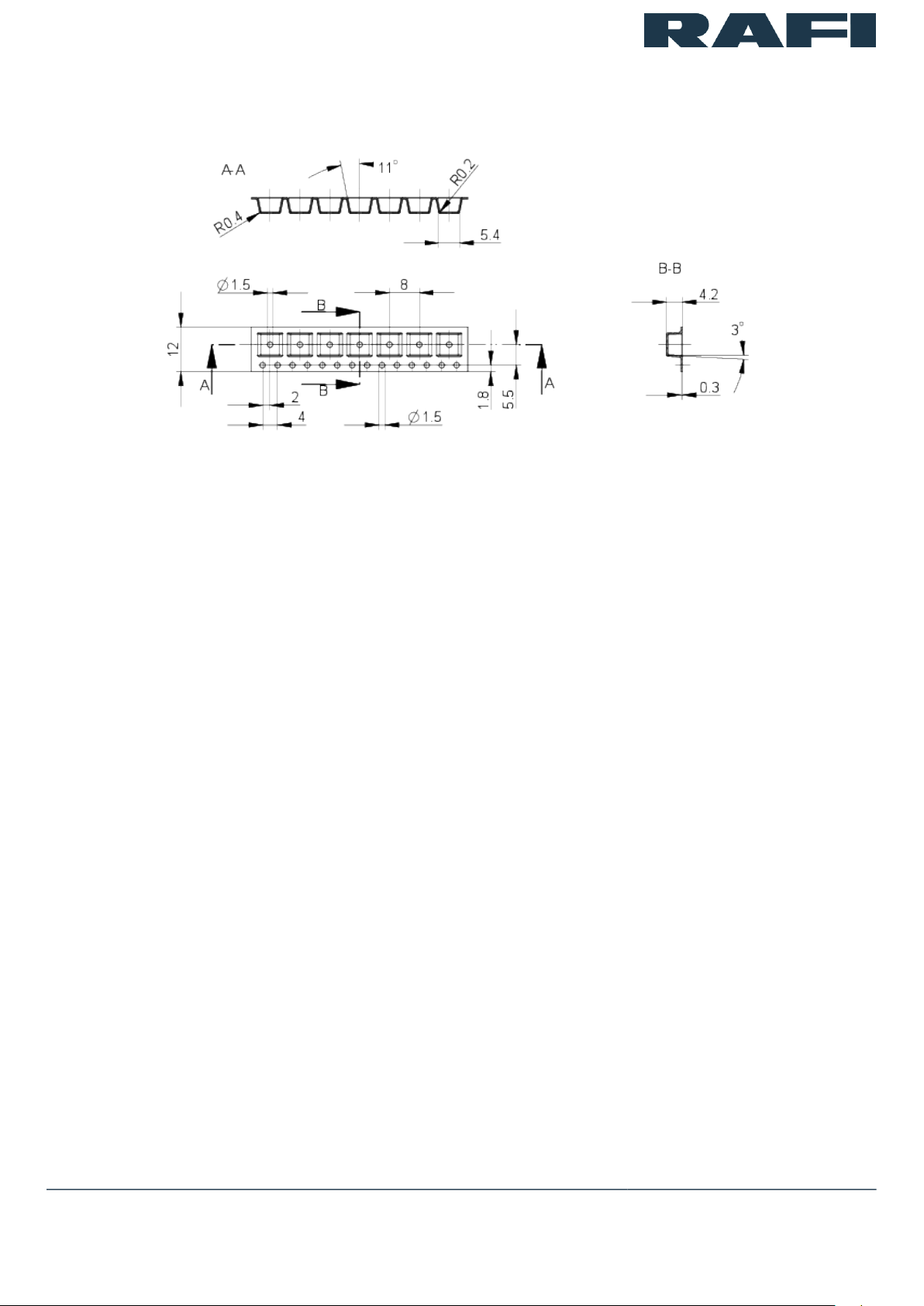

Verpackungs-Zeichnung
The information in this data sheet only contains general descriptions and / or performance features, which may not apply precisely as
described to the respective application, and which my change due to further product enhancements. The technical data, illustrations and
other information about our products are the mere results of individual technical testing. These descriptions and other product features are
only binding if they expressly agreed upon at the time of the conclusion of a binding contract. In all other cases, we reserve the right to
make technical changes as well as changes of availability. Pictures and other graphic illustrations are approximations only. All product names
may be trademarks or brand names of the RAFI Group or any other sub-supplier of RAFI. The use of such by any third parties for their own
purposes may infringe the rights of the respective entity holding those rights.
Stand:27.06.2022Seite:6/7
RAFI GmbH & Co. KG
Ravensburger Str. 128-134
88276 Berg / Ravensburg
Germany
www.rafi-group.com,
info.headquarters@rafi-group.com
Technisches Datenblatt
1.14.002.101/0000

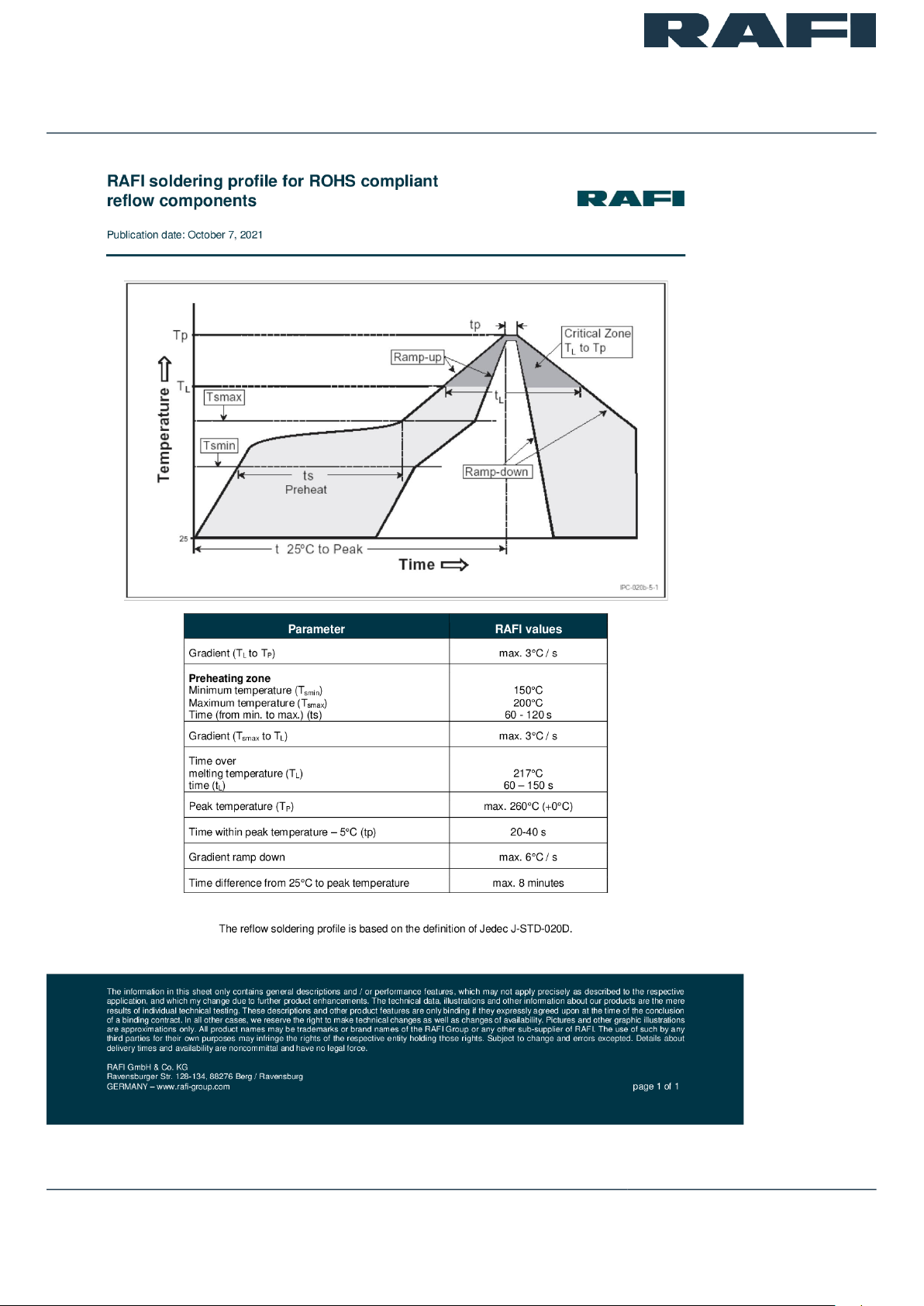

Montage
