Raffel Systems JCTBT01 Users Manual

JCT BT 01 Bluetooth
System User Manual

The JCT BT 01 Bluetooth junction interfaces with Raffel Systems power recline controls.
It allows full connectivity to the end user to control functions of a power recline chair using
a variety of Bluetooth enabled devices such as cell phones, tablets, and laptops.

Feature Controls:

Power Head Rest, Lumbar, Recline, and Home position
Memory One – User 1

Memory Two – User 2

Massage Function (Optional)

 Intensity and mode

o High
o Medium
o Low

 Mode

o Steady
o Wave
o Pulse

Heat Function (Optional)

 Mode

o High
o Medium
o Low
o Off

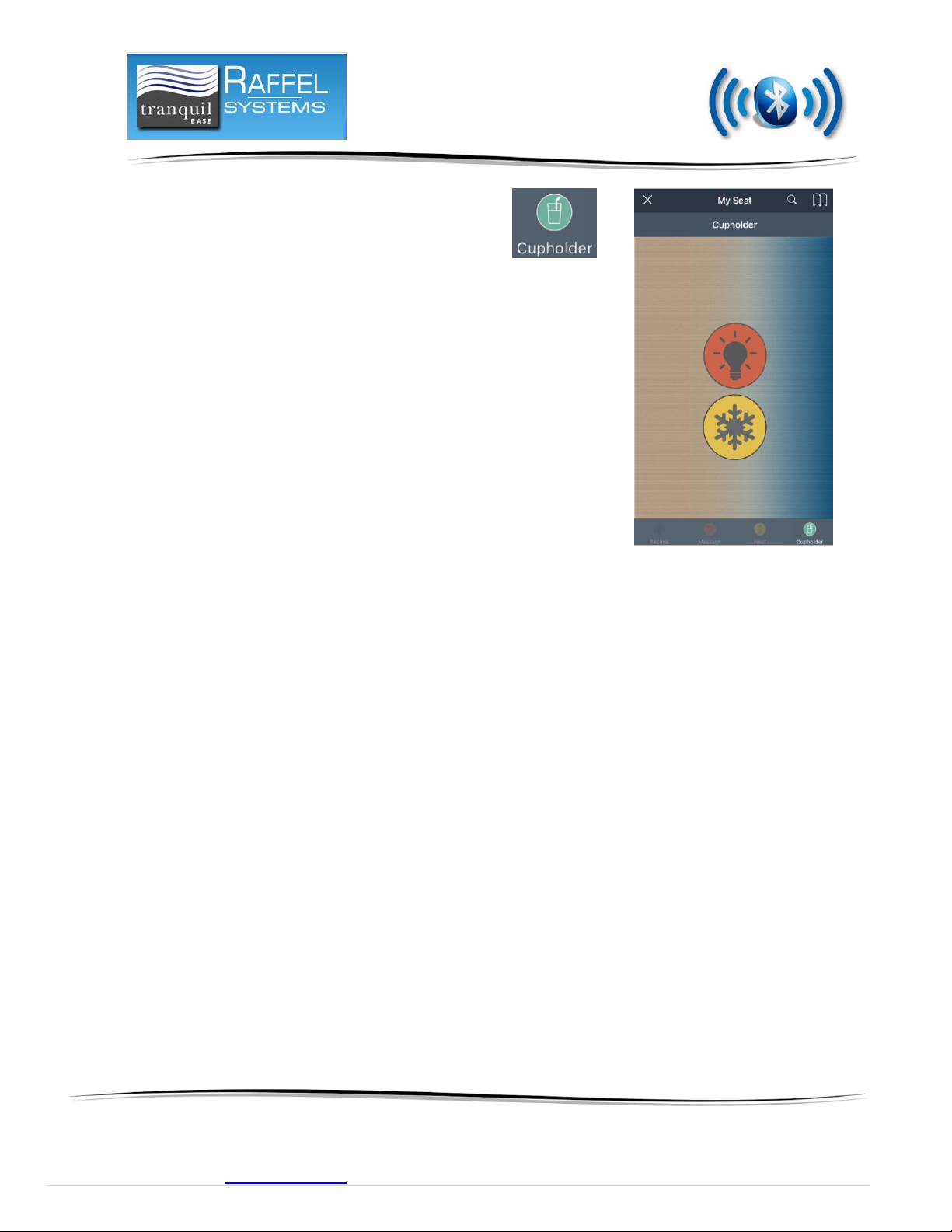

Light and Cool Functions
(Optional)

 Light - On/OFF
 Cooling – On/OFF

System of Components:

Raffel Systems ~ N112W14600 Mequon Rd ~ Germantown, WI 53022 ~ [phone]~ [phone]

www.raffel.com ©2017 by Raffel Systems, LLC

1 | P a g e

JCT BT 01 Bluetooth
System User Manual

Operation:

Download App from the desired App Store for the desired Bluetooth enabled devices
such as cell phones, tablets, and laptops.

Validate Bluetooth device is enable on your cell phone, tablet, and or laptop.

Click on the Application icon.

Select the desired device to control from the
dropdown menu.

Raffel Systems ~ N112W14600 Mequon Rd ~ Germantown, WI 53022 ~ [phone]~ [phone]

www.raffel.com ©2017 by Raffel Systems, LLC

2 | P a g e

JCT BT 01 Bluetooth
System User Manual

Head Rest, Lumbar, and Recline Functions

Depress the desired icon for Head Rest,
Lumbar, and Recline to either open or close to
the desired position and release to stop.

Home icon
The purpose of the Home icon is to fully

reposition the Head Rest, Lumbar, and the
Recliner to the fully seated position.

Depress and hold the Home icon to reposition
the chair until fully seated position. Release icon
to stop at any time.

Set Memory 1 Position

Depress the Open and or Close icon to the
desired position for user 1 for all three functions.
i.e. Head Rest, Lumbar, and Recline. Then
depress the Set icon for Memory 1; slight chair
movement will indicate that the memory position
has been set. This small movement is feedback
to the user that Memory 1 function is set. Then
release button. Memory 1 is set.

Press and hold the Home Icon until the chair is
in the fully seated position. Depress the Memory 1 Go icon and the chair will reposition to
the set Memory 1 position.

Set Memory 2 Position

Depress the Open and or Close icon to the desired position for user 2 for all three
functions. i.e. Head Rest, Lumbar, and Recline. Then depress and hold the Set icon for
memory 2 until there is chair movement. This small movement is feedback to the user
that Memory 2 is set. Then release button. Memory 2 is set.

Press and hold the Home Icon until the chair is in the fully seated position. Depress the
Memory 2 Go icon and the chair will reposition to the set Memory 2 position.
