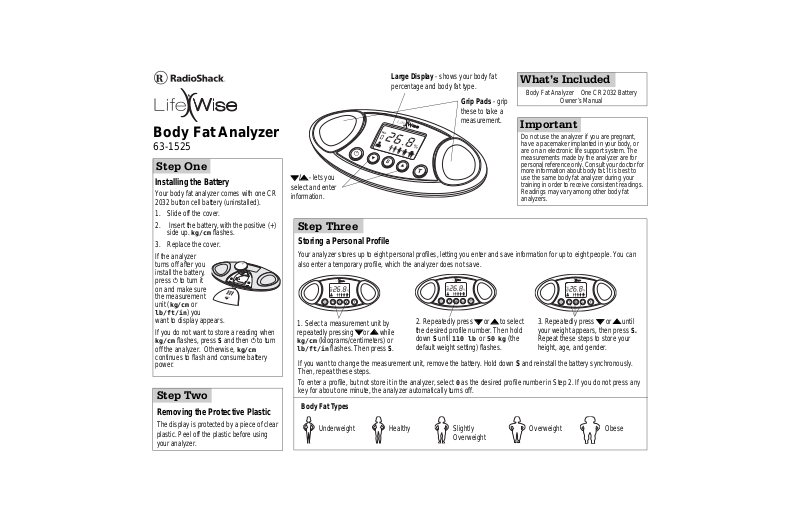

Radio Shack 63-1525 User Manual
Body Fat Analyzer
63-1525
Step One
Installing the Battery
Your body fat analyzer comes with one CR
2032 button cell battery (uninstalled).
1. Slide off the cover.
(/) - lets you
select and enter
information.
Large Display - shows your body fat
percentage and body fat type.
Grip Pads - grip
these to take a
measurement.
What’s Included
Body Fat Analyzer One CR 2032 Battery
Owner’s Manual
Important
Do not use the analyzer if you are pregnant,
have a pacemaker implanted in your body, or
are on an electronic life support system. The
measurements made by the analyzer are for
personal reference only. Consult your doctor for
more information about body fat. It is best to
use the same body fat analyzer during your
training in order to receive consistent readings.
Readings may vary among other body fat
analyzers.
2. Insert the battery, with the positive (+)
side up. kg/cm flashes.
3. Replace the cover.
If the analyzer
turns off after y ou
install the battery,
press º to turn it
on and make sure
the measurement
unit (kg/cm or
lb/ft/in) you
want to display appears.
If you do not want to store a readin g when
kg/cm flashes, press S and then º to turn
off the analyzer. Otherwise,
continues to flash and consume battery
power.
kg/cm
Step Two
Removing the Protective Plastic
Step Three
Storing a Personal Profile
Your analyzer stores up to eight personal profiles, letting you enter and save information for up to eight people. You can
also enter a temporary profile, which the analyzer does not save.
1. Select a measur ement unit by
repeatedly pressing (or ) while
kg/cm (kilograms/centimeters) or
lb/ft/in flashes. Then press S.
If you want to change the measurement unit, remove the battery. Hold down S and rein sta ll the battery synchronously.
Then, repeat t hese steps.
To enter a profile, but not store it in the analyzer, select 0 as the desired profile number in Step 2. If you do not press any
key for about one minute, the analyzer automatically turns off.
Body Fat Types
2. Repeatedly press
the desired profile number. Then hold
down S until 110 lb or 50 kg (the
default weight setting) flashes.
( or ) to select
3. Repeatedly press ( or ) until
your weight appears, then pres s S.
Repeat these steps to store your
height, age, and gender.
The display is protected by a pi ece o f clear
plastic. Peel off the plastic before using
your analyzer .
Underweight Healthy Slightly
Overweight
Overweight Obese
Step Four
Body Fat Chart
Care
Using the Analyzer
1. Press º.
2. Repeatedly press ( or ) to select the
desired profile num be r. Then press T. The body
fat icons flash.
Gender/
Age
Male, 30
or
younger
Male, 31
or older
Female,
30 or
younger
Female,
31 or
older
Underweight Healthy
Less than
14-20% 20.1-25% 25.1-35% More
14%
Less than
17-23% 23.1-28% 28.1-38% More
17%
Less than
17-24% 24.1-30% 30.1-40% More
17%
Less than
20-27% 27.1-33% 33.1-43% More
20%
Slightly
Overweight
Overweight Obese
than
35%
than
38%
than
40%
than
43%
Measuring Tips
3. While holding your arms straight in front of
you, tightly grip the grip pad s with your thumbs
and index fingers. Your body fat percentage
appears and body fat type flashes.
Err (error) appears when:
• Your thumbs and index fingers are not
positioned correctly or not firmly pressed on
the pads.
• Your thumbs and index fingers are too dry
to be conductors. Slightly moisten them.
Err appears, press T and try again.
If
• Stand or sit while taking a measurement. Do not change your
posture during the measurement.
• Wipe the grip pa ds wi th a soft, dry cloth before use. If the pad s ar e
dirty, use a damp cloth to clean them.
• Do not use the analyzer if your body or fingers are wet.
• Your hydration level and circulation can affect the measurement.
Do not use diuretics, caffeine, alcohol, or other substances that
might affect your hydration.
• Be sure to use the analyzer in the same environment and daily
condition.
Note: Measurements may vary durin g changes in your body, such as
menstrual cycle, illness, or immediately after vigorous exercise.
Battery Notes
• Keep button-cell batteries away from children. Swallowing a button-cell battery can be fatal.
• Use only fresh batteries of the required size and recommended type.
• If you do not plan to use the body fat analyzer for a month or more, remove the battery. Batteries can leak chemicals
that may destroy electronic parts.
• Dispose of old batteries promptly and properly. Do not burn or bury them.
To use your Hand-Held Body Fat Analyzer
for a long time:
• Keep the analyzer dr y. Never i m mer se
it in water.
• Keep the analyzer away from direct
sunlight, dust and dirt.
• Handle the analyzer carefull y ; do not
drop it.
• Use and store the analyzer in normal
temperature environments.
• Do not disassemble the analyzer.
Specifications
Power ........................ One CR2032 lithium battery
FDA Approval ..................... Class II Device Under
FDA Regulation 870.2770
Dimensions (HWD) .............. 2
Weight (with batteries) .................... 1.76 oz (50 g)
Operating Temperature..........................32
Specifications are typical; individual units might
vary. Specifications are subject to change and
improvement without notice.
Limited One-Year Warranty
This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for [one (1)
year] from the date of purchase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers.
EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES,
INCLUDING THOSE OF MERC HA NTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO
THE DURATION OF THE WRI TTE N L IMI TE D WARRANTIES CONTAINED HER EI N. E XC EPT AS PROVIDED HEREIN,
RadioShack SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO CUSTOMER OR AN Y OTHER PERSON OR ENTITY WITH
RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF
THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE, LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT,
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVE N IF RadioShack HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
In the event of a product defect during the warranty period, take the product and the RadioShack sales receipt as proof of purchase
date to any RadioShack store. RadioShack will, at its option, unless otherwis e pr ov ided by law: (a) corre ct the defect by product
repair without charge for parts and labor; (b) replace the product with one of the same or similar design; or (c) refund the purchase
price. All replaced parts and products, and products on which a refund is made, become the property of RadioShack. New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the
expiration of the warranty period.
This warranty does not cover: (a) damage or failure caused by or attributable to acts of God, abu se , accide nt, misus e, impro per or
abnormal usage, failure to follow instructions, improper installation or maintenance, alteration, lightning or other incidence of excess
voltage or current; (b) any repairs other than those provided by a RadioShack Authorized Service Facility; (c) consumables such as
fuses or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f) costs of product removal, installation,
set-up service adjustment or reinstallation.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state
RadioShack Customer Relations, 200 Taylor Street, 6th Floor , Fort Wort h, TX 76102
©2003 RadioShack Corporation. 63-1525
All Rights Reserved. Printed in China
RadioShack and RadioShack.com are 05A03
trademarks used by RadioShack Corporation.
3/
32 x 43/4 x 3/4 Inches
(53 x 120 x 19 mm)
°-104°F
0
°-40°C
12/99
