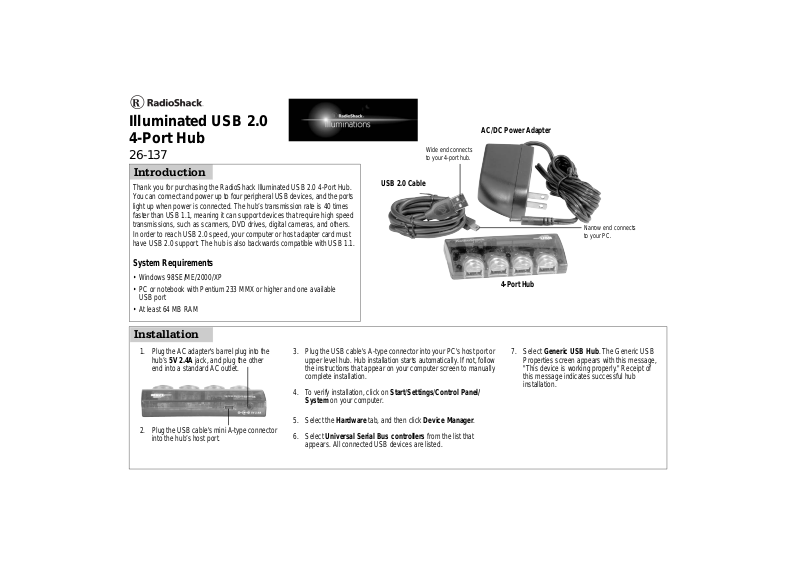

Radio Shack 26-137 User Manual

Illuminated USB 2.0

,

4-Port Hub

26-137

Introduction

Thank you for purchasing the RadioShack Illuminated USB 2.0 4-Port Hub.
Y ou can connect and power up to four peripheral USB devices, and the ports
light up when power is connected. The hub’s transmission rate is 40 times
faster than USB 1.1 , m ean ing i t can sup po rt de vice s that require high spe ed
transmissions, such as scanners, DVD drives, digital cameras, and others.
In order to reach USB 2.0 speed, your computer or host adapter card must
have USB 2.0 support. The hub is also backwards compatible with USB 1.1.

System Requirements

• Windows 98SE/ME/2000/XP

• PC or notebook with Pentium 233 MMX or higher and one available
USB port

• At least 64 MB RAM

AC/DC Power Adapter

Wide end connects
to your 4-port hub.

USB 2.0 Cable

Narrow end connects
to your PC.

4-Port Hub

Installation

1. Plug the AC adapter's barrel plug into the
hub’s 5V 2.4A jack, and plug the other
end into a standard AC outlet.

2. Plug the USB cabl e's mini A-type connector
into the hub’s host port .

3. Plug the USB cabl e's A-type connect or into your PC' s host port or
upper level hub. Hub inst allation sta rts au to ma tically. If not, follow
the instructions that appear on your computer screen to manu al l y
complete in s tal l ation.

4. To verify installation, click on Start/Settings/Control Panel/
System on your computer.

5. Select the Hardware tab, and then click Device Manager.

6. Select Universal Serial Bus controllers from the list that
appears. All connected USB devices are listed.

7. Select Generic USB Hub. The Generic USB

Properties screen appears with this message
"This device is working properly." Receipt of

this message indicates successful hub
installation.

Over Current Protection

FCC Information

Care

Your USB hub is equipped with over current protection. The hub
automatically shuts off pow er to the affected port in the event of a short,
excessive current, or if the AC adapter is disconnected from the outlet
while in use. Follow these steps to reset your USB hub:

If the message "USB Hub Current Limit Exceeded" appears on your
screen, disconnect the affected USB device from your USB hub. Click

Reset on your screen, and then reconnect the device to your hub.

If the message does not appear on your screen, di sconnect the affected
USB device from your USB hub and disconnect the hub from your PC.
Then, reconnect the hub to your PC, and reconnect the device to your
hub.

Specifications

Operating System...................Microsoft Windows 98, SE, 2000, ME, XP

Data Speed....................Low: 1.5 Mbps, Full: 1.2 Mbps, High: 480 Mbps

Upstream Port.....................................One USB mini A Type Receptacle

Downstream Port..................................... Four USB A Type Receptacles

LED Indicators.........................................................................Four (Blue)

Enclosure........................................................................................Plastic

Operating Temperature.......................................32 to 104°F (0 to 40°C)

Storage Temperature....................................–14 to 158°F (–10 to 70°C)

Operating Humidity...................................................................10 to 80%

Storage Humidity.........................................................................5 to 90%

Weight.................................................................................1.66 oz (47 g)

5

Dimensions (HWD)................1

Power Source ..........................5V DC, 2.4A, Positive (+) Tip AC Adapter

Use of any other power source may cause damage.

Specifications are typical; individual units might vary. Specifications are
subject to change and impr ovement withou t noti ce. Prod uct de piction s in
this document may differ from the actual product.

/8 × 33/4 × 3/4 Inches (41 × 95 × 18 mm)

FCC Declaration of Conformity

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.

Product: Illuminated USB 2.0

4-Port Hub

Model: 26-137

Responsible Party: RadioShack

100 Throckmorton
Fort Worth, TX 76102

Phone: [phone]

The FCC Wants You to Know

This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.

• Consult your local RadioShack store or an experienced
radio/TV technician for help.

• If you cannot eliminate the interference, the FCC requires that
you stop using your hub.

Changes or modifications not expressly approved by
RadioShack may cause interference and void the user’s
authority to operate the equipment.

Keep the USB hub dry; if it ge ts wet, wipe it dry
immediately. Use and store the US B hub onl y in
normal temperature environments. Handle the
USB hub carefully; do not drop it. Keep the USB
hub away from dust and dirt, and wipe it with a
damp cloth occasionally to keep it looking new.
Modifying or tampering with the USB hub's
internal components can cause a malfunction
and might invalidate its warranty and void your
FCC authorization to oper ate it. If your USB hu b
is not performing as it should, take it to your
local RadioShack store for assistance.

Limited 90-Day Warranty

This product is warranted by RadioShack agai nst ma nuf act uring defects in material and work­manship under normal use for ninety (90) day s fr om the date of purchase from RadioShack
company-owned stores and authori zed RadioShack franchisees and dealers. EXCEPT AS
PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED
WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND F IT NESS FOR A PARTIC­ULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THE WRITTEN LIM­ITED WARRANTIES CONTAINED HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack
SHALL HAVE NO LIABILITY OR RESPO N SIBILITY TO CUSTOMER OR ANY OTHER PER­SON OR ENTITY WIT H RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED
DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF TH E PRODUCT OR ARISING
OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY
DAMAGES RESULTING FROM INCON VEN IENCE, LOSS OF TIME, DATA, PROPERTY,
REVENUE, OR PROF IT OR ANY IN DIRE CT, SPECIAL, INCIDEN TAL, OR CONSEQUENTIAL
DAMAGES, EVEN IF RadioShack HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or
limitation of incidental or consequenti al damages, so the above limitations or exclusio ns may
not apply to you.

In the event of a product defect during the warranty period, take the product and the
RadioShack sales receipt as proof of purchase date to any RadioShack store. RadioShack will,
at its option, unless otherwise provi ded by law : (a) correct the defect by product repair without
charge for parts and labor; (b) replace the product with one of the same or similar design; or (c)
refund the purchase price. All replaced parts and products, and products on which a refund is
made, become the property of RadioSha ck . New or rec ondi tioned parts and products may be
used in the performance of warranty serv i ce. Repaired or replaced parts and products are war­ranted for the remainder of the original warranty period. You will be charged for repair or
replacement of the product made after the expi ration of the warranty period.

This warranty does not cover: (a) damage or fai l ure caused by or attributable to acts of God,
abuse, accident, misuse, improper or abnormal usage, failure to follow instruct i ons, improper
installation or maintenance, alteration, lightning or other incidence of excess voltage or cur rent ;
(b) any repairs other than those provided by a RadioShack Authorized Service Facility; (c) con­sumables such as fuses or batteries; (d) cosmeti c damage; (e) t ranspor tation, shippin g or insur­ance costs; or (f) costs of product remova l , inst all ation, set-up service adjustment or
reinstallation.

This warranty gives you specific legal rights, and you may also have other rights which var y
from state to state

RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102

©2004 RadioShack Corporation. 26-137
All Rights Reserved. Printed in China
RadioShack and RadioShack.com are trademarks 03A04
used by RadioShack Corporation.
