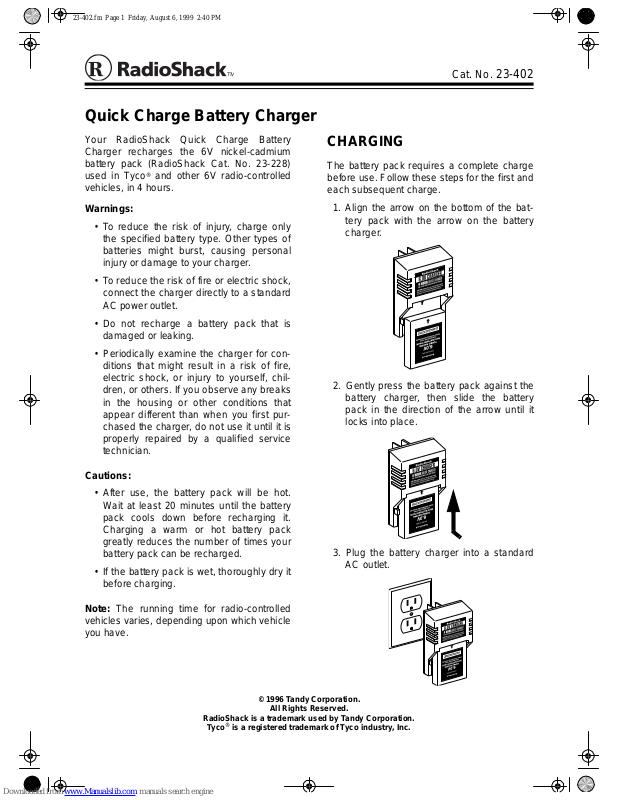

Quick Charge Battery Charger
Your RadioShack Quick Charge Battery
Charger recharges the 6V nickel-cadmium
battery pack (RadioShack Cat. No. 23-228)
used in Tyco
vehicles, in 4 hours.
Warnin
• To reduce the risk of injury, charge only
the specified battery type. Other type s of
batteries might burst, causing personal
injury or damage to your charger.
• To reduce the risk of fire or electric shock,
connect the charger directly to a standard
AC power outlet.
• Do not recharge a battery pack that is
damaged or leaking.
• Periodically examine the charger f or conditions that might result in a risk of fire,
electric shock, or injury to yourself, children, or others. If you observ e any brea ks
in the housing or other conditions that
appear different than when you first purchased the charger, do not us e i t unt il it is
properly repaired by a qualified service
technician.
®
and other 6V radio-controlled
s:
Cat. No.
23-402
CHARGING
The battery pack requires a complete charge
before us e. Follow these ste ps for t he fir st and
each subsequent charge.
1. Align the arrow on the bottom of the battery pack with the arrow on the battery
charger.
2. Gently press the battery pac k against the
battery charger, then slide the battery
pack in the direction of the arrow until it
locks into place.
Cautions:
• After use, the battery pack will be hot.
Wait at least 20 minutes until the battery
pack cools down before recharging it.
Charging a warm or hot battery pack
greatly reduces the number of times your
battery pack can be recharged.
• If the battery pack is we t, thoroughly dry it
before charging.
The running time for radio-controlled
Note:
vehicles varies, depending upon which vehicle
you have.
© 1996 Tandy Corporation.
RadioShack is a trademark used by Tandy Corporation.
®
Tyco
is a registered trademark of Tyco industry, Inc.
All Rights Reserved.
3. Plug the battery charger into a standard
AC outlet.
Page 2
23-402.fm Page 2 Friday, August 6, 1999 2:40 PM
Notes:
• When you charge the battery pac k the
first two times, charge it for 6 hours.
Subsequent charges require only 4
hours.
The battery pack discharges when running your radio-controlled vehicle, but it
is not fully discharged when the vehicle
stops running. If the b attery is not used
for several days after that, it loses even
more of its charge and might again require a full 6-hour charge.
• The battery pack becomes hot after
charging. This is normal for fully
charged batteries.
• The battery pack can be charged for
longer than 4 hours without harm. However, we recommend you remove the
battery charger from the AC outlet if you
are not going to use the battery pack for
several hours.
Caution:
Do not charge a battery pack for
longer than 24 hours. Overcharging a battery pack results in reduced battery
capacity.
4. When charging is complete, unplug the
battery charger from the AC outlet.
5. To remove the battery pack, press and
hold down the red button on the left side
of the charger, then slide out the battery
pack.
SPECIFICATIONS
Power:
Input ................... 120 VAC, 60 Hz, 3.5 W
Output ....................... 6.75 VDC, 160 mA
Dimensions .............. 4
11
Weight .................................................. 6.5 oz
Specifications are typical; individual units
might vary. Specifications are subject to
change and improvement without notice.
RadioShack Limited Warranty
This product is warranted against defects for 90 days
from date of purchase from RadioShack companyowned stores and authorized RadioShack franchisees an d deal ers. W ithi n th is peri od, we will repair it
without charge for parts and labor. Simply
your RadioS hack sales slip
date to any RadioShack store. Warranty does not
cover transportation costs. Nor does it cover a product subjected to misuse or accidental damage.
EXCEPT AS PROVIDED HEREIN, RadioShack
MAKES NO EXPRESS WARRANTIES AND ANY
IMPLIED WARRANTIES ARE LIMITED IN DURATION TO T HE DU RATION OF THE WRIT TEN LI MITED WARRANTIES CONTAINED HEREIN. Some
states do not permit limitation or exclusion of implied
warranties; therefore, the aforesaid limitation(s) or
exclusion(s) may not apply to the purchaser.
This warranty gives you speci fic legal rights and you may
also have other rights which vary from state to state.
We Service What We Sell
3
/
/4 × 11/2 Inches
2
32
×
(1 10 × 70 × 38 mm)
(184.3 g)
bring
as proof of purchase
10/95
Red
Button
6A6 Printed in China
RadioShack
A Division of Tandy Corporation
Fort Worth, Texas 76102
