Radio Shack 23-334 User Manual

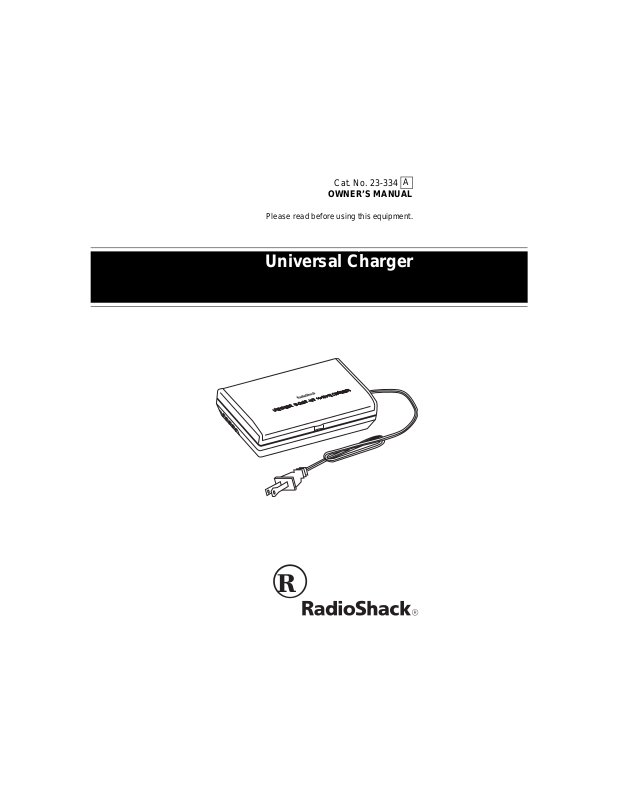

Cat. No. 23-334

OWNER’S MANUAL

Please read before using this equipment.

A

Universal Ni-Cd/Ni-MH

Universal Charger

FEATURES

Your RadioShack Universal Ni-Cd/Ni-MH Charger can ful­ly charge up to five different sizes of Ni-Cd (nickel-cadmi­um) and Ni-MH (nickel-Metal Hydride) batteries in only 14
or 18 hours. It can charge AAA, AA, C, D and 9V batteries.

Your charger's features include:
Multiple Charging Circuits — allow you to charge up to

four AAA, AA, C, or D Ni-Cd or Ni-MH batteries, and up to
two 9V batteries.

Automatic Charging Current Selection — selects the
best charging current for each battery size.

Reverse Polarity Protection — protects the charger and
batteries against incorrectly installed batteries.

Built-in Transformer — lets you connect the charger to
AC power.

Safety Timer Shut-Off — turns off the charger to prevent
overcharging AAA, AA, C, or D batteries.

Two Charging Indicators — light when the batteries are
charging (one for each chamber).

9V Battery Terminal — let you charge up to two 9V bat­teries at a time.

Ni-Cd/Ni-MH Switch — lets you set the charger for the
type of batteries you are charging.

2001 RadioShack Corporation.

©

RadioShack and RadioShack.com are registered trademarks used by

All Rights Reserved.

RadioShack Corporation.

2

WARNING:

not expose this product to rain or moisture.

To reduce the risk of fire or shock hazard, do

CAUTION

RISK OF ELECTRIC SHOCK. DO

NOT OPEN.

CAUTION:

SHOCK, DO NOT REMOVE COVER OR BACK. NO
USER-SERVICEABLE PARTS INSIDE. REFER SERVIC­ING TO QUALIFIED PERSONNEL.

!

TO REDUCE THE RISK OF ELECTRIC

This symbol is intended to alert you to the
presence of uninsulated dangerous volt­age within the product’s enclosure that
might be of sufficient magnitude to consti­tute a risk of electric shock. Do not open
the product’s case.

This symbol is intended to inform you that
important operating and maintenance
instructions are included in the literature
accompanying this product.

!

3

IMPORTANT SAFETY
INSTRUCTIONS

SAVE THESE INSTRUCTIONS - This manual contains

important safety instructions for battery charger Cat. No.
23-334 .

A

1. Before using the battery charger, read all the instruc­tions and cautionary markings in this manual and on
the battery charger, on the batteries to be charged,
and on the products that use the batteries.

2. Warning: To reduce the risk of injury:

• Charge only Ni-Cd and Ni-MH batteries with this

charger. Other types of batteries might burst,
causing personal injury and damage.

• Unplug the charger from the AC outlet before

attempting any maintenance or cleaning.

• Do not disassemble the charger; take it to a quali-

fied service technician when service or repair is
required. Improper reassembly may result in a risk
of electric shock or fire.

• Do not use an attachment not recommended or

sold by RadioShack as this could result in a risk of
fire, electric shock, or injury to persons.

3. Caution: To reduce the risk of damage:

• Do not expose the charger to rain or excessive

moisture.

• Do not operate the charger if it has received a

sharp blow, or been dropped or damaged in any
way. Take it to a qualified service technician for
repair.

4

• To reduce the risk of damage to the AC plug and
cord, disconnect the charger by pulling the plug
rather than the cord.

• Do not use an extension cord. Its use could result
in fire or electric shock.

• Do not operate the charger if the cord or plug is
damaged. Have the charger repaired. Never alter
the provided AC cord or plug. If it does not fit into
the AC outlet, have a qualified service technician
install the proper outlet. Improper connection can
result in an electric shock.

• Never use the charger as a DC power source for
any electrical equipment.

5

OPERATION

GENERAL CHARGING HINTS

• It is normal for the batteries to become warm while
charging.

• Charge batteries in an area between 32° and 113°F
(0° and 45°C). If the area is too warm, the batteries
can permanently lose their ability to charge.

• Do not try to charge batteries other than tho se listed
in this manual, or use procedures other than those
described in this manual.

CHARGING BATTERIES

1. Lift up the cover to open the charging chambers.

2. Set

Ni-Cd/Ni-MH

you want to charge.

according to the type of the battery

A

A

A

A

3. To charge two AA, AAA, C, or D batteries of the
same type (Ni-Cd or Ni-MH), place them into the left
or the right chamber as indicated by the polarity sym­bols (+ and –) marked inside each chamber.

6

• You can charge two different sizes (AA and D, for
example) of batteries of the same type (Ni-Cd or
Ni-MH) in the left and right chambers, as long as
both batteries in each chamber are the same size.

• You can charge four AAA, AA, C or D batteries at
the same time while the 9V battery chambers are
empty.

4. To charge a 9V battery, insert it into one of the termi­nals inside either chamber. To charge a second 9V
battery at the same time, insert it into the remaining
terminal.

V

9

Note: You can charge a 9V battery in one chamber
and charge another size battery in the remaining
chamber at the same time.

5. Insert the plug of the charger into a standard AC out­let. CHARGE lights for each chamber containing a
battery.

When AAA, AA, C, or D batteries are fully charged,
CHARGE turns off. (This is the end of the charging
cycle.)

Note: The 9V charging channel has no automatic
turn off feature. Be sure you do not exceed the times
listed in “Charging Cycle Times” on Page 8, or the
batteries' capacity could be reduced.

7

6. When you finish, unplug the charger from the AC
outlet, then remove the batteries from the charger.

CHARGING CYCLE TIMES

Battery

Type

C, D 1200 7.3
C, D 3000 18

AA 600 8.4

Ni-Cd

AAA 180 8.4

9V 120 7.3
C, D 2200 11.4
C, D 3500 18

AA 1100 10.3

Ni-MH

AAA 450 9.7

9V 150 9.1

Capacity

(mAh)

Typical Charging Time

(Hrs)

Note: To fully charge a battery with higher capacities (a

Ni-Cd more than 3000 mAh, or a Ni-MH more than 3500
mAh), you must run the battery through two consecutive
charging cycles.

8

CARE AND MAINTENANCE

Your

RadioShack Universal Ni-Cd/Ni-MH Charger

example of superior design and craftsmanship. The fol­lowing suggestions will help you care for your charger
so you can enjoy it for years.

Keep the charger dry. If it gets wet, wipe it
dry immediately. Liquids might contain
minerals that can corrode the electronic
circuits.

Use and store the charger only in normal
temperature environments. Temperature
extremes can shorten the life of electronic
devices, damage batteries, and distort or
melt plastic parts.

Keep the charger away from dust and dirt,
which can cause premature wear of parts.

Handle the charger gently and carefully.
Dropping it can damage circuit boards
and cases and can cause the charger to
work improperly.

Wipe the charger with a damp cloth occa­sionally to keep it looking new. Do not use
harsh chemicals, cleaning solvents, or
strong detergents to clean the charger.

Modifying or tampering with the charger’s internal com­ponents can cause a malfunction and might invalidate
its warranty. If your charger is not performing as it
should, take it to your local RadioShack store for assis­tance.

is an

9

SPECIFICATIONS

Power Transformer:

Input ...................................................... 120V AC, 60 Hz

Average Charging Current for Ni-Cd:

AAA ........................................................................30 mA

AA ....................................................................... 100 mA

C, D ..................................................................... 230 mA

9V ......................................................................... 23 mA

Average Charging Current for Ni-MH:

AAA ........................................................................65 mA

AA ....................................................................... 150 mA

C, D ..................................................................... 270 mA

9V ......................................................................... 23 mA

Safety Guard

Protection Timer ..................... 14-15.5 Hours (AA, AAA)

18-20 Hours (C, D)

Safety Standard ............................................. ETL/CETL

Dimensions ............................. 8

Weight ................................................................. 23.3 oz

7

/16 ×××× 4 1/8 ×××× 2 3/8 Inches

(215 ×××× 105 ×××× 61 mm)

(660 g)

Specifications are typical; individual units might vary.
Specifications are subject to change and improvement
without notice.

10

NOTES

11

Limited Ninety-Day Warranty

This product is warranted by RadioShack against manufacturing defects in
material and workmanship under normal use for ninety (90) days from the
date of purchase from RadioShack company-owned stores and authorized
RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN,
RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED
WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FIT­NESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO
THE DURATION OF THE WRITTEN LIMITED WARRANTIES CONTAINED
HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack SHALL HAVE NO
LIABILITY OR RESPONSIBILITY TO CUSTOMER OR ANY OTHER PER­SON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE
CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF
THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WAR­RANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING
FROM INCONVENIENCE, LOSS OF TIME, DATA, PROPERTY, REVENUE,
OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSE­QUENTIAL DAMAGES, EVEN IF RadioShack HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts or
the exclusion or limitation of incidental or consequential damages, so the
above limitations or exclusions may not apply to you.
In the event of a product defect during the warranty period, take the product
and the RadioShack sales receipt as proof of purchase date to any
RadioShack store. RadioShack will, at its option, unless otherwise provided
by law: (a) correct the defect by product repair without charge for parts and la­bor; (b) replace the product with one of the same or similar design; or (c) re­fund the purchase price. All replaced parts and products, and products on
which a refund is made, become the property of RadioShack. New or recondi­tioned parts and products may be used in the performance of warranty ser­vice. Repaired or replaced parts and products are warranted for the
remainder of the original warranty period. You will be charged for repair or re­placement of the product made after the expiration of the warranty period.
This warranty does not cover: (a) damage or failure caused by or attributable
to acts of God, abuse, accident, misuse, improper or abnormal usage, failure
to follow instructions, improper installation or maintenance, alteration, light­ning or other incidence of excess voltage or current; (b) any repairs othe r than
those provided by a RadioShack Authorized Service Facility; (c) consumables
such as fuses or batteries; (d) cosmetic damage; (e) transportation, shipping
or insurance costs; or (f) costs of product removal, installation, set-up service
adjustment or reinstallation.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
RadioShack Customer Relations, 200 Taylor Street, 6th Floor , Fo rt W orth, TX

We Service What We Sell

76102

12/99

RadioShack Corporation
Fort Worth, Texas 76102

0904-211-19930

01A01 Printed in China
