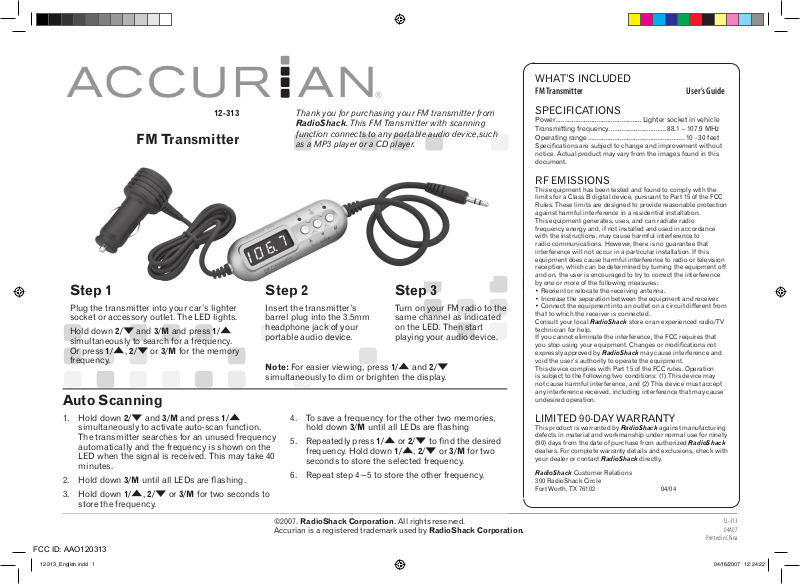

Radio Shack 120313 User Manual

12-313

04A07

Printed in China

WHAT’S INCLUDED

FM Transmitter User’s Guide

SPECIFICATIONS

Power ................................................ Lighter socket in vehicle

Transmitting frequency ................................88.1 – 107.9 MHz

Operating range ...................................................... 10 - 30 feet

Specications are subject to change and improvement without

notice. Actual product may vary from the images found in this document.

RF EMISSIONS

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult your local RadioShack store or an experienced radio/TV technician for help. If you cannot eliminate the interference, the FCC requires that

you stop using your equipment. Changes or modications not

expressly approved by RadioShack may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation

is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept

any interference received, including interference that may cause undesired operation.

LIMITED 90-DAY WARRANTY

This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for ninety (90) days from the date of purchase from authorized RadioShack dealers. For complete warranty details and exclusions, check with your dealer or contact RadioShack directly.

RadioShack Customer Relations 300 RadioShack Circle Fort Worth, TX 76102 04/04

12-313

FM Transmitter

Step 1

Plug the transmitter into your car’s lighter socket or accessory outlet. The LED lights.

Hold down 2/( and 3/M and press 1/) simultaneously to search for a frequency. Or press 1/), 2/( or 3/M for the memory frequency.

Step 2

Insert the transmitter’s barrel plug into the 3.5mm

headphone jack of your

portable audio device.

Step 3

Turn on your FM radio to the same channel as indicated on the LED. Then start playing your audio device.

Thank you for purchasing your FM transmitter from RadioShack. This FM Transmitter with scanning function connects to any portable audio device,such as a MP3 player or a CD player.

1. Hold down 2/( and 3/M and press 1/)

simultaneously to activate auto-scan function. The transmitter searches for an unused frequency automatically and the frequency is shown on the LED when the signal is received. This may take 40 minutes.

2. Hold down 3/M until all LEDs are ashing.

3. Hold down 1/), 2/( or 3/M for two seconds to

store the frequency.

4. To save a frequency for the other two memories, hold down 3/M until all LEDs are ashing

5. Repeatedly press 1/) or 2/( to nd the desired frequency. Hold down 1/), 2/( or 3/M for two seconds to store the selected frequency.

6. Repeat step 4~5 to store the other frequency.

Auto Scanning

Note: For easier viewing, press 1/) and 2/(

simultaneously to dim or brighten the display.

12-313_English.indd 1 04/16/2007 12:24:22

FCC ID: AAO120313
