Page 1
1201526
User’s Guide
We hope you enjoy your Bluetooth Cassette
Adapter from RadioShack. Please read this user’s
guide before using your new cassette adapter.
Bluetooth
Cassette Adapter
Page 2
2
Package Contents
• Bluetooth cassette adapter
• Mini-USB charging cable
• User’s guide
Features
• Provides 6-8 hours of playback time
• Connects to your Bluetooth-enabled device
• Loads into standard cassette players
Specifi cations
Input Voltage ................................................. DC 5V
Battery Capacity ........................................ 150mAh
Charging Current ...........................100mA ± 20mA
Battery Charge Time .....................approx. 2 hours
Operation Time ..................................... 6 - 8 hours
Working Distance ................. approx. 16 feet (5m)
Bluetooth Protocol .................................V4.0+EDR
Frequency Response .......................100Hz – 10kHz
S/N Ratio ......................................................... 47dB
Distortion .......................................................... 1.2%
Channel Balance ............................................... 3dB
Specifi cations are subject to change and
improvement without notice. Actual product may
vary from the images found in this document.
Page 3
3
Charge Your Cassette Adapter
Using the supplied charging cable, connect
your cassette adapter’s mini USB charging
port to your PC or a USB charger (not
included) to charge the cassette adapter.
• The LED lights red when charging, and
turns off when fully charged.
• Bluetooth is automatically deactivated
during charging.
• Charge your cassette adapter when the
LED fl ashes red every 8 seconds.
LED
ON/OFF
Page 4
4

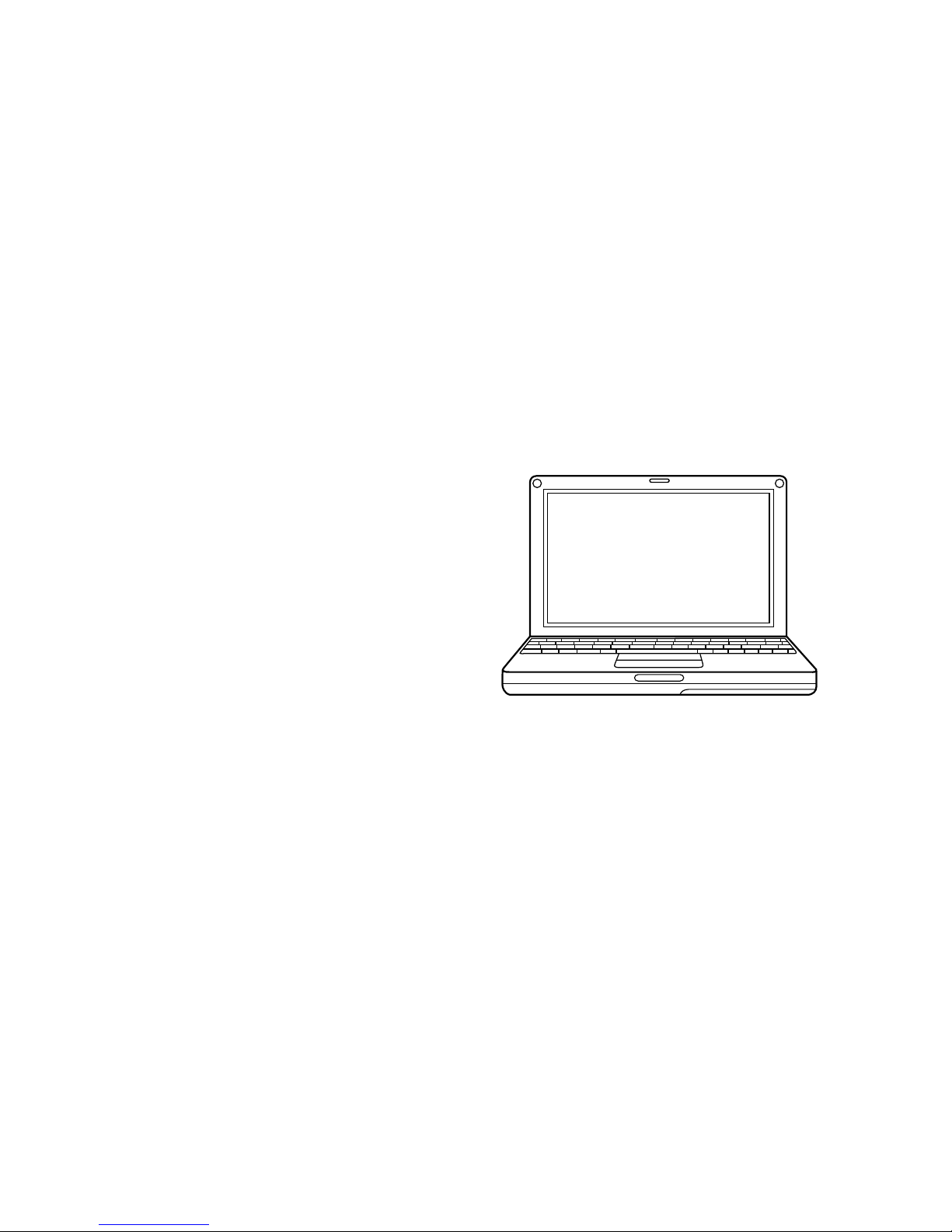

Pairing Your Device
1. Press and hold the ON/OFF button
for 3 seconds to turn on the cassette
adapter. While searching for Bluetooth
devices, the LED fl ashes blue and red.
2. Activate your device’s Bluetooth
function (refer to your device’s user’s
guide).
3. When your
device locates
RS1201526,
select it. When
paired, the LED
fl ashes blue every
2 seconds.
n Note:
• If prompted for a PIN, enter 0000.
• The cassette adapter automatically turns
off if no devices are found in 10 minutes.
RS1201526
Page 5
5
Changing Bluetooth Devices
Your cassette adapter automatically
remembers the most recently paired
device. To change a device, you must fi rst
disconnect the fi rst device.
To disconnect the paired device, press and
hold the ON/OFF button for 2 seconds
until the LED fl ashes blue and red. The
cassette adapter starts searching for
another Bluetooth-enabled device.
n Note: You also may need to disconnect
the cassette adapter using your device’s
Bluetooth controls.
Page 6
6

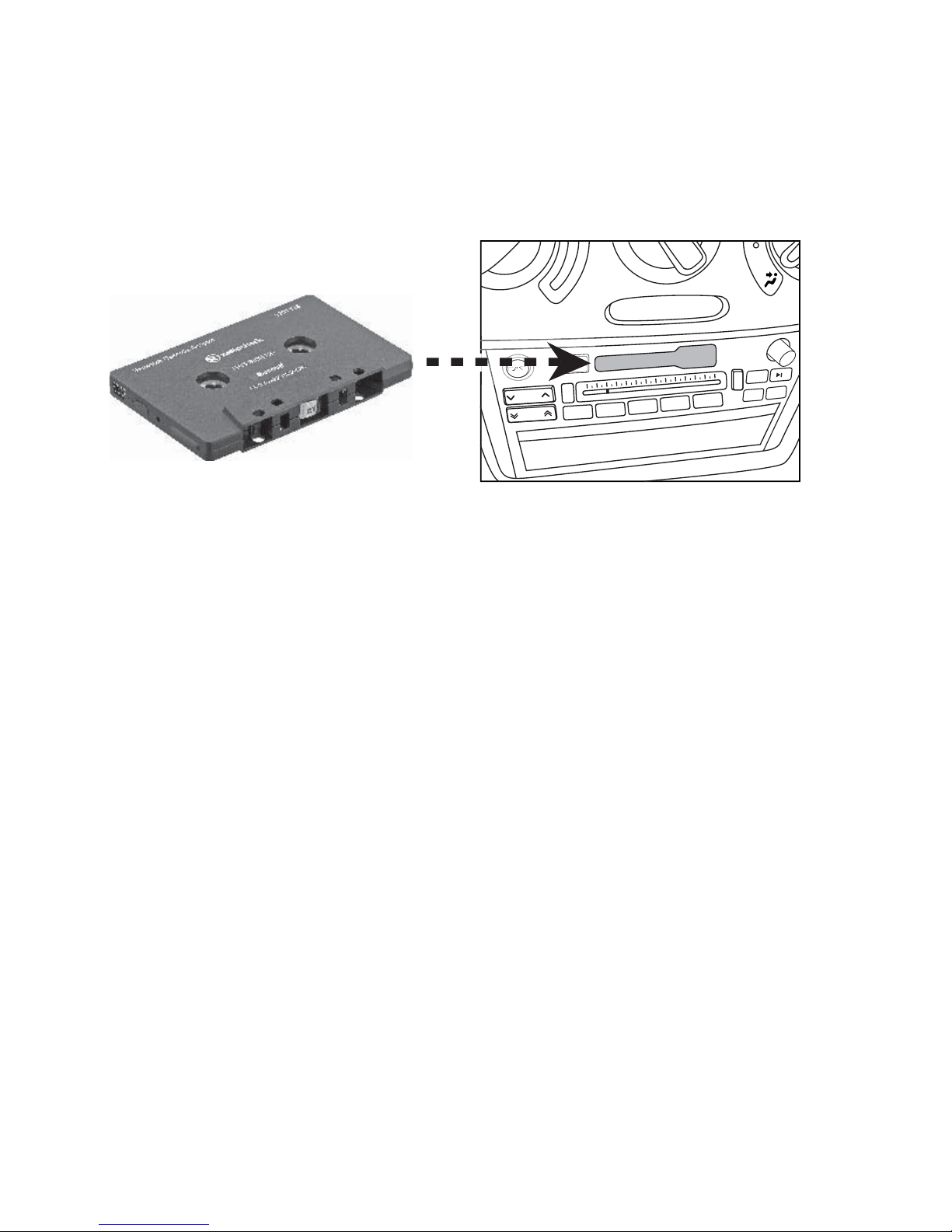

Use Your Cassette Adapter
1. Insert the cassette adapter into your
home or vehicle cassette player.
2. Turn on the audio source and the
cassette player.
3. To turn off the cassette adapter, press
and hold the ON/OFF button for 4
seconds. The LED fl ashes red once.
n Note:
• Cassette player mutes playback when
answering calls and resumes playback
when call ends.
• Insert the cassette adapter properly,
with “THIS SIDE UP“.
• Keep all magnetic heads clean.
POWER
DISC
TUNE
TRACK
SEEK
POWE
WER
Page 7
7
Reset
To reset the cassette adapter, press the
ON/OFF button twice quickly in pairing
mode (when the LED fl ashes blue and red).
When the LED lights blue and red for 2
seconds, your cassette adapter is reset.
FCC Information
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult your local RadioShack store or an
experienced radio/TV technician for help.
Page 8
8
Changes or modifi cations not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Limited Warranty
RadioShack warrants this product against defects
in materials and workmanship under normal use
by the original purchaser for ninety (90) days after
the date of purchase from a RadioShack-owned
store or an authorized RadioShack franchisee or
dealer. RADIOSHACK MAKES NO OTHER EXPRESS
WARRANTIES.
This warranty does not cover: (a) damage or failure
caused by or attributable to abuse, misuse, failure to
follow instructions, improper installation or maintenance,
alteration, accident, Acts of God (such as fl oods or
lightning), or excess voltage or current; (b) improper or
incorrectly performed repairs by persons who are not a
RadioShack Authorized Service Facility; (c) consumables
such as fuses or batteries; (d) ordinary wear and tear
or cosmetic damage; (e) transportation, shipping or
insurance costs; (f) costs of product removal, installation,
set-up service, adjustment or reinstallation; and (g)
claims by persons other than the original purchaser.
Should a problem occur that is covered by this warranty,
take the product and the RadioShack sales receipt as
proof of purchase date to any RadioShack store in the
U.S. RadioShack will, at its option, unless otherwise
Page 9
9
provided by law: (a) repair the product without
charge for parts and labor; (b) replace the product
with the same or a comparable product; or (c) refund
the purchase price. All replaced parts and products,
and products on which a refund is made, become
the property of RadioShack. New or reconditioned
parts and products may be used in the performance
of warranty service. Repaired or replaced parts and
products are warranted for the remainder of the original
warranty period. You will be charged for repair or
replacement of the product made after the expiration of
the warranty period.
RADIOSHACK EXPRESSLY DISCLAIMS ALL
WARRANTIES AND CONDITIONS NOT STATED IN
THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES
THAT MAY BE IMPOSED BY LAW, INCLUDING THE
IMPLIED WARRANTY OF MERCHANTABILITY AND, IF
APPLICABLE, THE IMPLIED WARRANTY OF FITNESS
FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE
EXPIRATION OF THE STATED WARRANTY PERIOD.
EXCEPT AS DESCRIBED ABOVE, RADIOSHACK
SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO
THE PURCHASER OF THE PRODUCT OR ANY OTHER
PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY,
LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY
BY USE OR PERFORMANCE OF THE PRODUCT OR
ARISING OUT OF ANY BREACH OF THIS WARRANTY,
INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES
RESULTING FROM INCONVENIENCE AND ANY LOSS
OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT
AND ANY INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, EVEN IF RADIOSHACK
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
Page 10
10
Complies with the European Union’s “Restriction
of Hazardous Substances Directive,” which
protects the environment by restricting specifi c
hazardous materials and products.
Printed
in China
10A13
1201526
©2013. RadioShack Corporation.
All rights reserved. RadioShack
is a registered trademark used by
RadioShack Corporation.
The Bluetooth
®
word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any
use of such marks by RadioShack is under license.
Other trademarks and trade names are those of their
respective owners.
Some states do not allow limitations on how long an
implied warranty lasts or the exclusion or limitation of
incidental or consequential damages, so the above
limitations or exclusions may not apply to you. This
warranty gives you specifi c legal rights, and you may
also have other rights which vary from state to state. You
may contact RadioShack at:
RadioShack Customer Relations
300 RadioShack Circle
Fort Worth, TX 76102 04/08
www.RadioShack.com
