Radiolocus WM02 User Manual
Mini Router User Manual
Port
Brand：Amideep

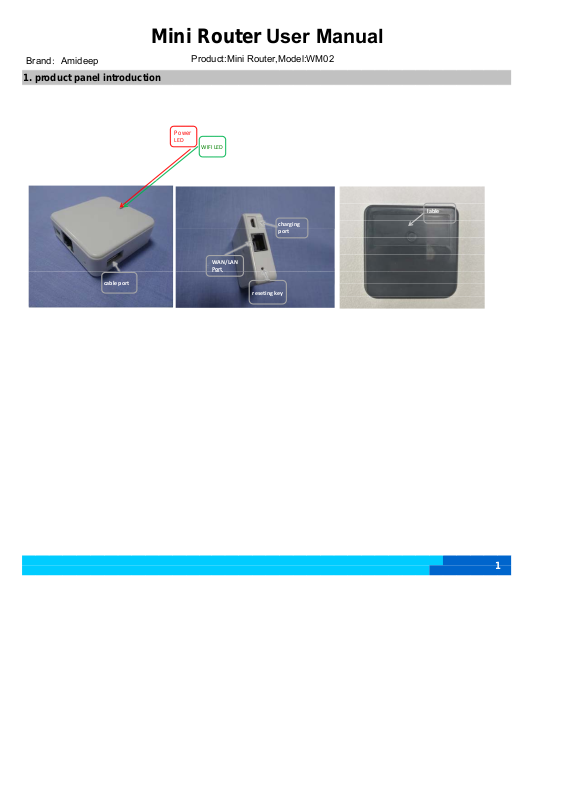

1. product panel introduction
cableport
Product:Mini Router,Model:WM02
Power
LED
WIFILED
charging
port
WAN/LAN
resetingkey
lable
OUT5V
1
WIFI part------introduction
④
In the navigation page, click the wireless security; select WAP2-PSK as the security mode; select TKIP as the WAP algorithm; input your password;
①
①
pp
1.Connect to WIFI with a Cable:
Switch on the WIFI of the portable power device
①
Plug in the cable from the router
②
Turn on the WIFI of the cellphone and connect to wifi_xxxxxx (6 random numbers )
③
Connection is completed and the Internet is accessable. No setting is needed as default. If the setting is changed, enter the Internet setting in
√
the WIFI navigation page, select Dynamic Acquisition as the WAN connection mode.
2.Add/Change an Account:
Switch on the WIFI of the portable power device
①
Plug in the cable from the router
②
Open the cellphone's browser; input 192.168.10.1 and click OK to enter the navigation of WIFI setting (When the first time you login, please use
③
admin as the username and password)
click OK
Password setting is completed.This device's WIFI will be disconnected. Customer need to login again with the new user name and password.
√
4
-
3.Bridging WIFI Setting:
Switch on the WIFI of the portable power device
Turn on the WIFI of the cellphone and connect to wifi_xxxxxx (6 random numbers )
②
Open the cellphone's browser; input 192.168.10.1 and click OK to enter the navigation of WIFI setting (When the first time you login, please use
③
admin as the username and password)
In the WIFI navigation setting page, click wireless relay; click OK in the pop-up dialogue box; select AP Client, click OK; Click Searching IP;
④
input the password and click OK
The Bridging setting is completed (Please don't connect the device with cable now; bridging setting is only used to provide the Internet
√
connection by WIFI) This device will restart WIFI and reconnect
4
