RadioLink AT9 Instruction Manual

RADIOLINK AT9

(Dsss)

INSTRUCTION MANUAL

RADIOLINK ELETRONIC LIMITED

Technical updates and additional programming examples available at:

http://www.

radiolink.com.cn

1

INTRODUCTION

Thank you for purchasing Radiolink 2.4 GHz 9CH remote control system -- AT9 .

This system is extremely versatile, it is the most complete remote control device as so far in our product
series, it can operate helicopter, fixed-wing glider, aircraft all four models . Communication system adopts
anti-interference strongest DSSS (direct sequence spread spectrum system). Despite the powerful function,
humanized menu design applicable to both beginners and skilled person. In order to better use remote control
equipment and ensure flight safety, please read the instructions carefully, when we write the instruction to
use the familiar and simple words to make it easy for beginners to understand the name and formulation.

Suggestion: when you read this manual, please open the remote control and receiver and connect the receiver
steering gear and other related equipment, operating while reading. When you read get some difficulties,
please refer to the manual or call our after-sales ([phone]) and login BBS (such as
www.5imx.com, www.5imx.com, www.5imx.com, www.rcfans.com) to check the issues related answer to
questions.

Due to unforeseen changes in production procedures, the information contained in this manual is subject to
change without notice.

More information please check our website as below:

http://www.radiolink.com.cn

Support and Service: It is recommended to have your Radiolink equipment serviced annually during your
hobby’s “off season” to ensure safe operation.

Please feel free to browse our GUEST BOOK for assistance in operation, use and programming. Please be
sure to regularly visit the Service and Support web site at www.radiolink.com.cn. This page includes
extensive programming, use, set up and safety information on the AT9 radio system and is updated regularly.
Any technical updates and manual corrections will be available on this web pages.If you do not find the
answers to your questions there, please see the end of our contact area for information on contacting us via
email for the most rapid and convenient response.

FOR SERVICE ONLY:
Please start here for getting more service.
www.radiolink.com.cn
Phone:[phone]
Email:[e-mail]

FOR SUPPORT : (PROGRAMMING AND USER QUESTIONS)
Please start here for answers to most questions:
www.radiolink.com.cn
Phone:[phone]
Email:[e-mail]

2

Note:About flying

While you are getting ready to fly,if you place your transmitter on the ground ,be sure that the

wind won’t tip it over. If it is knocked over, the throttle stick may be accidentally moved, causing the

engine to speed up. Also, damage to your transmitter may occur.

Other than 2.4GHz system: Before taxiing, be sure to extend the transmitter antenna to its full
length.collapsed antenna will reduce your flying range and cause a loss of control.It is a good idea to avoid
pointing the transmitter antenna directly at the model, since the signal is weakest in that direction.

In order to maintain complete control of your aircraft it is important that it remains visible at all times .
Flying behind large objects such as buildings, grain bins, etc. is not suggested. Doing so may result in the
reduction of the quality of the radio frequency link to the model.

2.4GHz system: DO not grasp the transmitter module’s antenna during flight.Doing so may degrade the
quality of the radio frequency transmission.

2.4GHz system: As with all radio frequency transmissions, the strongest area of signal transmission is from
the sides of the 9CH transmitter module's antenna. As such, the antenna should not be pointed directly at the
model.If your flying style creates this situation,easily move the antenna to correct this situation.

Warning!!!

please don't fly in the rain! Rain or moisture may enter the transmitter internal through gaps in the antenna or
joystick flight and cause your flight to instability even out of control. If inevitable will fly in the wet weather
(such as game), please be sure to use plastic bags or waterproof cloth to cover your transmitter, please don't flight
if there is lightning.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Any Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.

3

TABLE OF CONTENTS

1 Part 1. INTRODUCTION OF AT9 SYSTEM...............................................................................5

1.1.1 Function of transmitter..........................................................................................................5

1.1.2 Transmitter Panel Shows:..................................................................................................... 6

1.1.3 Receiver：R9D..................................................................................................................... 7

1.2 RADIO INSTALLATION.........................................................................................................7

1.2.1 Guidelines to mount the servos, receiver and battery............................................................... 7

1.2.2 Receiver and servo connections............................................................................................9

1.2.3 Installment of antenna......................................................................................................... 11

1.3 RADIO BASIC SETTING......................................................................................................11

1.3.1 Basic setting of the transmitter........................................................................................... 11

1.3.2 Model type.......................................................................................................................... 12

1.3.3 Bind.....................................................................................................................................12

1.3.4 S.BUS................................................................................................................................. 12

1.3.5 Transmitter Displays & Buttons......................................................................................... 12

2 PART 2. BASIC FUNCTION OF AIRPLANE........................................................................... 14

2.1 QUICK GUIDE OF ACRO BASIC MENU........................................................................... 14

2.2 QUICK GUIDE: GETTING STARTED WITH A BASIC 4-CHANNEL AIRPLANE......... 15

2.3 AIRPLANE BASIC FUNCTION........................................................................................... 16

2.3.1 Model Select....................................................................................................................... 16

2.3.2 Model Type......................................................................................................................... 18

2.3.3 End Point of servo travel adjustment (END POINT, also called EPA).............................. 19

2.3.4 Trim.....................................................................................................................................20

2.3.5 SUB TRIM..........................................................................................................................21

2.3.6 Servo Reversing (REVERSE):........................................................................................... 21

2.3.7 Dual/triple rates and exponential (D/R,EXP)..................................................................... 22

2.3.8 Throttle Cut.........................................................................................................................24

2.3.9 IDLE DOWN (ACRO only)............................................................................................... 26

2.3.10 Fail Safe (F/S).................................................................................................................26

2.3.11 Auxiliary Channel Function (including channel 9-10 controls).....................................27

2.3.12 TIMER submenu (stopwatch functions):....................................................................... 28

2.3.13 TRAINER:......................................................................................................................29

2.3.14 Logic Switch Selection (LOGIC SW):........................................................................... 30

2.3.15 SERVO display and cycle submenu:.............................................................................. 31

2.3.16 TELEMETARY.............................................................................................................. 31

3 Part 3. ACRO ADVANCE MENU FUNCTIONS....................................................................33

3.1 AIRPLANE WING TYPES (ACRO/GLID):......................................................................... 33

3.2 TWIN AILERON SERVOS (5-channel receiver, AILE-2 , ACRO/GLID)

........................... 33

3.3 ACRO ADVANCE FUNCTION MENU

............................................................................... 34

3.3.1 Program MIX

......................................................................................................................35

3.3.2 Curve Programmable Mixes (PROG.MIX5-8)(HELI: PROG.MIX5-6 ):

.......................... 37

3.3.3 Flaperon (ACRO/GLID 1A+1F ):

...................................................................................... 38

3.3.4 FLAP-TRIM....................................................................................................................... 39

3.3.5 AILE DIFF (ACRO/ GLID 2A+1F/ GLID 2A+2F)........................................................... 40

3.3.6 Air Break (ACRO/ GLID)

.................................................................................................. 41

3.3.7 ELEV-FLAP mixing (ACRO/GLID):

................................................................................ 42

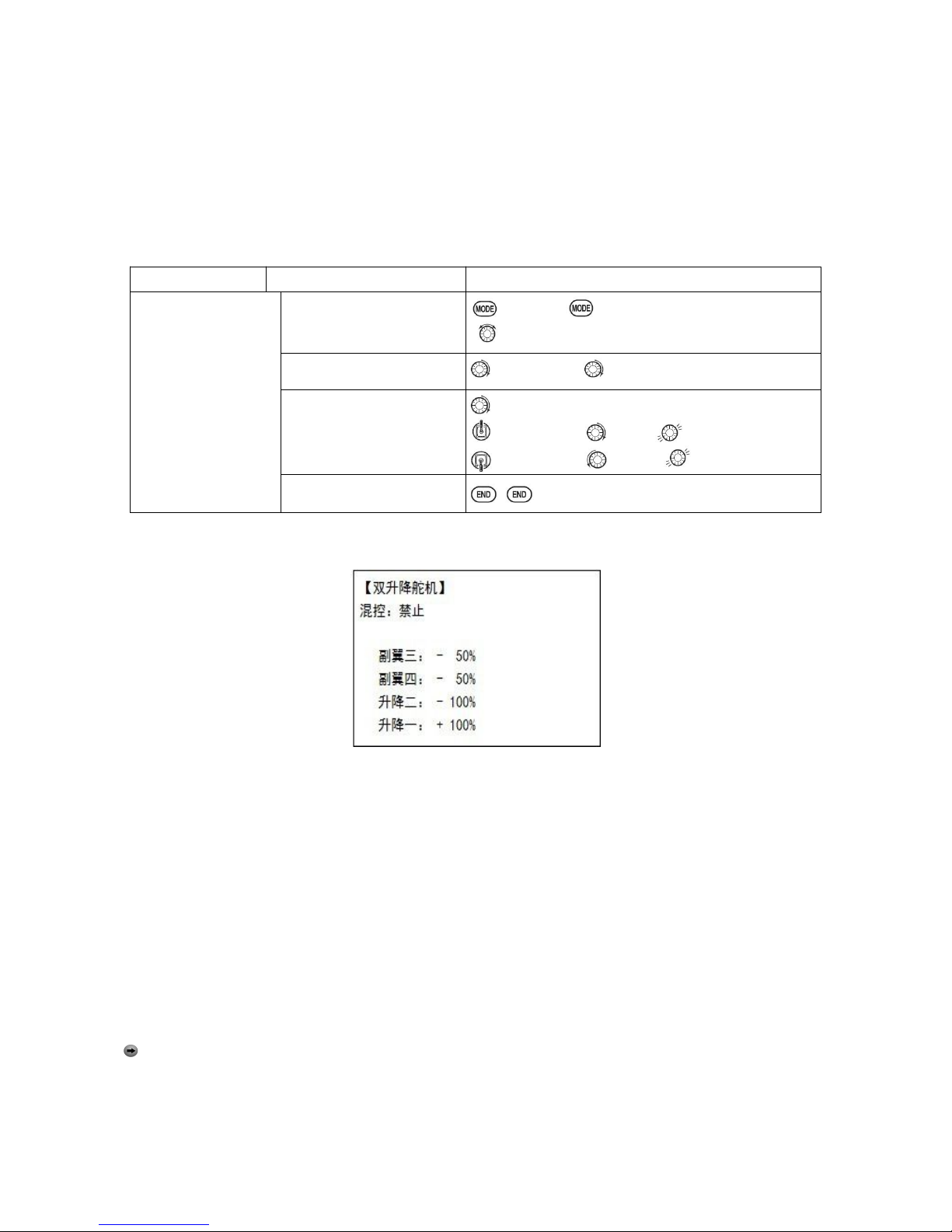

3.3.8 Dual Elevator Servos (with a rudder) (AILEVATOR) (ACRO):

....................................... 43

3.3.9 Snap Rolls (ACRO)............................................................................................................ 44

3.3.10 V-Tail (ACRO/ GLID).................................................................................................... 45

3.3.11 ELEVON........................................................................................................................ 46

3.3.12 Gyro Sense......................................................................................................................47

3.3.13 THR-DELAY (ACRO):.................................................................................................. 48

3.3.14 THR CURVE (ACRO)................................................................................................... 48

4

3.3.15 THROTTLE-NEEDLE mixing (ACRO/ HELI):........................................................... 48

4 PART 4 GLIDER MODEL FUNCTIONS.................................................................................. 51

4.1 SET BASIC MENU OF GLID

............................................................................................... 51

4.2 SET GLID TYPE

....................................................................................................................52

4.3 GLID ADVANCE MENU

...................................................................................................... 53

4.3.1 AILE DIFF (FIND IN ACRO FUNCTION MENU 3.3.5).................................................53

4.3.2 FLAPERON (GLID 1A+1F, FIND IN ACRO FUNCTION MENU 3.3.3)....................... 53

4.3.3 V-TAIL (FIND IN ACRO FUNCTION MENU 3.3.10).....................................................53

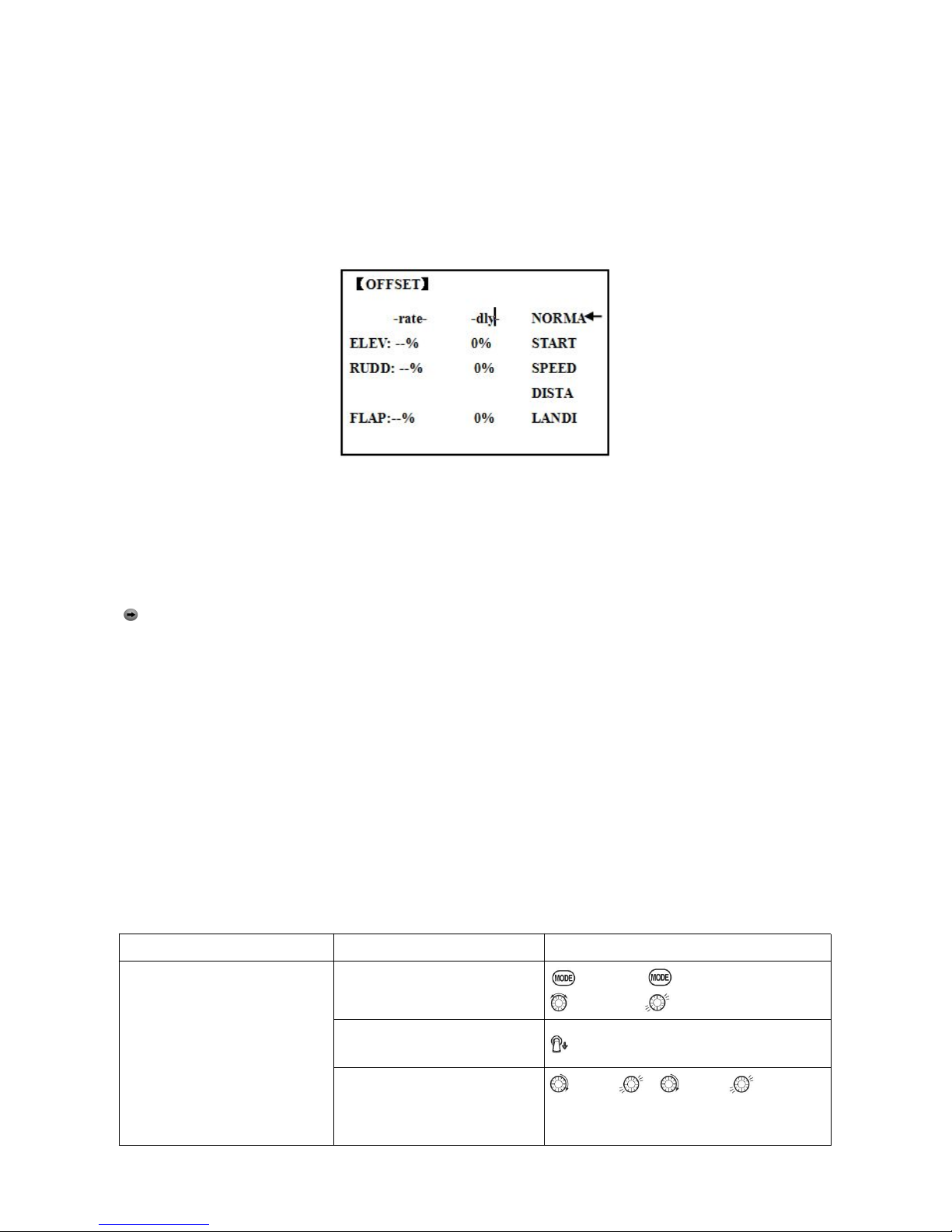

4.3.4 OFFSET (GLID 2A+2F):................................................................................................... 53

4.3.5 START DELAY (GLID 1A+1F only):

.............................................................................. 54

4.3.6 CHAMBER-FLP

................................................................................................................ 55

4.3.7 Camber Mixing:

.................................................................................................................. 56

4.3.8 BUTTERFLY (crow) mixing.............................................................................................. 56

4.3.9 AILE/ RUDD MIX............................................................................................................. 58

4.3.10 ELEV-FLAP mixing (see GLID menu 3.3.7)

................................................................ 58

4.3.11 AILE-FLAP(GLID 2A+2F only):

.................................................................................. 58

4.3.12 SPOILER MIX (GLID):

................................................................................................. 59

4.3.13 FLAP-TRIM (see GLID 3.3.4).......................................................................................60

4.3.14 CONDITION.................................................................................................................. 60

5 Part. 5 HELICOPTER MODEL FUNCTIONS......................................................................... 61

5.1 BASIC SETTING WITH HELICOPTER.............................................................................. 61

5.2 HELI-SPECIFIC BASIC MENU FUNCTIONS.................................................................... 63

5.2.1 Swash Plate Types...............................................................................................................64

5.2.2 SWASH AFR (not in SWH1):............................................................................................ 64

5.3 HELI-SPECIFIC ADVANCE MENU FUNCTIONS............................................................. 65

5.3.1 THR-CURVE and PIT-CURVE:......................................................................................... 65

5.3.2 REVO MIX:........................................................................................................................66

5.3.3 GYRO SENSE.................................................................................................................... 68

5.3.4 THROTTLE HOLD

............................................................................................................69

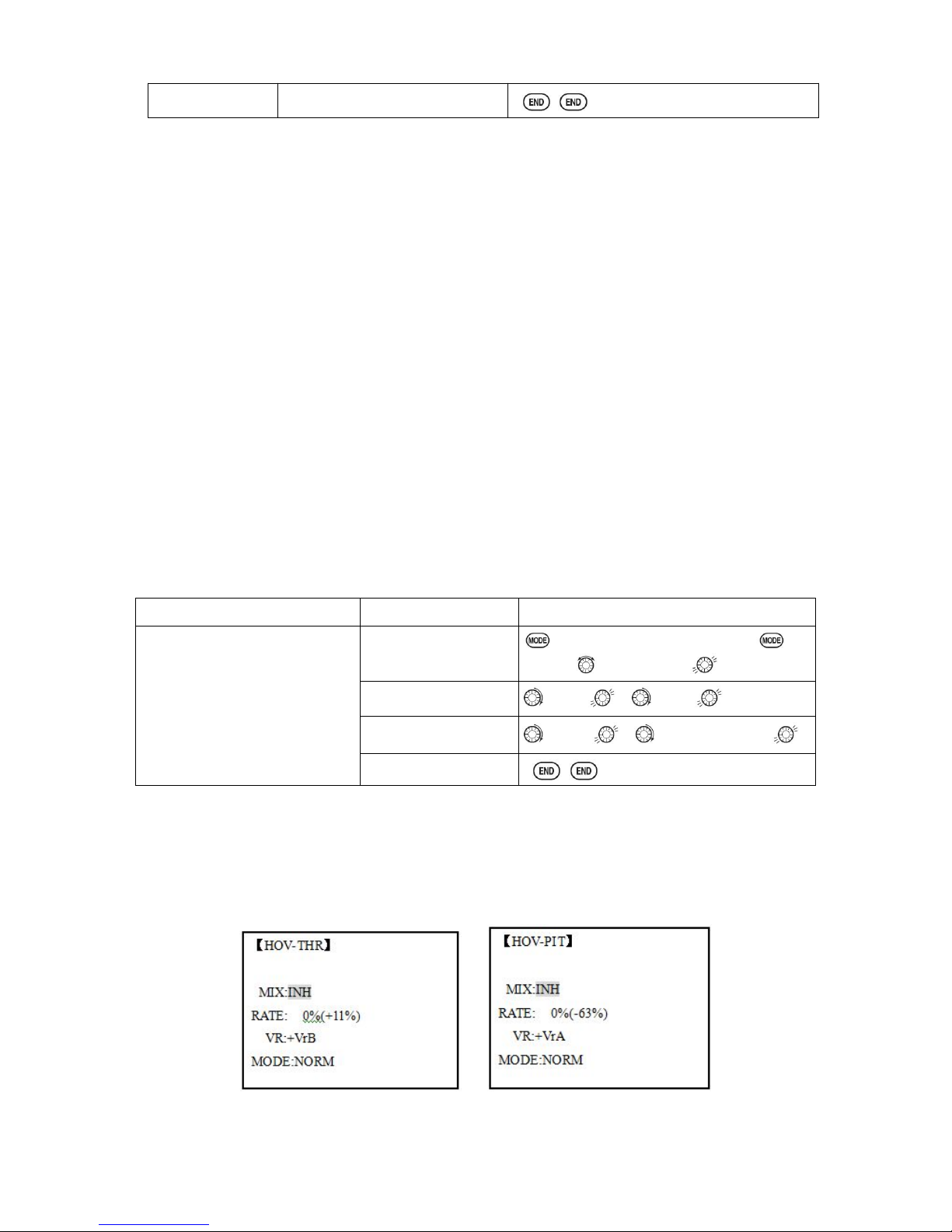

5.3.5 HOVERING ADJUSTMENTS (HOV-THR and HOV-PIT):

............................................69

5.3.6 HIGH/LOW PITCH (HI/LO-PIT):

..................................................................................... 70

5.3.7 OFFSET

.............................................................................................................................. 71

5.3.8 DELAY

...............................................................................................................................72

5.3.9 GOVERNORS:

................................................................................................................... 73

5.3.10 Throttle Mixing (THROTTLE MIX)

............................................................................. 74

5.3.11 SWASH-RING

............................................................................................................... 74

5.3.12 THROTTLE NEEDLE (see ACRO MENU 3.3.15)

...................................................... 75

5.3.13 PROG MIX (see ACRO MENU 3.3.1)

.......................................................................... 75

5.3.14 CONDITION

.................................................................................................................. 75

6 Part 6. AIRCRAFT FUNCTIONS............................................................................................... 77

6.1 AIRCRAFT BASIC MENU................................................................................................... 78

6.1.1 MODEL TYPE................................................................................................................... 78

6.1.2 AUX Channel setting.......................................................................................................... 79

6.2 ADVANCE MENU FOR AIRCRAFT................................................................................... 79

6.2.1 ATTITUDE......................................................................................................................... 79

6.2.2 THROTTLE CURVE (see ACRO 3.3.14).......................................................................... 79

6.2.3 PROG. MIX (see ACRO 3.3.1).......................................................................................... 79

5

Part 1 INTRODUCTION OF AT9 SYSTEM

Note that in the text of this manual, begainning at this point, any time we are using a feature's specialized name or
abbreviation as seen on the screen of the AT9, that name, feature, or abbreviation will be exactly as seen on the
radio’s screen, including capitalization and shown in a DIFFERENT TYPE STYLE for clarity,Any time we
mention a specific control on the radio itself, such as moving SWITCH A, KNOB VR(B), or the THROTTLE
STICK, those words will be displayed as they are here.

1.1 AT9 SYSTEM

1.1.1 Function of transmitter

Aero basic

•V tail •Twin Aileron Servos

•Elev-flap mix •Twin Elevator Servos

•air brake •Snap roll

•Gyro mixing

Glider (3 wing model: 1A+1F/2A+2F/1A+2F)

•V tail •Twin Ailerons

•Elevon •Butterfly

•Offset

•5 flight conditions (normal, start, speed, distance, landing)

•IDLE- DOWN (ACRO), THR-CUT (ACRO HELI) (engine shut off), and MOTOR CUT (GLID) setups to allow
precise engine/motor control for taxi and landings.

•15 model type memory

•New stick design with improved feel, adjustable length and tension.

•Triple rates available by setting dual rates to 3-position switches.

•Eight SWITCHES, 3 DIALS and 2 SLIDERS; completely assignable in most applications.

•Trainer system includes the“functional” (FUNC) setting, which allows the student to use the AT9’s mixing,
helicopter, and other programming functions even with a 4-channel buddy box. (Optional trainer cord required.)

•AT9 transmitter features airplane friendly switch layout, with the trainer switch at the left hand (Mode 2), and a
notched throttle to minimize throttle changes with rudder input. Defaults to ACRO model type.

•AT9 transmitter features helicopter-friendly switch layout, with idle-up and throttle hold switches at the left hand,
and a smooth, ratchet-less (unsprung) throttle for perfect hovering. Defaults to HELI(H-1 swash plate type)
model type

Helicopter (8 swashplate types, including CCPM )

• 3 Idle Ups • Throttle and Pitch Curves per Condition

• Revo. Mixing • Gyro Mixing including Separate Settings per Condition

• Delay • Governor Mixing

Aircraft:

• ATTITUDE (Normal, attitude, GPS, hover, F/S, Aux)

• Throttle curve

• Mix programmable

1.1.2 Transmitter Panel Shows:

6

SWITCH ASSIGNMENT TABLE

• The factory default functions activated by the switches and knobs for a AT9 transmitter are

7

shown below.

• Most AT9 functions may be reassigned to non-default positions quickly and easily. Always
check that you have the desired switch assignment for each function during set up.

Switch/Knob

A or H

Airplane (

ACRO

) Sailplane/Glider

(

GLID

)

Helicopter (

HELI

) Aircraft

SWITCH A elevator dual rate

ch10

elevator dual rate

down=butterfly on

ch10

elevator dual rate

ch10

elevator dual rate

ch10

SWITCH B rudder dual rate

ch9

rudder dual rate

ch9

rudder dual rate

ch9

rudder dual rate

ch9

SWITCH C

up =

ELE-FLP

on

center/down=

ID L E-DOWN

down =

AIRBRAKE

on

up =

ELE-FLP

on

center = Distance

cond.

down = Landing cond.

governor attitude

SWITCH D aileron dual rate aileron dual rate aileron dual rate aileron dual rate

SWITCH E orG*Landing gear/ch5

——

Throttle hold/ch5

——

SWITCH F orH*Snap roll /trainer trainer Trainer/throttle

cut

trainer

SWITCH G or

E*

——

up = Speed cond. idle-up 1 and 2

——

SWITCH H or

F*

——

down = Start cond.

idle-up 3 /gyro ——

KNOB A

Flap/ch6

(

flap trim if

FLAPERON

on)

Flap/ch6

HOVERING PITCH

ch 6

KNOB B ch 8 ch 8

ch 8

ch 8

KNOB C Spoiler/ch7

(disabled if

AIL-DIFF

on)

ch 7

(disabled if

AIL-DIF

on)

HOVERING

THROTTLE

ch7

ch 7

SLIDER D —— ch 5 —— ——

1.1.3 Receiver：R9D

AT9 system support Receiver R9D is 9channels 2.4G DSSS spread spectrum technology.

1.2 RADIO INSTALLATION

1.2.1 Gudelines to mount the servos, receiver and battery

• Make certain the alignmen tab on the battery,switch and servo conectors is orient correctly and ‘key’ into

the corresponding notch in the receiver or connectors before plugging them in .When unplugging connectors,
never pull on the wires. Always pull on the plastic connector instead.

• Receiver’s Anenna: In generally receiver’s antenna is longer than remote control,don’t break or retract

it,otherwise shorten the control distance.The antenna must be kept away from conductive materials,such as
metal.please make distance test before flying.

• If your aileron servos are too far away to plug into the receiver,use an aileron extension cord to extend the

length.Avoid plugging multiple extensions together to abtain your desired length.If the distance is greater

8

than 50cm or high current draw servos are being used ,use heavy servo extensions.

• Receiver Vibration and Waterproofing: the receiver contains precision electronic part.Be sure to avoid

vibration,shock,and temperature extremes.For protection, wrap the receiver in foam rubber or other
vibration-absorbing materials. It is also a good idea to waterproof the receiver by placing it in a plastic bag
and securing the open end of the bag with a rubber band before wrapping it with foam rubber. If you
accidentally get moisture or fuel inside the receiver,you may experience intermittent operation or a crash. If
in doubt, please contact Radiolink aftersales or distributors for service.

• Always mount the servos with the supplied rubber grommets.Don’t over tighten the screws.No part of the

servo casing should contact the mounting rails,servo tray or any part of structure.Otherwise vibration will be
transmitted to the servo causing damage of servo.Note the small numbers (1,2,3,4) molded into each arm on
the servo arms.The number indicate how many degrees each arm is ‘off’ from 90 degrees to correct for
minute manufacturing deviations from servo to servo.

• To center the servos, connect them to receiver and turn on the transmitter and receiver.Center the trims

on the transmitter,then find the arm that will be perpendicular to the pushrod when placed on the servo.

• After the servos are intalled,operate each servo over its full travel and check that the pushords and
servo arms don’t bind or contact each other.Also make sure the controls do not require excess force to
operate. If there is an objectionable buzzing sound coming from a servo, there is probably too much
resistance in the control.Find and correct the problem.Even is there is no servo damage,excess battery drain
will result.

• Use the mouting plate from the receiver on/off switch as a template for the cutout and screw
holes,mount the switch on the side of the fuselage opposite the engine exhaust, and where it won’t be
inadvertently turned on or off during handling or storage.Be certain the switch moves without restriction and
‘snaps’from ON to OFF, and that the cutout allows full motion of the switch in both directions.

• When intall the switch harness to the helicopter,please use the switch cover.Generally sandwich the
frame between the switch and switch cover and securely tighten the screws,Different models might require
different installations.If so ,please follow the model’s instruction manual

.

• To prevent the servo lead wires from being broken by vibration during flight,provide a slight amount
of slack or extra so that the wire sticks out slightly and fasten it at suitablr points.In addition,periodically
check the wire during daily maintenance.

9

1.2.2 Recervier and servo connections

（1）Airplane servo connection

Receiver output
and channel

AIRPLANE

1

ailerons/aileron-1¹/combined

flap-2&aileron-1¹

2

elevator

3

throttle

4

rudder

5

spare/landing gear/aileron-2¹

³/combined flap-1 and aileron-2² ³

6

spare/flaps/combined flap-1 and

aileron-2²

7 spare/aileron-2¹
8

spare/elevator-24/mixture control

9

spare

10

spare

（2）

Glider/Sailplane servo connction

Receiver output

and channel

GLID（1A+1

F）

ELEVON FLAPERON AILE-DIFF AILE-DIFF

1

Combined
elevator-2&aileron1

Combied flap-2

&aileron-1

aileron-1

Aileron-1

2

Combined elevator

-1&aileron-2

Elevator/combined

rudder-2&elevator-1¹

Elevator/combined

rudder-2&elevator-1¹

Elevator/combined

rudder-2&elevator-1¹

3

spare/motor

spare／motor

spare／motor

spare/motir/spoiler-2¹

4

Rudder

Rudder/combined

rudder-2&elevator-2²

Rudder/combined

rudder-2&elevator-2²

rudder/combined

rudder-1&elevator-2²

5

spare/spoiler-2¹

spare/spoiler-2¹ spare/spoiler-2¹ flap-2

6 flaps

Combined

flap-1&aileron-2

flaps flap-1

7 spare spare ailron-2 Aileron-2

8

spare/spoilers/spoile

r-1¹

spare/spoilers/spoiler-1¹ spare/spoilers/spoiler-1¹

spare/spoilers/spoiler-

1¹

9 Spare spare spare spare

10 spre spare spare Spare

10

（3）

Helicopter servo connection

The above listed receiver and channels is referred to the channel 1~9 of the receiver R9D, connect the
receiver with the related servo, you can control the servos by the correspondent switch.
To be clear, the servo connected with the receiver channel 1 is controlled by the radio aileron lever; servo
connected with channel 2 is controlled by elevator lever; servo connected with channel 3 is controlled by
throttle stick; servo connected with channel 4 is controlled by the rudder lever. Channel 5~9 can be self-set
with the related switches by the menu AUX-CH, and the sub menu. For channel 9, the LED indicator on the
receiver flashes red for S-BUS signal and blue for PPM.

Receiver all channels shows:

Receiver output

and channel

Helicopter

1

aileron/cyclic roll

2

Elevator/cyclic pitch

3

Throttle

4

Rudder

5

Spare/gyro

6

Pitch(collective pitch)

7

Spare/governor

8

spare/mixture control

9

Spare

10

spare

CH1(AILE)

CH2(ELEV)

CH3(THRO)

CH4(RUDD)

CH5(GEAR)

CH6(FLAP)

CH7(AUX1)

CH8(AUX2)

RECEIVE INTERFACE

11

1.2.3 Installment of antenna

(1) Installment of receiver antenna

1. The antenna must be kept as straight as possible. Otherwise it will reduce the effective range.

2. Large model aircraft may of some metal part interfering signal; in this case the antennas should be

placed at both sides of the model. Then the best RF signal condition is obtained at any flying
attitude.

3. The antennas must be kept away from conductive materials, such as metal and carbon by at least a

half inch. The coaxial part of the antennas does not need to follow these guidelines, but do not
bend it in a small radius.

4. Keep the antennas away from the motor, ESC, and other noise sources as much as possible.

5. Press and hold the Easy Link (ID SET) one second, now the receiver starts work.

6. After all of the above steps finished, the LED indicator will turn and keep in red.

The receiver can be packed by sponge or foam for shocking proof when it is installed to the model

△!After all of the above steps finished, turn off the transmitter and then power it on, now the program

functions to assure it under control of transmitter with a right connection
(2) Installment of transmitter

1. The transmitter antenna is adjustable so please make sure that the antenna is never Pointed directly

at the model when flying as this creates a weak signal for the receiver.

2. Keep the antenna perpendicular to the transmitter's face to create a better RF condition for the

receiver. Of course this depends on how you hold the transmitter, but in most cases, adjusting the
transmitter antenna so that it is perpendicular to the face will give the best results. Please adjust the
transmitter antenna to the way you hold the transmitter.

3. Never grip the antenna when flying as this degrades RF quality.

1.3 RADIO BASIC SETTING

1.3.1 Basic setting of the transmitter

1. Display language: can be selected the display language of the function name, etc. in each function menu.

The screen reads "LANGUAGE". Change this to the desired language.

2. Stick Mode: The screen reads "STK-MODE". Change this to the correct mode. Note that this will NOT

change the throttle and elevator rachets, etc. Those are mechanical changes that must be done by a
service center.

3. RF Mode: the LED indicator will become solid green when RF Mode is active.

CH9

VCC INTERFACE

GND INTERFACE

VCC

GND

12

4. Adjusting Display Contrast: To adjust the display contrast, from the home menu press and hold the END

BUTTON. Turn the DIAL while still holding the END BUTTON: clockwise to brighten and
counterclockwise to darken the display.

5. User name setting: user name can be set by DIAL and PUSH with letters and numbers.

6. Alarming voltage:

Transmitter: preset 8.6V, can be self-set
Receiver: preset 4.0V, can be self-set
Ext: preset 10.1V, can be self-set

1.3.2 Model type

Under basic menu, use DIAL to select MODEL TYPE and enter by pressing PUSH. There are 6 different
type included in the system, HELICOPTER, AEROBASIC, GLID(1A+1F), GLID(2A+1F), GLID(2A+2F),
and AIRCRAFT, after model type is selected, press and hold PUSH for 1 second, when the word “are you
sure to change” displayed, model type is changed.

1.3.3 Bind

Each transmitter has an individually assigned, unique ID code. In order to start operation, the receiver must
be linked with the ID code of the transmitter with which it is being paired. Once the link is made, the ID
code is stored in the receiver and no further linking is necessary unless the receiver is to be used with another
transmitter. When you purchase another R6014FS, this procedure is necessary; otherwise the receiver will
not work.

1. Place the transmitter and the receiver close to each other within one (1) meter.

2. Turn on the transmitter.

3. Press and hold ID SET switch of the receiver one second, now the indicator LED will start blinking. It
will automatically find the nearest transmitter to bind, which is an outstanding feature for R9D receiver.

4. Test with servo to make sure the binding is finished.

1.3.4 S.BUS

Short press the ID SET switch two times within 1 second, the signal is changed from normal PWM to

S.BUS. The blue LED indicates the normal PWM and red S.BUS.

1.3.5 Transmitter Displays & Buttons

When you first turn on your transmitter, a confirmation double beep sounds, and the screen shown below
appears. Before flying, or even starting the engine, be sure that the model type and name appearing on the
display matches the model that you are about to fly! If you are in the wrong model memory, servos may be
reversed, and travels and trims will be wrong, leading to an immediate crash.

Startup screen

Total timer：Shows the cumulated ON time.(hours: minutes)
T1/T2：T1/T2 timer display.(minutes: seconds)
MT：Model timer display Shows the cumulated ON time for each model.(hours: minutes)

Button instruction

MODE BUTTON:

13

Press and hold MODE BUTTON for one second to open programming menus. Press MODE BUTTON to
switch between BASIC and ADVANCE. Press MODE BUTTON to scroll between conditions in certain
functions.
END BUTTON:
Press END BUTTON to return to previous screen. Closes functions back to menus, closes menus to start-up
screen.
PUSH BUTTON:
Press PUSH BUTTON to select a function.
Turn DIAL:
Turn DIAL clockwise or counterclockwise to scroll through choices within an option of a function
Warning and error display

When the transmitter is powered on, warning or error may happen by the following probability:

1. Battery low voltage alarming

Lithium battery 2S-4S can fit for the transmitter, warning voltage can be self-set according to different
battery.

Setting step: power on the transmitter, press and hold MODE one second to enter basic menu, and press
PUSH to enter PARAMETER. Choose TX ALARM by DIAL and PUSH to change relative data. Suggested
min voltage is not less than 7.4V.

When the transmitter voltage is less than the setting voltage, it will beep till the transmitter is powered

off. Most important thing is to land your model plane when the transmitter alarms.

******WARNING!!!******

TX LOW POWER！

2. Mixing alarm
When the transmitter alarms mixing, it means at least one mixed switch is active. And when it is inactive,
warning will stop then. When the transmitter is powered on, in different model type, mixing switch is shown
as below:

ACRO: throttle cut, idle down, snap roll, air brake
GLID: butterfly, condition

HELI: throttle cut, throttle lock, speed up
If the warning continues even the related switch is set OFF, probably it is because some programs mixed by
one switch and status OFF reversed. Now you need to set mixing alarm again by DIAL.

14

PART 2. BASIC FUNCTION OF AIRPLANE

Pls pay attention that the (BASIC)menu is suitable for all type models(airplane, helicopter, glider,aircraft).
The motor cut will be introduced in Glider (Basic )Menu,except Idle down &Throttle cut.Helicopter Basic
Menu include some extra function (swashplate tilting,throttle and pitch curves and the tail totor anti torque
mixing under normal flght model) will be discussed in Helicopter section.

2.1 A QUICK GUIDE OF ACRO BASIC MENU

Mode Select

Switch Up

Stick Up

End Selection

Switch at Center

Stick Right

Dail Left

Switch Down

Stick Down

Dail Right

Turn Knob Right

Stick Left

Dail Right or Left

Turn Knob Left

Press Push Button

2.2 A QUICK GUIDE: GETTING STARTED WITH A BASIC 4-CHANNEL AIRPLANE

Startup screen

BASIC MENU

ADVANCE MENU

Press MODE BUTTON
for more than one
second to enter BASIC

Press MODE BUTTON to
switch between BASIC and

Press END BUTTON to
return to Startup screen

Turn DIAL clockwise or counterclockwise to scroll through

choices within an option of a function.

15

This guide is intended to help you acquainted with the radio, to give you some ideas and direction on
how to do.We give you a big picture overview of what we accomplish; a ‘by name’ description of what
we’re doing to help you with the radio; then a step-by-step instruction to leave out the mystery when
setting up your model.

For additional details on each function,see that function’s section in this manual.

Goals of Example Steps Input for Example

Prepare your
airplane

Install all servos,switched,receivers,etc.per your model’s instructions.Turn on
transimitter then receiver;adjust all linkages so surfaces are nearly
centered.Mechanically adjust all linkages as close as possible to proper control
throws.Check servo direction.Make notes now of what you will need to change
during programming

.

Name the model
(Note that you do

not need to do
anything to ‘save’
or store this data).

Open the Basic menu,then
open the PARAMETER

T

urn on the transimitter.

for 1second to basic menu. to choose model

Go to Model Name

to Mode， to Mode name，press PUSH to

setting

Input airplane’s name
Close the Model submenu

to change first character,when proper character is

displayed,push to select. to move to next
character.Repeat as needed.

return to BASIC menu

Need to adjust EN
D-POINT to meet
with the related ser
vo.

In the BASIC menu find the
END POINT

to END POINT，press to set

Adjust end point (EX:
THRO servo)Close the
function

to Throttle Throttle stick until carburetor

closes as desired. until throttle arm just open
carburetor at fully throttle stick.Repeat for each
channel as needed.

With digital trims you don’t shut the engine off with THROTTLE TRIM.Let’s set up IDLE-DOWN and ‘throttle cut’

Goals of Example

Steps

Input for Example

Idle down setting: Idle
down is to lower the en
gine speed for landing,

snap rolling scrobatic
display, and launching
etc. It is preset OFF an
d mainly used to start e
ngine and glide, then t
o avoid flameout.

From the BASIC menu choose IDLE
DOWN.

to IDLE DOWN，press

Activate and adjust IDLE DOWN

to MIX，press ， to ON，press

C to center position.,screen now reads

ON.

to RATE,to increase rate until engine

idles reliably but low enough to sit still.

Optional:change switch C command

to POSI，press ， as you desired

press

Close the function

BASIC menu， again to startup

screen.

THR CUT shuts the

From BASIC menu, choose THR CUT

to THR CUT，press

16

Activate,assign SWITCH and adjust.
Close the function

to MIX，press ， to INH

to SW，press ， to SwC

to POSI,press ， to DOWN

to RATE ， press ， to down

position， throttle stick down until the
throttle barrel closed

Set up dual/triple rates
and exponential
(D/P,EXP) (Note that in
the middle of the left
side of the screen is the
name of the channel and
the switch position you
are adjusting.D/R may
be set per channel by
choosing the desired
switch and mix rate.

From BASIC menu,choose the D/R,EXP

to D/R,EXP，press

Choose the desired control,and set the

first (EX:high)rate throws and
exponential.

SwA to up position A

to CH,press ， to choose CH2，

press

to D/R

Stick down，press ， to

set ,press

Stick up，press , to

set ,press to EXP

Stick up，press to set，press

Stick up，press， to set，press

Set the second(low)rate throws and

exponential.

SwA to down position

to D/R

Repeat steps above to set low rate.

2.3 AIRPLANE BASIC FUNCTION

2.3.1 Model Select

Model submenu: includes three function that manage model memory:MODEL SELECT,MODELCOPY and
MODEL NAME.Since these functions are related,and all basic features are used with most models,they are
together in the Model submenu.

MODEL SELECT

Totally there are 15 models stored in the system, followed by model name and plane type to use on tap, thus
you don’t need to set every time for different plane. MODEL NAME, MODEL TYPE and transmitter voltage.
Make sure that MODEL TYPE is accomplished with your plane type before flight. Or it will cause error in servo
and rudder.

COPY

Save the present data as another model type, it will be displayed by shadow area to differ from. When this
copy start, the object data will be fully covered including name, type and module type, and cannot recover.

Caution: when you save the present model type as another, all related data will be copied including the original

17

model name. Accordingly, if you want to change the model type, the whole data need to reset, also for model
name. The first thing to copy is to change the model type or delete the original name and rename a new model to
avoid confusion.

Model Name

This is used to set the present model name. Name all model to identify each other, and fast select the model
type and reduce possible crash by wrong model type using.

Format to name a model:

•the name can be more than 9 characters

•every character can be letter, number, blank or special characters

•factory setting name MODEL-XXXX will be shown as (example model 1 display MODEL-0001)

Goals

Steps

Inputs

Name

model3
“Cap-232_”
(where
underline
represents a
blank space

Open Model

for 1second.(If ADVANCE, again)

to MODEL SEL. Press PUSH

Confirm correct model
(Ex:3)

If select doesn’t show ‘3’,perform Model

select

Go to Name to change the
first character(Ex:M to C)

M to C,press PUSH.

Change the next character

to choose character,press PUSH to

Repeat the prior steps until
finish naming model.

to a .Repeat.

Colse

Sub-menu select: All parameters need one time setting. After the model type selected, you need to set the related
data for it.

•what is the model type

•whether the throttle channel 3 is right for the selected model type? Or you need to make sure channel 3 is of full

range adjustable (glider only). Also to different model, you can set by throttle reverse correspondently.
Initialize the original data first, and set new data for the selected model type

Model reset: model reset is available in factory only. If you want to delete a new set model type, you need to

delete one by one.

Goals

Steps

Inputs

Reset model
memory 1

Confirm you’re currently using
the proper model memory(Ex:1)

On home screen,check model name and No.

on topleft,if not conrrect use Model Select.

Open PARAMETER submenu

for 1second to Model SEL,Push.

Reset the memory

Push, to Model 1,PUSH

Confirm the change

Are you sure? Press PUSH

Close

Model type select

•aero basic:

Driving aero basic type (multi airfoil. Detail in Twin Aileron Servos, Twin Elevator Servos, Elev-flap mix and

V-tail)

•glider:

Different tail type (detail in glider type)

•helicopter:

8 swash plate types (detail in helicopter type)

caution: decide a model type for the model plane. To most fixed wing plane, aero basic is better, because it has

some function glider doesn’t have. While sometimes, glider (2A+1F) is better.

18

•functions specially for aero basic:

•snap roll

•Elev-flap mix (twin Elevator Servos support)

•oil power plane: idle down、throttle shut、throttle needle mix etc.

•functions aero basic doesn’t have:

5 individual flight conditions (normal, start, speed, distance, landing)
If the model type selected for glider or helicopter, please go to the related chapter for setting. After model type

changed, all parameters need to reset, including name.

2.3.2 Model Type

Data reset

All set data can be reset to factory setting. This function will not delete all model type set in the radio.

Setup step:

Enter the basic menu for MODEL TYPE, use dial to choose a proper type and press PUSH for one
second, when the screen displays “are you sure”, press PUSH and the radio will beep, and it is set to
factory data.

Caution: don’t powered the radio off before setting is finished, or the setting is invalid.

Model Select

Goals

Steps

Inputs

Select proper Model

Typefor your
model(Ex:Acrop)

Open BASIC menu,then
PARAMETER submenu

Turn on the transmitter.MODE for 1s.(If
ADVANCE,Mode again.

Go to MODEL TYPE.

to Mode TYPE,press PUSH.

Select proper type
Ex:ACRO Confirm the
change. Close.

to ACRBASIC,PUSH for 1s. Are you sure

displays.PUSH to confirm. End to BASIC menu.

Second aileron :( AILE-2) (ACROGLID1A+1FGLID2A+1F only):change the default choice for dual aileron
servos from channels 6(FLAPERON) to channels 5 and 6, or channel 3 and 6, or channel 7(AIL-DIF ) to
channels 5 and 7. This allows you to utilize these 2 great functions while utilizing 5-channel receiver.

Caution: Changing AILE-2 only tells the system which servos to utilize if FLAPERON or AIL-DIF is
activated. You still must activate that function and complete its setup for details on twin aileron servos,
including usingAILE-2.

(Only for glider 1A+1F) if the channel 3 is set as the second aileron, the receiver F/S will become invalid.

Adjustable travel limit (ATL)

Makes the channel 3 TRIM LEVER (THROTTLE TRIM) effective only at low throttle, and disabling the
trim at high throttle. This prevents pushrod jamming due to idling trim changes. This function defaults to ON.
If you are not using channel 3 for throttle, you may want trim operation the same as on all other channels. To
do so, set ATL to OFF. If you need the ATL to be effective at the top of the stick instead of the bottom, reverse
the THR-REV setting. Note that this affects all models in the radio, not just the model you are currently
editing.

Goals

Steps

Inputs

Change ATL from ON
to OFF for battling
robots, tanks,
airebrakes and other
channel 3 uses.

Open Basic menu,
then to Mode Type.

Mode for 1s(If ADVANCE,Mode again). to
Mode TYPE,press PUSH.

Go to ATL and
change. (Ex: to OFF)

to ATL, to OFF.

Close

Home screen display

19

As shown below, home screen will display plane type and throttle pitch:

ILLUST: displays the illustration of helicopter in the home screen. (Default)
THR/PIT: displays the current throttle and pitch position in the home screen.
Step to change plane type image to thr/pit: under model type helicopter, enter basic menu, choose

MODEL TYPE, and enter HOME DISP, press PUSH, then DIAL to THR/PIT, then press PUSH.

2.3.3 End Point of servo travel adjustment (END POINT, also called EPA)

The most flexible version of travel adjustment is available. It independently adjusts each end of each
individual servo’s travel, rather than one setting for the servo affecting both directions. Again, for CCPM
helicopters, be sure to see SWASH AFR prior to adjusting end points.

Adjustability:

• Can set each direction independently.

• Ranges from 0% (no servo movement at all) to 140%. At a 100% setting, the
Throw of the servo is approximately 40°for channels 1-4 and approximately 55°for channels 5-8.

• Reducing the percentage settings reduces the total servo throw in that direction.
Examples:

• Adjust the throttle high end to avoid binding at the carburetor, and low end to allow for proper carburetor
closure.

• END POINT may be adjusted to 0 to keep a servo from moving one direction, such as flaps not intended to
also operate as spoilers.

• Retract servos are not proportional. Changing END POINT will not adjust the servo.

END POINT adjusts only the individual servo. It will have no effect on any other servo that is operated in
conjunction with this servo via mix or preset programming such as FLAPERON, AILEVATOR, etc. This is so
that each individual servo can be carefully fine-turn to avoid binding and other conflicts. To adjust the total
travel of a function such as FLAPERON, make the adjustments in that function's controls. For CCPM
helicopters, adjust the total travel of the function, such as collective pitch, in SWASH AFR. Adjust the linkage
or the END POINT? It is nearly always best to adjust your linkages to get as close as possible prior to utilizing
END POINT. The higher the END POINT setting, the better position accuracy and the more servo power
available at nearly any position (except if using digital servos). Higher END POINT values also mean longer
travel time to reach the desired position, as you are utilizing more of the servo's total travel. (For example,
using 50% END POINT would give you only half the steps of servo travel, meaning every click of trim has
twice the effect and the servo gets there in half the time). end point (and moving the linkage) = torque,
accuracy, but transit time to get there.

• END POINT (instead of adjusting linkages) = travel time, but torque, accuracy.
Engine idle management: IDLE-DOWN and THR-CUT: functions which work with the digital THROTTLE
TRIM to provide a simple, consistent means of engine operation. No more fussing with getting trim in just the
right spot for landings or take offs! For additional engine adjustments, see THROTTLE-NEEDLE and

20

THROTTLE DELAY.

Goals

Steps

Inputs

Decrease the flap servo

throw in the upward

direction to 5% to allow

trimming of level flight

only and down travel to

85% to prevent binding.

Open END POINT function

for 1s.(If ADVANCE, again）

to END POINT,PUSH

Choose proper channel and move
stick or Knob in direction you
want to adjust and set servo throw
(Ex:flap up 5%)

to FLAP，PUSH， to 5%，press

Close

2.3.4 Trim

TRIM submenu: resets and adjust effectiveness of digital trims.

【TRIM】
RESET：Execute

STEP-AILE： 4（ 0）

ELEV： 4（ 0）
THRO： 4（ 0）
RUDD：4

（0）

The AT9 has digital trims which are different from conventional mechanical trim sliders. Each TRIM
LEVER is actually a two-direction switch. Each time the TRIM LEVER is pressed, the trim is changed a
selected amount. When you hold the TRIM LEVER, the trim speed will increase. The current trim position is
graphically displayed on the start up screen. The TRIM submenu includes two functions that are used to
manage the trim options.

（1） Trim reset (RESET): Electronically centers the trims to their default values. Note that the

SUB-TRIM settings and the trim STEP rate are not reset by this command.

（2）

Trim step (STEP): changes the rate at which the trim moves when the TRIM LEVER is activated.

It may be set from 1 to 40 units, depending on the characteristics of the aircraft. Most ordinary
aircraft do well at about 2 to 10 units. Generally larger trim steps are for models with large
control throws or for first flights to ensure sufficient trim to properly correct the model. Smaller
trim steps are later used to allow very fine adjustments in flight.

HELI models only: OFFSET is available in the idle ups. If OFFSET is inhibited, adjustment of the TRIM

LEVERS will adjust the trims for all flight conditions. If OFFSET is active, then moving the trims within
any one condition will affect only that condition.

Goals

Steps

Inputs

Reset trims to neutral after having
adjusted all linkage.Note: this is
one of the several functions for
which the radio requires
confirmation to make a change

Open BASIC menu,
then open TRIM
submenu.

for 1s.(If ADVANCE, again）

TRIM .

Confirm the reset.

to reset, for 1s. Beep sounds.

Double the sensitivity of the

AILERONTRIM LEVERS for a
first flght of an aerobatic model to
ensure sufficient range to trim the
model for level flght.

Adjust the size of

thestep (Ex：8）

to AILE，PUSH， to 8,PUSH

Repeat for other
channel.

to ELEV,PUSH to new setting.

Repeat as needed.

Close

2.3.5 SUB TRIM

21

SUB-TRIM: makes small changes or corrections to the neutral position of each servo. Range is -120 to +120,
with 0 setting, the default, being no SUB-TRIM.
We recommend that you center the digital trims before making SUB-TRIM changes, and that you try to keep
all of the SUB-TRIM values as small as possible. Otherwise, when the SUB-TRIMs are large values, the
servo's range of travel is restricted on one side.
The recommended procedure is as follows:

• Measure and record the desired surface position;

• Zero out both the trims (TRIM RESET menu) and the SUB-TRIMs (this menu);

• Mount servo arms and linkages so that the control surface’s neutral is as correct as possible; and

• use a small amount of SUB-TRIM to make fine corrections.

【

SUB-TRIM

】

1：AILE

0

CH1：AILE

0

2：ELEV

0

3：THRO

0

4：RUDD

0

5：GEAR

0

6：FLAP

0

7：AUX1

0

8：AUX2

0

Goals

Steps

Inputs

Adjust the flap
servo’s SUB TRIM
until its center
exactly matches the
aileron servo’s center
as they work together
as flaperons.

Open BASIC menu, then open
SUBTRIM

for 1s .(If ADVANCE again)

to SUB-TRIM

Choose the channel to adjust
until surfaces match(Ex:flap)

to FLAP，PUSH， as needed to each

channel.

Repeat for other channels

as needed.

Close

2.3.6 Servo Reversing (REVERSE):

Changes the direction an individual servo responds to a CONTROL STICK motion.

Since channel 9 and 10 are switch only, its servo REVERSE is in the AUX-CH control screen with its

switch assignment. Be sure to read the section on SWASH AFR before reversing any servos.

Except with CCPM helicopters, always complete your servo reversing prior to any other programming. If
you use pre-built ACRO/ GLID functions that control multiple servos, such as FLAPERON or V-TAIL, it
may be confusing to tell whether the servo needs to be reversed or a setting in the function needs to be
reversed. See the instructions for each specialized function for further details.

【

REVERSE

】

1：AILE

NOR

CH1：AILE
REV NOR

2：ELEV

NOR

3：THRO

NOR

4：RUDD

NOR

5：GEAR

NOR

6：FLAP

NOR

7：AUX1

NOR

8：AUX2

NOR

Always check servo direction prior to every flight as an additional precaution to confirm proper model
memory, hook ups, and radio functions.

Servo reversing

22

Goals

Steps

Inputs

Revers the direction
of the elevator
servo.

Open REVERSE function

for 1s .(If ADVANCE again)

to REVERSE, PUSH.

Choose proper channel and
set direction(Ex:ELEV REV)]

to ELEV，

to REV，’Are you sure? displays

for 1s。

Close

2.3.7 Dual/triple rates and exponential (D/R,EXP)

Dual/Triple Rates: reduce/increase the servo travel by flipping a switch, or (ACRO GLID) they can be
engaged by any stick position. Dual rates affect the control listed, such as aileron, not just a single (ex:
channel 1) servo. For example, adjusting aileron dual rate will affect both aileron servos when using
FLAPERON or AIL-DIF, and both aileron and elevator servos’ travel when using AILEVATOR or ELEVON
or a CCPM helicopter.

Activation:

• Any SWITCH, A-H. If you choose a 3-position switch, then that dual rate instantly becomes a triple rate.

• The glider programming offers you the choice of Condition. This option allows you to have a separate rate
for each of condition. (GLID)

• Stick position (ACRO GLID). (Ex: On rudder you normally use only the center 3/4 of the stick
movement except for extreme maneuvers such as snaps/spins/stalls. As long as your RUDDER STICK does
not exceed 90% (ie. stall turn), the rudder goes to high rate's 90%, which is a MUCH higher amount of travel
than your low rate at 89%)

Adjustability:

23

• Range: 0 - 140% (0 setting would deactivate the control completely.) Initial value=100%

• Adjustable for each direction (ACRO/ GLID)

(ie. Up/down, left/right) (Ex: Most models fly upright without any elevator trim, but require some down
elevator when inverted just to maintain level flight. By increasing the down travel by the amount required to
hold the model inverted, the model now has equal travel available from level upright or level inverted.

Only if any stick is chosen by the item of "SW1", a switch can also be chosen by the item of "SW2."

When operated simultaneously, the switch operation has priority over the stick operation. (ACRO)

Exponential:

Change the response curve of the servos relative to the stick position to make fly more pleasant. You can
make the servo movement less or more sensitive around neutral for rudder, aileron, elevator, and throttle
(except HELI type use THROTTLE CURVE instead). (ACRO type throttle EXP and THROTTLE CURVE
can not be activated simultaneously). Many models require a large amount of travel to perform their best
tricks.

However, without exponential, they are touchy around neutral, making them unpleasant to fly and making
small corrections very difficult. Additionally, by setting different exponentials for each rate, you can make
the effectiveness of small corrections similar in each rate, as in our example below:

The best way to understand exponential is to try it:

• Having made no changes yet in the D/R,EXP screen, move SWITCH D to DOWN (toward the AILERON

STICK).

• Move SWITCH D up. Hold the AILERON STICK at 1/4 sticks and moves SWITCH D down.

• Notice how much less travel there is.

• Go to 3/4 stick and repeat. Notice how the travel is much closer, if not identical.

Adjustability:

• More sensitive around neutral. (Positive exponential)

• Less sensitive around neutral. (Negative exponential)

• Adjustable for each direction. (ACRO/GLID)

For throttle, exponential is applied at the low end to help nitro and gasoline engines have a linear throttle
response, so that each 1/4 stick increases engine RPM 25% of the available range. (In most engines this
ranges from 5-60%)

Special note for helicopters: Helicopter model types have just a single rate for each switch position
rather than a rate for each side of the servo's travel per switch position. Additionally, setting the D/R,EXP for
each switch position requires cursoring back to the No. setting and changing the switch position here. Just
flipping the switch does not affect the screen setting, alowing dual rates to be assigned with idle-up and other
features on certain switches, and does not require putting the model in that condition to make modifications.

Special note for conditions: The helicopter and glider programming offers you the choice of Cond. This
option allows you to have a separate rate for each of the 3 controls automatically selected when changing
conditions, for a total of FIVE rates available. Simply change the switch choice to Cond. and then:
(HELI) press the CURSOR LEVER to toggle through the 5 conditions while setting the rates.
(GLID) activate the corresponding condition to edit the rates.

Goals

Steps

Inputs

Set up dual rates

and exponential in
HELI model.

Open D/R,EXP

for 1s.(If ADVANCE again)

to D/R EXP,PUSH.

Choose channel

to CH,Push. to desired channel. PUSH

Choose first channel position

to NO,PUSH. to UP,PUSH.

Set rate and EXP(Ex:High

rate=95%,0%exponential)

to Rate,PUSH. to 95%,confirm 0% EXP.

Go to 2nd swith position and

set rate and exponential.

to NO,PUSH to DOWN,PUSH.

Optional:if using a 3 position

switch,set 3rd rate.

to NO,PUSH. to Cond repeat above.
