Radijator COMPACT20.1 Instruction Manual

1
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Kotao na
BIOMASU
BIOMASS
operated
SRB ENG
OPŠTA UPOZORENJA
Nakon uklonjenog pakovanja uveriti se u kompletnost isporuke, i u slaju nedostataka,
obratiti se prodavcu koji je prodao kotao
Kotao mora biti upotrebljen iskljivo za namenu koju je predvideo proizvođač.
Iskljuje se bilo kakva odgovornost od strane proizvođača za štetu uzrokovanu osobama, životinjama ili stvarima, u slaju grešaka pri montaži, regulaciji, održavanju ili nepravilnom korišćenju.
U slaju curenje vode iskljiti uređaj sa električnog napajanja, zatvoriti napajanje
vodom i obavestiti ovlašćeni servisi ili ovlašćenog montera.
Ovo uputstvo je sastavni deo uređaja i mora se čuvati sa pažnjom i mora UVEK pratiti
uređaj i u slaju promene vlasnika ili korisnika ili u slaju prikljenja na drugu instalaciju. U slaju oštećenja ili nestanka tražiti novi primerak od ovlašćenog prodavca.
INSTRUKCIJE / INSTRUCTION MANUAL
Montaža,korišćenje i održavanje kotla/ Assebly,use and maintenance of heating boiler
SERIJE COMPACT SERIES COMPACT
2
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
SADRŽAJ:
1. Važna upozorenja;
1.1 Minimalna udaljenost od zapaljivih materijala;
2. Opis kotla COMPACT20.1;
3. Montaža;
3.1 Opšta upozorenja;
3.2 Mere i uređaji bezbednosti kod kotla COMPACT20.1;
3.3 Kotlarnica;
3.4 Priključak na dimnjak;
4. Presek kotla COMPACT20.1 sa opisom elemenata;
5. Šema vezivanja automatike;
6. Tabela sa tehničkim podacima;
7. Hidraulična šema;
8. Start rada kotla COMPACT20.1 i održavanje;

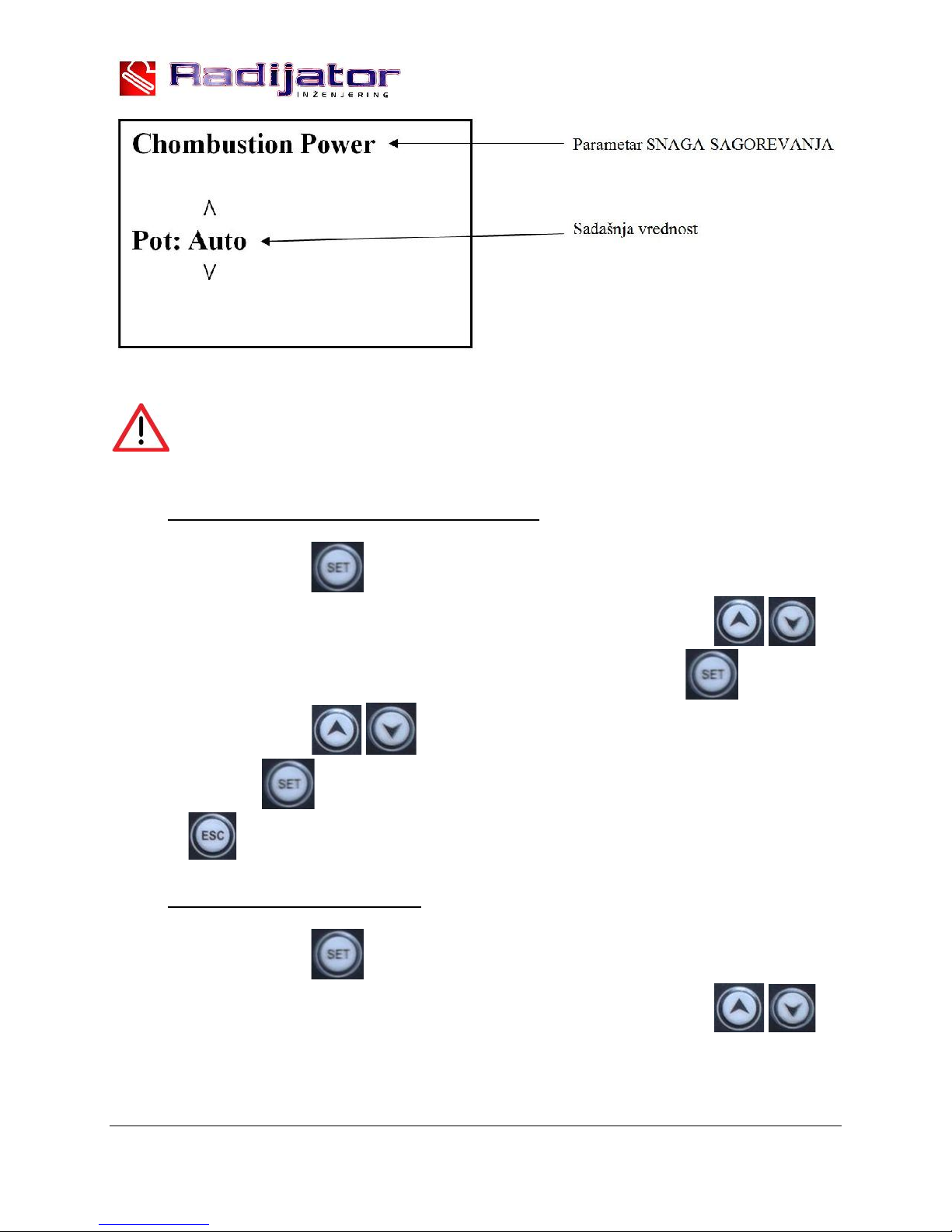

8.1 Displej automatike;
8.2 Kratko uputstvo za upotrebu automatike;
8.3 Start rada kotla COMPACT20.1;
8.4 Greške prilikom startovanja i u toku rada kotla COMPACT20.1;
8.5 Održavanje i čišćenje kotla COMPACT20.1;
8.6 Natpisna pločica;
8.7 Izjave;
8.8 Nalepnice;
8.9 Proizvođač;
9. Garancija.
3
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
1. Važna upozorenja
OPŠTA UPOZORENJA
Nakon uklonjenog pakovanja uveriti se u kompletnost isporuke, i u slučaju nedostataka,
obratiti se prodavcu koji je prodao kotao.
Kotao mora biti upotrebljen isključivo za namenu koju je predvideo proizvođač.
Isključuje se bilo kakva odgovornost od strane proizvođača za štetu uzrokovanu osobama, životinjama ili stvarima, u slučaju grešaka pri montaži, regulaciji, održavanju ili nepravilnom korišćenju.
U slučaju curenje vode isključiti uređaj sa električnog napajanja, zatvoriti napajanje
vodom i obavestiti ovlašćeni servis ili ovlašćenog montera.
Ovo uputstvo je sastavni deo uređaja i mora se čuvati sa pažnjom i mora UVEK pratiti
uređaj i u slučaju promene vlasnika ili korisnika ili u slučaju priključenja na drugu instalaciju. U slučaju oštećenja ili nestanka tražiti novi primerak od ovlašćenog prodavca.
VAŽNA UPOZORENJA
Podsećamo da korišćenje uređaja na biomasu koji imaju kontakt sa električnom energijom i vodom zahtevaju poštovanje sigurnosnih mera i to:
Zabranjeno je korišćenje kotla od strane dece i osoba sa ograničenim mogućnostima bez
pratnje.
Zabranjeno je korišćenje kotla na instalacijama sa radnim pritiskom većim od 3 bara i
radnom temperaturom većom od 110˚C.
Zabranjeno je korišćenje lako zapaljivh goriva (alkohol, nafta). Zabranjeno je odlaganje lako zapaljivih materijala u blizini kotla i u blizini vrata za
loženje. Pepeo se mora odlagati u zatvorene i nezapaljive spremnike.
Zabranjeno je spaljivanje otpada i materijala čije sagorevanje prouzrokuje plamen ili
opasnost od eksplozije (npr. plastične kese, piljevinu, ugljenu prašinu, blato itd.)
Zabranjena je bilo kakva intervencija tehničkog lica (naročito se to odnosi na zamenu
grejača ili proveru ispravnosti nekog drugog el. uređaja...) ili čišćenja, pre nego se kotao isključi sa električnog napajanja i to izvlačenjem utičnice iz glavnog mrežnog napajanja.
Zabranjena je izmena sigurnosnih elemenata. Zabranjeno je zatvaranje ventilacionih otvora na prostoriji u kojoj se nalazi kotao.
Ventilacioni otvori su neophodni za pravilno sagorevanje.
Zabranjeno je izlaganje kotla atmosferskim neprilikama.Ovaj uređaj nije predviđen za
spoljnu montažu.
Zabranjeno je isključivanje uređaja ukoliko spoljna temperatura može da padne ispod
nule po Celzijusu ( opasnost od smrzavanja ).
4
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Zabranjeno je stavljanje prstiju i drugih predmeta kroz otvore na spoljnim delovima
oplate uređaja.Unutar oplate su elektro komponente i provodnici pod naponom kao i uređaji koji se mehanički pokreću (motor reduktor i ventilator).Kontakt sa njima može da dovede do strujnog udara i mehaničkih povreda.
U slučaju intervencije na bilo kom elektro uređaju kotla, ceo uređaj isključiti sa elektro
instalacije i to tako što se izvadi utičnica iz mrežnog napajanja.
Rad sa uređajem kotla zabranjen je ljudima sa posebnim potrebama (uključujući i decu)
kako fizičkim tako i mentalnim, osim uz nadzor staratelja i ljudi koji su odgovorni za njihova ponašanja.
Deca moraju biti pod nadzorom staratelja kako se ne bi igrala sa uređajem kotla. Ako je oštećena strujna zaštita, mora biti zamenjena u samoj fabrici i servisirana od
strane ovlašćenog servisera ili kvalifikovanih ljudi da bi se izbegao rizik od strujnog
udara.
1.1 Minimalna udaljenost od zapaljivih materijala
Obezbedite odgovarajuću udaljenost od zapaljivih materijala, ako je potrebno obezbediti
zaštitu istih.
Minimalna udaljenost od zapaljivih materijala je propisana zakonom- molimo da se o
tome raspitate kod stručnih lica, koja se bave grejanjem, i dimničara.
Minimalna udaljenost kotla i cevi za odvod dimnih gasova od slabo i prosečno gorivih
materijala treba da bude najmanje 100mm.
Minimalno rastojanje od lako
zapaljivih materijala je 200mm, a
isto važi i za materijale čija
zapaljivost nije poznata.
Opasnost od požara!
Skladištenje zapaljivih materijala i
tečnosti u blizini kotla je
zabranjeno.
Obavezno upozorite korisnike o
potrebnoj minimalnoj udaljenosti zapaljivih materijala od kotla.
5
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
2.Opis kotla COMPACT20
COMPACT 20.1 namenjen je sagorevanju drvenog peleta. Drveni peleti su dobijeni od 100% celuloze. Ostaci drveta pod visokim pritiskom su sabijeni u pelet prečnika 6mm i dužine 2-3cm.
Pelet treba pravilno skladištiti i to na suvom mestu da bi se obezbedilo efikasno sagorevanje.
Kotao COMPACT20.1 koristi pelet prečnika 6mm, dužine 5-30mm i vlažnosti do 10% izrađen po standardu EN 14962-2. Ukoliko pelet nije po navedenom standardu ili je tokom skladištenja
ili transporta došlo do pogoršanja njegovog kvaliteta, Radijator inženjering kao proizvođač ne može da preuzme odgovornost za loš rad. U takvim situacijama dolazi do grešaka u paljenju,
nagomilavanja peleta i ispadanja iz prostora za sagorevanje, nedovoljne snage itd.
COMPACT20.1 se instalira u kotlarnici,s tim što ima prednost u situacijama gde su potrebne što kompaktnije dimenzije.Ukupna širina je 870mm, a lakom demontažom može da se pretvori u
dva dela,kotlovski širine 580 mm i silos 290mm.
Montira se na klasični dimnjak minimalnog prečnika 140mm.Dimnjak mora da zadovoljava i sve ostale standarde kao kod klasičnih kotlova o čemu je više rečeno u poglavlju montaža.
Nominalna snaga COMPACT20.1 prema standardu EN303-5 je 22 kW.
U okviru kotla instalirani su i odgovarajuća cirkulaciona pumpa i ekspanziona posuda od 10 litara. Kotao se isporučuje i sa mehaničkim sigurnosnim i odzračnim ventilom.
Kotao poseduje i izmenjivač za ugradnju ventila za termičko osiguranje oticanjem.
Sagorevanje peleta se vrši po principu nasipnog ložišta.Ceo proces je vođen automatikom koja dozvoljava odabir jedne od 5 nivoa snaga. Moguće je priključiti sobni termostat i isprogramirati
periode starta rada i cikluse mirovanja za 7 dana.
6
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Slika1. Presek tela kotla
KONSTRUKCIJA
Kotlovski izmenjivač je cevni tropromajni i izgrađen je od materijala koji po debljinama i kvalitetu materijala odgovaraju standardu EN303-5.Već fabričkim dimenzijama COMPACT20.1 je prilagođen manipulaciji u malim prostorima.Veoma je važno da ako je potrebno, moguće je na samom terenu ceo uređaj rastaviti na odvojene sklopove kotlovskog izmenjivača,silosa i pelet
transportera.Tom prilikom mora se odvojiti i cirkulaciona pumpa, kao i ekspanziona posuda.
Pelet transporter se sastoji od pužne osovine napravljene od INOX-a i pogona motor reduktora velikog obrtnog momenta od 50Nm, a veoma male instalisane snage 40W.
Silos je zapremine 50 kg peleta.Komora za sagorevanje je napravljena od vatrootpornih materijala. Presek kotla i pomenute delove videti na slici 1.
7
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
3.Montaža
3.1 Opšta upozorenja
Kotao mora biti pravilno postavljen zbog pravilnog rada!
Kotao se isporučuje sa spoljnom oblogom koja sadrži izolaciju debljine 30mm. Položaj silosa i mehanizma za transport peleta je standardno uvek na desnoj strani u odnosu na
kotao, i nemoguće je isti promeniti na levu stranu. Elektro priključci su konektorskog tipa tako da za njihovo rastavljanje i ponovno sastavljanje nije potrebno osoblje specijalizovane elektro struke.
Maksimalni radni pritisak kotla je 3 bar-a, minimalni 1 bar, a maksimalna radna
temperatura kotla je 110 C.
Kotao je sa ventilatorom, automatikom, elektro grejačem i pumpom i svi ovi
uredjaji koriste napajanje 230V,tako da nepravilno instaliranje i neoprezno rukovanje
mogu da ugroze ljudski život strujnim udarom.
Kotao na čvrsto gorivo i prinudnom promajom treba instalirati prema važećim normama i zakonskim propisima.Svaka izmena ili na mehaničkoj konstrukciji ili na električnoj instalaciji smatraće se narušavanjem garancijiskih uslova i dovešće do njenog narušavanja.
Prilikom montaže na hidrauličku instalaciju kotao mora biti obezbeđen na propisan način od prekoračenja maksimalne radne temperature i pritiska.
Za propisnu montažu odgovoran je instalater centralnog grejanja koji priključuje kotao na hidraulički sistem.
Radijator inženjering , kao proizvođač kotla, ne preuzima nikakvu odgovornost za štete prouzrokovane lošim instaliranjem kotla.
Prilikom bilo kakve intervencije na elektro uređajima kotla COMPACT20.1, ceo sistem isključiti sa glavnog mrežnog napajanja.
Osnovni zahtevi koje treba ispoštovati prilikom montiranja su:
- Kotao može da bude priključen na otvoreni sistem centralnog grejanja, ali i na zatvoren sistem centralnog grejanja. U slučaju priključenja na zatvoreni sistem, preporučuje se
8
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
ugradnja ventila za termičko osiguranje oticanjem,što je određeno i odgovarajućim zakonima svake države u kojoj se kotao priključuje.
- Kotao mora da se nalazi na sigurnoj udaljenosti od lako zapaljivih materijala.
Kotao mora biti dovoljno udaljen od mogućih prepreka u kotlarnici radi čišćenja i održavanja.Pogledaj sliku 8.
- Električno napajanje kotla je 230V i 50Hz i priključenje svih uređaja koje kotao sadrži treba uraditi prema važećim propisima i priključenje radi lice sa odgovarajućim
ovlašćenjem.
- Priključenje na dimnjak takođe se radi prema obavezujućim propisimal, kao i preporukama proizvođača što se može videti u narednom tekstu.
3.2 Mere i uređaji bezbednosti kod kotla COMPACT20.1
Za bezbedan rad kotla COMPACT20.1 ugrađeni su sledeći elementi i potrebno ih je održavati ispravnim:
Ventil sigurnosti na pritisak, odzračni ventili i manometar;Termostati u automatici koja reguliše rad kotla COMPACT20.1
Ventil sigurnosti na pritisak (slika 2), odzračni ventili (slika 3) i manometar (slika 4):
Slika 2. Sigurnosni ventil Slika 3. Odzračni ventil Slika 4. Manometar
Ventil sigurnosti (slika 2) na pritisak je već fabrički namontiran na kotao COMPACT20 i
nazivnog je prečnika 1/2 cola , baždaren na maksimalno 3 bara. Ovaj sigurnosni element koji spada u grupu limitatora pritiska mora da bude takve
konstrukcije da izdrži i kratkotrajna prekoračenja i temperature i pritiska, kao i određen sadržaj glikola u tečnosti za grejanje.
Ovaj sigurnosni element mora da podleže i periodičnim ponovnim baždarenjima o čemu
investitor tj. korisnik kotla mora da poseduje validnu dokumentaciju.
Preporučuje se i ugradnja manometra (slika 4) na hidrauličkoj instalaciji. Ventil sigurnosti mora biti montiran na najvišoj tački kotla i direktno na kotlu bez bilo
kakvog cevovoda ili bilo kojih drugih elemenata između. Za ovu svrhu postoji i posebno predviđen priključak. Strogo je zabranjeno bilo kakvo reduciranje prečnika ovog priključka prilikom servisiranja i postavljenje novog ventila sigurnosti.
9
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Ispusni tj. izduvni deo ventila sigurnosti (ukoliko korisnik želi da je namontira) mora da
bude od cevi čiji je prečnik najmanje jednak nazivnom prečniku ispusnog dela ventila.Takođe dozvoljeno je za njegovu izradu koristiti najviše jedan luk radijusa r >
3d.
Sigurnosni ventil mora posedovati nazivnu pločicu i na njoj sledeće podatke:
- naziv proizvođača;
- oznaka tipa sigurnosnog ventila/godina ispitivanja;
- nazivni protok;
- podatak za koji toplotni učinak je sigurnosni ventil podešen;
- najviši pritisak otvaranja tj. 3 bara.
Obavezna je provera ispravnosti rada u određenim vremenskim periodima kao i ponovna
baždarenja od strane sertifikovanih firmi. Ove obaveze se sprovode u skladu sa zakonom svake zemlje u kojoj je kotao namontiran. Obavezno čuvati pisani dokument o podacima zadnjeg baždarenja sigurnosnog ventila.
Na povratnom vodu montirati barem još jedan ventil sigurnosti na pritisak. Zajedno sa ventilom sigurnosti na pritisak u istu sigurnosnu grupu spada i odzračni ventil
(slika 3). Na uređaju postoje dva takva ventila.Jedan je na najvišoj tački kotla, a drugi na najvišoj tački sabirnika gde se račvaju vod tople vode i ekspanziona posuda.
Ventil termičkog osiguranja oticanjem (slika 5)
Slika 5. Ventil termičkog osiguranja
Ovaj sigurnosni element ima takođe ulogu ograničivača temperature. U daljem tekstu biće označen sa skraćenicom VTO.
U nekim ekstremno opasnim situacijama prelaz vode u vodenu paru je takav da ventili
sigurnosti za pritisak nisu dovoljni da obezbede sigurnost hidrauličkog sistema. Iz ovog
razloga je obavezna ugradnja VTO. U zavisnosti od zakonskih regulativa zemalja u
kojima se kotao montira, VTO je potrebno ugraditi samo za snage veće od određenih ili
za svaku snagu kotla obavezno ugraditi VTO.
Mesto ugradnje prikazano je na šemi montaže kotla na instalaciju i na slici 6.
U kotlu se isporučuje bakarna spirala tako da je potrebno koristiti VTO sa izmenjivačem kao na slici 6. Do VTO-a se dovodi hladna sanitarna voda. Kada sonda VTO-a ima informaciju da je temp. preko 95°C VTO se otvara i voda prolazi kroz bakarnu spiralu. Posle izvesnog vremena temp. vode u kotlu se vraća na normalnu.
Jedan priključak spirale koristimo za VTO, a drugi za ispust vode koja je prošla kroz
spiralu. Koji je priključak spirale za VTO, a koji je ispusni je nebitno. Obavezno je pridržavati se uputstava ugradnje koje je dao proizvođač VTO.
Obavezno u određenim vremenskim periodima proveravati funkciju VTO.
10
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Kao što je već rečeno jedan kraj VTO je za montažu na izmenjivač kotla, a do drugog
se dovodi hladna voda pod pritiskom. Naročito je bitno da protok te vode bude
neometan i pri nestanku el. energije.
Ukoliko je nemoguće obezbediti dotok hladne sanitarne vode i pri nestanku
el.energije, obavezno kotao priključiti na otvoren sistem.

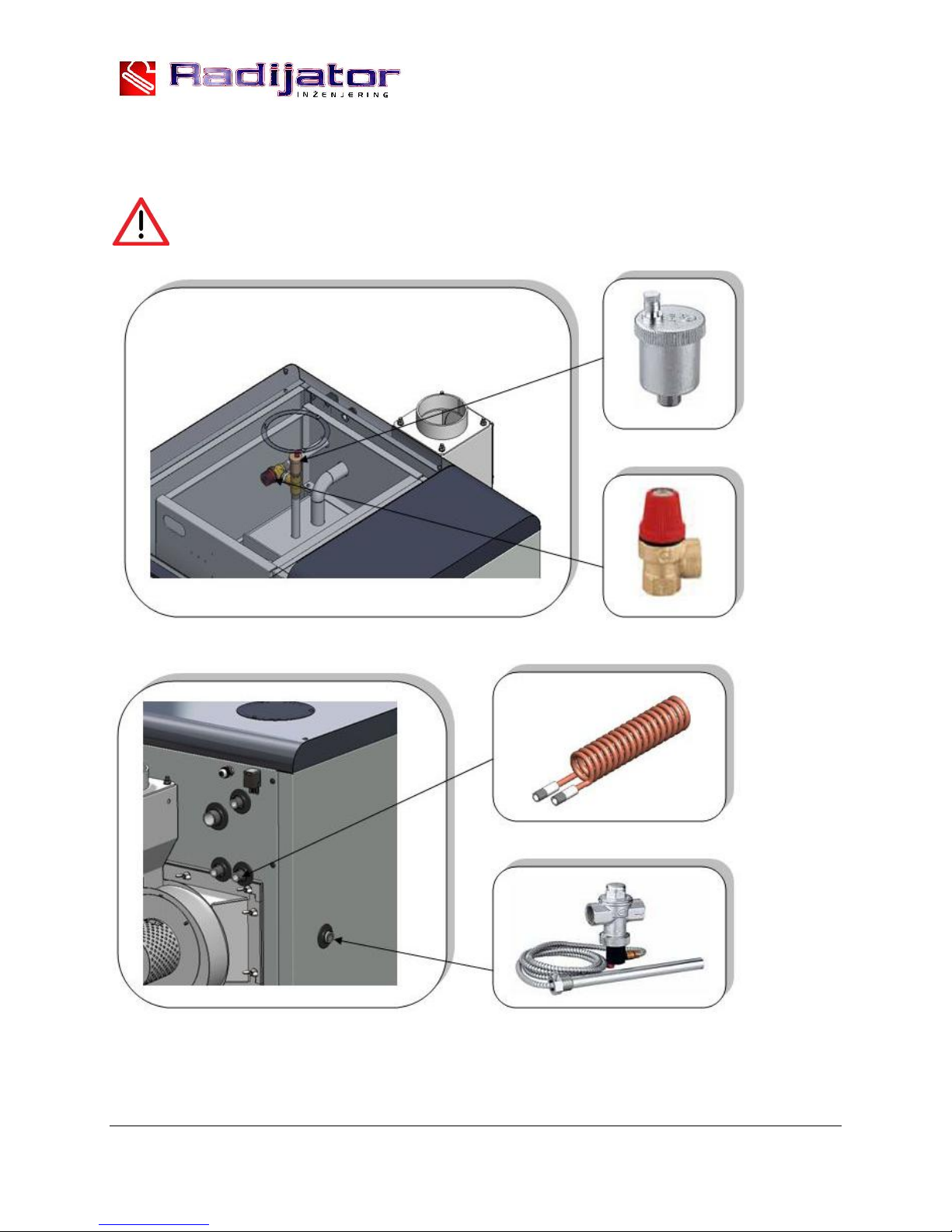

Fabrički postavljeni sigurnosni elementi
Prikaz postavljanja termičkog osiguranja (obavezan ako se radi o zatvorenom krugu grejanja)
Slika 6.Prikaz postavljanja sigurnosnih elemenata
11
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs

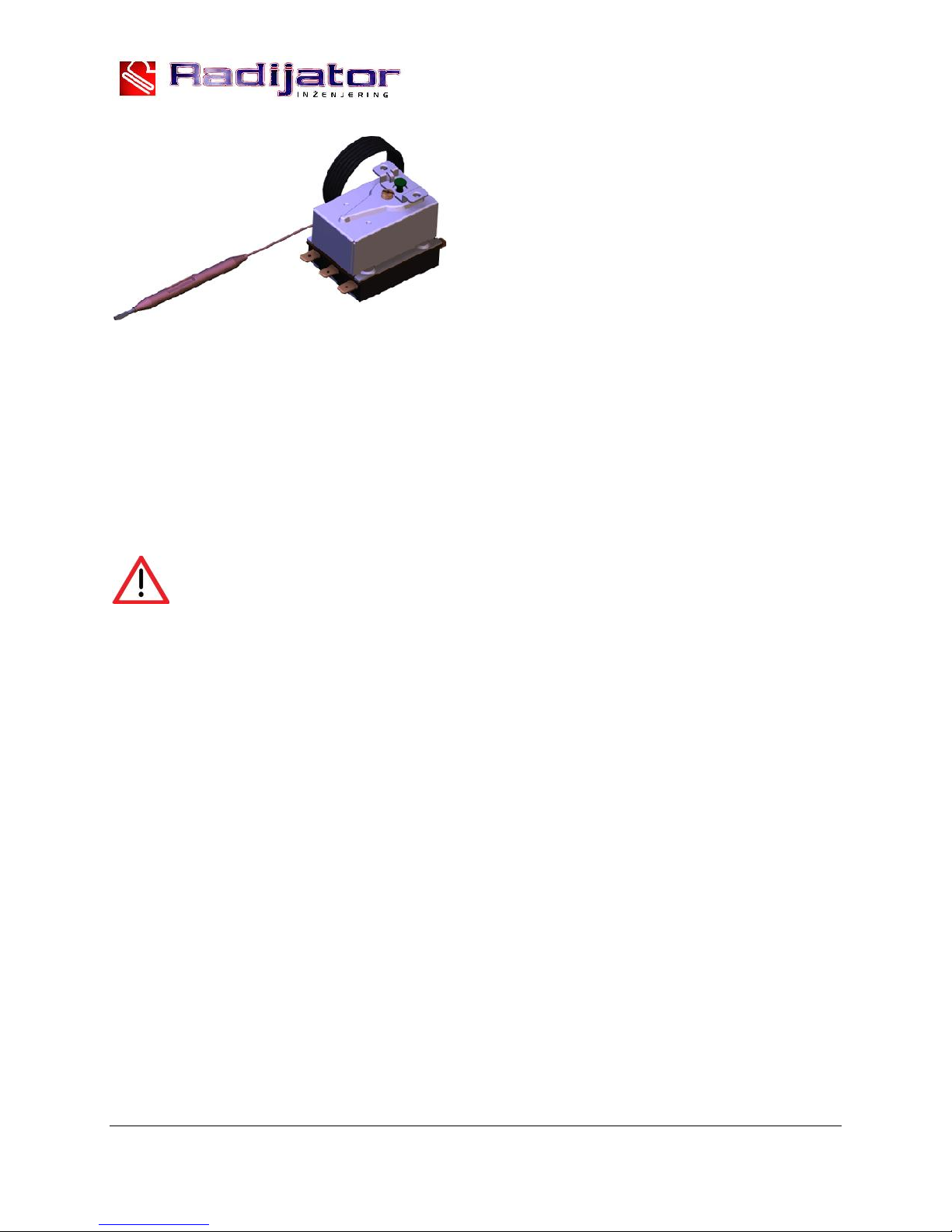

Termostati u automatici kotla
Slika 7.
U samoj automatici koja vodi proces sagorevanja i utiče na rad dva kruga grejanja postoje dva termostata.Oba su slične konstrukcije kao termostat prikazan na slici 7. i imaju i sigurnosne
funkcije kao limitatori temp. vode u kotlu.Zbog sigurnosne uloge u funkcionisanju kotla oba termostata imaju nezavisne sonde za merenje temperature vode.
Prvi termostat je tzv. radni i on služi da ograniči temperaturu do nivoa koji želi korisnik. Drugi termostat je sigurnosni jer prekida rad ventilatora koji pospešuje plamen,odnosno dodaje novu energiju.Sigurnosna temperatura je ograničena na 95 stepeni Celzijusa.
Pumpa za grejanje ima veoma važnu bezbednosnu funkciju i fabrički je povezana
sa elektro napajanjem preko automatike i iz sigurnosnih razloga.Kada temp. vode u kotlu
dostigne kritičnu vrednost od 95 stepeni Celzijusa ventilator staje sa radom, ali pumpa se obavezno uključuje kako bi razmenila toplotu vode kroz radijatore.
12
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
3.3 Kotlarnica
Kotlarnica mora biti obezbeđena od smrzavanja.
Podloga za kotao u kotlarnici mora biti od nezapaljivog materijala.Preporučene vrednosti
udaljenosti sve četri strane kotla u odnosu na zidove kotlarnice ili neka druga kruta tela (akumulacioni bojler, itd.)prikazane su na slici 8.Ove vrednosti udaljenosti omogućavaju siguran pristup prilikom loženja,dovoljan prostor za čišćenje i nesmetan pristup ventilatoru i ventilu za punjenje i pražnjenje. Kotao sa svoje leve strane treba da bude udaljen od zida 200mm tj.onoliko koliko je potrebno prostora za priključenje ventila za termičko osiguranje oticanjem. Ako se ventil ne ugrađuje onda prostor može da bude i manji. Prostor sa desne strane kotla, koji se preporučuje da bude barem 1000mm, bitan je iz razloga kako bi korisnik prišao zadnjem delu kotla.Takođe ovaj prostor je potreban i za eventualno vađenje mehanizma za pelet radi periodičnog održavanja.Prostor iza kotla bitan je zbog montaže na hidraulički sistem ali i zbog eventualne demontaže sistema za elektro potpalu. Kotlarnica mora da poseduje dovoljne
otvore za ventilaciju kako za svež vazduh tako i za odvođenje istrošenog vazduh.
Slika 8. Pozicioniranje kotla u kotlarnici
DIMENZIJE
Tip kotla
A (mm)
B (mm)
C (mm)
D (mm)
COMPACT20.1
200
1000
1000
800
Ukupna površina ovih otvora je minimalno 150cm² za snage do 50kW, a za snagu preko 50kW površina mora biti veća za jos 2cm² po kilovatu.
13
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
A=150cm²+
)50(
2
2
kWQ
kW
cm
n
n
Q
= moguće snage preko 50kW.
Nedostatak dovoljne ventilacije u kotlarnici može da uzrokuje više problema u radu kotla.Glavni problem je nemogućnost postizanja visoke temperature izlazne vode tj.ne postizanje maksimalne snage što dovodi do kondezovanja u kotlu.
Uzeti u obzir neophodan minimalni prostor koji je potreban za prilaz sigurnosnim
elementima i za izvršenje operacija čišćenja i redovnog remonta.
Utvrditi da li je stepen električne zaštite u skladu sa karakteristikama prostorije u kojoj ce
kotao biti smešten.
Zabranjeno je izlaganje kotla atmosferskim neprilikama.Sam kotao nije predviđen za
spoljnu montažu i ne sadrži sistem protiv smrzavanja.
Zabranjeno je zatvaranje ventilacionih otvora na prostoriji u kojoj se nalazi
kotao.Ventilacioni otvori su neophodni za pravilno sagorevanje.
14
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
3.4 Priključenje na dimnjak
Kotao COMPACT 20.1 radi sa prinudnom promajom i to jednog ventilatora, ali ipak treba
ispoštovati pravila za odabir dimnjaka kao da se radi o kotlu sa blagim potpritiskom u ložištu na neko drugo gorivo,kao na lož ulje na primer. Poprečni presek dimnjaka treba da bude 140mm (slika 9).U suprotnom može doći do problema u radu,naročito u fazi potpale i u režimu rada na čvrsto gorivo.
Preporuka je da prečnik dimnjaka bude barem jednak prečniku dimnjače kotla, a minimalna visina 7 do 8 metara, sve u zavisnosti od pokrivenosti dimnjaka nekim drugim visokim građevinama pored njega.Najoptimalnije postavljanje kotla na dimnjaču prikazano je skicom.
Mesto gde je fabrički postavljena sonda dimovodnih gasova
15
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Slika 9. Prikaz priključenja na dimnjak i prikaz položaja sonde na dimnjači
Treba izbegavati ako je moguće lukove,a ako nije onda je maksimalni broj lukova(1).Dimni kanal od kotla do dimnjaka poželjno je izolovati,posebno ako ima lukova i dužih deonica. U kućištu ventilatora izduvnih gasova fabrički je ugrađena sonda dimnih gasova.Pre puštanja u rad proveriti da li je posle transporta još uvek na svom mestu, jer bez pravilno postavljene sonde
nema ni rada kotla. Potrebna promaja dimnjaka je 20Pa.
Sam dimnjak treba da je napravljen od keramičkih cevi,oko njih treba da je izolacija debljine 3- 5cm i zadnji spoljni sloj je cigla ili specijalni dimnjački elementi.Ako dimnjak ipak nije od keramike već od cigle, površina svetlog preseka takvog dimnjaka mora da bude 30% veća nego ovakva površina keramičkog dimnjaka. Dimnjak mora da ima i vratanca za čišćenje i ona moraju dobro da dihtuju.Izlaz dimnjaka na krovu mora da bude po određenim propisima.Razlikuju se dva slučaja:ako je ugao krova manji
od 12 ْ◌ i ako je ugao krova veci od 12 ْ◌.Za ugao manji od 12 ْ◌ visine dimnjaka iznad krova je 1m, a za ugao veci od 12 ْ◌ treba pogledati skicu.Dimnjak treba redovno da se čist ili barem
jedanput godišnje.
16
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Ukoliko dimnjak nije propisne visine,poprečnog preseka ili ako se ne čisti
moguće su komplikacije u radu kotla.Pre svega nije moguć visokotemperaturni
rezim rada,tj.nema maksimalne radne snage,a posledice toga je pojava
kondezacije što utiče na radni vek kotla.
Slab dimnjak je glavni razlog da u toku potpale kotla ili u toku rada
imamo pojavu dima na gornjim ili donjim vratima,naročito pri većim brojevima obrtaja ventilatora.
17
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
4. Presek kotla COMPACT20 sa opisom elemenata
Slika 10. Presek sa opisom elemenata
18
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Opis (slika 10):
1. Izmenjivač kotla (telo kotla);
2. Donja vrata za čišćenje šolje za sagorevanje i donjeg dela izmenjivača kotla;
3. Gornja vrata za čišćenje gornjeg dela cevnog izmenjivača kotla;
4. Šolja za sagorevanje;
5. Elektro grejač;
6. Cev za dovod svežeg vazduha za sagorevanje;
7. Dozator;
8. Motor;
9. Cirkulaciona pumpa;
10. Ekspanzina posuda 10L;
11. Silos;
12. Fleksibilna veza;
13. Automatika;
14. Sigurnosni ventil;
15. Odzračni ventil;
16. Dimnjača.
19
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
5. Šema vezivanja automatike
Slika 11. Šema povezivanja automatike
20
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Sve linije koje su prikazane isprekidano na šemi spoljnih priključenja su provodnici koje je potrebno da instalira tehničko lice prilikom priključenja spoljnih uređaja na automatiku kotla. Sva priključenja dodatnih uređaja tehničko lice obavlja preko tropolnog konektora koji se nalazi
na zadnjem delu kotla. Tropolni konektor je za priključenje sobnog termostata što je prikazano na nalepnici samog konektora.
Sedmopolni konektor je za priključeni mrežni kabal, dok je preko drugog tropolnog konektora (pored sedmopolnog) priključena cirkulaciona pumpa.
Za sobne termostate bitno je da budu sa baterijskim napajanjem tj. da nemaju na sebi bilo kakav dovod napona 220 V.Na samom termostatu za povezivanje se koristi NC (normalno zatvoreni kontakt).
U slučaju oštećenja napojnog kabla, radi izbegavanja opasnosti, oštećeni napojni kabl mora zameniti proizvođač ili njegov ovlašćeni serviser ili neko kvalifikovano lice za to.
21
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
6. Tabela sa tehničkim podacima
22
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
D1- priključak za toplu vodu iz kotla,
D2- priključak za hladnu vodu iz kotla,
D3- priključak za punjenje i pražnjenje,
D4- priključak za sigurnosnu grupu,
D5- priključak ventil termickog osiguranja oticanjem,
D6- priključak za sondu ventila termickog osiguranja,
Napomena: Pumpa, ekspanziona posuda i sigurnosni ventil (D4) već su postavljeni na kotlu.
23
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
TIP KOTLA
COMPACT 20.1
CE oznaka
CE
Klasa kotla po EN 303-5:2012
5
Radni pritisak
bar
3
Probni pritisak
bar
4,5
Zapremina ložišta
L
43,3
Zapremina vode u kotlu
L
78
Težina
kg
382
Poprečni presek dimnjaka
mm
130
Potrebna promaja dimnjaka
mbar/Pa
0,16/16
Temperatura kotla (min / max)
°C
60-90
Minimalna temperatura povratnog voda
°C
60
Stepen iskorišćenja pri nominalnoj/minimalnoj toplotnoj snazi
%
90,24/92,13
Nominalna snaga
kW
22
Minimalna/ Maksimalna snaga kotla
kW
6,60/22
Emisija ugljen monoksida (Co) pri minimalnoj toplotnoj snazi (10%O2)
mg/m3
104
Emisija ugljen monoksida (Co) pri nominalnoj topl.snazi (10%O2)
mg/m3
136,19
Emisija prašine pri nominalnoj/minimalnoj toplotnoj snazi (10%O2)
mg/Nm3
16,05/17,97
Dimenzije
A
580
A1
870
B
785
B1
1170
C
1165
ØD
130
E
160
F
1170
G
90
H
1365
Priključak za toplu vodu iz kotla
D1
1"
Priključak za hladnu vodu kotla
D2
1"
Priključak za punjenje i pražnjenje
D3
1/2"
Priključak za sigurnosnu grupu
D4
1/2"
Priključak za ventil termičkog osiguranja oticanjem
D5
1/2"
Priključak za sondu ventila termičkog osiguranja
D6
1/2"
*zadržavamo pravo izmene
24
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
7. Hidraulička šema
Slika 12. Hidraulička šema
Opis (slika 12):
1. Kotao COMPACT20.1;
2. Priključak za povratnu hladnu vodu;
3. Priključak za potisnu toplu vodu;
4. Ventil termičkog osiguranja;
5. Sonda ventila termičkog osiguranja;
6. Cirkulaciona pumpa;
7. Ekspanzina posuda 10L;
8. Izmenjivač – radijator;
9. Ventil za punjenje i pražnjenje;
10. Ventil;
11. Mešni ventil.
25
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
NAPOMENA: U sklopu kotla COMPACT20.1 ulazi i pumpa i ekspanzivna posuda od 10l.
Prilikom montaže na hidrauličku instalaciju kotao mora biti obezbeđen na
propisan način od prekoračenja maksimalne radne temperature i pritiska.
Za propisnu montažu odgovoran je instalater centralnog grejanja koji
priključuje kotao na hidraulički sistem.
Radijator inženjering ,kao proizvođač kotla, ne preuzima nikakvu
odgovornost za štete prouzrokovane lošim instaliranjem kotla.
Kotao je prema fabričkim podešavanjima prilagođen hidro instalaciji kao na slici 12.1.
Slika 12.1.
Očigledno je da postoji samo jedno merno mesto S1, a ta sonda je već fabrički postavljena. Druga sonda koja je povezana na konektoru na zadnjoj strani kotla u ovom slučaju ostaje
neupotrebljena.
Pumpu P2 koja služi za sanitarnu vodu ne moramo da ugradimo. Parametar koji određuje
tip hidro instalacije u samoj automatici je P26 i za ovakvu hidro šemu je P26 podešen na 0.
Ukoliko želimo da koristimo automatiku da vodi proces i zagrevanja akumulatora preko odgovarajuće pumpe, onda hidraulička šema treba da je kao na slici 12.2 .Mesto merenja sonde temperature vode u akumulatoru je označeno sa S2.
Da bi automatika pravilno vodila rad te pumpe za hidrauličku vezu i sa akumulatorom onda je
potrebno parametar P26 podesiti na vrednost 4.
26
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Slika 12.2.
Ukoliko želimo da automatika vodi proces zagrevanja sanitarne vode i to preko odgovarajuće
pumpe, onda hidraulička šema treba da je kao na slici 12.3.
Da bi automatika pravilno vodila rad te pumpe za zagrevanje bojlera sanitarne vode onda je potrebno parametar P26 podesiti na vrednost 3.
Slika 12.3
27
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
8. Start rada kotla COMPACT20.1 i održavanje
Prvo puštanje kotla u rad obavlja tehničko lice koje ima sertifikat izdat od strane Radijator inženjeringa. Obavezna je obuka korisnika
kotla.
Na taj način to lice je ovlašćeno da prijavi servisnoj službi u samoj fabrici vreme kada je kotao počeo da radi i u kakvom je stanju kotao bio prilikom prvog paljenja, dok kopiju izveštaja o puštanju kotla u rad zadržava. Garancija i upustvo za upotrebu se daje kupcu. Jedan primerak garancije se šalje proizvođaču. Ako garancija nije ispunjena, ona nije važeća.
Samo kotlovi koji su pušteni u rad od strane ovlašćenog tehničkog lica podležu uslovima kompletne garancije od dve godine.
Naredni tekst je namenjen samom korisniku kotla,kao jedna vrsta podsetnika,da ako ugasi kotao (npr. zbog čišćenja) bude u stanju da samostalno pokrene kotao.
Parametri vezani za rad kotla, a koji su dostupni korisniku su na
samom displeju.Ostale parametre koji su u tzv. skrivenom meniju ne treba menjati bez saglasnosti tehničkog lica koje je pustilo kotao u rad ili same fabrike.
28
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
8.1 Displej automatike
Slika 13. Slika i šematski prikaz displeja automatike
29
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Tasteri:
Diode:
* Samo za vodovodne instalacije sa senzorom za merenje protoka
NAPOMENA: Diode L4, L5, L6, L7, L10 i L12 nisu u funkciji kod kotla COMPACT20.1.
30
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
8.2 Kratko uputstvo za korisnika automatike.
Slika 14. Prikaz LCD ekrana na displeju
Očitavanje trenutnog stanja kamina.
Postupak:
Pritisnuti taster P6 , nakon toga na ekranu se pojavljuju informacije (slika 15).
Slika 15. Prikaz stanja kamina na displeju
NAPOMENA:Kod kotla COMPACT20.1 ne pojavljuju se informacije obeležene
zvezdicom(*).
31
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Ulazak u MENI automatike i objašnjenje funkcija.
Postupak:
Pritisnuti taster P3 , nakon toga na ekranu se pojavljuje padajuća lista (slika 16).
Slika 16. Prikaz i objašnjenje MENI automatike
Promeniti podešenu snagu kamina.
Postupak:
Pritisnuti taster P3 , nakon toga na ekranu se pojavljuje padajuća lista, gde je i odmah markirana prva opcija Chombustion Power. Ponovo potvrditi tasterom P3
, nakon toga pojavljuje se prikaz na displeju (slika 17). Tasterima P4 ili P6
zadajete podešenu snagu i na kraju ponovo potvrdite tasterom P3 . Vratite
se na osnovni prikaz displeja (slika 16), pritiskom na taster P1 .
32
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Slika 17. Prikaz i objašnjenje dislpeja u opciji Chombustion Power
NAPOMENA: Kod kotla COMPACT20.1 maksimalna podešena snaga je 6.
Promeniti zadatu temperaturu vode u kaminu.
Postupak:
Pritisnuti taster P3 , nakon toga na ekranu se pojavljuje padajuća lista, gde je i
odmah markirana prva opcija Chombustion Power. Tasterima P4 ili P6 ,
dolazite do opcije Boiler Thermostat. Ponovo potvrditi tasterom P3 , zatim
tasterima P4 ili P6 zadajete temperaturu i na kraju ponovo potvrdite
tasterom P3 . Vratite se na osnovni prikaz displeja (slika 14), pritiskom na taster
P1 .
Promeniti tačno vreme i datum.
Postupak:
Pritisnuti taster P3 , nakon toga na ekranu se pojavljuje padajuća lista, gde je i
odmah markirana prva opcija Chombustion Power. Tasterima P4 ili P6 , dolazite do opcije Time and Date.
33
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Ponovo potvrditi tasterom P3 nakon čega se pojavljuje prikaz na displeju
podešavanje vremena i tačnog datuma gde preko tastera P4 ili P6
prelazite sa opcije na opciju, a preko tastera P3 potvrđujete komandu i menjate joj
vrednosti opet preko tastera P4 ili P6 . Kada se izabere željena vrednost
potvrđuje se tasterom P3 . Za izlazak i vraćanje korak unazad koristite taster
P1 .
Postaviti vremensko programiranje paljenja i gašenja kotla.
(ovu opciju koristite SAMO AKO STE PRETHODNO POSTAVILI TAČNO
VREME I DATUM)
Što se vremenskog programiranja tiče, u samoj opciji postoje dve podopcije, a to su:
Modality i opcija Program.
Modality opcija služi za odabir načina programiranja, dakle da li ćete programiranje
koristiti na dnevnom nivou,svaki dan posebno (Daily) (npr.Ponedeljak,Utorak,Sreda... Nedelja), na nedeljnom nivou (Weekly) (od Ponedeljka do Nedelje), i na vikend nivou (Week-end) (od Ponedeljka do Petka-posebno i od Subote do nedelje-posebno). Takođe,
možete totalno isključiti opciju Chrono (Disible).
Program opcija služi za programiranje gore navedenih opcija Daily,Weekly i Week­end, odn.podešavanje tačnog vremena startovanja i prekida rada kotla.
Postupak:
Najpre, treba odlučiti kako želite programirati vreme puštanje i gašenja, da li će to biti dnevna, nedeljna ili vikend opcija. Ukoliko se odlučite za jednu od navedenih odabir ćete uraditi na sledeći način.
Pritisnuti taster P3 , nakon toga na ekranu se pojavljuje padajuća lista, gde je i
odmah markirana prva opcija Chombustion Power. Tasterima P4 ili P6 ,
dolazite do opcije Chrono. Ponovo potvrditi tasterom P3 (pojavljuju se dve
34
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
opcije Modality i Program), zatim tasterima P4 ili P6 dolazite do željene
opcije Modality i potvrđujete je tasterom P3 . Nakon toga, u podmeniju nailazite na opcije Daily, Weekly, Week-end i Disable (prikazano na slici 18). Tasterima P4 ili
P6 odaberite jednu od njih i potvrdite tasterom P3 .
Slika 18. Prikaz displeja nakon odabira opcije MODALITY
Kada ste izabrali način programiranja, automatski se vraćate na prikaz displeja Modality
i Program. Tasterima P4 ili P6 prelazite na opciju Program i potvrđujete
tasterom P3 .
U ovoj opciji programirate tačno vreme paljenja i gašenja kotla koje ste prethodno odabrali u opciji Modality. Primeri programiranja prikazani su na slikama 19,20 i 21.
I dalje za prelazak koristite tastere P4 ili P6 , za potvrdu taster P3 ,
za potvrdu odabrane vrednosti potvrditi tasterom P5 , i za vraćanje korak unazad
taster P1 .
Slika 19. Prikaz displeja nakon odabira opcije Daily
35
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Slika 20. Prikaz displeja nakon odabira opcije Weekly
Slika 21. Prikaz displeja nakon odabira opcije Week-end
8.3 Start rada kotla COMPACT20.1
KORAK 1: Kotao COMPACT20.1 priključen na hidraulički sistem. KORAK 2: Sipati pelet u silos. KORAK 3: Uključiti kamin, prekidač se nalazi na prednjoj strani (sa leve strane u odnosu
na displej).
KORAK 4: Pokrenuti dozirni sistem kako bi prva zrna peleta upala u šolju za
sagorevanje. (Ovaj postupak može se primeniti samo dok je automatika u OFF režimu(slika 14 – stanje režima))
Postupak:
Pritisnuti taster P3 , zatim tasterima P4 ili P6 u podmeniju dolazite
do funkcije LOAD, potvrdite tasterom P3 , tasterom P4 ili P6 preći
sa OFF na ON, potvrditi sa tasterom P3 . Potvrdom na taster pokreće se dozer, sve
dok prva zrna peleta ne počnu da upadaju u šolju za sagorevanje. Nakon toga, takođe
tasterom P4 ili P6 prelazite sa ON na OFF, potvrditi sa tasterom
P3 . Dozator tada staje sa radom. Tasterom P1 izađite iz podmenija.
36
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Slika 22. Prikaz displeja prilikom odabira funkcije LOAD
KORAK 5: Startovati kotao COMPACT20.1.
Postupak:
Pritisnite taster P2 , zadržite 2-3 sekunde do zvučnog signala. Tada na displeju piše „Ignition” (slika 14-stanje sistema). Kotao je krenuo u rad.
U uslovima kada je pelet prema standardima i kada su ispunjeni svi ostali uslovi
dimnjaka i protoka vazduha, proces sagorevanje počinje za 7 do 10min.
Prilikom prve potpale treba očekivati nešto pojačanu pojavu dima i oštrih mirisa sve dok fabrički premazi protiv korozije ne završe sa finalnim sušenjem odn. dogorevanjem.
Isti postupak koristimo za gašenje kotla, dakle dužim pritiskom tastera P2 do zvučnog signala prelazimo u gašenje kotla.
37
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
NAPOMENA: Ovo su izmerene vrednosti tokom sertifikovanja.
Na automatiku može biti povezan sobni termostat. U ovom slučaju, važno je podesiti
temperaturu prostorije koja je glavni parametar za rad kotla i temperaturu vode u kotlu (70˚C). Kada je aktiviran rad sobnog termostata, kotao najpre ima zahtev za postizanjem
temperature sobe, stim da je ograničen zadatom temperaturom vode u njemu. Postoji mogućnost da kotao prestane sa radom pre zadate temperature sobnog termostata, u ovom slučaju treba podići zadatu temperaturu vode u kotlu npr.70˚C.
Upozorenje: Obavezno izvršiti analizu dimnih gasova nakon završetka instalacije kotla.
Izmeriti procenat kiseonika (O2).
38
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
8.4 Greške prilikom startovanja i u toku rada kotla COMPACT20.1.
Sve moguće greške u početnoj fazi rada tj. prilikom potpale mogu pa i u samom radu automatika prijavljuje na displeju. (slika 14-ALARM greška).
Oznake grešaka i objašnjenja prikazane su u sledećoj tabeli.
Er01
Greška - pažljivo visoki napon 1. Takodje i sa isključenim sistemom
Er02
Greška - pažljivo visoki napon 2. Samo ako je ventilator uključen
Er03
Greška - Gašenje kada je temperature dimovodnih gasova ispod predviđene.
Er04
Greška - Gašenje kada je temperature vode iznad zadate.
Er05
Greška - Gašenje kada je temperature dimovodnih gasova preko predviđene.
Er07
Greška - kodera.Ova greška se javlja zbog nedostatka signala kodera
Er08
Greška - kodera. Ova greška se javlja u slučaju prilagodjavanja problema na brojaču
Er09
Greška - Slab pritisak vode
Er10
Greška - Visok pritisak vode
Er11
Greška - pravog vremena na satu
Er12
Greška - Gašenjene nije uspelo zbog potpale
Er15
Greška - Nedostatak napona
Er17
Greška - na regulatoru protoka vazduha
Er18
Greška - Nedostatak peleta
Er39
Greška - Pokvaren senzor regulatora protoka vazduha
Er41
Greška – Nije postignut minimalni protok vazduha
Er42
Greška - Maksimalni protok vazduha iznad predviđenog.
Svi mogući problemi i zastoji u radu ovog uređaja mogu se podeliti u dve velike grupe.
Grupa I. Zastoj u radu prilikom prve potpale i to prve potpale uopšte posle kupovine
kotla ili prvog kretanja u rad u toku dana.
Grupa II. Zastoj koji se javlja kad je kotao već bio u radnom procesu, na displeju je
postojalo obaveštenje (Run Mode), ali posle dostizanja zadate temperature i mirovanja
gubi kontinuitet sagorevanja.
Grupa I
Najčešća signalizacija na displeju vezana za ovu vrstu grešaka je Er12.
Prilikom prve potpale po ugradnji kotla na hidro instalaciju treba slediti uputstva iz odeljka "Start rada kotla COMPACT20".
Naročito obratiti pažnju na dimovod (prečnik, broj lukova, dihtovanje, …), kao i na dimnjak (prečnik, visina, izolovanost, dihtovanje revizionih otvora, zaprljanost dimnjaka, itd.).
39
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Ako posle prvog pokušaja paljenja nema značajne pojave plamena i ozbiljnijeg porasta temperature dimnih gasova, na displeju se javlja signal da je grejač potpale aktiviran, a ipak kotao ide u fazu gašenja (Extingushing). U ovom slučaju treba proveriti sledeće uzroke:
Moguć uzrok 1.
PROBLEM 1. Loš kvalitet peleta. Pelet male snage, povećane vlažnosti.Postupak za rešavanje PROBLEMA 1. Uzeti pelet proverenog kvaliteta i probati.
Moguć uzrok 2.
PROBLEM 2. Temperatura vazduha (koji je doveden kotlu za sagorevanje i potpalu) je
izuzetno niska (ispod nule).
Postupak za rešavanje PROBLEMA 2. Podizanje vremena predgrevanja grejača za
potpalu, t02, na vrednost 300 – 400 sekundi.
Moguć uzrok 3.
PROBLEM 3. Mrežni napon na koji je priključen kotao je znatno manji od 220-230V,
tako da je i snaga grejača manja.
Postupak za rešavanje PROBLEMA 3. Podizanje vremena predgrevanja grejača za
potpalu, t02, na vrednost 300 – 400 sekundi. Ako ova mera ne daje rezultate onda
priključiti mrežni ispravljač napona.
Moguć uzrok 4.
PROBLEM 4. Količina peleta u komori za sagorevanje je nedovoljna za kretanje kotla u
rad.
Postupak za rešavanje PROBLEMA 4. Mogući su mehanički problemi sa pelet
transporterom. Proveriti ispravnost dozatora.
Moguć uzrok 5.
PROBLEM 5. Postoje situacije u kojima dođe do plamena, ali proverom dimnih gasova
jasno se vidi da nema dovoljno peleta da kotao pređe iz faze stabilizacije (Stabilization) u radni režim (Run mode). Do ovakve pojave dolazi jer je struktura peleta (dužina, lepljivost, količina prašine, itd.) takva da vreme fiksnog nalaganja t03 nije dovoljno.
Postupak za rešavanje PROBLEMA 5. Ovaj problem se otklanja produžavanjem
vremena fiksnog nalaganja, t03. Preporuka da se ovo vreme produžava oprezno,prvo za desetak, petnaest sekundi, pa ako i to nije dovoljno onda za još pet itd. Posle toga
rešavanje problema kombinovati sa postupkom iz sledeće tačke.
40
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Moguć uzrok 6.
PROBLEM 6. Posle faze fiksnog nalaganja (t03) dođe do uspostavljanja plamena, ali u
ovoj fazi t04, za vreme trajanja ovog perioda nije moguće preći u stabilizaciju (Stabililation), pa plamen postaje sve slabiji tako da dođe do pada temperature dimnih gasova i gašenja (Extinguishing). Do ovog problema dolazi zbog različitog kvaliteta peleta.
Postupak za rešavanje PROBLEMA 6. Smanjiti vreme t04. Preporuka je da to radite
oprezno. Moguće je ovaj postupak kombinovati sa rešenjem iz prethodne tačke.
Moguć uzrok 7.
PROBLEM 7. Kotao je povezan sa sobnim termostatom. Povećanjem zadate temperature
na sobnom termostatu ne dolazi do kretanja kotla u fazu potpale (Ignition) i ne dolazi do
aktiviranja grejača za potpalu.
Postupak za rešavanje PROBLEMA 7. Proveriti da li je temperatura u sobi zaista manja
od zadate. Takođe proveriti vremensko programiranje sobnog termostata i na kraju
proveriti ispravnost sobnog termostata.
Grupa II
Najčešća signalizacija na displeju vezana za ovu vrstu grešaka je Er03.
Moguć uzrok 1.
PROBLEM 1. Kotao je potpalio, bio u radnom režimu (Run mode), ali je došlo do
zastoja kad je stao pa ponovo dobio zahtev za radom ili od kotlovskog termostata ili sobnog termostata. Komora za sagorevanje je u takvim situacijama puna nesagorelog peleta.
Postupak za rešavanje PROBLEMA 1. Proveriti vrednosti parametara A26,Th28 i Th06.
Možda je došlo do menjanja njihovih vrednosti slučajno. Parametar A26 treba da bude 1, parametar Th06 od 60 do 65, dok parameter Th 28 u svakom slučaju barem za dva stepena manji od Th06. U ovakvim slučajevima treba promeniti parametre, isprazniti komoru (šolju za sagorevanje) i startovati ponovo kotao.
Moguć uzrok 2.
PROBLEM 2. Kotao je potpalio, ušao u radni režim (Run mode), ali vremenom dolazi
do sve većeg nagomilavanja peleta po dnu komore za sagorevanje.Vremenom nesagoreli
pelet popunjava komoru za sagorevanje i dolazi do smanjenja plamena i odlaska kotla u gašenje (Extingushing).
41
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Postupak za rešavanje PROBLEMA 2. Povećati snagu ventilatora.Najbolje je povećati
snage ventilatora u svim režimima i to preko funkcije kalibracije (Calibration- Exhaust
fan).
Moguć uzrok 3.
PROBLEM 3. Kotao radi,ali u toku rada dolazi do zastoja i signalizacije na displeju
Modulation, a zatim i sigurnosnog gašenja (Extingishing). Na kraju displej signalizira grešku Er05.
Postupak za rešavanje PROBLEMA 3. Do ovoga dolazi jer su dimni gasovi prevelikih
temperatura. Najčešći razlozi su zaprljanost kotla, prejak dimnjak, prejaki ventilatori u radnom režimu, preveliko nalaganje peleta, karakteristike peleta, itd. Zastoj je moguće otkloniti prilagođavanjem nekog od parametara ili povećanjem parametara za odlazak kotla u modulaciju i sigurnosno gašenje zbog dimnih gasova, a to su parametri
Th07,Th08.
42
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
8.5 Održavanje i čišćenje kotla COMPACT20.1.
Kotao COMPACT20.1 zahteva svakodnevno i periodično čišćenje.
Svakodnevno čišćenje se odnosi i na prostor samog ložišta odn. šolje za sagorevanje
gde stalnim izbacivanjem pepela omogućavamo bolji rad elektro grejača za potpalu i bolje sagorevanje tj.veću količinu vazduha kroz proreze na šolji. Takođe pepeo već u toku dana počinje da se taloži na podu,prostoru oko samog ložišta. Pri prosečnim
parametrima sagorevanja 100kg peleta proizvede 1kg pepela.
Na svakih 3 do 4 dana potrebno je očistiti samu šolju za sagorevanje (slika 23).
Takođe potrebno je očistiti naslage na zidovima samog ložišta. Ovim dobijamo bolji stepen prenosa jer jedan milimetar naslaga katrana i čađi smanjuje provodnost za 5%.
Jednom u dve nedelje potrebno je otvoriti i gornji poklopac za čišćenje,izvaditi
turbulatore i sa celog tada dostupnog dela kotla skinuti katran i čađ (slika 23). Sve što se tada skine pokupi se kroz samo ložište. Takođe u tom periodu treba skinuti i dimnjaču sa zadnje strane kotla sa koje treba očistiti pepeo i garež (NAPOMENA:
Obratiti pažnju na sondu dimovodnih gasova prilikom skidanja dimnjače).
Ukoliko se u kotlu,tokom korišćenja javi kondenzacija,potrebno je pokupiti kondenz, a ceo kotao iznutra premazati baznim sredstvima za čišćenje ili barem vodenim rastvorom građevinskog
kreča. Na taj način se vrši neutralizacija kiselina usled kondenzacije.
Pri održavanju i servisiranju kotla, kotao isključiti sa napajanja.
Slika 23. Prikaz elemenata koji se rasklapaju prilikom čišćenja
43
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Na ovaj način obavezno konzervirati kotao na kraju grejne sezone. U toj
situaciji zatvoriti i sve otvore na kotlu da ne dodje do cirkulacije vazduha kroz
kotao jer i tako može doći do pojave vlage u kotlu.
Održavanje kotla je jedan od najbitnih faktora za duži radni vek kotla. Naročito je bitno da u vansezoni kotao bude očišćen i da se izvrši neutralizacija kiselina na već opisan način.
44
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
8.6 Natpisna pločica
Natpisna pločica je nalepljena na dobro vidljivo mesto na kotlu i sadrži sledeće (videti slik u u tački NALEPNICE):
1.Tehnički podaci sa nalepnice:
Proizvođač (Radijator inženjering) Serijski broj kotla (primer: N°:160515031) Godina proizvodnje (primer: 2015) Tip kotla (COMPACT20) Nazivna toplotna snaga kotla (22kW) Područije upotrebe toplotne snage (6,60 – 22 kW) Potrebna promaja dimnjaka (20Pa) Električni napon (230V) Frekvencija (50Hz) Jačina struje (3,4A) Nazivna el. snaga (590W) Maksimalna dodatna el. snaga (200W) Ukupna el.snaga (790W) Masa kotla (382kg) Količina vode u kotlu (78L) Peta klasa kotla po EN 303-5(5) Gorivo (C1) Maksimalni pritisak (3bar) Maksimalna temperatura (90˚C)
2. Nalepnica uvoznika
3. OEEO
4. Ostale oznake na kotlu
45
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
8.7 Izjave
46
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
8.8 Nalepnica
Na kotlu COMPACT20.1 nalaze se nalepnice za označavanje priključaka kao i nalepnice za opasnost od strujnog udara, nalepnice za šemu povezivanja i dr.
Nalepnice koje označavaju priključke za povezivanje instalacije:
1. Nalepnica (Potisni vod) 32mm x 74mm
2. Nalepnica (Povratni vod) 32mm x 74mm
3. Nalepnica (Šema povezivanja) 148mm x 210mm
47
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs

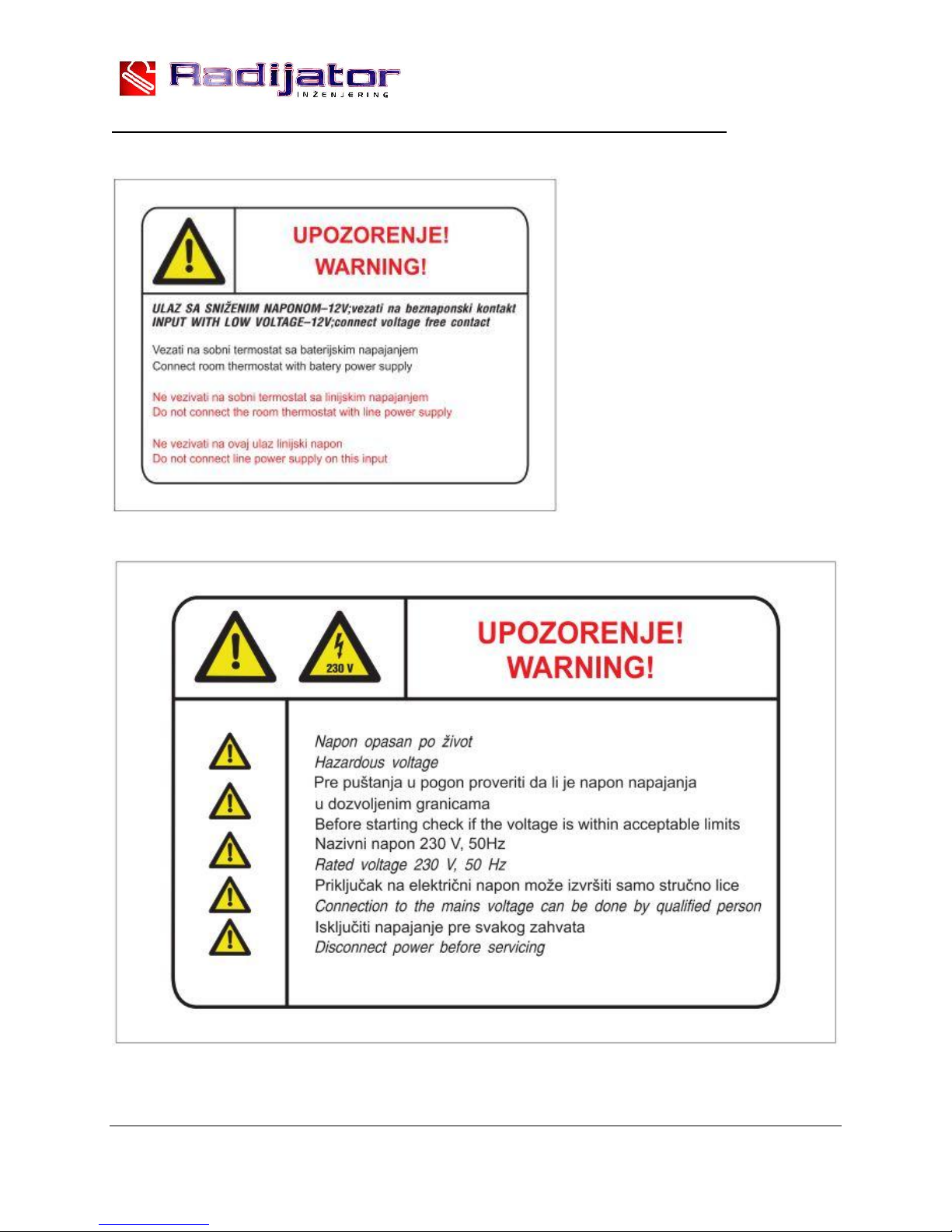

Nalepnice koje označavaju prisistvo struje,visokog napona i opasnosti:
1. Nalepnica (Ulaz za sniženim naponom 12V) 60mm x 80mm
2. Nalepnica (Napon opasan po život - VEĆA) 100mm x 150mm
48
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
3. Nalepnica (Uzemljenje) 20mm x 30mm
4. Nalepnica (Prisustvo napona)
Nalepnice koje označavaju upozorenje:
1. Nalepnica (Izloženi pokretni delovi mogu izazvati povrede) 30mm x 80mm
2. Nalepnica (Obavezno poštanje u rad od strane ovlašćenog servisa) 65mm x 247mm
49
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
3. Nalepnica (Pažnja)
4. Nalepnica (Otpad)
50
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Nalepnice sa tehničkim podacima:
51
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
8.9 Proizvođač
RADIJATOR D.O.O.
Živojina Lazića Solunca br.6
36000 Kraljevo, Srbija
52
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
9. Garancija
1. Radijator inženjering pokriva različite garancijske periode za različite delove (što je
navedeno u daljem tekstu) samo ako su ispunjeni sledeći uslovi garancije:
1.1. Kotao mora biti priključen po navedenim hidrauličkim šemama iz tehničkog
uputstva,naročito obratiti pažnju na montažu kotla na dimnjak i njegovo pozicioniranje.
(videti tačku 3.)
1.2. Kotao mora biti priključen na dimnjak propisanog poprečnog preseka,karakteristika
izolacije i visine. (videti tačku 3.4)
1.3. Dimovod od kotla do dimnjaka mora mora biti izveden po tehničkom uputstvu.
1.4. Kod kotla moraju biti izvršena i navedena elektro priključenja iz tehničkog uputstva,
naročito se misli na karakteristike sobnog termostata,karakteristike mrežnog napona koji mora biti u određenim granicama.
1.5. Korisnik mora da se pridržava navedenih uputstava o korišćenju i održavanju.
(videti tačku 8.)
2. Garancijska izjava
Izjavljujemo:
da proizvod ima propisana i deklarisana kvalitetna svojstva.
Obavezujemo se, da ćemo na zahtev kupca ako pravovremeno u garancijskom roku
podnese zahtev za popravku, o svakom trošku izvršiti sve popravke kvarova, tako da će proizvod raditi u skladu sa deklarisanim svojstvima,
da će proizvod u garancijskom roku raditi besprekorno ako se budu poštovala uputstva za
upotrebu, rad i montažu,
da ćemo u garancijskom roku biti spremni da otklonimo sve kvarove na proizvodu i
držati na zalihama sve potrebne rezervne delove,
garancijski rok počinje od DANA KUPOVINE I TRAJE 60 MESECI ILI
72MESECA OD DATUMA PROIZVODNJE (datum proizvodnje nalazi se na nalepnici sa zadnje strane kotla),
GARANCIJA OD 60 MESECI VAŽI SAMO AKO SE KOTAO REDOVNO
SERVISIRA OD STRANE CENTRALNOG SERIVISA RADIJATOR
INŽINJERINGA u periodu naznačenom za isti (dalje u tekstu),
garancija važi ako je garantni list overen od strane prodavca i ako je upisan datum
kupovine i priložen račun. TAKOĐE BITNO JE IMATI I NALOG ZA PUŠTANJE U RAD. (overen od strane ovlašćenog servisa).
53
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
3. Garancijski period od dve godine važi za sledeće delove:
za ležajeve, elektro grejača za potpalu, ventilator, automatiku kotla sa sigurnosnim termostatom i ostalim elektro delovima, sondu dimovodnih gasova, sondu temperature kotlovske vode, motor reduktor, pužne spirale, šolja za sagorevanje od INOX-a, pepeljare, turbulatore, elektro konektore, izolacijske materijale na vratima i otvorima za čišćenje.
4. Garancijski rok ne važi:
ukoliko se posle svake grejne sezone ne odradi redovan servis, za zamenu delova kod redovnog godišnjeg održavanja u skladu sa uputstvima, kod kvarova koje je načinio kupac zbog nestručnog rukovanja proizvodom, kod mehaničkih kvarova načinjenih prilikom transporta i prilikom korišćenja(čvrsti
predmeti),
ako je proizvod instaliran nestručno, suprotno važećim propisima iz tog područja, ukoliko se utvrdi da hidraulička šema nije urađena po preporukama firme „Radijator
inžinjering”,
ako je kupac koristio proizvod iznad deklarisanih svojstava i u normalnim okolnostima.
5. Garancijski rok prestaje da važi:
ako se ustanovi da je kvarove otklanjala neovlašćena osoba ili neovlašćeni servis, ako kod popravke nisu bili upotrebljeni i ugrađeni originalni delovi, ukoliko se na redovnom servisu bude utvrdilo da izmenjivački deo kotla nije redovno
održavan odn.čišćen,
kad ističe garancijski rok.
6. Kod prijave kvarova obavezno je dati sledeće podatke:
naziv i tip proizvoda, datum kupovine, fabrički ili radionički broj kotla, kratak opis kvara, odnosno nedostatka,
54
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
tačnu adresu i kontakt telefon, mejl.
7. Redovan godišnji servis
Redovan servis se odrađuje na kraju svake grejne sezone u period od 15.4. do 31.8. i naplaćuje se utvrđenim cenovnikom firme “Radijator Inženjering”. Servisni postupak tehhničkih lica koja obavljaju redovne godišnje servise, a koja su od strane proizvođača ovlašćena za to,obuhvataju sledeće operacije:
NAPOMENA: Serviser je dužan da pregleda sve navedene delove (sa liste) dozatora i izmenjivača, i ukoliko dođe do zamene bilo kojih delova na iste korisnik dobija gore navedenu garanciju kao i garanciju na još 12 meseci na telo kotla (izmenjivač). Garancija se može produžiti do 5 god. od datuma puštanja u rad. Servis i produženje servisa može da obavlja lice koje šalje centralni servis “Radijator inženjering”-a. Na nezamenjene delove posle odrađenog servisa garancija ne važi.
Demontaža pelet transportera, provera ispravnosti istog i provera ispravnosti ležaja i
podmazivanje;
Ležaj ne sme da ima otežano okretanje. U suprotnom ležaj se menja.Ukoliko se utvrdi da
je do oštećenja ležaja došlo zbog upadanja čvrstog predmeta u pelet transporter (zbog greške korisnika ili proizvođača peleta),Radijator inženjering naplaćuje vrednost ležaja.
Demontaža šolje za sagorevanje od ložišta i čišćenje prostora ložišta ispod šolje. Provera
stanja šolje;
Izvaditi sondu dimnih gasova i očistiti je od naslaga; Provera ventilatora; Provera dihtovanja vrata; Provera održavanja kotlovskog izmenjivača; Čišćenje cevnih izmenjivača; Skidanje dimnjače i čišćenje zadnjeg dela izmenjivača; Skidanje i čišćenje turbulatora i provera stanja istih; Provera stanja sigurnosnih elemenata (sigunosnog ventila i ventila za odzraku).
55
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Contents:
1. Important warning;
1.1 Minimum distance from flammable materials;
2. Description of the boiler COMPACT20.1;
3. Assembly;
3.1 General warnings;
3.2 Measures and safety devices for boiler COMPACT20.1;
3.3 Boiler room;
3.4 Instalation of boiler COMPACT20.1 onto chimney;
4. Cross-section of boiler COMACT20.1 discription of boiler heatinh stove elements;
5. Schematic connection of automation;
6. Table of technical data;
7. Hydraulic scheme;
8. COMPACT20.1 operation and maintenance;
8.1 Control panel;
8.2 Short manual for automatic control;
8.3 Start of work of boiler COMPACT20.1;
8.4 Mistakes during ignition and start of boiler COMPACT20.1;
8.5 Maintenance of boiler COMPACT20.1;
8.6 Nameplate;
8.7 Declaration;
8.8 Sticker;
8.9 Manufactured;
9. Warranty.
56
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
1. Important warnings
GENERAL WARNINGS
After the removing of the package check for the completeness of the delivery, in the case
of defects, please contact the dealer who sold the boiler.
The boiler must be used solely for the purpose envisaged by the manufacturer. Any
liability of the manufacturer is excluded for damages to persons, animals or things, in case of errors during installation, regulation, maintenance or improper use.
In case of leakage of water the device should be switched from the mains supply, close
the water supply and inform the authorized service and authorized installers.
This manual is an integral part of the device and must be kept with care and must always
follow the device even in case of change of owner or user, or in case of connection to another installation. In case of damage or failure look for a new copy of an authorized dealer.
IMPORTANT WARNINGS
We emphasize that the use of the device working on bio-mass and solid fuel, having contact with electricity and water, demands respect and security measures such as:
The use of the boiler by the children and people with limited capabilities without
accompaniment is not allowed.
It is forbidden to use boiler installations operating at temperatures higher then 110 ˚ C,
and pressure greater than 3 bar.
It is not allowed to use easily inflammable fuels (alcohol, oil). It is forbidden to store easily flammable materials near the boiler and close the door for
firing. The ashes must be disposed off in closed and non-flammable containers.
It is prohibited to incinerate waste materials which cause combustion flame or explosion
hazard ( eg. plastic bags, sawdust, coal dust, mud, etc.).
It is prohibited to any person or technical intervention or cleaning the boiler before it is
switched off the main power supply switch, the setting on the device (0) "off".
It is prohibited to change the safety elements. It is forbidden to close the vents in the room where the boiler is located. Air vents are
needed for proper combustion.
No exposure to atmospheric turbulents. The boiler is not designed for outdoor use and
contains no anti-freeze system.
It is forbidden to turn off the boiler when the outside temperature can drop below zero (to
prevent freezing).
It is forbidden to put fingers or other objects through the openings in the outer parts of the
shell of the unit. Inside the shell there are electrical components and wires under voltage and devices that are mechanically driven (engine gearbox and fan). Contact with them may result in electric shock and mechanical injuries.
In the case of intervention on any electrical device of boiler, switch off all the electrical
wiring and so it is removed from the mains socket.
57
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Work with of boiler unit is forbidden for people with special needs (including children) to
physical and mental health, except under the supervision of a guardian, and the people who are responsible for their behavior.
Children must be supervised by a guardian as they do not play with the appliance boiler. If the damaged power protection, must be replaced in the factory and serviced by an
authorized dealer or qualified people to avoid the risk of electric shock.
1.1 Minimum distance from flammable materials
Provide adequate distance from flammable materials, if necessary to ensure the protection
of the same.
Minimum distance from flammable materials is required by law - please inquire of
professionals who deal with heating and Emission effluents.
The minimum distance of the boiler and flue pipe gas from the low and averagely
combustible materials should be at least 100mm.
Minimum distance from flammable
materials is 200mm, and the same goes for materials whose flammability is not known.
Risk of fire!
Storage of flammable materials and
liquids in the vicinity of the boiler is prohibited.
Be sure to warn users about the
required minimum distance of combustible material from the boiler.
Combustibility of Construction materials
A ... Noncombu-stible
asbestos, stone, building stone, ceramic wall tiles. terracotta, plaster, screed (without organic additives )
B...
Non easily flammable
Gypsum cardboard slab, glass fiber slab of ACUMINE, ISOMINE, ROYALITE, LIGNOS, VELOX, HERACLITE
C1..
Low combustible
beech and oak wood, composite wood, file, slab of HOBREX, Versalite, umakart
C2 ...
Averagely combustible
wood of pine, yew and pine, composite materials
C3... Easily combustible
Asphalt, paperboard, cellulose materials, chipboard, cork, polyurethane, polystyrene, polypropylene, polyethylene fiber floor
58
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
2.Description of boiler COMPACT20.1
COMPACT 20.1 is designed for burning wood pellets. Wood pellets are produced from 100 % cellulose. Wood residues under high pressure are compressed into pellets of 6 mm in diameter and in length of 2- 3cm. Pellets should be stored correctly in a dry place to ensure efficient combustion. Boilers COMPACT20.1 use pellet of 6mm diameter, of 5 -30mm length and humidity up to 10 % manufactured in accordance with EN 14962-2. If the pellet is not specified by the standard or during storage or transport there is the deterioration of its quality, company
RADIJATOR IN ENJERING” as the manufacturer can not take the responsibility for the poor
performance. In such situations, errors occur in the ignition, pellet accumulation and falling out from the combustion space, insufficient power etc.
COMPACT20.1 is installed in the boiler room, but it has an advantage in the situations where more compacted dimensions are needed. Total width is 870 mm, and by easy disassembly it can be transformed into two parts, the boiler part of 580 mm width and the silo part of 290 mm.
It is mounted on the classical minimum diameter chimney of 140 mm. The chimney must meet all other standards as used in traditional boilers, which is more discussed in the Installation Chapter.
Nominal power of COMPACT20.1 according to EN303 -5 is 22,5 kW.
Within the boiler the corresponding circulation pump and expansion vessel of 10 liters are installed. The boiler is supplied with a mechanical safety and relief valves.
The boiler has a heat exchanger for installation of valves for thermal swelling security.
Burning of pellets is performed on the principle of filling the combustion chamber. The whole process is carried out by automation system that allows selection of one of five levels of power. It is possible to connect the room thermostat and program the periods of start of work and standby cycles for 7 days.
59
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Figure 1. Cross-section of the body of the boiler
CONSTRUCTION
Boiler heat exchanger is the tube three draft heat exchanger and it is constructed in the materials which, according to thickness and quality of the materials, conform to the Standard EN303 - 5. Only by the dimensions factory Compact unit is adjusted to manipulation in small spaces. It is very important that, if necessary, the boiler unit can be disassembled on the site into separate assemblies of the boiler heat exchanger, silo and the pellet conveyor. At that time the circulation pump must be removed as well as the expansion vessel.
Pellet conveyor consists of a screw shaft made of stainless steel and the drive gear motor of high torque of 50Nm and very low installed power of 40W.
Silo has the capacity of 50 kg of pellet. Combustion chamber is made of fireproof material. Cross section of the boiler and the aforementioned parts can be seen in figure 1.
60
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
3. Assembly
3.1 General warnings
The boiler must be set correctly for proper operation!
The boiler is supplied with an external coating containing insulation, 30mm thick. The position of the silo and the mechanism for transport of pellets is, by default, always on the right side in regard to the boiler, and it is impossible to change it onto the left. Electrical connections easy switsh ON easy OFF, and reassembly is not necessary personnel specialized electrical field.
Maximum operating pressure of the boiler is 3 bar, 1 bar the minimum and
maximum operating temperature of the boiler is 110 C.
Boiler with one fan, automation, electric ignition and pump and all of these devices use 230V power, so that incorrect installation and careless handling may endanger human life electrocution.
Solid fuel boiler and forced draft should be installed according to valid standards and legal regulations. Any mechanical or electrical change in the design or installation shall be deemed a violation of guarantee conditions and will lead to its distortion.
In an assembly the boiler should be properly protected against the excessive overpressure and overheating.
When installing the hydraulic installation of the boiler must be provided in a prescribed way of overdraft maximum operating temperature and pressure.
For the proper installation the plumber/installer is responsible.
The manufacturer (Radijator inzenjering) does not take any responsibility coming from the incorrect installation of the boiler.
When any intervention on the electrical devices Compact 20.1, the whole system off the main power supply.
The basic requirements to be complied with during the installation:
- The boiler can be connected to an open system of central heating, but also to a closed system of central heating. In case of connection to a closed system, it is recommended to
61
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
install the valve for thermal insurance, which is determined by the respective laws of each state in which the boiler is connected.
- The boiler must be located at a safe distance from combustible materials. The boiler must be far enough from possible obstacles in the boiler room for cleaning and maintenance.See figure 8.
- Electric power for the boiler is 230V 50Hz and connection of all devicesthat the boiler has should be done according to valid regulations and connection is done by a person with proper authority.
- Connection to the chimney also done according to the binding regulations and manufacturer's recommendations as can be seen below.
3.2 Measures and safety devices for boilers COMPACT20.1;
For safe operation of boiler it is necessary to assemble and maintain the following elements in working condition:
Pressure safety valve, air vent and gauge vent;The valve of thermal safety by swelling;Thermostats in the automation of the boiler COMPACT20.1.
Pressure safety valve (figure 2), air vent (figure 3) and gauge vent (figure 4):
Figure 2. Pressure safety valve Figure 3. Air vent Figure 4. Gauge vent
Pressure safety valve (Figure 2) factory is maunted on boiler COMPACT20.1 and must
be of nominal diameter of 1/2 inch calibrated to a maximum of 3 bars. This security element which belongs to the group of pressure limiters must be of such construction to withstand short-term overdrafts and temperatures and pressure as well as the content in the liquid glycol for heating. This safety element must be subjected to periodic re-calibration , of which the investor, i.e. the user of the boiler must have valid documentation.
Recommend and install a pressure gauge (Figure 4) the hydraulic installation. Safety valve must be mounted on the highest point directly to the boiler and the boiler
without any pipeline or any other elements in between. For this purpose there is a specially designed connector (see picture). Any reduction in the diameter of the connector during servicing and assembly of a new safety valve is strictly forbidden.
62
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Drain or exhaust of the safety valves must be of pipes with a diameter at least equal to the
nominal diameter of the outlet part of the valve. You are allowed to use up its production of an arc of radius r> 3d.
The safety valve must have a nameplate and the following information on it:
- Name of manufacture;
- Designation of type of safety valve / year of testing;
- Nominal flow rate;
- Data for which thermal effect the safety valve is set;
- The highest opening pressure 3 bars.
It is obligatory to check the correct functioning at regular intervals as well as the re-
calibration by certified companies. These responsibilities are carried out in accordance with the law of every country in which the boiler is assembled. Always keep the written documentation of the last calibration data for the safety valve.
On the return line assemble at least another pressure safety valve. Along with the pressure safety valve, the same security group includes vent valve
(Figure 3). On this unit there are two such valves. One is on the highest point of the boiler and the other at the highest point of the collector at the point of branching pipe hot water and expansion vessel.
The valve of thermal safety by swelling (Figure 5)
Figure 5. The valve of thermal safety by swelling
This safety element also has a role of a limitator of temperature. Below it will be marked with the abbreviation VTO.
In some extremely dangerous situations in the transformation of water into vapor is such
that the pressure safety valves are not sufficient to ensure the safety of the hydraulic system. For this reason, the installation of VTO is mandatory. Depending on the regulations of the countries in which the boiler is assembled, it is necessary to install theVTO only for the determined higher powers or for each power of a boiler it is the obligatory to instal the VTO.
Place the installation is shown in the Assembly diagram of boiler onto the installation in
Figure 6. The boiler is supplied with a copper coil so it is necessary to use the VTO with trhe exchanger, as shown in Figure 6. Cold sanitary water is brought to the VTO. When the VTO-probe has the information that the temperature is over 95 degrees the VTO is opened and water flows through copper coil. After some time the temperature of water in boiler returns to its normal state.
63
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
One connection of coil is used for VTO and the other for draining of water that has
passed through the coil. The choice of either connection; for VTO or for the discharge is irrelevant. It is necessary to follow the installation instructions provided by the manufacturer of the VTO.
Be sure to check up, in certain periods of time, the functioning of the VTO.As stated above one end of the VTO is for the mounting on the exchanger of the boiler,
and the other is supplied with cold water under pressure. It is particularly important that the water flow is unobstructed even when the electricity is switched off.
If it is impossible to provide the inflow of cold sanitary water at the time of
electricity switch off , the boiler must be connected onto the open system.
Factory- installed safety elements
Display of thermal security (required in the case of closed circuit heating)
Figure 6. Display of assembly of security elements
64
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Thermostats in the automation of the boiler (Figure 7)
Within the automation itself that leads the combustion process and influences the work of two cycles of heating, there are two termostatats. Both are of similar construction as the thermostat shown in figure 7 and they have safety functions as limiters of the temperature of water in the boiler. Because of the safety role in the functioning of the boiler, both thermostats have the independent probes for measuring of water temperature.
The first thermostat is the so-called „working thermostat” work and it serves to limit the
temperature to a level the user wants. Another thermostat is the „safety thermostat” because it
stops the opration of the fan which favors the flame, and adds a new energy. Safety temperature is limited to 95 degrees Celsius.
It is very important to connect the pump for heating through automation for safety reasons. When the temperature of water in the boiler reaches the critical value of 95 degrees the fan stops working, but the pump is necessarily switched on to exchange the heat of water through radiators.
Figure 7. Thermostat on automatic
65
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
3.3 Boiler room
Boiler room must be secured against freezing.
The support surface of the boiler in the boiler room must be of non-combustible material. Recommended distance of all four sides of the boiler in relation to the boiler walls or other solid body (water heater, etc.) are shown in Figure 8. These values allow a safe distance access when firing, sufficient space for cleaning and easy access to fan and valve for filling and emptying. Boiler at its left hand side should be away from the wall 200 mm i.e. as much as needed for the connection of valves for thermal safety by over flow. If the valve is not to be installed then the space can be smaller. The flap handle for firing is removable and can be placed either on the left or right side of the boiler. The space on the right side of the boiler, which is recommended to be at least 1000mm from the silos is important because after cleaning the boiler the user then goes and pulls out the ashtray from the back of the firebox. Boiler room must have sufficient
ventilation holes for fresh air as well as for the outlet of the exhaust air!
Figure 8. Positioning of boiler in the Boiler room
DIMENSIONS
Type of boiler
A (mm)
B (mm)
C (mm)
D (mm)
COMPACT20.1
200
1000
1000
800
Total space of this openings is minimum 150cm² fro the boilers of the power of 50kW and for the power over 50kW the space must be larger for another 2cm² per 1kW.
66
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
A=150cm²+
)50(
2
2
kWQ
kW
cm
n
n
Q
= possible power of over 50kW.
The lack of sufficient ventilation in the boiler room can cause more problems in the work of boiler. Main problem is the inability to achieve high output water temperature i.e. the lack of maximum power which leads to condensation in the boiler.
Take into account the required minimum space required for access and security elements
to carry out cleaning operations.
Determine whether the degree of electrical protection is in accordance with the
characteristics of the room where the boiler will be located.
No exposure to atmospheric influences. The boiler itself is not anticipated for outdoor use
and contains no anti-freeze system.
It is forbidden to close the vents in the boiler room in which the openings are necessary
for proper combustion.
67
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
3.4 Connection to the chimney
Boiler COMPACT20.1 works with forced draft and is under the influence of fan, but we also need to respect the rules for the selection of the chimney as it is a boiler with mild potpritiskom in fireplace to another fuel, such as fuel oil, for example. The cross-section of the chimney should be 140 mm (Figure 9). Contrarily it may cause a malfunction, especially in the phase of ignition mode and operation in the regime of solid fuel.
It is recommended that the diameter of the chimney is at least equal to the diameter of the boiler flue outlet, minimum height of 7 to 8 meters, depending on the coverage of the chimney by some other high buildings next it. Most optimal is setting the boiler chimney is as shown in the drawing.
The place where the factory installed flue gas probe
68
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Figure 9. Preview of connection to the chimney and view position on the probe Chimneys
If possible, arcs should be avoided, but if not possible, then the maximum number of arcs is 1. The fume channel from the boiler to the chimney, should desirebly be insulated, specially if it has arcs and longer sections. In the housing of the exhausted gas fan, there is the factory assembled flue gases probe. Before commissioning, check whether after transport the probe is still at its proper place, because without a properly installed transducer there is no boiler operation. Needed chimney draft is 20Pa .
The chimney itself should be made of ceramic pipes, and around them there should be the insulation of 3- 5cm thickness and the outer layer is of the bricks or special elements. If the chimney is not from ceramic pipes but of bricks, the light opening area of such chimney shall be 30 % higher than the surface of this ceramic pipes chimeny. The chimney must have a door for cleaning and it must be well sealed. Chimney outlet on the roof must be according to certain regulations. There are two cases: if the angle of the roof is less
69
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
than 12° and if the roof angle is bigger than 12 °. For angle less than 12 ° the height of the chimney above the roof is 1 m and for the larger than 12 ° , then look at the sketch.
If you think that the chimney is too strong and too much cold air passes through the boiler, at the exit of the boiler there is a valve which can reduce the flow of exhaust gases. The chimney
should be cleaned regularly or at least once a year.
If the chimney is not of proper height, cross section, or if it is not enough clean as possible, then the complications in the work of boiler are possible. First, of all it is not possible to achieve the high teperature regime of work, i.e. there is not the maximum operation power, and the consequence of that is the occyrrence of condensation which affects the life of the boiler.
Weak/poor chimney is the main reason when during the ignition of the boiler or during the operation there is the appearance of smoke on the upper or lower door, especially at higher fan speeds.
70
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
4. Cross-section of COMPACT20.1 boiler with a description of the boiler elements
Figure 10. Cross-section of boiler with discription of the boiler elements
71
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Discription (figure 10):
1. Body of boiler (Exchanger);
2. Lower door for cleaning cup of combustion chamber and lower section of body of boiler;
3. Upper door for cleaning upper section (pipe exchanger) of body of boiler;
4. Cup of combustion chamber;
5. Ignition;
6. Pipe for fresh air for combustion;
7. Feeding system;
8. Motor of feeding system;
9. Pump;
10. Expansion vessel;
11. Silos;
12. Flexible connection;
13. Automation;
14. Safety valve;
15. Air vent;
16. Chimneys.
72
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
5. Schematic connection of automation
Figure 11. Schematic connection of automation
73
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
All lines that are displayed in the intermittent form in the diagram of external connections are the conductors which should be installed by the technician when connecting the external devices onto the automation system of the boiler. All the connections of the additional devices are performed by the technician through connectors located at the rear of the boiler. One three-pole connector serves for the connection of the room thermostat as shown on the label the connector itself.
Seven-pole connector is connected to the power cable, while through another three-pole connector (next to seven-pole ) the circulation pump is connected.
For the room thermostats it is important to be battery-powered on, i.e. they should not have any supply of the voltage of 220 V. On the thermostat for the connection NC is used (normally closed contact).
74
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
6. Table of technical data
75
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
D1- connection for hot water from boiler,
D2- connection for cold waterfrom boiler,
D3- connection for filling and emptying boiler,
D4- connection for safety group,
D5- connection of thermal valve insurance swelling,
D6- connection for probe VTO,
76
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
TIP KOTLA
COMPACT 20.1
CE designation
CE
Class of Boiler according to EN 303-5:2012
5
Working Pressure
bar
3
Test Pressure
bar
4,5
Volume of combustion chamber
L
43,3
Volume of water in the boiler
L
78
Weight
kg
382
Cross section of chimney
mm
130
Necessary chimney draft
mbar/Pa
0,16/16
Boiler temperature (min / max)
°C
60-90
Minimum return temperature
°C
60
Efficiency degree at nominal/minimal thermal power
%
90,24/92,13
Nominal Power
kW
22
Minimum / Maximum Power of Boiler
kW
6,60/22
Carbon monoxide (CO) at a nominal heat power (10%O2)
mg/m3
104
Carbon monoxide (CO) at a minimalheat power (10%O2)
mg/m3
136,19
Dust at nominal/minimal heat power (10%O2)
mg/Nm3
16,05/17,97
Dimensions
A
580
A1
870
B
785
B1
1170
C
1165
ØD
130
E
160
F
1170
G
90
H
1365
Connections for hot water boiler from boiler
D1
1"
Connections for cold water boiler
D2
1"
Connections for filling and emptying boiler
D3
1/2"
Connections for the safety valve and vent pressure
D4
1/2"
Connector for thermal valve insurance swelling VTO
D5
1/2"
Connections for probe VTO
D6
1/2"
*we reserve the right to change
77
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
7. Hydraulic scheme
Figure 12. Hydraulic scheme
Discription (figure 12):
1. Boiler COMPACT20.1;
2. Connection for cold water boiler;
3. Connection for hot water boiler;
4. Valve of thermal safety by swelling;
5. Probe of valve of thermal safety by swelling;
6. Pump;
7. Expansion vessel 10L;
8. Exchanger;
9. Valve for filling and emptying boiler;
10. Velve;
11. Mixing valve.
78
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
NOTE: In assembly of boiler heating stove includes pump and ekpansion vessel 10l.
In an assembly the boiler should be properly protected against the
excessive overpressure and overheating.
For the proper installation the plumber/installer is responsible.
The manufacturer (Radijator inzenjering) does not take any responsibility
coming from the incorrect installation of the boiler.
The boiler is adjusted according to the default factory hydro installation as in figure 12.1.
Figure 12.1.
It is obvious that there is only one measuring point S1 and that probe is already positioned. The second probe that is connected onto the connector on the back of the boiler, in this case, remains unused.
We need not assemble the pump P2 which serves for the hot water. The parametar which determines the type of hydro installation inside the automation system is P26 and for this hydro scheme is P26 set to 0.
If we want to use automation to keep the process and the puffer warming up through the appropriate pump, then the hydraulic scheme should be as shown in figure 12.2. The point of probe measuring for water temperature in the puffer is marked with S2.
In order to run operation of automation properly for the hydraulic connection and with the, then it is necessary to adjust the parameter P26 onto the value 4.
79
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Figure 12.2.
If we want the automation to keep the process of heating the sanitary water through the appropriate pump, then the hydraulic scheme should be as in figure 12.3.
In order the automation system should keep the operation of that pump for heating the boiler with sanitary water, then it is necessary to adjust the parameter P26 onto the value 3.
Figure 12.3.
80
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
8. Start of boiler operation and cleaning
First Commissioning of the boiler is performed by a Technician
who has a Certificate issued by the “Radiator engineering” Co.
Training of boiler users is mandatory.
In this way, the person is authorized to notify the customer service in the factory, time when the boiler started its operation in the condition of the boiler at its first firing, while a copy of the commissioning of the boiler in operation is retained. Guarantee and instruction manual are given to the customer. One copy of Guarantee is sent to the manufacturer. If the guarantee is not filled in, it is not valid.
Only boilers that are operated only by authorized persons subject to technical conditions of complete guarantee of two years. The following text is intended for the user of the boiler, as a kind of reminder, that if you turn off the boiler (eg for cleaning) will be able to independently run the boiler.
The parameters related to the operation of the boiler and which are available to the user on the display. Other parameters that are called hidden menu should not be changed without the approval of the technical person who has put the boiler into operation or the factory.
81
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
8.1 Control panel
Figure 13. Figure and diagram of Automation display
82
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Buttons:
Led:
NOTE: Diodes L4, L5, L6, L7, L10 and L12 are not in operation in boiler
COMPACT20.1.
83
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
8.2 Short manual for automatic control.
Figure 14. View of LCD screen on display
Reading of the current situation.
Procedure:
Press the key P6 , after that on the display the Information are shown (Figure 15).
Figure 15. View of status display on pellet stove
NOTE:In the boiler COMPACT20.1 the information marked with an asterisk(*)
are not shown.
84
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Enter the MENU of automation and an explanation of the function.
Procedure:
Press the key P3 , after that on the display there is the falling list (Figure 16).
Figure 16. View and explanation of the MENU of automation system
Change the adjusted power of boiler COMPACT20.1.
Procedure:
Press the key P3 , after that the falling list is shown on the screen, where the first
option is marked Combustion Power. Again push the key P3 , after that there is
the view on display (Figure 17). With keys P4 or P6 you assign the
adjusted power and finally confirm again with key P3 . Go back to the basic view
of the display (Figure 16), by pressing the key P1 .
85
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Figure 17. View and explanation of display in option Combustion Power
NOTE: In the boiler COMPACT20 maximum adjusted power is 6. (Manufacturer’s
recommendation is to use AUTO mode of Power)
Change the assigned temperature of water in boiler COMPACT20.1
Procedure:
Press the key P3 , after that the falling list is shown on the display , where the
first option is automatically marked Combustion Power. With Keys P4 or P6
, you come to the option Boiler Thermostat. Confirm again with key
P3 (appears to view a similar view like on figure 17), then with keys P4 or P6
assign the temperature and at the end confirm again with key P3 .
Go back to the basic view on the display (Figure 14), by pressing the key P1 .
Change the precise time and date.
Procedure:
Press the key P3 , after that on the display there is the falling list, where the first option is automatically marked Combustion Power. With keys P4 or P6
, you come to the option Time and Date.
86
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Confirm again with key P3 and there is the view on the display Adjusting of time
and precise date and through the keys P4 or P6 you pass from option to
option through the key P3 you confirm the command and you change its value
again through the keys P4 or P6 . When you choose the wished value it is
confirmed with key P3 . To enter or return for a step backwards use the key
P1 .
Set programming time for Ignition and Extinguishing of boiler COMPACT20.1.
(USE THIS OPTION IF YOU HAVE PREVIOUSLY SET THE CORRECT TIME AND DATE)
As for the time programming, in the option itself there are two sub-options such as:
Modality and option Program.
Modality option serves to select the manner of programming, so, whether you will use
the programming on a daily basis, every day separately (Daily) (Example: Monday, Tuesday, Wednesday ... Thursday), on a weekly basis (Weekly) (Monday to Saturday) , and on weekend basis (week-end) (Monday through Friday-and especially from Saturday to Sunday-special). You can totally switch off the option Chrono (Disible).
Program option serves for programming of the above options Daily, Weekly and Week­End, ie. adjusting the exact start time and break of operation of the boiler
COMPACT20.1.
Procedure: First, you should decide how you wish to program the start time and extinguishing, whether it be daily, weekly or weekend options. If you choose one of the quoted the selection will be done in the following way.
Press the key P3 , after that the falling list is shown on the screen , where the first
option is marked at once Chombustion Power.With keys P4 or P6 , you
come to the option Chrono. Confirm again with key P3 (two options are shown
87
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Modality and Program), then with keys P4 or P6 you come to the
wished option Modality and you confirm it with key P3 . After that, in the sub­menu you come across to the option Daily, Weekly, Week-end and Disable (shown in
Figure 18). With keys P4 or P6 choose one of them and confirm with
key P3 .
Figure 18. View of display after the selection of the option MODALITY
When you have chosen the manner of programming, automatically you return to the view
on display Modality and Program. With keys P4 or P6 you pass to the
option Program and you confirm with key P3 .
In this option, you program the correct time of ignition and extinguishing of boiler COMPACT20 that you previously selected in the option Modality. Examples of programming are shown in Figures 19, 20 and 21.
For further passing use the keys P4 or P6 ,for confirming the key
P3 , to confirm the selected values confirm with keys P5 , and for one step
backwards the key P1 .
Figure 19. View of display after selection of the option Daily
88
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Figure 20. View of display after selection of the option Weekly
Figure 21. View of display after selection of the option Week-end
8.3 Start of work of Compact20.1 boiler heating stove.
STEP 1: Boiler COMPACT20.1 connected on hydraulic system. STEP 2: Infuse a small amount of pellets in the silos and close it. STEP 3: Switch on the boiler, the switch is positioned on the front side (in the left side in
relation to the display).
STEP 4: Initiate feeding system as the first grains of the pellet might fall into the
combustion cup / space. (This procedure can be applied only when the Automation
system is in OFF mode (Figure 14 : state of regime))
Procedure:
Press the key P3 , then with keys P4 or P6 in sub-menu you come
to the function LOAD, confirm with key P3 , with keys P4 or P6
you pass from OFF to ON, confirm with key P3 . By confirming with key the feeder is started, until the first grains of pellet start falling into combustion cup/space.
After that, also, with keys P4 or P6 you pass from ON to OFF, confirm
with key P3 . The feeder stops working. With key P1 exit the sub-menu.
89
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Figure 22. View of display when selecting the function LOAD
STEP 5: Start up of boiler COMPACT20.
Procedure:
Press the key P2 , hold pressed for 2-3 seconds until the beep signal. Then on the display there is the text IGNITION (Figure 14-State of system). The Boiler Stove started working.
In the conditions when the pellet is according to the standards and when all other requirements are met for chimney and air flow, the combustion process begins in 5 to 10 min.
During the first firing some increased presence of smoke and the sharp smell should be expected until the factory coatings against corrosion end or until the final drying or stove being heated. The same procedure is used for extinguishing the boiler COMPACT20.1, so by a
prolonged pressing of the key P2 until the beep sound is heard, then on the display is the text Extinguish. (Figure 16-State of system ), we pass to extiguishing of the boiler COMPACT20.
90
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
NOTE : These are the values measured during certification.
The room thermocouple (thermostat) can be connected to automation system. In this case,
it is important to adjust the room temperature, which is the main parameter for the operation of the boiler COMPACT20.1 and water temperature in boiler (70˚C). When the room thermostat is activated, the boiler has the first need to reach the room temperature, under the condition that it is limited by adjusted degree of water temperature in it. There is a possibility that the boiler stops working before the adjusted temperature of the room thermostat, in this case the set temperature of the water in the boiler should be raised, Example to: 70˚C.
Warning: Be sure to make the analysis of the flue gases after the finish of installation of the boiler. Measure the percentage of oxygen (O2).
91
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
8.4 Mistakes during ignition and start of boiler COMPACT20.
All possible errors in the initial stage of operation, ie. during firing and can, even during the operation, are shown in the display of the automation system. (Figure 14- ALARM error).
Errors and explanations are shown in the table.
All possible problems and stoppage in the operation of this device can be divided into two major groups.
Group I. Stoppage during the first firing and the first firing after purchase of the boiler or
the first putting the boiler into operation during the day.
Group II. The delay that occurs when the boiler has already been in operation process ,
the display is there is a notification on the display ( Run Mode) , but after reaching the set temperature and rest mode it loses the continuity of combustion .
Group I
The most common indication on the display related to this type of error is Er12.
During the first firing after the installation of the boiler, for the hydro installation there should follow the instructions from the Section “Start of Operation of the boiler COMPACT20.1". Especially, pay attention to the flue outlet (diameter, number of arcs, sealing, ... ) as well as to the chimney (diameter , height , insulation , sealing revision openings, dirt in chimney , etc.). If, after the first attempt of firing there is no significant occurrence of flame and serious increase in flue gas temperature,there is a signal on the display that the ignition heater is activated, and yet the boiler goes into extinction phase (Extinguishing). In this case you should check out the following causes:
92
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Possible cause 1.
Problem 1. Poor quality of pellets. Pellets are of low power, and increased humidityThe procedure for troubleshooting of Problem 1. Provide the pellet of proved quality and
test it.
Possible cause 2.
Problem 2. Air temperature (which was brought to the fireplace for firing and burning) is
extremely low (below zero ).
The process of resolving the Problem 2. Prolonging the time for preheating of heaters for
firing t02 to the range of 300 - 400 seconds.
Possible cause 3.
Problem 3. Mains voltage that is connected onto the boiler is considerably lower than
220- 230V, so the power of the heater is lower.
The process of resolving the Problem 3. Raising the time for preheating heater for firing,
t02, to the range of 300 - 400 seconds. If this measure does not work then connect the AC Voltage adapter.
Possible cause 4.
Problem 4. The amount of pellets in the combustion chamber is insufficient to put the
boiler into operation.
The process of resolving the Problem 4. Possible mechanical problems with pellet
conveyor. Check the accuracy of dozer.
Possible cause 5.
Problem 5. There are situations in which there is a flame , but by checking the exhaust
gases it can clearly be seen that there is not enough pellets for the boiler to pass from the stage of stabilization ( Stabilization) into operating mode ( Run mode). This occurs because the pellet structure (length, stickiness, the amount of dust, etc.) is such that the time t03 of fixed feeding is not sufficient.
The process of resolving the Problem 5. This problem is eliminated by extending the
time of fixed feeding, t03. Recommendation is that this time is extended cautiously, first for ten or fifteen seconds, and if that is not enough then for another five seconds and so on. After that, resolving the troubleshooting should be combined with the procedure from the following item.
93
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Possible cause 6.
Problem 6. After the fixed phase of feeding (t03) there the flame occurs, but at this stage
of t04, during this period it is not possible to pass into the stabilization (Stabilization) , and the flame is becoming weaker so there is a decrease of the temperature of flue gases and shutting down (extinguishing). This problem occurs because of the varying quality of pellets.
The process of resolving the Problem 6. Reduce the time t04. It is recommended that you
do it carefully. It is possible to combine this procedure with the solution contained in the previous item.
Possible cause 7.
Problem 6. The boiler is connected to the room thermostat. By increasing the set
temperature on the room thermostat the boiler does not enter the firing phase (Ignition) and there is not activation of the firing heater.
The process of resolving the Problem 7. Check whether the temperature in the room is
really lower than the set temperature. Also check time programming for the room thermostat and finally check the correct functioning of the room thermostat.
Group II
The most common indication on the display related to this type of errors is Er03.
Possible cause 1.
Problem 1. The boiler COMPACT20.1 was fired and in was in the operating mode (Run
mode), but it came to the stoppage; and when it stopped again and got the command from for work either from the boiler thermostat or room thermostat. The combustion chamber is, in such situations, full of unburned pellets.
The process of resolving the Problem 1. Check the values of the parameters A26, Th28
and Th06. Maybe there was an accidental changing of their values. Parameter A26 needs to be 1 , the parameter Th06 between 60 and 65, while the parameter Th 28 in any case should for at least two degrees lower than Th06. In such cases parameters should be changed, empty chamber (burning bowl) and then restart the boiler.
Possible cause 2.
Problem 2. The boiler COMPACT20.1 was ignited, and entered the operating mode
(Run mode), but as time goes on there comes to an increasing accumulation of pellets at the bottom of the combustion chamber. As the time goes on the unburned pellet fills the
94
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
combustion chamber and a reduction in the flame and the boiler is extinguished. (Extinguishing).
The process of resolving the Problem 1. Increase the fan power. It is best to increase the
fan power in all modes through the function of calibration (Calibration-exhaust fan).
Possible cause 3.
Problem 2. Boiler COMPACT20.1 works, but in the course of work there comes to a
stoppage and a sign is displayed-Modulation, and then to the Safety shutdown (Extinguishing). At the end the display indicates the error Er05.
The process of resolving the Problem 3. This occurs because the flue gas temperature is
too high. The most common causes are contamination of the boiler, the chimney is too strong, too strong fans in operating mode, excessive loading of pellets, pellet characteristics, and so on. The delay can be eliminated by adjusting some of the parameters or by increasing parameters for passing the boilers into modulation and safety shutdown, due to flue gases, which are parameters Th07, Th08.
95
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
8.5 Maintenance of boiler COMPACT20.1.
Boiler COMPACT20.1 requires daily and periodic cleaning.
Daily cleaning also refers to the area of the combustion chamber ie. Combustion cup
where by the constant ejection of ash allows a better working of electric heaters for firing and a better combustion ie. A bigger amount of air through the slits in the cup. Also, the ash, even in the course of a day begins to accumulate on the bottom, the space around the combustion space. At the average parameters of combustion of 100 kg of pellets 1 kg of ash produced.
In every 3 to 4 days it is necessary to clean the space of combustian chamber (figure
23). Also it is necessary to clean the deposits on the walls of the firebox. By this we
provide a better transfer as one millimeter layer of tar and soot decreases the conductivity by 5%.
Once in every two weeks it is necessary to open the top cover for cleaning, remove
the turbulators and from the whole available part of the boiler remove tar and soot (Figure 23). All that is removed can be picked off through the combustion chamber. Also, at that time, flue gas pipe should be removed from the rear of the boiler as to be cleaned from ashes and soot (NOTE: Pay attention to the probe for the flue gases
when removing the chimney).
If, during the cleaning in the boiler there appears the condensation it is necessary to collect the condensed matter and the whole boiler inside should be coated by base means for cleaning or else by means of water solution of constyruction lime. In this way the neutralization of acids is carried out due to condensation.
While maintaining and servicing the boiler, the boiler is to be switched off the power supply.
Figure 23. View of elements that are dismantled during the cleaning
96
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
In this way the boiler is conserved at the end of the heating season. In this situation, close all openings of the boiler to prevent the circulation of air through the boiler as the moisture can occur in the boiler as well.
Maintenance of the boiler is one of the most essential factors for the length of working life of the boiler. It is particularly important that the boiler be cleaned when out of operation season and neutralization of acids be done as already described.
97
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
8.6 Name plate.
The nameplate is stuck on a well visible place on the boiler and includes the following (see the image in the item: STICKERS):
1.Tehnical data on sticker:
Manufacturer (Radijator inženjering) Serial number of boiler (example: N°:160515037) Year of product (example: 2015) Type of boiler (COMPACT20) Nominal power of boiler (22kW) Heat output range (6,61 – 22kW) Necessary chimey draft (20Pa) Electric voltage (230V) Frequency (50Hz) Current (3,4A) Nominal electrical power (590W) Max.extended el.power (200W) All.el.power (790W) Weight boiler (382kg) Quantity of water in boiler (78L) Class boiler according to EN 303-5 Class fuel - pellets (C1) Max. pressure (3 bar) Max. temperature (90°C)
2. Sticker of importer
3. OEEO
4. Other markings on the boiler
98
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
8.7 Declaration.
99
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
8.8 Sticker.
On boiler COMPACT20.1 there are stickers identifying the connections as well as labels against the risk of electric shock, stickers for scheme of connections etc.
Labels that indicate connection to the installation:
1. Sticker (Hot water) 32mm x 74mm
2. Sticker (Cold water) 32mm x 74mm
3. Sticker (Hydraulic scheme) 148mm x 210mm
100
36000 Kraljevo, Živojina Lazića - Solunca br.6, Srbija
tel. +381 36 399 140, fax. +381 36 399 150, http://www.radijator.rs
e-mail: radijator@radijator.rs
Labels that indicate the presence of electricity high voltage and danger:
1. Sticker (Input with low voltage 12V) 60mm x 80mm
2. Sticker (Hayardous voltage - BIGGER) 100mm x 150mm
Loading...
