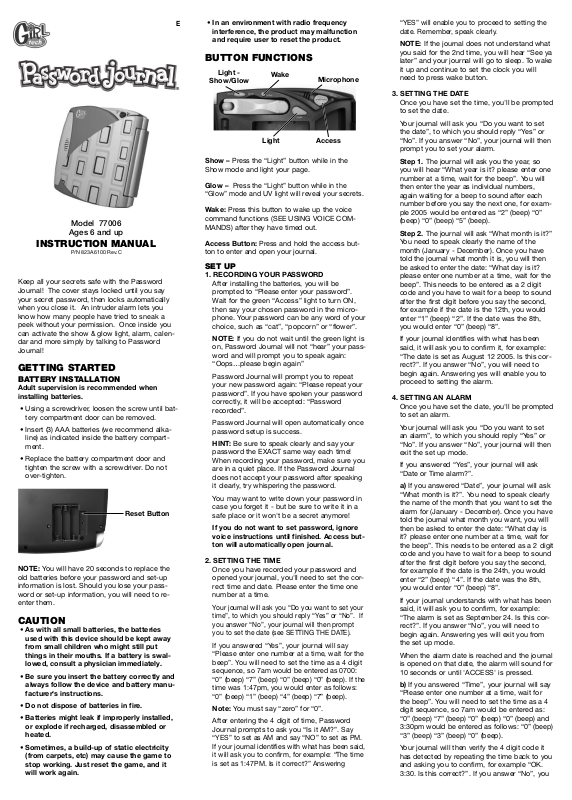

Model 77006
Ages 6 and up
INSTRUCTION MANUAL
P/N 823A6100 Rev.C
Keep all your secrets safe with the Password
Journal! The cover stays locked until you say
your secr
when you close it. An intruder alarm lets you
know how many people have tried to sneak a
peek without your permission. Once inside you
can activate the show & glow light, alarm, calendar and more simply by talking to Password
Journal!
et password, then locks automatically
GETTING STARTED
BATTERY INSTALLATION
Adult supervision is recommended when
installing batteries.
• Using a screwdriver, loosen the screw until battery compartment door can be removed.
• Insert (3) AAA batteries (we recommend alkaline) as indicated inside the battery compartment.
• Replace the battery compartment door and
tighten the screw with a screwdriver. Do not
over-tighten.
Reset Button
NOTE: Y
old batteries before your password and set-up
information is lost. Should you lose your password or set-up information, you will need to reenter them.
ou will have 20 seconds to replace the
CAUTION
• As with all small batteries, the batteries
used with this device should be kept away
from small children who might still put
things in their mouths. If a battery is swallowed, consult a physician immediately.
• Be sure you insert the battery correctly and
always follow the device and battery manufacturer's instructions.
• Do not dispose of batteries in fire.
• Batteries might leak if improperly installed,
or explode if recharged, disassembled or
heated.
• Sometimes, a build-up of static electricity
(from carpets, etc) may cause the game to
stop working. Just reset the game, and it
will work again.
E
• In an environment with radio frequency
interference, the product may malfunction
and require user to reset the product.
BUTTON FUNCTIONS
Light -
Show/Glow
Show – Press the “Light” button while in the
Show mode and light your page.
Glow –
“Glow” mode and UV light will reveal your secrets.
Wake: Press this button to wake up the voice
command functions (SEE USING VOICE COMMANDS) after they have timed out.
Access Button: Pr
ton to enter and open your journal.
Press the “Light” button while in the
SET UP
1. RECORDING YOUR PASSWORD
After installing the batteries, you will be
prompted to “Please enter your password”.
Wait for the green “Access” light to turn ON,
then say your chosen password in the microphone. Your password can be any word of your
choice, such as “cat”, “popcorn” or “flower”.
NOTE: If you do not wait until the green light is
on, Password Journal will not “hear” your password and will prompt you to speak again:
“Oops…please begin again”
Password Journal will prompt you to repeat
your new password again: “Please repeat your
password”. If you have spoken your password
correctly, it will be accepted: “Password
recorded”.
Password Journal will open automatically once
password setup is success.
HINT:Be sur
password the EXACT same way each time!
When r
ecording your password, make sure you
are in a quiet place. If the Password Journal
does not accept your password after speaking
it clearly, try whispering the password.
You may want to write down your password in
case you forget it - but be sure to write it in a
safe place or it won't be a secret anymore!
If you do not want to set password, ignore
voice instructions until finished. Access button will automatically open journal.
2. SETTING THE TIME
Once you have recorded your password and
opened your journal, you'll need to set the correct time and date. Please enter the time one
number at a time.
Your journal will ask you “Do you want to set your
time”, to which you should reply “Yes” or “No”. If
you answer “No”, your journal will then prompt
you to set the date (see SETTING THE DATE).
If you answered “Yes”, your journal will say
“Please enter one number at a time, wait for the
ou will need to set the time as a 4 digit
beep”. Y
sequence, so 7am would be enter
“0” (beep) “7” (beep) “0” (beep) “0” (beep). If the
time was 1:47pm, you would enter as follows:
“0” (beep) “1” (beep) “4” (beep) “7” (beep).
Note: You must say “zero” for “0”.
After entering the 4 digit of time, Passwor
nal prompts to ask you “Is it
Jour
“YES” to set as AM and say “NO” to set as PM.
If your journal identifies with what has been said,
it will ask you to confirm, for example: “The time
is set as 1:47PM. Is it corr
Wake
ight
L
ess and hold the access but-
e to speak clearly and say your
Microphone
Access
ed as 0700:
d
AM?”. Say
ect?” Answering
“YES” will enable you to proceed to setting the
date. Remember, speak clearly.
NOTE: If the journal does not understand what
you said for the 2nd time, you will hear “See ya
later” and your journal will go to sleep. To wake
it up and continue to set the clock you will
need to press wake button.
3. SETTING THE DATE
Once you have set the time, you'll be prompted
to set the date.
Your journal will ask you “Do you want to set
the date”, to which you should reply “Yes” or
“No”. If you answer “No”, your journal will then
prompt you to set your alarm.
Step 1. The journal will ask you the year, so
you will hear “What year is it? please enter one
number at a time, wait for the beep”. You will
then enter the year as individual numbers,
again waiting for a beep to sound after each
number before you say the next one, for example 2005 would be entered as “2” (beep) “0”
(beep) “0” (beep) “5” (beep).
Step 2. The journal will ask “What month is it?”
You need to speak clearly the name of the
month (January - December). Once you have
told the journal what month it is, you will then
be asked to enter the date: “What day is it?
please enter one number at a time, wait for the
beep”. This needs to be entered as a 2 digit
code and you have to wait for a beep to sound
after the first digit before you say the second,
for example if the date is the 12th, you would
enter “1” (beep) “2”. If the date was the 8th,
you would enter “0” (beep) “8”.
If your journal identifies with what has been
said, it will ask you to confirm it, for example:
“The date is set as August 12 2005. Is this correct?”. If you answer “No”, you will need to
begin again. Answering yes will enable you to
proceed to setting the alarm.
4. SETTING AN ALARM
Once you have set the date, you'll be prompted
to set an alarm.
Your journal will ask you “Do you want to set
an alarm”, to which you should r
“No”. If you answer “No”, your journal will then
exit the set up mode.
If you answered “Yes”, your journal will ask
“Date or Time alarm?”.
a) If you answered “Date”, your journal will ask
“What month is it?”. You need to speak clearly
the name of the month that you want to set the
alarm for (January - December). Once you have
told the journal what month you want, you will
then be asked to enter the date: “What day is
it? please enter one number at a time, wait for
the beep”. This needs to be entered as a 2 digit
code and you have to wait for a beep to sound
after the first digit before you say the second,
for example if the date is the 24th, you would
enter “2” (beep) “4”. If the date was the 8th,
you would enter “0” (beep) “8”.
If your journal understands with what has been
said, it will ask you to confirm, for example:
“The alarm is set as September 24. Is this cor
rect?”. If you answer “No”, you will need to
begin again. Answering yes will exit you fr
the set up mode.
When the alarm date is r
is opened on that date, the alarm will sound for
10 seconds or until 'ACCESS' is pr
b) If you answer
“Please enter one number at a time, wait for
the beep”. You will need to set the time as a 4
digit sequence, so 7am would be entered as:
“0” (beep) “7” (beep) “0” (beep) “0” (beep) and
3:30pm would be entered as follows: “0” (beep)
“3” (beep) “3” (beep) “0” (beep).
Your journal will then verify the 4 digit code it
has detected by r
and asking you to confirm, for example “OK.
3:30. Is this corr
ed “Time”, your journal will say
ect?”. If you answer “No”, you
eached and the jour
epeating the time back to you
eply “Y
essed.
es” or
-
om
nal
will need to start the process again. If you
answer “Yes” the journal will ask if this is AM or
PM. Speak the answer clearly.
If your journal identifies with what has been
said, it will ask you to confirm, for example:
“The alarm is set as 3:30PM. Is this correct?”. If
you answer “No”, you will need to begin again.
Answering yes will exit you from the set up
mode “OK. Alarm set up complete. Bye.”
hen alarm time is reached, the alarm will
W
sound for 10 seconds or until 'ACCESS' is
pressed.
NOTE: If the journal does not identify with what
ou have put in for the 2nd time, you will hear
y
“Error” and your journal will exit set up mode.
You will need to start again.
Your journal will then exit set up mode: “OK.
Set up complete”.
NOTE: Be sure to speak clearly and say your
password the EXACT same way each time!
When recording your password, make sure you
are in a quiet place. If the Password Journal
does not accept your passwor
d after speaking
it clearly, try whispering the password.
You may want to write down your password in
case you forget it - but be sure to write it in
safe place or it won't be a secret anymore!
USING YOUR PASSWORD JOURNAL
1. USING VOICE COMMANDS
Step 1. Press the Wake button to operate any
of the journal functions. Once you press the
wake button the journal will say “Okay”. This is
the prompt for you to say…Light, Clock,
Calendar, Alarm, or Change.
Step 2. Say one of the following:
LIGHT
• Say “light” to toggle the status of the lamp
Please note: Choose which light source you
would like to activate by sliding the button to
Show or Glow then speak the word “light”.
CLOCK
• Say 'Time' or 'Clock' and the journal will
respond by telling you what time it is.
CALENDAR
• Say 'Date' or 'Day' or 'Calendar' and the jour
nal will respond by telling you what date it is.
ALARM
• If an alarm is already set and you say “Alarm”
and the jour
time your alarm sound.
• To turn off your alarm, simply tell your journal
“Alarm off” and it will respond with “Alarm off,
OK”.
e is no alarm set, say 'Alarm' to tur
• If ther
the alarm mode and your journal will say “No
alarm set”.
• Say “Set alarm” to direct your journal into
alarm set up (see SETTING YOUR ALARM).
• If you say “Alarm on” when no alarm is set,
the journal will tell you “No alarm set”.
CHANGE
You can be more specific with things you
would like to change within your journal.
Simply say one of the following:
• CHANGE ( if only say “Change”, Password
Journal can start over the setup procedure. )
• CHANGE TIME
• CHANGE DATE
• SET ALARM
• CHANGE PASSWORD
This will take you to the specific part of set up
mode that you have requested. Your journal will
confirm your command back to you, for example “CHANGE DATE” and will lead straight into
the set up mode for changing the date (see
SETTING THE DATE).
espond by telling you the
nal will r
n of
2. CHANGING YOUR PASSWORD
From time to time, you may want to change
your password (especially if you think someone
else knows it!). Open Password Journal using
your old password.
SEE CHANGE SECTION ON USING VOICE
COMMANDS.
Your password will then ask you “Do you want
to change your password?”. Simply reply “Yes”
r “No”. If you answer “No”, your journal will
o
then exit the set up mode.
If you answered “Yes”, your journal will ask you
to record your password “Please enter your
assword”. Wait for the green “Access” light to
p
turn ON, then say your chosen password in the
microphone. Your password can be any word
of your choice, such as “cat”, “popcorn” or
“flower”.
NOTE: If you do not wait until the green light is
on, Password Journal will not “hear” your pass-
ord and will prompt you to speak again:
w
“Oops…please begin again”.
Passwor
d Journal will prompt you to repeat
your new password again: “Please repeat your
password”. If you have spoken your password
correctly, it will be accepted: “Password
recorded”.
3. TURNING ON THE LIGHT
Locate the LIGHT button inside the Password
Journal. Press the LIGHT button to turn the
light on or off. Choose which light source you
would like to activate by sliding the button to
either Show or Glow. If the door is closed
while the light is still on, the light automatically
turn off.
4. USING THE GLOW LIGHT AND PEN
WARNING: The Glow Light emits UV
light. Do not look directly at the light bulb.
Using the special Glow Light pen included in
your Password Show & Glow write your personal secrets then reveal them with the Glow
light. To activate the Glow Light locate the
LIGHT button inside the Password Journal.
Press the LIGHT button to turn the light on and
slide the Show and Glow button to the Glow
position.
-
MAINTENANCE
The crossed out wheelie-bin symbol on this product is to remind you that Waste Electrical and
Electronic products should not be disposed of
with household waste. If you are unable to re-use
or recycle your product it should be disposed of
at a civic amenity site.
hile Radica toys comply with all relevant safety
W
standards, we are obliged to tell you that some of
the components used in electrical and electronic
quipment may contain hazardous substances
e
that can damage the environment and present a
risk to human health if not properly disposed of.
90-DAY LIMITED WARRANTY
(This product warranty is valid in the United
States and Canada only)
Radica Games Limited warrants this product for a
period of 90 days from the original purchase date
under normal use against defective workmanship
and materials (batteries excluded). This warranty
does not cover damage resulting from accident,
unreasonable use, negligence, improper service
or other causes not arising out of defects in
material or workmanship. Radica Games Limited
will not be liable for any costs incurred due to
loss of use of this pr
consequential costs, expenses or damages
incurred by the purchaser. Some states do not
allow the exclusion or limitation of incidental or
consequential damages, so the above limitations
may not apply to you. This warranty gives you
specific legal rights and you may also have other
legal rights, which vary from state to state.
During this 90-day warranty period, the game will
either be repaired or replaced (at our option) without charge to the purchaser when returned prepaid
with proof of date of purchase to: R
Ltd., 13628-A Beta Road, Dallas, Texas 75244,
USA.
Please remove the batteries and wrap the
unit carefully before shipping. Please include a
brief description of the problem along with your
return address and mail it postage prepaid.
IMPORTANT: Before returning the unit for repair,
test it with fresh alkaline batteries. Even new batteries may be defective or weak and low battery power
equent cause of unsatisfactory operation.
is a fr
oduct or other incidental or
adica USA,
• Handle this device carefully.
Store this device away from dusty or dirty areas.
•
• Keep this device away from moisture or
eme temperatur
extr
e.
Distributed by:
RADICA USA Ltd.
13628-A Beta Road
Dallas, TX 75244-4510
• Do not disassemble this device. If a problem
occurs, press the Reset button, or remove and
replace the batteries to reset the device, or try
f
new batteries. If pr
warranty information located at the end of this
oblems persist, consult the
instruction manual.
• Use only the recommended battery type.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc) or
geable (nickel-cadmium) batteries.
rechar
RADICA:®
GIRL TECH®
GIRL TECH, TECH GIRL AND PASSWORD JOURNAL
ARE REGISTERED TRADEMARKS OF RADICA GAMES L
©2006 RADICA GAMES L
PRODUCT SHAPE™
ALL RIGHTS RESERVED
TD.
TD.
• Do not use rechargeable batteries.
• Do not attempt to recharge non-rechargeable
batteries.
• Remove any exhausted batteries from the
device.
• Do not short-cir
• Insert batteries with the corr
• Do not attempt to r
nal light bulb.
Jour
cuit the supply terminals.
ect polarity
eplace the Passwor
.
d
Please retain this for future reference.
RECYCLING - EUROPE
The consumer has a significant role to play in
reducing the impact of waste electrical and elec
tronic equipment on the envir
using or r
ecycling such equipment.
onment, thr
-
ough re-
