User Manual
Contents
Know Your Kyrobak 2
Safety Instructions 3
Before You Start 4
How to Use Kyrobak 5
Operating Your Kyrobak 10
Troubleshooting 12
Technical Specications 13
2

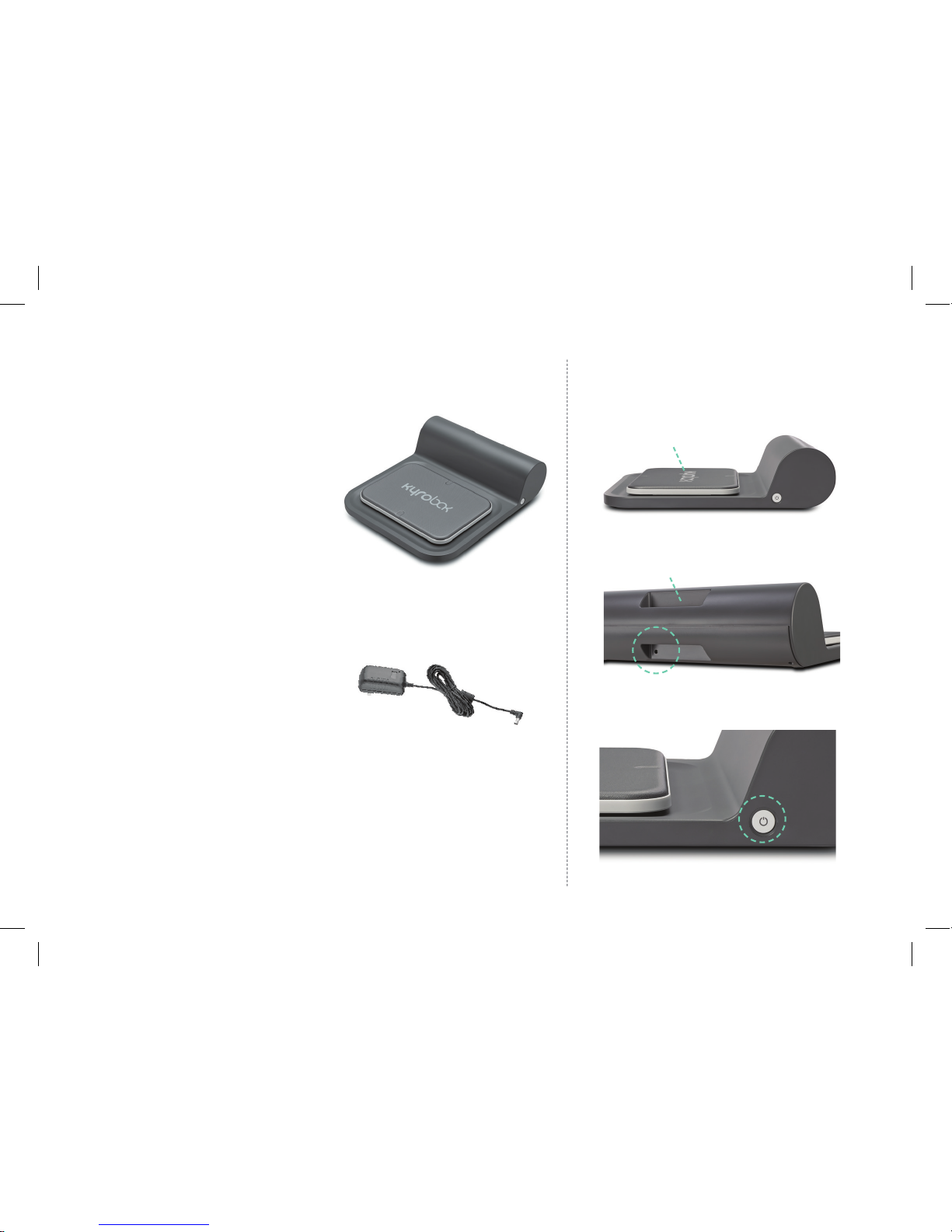

Cushion
Know Your
Kyrobak
Handle
Power Supply Connection
On/Off + Treatment Speed Button
Contents
What’s Included
Device Features
Kyrobak Device
Power Supply
Kyrobak is a revolutionary
home-use device, clinically
proven to treat non-specic
lower back pain using
Continuous Passive Motion
(CPM). This non-invasive,
gentle approach provides you
with a simple, relaxing method
to treat your pain. All you need
is 10 minutes a day. Lie back,
relax and leave the rest to
Kyrobak.
3
Safety Instructions
Warnings
•
Do not use without clothing.
•
Do not use in a wet or damp
place.
•
Do not use on a moving surface
like a waterbed.
•
Do not cover yourself with a
blanket or any other cover
during treatment.
•
Keep your hands away from
all moving parts during
treatment.
•
Keep out of reach of children.
•
Do not stand or jump on the
device.
•
Only use this device for its
intended purpose and as
described in this User Manual.
•
Do not smoke during treatment.
•
Do not eat or drink during
treatment.
Cautions
•
Do not reach for a device that
has fallen into water while it is
plugged in.
•
Unplug the Power Supply from
the main source of power before
removing it from the water.
•
Do not place or store this device
near water or other liquids.
•
This device should never be left
unattended while plugged in.
•
Keep the area around the Power
Supply clear, with nothing on or
underneath it.
•
Do not use the Power Supply if
the cord or plug is damaged in
any way.
•
Do not use this device near or
rest it on ammable objects
such as paper or cloth, etc.
•
Always unplug the Power
Supply from the electrical outlet
immediately after use.
•
This device should only be used
with the supplied Power Supply.
•
Always turn off this device when
you have nished using it.
•
Do not open the outer
casing of the Unit.
This might harm the Unit and will
void any warranty.
4
Kyrobak is only for
people who suffer from
non-specic lower back
pain. If you have been
diagnosed with, or have
any of the following
conditions, this product
is not for you.
•
If you have had any back surgery, including spinal fusion.
•
If you have acute Lower Back Pain (LBP).
•
If you have Listhesis (spinal misalignment of grade II and above).
•
If you have orthostatic hypotension (dizziness upon standing suddenly).
•
If you have irradiating pain to the leg/s.
•
If you have a slipped disc.
•
If there is central pressure on the spinal cord that results in the following
symptoms: urinary problems, numbness in both legs and/or loss of balance.
•
If you have systemic rheumatic disorders (i.e. rheumatoid arthritis, lupus).
•
If you have hip or knee symptomatic osteoarthritis.
•
If you are unable to get up from the oor without help.
•
If you have psychiatric disorders.
•
If you are under 18.
•
If you are pregnant.
•
If you weigh over 120 kg/265 lbs.
Contraindications: DO NOT USE:
Please consult a physician before using Kyrobak:
Before You
Start
•
If you are suffering from low back pain with evidence of underlying disease or
abnormalities.
•
If your back pain is induced by a recognized, suspected or impending fracture.
•
If you suffer from any form of developing or new neurological decit.
5
How to Use Kyrobak
Getting Started
•
Wear comfortable clothing that covers your lower back.
•
Set up in a quiet place close to a power outlet with
enough room to lie down comfortably.
•
Place Kyrobak on the oor, bed, couch or any other
smooth, at surface. When using the device on the
oor, you can place it on a rug or mat.
Treatment Regimen
We recommend you use Kyrobak for one 10 minute
treatment per day. You can use it up to 3 times a day,
but wait at least 4-6 hours between each treatment.
1. Connect power supply into the Kyrobak unit.
2. Plug power supply into a household outlet.
1
6
2. Lie Down
Make sure
•
Your buttocks are positioned in the center of the Cushion.
•
Your body is straight, without slanting to one side or the other.
•
Your back and upper body are on the oor.
Getting in the right position is the key to
an effective treatment
How to Use Kyrobak
1. Carefully Sit in the Center of the Cushion
Make sure
•
Your legs are facing the cylinder shaped side of the device.
•
Your buttocks are positioned in the center of the Cushion.
1
2
7
Correct Pelvic Position Incorrect Pelvic Position
INCORRECT INCORRECTCORRECT
It is a natural instinct to scoot down a bit when lying
down. If this happens, just scoot yourself right back
into place with your buttocks squarely in the center
of the cushion.
8
Position 2
Legs elevated on a chair with the
thighs at a 90º angle from the oor.
Position 1
Legs bent at a 30º to 45º angle
with the feet at on the oor.
2
Leg Position
Your legs can be positioned in two ways:
How to Use Kyrobak
1
9
INCORRECT
Head and Neck Support
If you feel discomfort in your
head or neck, place a small, soft
pillow under your neck and head.
Remember to keep your body
straight with your hands at your
sides.
INCORRECT
CORRECT
Do not touch the device with
your arms or hands.
Arm Position
Position your arms loosely at your
sides at a 30º to 45º angle from your
body.
Correct Arm Position
Incorrect Arm Position
10
Operating Your
Kyrobak
1. Turn the Device On
Press the On/Off Button until the
device begins to gently rotate. (a)
2. Set the Treatment Speed
Set the desired speed by pressing
the On/Off button after the Unit has
turned on. (b)
•
The default speed is Low.
•
Push the On/Off button again to go
Medium.
•
Push the On/Off button again to go
to High.
•
One more push of the button will
return the device to the default
setting of Low.
a
b
The rst time you use Kyrobak, stay at least one
minute on each speed before going to the next.
Stay at the speed that is most comfortable for you.
The next time you use Kyrobak, you can start at the
last speed used during your previous treatment.
11
c
3. Begin Treatment
With your arms at your side at a
30° to 45° angle from the body, lie
back and relax. You will feel gentle,
continuous movement in your pelvis
area. If at any point during the
treatment you feel your body shifting
to one side of the device, you should
realign your pelvis to the center of the
Cushion and continue the treatment.
After 10 minutes, the treatment will
automatically stop and the device will
shut down. To stop the treatment for
any reason, hold down the On/Off
button until the device stops moving
and turns off.
4. End Treatment
When the treatment is complete
and Kyrobak stops moving, it is
recommended to relax for one or two
minutes before getting up. To get up,
gently roll onto one side (c) and then,
using your elbows as support, push
yourself into a sitting position and
stand up. (d)
d
When you are nished, unplug Kyrobak and store it
in a safe, dry place, away from children and pets.
12
If Kyrobak does not start:
•
Disconnect the Power Supply from both ends, wait 2 minutes, plug it in and try again.
•
Make sure the cable is connected securely to the device.
•
Make sure the Power Supply is connected securely to the electrical outlet.
•
Make sure the electrical outlet is working properly.
•
Press the On/Off button down for an extended time until the unit turns on.
•
In rare cases, the On/Off button will appear to be blinking when the device is turned on.
This is an indication that the device is faulty and that customer service should be contacted.
Troubleshooting
•
Positioning yourself correctly on the device is the key to an effective treatment.
•
Kyrobak uses a very gentle movement on the lower back. This gentle movement is clinically
proven to alleviate lower back pain.
•
Kyrobak treats lower back pain and provides a lasting effect. However, you may not feel an
immediate alleviation of pain right after the rst time you use Kyrobak. The more you use
the device, the more relief you should experience.
Important
13
Technical Specications
Treatment
Time
10 minutes
Classication
Internally Powered
Equipment, Type BF
Mode of
Operation
Continuous
Transport and
Storage
Conditions
Temperature: -25° C to 70°C
Humidity: 0-93% RH
Electrical
Requirements
9-12Vdc, 3A Max from an AC/DC adaptor In:
100-240Vac, 50/60Hz, 71-99VA, 0.9A
Operating
Conditions
Temperature
Humidity: 15%-93% RH
Atmospheric
pressure:
700 hPa to 1060 hPa.
Label Explanation
Located at the bottom of the device.
Indicates the need to consult instructions
for use.
Manufacturer
Indicates the Authorized Representative in the
European Community
Indicates the temperature limitation.
Degree of protection against electric shock:
Type BF applied part
CE mark represents the compliance to the
European Low Voltage Directive 2006/95/EC
and the Electromagnetic Compatibility
Directive 2004/108/EC.
Protect the environment by not disposing of this
product with household waste (2002/96/EC).
Check your local authority for recycling advice
and facilities (Europe only).
Catalogue Number: Indicates the
manufacturer›s catalogue number so that the
device can be identied.
Serial Number: Indicates he manufacturer›s
serial number so that a specic device can be
identied.
Technical Specications
Weight: 3.15 kg
Physical Dimensions:
12 x 45 x 39 cm (w/d/h)
Product Labels & Symbols
This section describes the labels
afxed to the Kyrobak and
found in the user manual. It is
recommended that users review
the meaning of these labels for
everyday usage, and in case any
details are needed for service.
The table below briey reviews
a number of the internationally
recognized symbols that are
found on the Kyrobak main Unit
and its external package.
Label Explanation
The package may be recycled.
IP21
IP21 according to IEC60529, Degrees of
Protection Provided by Enclosures (IP Code).
40° C5° C
Manufacturer's declaration for electromagnetic
compatibility (EMC) for the Kyrobak according
to EN 60601-1-2:2007
(Tables 1, 2, 4 and 6)
Table 1
Guidance and manufacturer's declaration – electromagnetic
emissions – Kyrobak
The Kyrobak is intended for use in the electromagnetic
environment specied below; The customer or the user of the
Kyrobak should assure that it is used in such an environment.
Emissions test Compliance
Electromagnetic environment
- guidance
RF emissions
CISPR 11
Group 1
The Kyrobak uses RF energy
only for its internal function.
Therefore, its RF emissions
are very low and are not likely
to cause any interference in
nearby electronic equipment.
RF emissions
CISPR 11
Class B
The Kyrobak is suitable for
use in all establishments,
including domestic
establishments and those
directly connected to the
public low-voltage power
supply network that supplies
buildings used for domestic
purposes.
Harmonic
emissions
IEC 61000-3-2
Class A
Voltage
uctuations/
icker
emissions
IEC 61000-3-3
Complies
14
Service Centers
You are allowed to perform only the servicing
listed in this User Manual.
Radiancy is responsible for the effects on
safety, reliability and performance of the
equipment only if repairs are carried out by
Radiancy authorized personnel.
Radiancy Inc.
40 Ramland Road South, Suite 200
Orangeburg, NY 10962, USA
+1 888.661.2220
+1 845.398.1647
Customer Support
888.998.4713
International Standards
Electrical Safety:
Power Supply: double insulation
This appliance is not suitable for use in the
presence of ammable anesthetic mixture
with air or with Oxygen or Nitrous Oxide. The
Quality Management System of Radiancy
Ltd. complies with the Quality Management
Standard EN ISO 13485. Kyrobak complies
with the following international standards and
directives: General Requirements for Basic
Safety and Essential Performance, 3rd Ed.:
IEC60601-1:2005/EN60601-1:2006
Electromagnetic Compatibility:
IEC 60601-1-2:2007
Electromagnetic Compatibility Kyrobak
requires special precautions regarding EMC
and needs to be installed and put into service
according to the EMC information provided in
this document.
FCC, Class B This equipment has been tested
and found to comply with the limits for a Class
B digital device pursuant to Part 15 of the
FCC Rules. This equipment generates, uses,
and can radiate radio frequency energy and, if
not installed and used in accordance with the
manufacturer’s instruction manual, may cause
interference to radio communications. These
limits are designed to provide reasonable
protection against harmful interference
in a residential installation. Notice: The
FCC regulations provide that changes or
modications not expressly approved by
Radiancy Inc. could void your authority to
operate this equipment.
Manufacturer
Radiancy Israel Ltd. 5 Hanagar Street
4527708 Hod Hasharon Israel
European Representitive
Obelis s.a. Bd. Général Wahis 53
B-1030 Brussels, Belgium
Phone: 32.2.732.59.54
Fax: 32.2.732.60.03
E-mail: mail@obelis.net
15
Table 2
Guidance and manufacturer's declaration – electromagnetic immunity – Kyrobak
The Kyrobak is intended for use in the electromagnetic environment specied below; The customer or the user of the Kyrobak should assure that it is used in such an environment.
Immunity test
IEC 60601-1-2
Test level
Compliance level Electromagnetic environment - guidance
Electrostatic discharge
(ESD)
IEC 61000-4-2
±6 kV contact
±8 kV air
±6 kV contact
±8 kV air
Floors should be wood, concrete or Ceramic tile. If oors are covered with synthetic material,
the relative humidity Should be at least 30 %.
Electrical fast transient/burst
IEC 61000-4-4
±2 kV for power supply lines
±1 kV for input/output lines
±2 kV for power supply lines
Not Applicable
Mains power quality should be that of a typical public low-voltage power supply network that
supplies buildings used for domestic purposes, commercial or hospital Environment.
Surge
IEC 61000-4-5
±1 kV differential mode
±2 kV common mode
±1 kV differential mode
±2 kV common mode
Mains power quality should be that of a typical public low-voltage power supply network that
supplies buildings used for domestic purposes, commercial or hospital Environment.
Voltage dips, short
interruptions and voltage
variations on power supply
input lines
IEC 61000-4-11
<5 %UT (>95 %dip in UT)
for 0,5 cycle
40 %UT (60 %dip in UT)
for 5 cycles <5 %UT
70 %UT (30 %dip in UT)
for 25 cycles <5 %UT
<5 %UT (>95 %dip in UT)
for 5 s
<5 %UT (>95 %dip in UT)
for 0,5 cycle
40 %UT (60 %dip in UT)
for 5 cycles <5 %UT
70 %UT (30 %dip in UT)
for 25 cycles <5 %UT
<5 %UT (>95 %dip in UT)
for 5 s
Mains power quality should be that of a typical public low-voltage power supply network that
supplies buildings used for domestic purposes, commercial or hospital Environment.
If the user of the Kyrobak requires continued operation during power mains interruptions; it is
recommended that Kyrobak be powered from an uninterruptible power Supply or a battery.
Power frequency (50/60
Hz)magnetic eld IEC
61000-4-8
3 A/m 3 A/m
Power frequency magnetic elds should be at levels characteristic of a typical public
low-voltage power supply network that supplies buildings used for domestic purposes,
commercial or hospital Environment.
NOTE: UT is the a.c. mains voltage prior to application of the test level.
Table 4
Guidance and manufacturer's declaration – electromagnetic immunity – Kyrobak
The Kyrobak is intended for use in the electromagnetic environment specied below;
The customer or the user of the Kyrobak should assure that it is used in such an environment.
Immunity test
IEC 60601-1-2
Test level
Compliance level Electromagnetic environment - guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 Vrms
150 k Hz to 80 MHz
3 V/m
80 MHz to 2,5 GHz
3 Vrms
3 V/m
Portable and mobile RF communications equipment should be used no closer to any part of the Kyrobak,
including cables, than the recommended separation distance calculated from the equation applicable to the
frequency of the transmitter.
Recommended separation distance
d = 1.17√P
d = 1.17√P 80 M Hz t o 800 MHz
d= 2.34√P 800 MHz t o 2,5 GHz
where P i s the maximum output power rating of the transmitter in watts (W)according to the transmitter
manufacturer and d is the recommended separation Distance in meters (m).
Field strengths from xed R F transmitters, as determined by an electromagnetic site survey ,a should be
less than the compliance level in each frequency range .d
Interference may occur in t he vicinity of equipment marked with the following symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations .Electromagnetic propagation is affected by absorption and reection from structures objects and people.
a
Field strengths from xed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV
broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to xed RF transmitters, an electromagnetic site survey should be
considered. If the measured eld strength in the location in which the Kyrobak is used exceeds the applicable RF compliance level above, the Kyrobak should be observed to verify
normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the Kyrobak.
b
Over the frequency range 150 kHz to 80 MHz, eld strengths should be less than 3 V/m.
16
17
Table 6
Recommended separation distances between
portable and mobile RF communications equipment and the Kyrobak
The Kyrobak is intended f or us e in an electromagnetic environment in which radiated RF disturbances are
Controlled. The customer or the user of t Kyrobak can help prevent electromagnetic interference by maintaining
a minimum distance between port able and m obi le RF communications equipment (transmitters)and the Kyrobak as recommended
below, according t o t he maximum out put power of t he communications equipment
Rated maximum
output power of
transmitter
Watts [W]
Separation distance according to frequency of transmitter
Meters [m]
150kHz to 80MHz
d = 1.17√P
80MHz to 800MHz
d = 1.17√P
800MHz to 2.5GHz
d= 2.34√P
0.01 0.12 0.12 0.24
0.1 0.37 0.37 0.74
1 1.17 1.17 2.34
10 3.7 3.7 7.4
100 11.7 11.7 23.4
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m)
can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power
rating of the transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reection from
structures, objects, and people.
For videos and tips on how to
use Kyrobak visit our website at:
www.HowToKyro.com
For further assistance
contact our customer support:
888.998.4713
LIT-00179/Rev A.01/Oct.2013
