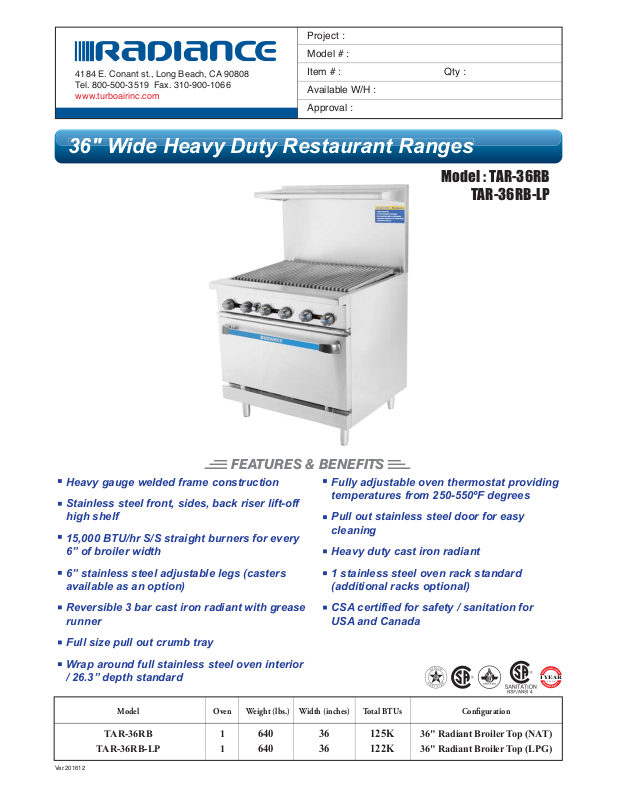

Radiance TAR36RB, TAR36RBLP Specifications
Project :
Model # :
4184 E. Conant st., Long Beach, CA 90808
Tel. 800-500-3519 Fax. 310-900-1066
www.turboairinc.com
36" Wide Heavy Duty Restaurant Ranges
"
Item # : Qty :
Available W/H :
Approval :
Model : TAR-36RB
TAR-36RB-LP
FEATURES & BENEFITS
Heavy gauge welded frame construction
Stainless steel front, sides, back riser lift-off
high shelf
15,000 BTU/hr S/S straight burners for every
6” of broiler width
6” stainless steel adjustable legs (casters
available as an option)
Reversible 3 bar cast iron radiant with grease
runner
Full size pull out crumb tray
Wrap around full stainless steel oven interior
/ 26.3” depth standard
Model Oven Weight (lbs.) Width (inches)
TAR-36RB
TAR-36RB-LP 1
1
640 36 125K
640 36 122K
Fully adjustable oven thermostat providing
temperatures from 250-550ºF degrees
Pull out stainless steel door for easy
cleaning
Heavy duty cast iron radiant
1 stainless steel oven rack standard
(additional racks optional)
CSA certified for safety / sanitation for
USA and Canada
1 YEAR
(
U.S.A only
Total BTUs Configuration
36" Radiant Broiler Top (NAT)
36" Radiant Broiler Top (LPG)
)
Ver.201612
36" Wide Heavy Duty Restaurant Ranges
"
Model : TAR-36RB
DATA
Gas Type
Gas Connection
Regulator
Gas Pressure
BTU
TAR-36RB
NAT
3/4”
3/4”
5 W.C”
125,000
DIMENSIONAL DATA
Ext. Length Overall (inch)
Ext. Depth Overall (inch)
Ext. Height Overall (inch)
OVEN DIMENSION
Number of Oven
Length
(inch)
Depth (inch)
Height (inch)
Weight (lbs.)
DATA
Gas Type
Gas Connection
Regulator
Gas Pressure
BTU
(Interior)
36 (914mm)
317/8 (810mm) + manifold
1/2 (1436mm)
56
1
263/8 (670mm)
26
1/4 (669mm)
5/8 (345mm)
13
640
TAR-36RB-LP
LPG
3/4”
3/4”
10 W.C”
122,000
DIMENSIONAL DATA
Ext. Length Overall (inch)
Ext. Depth Overall (inch)
Ext. Height Overall (inch)
OVEN DIMENSION
Number of Oven
Length
(inch)
Depth (inch)
Height (inch)
Weight (lbs.)
Design and specifications subject to change without notice.
Actual shipping weight may differ due to extra packing materials for product protection.
(Interior)
36 (914mm)
317/8 (810mm) + manifold
1/2 (1436mm)
56
1
263/8 (670mm)
26
1/4 (669mm)
5/8 (345mm)
13
640
PLAN VIEW
317/8 (809mm)
36 (914mm)
TOP VIEW
18
(457mm)
17/8 (46mm)
137/8
(352mm)
(unit : inch)
271/8 (690mm)
45/8
(119mm)
561/2 (1436mm)
WARRANTY : 1 Year Labor and Parts Warranty
OPTIONAL ACCESSORIES
Casters (Set of 4)
Stainless steel oven racks
1 YEAR
(
U.S.A only
:
)
Ver.201601
297/8 (758mm)
6
(151mm)
21/4
(58mm)
227/8 (582mm)
SIDE VIEW
Turbo Air : 800-627-0032
Warranty : 800-381-7770
291/8 (741mm)
21/4
(58mm)
GK : 800-500-3519
AC : 888-900-1002
