Radial Engineering Mix Blender User's Guide

MIXER AND EFFECTS LOOP

User Guide

Radial Engineering Ltd.
1588 Kebet Way, Port Coquitlam BC V3C 5M5

Tel: [phone] • Fax: [phone] • Email: [e-mail]

MIX-BLENDER™ MIXER AND EFFECTS LOOP USER GUIDE

Introduction ...................................................................................... 1

Features .......................................................................................... 2

Overview.......................................................................................... 3

Making Connections ........................................................................ 4

Using the Mix Section ................................................................... 4-5

Using the Effects Loop .................................................................... 6

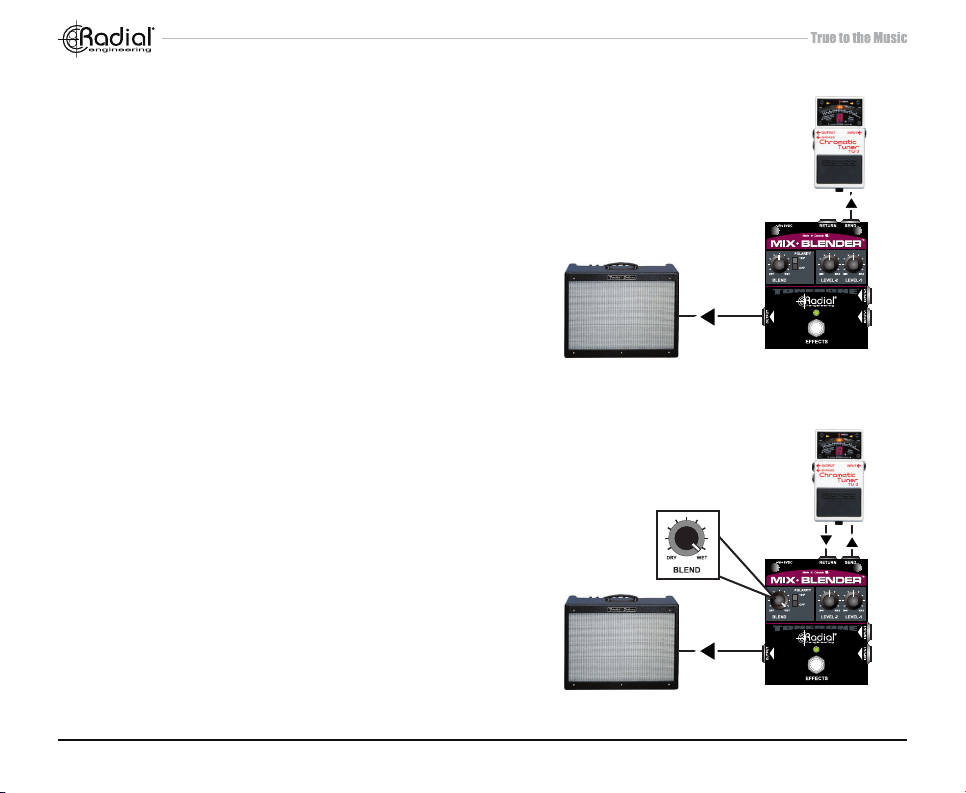

Using a Tuner .................................................................................. 7

Using a Third Guitar ........................................................................ 8

Using the Polarity Reverse Switch .................................................. 9

Speci cations ................................................................................ 10

Warranty ......................................................................... Back Cover

Thank you for purchasing the Tonebone Mix-Blender™, one of the most exciting new devices ever conceived for your
pedalboard.

Although the Mix-Blender is super easy to use, please take a few moments to read through the manual in order to familiarize
yourself with the features and functions. This will not only enhance your musical experience, but also help you better

understand the problems and  xes that are built in.

If you  nd yourself asking questions that are not covered herein, please visit the Mix-Blender FAQ page on our website.
This is where we post questions and answer from users along with updates. If you still  nd yourself asking questions, feel

free to send us an email at [e-mail] and we will do our best to reply in short order.

Now get ready to squeeze your creative juices like a space-aged Osterizer!

Radial Engineering Ltd. Mix-Blender™ User Guide

1

FEATURES

1. 9VDC POWER: Connection for 9 volt power adapter (not
included). Includes a cable clamp to prevent accidental
power disconnection.

2. RETURN: ¼” jack brings the effects pedal chain back
into the Mix-Blender.

3. SEND: ¼” jack is used to feed the effects pedal chain or
a tuner.

4. LEVEL 1 & 2: Used to adjust the relative levels between
the two instruments.

5. INPUT 1 & 2: Standard ¼” guitar inputs for two
instruments or effects.

6. EFFECTS: Heavy-duty footswitch activates the Mix-
Blender’s effects loop.

7. OUTPUT: Standard ¼” guitar level output use to feed a
stage amp or other pedals.

8. BLEND: Wet-Dry blend control lets you blend in as much
of the effects as you like into the signal path.

9. POLARITY: Toggles the effects SEND relative phase by
180º to compensate for pedals that may be out of phase
with the dry signal path.

1 2 3

10

9

8

7

+

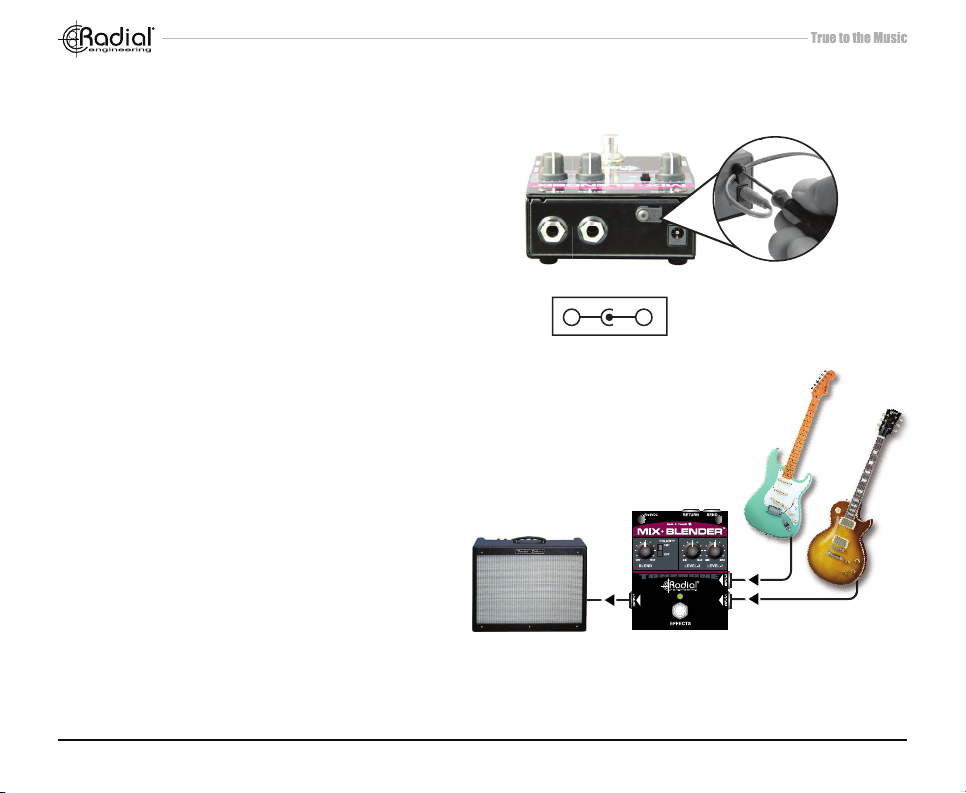

The Mix-Blender requires a 9 volt

power supply with a negative center.

-

4

5

6

10. STEEL ENCLOSURE: Heavy-duty 14-gauge steel
enclosure.

Radial Engineering Ltd. Mix-Blender™ User Guide

2

OVERVIEW

The Mix-Blender™ is in fact two pedals in one. On one hand it is a mini 2 X 1 mixer, on the other, it is an effects loop
manager. Following the block diagram below, two of Radial’s award wining Class-A buffers drive the inputs which are
then summed together to create the relative mix. The signal is then routed to the footswitch where it can feed your amp
or – when engaged – can activate the effects loop.

The Mixer

1

The Mix-Blender’s MIX section lets you combine any two instrument level sources together and set their relative volume
levels. You could for instance have a Gibson Les Paul™ with powerful humbuckers connected to input-1 and then a Fender
Stratocaster™ with lower output single coil pickups connected to input-2. By setting the levels for each, you can switch

between instruments without having to readjust the level on your amp.

2

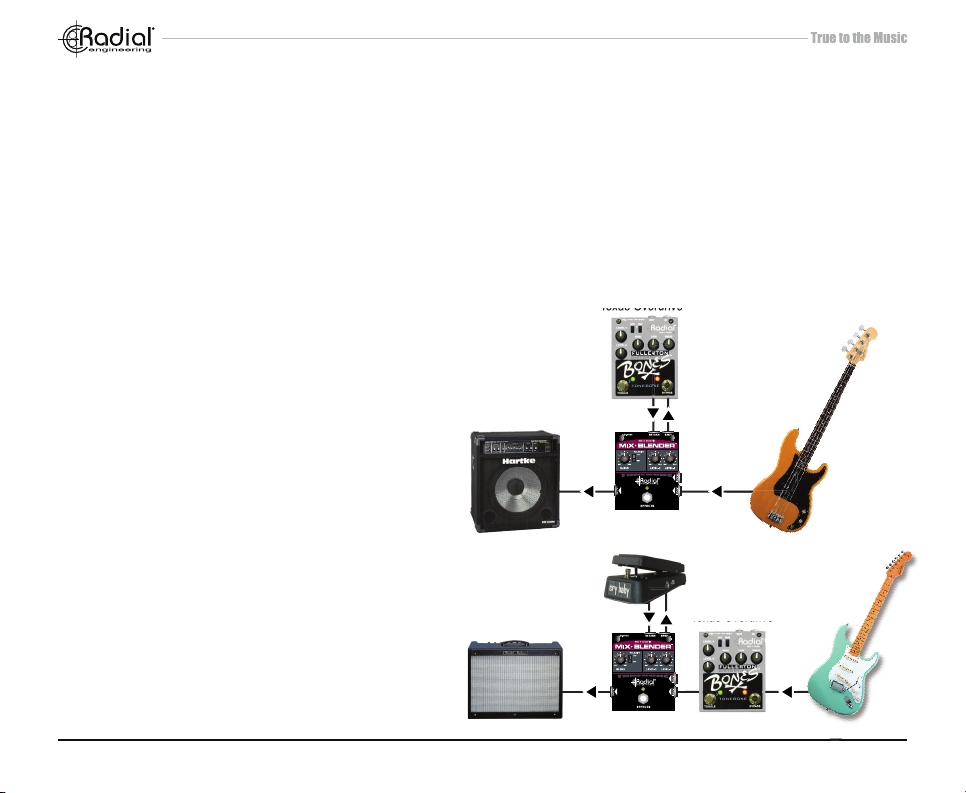

The Effects Loop

A typical effects loop either turns on or off the effects pedal chain that is connected. In this case, the BLEND section lets
you blend in the desired amount of the ‘wet’ effect into the signal path without affecting the original ‘dry’ signal. This lets

you retain the original tone of your bass or clean electric guitar and mix in – for example - a touch of distortion or anging

to your sound while retaining the fundamental tone.

Level-1

1

Blend

Input-1

1

2

Buffer

Summer Mix

Level-2

Effects
In / Out

Output

Input-2

Buffer

Radial Engineering Ltd. Mix-Blender™ User Guide

Polarity

180º

0º

Send Return

Buffer

3
